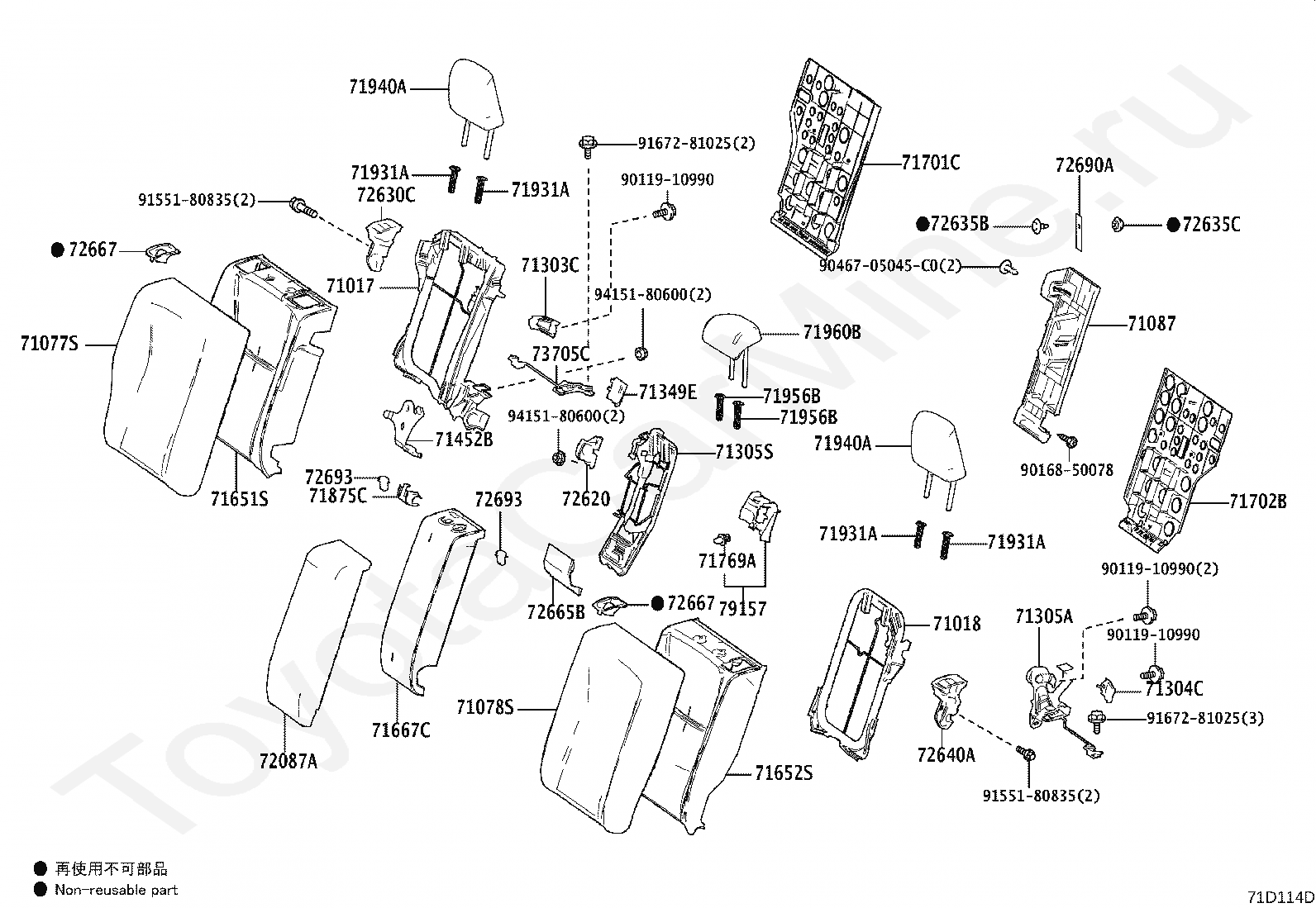

Задние кресла TOYOTA YARIS CROSS, 2020/08 - 2025, 1500CC 12-VALVE DOHC, Z TYPE, MXPB15, вариатор

Каталог

Япония

Модель

YARIS CROSS

Двигатель

1500CC 12-VALVE DOHC

Класс

Z TYPE

Фрейм

MXPB15

Трансмиссия

вариатор

Опции

5 дверей 751W

Двигатель

Подвеска

Кузов

Электрика

  • 1
  • 2
  • 3
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

71303C

HINGE SUB-ASSY, REAR SEAT BACK, RH

71304C

HINGE SUB-ASSY, REAR SEAT BACK, LH

71305A

HINGE SUB-ASSY, REAR SEAT BACK, CENTER

71603D

PAD SUB-ASSY, REAR SEAT BACK W/COVER, RH

71604D

PAD SUB-ASSY, REAR SEAT BACK W/COVER, LH

71701C

BOARD SUB-ASSY, REAR SEAT BACK, RH

71702B

BOARD SUB-ASSY, REAR SEAT BACK, LH

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71956B

SUPPORT, REAR SEAT HEADREST

71960B

HEADREST ASSY, REAR SEAT, CENTER

72630C

LOCK ASSY, REAR SEAT BACK, RH

72640A

LOCK ASSY, REAR SEAT BACK, LH

72667

BEZEL, REAR SEAT BACK LOCK, UPPER

73705C

BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR

9011910990

Крепеж

9155180835

Крепеж

9167281025

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71087

BOARD SUB-ASSY, REAR SEAT BACK

71303C

HINGE SUB-ASSY, REAR SEAT BACK, RH

71304C

HINGE SUB-ASSY, REAR SEAT BACK, LH

71305A

HINGE SUB-ASSY, REAR SEAT BACK, CENTER

71305S

FRAME SUB-ASSY, CENTER SEAT BACK

71349E

COVER, REAR SEAT BACK HINGE

71452B

BRACKET, REAR SEAT BACK

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71667C

PAD, REAR NO.1 SEAT BACK, CENTER

71701C

BOARD SUB-ASSY, REAR SEAT BACK, RH

71702B

BOARD SUB-ASSY, REAR SEAT BACK, LH

71769A

CLIP, REAR SEAT BACK BOARD

71875C

COVER, RECLINING ADJUSTER INSIDE, RH

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71956B

SUPPORT, REAR SEAT HEADREST

71960B

HEADREST ASSY, REAR SEAT, CENTER

72087A

COVER SUB-ASSY, REAR SEAT CENTER ARMREST

72620

LOCK ASSY, REAR SEAT BACK

72630C

LOCK ASSY, REAR SEAT BACK, RH

72635B

HOOK, REAR SEAT BACK LOCK(MALE)

72635C

HOOK, REAR SEAT BACK LOCK(FEMALE)

72640A

LOCK ASSY, REAR SEAT BACK, LH

72665B

COVER, REAR SEAT BACK LOCK

72667

BEZEL, REAR SEAT BACK LOCK, UPPER

72690A

STRAP ASSY, REAR SEAT LOCK RELEASE

72693

HOOK, REAR SEAT CUSHION LOCK

73705C

BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR

79157

COVER, NO.1 SEAT BACK

9011910990

Крепеж

9016850078

Крепеж

9046705045C0

Крепеж

9155180835

Крепеж

9167281025

Крепеж

9415180600

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

71033

LEG SUB-ASSY, REAR SEAT CUSHION

71075B

COVER, REAR SEAT CUSHION (FOR BENCH TYPE)

71403

LEG SUB-ASSY, REAR NO.1 SEAT

71503A

PAD SUB-ASSY, REAR SEAT CUSHION

71601A

PAD SUB-ASSY, REAR SEAT CUSHION W/COVER

71611

PAD, REAR SEAT CUSHION

72693

HOOK, REAR SEAT CUSHION LOCK

72927B

COVER, REAR SEAT CUSHION UNDER

9011908A87

Крепеж
