Передние кресла TOYOTA YARIS CROSS, 2020/08 - 2025, 1500CC 12-VALVE DOHC, Z TYPE, MXPB15, вариатор

Каталог

Япония

Модель

YARIS CROSS

Двигатель

1500CC 12-VALVE DOHC

Класс

Z TYPE

Фрейм

MXPB15

Трансмиссия

вариатор

Опции

5 дверей 751W

Код

Описание

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71502A

PAD SUB-ASSY, FRONT SEAT CUSHION, LH

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71910A

HEADREST ASSY, FRONT SEAT

71930A

SUPPORT ASSY, FRONT SEAT HEADREST

82667D

HOLDER, CONNECTOR

87510K

HEATER ASSY, FRONT SEAT CUSHION, RH

87510L

HEATER ASSY, FRONT SEAT CUSHION, LH

87510M

HEATER ASSY, FRONT SEAT BACK, RH

87510N

HEATER ASSY, FRONT SEAT BACK, LH

Код

Описание

71502A

PAD SUB-ASSY, FRONT SEAT CUSHION, LH

71518B

PAD, FRONT SEAT CUSHION W/COVER, RH

71528

PAD, FRONT SEAT CUSHION W/COVER, LH

71558B

PAD, FRONT SEAT BACK W/COVER, RH

71568A

PAD, FRONT SEAT BACK W/COVER, LH

Код

Описание

71013S

FRAME SUB-ASSY, FRONT SEAT BACK, RH

7104

переход к группе запчастей

71051A

SPRING SUB-ASSY, FRONT SEAT CUSHION, RH

71053S

SPRING SUB-ASSY, FRONT SEAT BACK, RH

7114152020

Крепеж

71587

PROTECTOR, FRONT SEAT BACK EDGE

71759B

HOOK, FRONT SEAT BACK

71811D

SHIELD, FRONT SEAT CUSHION, RH

7181A

HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71873U

SHIELD, FRONT SEAT CUSHION, LOWER RH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

72010

ADJUSTER ASSY, FRONT SEAT, RH

72123A

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72125U

COVER, SEAT TRACK, UPPER REAR RH

72127A

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72136

SPACER, SEAT TRACK, LOWER NO.1

72137

COVER, SEAT TRACK, OUTER RH

72157A

COVER, SEAT TRACK BRACKET, INNER RH

72265

COVER, SEAT TRACK UPPER RAIL, RH

72553B

PROTECTOR, RECLINING COVER, RH

72713

BRACKET, SEAT ADJUSTER SHIELD CLAMP, RH

73910A

AIR BAG ASSY, FRONT SEAT, RH

8202

переход к группе запчастей

84921E

KNOB, POWER SEAT SWITCH

84921F

KNOB, POWER SEAT SWITCH

84921G

KNOB, POWER SEAT SWITCH

9011910601

Крепеж

9356054012

Крепеж

9418560600

Крепеж

Код

Описание

71013S

FRAME SUB-ASSY, FRONT SEAT BACK, RH

7104

переход к группе запчастей

71051A

SPRING SUB-ASSY, FRONT SEAT CUSHION, RH

71053S

SPRING SUB-ASSY, FRONT SEAT BACK, RH

71537C

PROTECTOR, FRONT SEAT CUSHION EDGE, RH

71587

PROTECTOR, FRONT SEAT BACK EDGE

71759B

HOOK, FRONT SEAT BACK

71811D

SHIELD, FRONT SEAT CUSHION, RH

7181A

HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH

71848A

CAP, SEAT ADJUSTER COVER, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71873U

SHIELD, FRONT SEAT CUSHION, LOWER RH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

72010

ADJUSTER ASSY, FRONT SEAT, RH

72123A

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72125U

COVER, SEAT TRACK, UPPER REAR RH

72127A

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72137

COVER, SEAT TRACK, OUTER RH

72139B

SPRING, SEAT TRACK MEMORY

72157A

COVER, SEAT TRACK BRACKET, INNER RH

72210N

CABLE ASSY, SEAT TRACK CONTROL

72211C

HANDLE, SEAT TRACK ADJUSTING

72219

COVER, ADJUSTER SPRING HOOK

72241A

LEVER, SEAT TRACK LOCK

72265

COVER, SEAT TRACK UPPER RAIL, RH

72265E

COVER, SEAT TRACK UPPER RAIL, RH

72303A

LEVER SUB-ASSY, SEAT TRACK LOCK, RH

72494

HANDLE, VERTICAL ADJUSTING, RH

72497B

COVER, VERTICAL ADJUSTER BRACKET, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72551

COVER, RECLINING HINGE, NO.1

73910A

AIR BAG ASSY, FRONT SEAT, RH

8202

переход к группе запчастей

9011910601

Крепеж

9014810007

Крепеж

9155180612

Крепеж

9356054012

Крепеж

9418560600

Крепеж

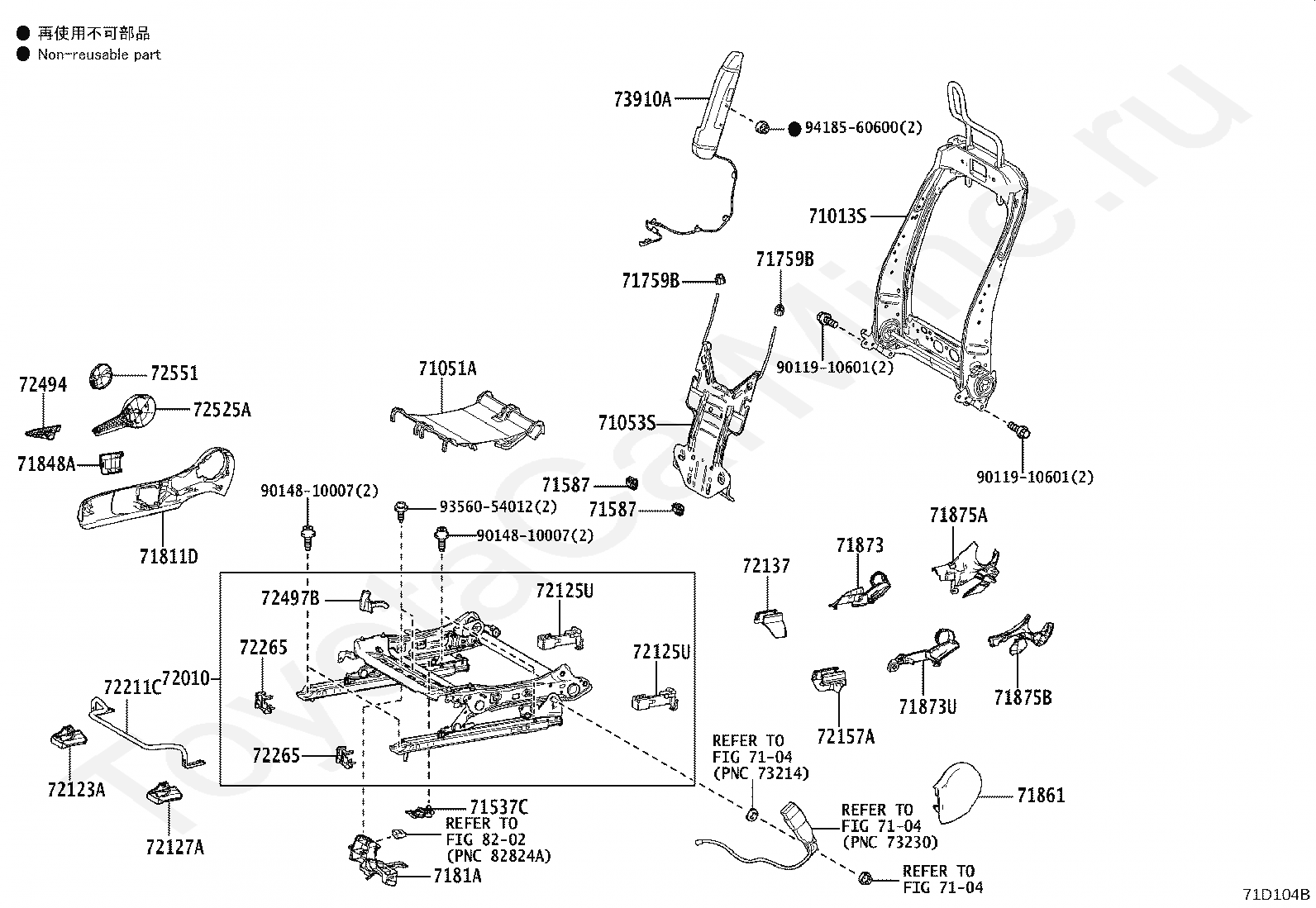

Код

Описание

71013S

FRAME SUB-ASSY, FRONT SEAT BACK, RH

7104

переход к группе запчастей

71051A

SPRING SUB-ASSY, FRONT SEAT CUSHION, RH

71053S

SPRING SUB-ASSY, FRONT SEAT BACK, RH

71537C

PROTECTOR, FRONT SEAT CUSHION EDGE, RH

71587

PROTECTOR, FRONT SEAT BACK EDGE

71759B

HOOK, FRONT SEAT BACK

71811D

SHIELD, FRONT SEAT CUSHION, RH

7181A

HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH

71848A

CAP, SEAT ADJUSTER COVER, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71873U

SHIELD, FRONT SEAT CUSHION, LOWER RH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

72010

ADJUSTER ASSY, FRONT SEAT, RH

72123A

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72125U

COVER, SEAT TRACK, UPPER REAR RH

72127A

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72137

COVER, SEAT TRACK, OUTER RH

72157A

COVER, SEAT TRACK BRACKET, INNER RH

72211C

HANDLE, SEAT TRACK ADJUSTING

72265

COVER, SEAT TRACK UPPER RAIL, RH

72494

HANDLE, VERTICAL ADJUSTING, RH

72497B

COVER, VERTICAL ADJUSTER BRACKET, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72551

COVER, RECLINING HINGE, NO.1

73910A

AIR BAG ASSY, FRONT SEAT, RH

8202

переход к группе запчастей

9011910601

Крепеж

9014810007

Крепеж

9356054012

Крепеж

9418560600

Крепеж

Код

Описание

71013S

FRAME SUB-ASSY, FRONT SEAT BACK, RH

7104

переход к группе запчастей

71053S

SPRING SUB-ASSY, FRONT SEAT BACK, RH

71139C

COVER, FRONT SEAT LEG, RH

71139R

CLIP, FRONT SEAT LEG COVER, RH

71148T

COVER, FRONT SEAT LEG, OUTER NO.1(FOR RH SEAT)

71148V

COVER, FRONT SEAT LEG, OUTER NO.2(FOR RH SEAT)

71587

PROTECTOR, FRONT SEAT BACK EDGE

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71731C

FASTENER, SEAT COVER, RH

71731P

FASTENER, SEAT COVER, RH

71759B

HOOK, FRONT SEAT BACK

71811D

SHIELD, FRONT SEAT CUSHION, RH

71831B

COVER, FRONT SEAT HINGE, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71867V

SHIELD, FRONT SEAT CUSHION, FRONT RH

71875F

COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)

71876F

COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)

71A49C

COVER, FRONT SEAT LEG, INNER NO.1(FOR RH SEAT)

71A49E

COVER, FRONT SEAT LEG, INNER NO.2(FOR RH SEAT)

72010

ADJUSTER ASSY, FRONT SEAT, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72551

COVER, RECLINING HINGE, NO.1

73910A

AIR BAG ASSY, FRONT SEAT, RH

7403

переход к группе запчастей

74656N

COVER, HAND RAIL BAR, RH

74865F

COVER, CENTER PROTECTOR, RH

76681A

COVER, OUTSIDE MOULDING END, NO.1 RH

79977A

FELT, SEAT BACK

79977G

FELT, FRONT SEAT BACK, RH

8202

переход к группе запчастей

82H17

PROTECTOR, WIRING HARNESS, RH

9010512398

Крепеж

9010906322

Крепеж

9011910601

Крепеж

9046705063C4

Крепеж

9046707117

Крепеж

9046708186C0

Крепеж

9046709232

Крепеж

9155180820

Крепеж

9418560600

Крепеж

C7031

SWIVEL SUB-ASSY, FRONT SEAT, RH

C7265

HANDLE, SEAT TURN LOCK, RH

Код

Описание

51980C

HOOK ASSY, PINTLE, RH

71131B

PLATE, FRONT SEAT CUSHION, NO.1

71739C

CUSHION, SEAT SUPPORT, RH NO.1

71739D

CUSHION, SEAT SUPPORT, RH NO.2

71739E

CUSHION, SEAT SUPPORT, RH NO.3

72011F

HINGE SUB-ASSY, FRONT SEAT, RH

72404D

LINK SUB-ASSY, FRONT SEAT ADJUSTER, RH NO.2

72478B

BUSH, VERTICAL ADJUSTER, RH

72939

HOOK, SEAT TURN LOCK, RH

73847A

CUSHION, SEAT SUSPENSION STOPPER, RH

79408D

HOOK SUB-ASSY, NO.4 SEAT, INNER RH

79408E

HOOK SUB-ASSY, NO.4 SEAT, OUTER RH

9010508372

Крепеж

9010908137

Крепеж

9048019008

Крепеж

9054106037

Крепеж

9155180814

Крепеж

9415180800

Крепеж

C7015B

PANEL SUB-ASSY, TURN TABLE, RH

C7027D

LOCK SUB-ASSY, WELCAB SEAT TURN, RH

C7269E

CABLE, SEAT TURN LOCK RELEASE, RH NO.1

Код

Описание

71148X

COVER, FRONT SEAT LEG, OUTER RH

71148Z

CLIP, FRONT SEAT LEG COVER, RH

71301E

LINK SUB-ASSY, REAR SEAT CUSHION, RH

71361D

BRACKET, FRONT SEAT SET, NO.1 FRONT OUTER(FOR RH SEAT)

71361F

BRACKET, FRONT SEAT SET, NO.1 REAR OUTER(FOR RH SEAT)

71362A

BRACKET, FRONT SEAT SET, NO.2 REAR INNER(FOR RH SEAT)

71739F

CUSHION, SEAT SUPPORT, RH NO.4

71739G

CUSHION, SEAT SUPPORT, RH NO.5

72094C

LOCK SUB-ASSY, FRONT SEAT TURN, RH

72123A

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72127A

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72137

COVER, SEAT TRACK, OUTER RH

72157A

COVER, SEAT TRACK BRACKET, INNER RH

72201A

HANDLE SUB-ASSY, SEAT TRACK RH

72250G

LOCK ASSY, FRONT SEAT, RH

72404B

LINK SUB-ASSY, FRONT SEAT ADJUSTER, RH NO.1

72478B

BUSH, VERTICAL ADJUSTER, RH

73162B

BRACKET, BELT ANCHOR BAR, REAR RH

82711F

CLAMP, WIRING HARNESS

9014810007

Крепеж

9046400620

Крепеж

9155180814

Крепеж

9415180800

Крепеж

C7106

ROLLER SUB-ASSY, SLIDE TABLE, RH

C7160D

PANEL ASSY, SLIDE TABLE, RH

C7207

BRACKET SUB-ASSY, INTERLOCK, LOWER RH NO.1

C7230H

TRACK ASSY, WELCAB SEAT, RH(FOR RH SEAT)

C7230J

TRACK ASSY, WELCAB SEAT, LH(FOR RH SEAT)

C7269G

CABLE, SEAT TURN LOCK RELEASE, RH NO.2

C7985C

GUARD, REAR SEAT TURN, RH

Код

Описание

71014S

FRAME SUB-ASSY, FRONT SEAT BACK, LH

7104

переход к группе запчастей

71052A

SPRING SUB-ASSY, FRONT SEAT CUSHION, LH

71054S

SPRING SUB-ASSY, FRONT SEAT BACK, LH

71537D

PROTECTOR, FRONT SEAT CUSHION EDGE, LH

71587

PROTECTOR, FRONT SEAT BACK EDGE

71753

TRAY, FRONT SEAT UNDER

71759B

HOOK, FRONT SEAT BACK

71812D

SHIELD, FRONT SEAT CUSHION, LH

7181B

HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

71876A

COVER, RECLINING ADJUSTER INSIDE, LH

72020

ADJUSTER ASSY, FRONT SEAT, LH

72124

COVER, SEAT TRACK BRACKET, OUTER FRONT LH

72125V

COVER, SEAT TRACK, UPPER REAR LH

72128A

COVER, SEAT TRACK BRACKET, INNER FRONT LH

72138

COVER, SEAT TRACK, OUTER LH

72158

COVER, SEAT TRACK BRACKET, INNER LH

72211C

HANDLE, SEAT TRACK ADJUSTING

72266

COVER, SEAT TRACK UPPER RAIL, LH

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

72551

COVER, RECLINING HINGE, NO.1

72925

COVER, FRONT SEAT CUSHION

73508A

RAIL SUB-ASSY, FRONT SEAT UNDER TRAY, NO.2

73920A

AIR BAG ASSY, FRONT SEAT, LH

8202

переход к группе запчастей

9011910601

Крепеж

9014810007

Крепеж

9016740044

Крепеж

9356054012

Крепеж

9418560600

Крепеж

Код

Описание

71014S

FRAME SUB-ASSY, FRONT SEAT BACK, LH

7104

переход к группе запчастей

71052A

SPRING SUB-ASSY, FRONT SEAT CUSHION, LH

71054S

SPRING SUB-ASSY, FRONT SEAT BACK, LH

71537D

PROTECTOR, FRONT SEAT CUSHION EDGE, LH

71587

PROTECTOR, FRONT SEAT BACK EDGE

71759B

HOOK, FRONT SEAT BACK

71812D

SHIELD, FRONT SEAT CUSHION, LH

7181B

HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

71876A

COVER, RECLINING ADJUSTER INSIDE, LH

72020

ADJUSTER ASSY, FRONT SEAT, LH

72124

COVER, SEAT TRACK BRACKET, OUTER FRONT LH

72125V

COVER, SEAT TRACK, UPPER REAR LH

72128A

COVER, SEAT TRACK BRACKET, INNER FRONT LH

72138

COVER, SEAT TRACK, OUTER LH

72158

COVER, SEAT TRACK BRACKET, INNER LH

72211C

HANDLE, SEAT TRACK ADJUSTING

72266

COVER, SEAT TRACK UPPER RAIL, LH

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

72551

COVER, RECLINING HINGE, NO.1

73920A

AIR BAG ASSY, FRONT SEAT, LH

8202

переход к группе запчастей

9011910601

Крепеж

9014810007

Крепеж

9356054012

Крепеж

9418560600

Крепеж

Передние кресла TOYOTA YARIS CROSS, 2020/08 - 2025, 1500CC 12-VALVE DOHC, Z TYPE, MXPB15, вариатор

Товар добавлен в корзину!

Заполните форму
