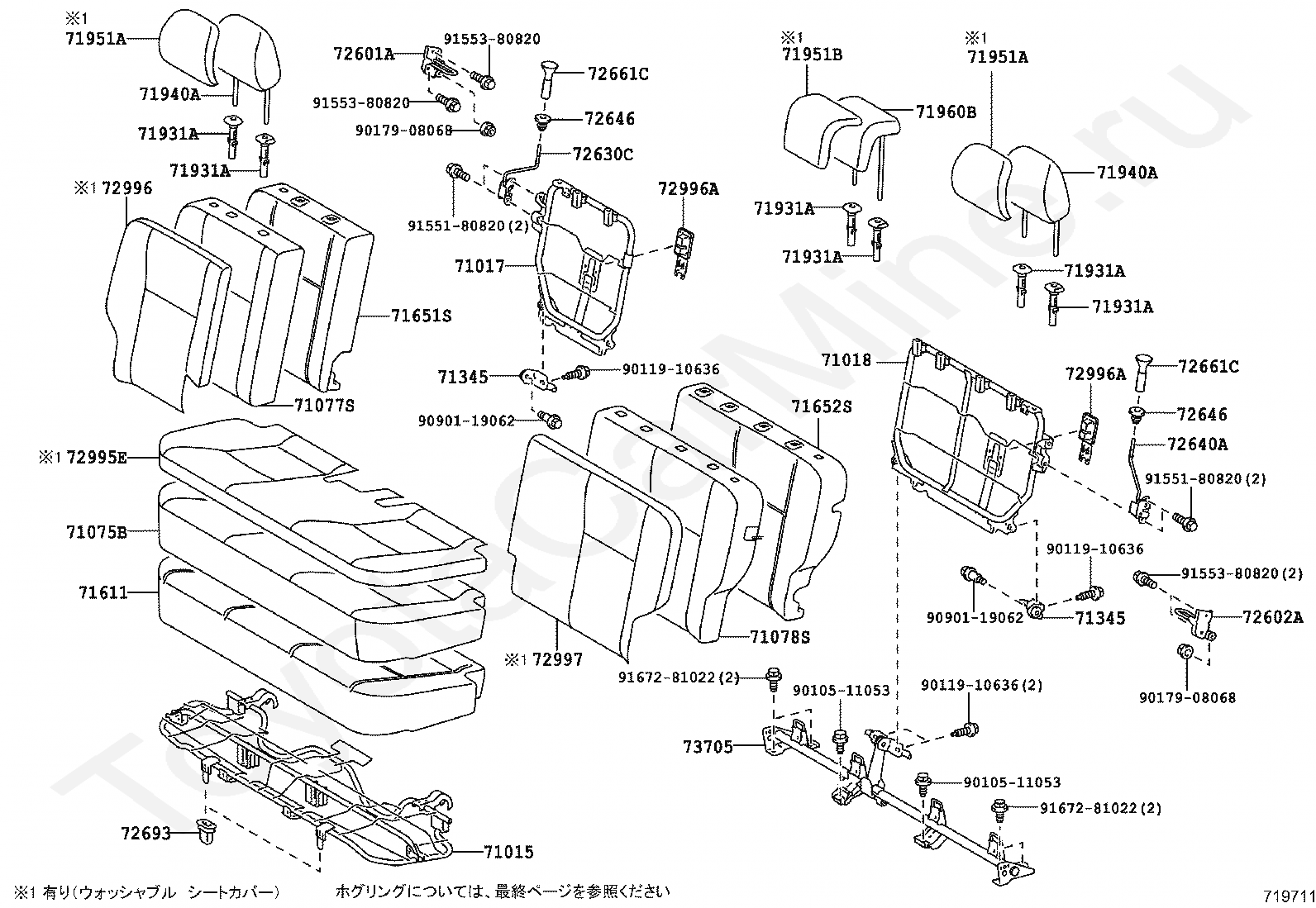

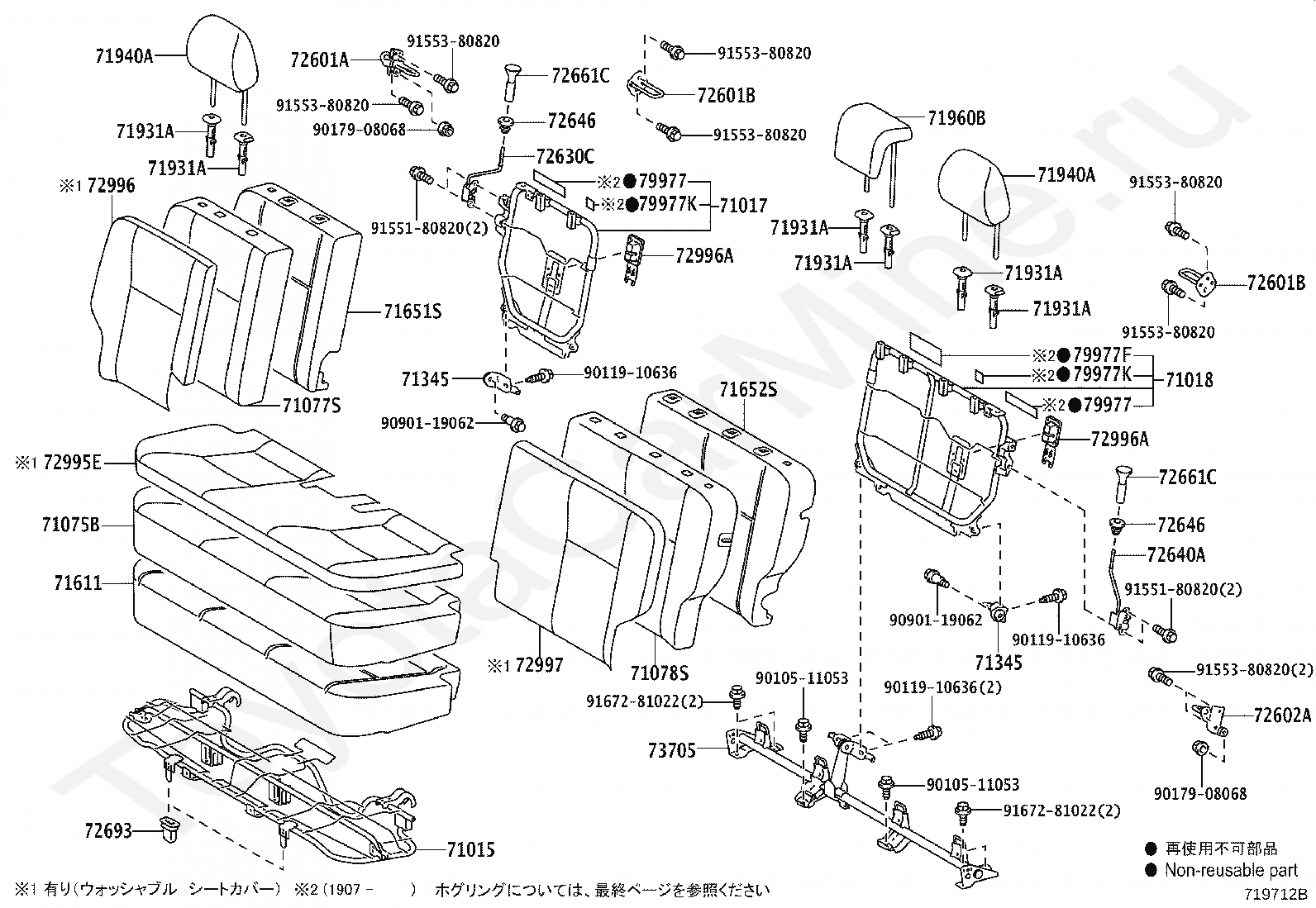

Задние кресла TOYOTA PORTE/SPADE, 2015/07 - 2020/12, 1,5 литра, 16 клапанов DOHC, EFI, 3900CC:F TYPE, NCP145, вариатор

Каталог

Япония

Модель

PORTE/SPADE

Двигатель

1,5 литра, 16 клапанов DOHC, EFI

Класс

3900CC:F TYPE

Фрейм

NCP145

Трансмиссия

вариатор

Опции

SPADE HIGH EFFICIENCY TWIN CAM COMPLETED VEHICLE 654W

Код

Описание

71015

FRAME SUB-ASSY, REAR SEAT CUSHION

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

71075B

COVER, REAR SEAT CUSHION (FOR BENCH TYPE)

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71345

HINGE, REAR SEAT BACK

71611

PAD, REAR SEAT CUSHION

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71951A

COVER, REAR SEAT HEADREST

71951B

COVER, REAR SEAT HEADREST, CENTER

71960B

HEADREST ASSY, REAR SEAT, CENTER

72601A

STRIKER SUB-ASSY, REAR SEAT BACK LOOK, RH

72602A

STRIKER SUB-ASSY, REAR SEAT BACK LOCK, LH

72630C

LOCK ASSY, REAR SEAT BACK, RH

72640A

LOCK ASSY, REAR SEAT BACK, LH

72646

GROMMET, REAR SEAT BACK STOP BUTTON

72661C

BUTTON, REAR SEAT BACK LOCK RELEASE

72693

HOOK, REAR SEAT CUSHION LOCK

72995E

COVER, REAR SEAT CUSHION

72996

COVER, REAR SEAT BACK, RH

72996A

COVER, REAR SEAT BACK

72997

COVER, REAR SEAT BACK, LH

73705

BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH

9010511053

Крепеж

9011910636

Крепеж

9017908068

Крепеж

9090119062

Крепеж

9155180820

Крепеж

9155380820

Крепеж

9167281022

Крепеж

Код

Описание

71015

FRAME SUB-ASSY, REAR SEAT CUSHION

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

71075B

COVER, REAR SEAT CUSHION (FOR BENCH TYPE)

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71345

HINGE, REAR SEAT BACK

71611

PAD, REAR SEAT CUSHION

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71951A

COVER, REAR SEAT HEADREST

71951B

COVER, REAR SEAT HEADREST, CENTER

71960B

HEADREST ASSY, REAR SEAT, CENTER

72601A

STRIKER SUB-ASSY, REAR SEAT BACK LOOK, RH

72602A

STRIKER SUB-ASSY, REAR SEAT BACK LOCK, LH

72630C

LOCK ASSY, REAR SEAT BACK, RH

72640A

LOCK ASSY, REAR SEAT BACK, LH

72646

GROMMET, REAR SEAT BACK STOP BUTTON

72661C

BUTTON, REAR SEAT BACK LOCK RELEASE

72693

HOOK, REAR SEAT CUSHION LOCK

72995E

COVER, REAR SEAT CUSHION

72996

COVER, REAR SEAT BACK, RH

72996A

COVER, REAR SEAT BACK

72997

COVER, REAR SEAT BACK, LH

73705

BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH

9010511053

Крепеж

9011910636

Крепеж

9017908068

Крепеж

9090119062

Крепеж

9155180820

Крепеж

9155380820

Крепеж

9167281022

Крепеж

Код

Описание

71015

FRAME SUB-ASSY, REAR SEAT CUSHION

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

71075B

COVER, REAR SEAT CUSHION (FOR BENCH TYPE)

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71345

HINGE, REAR SEAT BACK

71611

PAD, REAR SEAT CUSHION

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71960B

HEADREST ASSY, REAR SEAT, CENTER

72601A

STRIKER SUB-ASSY, REAR SEAT BACK LOOK, RH

72601B

STRIKER SUB-ASSY, REAR SEAT BACK LOCK

72602A

STRIKER SUB-ASSY, REAR SEAT BACK LOCK, LH

72630C

LOCK ASSY, REAR SEAT BACK, RH

72640A

LOCK ASSY, REAR SEAT BACK, LH

72646

GROMMET, REAR SEAT BACK STOP BUTTON

72661C

BUTTON, REAR SEAT BACK LOCK RELEASE

72693

HOOK, REAR SEAT CUSHION LOCK

72995E

COVER, REAR SEAT CUSHION

72996

COVER, REAR SEAT BACK, RH

72996A

COVER, REAR SEAT BACK

72997

COVER, REAR SEAT BACK, LH

73705

BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH

79977

FELT, SEAT BACK

79977F

FELT, SEAT BACK, LH

79977K

FELT, SEAT BACK, NO.2

9010511053

Крепеж

9011910636

Крепеж

9017908068

Крепеж

9090119062

Крепеж

9155180820

Крепеж

9155380820

Крепеж

9167281022

Крепеж

Код

Описание

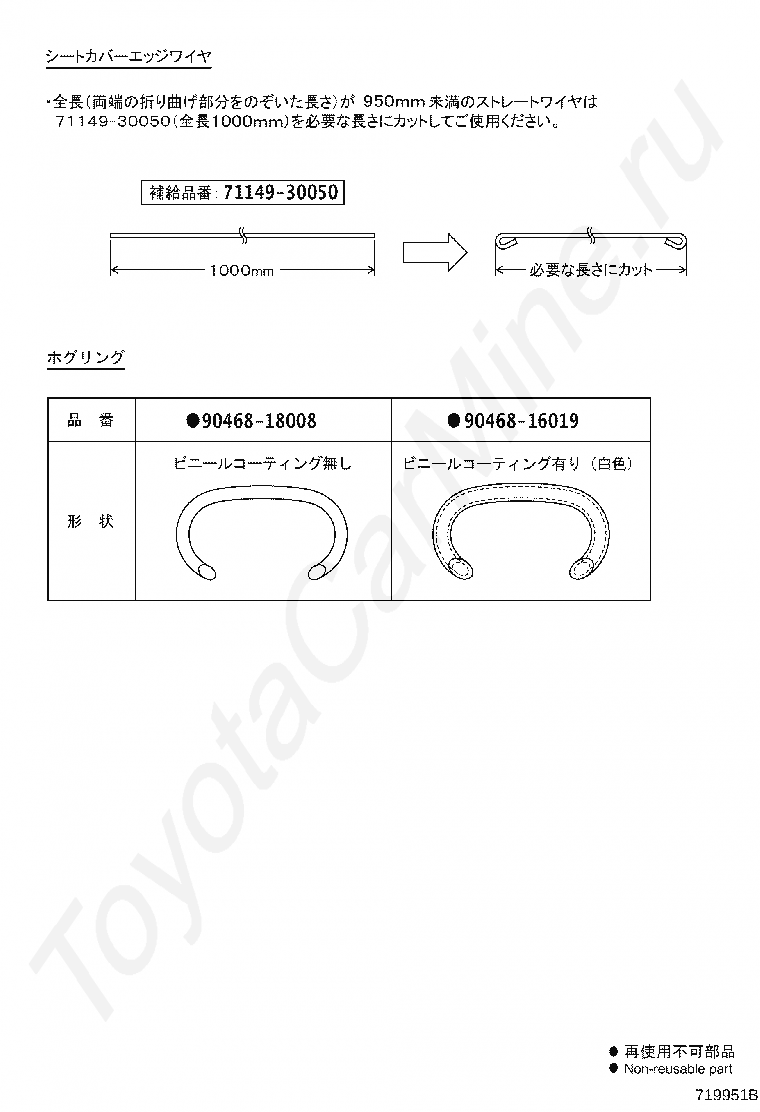

7114930050

Крепеж

9046816019

Крепеж

9046818008

Крепеж

Задние кресла TOYOTA PORTE/SPADE, 2015/07 - 2020/12, 1,5 литра, 16 клапанов DOHC, EFI, 3900CC:F TYPE, NCP145, вариатор
