Передние кресла Тойота для PORTE/SPADE, 2015/07 - 2020/12, 1,5 литра, 16 клапанов DOHC, EFI, 3900CC:F TYPE, NCP145, вариатор

+

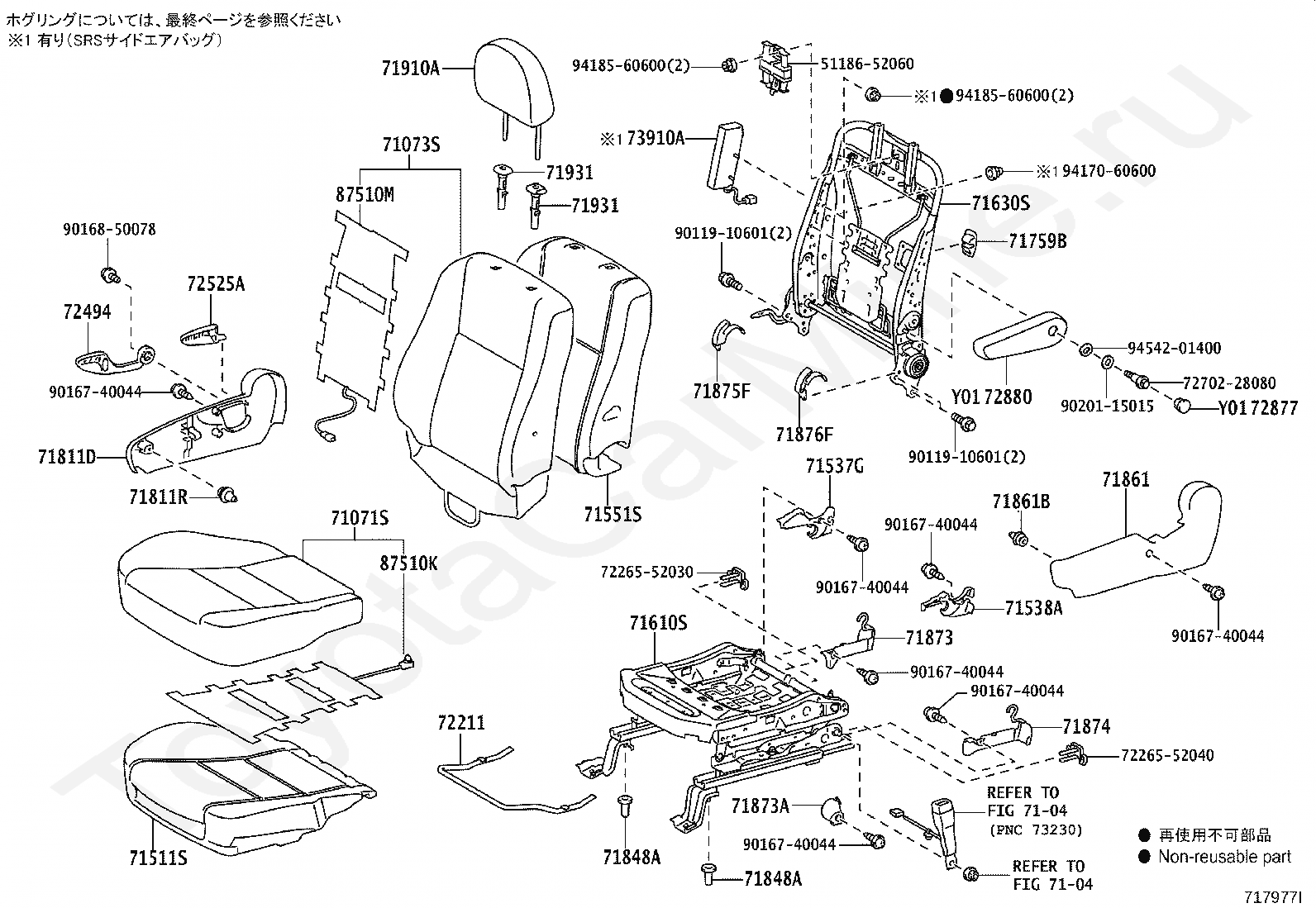

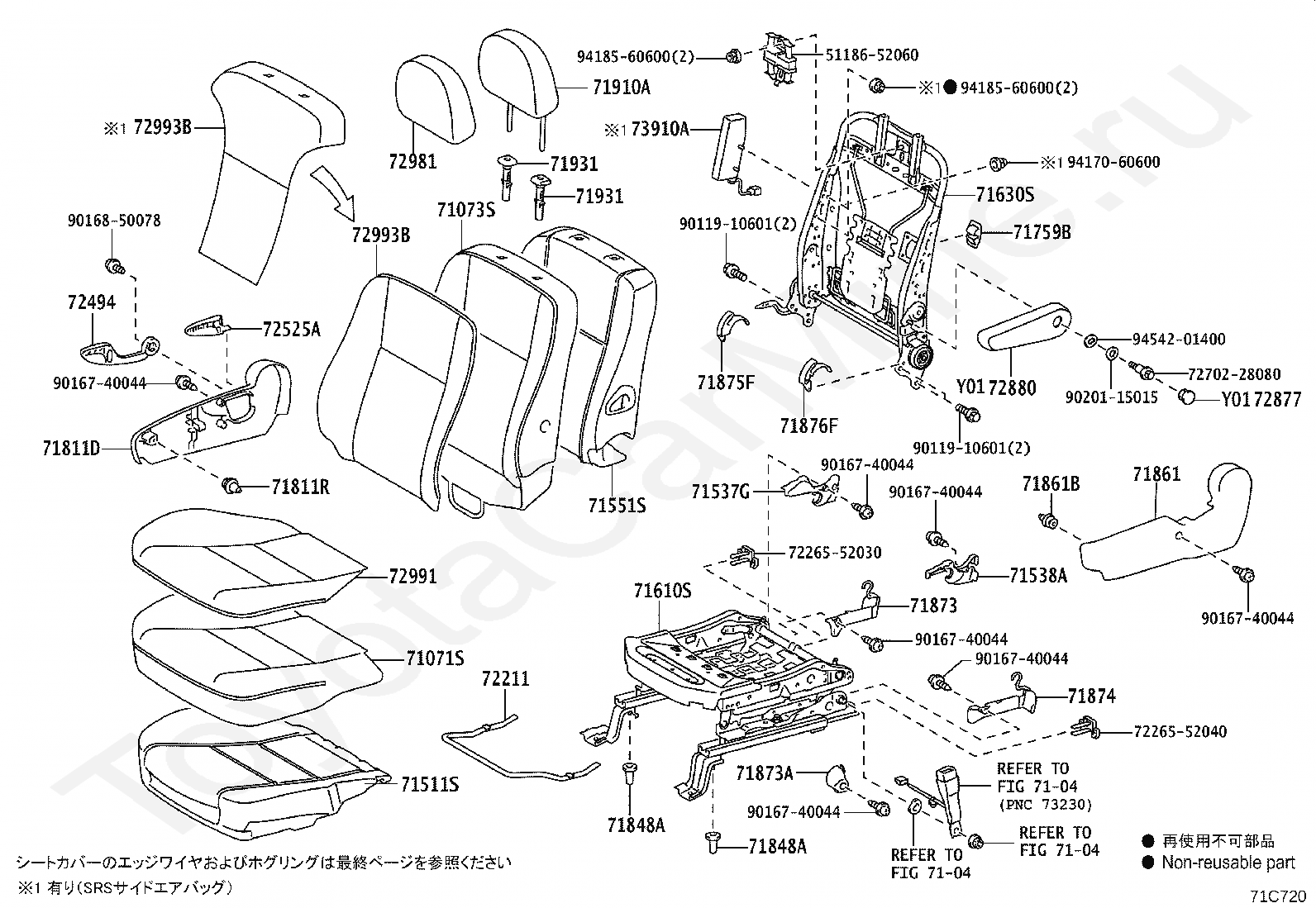

Код

Описание

5118652060

Крепеж

7104

переход к группе запчастей

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71537G

PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)

71538A

PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71759B

HOOK, FRONT SEAT BACK

71811D

SHIELD, FRONT SEAT CUSHION, RH

71811R

CLIP, FRONT SEAT CUSHION SHIELD, RH

71848A

CAP, SEAT ADJUSTER COVER, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71861B

CLIP(FOR FRONT SEAT SHIELD, RH)

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71873A

SHIELD, FRONT SEAT CUSHION, LOWER

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875F

COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)

71876F

COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72211

HANDLE, SEAT TRACK ADJUSTING

7226552030

Крепеж

7226552040

Крепеж

72494

HANDLE, VERTICAL ADJUSTING, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

7270228080

Крепеж

72877

COVER, SEAT ARMREST, RH

72880

ARMREST ASSY, SEAT, C RH

73910A

AIR BAG ASSY, FRONT SEAT, RH

87510K

HEATER ASSY, FRONT SEAT CUSHION, RH

87510M

HEATER ASSY, FRONT SEAT BACK, RH

9011910601

Крепеж

9016740044

Крепеж

9016850078

Крепеж

9020115015

Крепеж

9417060600

Крепеж

9418560600

Крепеж

9454201400

Крепеж

+

Код

Описание

5118652060

Крепеж

7104

переход к группе запчастей

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71537G

PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)

71538A

PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71759B

HOOK, FRONT SEAT BACK

71811D

SHIELD, FRONT SEAT CUSHION, RH

71811R

CLIP, FRONT SEAT CUSHION SHIELD, RH

71848A

CAP, SEAT ADJUSTER COVER, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71861B

CLIP(FOR FRONT SEAT SHIELD, RH)

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71873A

SHIELD, FRONT SEAT CUSHION, LOWER

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875F

COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)

71876F

COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72211

HANDLE, SEAT TRACK ADJUSTING

7226552030

Крепеж

7226552040

Крепеж

72494

HANDLE, VERTICAL ADJUSTING, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

7270228080

Крепеж

72877

COVER, SEAT ARMREST, RH

72880

ARMREST ASSY, SEAT, C RH

73910A

AIR BAG ASSY, FRONT SEAT, RH

87510K

HEATER ASSY, FRONT SEAT CUSHION, RH

87510M

HEATER ASSY, FRONT SEAT BACK, RH

9011910601

Крепеж

9016740044

Крепеж

9016850078

Крепеж

9020115015

Крепеж

9417060600

Крепеж

9418560600

Крепеж

9454201400

Крепеж

+

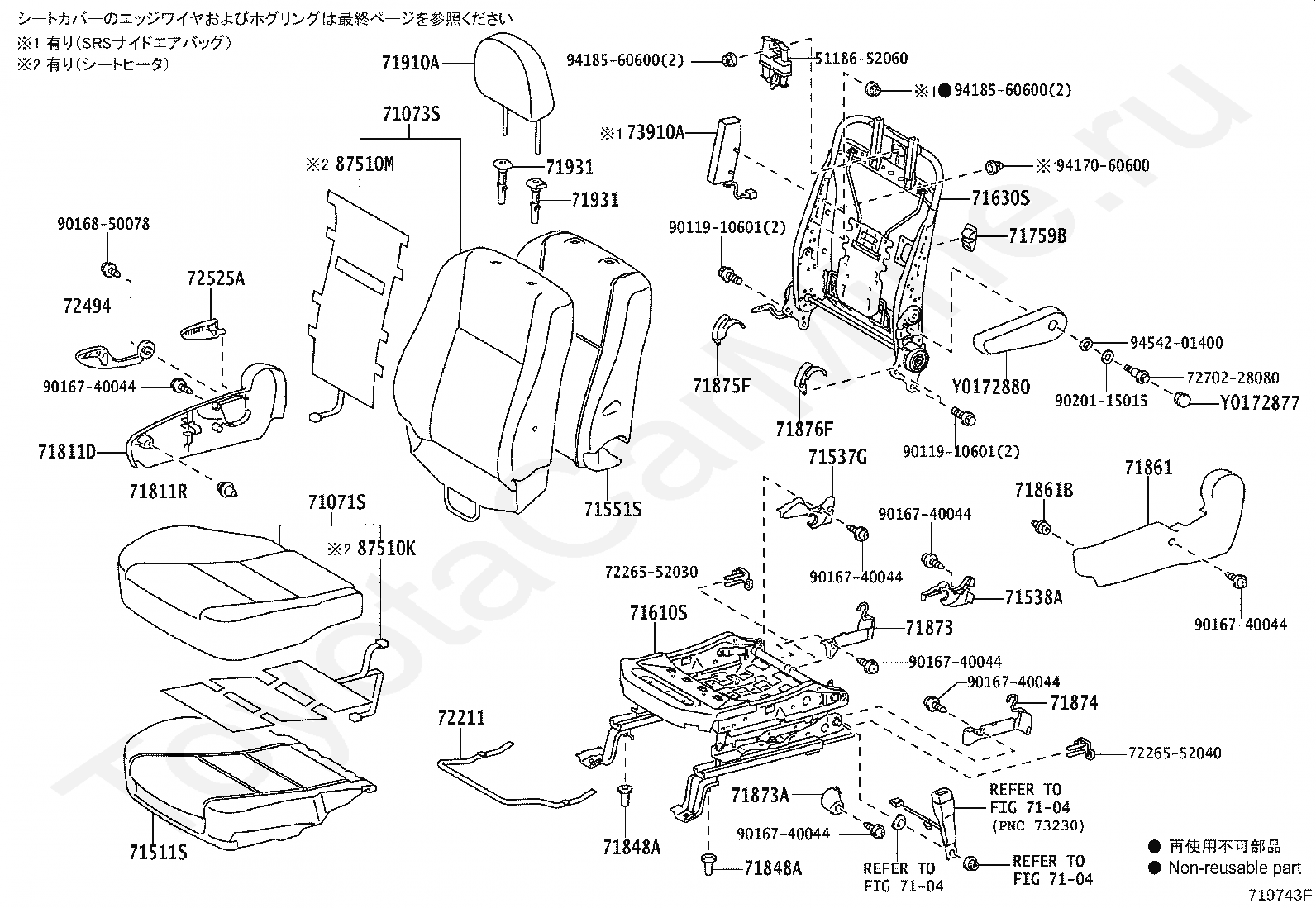

Код

Описание

5118652060

Крепеж

7104

переход к группе запчастей

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71537G

PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)

71538A

PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71759B

HOOK, FRONT SEAT BACK

71811D

SHIELD, FRONT SEAT CUSHION, RH

71811R

CLIP, FRONT SEAT CUSHION SHIELD, RH

71848A

CAP, SEAT ADJUSTER COVER, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71861B

CLIP(FOR FRONT SEAT SHIELD, RH)

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71873A

SHIELD, FRONT SEAT CUSHION, LOWER

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875F

COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)

71876F

COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72211

HANDLE, SEAT TRACK ADJUSTING

7226552030

Крепеж

7226552040

Крепеж

72494

HANDLE, VERTICAL ADJUSTING, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

7270228080

Крепеж

72877

COVER, SEAT ARMREST, RH

72880

ARMREST ASSY, SEAT, C RH

72981

COVER, FRONT SEAT HEADREST

72991

COVER, FRONT SEAT CUSHION, RH

72993B

COVER, FRONT SEAT BACK, RH

73910A

AIR BAG ASSY, FRONT SEAT, RH

9011910601

Крепеж

9016740044

Крепеж

9016850078

Крепеж

9020115015

Крепеж

9417060600

Крепеж

9418560600

Крепеж

9454201400

Крепеж

+

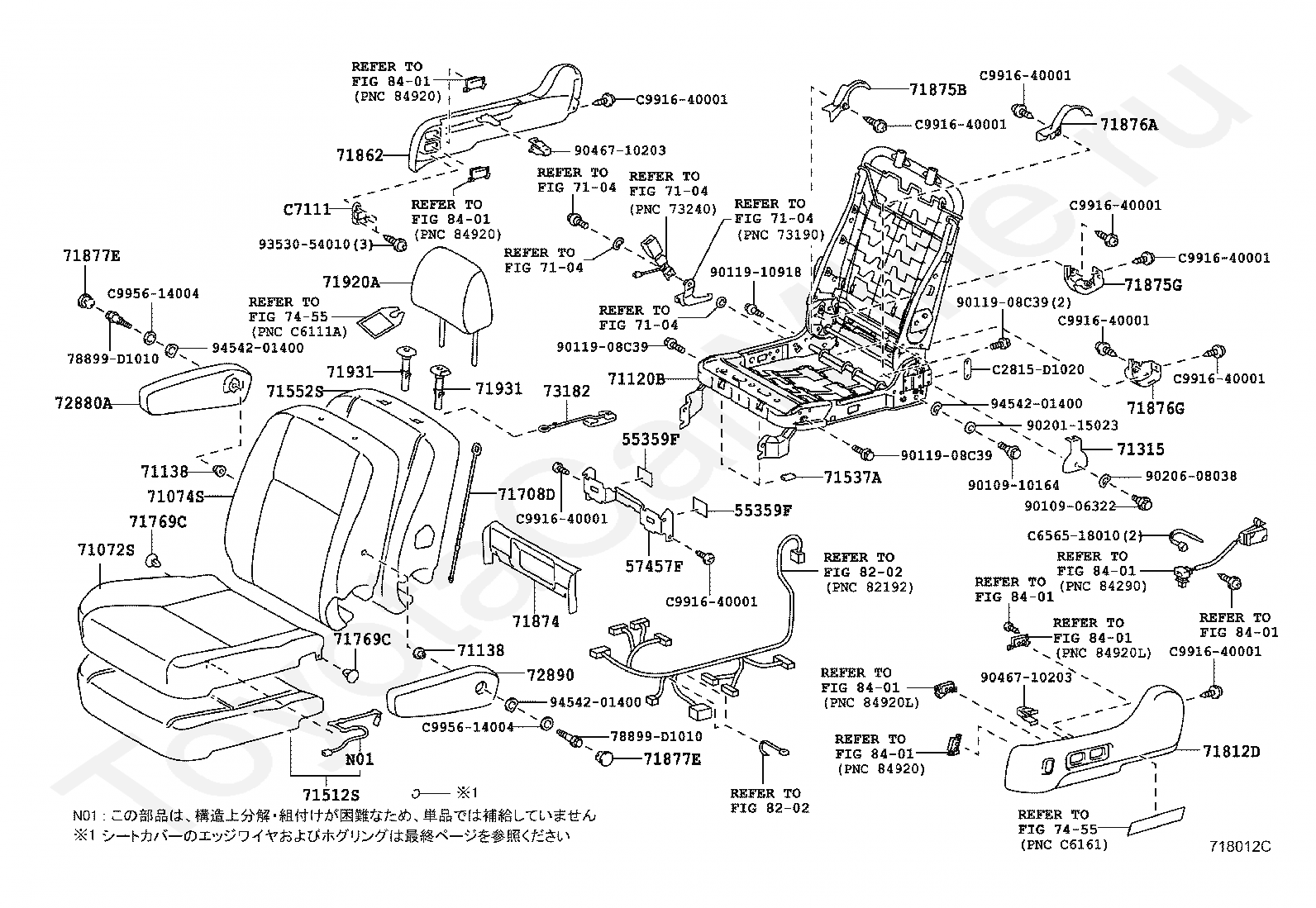

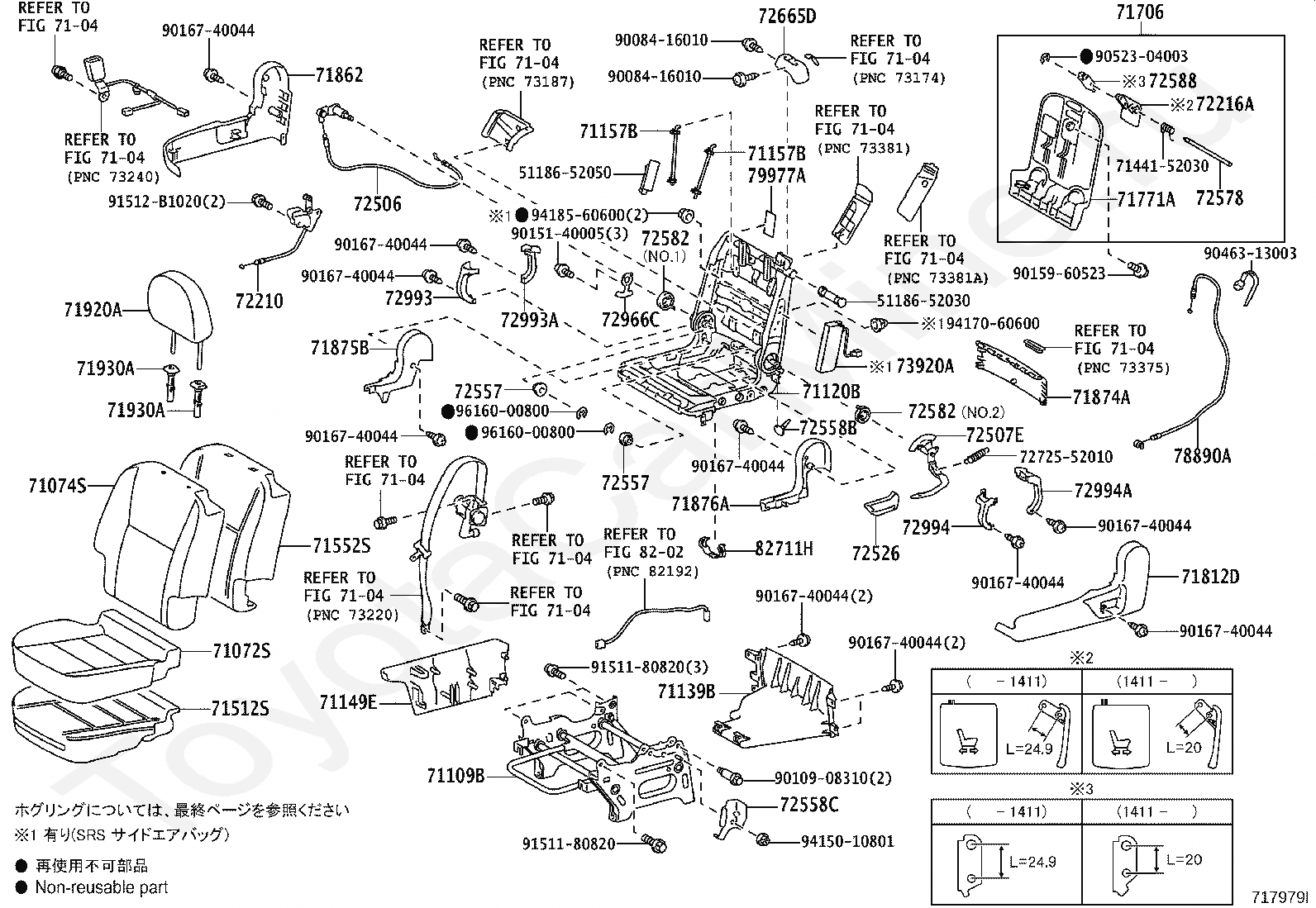

Код

Описание

5118652030

Крепеж

5118652050

Крепеж

7104

переход к группе запчастей

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71109B

LEG SUB-ASSY, FRONT SEAT, LH

71120B

FRAME ASSY, FRONT SEAT W/ADJUSTER, LH

71139B

COVER, FRONT SEAT LEG, NO.2

71149E

COVER, FRONT SEAT LEG, INNER (FOR LH SEAT)

71157B

WIRE, FRONT SEAT BACK,UPR NO.1

7144152030

Крепеж

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71706

BOARD SUB-ASSY, FRONT SEAT BACK, LH

71771A

BOARD, FRONT SEAT BACK

71812D

SHIELD, FRONT SEAT CUSHION, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71874A

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

71876A

COVER, RECLINING ADJUSTER INSIDE, LH

71920A

HEADREST ASSY, FRONT SEAT, LH

71930A

SUPPORT ASSY, FRONT SEAT HEADREST

72210

CABLE ASSY, SEAT TRACK CONTROL

72216A

LEVER, SEAT TRACK HANDLE CONTROL, LH

72506

ARM SUB-ASSY, RECLINING ADJUSTER, CENTER LH

72507E

HANDLE SUB-ASSY, RECLINING RELEASE, NO.1

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

72557

SPACER, RECLINING ADJUSTER

72558B

STOPPER, RECLINING (FRONT SEAT)

72558C

STOPPER, RECLINING, NO.1

72578

PIN, FRONT SEAT BACK STOPPER

72582

BAR, RECLINING TORSION

72588

BRACKET, FRONT SEAT BACK BOARD

72665D

COVER, FRONT SEAT BACK LOCK

7272552010

Крепеж

72966C

PLATE, REAR SEAT TURN LOCK, NO.1 LH

72993

COVER, FRONT SEAT BACK

72993A

COVER, FRONT SEAT BACK

72994

COVER, FRONT SEAT BACK

72994A

COVER, FRONT SEAT BACK

73920A

AIR BAG ASSY, FRONT SEAT, LH

78890A

CABLE ASSY, SUB-SEAT LOCK CONTROL

79977A

FELT, SEAT BACK

8202

переход к группе запчастей

82711H

CLAMP, WIRING HARNESS

9008416010

Крепеж

9010908310

Крепеж

9015140005

Крепеж

9015960523

Крепеж

9016740044

Крепеж

9046313003

Крепеж

9052304003

Крепеж

9151180820

Крепеж

91512B1020

Крепеж

9415010801

Крепеж

9417060600

Крепеж

9418560600

Крепеж

9616000800

Крепеж

+

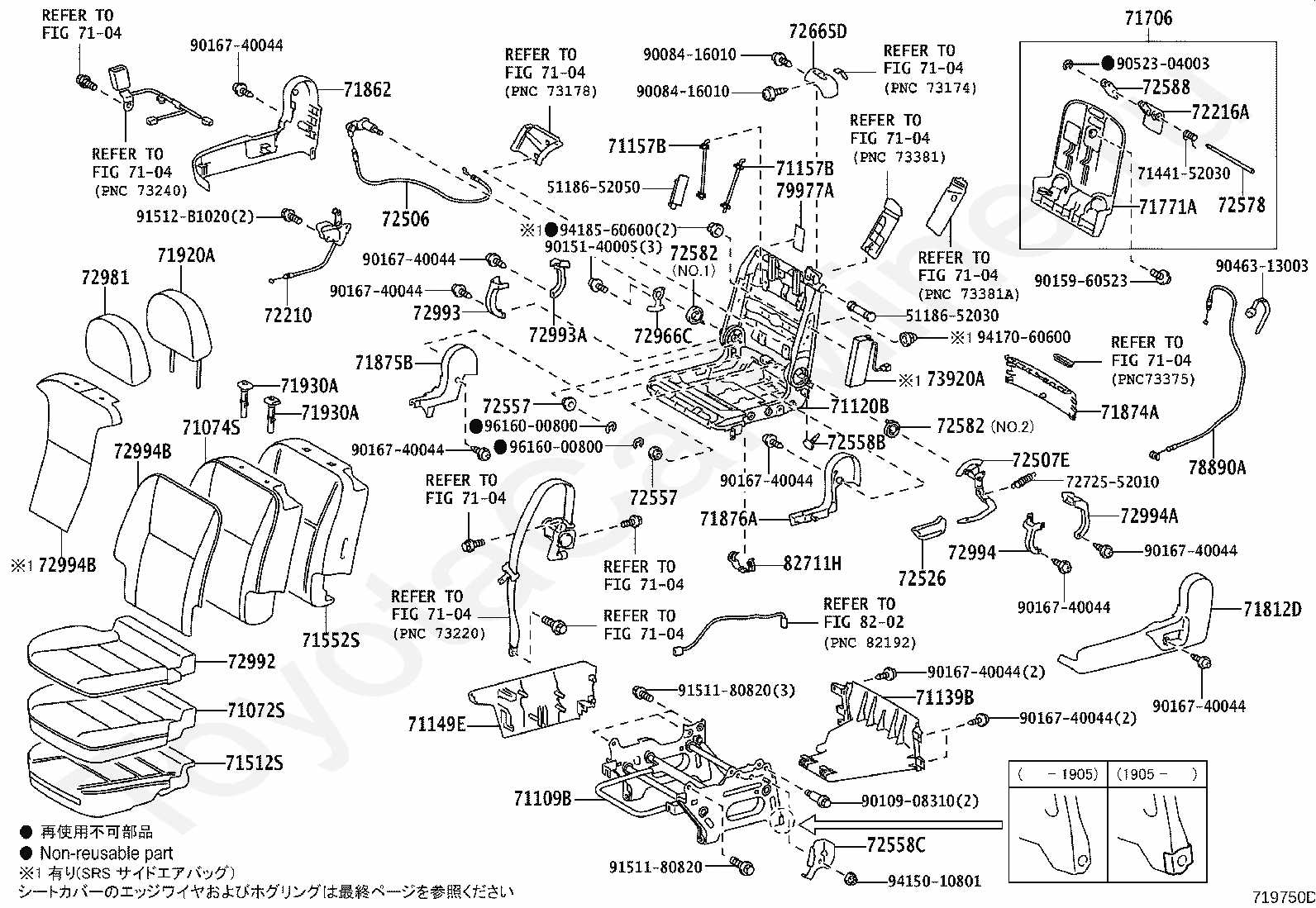

Код

Описание

5118652030

Крепеж

5118652050

Крепеж

7104

переход к группе запчастей

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71109B

LEG SUB-ASSY, FRONT SEAT, LH

71120B

FRAME ASSY, FRONT SEAT W/ADJUSTER, LH

71139B

COVER, FRONT SEAT LEG, NO.2

71149E

COVER, FRONT SEAT LEG, INNER (FOR LH SEAT)

71157B

WIRE, FRONT SEAT BACK,UPR NO.1

7144152030

Крепеж

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71706

BOARD SUB-ASSY, FRONT SEAT BACK, LH

71771A

BOARD, FRONT SEAT BACK

71812D

SHIELD, FRONT SEAT CUSHION, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71874A

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

71876A

COVER, RECLINING ADJUSTER INSIDE, LH

71920A

HEADREST ASSY, FRONT SEAT, LH

71930A

SUPPORT ASSY, FRONT SEAT HEADREST

72210

CABLE ASSY, SEAT TRACK CONTROL

72216A

LEVER, SEAT TRACK HANDLE CONTROL, LH

72506

ARM SUB-ASSY, RECLINING ADJUSTER, CENTER LH

72507E

HANDLE SUB-ASSY, RECLINING RELEASE, NO.1

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

72557

SPACER, RECLINING ADJUSTER

72558B

STOPPER, RECLINING (FRONT SEAT)

72558C

STOPPER, RECLINING, NO.1

72578

PIN, FRONT SEAT BACK STOPPER

72582

BAR, RECLINING TORSION

72588

BRACKET, FRONT SEAT BACK BOARD

72665D

COVER, FRONT SEAT BACK LOCK

7272552010

Крепеж

72966C

PLATE, REAR SEAT TURN LOCK, NO.1 LH

72981

COVER, FRONT SEAT HEADREST

72992

COVER, FRONT SEAT CUSHION, LH

72993

COVER, FRONT SEAT BACK

72993A

COVER, FRONT SEAT BACK

72994

COVER, FRONT SEAT BACK

72994A

COVER, FRONT SEAT BACK

72994B

COVER, FRONT SEAT BACK, LH

73920A

AIR BAG ASSY, FRONT SEAT, LH

78890A

CABLE ASSY, SUB-SEAT LOCK CONTROL

79977A

FELT, SEAT BACK

8202

переход к группе запчастей

82711H

CLAMP, WIRING HARNESS

9008416010

Крепеж

9010908310

Крепеж

9015140005

Крепеж

9015960523

Крепеж

9016740044

Крепеж

9046313003

Крепеж

9052304003

Крепеж

9151180820

Крепеж

91512B1020

Крепеж

9415010801

Крепеж

9417060600

Крепеж

9418560600

Крепеж

9616000800

Крепеж

+

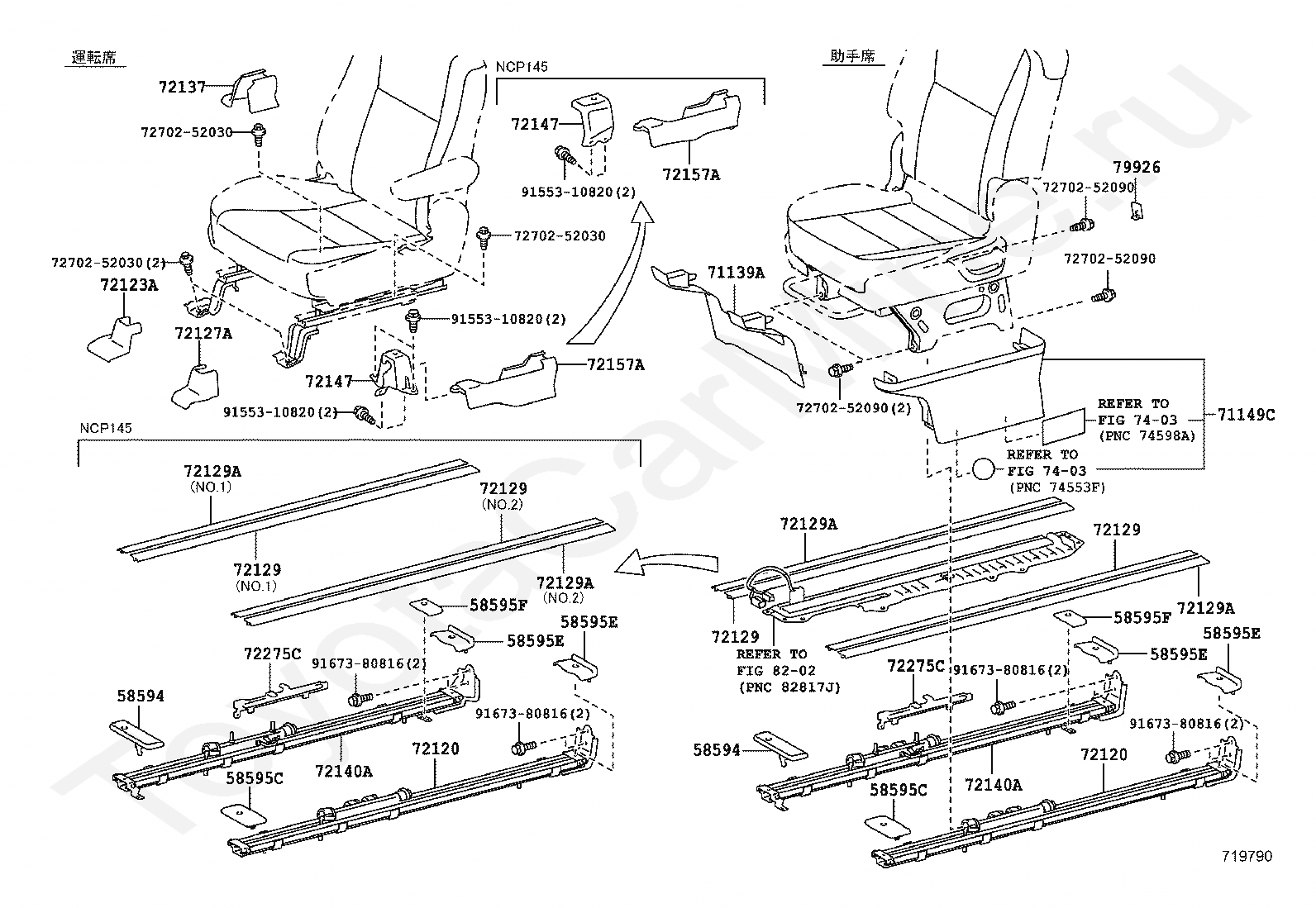

Код

Описание

58594

MOULDING, FLOOR CARPET, NO.2

58595C

MOULDING, FLOOR CARPET, NO.1

58595E

MOULDING, FLOOR CARPET, NO.4

58595F

MOULDING, FLOOR CARPET, NO.3

71139A

COVER, FRONT SEAT LEG, NO.1

71149C

COVER, FRONT SEAT LEG, LH (FOR LH SEAT)

72120

TRACK ASSY, FRONT SEAT, OUTER LH

72123A

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72127A

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72129

PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

72129A

PROTECTOR, SEAT TRACK LOWER RAIL, NO.2

72137

COVER, SEAT TRACK, OUTER RH

72140A

TRACK ASSY, FRONT SEAT,INNER LH

72147

BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH

72157A

COVER, SEAT TRACK BRACKET, INNER RH

72275C

STOPPER, FRONT SEAT TRACK SLIDE

7270252030

Крепеж

7270252090

Крепеж

7403

переход к группе запчастей

79926

COVER, SEAT LEG GARNISH

8202

переход к группе запчастей

9155310820

Крепеж

9167380816

Крепеж

+

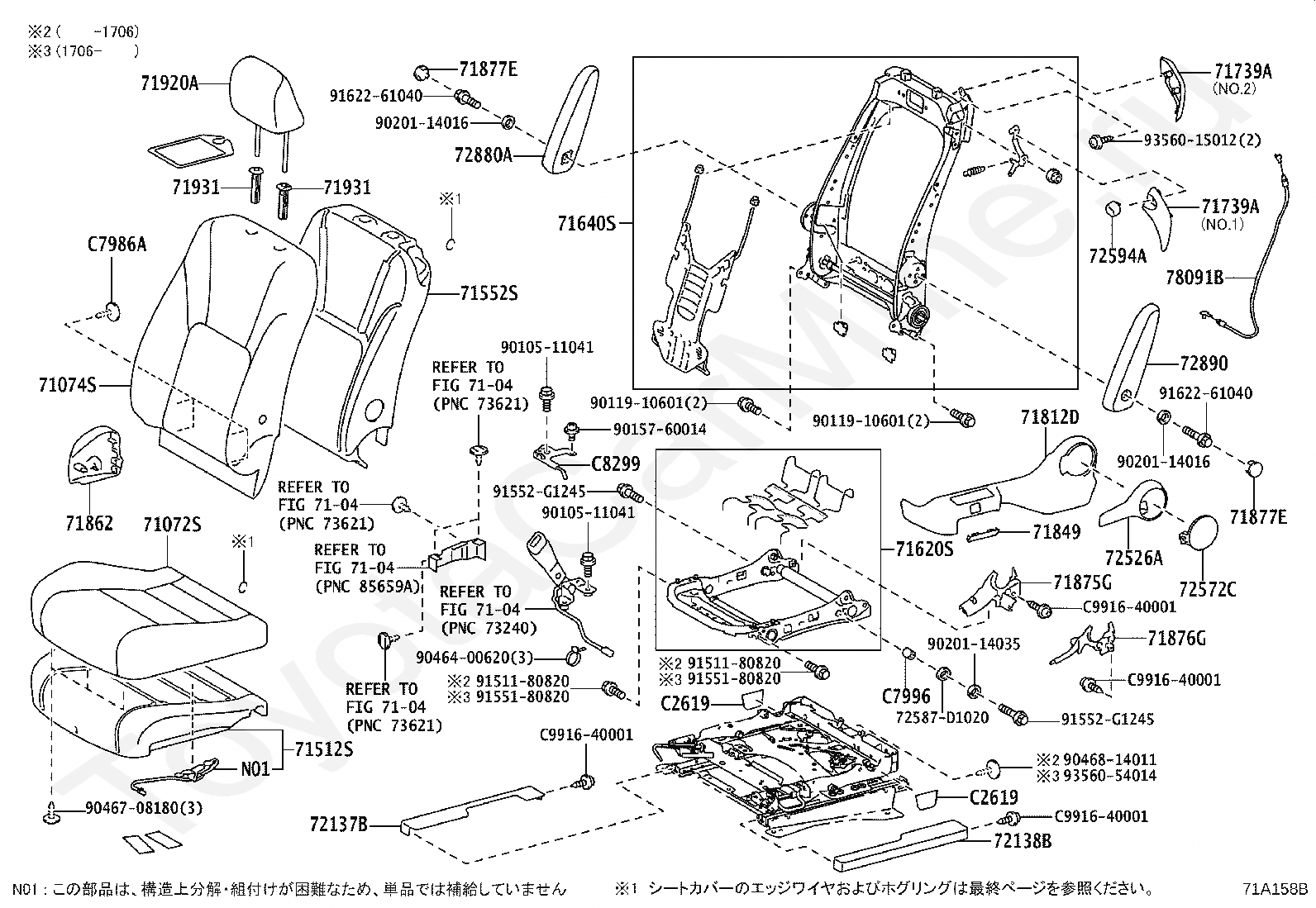

Код

Описание

7104

переход к группе запчастей

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71620S

SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71739A

BEZEL, FRONT SEAT BACK

71812D

SHIELD, FRONT SEAT CUSHION, LH

71849

CAP, SEAT ADJUSTER COVER, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71875G

COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

71876G

COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

71877E

COVER, SEAT ARMREST HOLE, LH

71920A

HEADREST ASSY, FRONT SEAT, LH

71931

SUPPORT, FRONT SEAT HEADREST

72137B

COVER, SEAT TRACK, RH

72138B

COVER, SEAT TRACK, LH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

72572C

CAP, RECLINING ADJUSTER KNOB, LH

72587D1020

Крепеж

72594A

KNOB, RECLINING REMOTE CONTROL LEVER, LH

72880A

ARMREST ASSY, FRONT SEAT, INNER RH

72890

ARMREST ASSY, SEAT, C LH

78091B

CABLE SUB-ASSY, FOLD SEAT LOCK CONTROL

9010511041

Крепеж

9011910601

Крепеж

9015760014

Крепеж

9020114016

Крепеж

9020114035

Крепеж

9046400620

Крепеж

9046708180

Крепеж

9046814011

Крепеж

9151180820

Крепеж

9155180820

Крепеж

91552G1245

Крепеж

9162261040

Крепеж

9356015012

Крепеж

9356054014

Крепеж

C2619

COVER, BACK FRAME

C7986A

CLIP, REAR SEAT TURN GUARD COVER

C7996

SPACER, TURN SEAT, NO.1

C8299

BRACKET, WELCAB SEAT HARNESS CONNECTOR

C991640001

Крепеж

+

Код

Описание

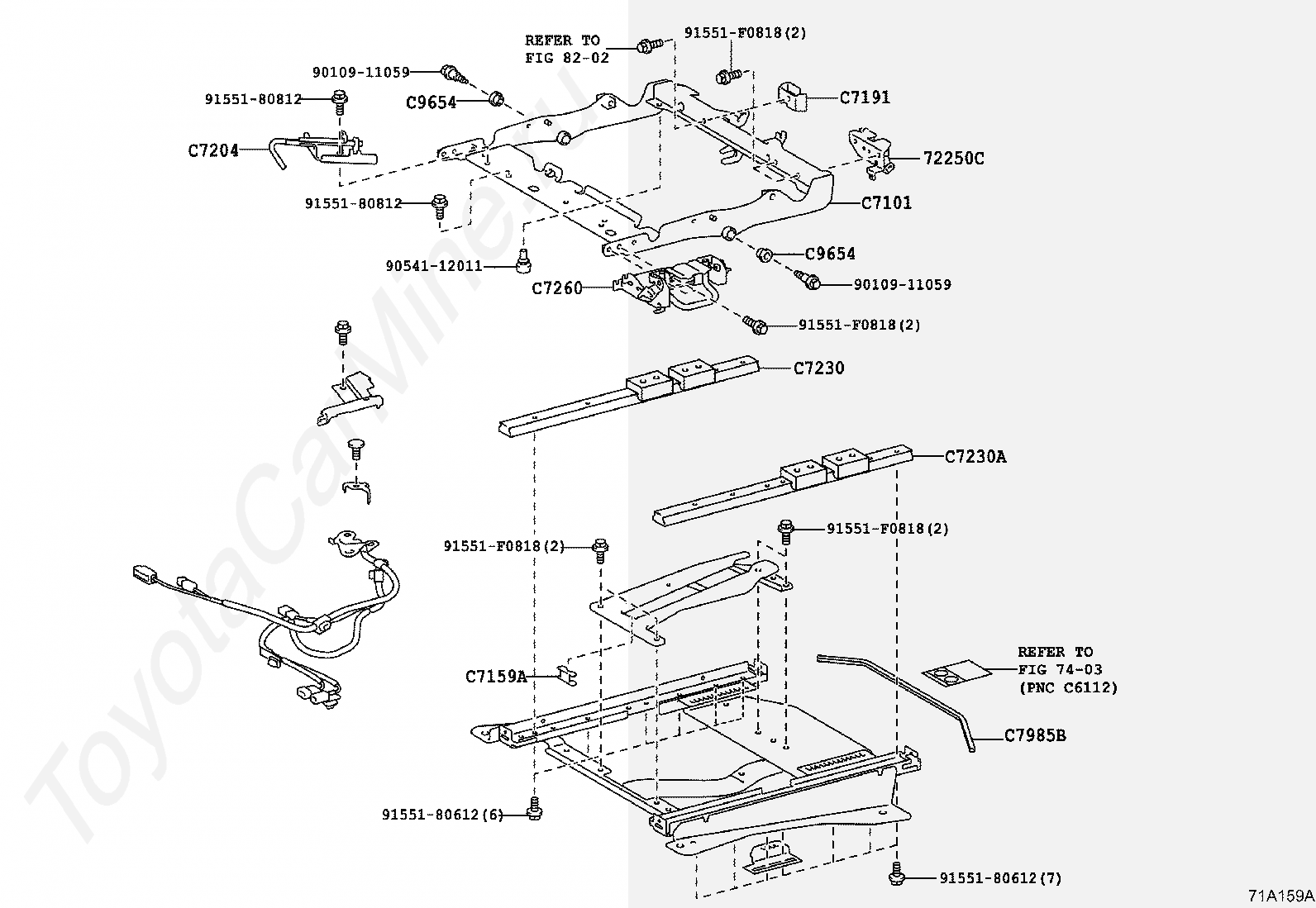

72250C

LOCK ASSY, FRONT SEAT

7403

переход к группе запчастей

8202

переход к группе запчастей

9010911059

Крепеж

9054112011

Крепеж

9155180612

Крепеж

9155180812

Крепеж

91551F0818

Крепеж

C7101

BRACKET SUB-ASSY, SEAT HOLDER, FRONT

C7159A

CUSHION, WELCAB SEAT LEG STOPPER, NO.1

C7191

BRACKET, SEAT HOLDER LINK

C7204

HANDLE SUB-ASSY, WELCAB SEAT TRACK

C7230

TRACK ASSY, WELCAB SEAT, NO.1

C7230A

TRACK ASSY, WELCAB SEAT, NO.2

C7260

HANDLE ASSY, SEAT TURN LOCK

C7985B

GUARD, REAR SEAT TURN, NO.3

C9654

COLLAR, POWER LIFT CYLINDER

+

Код

Описание

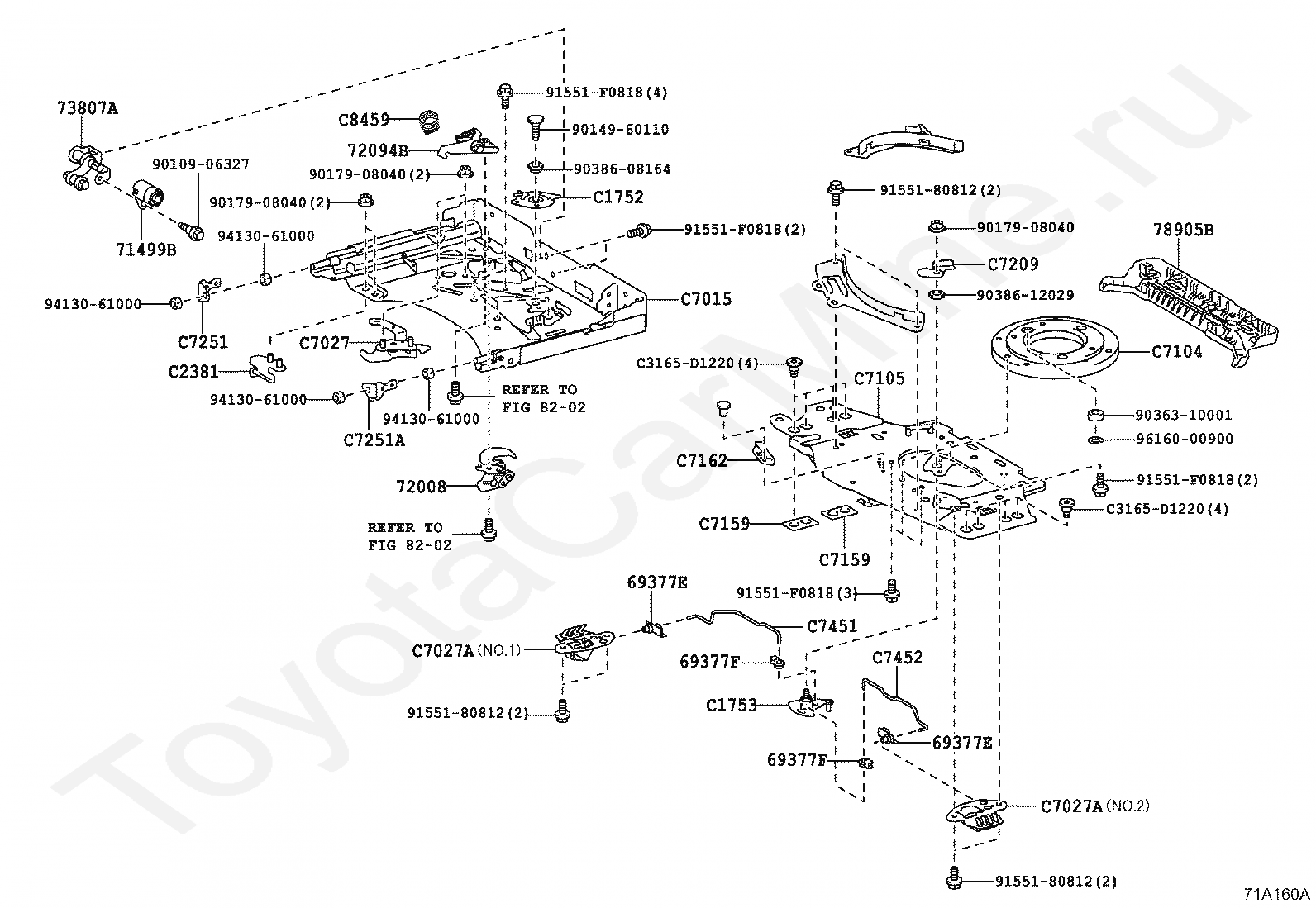

69377E

SNAP, WELCAB SEAT LINK ARM, NO.1

69377F

SNAP, WELCAB SEAT LINK ARM, NO.2

71499B

DAMPER, SEAT CUSHION SPRING

72008

LOCK SUB-ASSY, FRONT SEAT TURN

72094B

LOCK SUB-ASSY, FRONT SEAT TURN

73807A

LINK SUB-ASSY, FRONT SEAT SUSPENSION, INNER RH

78905B

COVER SUB-ASSY, REAR SEAT UNDER TRAY

8202

переход к группе запчастей

9010906327

Крепеж

9014960110

Крепеж

9017908040

Крепеж

9036310001

Крепеж

9038608164

Крепеж

9038612029

Крепеж

9155180812

Крепеж

91551F0818

Крепеж

9413061000

Крепеж

9616000900

Крепеж

C1752

PLATE, CONTROL ARM, UPPER

C1753

PLATE, CONTROL ARM, LOWER

C2381

GUIDE, TABLE RETAINER, NO.1

C3165D1220

Крепеж

C7015

PANEL SUB-ASSY, TURN TABLE

C7027

LOCK SUB-ASSY, WELCAB SEAT TURN

C7027A

LOCK SUB-ASSY, WELCAB SEAT TURN

C7104

PLATE SUB-ASSY, SEAT TURN

C7105

PANEL SUB-ASSY, SLIDE TABLE

C7159

CUSHION, WELCAB SEAT LEG STOPPER

C7162

PLATE, WELCAB SEAT SLIDE TABLE

C7209

PLATE SUB-ASSY, FRONT SEAT TURN, UPPER

C7251

BRACKET, WELCAB SEAT TRACK STOPPER, NO.1 RH

C7251A

BRACKET, WELCAB SEAT TRACK STOPPER, NO.1 LH

C7451

ARM, WELCAB SEAT LINK, NO.1

C7452

ARM, WELCAB SEAT LINK, NO.2

C8459

SPRING, LIMIT SWITCH

+

Код

Описание

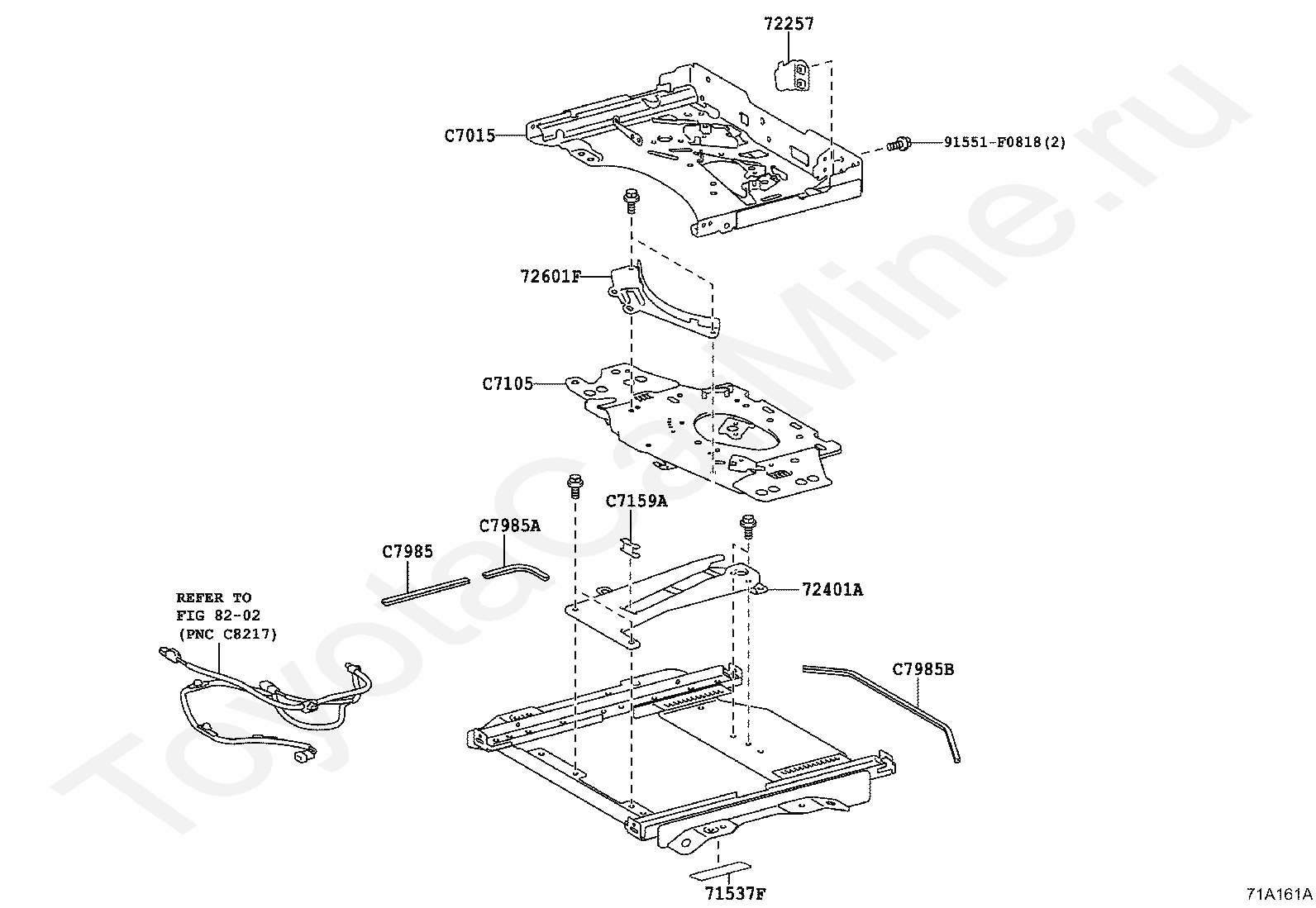

71537F

PROTECTOR, FRONT SEAT CUSHION, NO.2

72257

STRIKER, FRONT SEAT LOCK

72401A

GUIDE SUB-ASSY, FRONT SEAT TRACK ROLLER

72601F

STRIKER SUB-ASSY, FRONT SEAT LOCK

8202

переход к группе запчастей

91551F0818

Крепеж

C7015

PANEL SUB-ASSY, TURN TABLE

C7105

PANEL SUB-ASSY, SLIDE TABLE

C7159A

CUSHION, WELCAB SEAT LEG STOPPER, NO.1

C7985

GUARD, REAR SEAT TURN, NO.1

C7985A

GUARD, REAR SEAT TURN, NO.2

C7985B

GUARD, REAR SEAT TURN, NO.3

+

Код

Описание

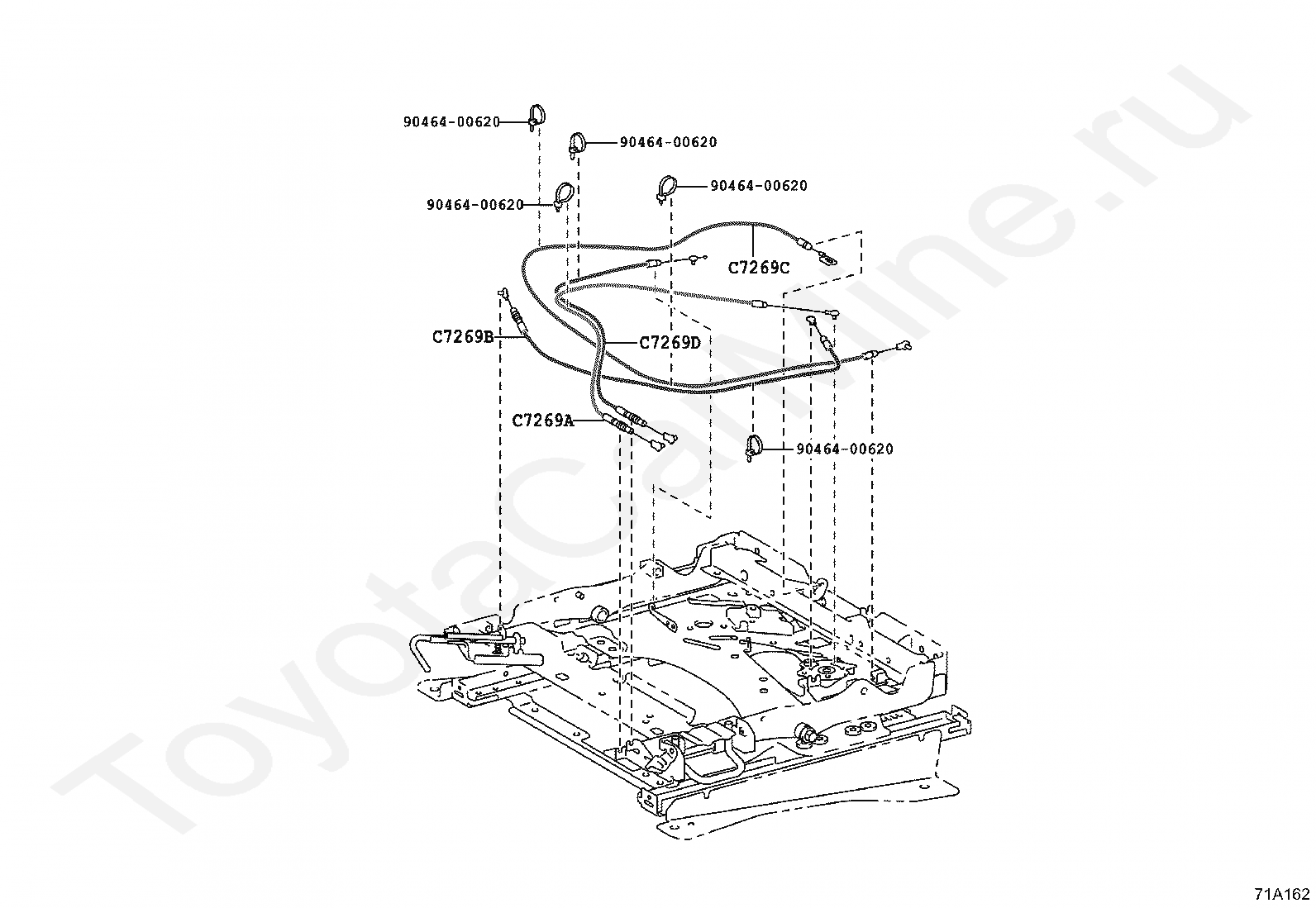

9046400620

Крепеж

C7269A

CABLE, SEAT TURN LOCK RELEASE, NO.1

C7269B

CABLE, SEAT TURN LOCK RELEASE, NO.2

C7269C

CABLE, SEAT TURN LOCK RELEASE, NO.3

C7269D

CABLE, SEAT TURN LOCK RELEASE, NO.4

+

Код

Описание

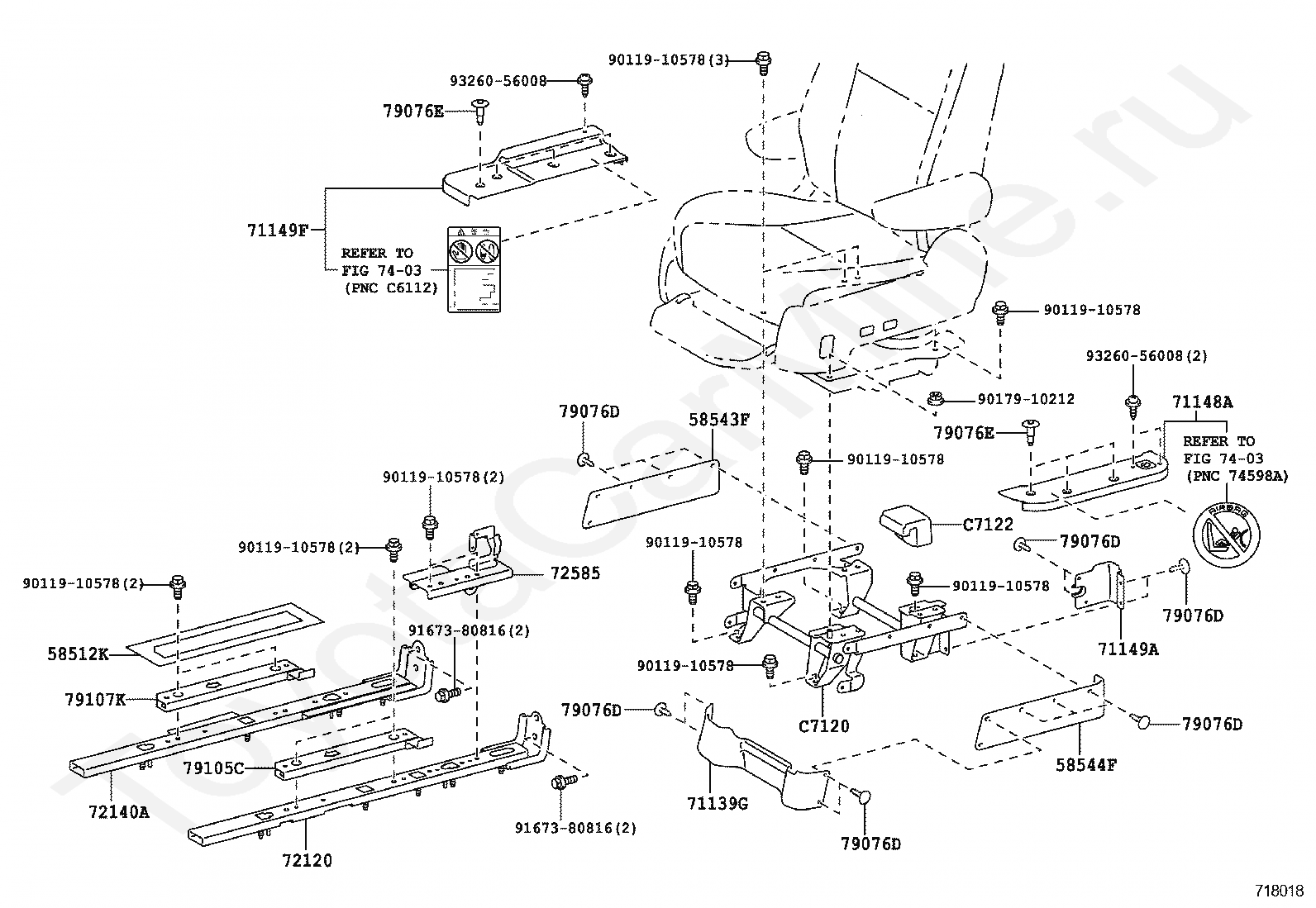

58512K

CARPET, FLOOR, NO.2

5856152390

Крепеж

5856152400

Крепеж

72120

TRACK ASSY, FRONT SEAT, OUTER LH

72140A

TRACK ASSY, FRONT SEAT,INNER LH

7932952040

Крепеж

8202

переход к группе запчастей

9011910578

Крепеж

9046708186C0

Крепеж

9046708186C3

Крепеж

9167380816

Крепеж

+

Код

Описание

55359F

CUSHION, WELCAB SEAT

57457F

BRACKET, FRONT SEAT

7104

переход к группе запчастей

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71120B

FRAME ASSY, FRONT SEAT W/ADJUSTER, LH

71138

SPACER, FRONT SEAT SET

71315

PLATE, FRONT SEAT HINGE

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71537A

PROTECTOR, FRONT SEAT CUSHION

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71708D

STRAP SUB-ASSY, SEAT COVER, LH

71769C

CLIP, FRONT SEAT CUSHION COVER

71812D

SHIELD, FRONT SEAT CUSHION, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

71875G

COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

71876A

COVER, RECLINING ADJUSTER INSIDE, LH

71876G

COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

71877E

COVER, SEAT ARMREST HOLE, LH

71920A

HEADREST ASSY, FRONT SEAT, LH

71931

SUPPORT, FRONT SEAT HEADREST

72880A

ARMREST ASSY, FRONT SEAT, INNER RH

72890

ARMREST ASSY, SEAT, C LH

73182

GUIDE, FRONT SEAT LAP BELT, OUTER

7455

переход к группе запчастей

78899D1010

Крепеж

8202

переход к группе запчастей

8401

переход к группе запчастей

9010906322

Крепеж

9010910164

Крепеж

9011908C39

Крепеж

9011910918

Крепеж

9020115023

Крепеж

9020608038

Крепеж

9046710203

Крепеж

9353054010

Крепеж

9454201400

Крепеж

C2815D1020

Крепеж

C656518010

Крепеж

C7111

BRACKET, SEAT HOLDER, FRONT

C991640001

Крепеж

C995614004

Крепеж

+

Код

Описание

55359F

CUSHION, WELCAB SEAT

57457F

BRACKET, FRONT SEAT

7104

переход к группе запчастей

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71120B

FRAME ASSY, FRONT SEAT W/ADJUSTER, LH

71138

SPACER, FRONT SEAT SET

71315

PLATE, FRONT SEAT HINGE

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71537A

PROTECTOR, FRONT SEAT CUSHION

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71708D

STRAP SUB-ASSY, SEAT COVER, LH

71769C

CLIP, FRONT SEAT CUSHION COVER

71812D

SHIELD, FRONT SEAT CUSHION, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

71875G

COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

71876A

COVER, RECLINING ADJUSTER INSIDE, LH

71876G

COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

71877E

COVER, SEAT ARMREST HOLE, LH

71920A

HEADREST ASSY, FRONT SEAT, LH

71931

SUPPORT, FRONT SEAT HEADREST

72880A

ARMREST ASSY, FRONT SEAT, INNER RH

72890

ARMREST ASSY, SEAT, C LH

73182

GUIDE, FRONT SEAT LAP BELT, OUTER

7455

переход к группе запчастей

78899D1010

Крепеж

8202

переход к группе запчастей

8401

переход к группе запчастей

9010906322

Крепеж

9010910164

Крепеж

9011908C39

Крепеж

9011910918

Крепеж

9020115023

Крепеж

9020608038

Крепеж

9046710203

Крепеж

9353054010

Крепеж

9454201400

Крепеж

C2815D1020

Крепеж

C656518010

Крепеж

C7111

BRACKET, SEAT HOLDER, FRONT

C991640001

Крепеж

C995614004

Крепеж

+

Код

Описание

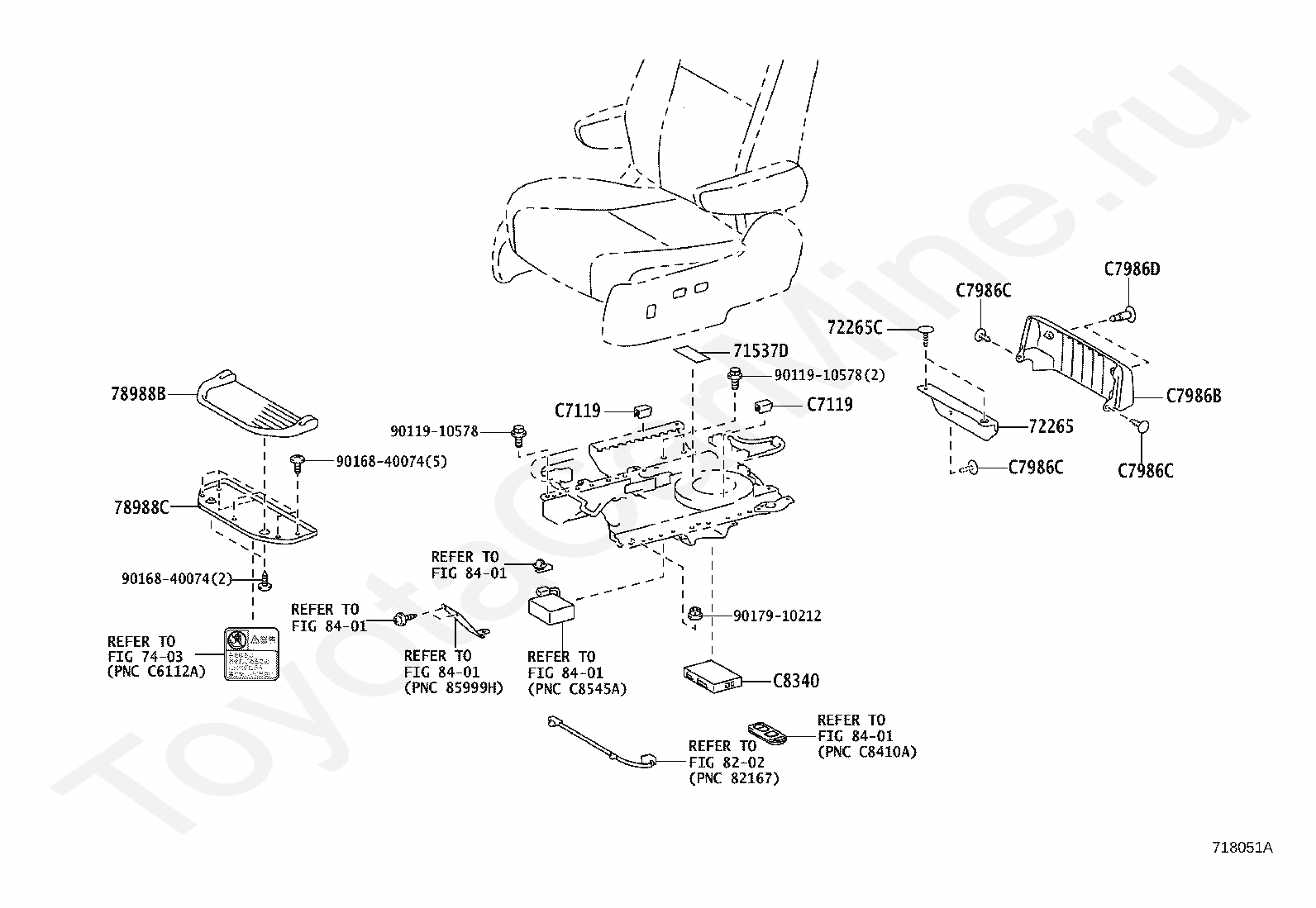

71537D

PROTECTOR, FRONT SEAT CUSHION EDGE, LH

72265

COVER, SEAT TRACK UPPER RAIL, RH

72265C

CLIP, SEAT TRACK UPPER RAIL COVER

7403

переход к группе запчастей

78988B

COVER, FRONT SEAT FOOTREST, NO.1

78988C

COVER, FRONT SEAT FOOTREST, NO.2

8202

переход к группе запчастей

8401

переход к группе запчастей

9011910578

Крепеж

9016840074

Крепеж

9017910212

Крепеж

C7119

PROTECTOR, WELCAB SEAT HOLDER

C7986B

COVER, FRONT SEAT TURN GUARD

C7986C

CLIP, FRONT SEAT TURN GUARD COVER, NO.1

C7986D

CLIP, FRONT SEAT TURN GUARD COVER, NO.2

C8340

COMPUTER ASSY, WELCAB DEVICE CONTROL

+

Код

Описание

71537D

PROTECTOR, FRONT SEAT CUSHION EDGE, LH

72265

COVER, SEAT TRACK UPPER RAIL, RH

72265C

CLIP, SEAT TRACK UPPER RAIL COVER

7403

переход к группе запчастей

78988B

COVER, FRONT SEAT FOOTREST, NO.1

78988C

COVER, FRONT SEAT FOOTREST, NO.2

8202

переход к группе запчастей

8401

переход к группе запчастей

9011910578

Крепеж

9016840074

Крепеж

9017910212

Крепеж

C7119

PROTECTOR, WELCAB SEAT HOLDER

C7986B

COVER, FRONT SEAT TURN GUARD

C7986C

CLIP, FRONT SEAT TURN GUARD COVER, NO.1

C7986D

CLIP, FRONT SEAT TURN GUARD COVER, NO.2

C8340

COMPUTER ASSY, WELCAB DEVICE CONTROL

+

Код

Описание

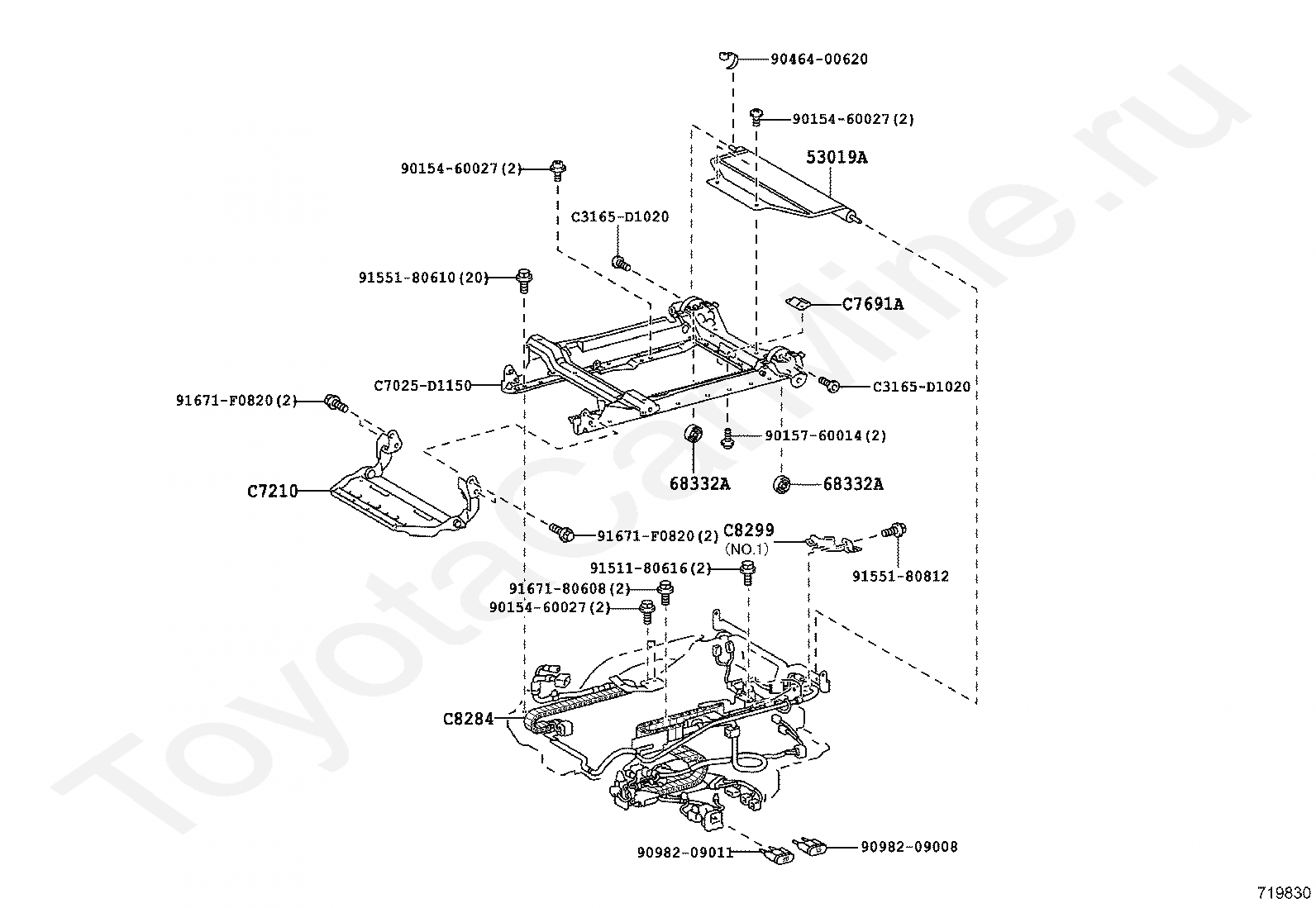

53019A

SHUTTER SUB-ASSY, RADIATOR

68332A

ROLLER, SLIDE DOOR, LOWER

9015460027

Крепеж

9015760014

Крепеж

9046400620

Крепеж

9098209008

Крепеж

9098209011

Крепеж

9151180616

Крепеж

9155180610

Крепеж

9155180812

Крепеж

9167180608

Крепеж

91671F0820

Крепеж

C3165D1020

Крепеж

C7025D1150

Крепеж

C7210

FOOTREST ASSY, WELCAB SEAT

C7691A

CUSHION, SEAT FLAT, NO.2 RH

C8284

WIRE, POWER LIFT MAIN

C8299

BRACKET, WELCAB SEAT HARNESS CONNECTOR

+

Код

Описание

53019A

SHUTTER SUB-ASSY, RADIATOR

68332A

ROLLER, SLIDE DOOR, LOWER

9015460027

Крепеж

9015760014

Крепеж

9046400620

Крепеж

9098209008

Крепеж

9098209011

Крепеж

9151180616

Крепеж

9155180610

Крепеж

9155180812

Крепеж

9167180608

Крепеж

91671F0820

Крепеж

C3165D1020

Крепеж

C7025D1150

Крепеж

C7210

FOOTREST ASSY, WELCAB SEAT

C7691A

CUSHION, SEAT FLAT, NO.2 RH

C8284

WIRE, POWER LIFT MAIN

C8299

BRACKET, WELCAB SEAT HARNESS CONNECTOR

+

Код

Описание

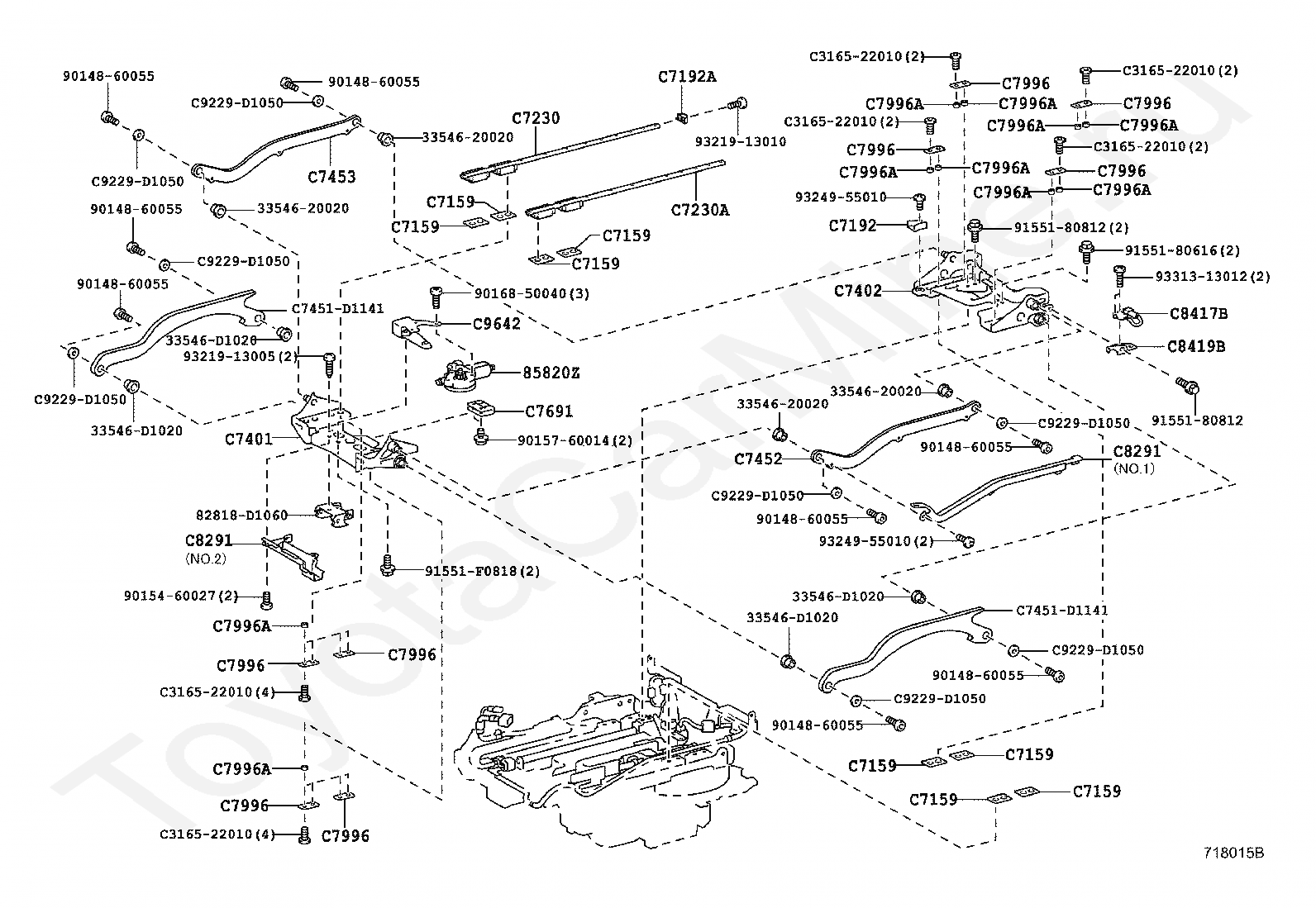

3354620020

Крепеж

33546D1020

Крепеж

82818D1060

Крепеж

85820Z

MOTOR ASSY, POWER SEAT

9014860055

Крепеж

9015760014

Крепеж

9016850040

Крепеж

9155180812

Крепеж

91551F0818

Крепеж

9321913005

Крепеж

9321913010

Крепеж

9324955010

Крепеж

9331313012

Крепеж

C316522010

Крепеж

C7159

CUSHION, WELCAB SEAT LEG STOPPER

C7192

PLATE, SEAT HOLDER STOPPER, NO.1

C7192A

PLATE, SEAT HOLDER STOPPER, NO.2

C7230

TRACK ASSY, WELCAB SEAT, NO.1

C7230A

TRACK ASSY, WELCAB SEAT, NO.2

C7401

GUIDE SUB-ASSY, WELCAB SEAT, FRONT

C7402

GUIDE SUB-ASSY, WELCAB SEAT, REAR

C7451D1141

Крепеж

C7452

ARM, WELCAB SEAT LINK, NO.2

C7453

ARM, WELCAB SEAT LINK, NO.3

C7691

CUSHION, SEAT FLAT, NO.1 RH

C7996

SPACER, TURN SEAT, NO.1

C7996A

SPACER, TURN SEAT, NO.2

C8291

PROTECTOR, TECS WIRING HARNESS

C8417B

SWITCH, LIMIT, NO.3

C8419B

BRACKET, LIMIT SWITCH

C9229D1050

Крепеж

C9642

BRACKET, POWER LIFT MOTOR, NO.2

+

Код

Описание

3354620020

Крепеж

33546D1020

Крепеж

82818D1060

Крепеж

85820Z

MOTOR ASSY, POWER SEAT

9014860055

Крепеж

9015760014

Крепеж

9016850040

Крепеж

9155180812

Крепеж

91551F0818

Крепеж

9321913005

Крепеж

9321913010

Крепеж

9324955010

Крепеж

9331313012

Крепеж

C316522010

Крепеж

C7159

CUSHION, WELCAB SEAT LEG STOPPER

C7192

PLATE, SEAT HOLDER STOPPER, NO.1

C7192A

PLATE, SEAT HOLDER STOPPER, NO.2

C7230

TRACK ASSY, WELCAB SEAT, NO.1

C7230A

TRACK ASSY, WELCAB SEAT, NO.2

C7401

GUIDE SUB-ASSY, WELCAB SEAT, FRONT

C7402

GUIDE SUB-ASSY, WELCAB SEAT, REAR

C7451D1141

Крепеж

C7452

ARM, WELCAB SEAT LINK, NO.2

C7453

ARM, WELCAB SEAT LINK, NO.3

C7691

CUSHION, SEAT FLAT, NO.1 RH

C7996

SPACER, TURN SEAT, NO.1

C7996A

SPACER, TURN SEAT, NO.2

C8291

PROTECTOR, TECS WIRING HARNESS

C8417B

SWITCH, LIMIT, NO.3

C8419B

BRACKET, LIMIT SWITCH

C9229D1050

Крепеж

C9642

BRACKET, POWER LIFT MOTOR, NO.2

+

Код

Описание

62786D1010

Крепеж

71537D

PROTECTOR, FRONT SEAT CUSHION EDGE, LH

72275C

STOPPER, FRONT SEAT TRACK SLIDE

72589A

CABLE, RECLINING REMOTE CONTROL

827111A750

Крепеж

82825D1010

Крепеж

88630D1020

Крепеж

9010508145

Крепеж

9010510048

Крепеж

9010908067

Крепеж

9011906122

Крепеж

9016850040

Крепеж

9017912071

Крепеж

9020108466

Крепеж

9020612035

Крепеж

9033330002

Крепеж

9054106047

Крепеж

9155180608

Крепеж

9155180812

Крепеж

9155281025

Крепеж

9167180608

Крепеж

9326963016

Крепеж

9331313012

Крепеж

C4109

HOUSING SUB-ASSY, SLIDE DOOR LOCK, REAR

C7103

PANEL SUB-ASSY, WELCAB SEAT LEG, NO.1

C7104

PLATE SUB-ASSY, SEAT TURN

C7158

COVER, WELCAB SEAT LEG

C7158A

CLIP, WELCAB SEAT LEG COVER

C7160

PANEL ASSY, SLIDE TABLE

C7160A

CLIP, SLIDE TABLE PANEL

C7192B

PLATE, SEAT HOLDER STOPPER, NO.3

C7252

BRACKET, WELCAB SEAT TRACK STOPPER, NO.2

C7409

BRACKET SUB-ASSY, WELCAB SEAT ROD SUPPORT, NO.1

C7481

ROD, WELCAB SEAT, NO.1

C7487

PLATE, WELCAB SEAT ROD SUPPORT, NO.1

C8299

BRACKET, WELCAB SEAT HARNESS CONNECTOR

C8340

COMPUTER ASSY, WELCAB DEVICE CONTROL

C8417

SWITCH, LIMIT, NO.1

C8417C

SWITCH, LIMIT, NO.4

C8419D

BRACKET, LIMIT SWITCH, NO.1

C9604

BRACKET SUB-ASSY, POWER LIFT MOTOR

C9610C

MOTOR ASSY, LIFT UP SEAT TURN

C9610D

MOTOR ASSY, LIFT UP SEAT SLIDE

C9642D1051

Крепеж

C9652A

CAP, POWER LIFT CYLINDER

C9654

COLLAR, POWER LIFT CYLINDER

C991010010

Крепеж

C991440001

Крепеж

C991560011

Крепеж

C991605003

Крепеж

C991708008

Крепеж

C992012005

Крепеж

+

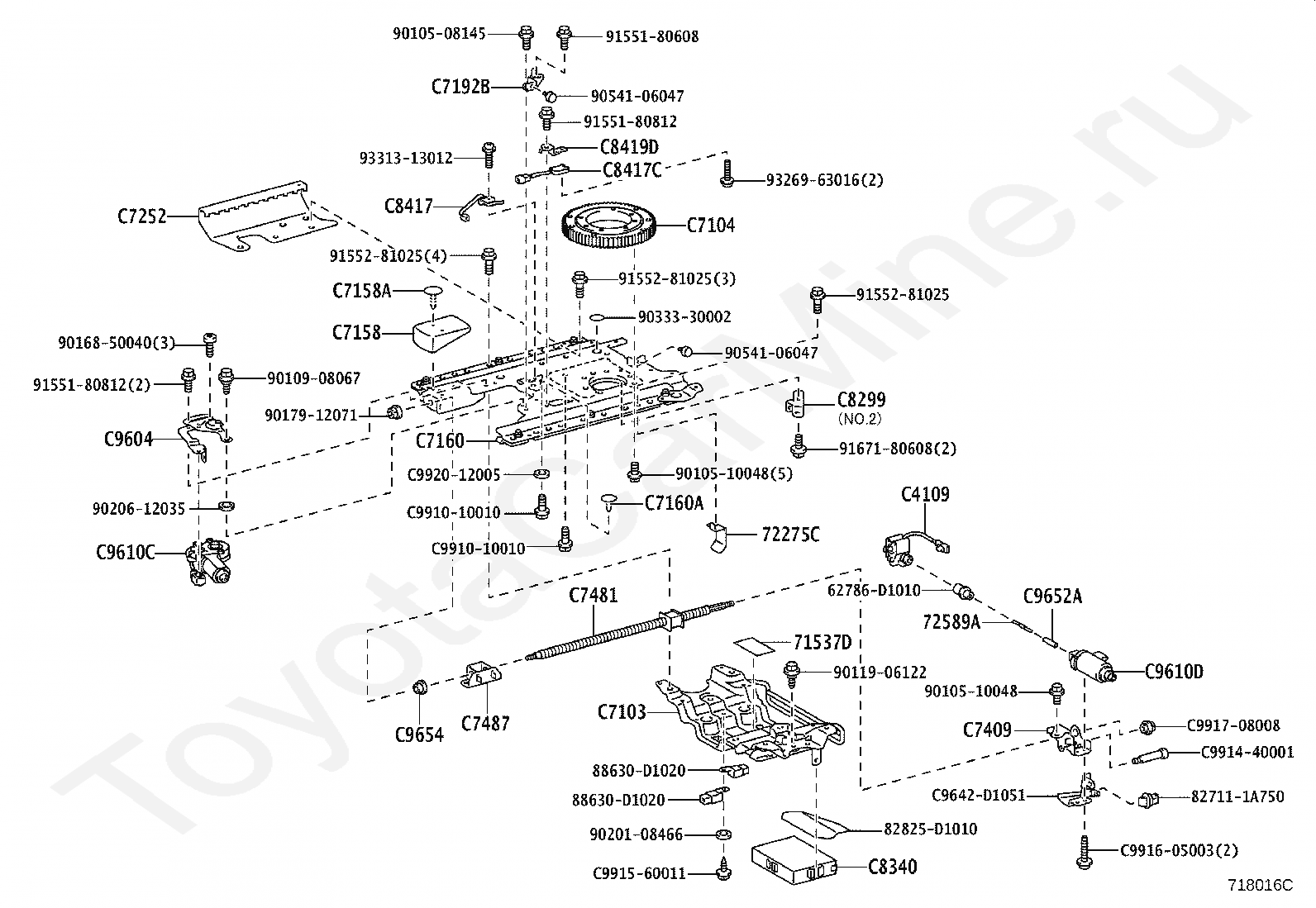

Код

Описание

62786D1010

Крепеж

71537D

PROTECTOR, FRONT SEAT CUSHION EDGE, LH

72275C

STOPPER, FRONT SEAT TRACK SLIDE

72589A

CABLE, RECLINING REMOTE CONTROL

827111A750

Крепеж

82825D1010

Крепеж

88630D1020

Крепеж

9010508145

Крепеж

9010510048

Крепеж

9010908067

Крепеж

9011906122

Крепеж

9016850040

Крепеж

9017912071

Крепеж

9020108466

Крепеж

9020612035

Крепеж

9033330002

Крепеж

9054106047

Крепеж

9155180608

Крепеж

9155180812

Крепеж

9155281025

Крепеж

9167180608

Крепеж

9326963016

Крепеж

9331313012

Крепеж

C4109

HOUSING SUB-ASSY, SLIDE DOOR LOCK, REAR

C7103

PANEL SUB-ASSY, WELCAB SEAT LEG, NO.1

C7104

PLATE SUB-ASSY, SEAT TURN

C7158

COVER, WELCAB SEAT LEG

C7158A

CLIP, WELCAB SEAT LEG COVER

C7160

PANEL ASSY, SLIDE TABLE

C7160A

CLIP, SLIDE TABLE PANEL

C7192B

PLATE, SEAT HOLDER STOPPER, NO.3

C7252

BRACKET, WELCAB SEAT TRACK STOPPER, NO.2

C7409

BRACKET SUB-ASSY, WELCAB SEAT ROD SUPPORT, NO.1

C7481

ROD, WELCAB SEAT, NO.1

C7487

PLATE, WELCAB SEAT ROD SUPPORT, NO.1

C8299

BRACKET, WELCAB SEAT HARNESS CONNECTOR

C8340

COMPUTER ASSY, WELCAB DEVICE CONTROL

C8417

SWITCH, LIMIT, NO.1

C8417C

SWITCH, LIMIT, NO.4

C8419D

BRACKET, LIMIT SWITCH, NO.1

C9604

BRACKET SUB-ASSY, POWER LIFT MOTOR

C9610C

MOTOR ASSY, LIFT UP SEAT TURN

C9610D

MOTOR ASSY, LIFT UP SEAT SLIDE

C9642D1051

Крепеж

C9652A

CAP, POWER LIFT CYLINDER

C9654

COLLAR, POWER LIFT CYLINDER

C991010010

Крепеж

C991440001

Крепеж

C991560011

Крепеж

C991605003

Крепеж

C991708008

Крепеж

C992012005

Крепеж

+

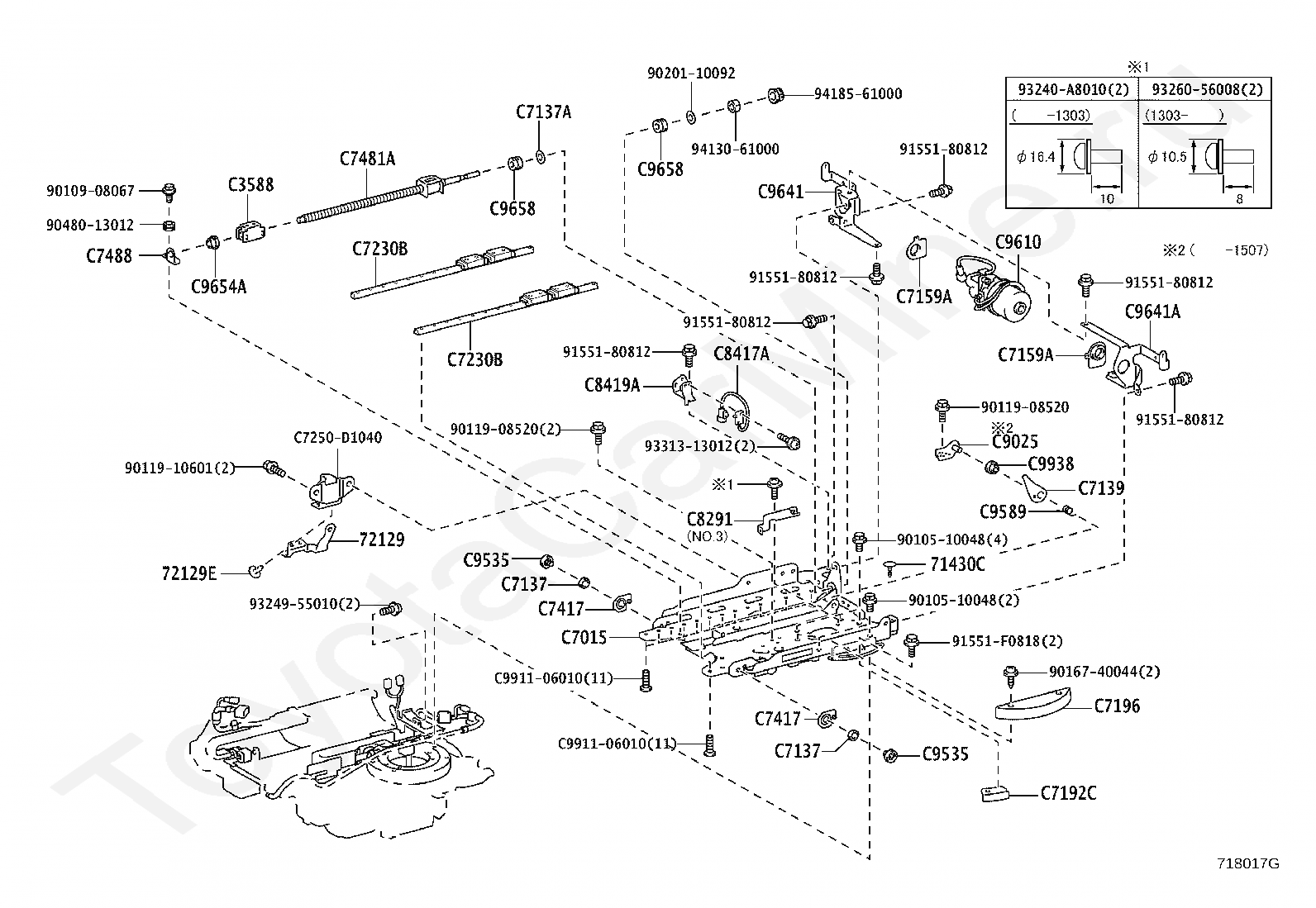

Код

Описание

71430C

CLIP

72129

PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

72129E

CLIP(FOR SEAT TRACK LOWER RAIL PROTECTOR)

9010510048

Крепеж

9010908067

Крепеж

9011908520

Крепеж

9011910601

Крепеж

9016740044

Крепеж

9020110092

Крепеж

9048013012

Крепеж

9155180812

Крепеж

91551F0818

Крепеж

93240A8010

Крепеж

9324955010

Крепеж

9326056008

Крепеж

9331313012

Крепеж

9413061000

Крепеж

9418561000

Крепеж

C3588

BRACKET, SIDE RAIL, NO.2 LH

C7015

PANEL SUB-ASSY, TURN TABLE

C7137

PLATE, FRONT SEAT TURN

C7137A

PLATE, FRONT SEAT TURN

C7139

BRACKET, HOOK

C7159A

CUSHION, WELCAB SEAT LEG STOPPER, NO.1

C7192C

PLATE, SEAT HOLDER STOPPER, NO.4

C7196

COVER, TURN TABLE, NO.1

C7230B

TRACK ASSY, WELCAB SEAT, NO.3

C7250D1040

Крепеж

C7417

PLATE, WELCAB SEAT ARM GUIDE, FRONT

C7481A

ROD, WELCAB SEAT, NO.2

C7488

PLATE, WELCAB SEAT ROD SUPPORT, NO.2

C8291

PROTECTOR, TECS WIRING HARNESS

C8417A

SWITCH, LIMIT, NO.2

C8419A

BRACKET, LIMIT SWITCH

C9025

PIN SUB-ASSY, LIFT ARM LINK

C9535

PULLEY, POWER LIFT

C9589

SPRING, PLATFORM LOCK HANDLE

C9610

MOTOR ASSY, POWER LIFT

C9641

BRACKET, POWER LIFT MOTOR, NO.1

C9641A

BRACKET, POWER LIFT MOTOR, NO.1

C9654A

COLLAR, POWER LIFT CYLINDER

C9658

PLATE, POWER LIFT CYLINDER ROD

C991106010

Крепеж

C9938

BUSH

+

Код

Описание

71430C

CLIP

72129

PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

72129E

CLIP(FOR SEAT TRACK LOWER RAIL PROTECTOR)

9010510048

Крепеж

9010908067

Крепеж

9011908520

Крепеж

9011910601

Крепеж

9016740044

Крепеж

9020110092

Крепеж

9048013012

Крепеж

9155180812

Крепеж

91551F0818

Крепеж

93240A8010

Крепеж

9324955010

Крепеж

9326056008

Крепеж

9331313012

Крепеж

9413061000

Крепеж

9418561000

Крепеж

C3588

BRACKET, SIDE RAIL, NO.2 LH

C7015

PANEL SUB-ASSY, TURN TABLE

C7137

PLATE, FRONT SEAT TURN

C7137A

PLATE, FRONT SEAT TURN

C7139

BRACKET, HOOK

C7159A

CUSHION, WELCAB SEAT LEG STOPPER, NO.1

C7192C

PLATE, SEAT HOLDER STOPPER, NO.4

C7196

COVER, TURN TABLE, NO.1

C7230B

TRACK ASSY, WELCAB SEAT, NO.3

C7250D1040

Крепеж

C7417

PLATE, WELCAB SEAT ARM GUIDE, FRONT

C7481A

ROD, WELCAB SEAT, NO.2

C7488

PLATE, WELCAB SEAT ROD SUPPORT, NO.2

C8291

PROTECTOR, TECS WIRING HARNESS

C8417A

SWITCH, LIMIT, NO.2

C8419A

BRACKET, LIMIT SWITCH

C9025

PIN SUB-ASSY, LIFT ARM LINK

C9535

PULLEY, POWER LIFT

C9589

SPRING, PLATFORM LOCK HANDLE

C9610

MOTOR ASSY, POWER LIFT

C9641

BRACKET, POWER LIFT MOTOR, NO.1

C9641A

BRACKET, POWER LIFT MOTOR, NO.1

C9654A

COLLAR, POWER LIFT CYLINDER

C9658

PLATE, POWER LIFT CYLINDER ROD

C991106010

Крепеж

C9938

BUSH

+

Код

Описание

58512K

CARPET, FLOOR, NO.2

58543F

CARPET, STEP SIDE, RH

58544F

CARPET, STEP SIDE, LH

71139G

COVER, FRONT SEAT LEG

71148A

COVER, FR SEAT LEG, OUTER

71149A

COVER, FRONT SEAT LEG, LH

71149F

COVER, FRONT SEAT LEG, INNER

72120

TRACK ASSY, FRONT SEAT, OUTER LH

72140A

TRACK ASSY, FRONT SEAT,INNER LH

72585

BRACKET, SEAT BELT HANGER, RH

7403

переход к группе запчастей

79076D

CLIP, SEAT LEG COVER

79076E

CLIP, SEAT LEG COVER

79105C

LEG SUB-ASSY, FRONT SEAT

79107K

LEG SUB-ASSY, FRONT SEAT, RH

9011910578

Крепеж

9017910212

Крепеж

9167380816

Крепеж

9326056008

Крепеж

C7120

LEG, WELCAB SEAT, NO.1

C7122

GUARD, WELCAB SEAT LEG

+

Код

Описание

58512K

CARPET, FLOOR, NO.2

58543F

CARPET, STEP SIDE, RH

58544F

CARPET, STEP SIDE, LH

71139G

COVER, FRONT SEAT LEG

71148A

COVER, FR SEAT LEG, OUTER

71149A

COVER, FRONT SEAT LEG, LH

71149F

COVER, FRONT SEAT LEG, INNER

72120

TRACK ASSY, FRONT SEAT, OUTER LH

72140A

TRACK ASSY, FRONT SEAT,INNER LH

72585

BRACKET, SEAT BELT HANGER, RH

7403

переход к группе запчастей

79076D

CLIP, SEAT LEG COVER

79076E

CLIP, SEAT LEG COVER

79105C

LEG SUB-ASSY, FRONT SEAT

79107K

LEG SUB-ASSY, FRONT SEAT, RH

9011910578

Крепеж

9017910212

Крепеж

9167380816

Крепеж

9326056008

Крепеж

C7120

LEG, WELCAB SEAT, NO.1

C7122

GUARD, WELCAB SEAT LEG

+

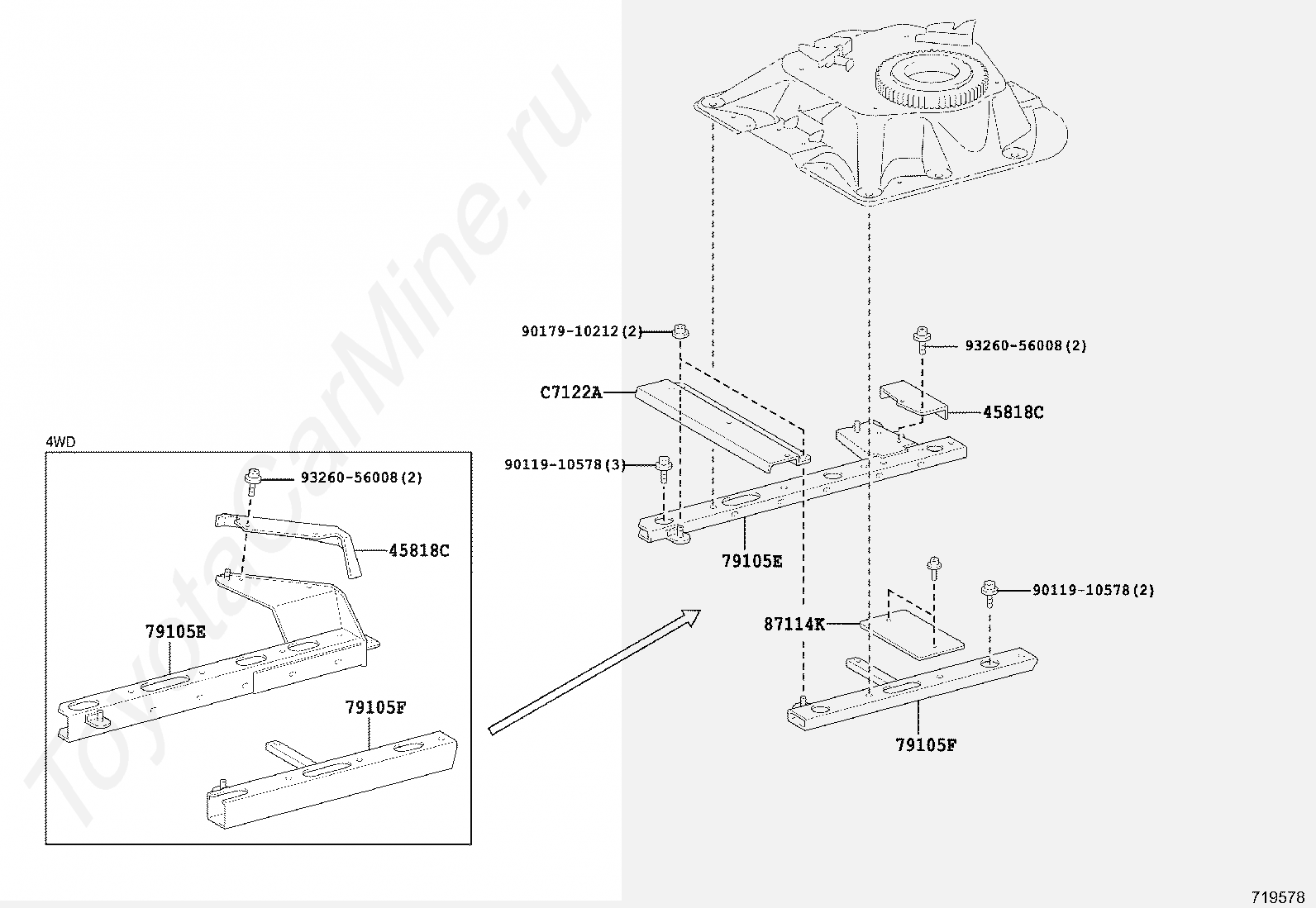

Код

Описание

45818C

BRACKET, CONNECTOR

79105E

LEG SUB-ASSY, NO.1 SEAT, RH

79105F

LEG SUB-ASSY, NO.1 SEAT, LH

87114K

COVER, HEATER

9011910578

Крепеж

9017910212

Крепеж

9326056008

Крепеж

C7122A

GUARD, WELCAB SEAT LEG, NO.2

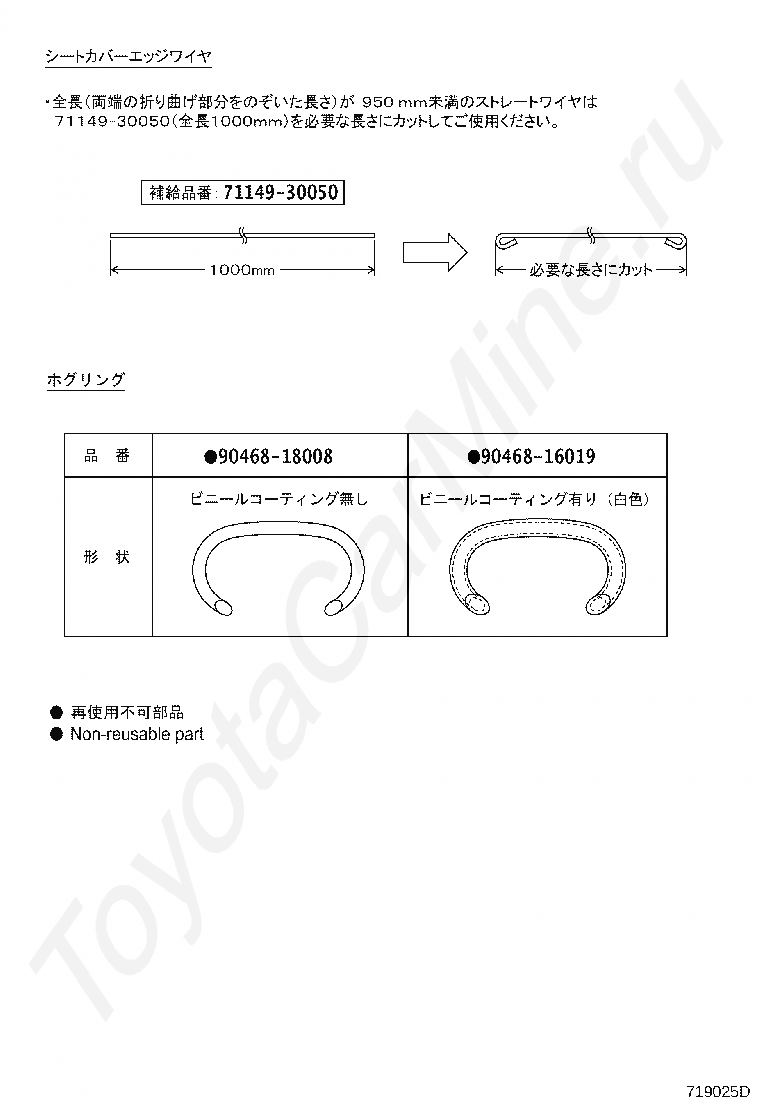

Код

Описание

7114930050

Крепеж

9046816019

Крепеж

9046818008

Крепеж

Передние кресла TOYOTA PORTE/SPADE, 2015/07 - 2020/12, 1,5 литра, 16 клапанов DOHC, EFI, 3900CC:F TYPE, NCP145, вариатор

Товар добавлен в корзину!

Заполните форму
