Каталог
ЯпонияМодель
NOAH/VOXY/ESQUIREДвигатель
2 литра, 16 клапанов, DOHC, EFIКласс
ZS TYPEФрейм
ZRR85Трансмиссия
вариаторОпции
VOXY 8-местный HIGH EFFICIENCY TWIN CAM (VALVEMATIC) COMPLETED VEHICLE 706W
Код
Описание
71075H
CLIP(FOR REAR SEAT)
71324P
CUSHION, NO.1 SEAT, RH
71370G
CUP HOLDER ASSY, REAR SEAT SIDE TABLE
71461D
SPRING, NO.1 SEAT CUSHION, NO.1(FOR RH SEAT)
71461E
SPRING, NO.1 SEAT CUSHION, NO.2(FOR RH SEAT)
71499S
DAMPER, SEAT CUSHION SPRING
7152
переход к группе запчастей
71537V
PROTECTOR, REAR SEAT CUSHION EDGE
71695K
PROTECTOR, NO.1 SEAT BACK, RH
71696M
CLIP, REAR SEAT PROTECTOR
7176928030
Крепеж
71833L
COVER, REAR SEAT RECLINING, RH
71833Y
CLIP, NO.1 SEAT RECLINING COVER(FOR RH SEAT)
71834S
COVER, REAR SEAT RECLINING, NO.1 LH
71848T
CAP, NO.1 SEAT ADJUSTER COVER, RH
71848Y
CAP, SEAT ADJUSTER COVER, RH NO.1(FOR RH SEAT)
71849N
CAP, NO.1 SEAT ADJUSTER COVER, LH(FOR RH SEAT)
71875X
COVER, RECLINING ADJUSTER INSIDE, RH
71931G
SUPPORT ASSY, REAR SEAT HEADREST
71940M
HEADREST ASSY, REAR SEAT
71H75E
COVER, RECLINING ADJUSTER INSIDE, RH(FOR REAR NO.1 RH SEAT)
71T75
COVER, RECLINING ADJUSTER INSIDE, RH
72210X
CABLE ASSY, NO.1 SEAT TRACK CONTROL, RH
72210Y
CABLE ASSY, NO.1 SEAT TRACK CONTROL, RH NO.1
72215A
LEVER, NO.1 SEAT TRACK HANDLE CONTROL, RH
72525N
HANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, RH
72556
CLIP(FOR REAR SEAT)
72570E
CABLE ASSY, NO.1 SEAT RECLINING ADJUSTING, RH
72620R
CABLE ASSY, REAR NO.1 SEAT LOCK(FOR RH SEAT)
72667E
BEZEL, REAR SEAT BACK LOCK, UPPER
72848C
CAP, NO.1 SEAT ARMREST, NO.1 RH
72880B
ARMREST ASSY, NO.1 SEAT, C RH(FOR RH SEAT)
72890B
ARMREST ASSY, NO.1 SEAT, C LH(FOR RH SEAT)
73173P
COVER, REAR SEAT BELT HOLE, RH
73373U
COVER, NO.1 SEAT SHOULDER BELT, RH NO.1
7455
переход к группе запчастей
78060C
TABLE ASSY, NO.1 SEAT SIDE
78631B
TABLE, REAR SEAT SIDE
78632D
COVER, REAR SEAT SIDE TABLE, NO.1
78639B
CLIP, REAR SEAT SIDE TABLE
79011B
COVER SUB-ASSY, NO.1 SEAT CUSHION, RH
79013D
COVER SUB-ASSY, NO.1 SEAT BACK, RH
79101C
FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH
79103B
FRAME SUB-ASSY, NO.1 SEAT BACK, RH
79105G
LEG SUB-ASSY, NO.1 SEAT, RH
79135C
PAD, NO.1 SEAT CUSHION, RH
79175F
PAD, NO.1 SEAT BACK, RH
79959E
COVER, NO.1 SEAT LEG, RH
79959H
COVER, NO.2 SEAT LEG, RH NO.2
79959S
COVER, REAR SEAT LEG, RH
79959T
COVER, REAR SEAT LEG, LH
79965H
COVER, NO.1 SEAT LEG SIDE, NO.2(FOR RH SEAT)
79966F
COVER, NO.1 SEAT LEG SIDE, NO.3(FOR RH SEAT)
9004167029
Крепеж
9010914016
Крепеж
9016740044
Крепеж
9017608044
Крепеж
9017908254
Крепеж
9020111013
Крепеж
9020114016
Крепеж
9046313003
Крепеж
9046710161
Крепеж
9155211025
Крепеж
9162261040
Крепеж
9167281045
Крепеж
9324056020
Крепеж
9415181000
Крепеж
9417060620
Крепеж
Код
Описание
71281C
HINGE, NO.1 SEAT CENTER ARMREST
71349G
COVER, REAR SEAT BACK HINGE
71393G
BAND, NO.1 SEAT CUSHION(FOR RH SEAT)
71396T
CUSHION, NO.1 SEAT SUPPORT, REAR
71499S
DAMPER, SEAT CUSHION SPRING
7152
переход к группе запчастей
71695K
PROTECTOR, NO.1 SEAT BACK, RH
71801G
COVER SUB-ASSY, RECLINING ADJUSTER, RH INNER
71833L
COVER, REAR SEAT RECLINING, RH
71833R
COVER, REAR SEAT RECLINING, RH
71833Y
CLIP, NO.1 SEAT RECLINING COVER(FOR RH SEAT)
71848Y
CAP, SEAT ADJUSTER COVER, RH NO.1(FOR RH SEAT)
71868T
SHIELD, REAR SEAT CUSHION, INNER NO.1 LH
71873Y
SHIELD, REAR SEAT CUSHION, LOWER
71875X
COVER, RECLINING ADJUSTER INSIDE, RH
71878H
COVER, REAR SEAT RECLINING, INNER RH
71878J
COVER, REAR NO.1 SEAT RECLINING, INNER RH
71931G
SUPPORT ASSY, REAR SEAT HEADREST
71940M
HEADREST ASSY, REAR SEAT
71960G
HEADREST ASSY, REAR NO.1 SEAT, CENTER
71H76E
COVER, RECLINING ADJUSTER INSIDE, LH(FOR REAR NO.1 RH SEAT)
71H76M
COVER, RECLINING ADJUSTER INSIDE, LH NO.2(FOR RH SEAT)
71T75
COVER, RECLINING ADJUSTER INSIDE, RH
71T75A
COVER, RECLINING ADJUSTER INSIDE, RH NO.2
72215A
LEVER, NO.1 SEAT TRACK HANDLE CONTROL, RH
72525N
HANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, RH
72569B
PLATE, SEAT BACK STOPPER
72570E
CABLE ASSY, NO.1 SEAT RECLINING ADJUSTING, RH
72573D
LEVER, NO.1 SEAT RECLINING CONTROL, RH
72615M
COVER, NO.1 SEAT BACK LOCK STRIKER(FOR RH SEAT)
72620R
CABLE ASSY, REAR NO.1 SEAT LOCK(FOR RH SEAT)
72668G
BEZEL, NO.1 SEAT BACK LOCK, LOWER(FOR RH SEAT)
7270252070
Крепеж
72830X
ARMREST ASSY, REAR SEAT, CENTER
72863D
BOX, REAR SEAT CENTER ARMREST
72927F
COVER, REAR SEAT CUSHION UNDER, RH
73237C
COVER, SHOULDER BELT ANCHOR
73373U
COVER, NO.1 SEAT SHOULDER BELT, RH NO.1
7889928040
Крепеж
79011B
COVER SUB-ASSY, NO.1 SEAT CUSHION, RH
79013D
COVER SUB-ASSY, NO.1 SEAT BACK, RH
79101C
FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH
79103B
FRAME SUB-ASSY, NO.1 SEAT BACK, RH
79105G
LEG SUB-ASSY, NO.1 SEAT, RH
79135C
PAD, NO.1 SEAT CUSHION, RH
79175F
PAD, NO.1 SEAT BACK, RH
79959S
COVER, REAR SEAT LEG, RH
79977J
FELT, SEAT BACK
9010906195
Крепеж
9010914016
Крепеж
9011908970
Крепеж
9016740044
Крепеж
9017608044
Крепеж
9038608005
Крепеж
9038608155
Крепеж
9038612005
Крепеж
9038612038
Крепеж
9046710161
Крепеж
9155180612
Крепеж
9155180816
Крепеж
9155211025
Крепеж
Код
Описание
71393H
BAND, NO.1 SEAT CUSHION(FOR LH SEAT)
71396T
CUSHION, NO.1 SEAT SUPPORT, REAR
7152
переход к группе запчастей
71834L
COVER, REAR SEAT RECLINING, LH
71834W
CLIP, NO.1 SEAT RECLINING COVER(FOR LH SEAT)
71834X
COVER, REAR SEAT RECLINING, NO.2 LH
71849L
CAP, NO.1 SEAT ADJUSTER COVER, LH
71868U
SHIELD, REAR SEAT CUSHION, INNER NO.1 LH (FOR LH SEAT)
71874X
SHIELD, REAR SEAT CUSHION, LOWER LH
71931G
SUPPORT ASSY, REAR SEAT HEADREST
71940M
HEADREST ASSY, REAR SEAT
71T75
COVER, RECLINING ADJUSTER INSIDE, RH
71T75F
COVER, RECLINING ADJUSTER INSIDE, RH
71T75J
COVER, RECLINING ADJUSTER INSIDE, RH NO.3(FOR LH SEAT)
71T76B
COVER, RECLINING ADJUSTER INSIDE, LH
71T76C
COVER, RECLINING ADJUSTER INSIDE, LH NO.2
71T76G
COVER, RECLINING ADJUSTER INSIDE, LH
72216B
LEVER, NO.1 SEAT TRACK HANDLE CONTROL, LH
72526J
HANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, LH
72574A
LEVER, RECLINING CONTROL, LH
72615N
COVER, NO.1 SEAT BACK LOCK STRIKER(FOR LH SEAT)
72620G
CABLE ASSY, REAR SEAT LOCK, LH
72620S
CABLE ASSY, REAR NO.1 SEAT LOCK(FOR LH SEAT)
7270252070
Крепеж
72928E
COVER, REAR SEAT CUSHION UNDER, LH
7889928040
Крепеж
79012A
COVER SUB-ASSY, NO.1 SEAT CUSHION, LH
79014B
COVER SUB-ASSY, NO.1 SEAT BACK, LH
79102B
FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH
79104A
FRAME SUB-ASSY, NO.1 SEAT BACK, LH
79106B
LEG SUB-ASSY, NO.1 SEAT, LH
79136C
PAD, NO.1 SEAT CUSHION, LH
79185A
PAD, NO.1 SEAT BACK, LH
79246Q
COVER, REAR SEAT LEG, RH (FOR LH SEAT)
79959T
COVER, REAR SEAT LEG, LH
79977R
FELT, SEAT CUSHION, LH
9016740044
Крепеж
9038612038
Крепеж
9046313003
Крепеж
9046710161
Крепеж
9155180612
Крепеж
9155180816
Крепеж
9155211025
Крепеж
Код
Описание
45619L
COVER, KNUCKLE STOPPER
71393G
BAND, NO.1 SEAT CUSHION(FOR RH SEAT)
71396T
CUSHION, NO.1 SEAT SUPPORT, REAR
7152
переход к группе запчастей
71616A
PAD, REAR SEAT CUSHION
71695K
PROTECTOR, NO.1 SEAT BACK, RH
71695M
CLIP, REAR NO.1 SEAT PROTECTOR, NO.1 RH
71695S
PROTECTOR, REAR SEAT, NO.1
71697D
PROTECTOR, NO.3 SEAT BACK, RH
71811Y
COVER, RECLINING ADJUSTER, RH
71833L
COVER, REAR SEAT RECLINING, RH
71833R
COVER, REAR SEAT RECLINING, RH
71833Y
CLIP, NO.1 SEAT RECLINING COVER(FOR RH SEAT)
71848Y
CAP, SEAT ADJUSTER COVER, RH NO.1(FOR RH SEAT)
71868T
SHIELD, REAR SEAT CUSHION, INNER NO.1 LH
71873Y
SHIELD, REAR SEAT CUSHION, LOWER
71875X
COVER, RECLINING ADJUSTER INSIDE, RH
71878H
COVER, REAR SEAT RECLINING, INNER RH
71878J
COVER, REAR NO.1 SEAT RECLINING, INNER RH
71931G
SUPPORT ASSY, REAR SEAT HEADREST
71940M
HEADREST ASSY, REAR SEAT
71960G
HEADREST ASSY, REAR NO.1 SEAT, CENTER
71H76E
COVER, RECLINING ADJUSTER INSIDE, LH(FOR REAR NO.1 RH SEAT)
71H76M
COVER, RECLINING ADJUSTER INSIDE, LH NO.2(FOR RH SEAT)
71T75
COVER, RECLINING ADJUSTER INSIDE, RH
72215A
LEVER, NO.1 SEAT TRACK HANDLE CONTROL, RH
72525N
HANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, RH
72569B
PLATE, SEAT BACK STOPPER
72570E
CABLE ASSY, NO.1 SEAT RECLINING ADJUSTING, RH
72573D
LEVER, NO.1 SEAT RECLINING CONTROL, RH
72615M
COVER, NO.1 SEAT BACK LOCK STRIKER(FOR RH SEAT)
72620R
CABLE ASSY, REAR NO.1 SEAT LOCK(FOR RH SEAT)
72668G
BEZEL, NO.1 SEAT BACK LOCK, LOWER(FOR RH SEAT)
7270252070
Крепеж
72907F
COVER SUB-ASSY, REAR NO.1 SEAT CUSHION UNDER, RH
72927F
COVER, REAR SEAT CUSHION UNDER, RH
73237C
COVER, SHOULDER BELT ANCHOR
73373U
COVER, NO.1 SEAT SHOULDER BELT, RH NO.1
74690A
GRIP ASSY, SEAT ASSIST, REAR
74807H
PIPE SUB-ASSY, CENTER PROTECTOR
7889928040
Крепеж
79011B
COVER SUB-ASSY, NO.1 SEAT CUSHION, RH
79013D
COVER SUB-ASSY, NO.1 SEAT BACK, RH
79101C
FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH
79103B
FRAME SUB-ASSY, NO.1 SEAT BACK, RH
79105G
LEG SUB-ASSY, NO.1 SEAT, RH
79135C
PAD, NO.1 SEAT CUSHION, RH
79175F
PAD, NO.1 SEAT BACK, RH
79959S
COVER, REAR SEAT LEG, RH
79977J
FELT, SEAT BACK
9010914016
Крепеж
9011908970
Крепеж
9016740044
Крепеж
9038612005
Крепеж
9038612038
Крепеж
9046707215
Крепеж
9046710161
Крепеж
9155180612
Крепеж
9155180816
Крепеж
9155211025
Крепеж
9155301225
Крепеж
9155380830
Крепеж
C9472B
PLATE, HANDRAIL BRACKET, NO.1
C9472C
PLATE, HANDRAIL BRACKET, NO.2

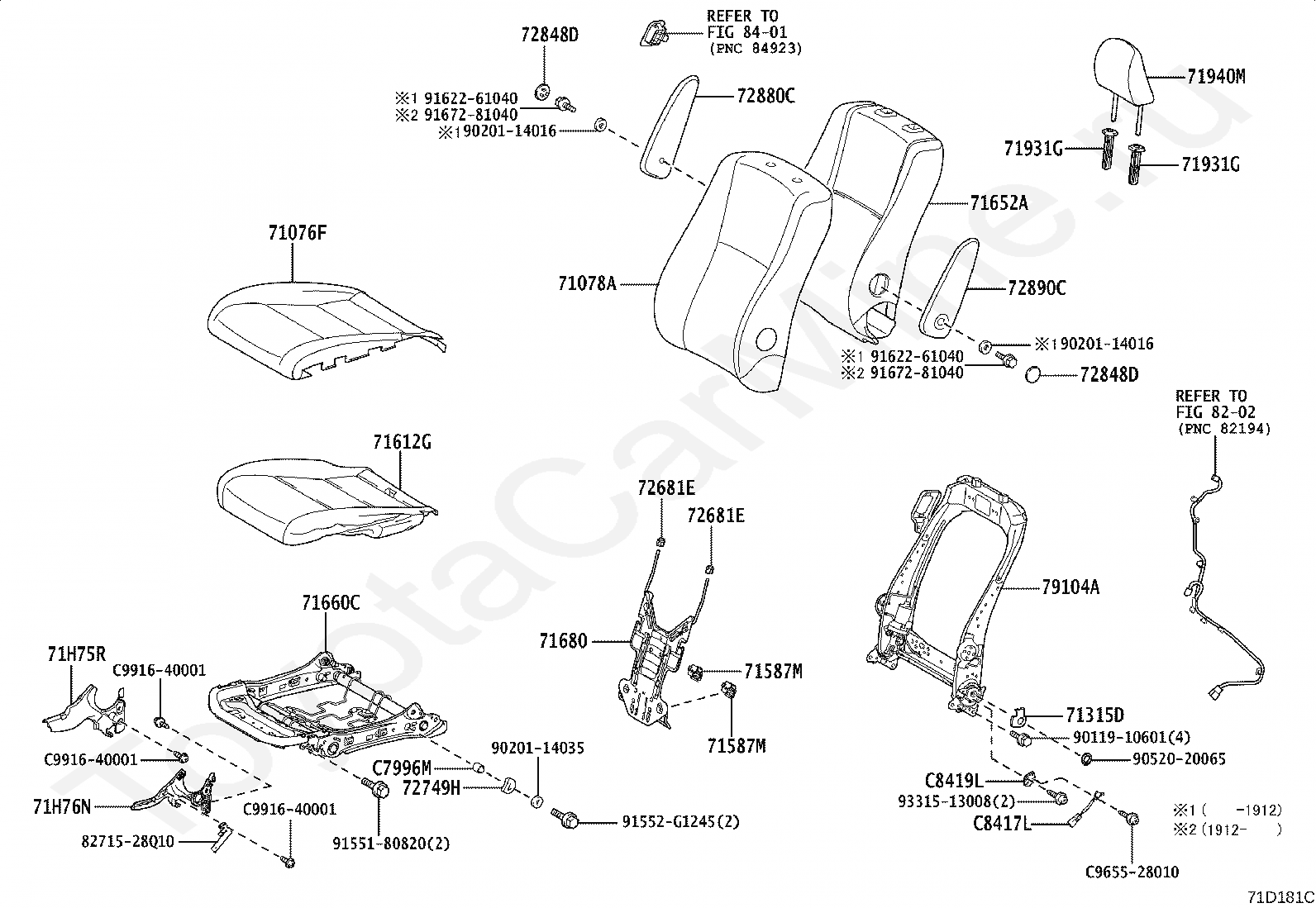

Код
Описание
71076F
COVER SUB-ASSY, NO.1 SEAT CUSHION, LH
71078A
COVER SUB-ASSY, REAR NO.1 SEAT BACK, LH
71315D
PLATE, REAR SEAT HINGE, LOWER
71587M
PROTECTOR, REAR SEAT BACK EDGE, LH
71612G
PAD, REAR NO.1 SEAT CUSHION, LH
71652A
PAD, REAR NO.1 SEAT BACK, LH
71660C
SPRING ASSY, REAR NO.1 SEAT CUSHION, LH
71680
SPRING ASSY, REAR NO.1 SEAT BACK, LH
71931G
SUPPORT ASSY, REAR SEAT HEADREST
71940M
HEADREST ASSY, REAR SEAT
71H75R
COVER, RECLINING ADJUSTER INSIDE, RH NO.1(FOR LH SEAT)
71H76N
COVER, RECLINING ADJUSTER INSIDE, LH NO.1(FOR LH SEAT)
72681E
HOOK, REAR SEAT
72749H
SPACER, REAR SEAT RECLINING, LH
72848D
CAP, NO.1 SEAT ARMREST, NO.1 LH
72880C
ARMREST ASSY, NO.1 SEAT, C RH(FOR LH SEAT)
72890C
ARMREST ASSY, NO.1 SEAT, C LH(FOR LH SEAT)
79104A
FRAME SUB-ASSY, NO.1 SEAT BACK, LH
8202
переход к группе запчастей
8271528Q10
Крепеж
8401
переход к группе запчастей
9011910601
Крепеж
9020114016
Крепеж
9020114035
Крепеж
9052020065
Крепеж
9155180820
Крепеж
91552G1245
Крепеж
9162261040
Крепеж
9167281040
Крепеж
9331513008
Крепеж
C7996M
SPACER, TURN SEAT
C8417L
SWITCH, LIMIT, NO.1
C8419L
BRACKET, LIMIT SWITCH, NO.1
C965528010
Крепеж
C991640001
Крепеж
Код
Описание

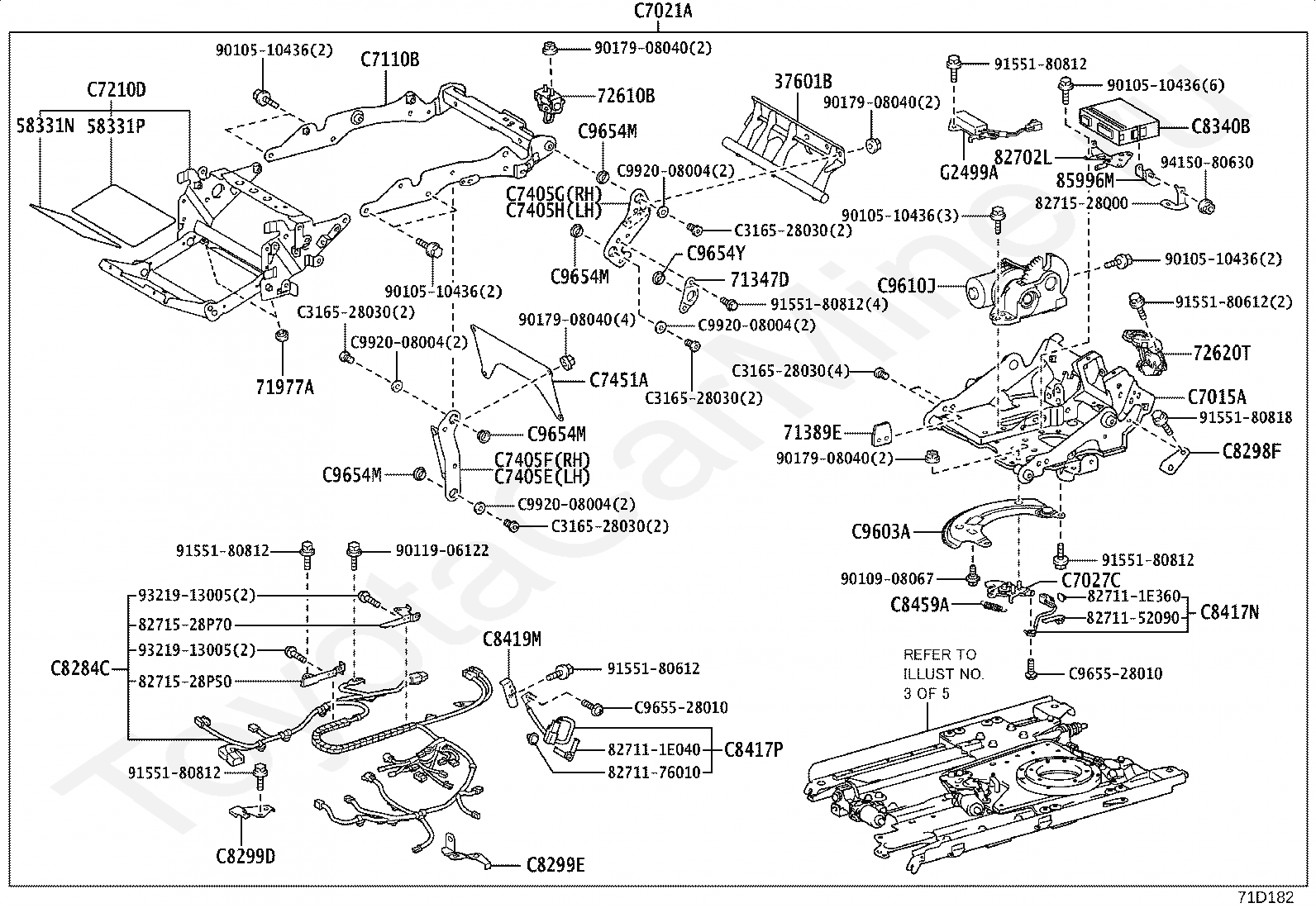

37601B
SHAFT SUB-ASSY, DRIVE, NO.1
58331N
SHEET, REAR STEP. NO.1
58331P
SHEET, REAR STEP. NO.2
71347D
BRACKET, REAR SEAT LINK
71389E
PLATE, REAR SEAT CUSHION BRACKET
71977A
CUSHION
72610B
STRIKER ASSY, REAR SEAT BACK LOCK
72620T
LOCK ASSY, REAR SEAT BACK
82702L
BRACKET SUB-ASSY, WIRING HARNESS
827111E040
Крепеж
827111E360
Крепеж
8271152090
Крепеж
8271176010
Крепеж
8271528P50
Крепеж
8271528P70
Крепеж
8271528Q00
Крепеж
85996M
BRACKET, RELAY, NO.1
9010510436
Крепеж
9010908067
Крепеж
9011906122
Крепеж
9017908040
Крепеж
9155180612
Крепеж
9155180812
Крепеж
9155180818
Крепеж
9321913005
Крепеж
9415080630
Крепеж
C316528030
Крепеж
C7015A
PANEL SUB-ASSY, TURN TABLE
C7021A
LIFT KIT, REAR SEAT
C7027C
LOCK SUB-ASSY, WELCAB SEAT TURN
C7110B
BRACKET SUB-ASSY, SEAT HOLDER, REAR
C7210D
FOOTREST ASSY, WELCAB SEAT
C7405E
ARM SUB-ASSY, WELCAB SEAT LINK, NO.1
C7405F
ARM SUB-ASSY, WELCAB SEAT LINK, NO.2
C7405G
ARM SUB-ASSY, WELCAB SEAT LINK, NO.3
C7405H
ARM SUB-ASSY, WELCAB SEAT LINK, NO.4
C7451A
ARM, WELCAB SEAT LINK, NO.1
C8284C
WIRE, POWER LIFT MAIN
C8298F
BRACKET, WELCAB SEAT HARNESS CLAMP, NO.2
C8299D
BRACKET, WELCAB SEAT HARNESS CONNECTOR, NO.1
C8299E
BRACKET, WELCAB SEAT HARNESS CONNECTOR, NO.2
C8340B
COMPUTER ASSY, WELCAB DEVICE CONTROL
C8417N
SWITCH, LIMIT, NO.3
C8417P
SWITCH, LIMIT, NO.4
C8419M
BRACKET, LIMIT SWITCH, NO.2
C8459A
SPRING, LIMIT SWITCH
C9603A
GEAR SUB-ASSY, POWER LIFT
C9610J
MOTOR ASSY, POWER LIFT
C9654M
COLLAR, POWER LIFT CYLINDER, NO.1
C9654Y
COLLAR, POWER LIFT CYLINDER, NO.8
C965528010
Крепеж
C992008004
Крепеж
G2499A
RESISTOR, ELECTRIC CIRCUIT
Код
Описание
62786L
CASE, SIDE WINDOW LOCK, NO.1
71163E
STOPPER, TURN TABLE, NO.1
71163F
STOPPER, TURN TABLE, NO.2
72205F
HOUSING SUB-ASSY, POWER SEAT, NO.1
72589E
CABLE ASSY, RECLINING REMOTE CONTROL, NO.1
73131D
BRACKET, SEAT BELT
79105H
LEG SUB-ASSY, WELCAB SEAT, RH
79106C
LEG SUB-ASSY, WELCAB SEAT, LH
827111E360
Крепеж
85801C
MOTOR ASSY, POWER SEAT(FOR LH SEAT)
85H20
MOTOR ASSY, POWER SEAT
9010906322
Крепеж
9010908067
Крепеж
9016850040
Крепеж
9017912071
Крепеж
9020114016
Крепеж
9020612035
Крепеж
9054106047
Крепеж
9155180612
Крепеж
9155180812
Крепеж
9155180818
Крепеж
9155281030
Крепеж
9418801201
Крепеж
C3165D1220
Крепеж
C7021A
LIFT KIT, REAR SEAT
C7103D
PANEL SUB-ASSY, WELCAB SEAT LEG, NO.1
C7104B
PLATE SUB-ASSY, SEAT TURN
C7105A
PANEL SUB-ASSY, SLIDE TABLE
C7159H
CUSHION, WELCAB SEAT LEG STOPPER
C7161A
PANEL, SLIDE TABLE
C7230F
TRACK ASSY, WELCAB SEAT, NO.1
C7230G
TRACK ASSY, WELCAB SEAT, NO.2
C7409E
BRACKET SUB-ASSY, WELCAB SEAT ROD SUPPORT, NO.1
C7409F
BRACKET SUB-ASSY, WELCAB SEAT ROD SUPPORT, NO.2
C7481C
ROD, WELCAB SEAT, NO.1
C7483C
GEAR WELCAB SEAT LEG, NO.1
C7495D
BRACKET, WELCAB SEAT MOTOR, NO.1
C8298E
BRACKET, WELCAB SEAT HARNESS CLAMP
C8417M
SWITCH, LIMIT, NO.2
C8419U
BRACKET, LIMIT SWITCH, NO.5
C8449A
DOG, LIMIT SWITCH
C9652B
CAP, POWER LIFT CYLINDER, NO.1
C9654N
COLLAR, POWER LIFT CYLINDER, NO.2
C965528010
Крепеж
C9658C
PLATE, POWER LIFT CYLINDER ROD
C991440001
Крепеж
C991605003
Крепеж
C991708008
Крепеж
Код
Описание
51079G
PANEL SUB-ASSY, REAR STEP
53019G
SHUTTER SUB-ASSY, RADIATOR
55358N
PROTECTOR, EDGE
58659D
SHEET, STEP SILENCER
71260E
BRACKET ASSY, SEAT, OUTER LH
71280C
BRACKET ASSY, SEAT, INNER LH
71430E
CLIP
7152
переход к группе запчастей
71812V
SHIELD, REAR SEAT CUSHION, LH
71846G
CAP, REAR SEAT COVER, LH
71862P
SHIELD, REAR SEAT CUSHION, INNER LH
71935C
CLIP
71936C
CLIP
72945C
COVER, REAR SEAT TURN
72973K
COVER, REAR SEAT TURN TABLE, RH
72974B
COVER, REAR SEAT TURN TABLE, LH
73705C
BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR
7455
переход к группе запчастей
78987B
COVER, REAR NO.1 SEAT FOOTREST, NO.1 LH
79246L
COVER, NO.1 SEAT LEG, NO.2
79246M
COVER, REAR SEAT LEG, LH
8401
переход к группе запчастей
9020108082
Крепеж
9046400620
Крепеж
9046705172
Крепеж
9056008041
Крепеж
9155180820
Крепеж
9326056012
Крепеж
9356053008
Крепеж
9356054008
Крепеж
C2261A
STOPPER, REAR STEP
C6625G
BRACKET, NO.1(FOR REAR SEAT SIDE TABLE COVER)
C6625H
BRACKET, NO.2(FOR REAR SEAT SIDE TABLE COVER)
C7962B
COVER, REAR SEAT FOOTREST, RH
C7962C
COVER, REAR SEAT FOOTREST, LH
C991480003
Крепеж
Код
Описание
72908A
COVER SUB-ASSY, REAR NO.1 SEAT CUSHION UNDER, LH
7455
переход к группе запчастей
79937D
COVER, NO.1 SEAT LEG, NO.1(FOR LH SEAT)
9046709232
Крепеж
9046710167
Крепеж
91673A0820
Крепеж
C9055H
COVER SUB-ASSY, POWER LIFT, NO.1
Код
Описание
71208B
WIRE SUB-ASSY, NO.2 SEAT CUSHION, RH NO.1
71307F
BRACKET SUB-ASSY, NO.1 SEAT CUSHION(FOR RH SEAT)
71330D
HINGE ASSY, REAR NO.2 SEAT, RH
71393C
BAND, NO.2 SEAT CUSHION, RH NO.1
71397G
STOPPER, REAR SEAT, RH
71398L
GUIDE, NO.2 SEAT CUSHION SUPPORT, RH
71462A
SPRING, REAR SEAT CUSHION, NO.2(FOR RH SEAT)
71485E
COVER, REAR SEAT HINGE
71485F
COVER, REAR SEAT HINGE, NO.1 RH
71485G
COVER, REAR SEAT HINGE, NO.2 RH
7152
переход к группе запчастей
71693F
COVER, REAR NO.2 SEAT CUSHION HINGE, LOWER RH NO.1
71693G
COVER, REAR NO.2 SEAT CUSHION HINGE, LOWER RH NO.2
71696N
PROTECTOR, REAR SEAT, NO.2
71778D
COVER, REAR SEAT SIDE HINGE MALE, RH
71811Y
COVER, RECLINING ADJUSTER, RH
71825D
MOULDING, REAR NO.1 SEAT CUSHION, RH
71825E
MOULDING, REAR NO.2 SEAT CUSHION, RH
71842B
CLIP(FOR REAR SEAT)
71843G
COVER, NO.2 SEAT RECLINING, NO.2 RH OUTER
71843M
COVER, REAR SEAT RECLINING, NO.2 RH
71843N
CLIP, REAR SEAT RECLINING COVER
71848U
CAP, NO.2 SEAT ADJUSTER COVER, RH
71930Q
SUPPORT ASSY, REAR SEAT HEADREST
71940N
HEADREST ASSY, REAR SEAT, NO.2
71960F
HEADREST ASSY, REAR NO.2 SEAT, CENTER
71H11
COVER, RECLINING ADJUSTER, RH
72063B
HOOK SUB-ASSY, REAR SEAT, RH
72065D
HOOK SUB-ASSY, REAR NO.2 SEAT CUSHION LOCK, RH
72507H
HANDLE SUB-ASSY, RECLINING RELEASE, RH
72601G
STRIKER SUB-ASSY, REAR SEAT LOCK
72695R
CABLE, REAR NO.2 SEAT LOCK CONTROL, RH
7455
переход к группе запчастей
76971G
COVER, REAR UNDER
76973F
COVER, REAR UNDER SIDE, RH
79021D
COVER SUB-ASSY, NO.2 SEAT CUSHION, RH
79023D
COVER SUB-ASSY, NO.2 SEAT BACK, RH
79030C
LEG ASSY, REAR NO.2 SEAT, RH
79235F
PAD, NO.2 SEAT CUSHION, RH
79236G
COVER, NO.2 SEAT LEG, RH
79260C
SPRING ASSY, NO.2 SEAT CUSHION, RH
79273B
COVER, NO.2 SEAT HINGE, NO.3
79275F
PAD, NO.2 SEAT BACK, RH
79378E
COVER, NO.3 SEAT CUSHION HINGE, RH
79956Y
CLIP (FOR REAR SEAT LEG BRACKET COVER)
79957C
COVER, REAR SEAT REAR BRACKET, RH
79977K
FELT, SEAT BACK, NO.2
9010906247
Крепеж
9010908330
Крепеж
9011906904
Крепеж
9016740044
Крепеж
9020107008
Крепеж
9046707214
Крепеж
9155180612
Крепеж
9155180816
Крепеж
9155380612
Крепеж
9167381022
Крепеж
91674L1028
Крепеж
9415180600
Крепеж
9415180800
Крепеж
9418560600
Крепеж
C6185D1170
Крепеж
Код
Описание
71208D
WIRE SUB-ASSY, NO.2 SEAT CUSHION, LH NO.1
71307G
BRACKET SUB-ASSY, NO.1 SEAT CUSHION(FOR LH SEAT)
71340C
HINGE ASSY, REAR NO.2 SEAT, LH
71393E
BAND, NO.2 SEAT CUSHION, LH NO.1
71397H
STOPPER, REAR SEAT, LH
71398M
GUIDE, NO.2 SEAT CUSHION SUPPORT, LH
71462B
SPRING, REAR SEAT CUSHION, NO.2(FOR LH SEAT)
71486F
COVER, REAR SEAT HINGE, LH
71486G
COVER, REAR SEAT HINGE, NO.2 LH
71486H
COVER, REAR SEAT HINGE, NO.1 LH
7152
переход к группе запчастей
71694A
COVER, REAR NO.2 SEAT CUSHION HINGE, LOWER LH NO.1
71694B
COVER, REAR NO.2 SEAT CUSHION HINGE, LOWER LH NO.2
71696N
PROTECTOR, REAR SEAT, NO.2
71779F
COVER, REAR SEAT SIDE HINGE MALE, LH
71826C
MOULDING, REAR SEAT CUSHION, LH
71826D
MOULDING, REAR NO.2 SEAT CUSHION, LH
71842B
CLIP(FOR REAR SEAT)
71843N
CLIP, REAR SEAT RECLINING COVER
71844G
COVER, NO.2 SEAT RECLINING, NO.2 LH OUTER
71844K
COVER, REAR NO.2 SEAT RECLINING, NO.2 LH
71849M
CAP, NO.2 SEAT ADJUSTER COVER, LH
71930Q
SUPPORT ASSY, REAR SEAT HEADREST
71940N
HEADREST ASSY, REAR SEAT, NO.2
71H12
COVER, RECLINING ADJUSTER, LH
71H12A
COVER, RECLINING ADJUSTER, LH
72064B
HOOK SUB-ASSY, REAR SEAT, LH
72065E
HOOK SUB-ASSY, REAR NO.2 SEAT CUSHION LOCK, LH
72507G
HANDLE SUB-ASSY, RECLINING RELEASE, LH
72601G
STRIKER SUB-ASSY, REAR SEAT LOCK
72695S
CABLE, REAR NO.2 SEAT LOCK CONTROL, LH
7455
переход к группе запчастей
76971G
COVER, REAR UNDER
76974F
COVER, REAR UNDER SIDE, LH
79022B
COVER SUB-ASSY, NO.2 SEAT CUSHION, LH
79024D
COVER SUB-ASSY, NO.2 SEAT BACK, LH
79040C
LEG ASSY, REAR NO.2 SEAT, LH
79245A
PAD, NO.2 SEAT CUSHION, LH
79246H
COVER, NO.2 SEAT LEG, LH
79270B
SPRING ASSY, NO.2 SEAT CUSHION, LH
79273B
COVER, NO.2 SEAT HINGE, NO.3
79285C
PAD, NO.2 SEAT BACK, LH
79378F
COVER, NO.2 SEAT CUSHION HINGE, LH
79956Y
CLIP (FOR REAR SEAT LEG BRACKET COVER)
79958B
COVER, REAR SEAT REAR BRACKET, LH
79977K
FELT, SEAT BACK, NO.2
9010906247
Крепеж
9010908330
Крепеж
9011906904
Крепеж
9016740044
Крепеж
9020107008
Крепеж
9046707214
Крепеж
9155180612
Крепеж
9155180816
Крепеж
9155380612
Крепеж
9167381022
Крепеж
91674L1028
Крепеж
9415180600
Крепеж
9415180800
Крепеж
9418560600
Крепеж
C6185D1170
Крепеж
Код
Описание
7114930050
Крепеж
9046816019
Крепеж
9046818008
Крепеж
Наш менеджер перезвонит в ближайшее время
