FRONT SEAT & SEAT TRACK TOYOTA NOAH/VOXY/ESQUIRE, 2017/06 - 2025, 2 литра, 16 клапанов, DOHC, EFI, ZS TYPE, ZRR85, вариатор

Каталог

Япония

Модель

NOAH/VOXY/ESQUIRE

Двигатель

2 литра, 16 клапанов, DOHC, EFI

Класс

ZS TYPE

Фрейм

ZRR85

Трансмиссия

вариатор

Опции

VOXY 8-местный HIGH EFFICIENCY TWIN CAM (VALVEMATIC) COMPLETED VEHICLE 706W

Код

Описание

71013A

FRAME SUB-ASSY, FRONT SEAT BACK, RH

71051B

SPRING SUB-ASSY, FRONT SEAT CUSHION, RH

71053

SPRING SUB-ASSY, FRONT SEAT BACK, RH

71071

COVER SUB-ASSY, FRONT SEAT CUSHION, RH

71073A

COVER SUB-ASSY, FRONT SEAT BACK, RH

71121C

BRACKET, FRONT SEAT CUSHION, RH

71130B

LEG ASSY, FRONT SEAT, RH

71139M

COVER, FRONT SEAT LEG, RH OUTER

71139N

COVER, FRONT SEAT LEG, RH INNER

71139V

COVER, FRONT SEAT LEG NO.1

71139W

COVER, FRONT SEAT LEG(FOR RH SEAT)

71139Y

COVER, FRONT SEAT LEG, RH

71499Y

DAMPER, SEAT BACK SPRING, RH

71511A

PAD, FRONT SEAT CUSHION, RH

7152

переход к группе запчастей

71537V1010

Крепеж

71537X

PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)

71537Z

PROTECTOR, FRONT SEAT CUSHION

71538C

PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)

71551A

PAD, FRONT SEAT BACK, RH

71587K

PROTECTOR, FRONT SEAT BACK EDGE, RH

71759E

HOOK, FRONT SEAT BACK, RH

71759H

HOOK, FRONT SEAT BACK

71811T

SHIELD, FRONT SEAT CUSHION, RH

71811W

CLIP, FRONT SEAT CUSHION SHIELD, RH

71848N

CAP, FRONT SEAT ADJUSTER COVER, RH NO.1

71861K

SHIELD, FRONT SEAT CUSHION, INNER RH

71861L

CLIP, FRONT SEAT CUSHION SHIELD, RH

71873V

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874U

SHIELD, FRONT SEAT CUSHION, LOWER LH

71910E

HEADREST ASSY, FRONT SEAT, RH

71930E

SUPPORT ASSY, FRONT SEAT HEADREST, RH

71H75

COVER, RECLINING ADJUSTER INSIDE, RH OUTER(FOR RH SEAT)

71H76

COVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT)

72010A

ADJUSTER ASSY, FRONT SEAT, RH

72129V

PROTECTOR, SEAT TRACK LOWER RAIL, RH

72211F

HANDLE, SEAT TRACK ADJUSTING, RH

72494A

HANDLE, FRONT SEAT VERTICAL ADJUSTER, RH

72525M

HANDLE, RECLINING ADJUSTER RELEASE, RH

72820

ARMREST ASSY, FRONT SEAT, LH(FOR RH SEAT)

72848K

CAP, SEAT ARMREST, NO.1(FOR RH SEAT)

72991C

COVER, FRONT SEAT

73910B

AIR BAG ASSY, FRONT SEAT, RH

79977N

FELT, SEAT BACK

8202

переход к группе запчастей

87530D

HEATER ASSY, FRONT SEAT BACK, RH

87E10B

HEATER ASSY, FRONT SEAT CUSHION, RH

9011910601

Крепеж

9011910990

Крепеж

9016740044

Крепеж

9017908241

Крепеж

9167281045

Крепеж

9326955010

Крепеж

9417060600

Крепеж

9418560600

Крепеж

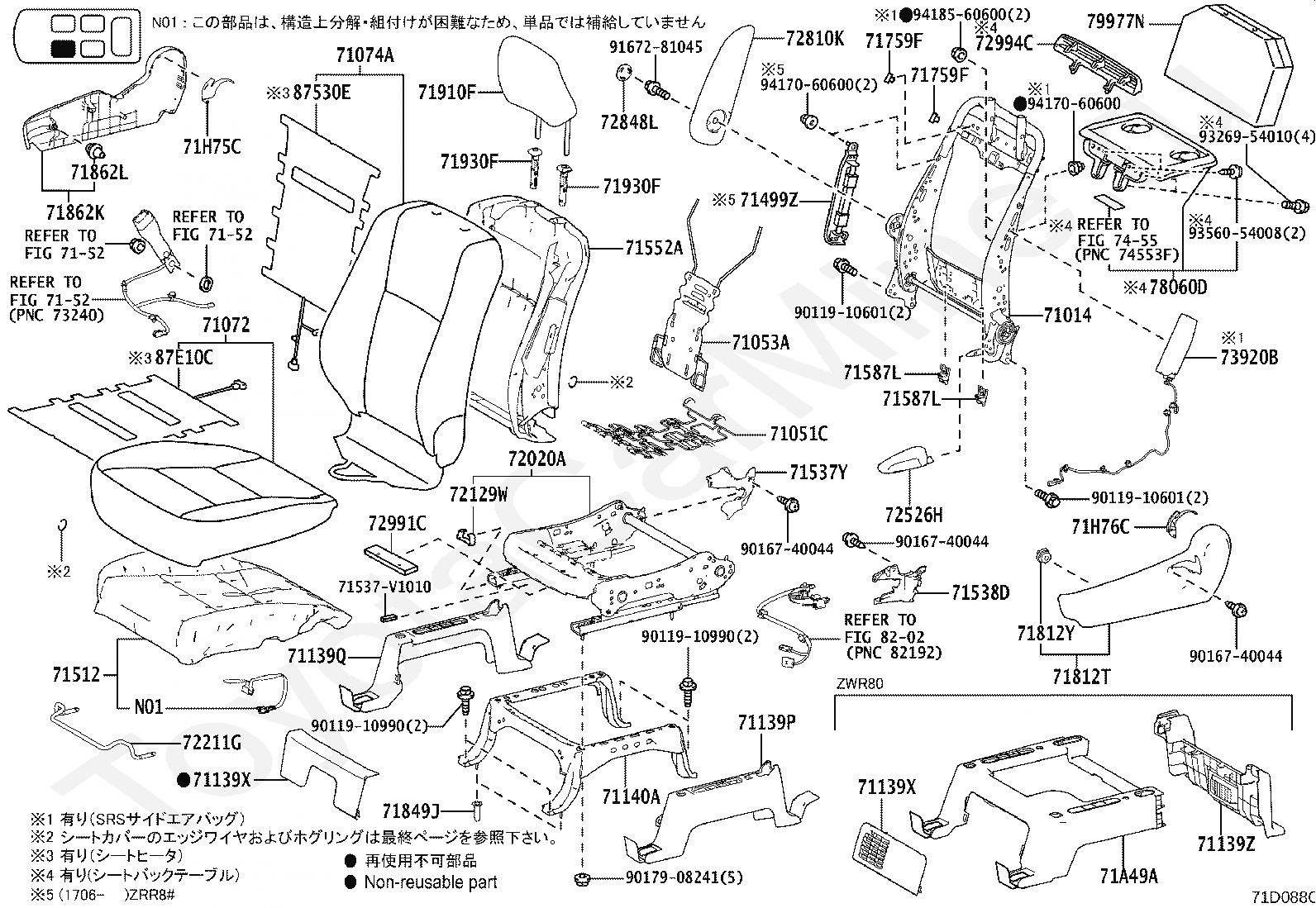

Код

Описание

71014

FRAME SUB-ASSY, FRONT SEAT BACK, LH

71051C

SPRING SUB-ASSY, FRONT SEAT CUSHION, LH

71053A

SPRING SUB-ASSY, FRONT SEAT BACK, LH

71072

COVER SUB-ASSY, FRONT SEAT CUSHION, LH

71074A

COVER SUB-ASSY, FRONT SEAT BACK, LH

71139P

COVER, FRONT SEAT LEG, LH OUTER

71139Q

COVER, FRONT SEAT LEG, LH INNER

71139X

COVER, FRONT SEAT LEG NO.2

71139Z

COVER, FRONT SEAT LEG, LH

71140A

LEG ASSY, FRONT SEAT, LH

71499Z

DAMPER, SEAT BACK SPRING, LH

71512

PAD, FRONT SEAT CUSHION, LH

7152

переход к группе запчастей

71537V1010

Крепеж

71537Y

PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)

71538D

PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)

71552A

PAD, FRONT SEAT BACK, LH

71587L

PROTECTOR, FRONT SEAT BACK EDGE, LH

71759F

HOOK, FRONT SEAT BACK, LH

71812T

SHIELD, FRONT SEAT CUSHION, LH

71812Y

CLIP, FRONT SEAT CUSHION SHIELD, LH

71849J

CAP, FRONT SEAT ADJUSTER COVER, LH NO.3

71862K

SHIELD, FRONT SEAT CUSHION, INNER LH

71862L

CLIP, FRONT SEAT CUSHION SHIELD, LH

71910F

HEADREST ASSY, FRONT SEAT, LH

71930F

SUPPORT ASSY, FRONT SEAT HEADREST, LH

71A49A

COVER, FRONT SEAT LEG(FOR LH SEAT)

71H75C

COVER, RECLINING ADJUSTER INSIDE, RH(FOR LH SEAT)

71H76C

COVER, RECLINING ADJUSTER INSIDE, LH OUTER(FOR LH SEAT)

72020A

ADJUSTER ASSY, FRONT SEAT, LH

72129W

PROTECTOR, SEAT TRACK LOWER RAIL, LH

72211G

HANDLE, SEAT TRACK ADJUSTING, LH

72526H

HANDLE, RECLINING ADJUSTER RELEASE, LH

72810K

ARMREST ASSY, FRONT SEAT, RH(FOR LH SEAT)

72848L

CAP, SEAT ARMREST, NO.1(FOR LH SEAT)

72991C

COVER, FRONT SEAT

72994C

COVER, FRONT SEAT BACK, LH

73920B

AIR BAG ASSY, FRONT SEAT, LH

7455

переход к группе запчастей

78060D

TABLE ASSY, FRONT SEAT BACK, LH

79977N

FELT, SEAT BACK

8202

переход к группе запчастей

87530E

HEATER ASSY, FRONT SEAT BACK, LH

87E10C

HEATER ASSY, FRONT SEAT CUSHION, LH

9011910601

Крепеж

9011910990

Крепеж

9016740044

Крепеж

9017908241

Крепеж

9167281045

Крепеж

9326954010

Крепеж

9356054008

Крепеж

9417060600

Крепеж

9418560600

Крепеж

Код

Описание

55359G

CUSHION, WELCAB SEAT

57457G

BRACKET, FRONT SEAT

58204N

BRACKET SUB-ASSY, FRONT SEAT

71051C

SPRING SUB-ASSY, FRONT SEAT CUSHION, LH

71053A

SPRING SUB-ASSY, FRONT SEAT BACK, LH

71072

COVER SUB-ASSY, FRONT SEAT CUSHION, LH

71074A

COVER SUB-ASSY, FRONT SEAT BACK, LH

71138A

SPACER, FRONT SEAT SET

71173

PLATE, FRONT SEAT BACK SPRING SET, INSIDE NO.1 LH

71173A

PLATE, FRONT SEAT BACK SPRING SET, INSIDE NO.2 LH

71315E

PLATE, FRONT SEAT HINGE

71512

PAD, FRONT SEAT CUSHION, LH

71517D

PAD, FRONT SEAT CUSHION COVER, FRONT

7152

переход к группе запчастей

71537N

PROTECTOR, FRONT SEAT CUSHION EDGE NO.1

71537Z

PROTECTOR, FRONT SEAT CUSHION

71552A

PAD, FRONT SEAT BACK, LH

71708G

STRAP SUB-ASSY, SEAT COVER

7176960010B6

Крепеж

71812T

SHIELD, FRONT SEAT CUSHION, LH

71862K

SHIELD, FRONT SEAT CUSHION, INNER LH

71874U

SHIELD, FRONT SEAT CUSHION, LOWER LH

71910F

HEADREST ASSY, FRONT SEAT, LH

71930F

SUPPORT ASSY, FRONT SEAT HEADREST, LH

71H75C

COVER, RECLINING ADJUSTER INSIDE, RH(FOR LH SEAT)

71H76C

COVER, RECLINING ADJUSTER INSIDE, LH OUTER(FOR LH SEAT)

72020A

ADJUSTER ASSY, FRONT SEAT, LH

72810K

ARMREST ASSY, FRONT SEAT, RH(FOR LH SEAT)

72848L

CAP, SEAT ARMREST, NO.1(FOR LH SEAT)

72890G

ARMREST ASSY, SEAT, C LH

7455

переход к группе запчастей

78899D1010

Крепеж

8202

переход к группе запчастей

8401

переход к группе запчастей

9010906322

Крепеж

9010910164

Крепеж

9011908C39

Крепеж

9011910918

Крепеж

9020115023

Крепеж

9020608038

Крепеж

9046710203

Крепеж

9353054010

Крепеж

9454201400

Крепеж

C7111D1310

Крепеж

C991640001

Крепеж

C995614004

Крепеж

Код

Описание

53019J

SHUTTER SUB-ASSY, RADIATOR

71139V

COVER, FRONT SEAT LEG NO.1

71139X

COVER, FRONT SEAT LEG NO.2

71140A

LEG ASSY, FRONT SEAT, LH

71439B

CLIP

7455

переход к группе запчастей

78988E

COVER, FRONT SEAT FOOTREST, NO.1

78988F

COVER, FRONT SEAT FOOTREST, NO.2

79076U

CLIP, SEAT LEG COVER

79076V

CLIP, SEAT LEG COVER

9010506297

Крепеж

9011910636

Крепеж

9011910990

Крепеж

9016840074

Крепеж

9046400620

Крепеж

9046705161C0

Крепеж

9046707178C0

Крепеж

C7013A

LIFT KIT, PASSENGER SEAT

C7986G

COVER, FRONT SEAT TURN GUARD

C9055Q

COVER SUB-ASSY, POWER LIFT, NO.5

Код

Описание

62786N

CASE, SIDE WINDOW LOCK

68332D

ROLLER, SLIDE DOOR, LOWER

72589D

CABLE, RECLINING REMOTE CONTROL

9017908087

Крепеж

9017908241

Крепеж

9056008041

Крепеж

9155180610

Крепеж

9155180814

Крепеж

9167100820

Крепеж

C2821D

SEAL, FRONT PANEL, NO.1

C316522010

Крепеж

C3165D1020

Крепеж

C4109E

HOUSING SUB-ASSY, SLIDE DOOR LOCK, REAR

C7110C

BRACKET ASSY, SEAT HOLDER, REAR

C7117D1260

Крепеж

C7159N

CUSHION, WELCAB SEAT LEG STOPPER, NO.7

C7210G

FOOTREST ASSY, WELCAB SEAT

C7230K

TRACK ASSY, WELCAB SEAT

C7408C

ROD SUB-ASSY, WELCAB SEAT, NO.1

C7483E

GEAR, WELCAB SEAT LEG, NO.1

C7485N

BRACKET, WELCAB SEAT ROD SUPPORT, NO.2

C7485P

BRACKET, WELCAB SEAT ROD SUPPORT, NO.3

C7996P

SPACER, TURN SEAT, NO.5

C7996Q

SPACER, TURN SEAT, NO.6

C8459B

SPRING, LIMIT SWITCH

C9507E

LOCK SUB-ASSY, PLATFORM, NO.2

C9610P

MOTOR ASSY, LIFT UP SEAT TURN

C9652D1010

Крепеж

C9654R

COLLAR, POWER LIFT CYLINDER

C991010010

Крепеж

C991440001

Крепеж

C991605003

Крепеж

C991708008

Крепеж

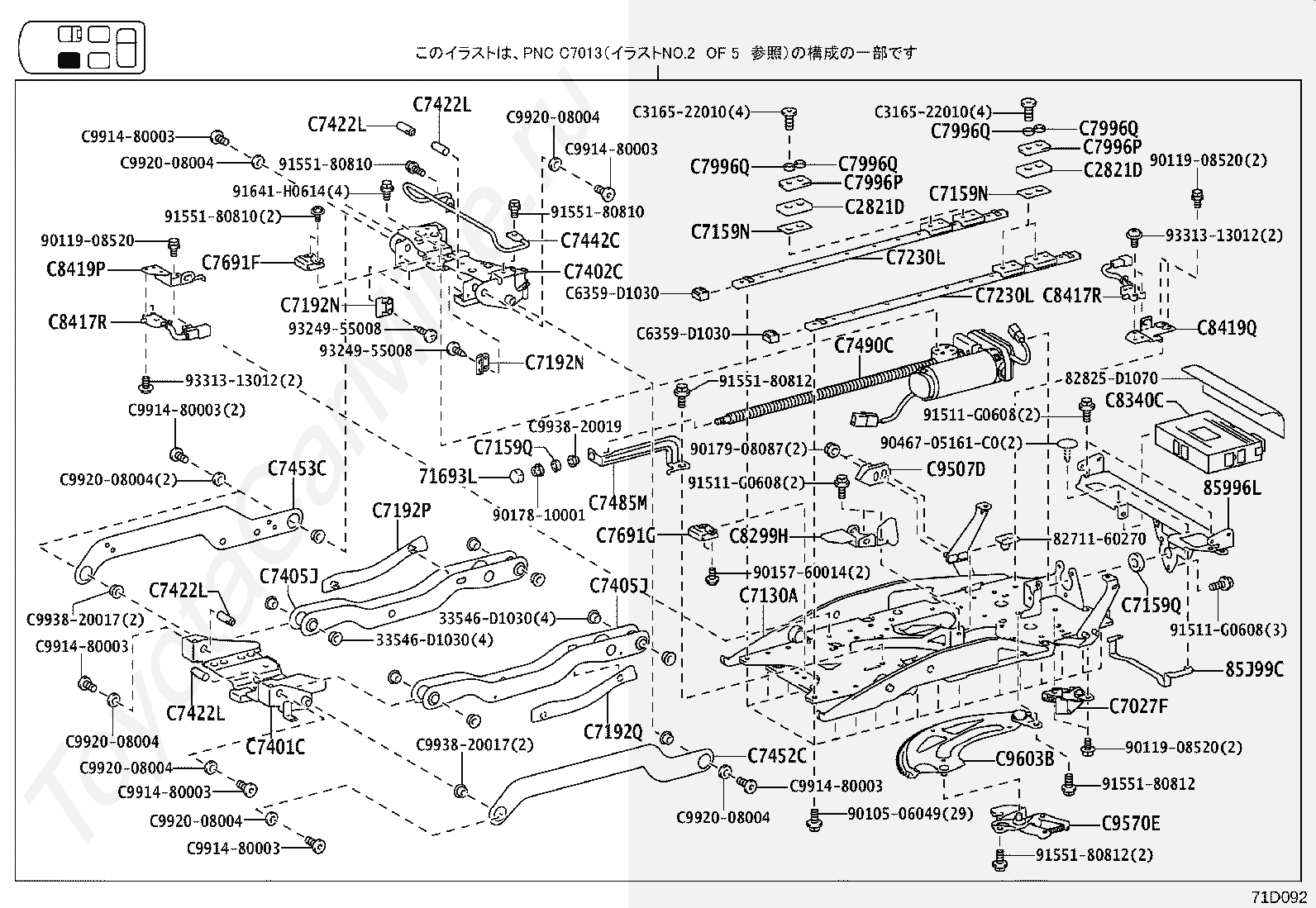

Код

Описание

33546D1030

Крепеж

71693L

COVER, FRONT SEAT CUSHION HINGE, NO.3

8271160270

Крепеж

82825D1070

Крепеж

85996L

BRACKET, RELAY

85J99C

BRACKET, RELAY NO.2

9010506049

Крепеж

9011908520

Крепеж

9015760014

Крепеж

9017810001

Крепеж

9017908087

Крепеж

9046705161C0

Крепеж

91511G0608

Крепеж

9155180810

Крепеж

9155180812

Крепеж

91641H0614

Крепеж

9324955008

Крепеж

9331313012

Крепеж

C2821D

SEAL, FRONT PANEL, NO.1

C316522010

Крепеж

C6359D1030

Крепеж

C7027F

LOCK SUB-ASSY, WELCAB SEAT TURN

C7130A

PANEL ASSY, TURN TABLE

C7159N

CUSHION, WELCAB SEAT LEG STOPPER, NO.7

C7159Q

CUSHION, WELCAB SEAT LEG STOPPER, NO.5

C7192N

PLATE, SEAT HOLDER STOPPER, NO.6

C7192P

PLATE, SEAT HOLDER STOPPER, NO.7

C7192Q

PLATE, SEAT HOLDER STOPPER, NO.8

C7230L

TRACK ASSY, WELCAB SEAT, NO.1

C7401C

GUIDE SUB-ASSY, WELCAB SEAT, FRONT

C7402C

GUIDE SUB-ASSY, WELCAB SEAT, REAR

C7405J

ARM SUB-ASSY, WELCAB SEAT LINK

C7422L

PIN, WELCAB SEAT ARM GUIDE, NO.1

C7442C

GUARD, WELCAB SEAT CABLE

C7452C

ARM, WELCAB SEAT LINK, NO.2

C7453C

ARM, WELCAB SEAT LINK, NO.3

C7485M

BRACKET, WELCAB SEAT ROD SUPPORT, NO.1

C7490C

CYLINDER ASSY, WELCAB SEAT

C7691F

CUSHION, SEAT FLAT, NO.1 RH

C7691G

CUSHION, SEAT FLAT, NO.1 RH

C7996P

SPACER, TURN SEAT, NO.5

C7996Q

SPACER, TURN SEAT, NO.6

C8299H

BRACKET, WELCAB SEAT HARNESS CONNECTOR, NO.2

C8340C

COMPUTER ASSY, WELCAB DEVICE CONTROL

C8417R

SWITCH, LIMIT, NO.4

C8419P

BRACKET, LIMIT SWITCH, NO.3

C8419Q

BRACKET, LIMIT SWITCH, NO.4

C9507D

LOCK SUB-ASSY, PLATFORM, NO.1

C9570E

LOCK ASSY, PLATFORM

C9603B

GEAR SUB-ASSY, POWER LIFT

C991480003

Крепеж

C992008004

Крепеж

C993820017

Крепеж

C993820019

Крепеж

Код

Описание

62786N

CASE, SIDE WINDOW LOCK

72589D

CABLE, RECLINING REMOTE CONTROL

827111A750

Крепеж

86683D7010

Крепеж

9010508145

Крепеж

9010510188

Крепеж

9010510306

Крепеж

9010908067

Крепеж

9011906122

Крепеж

9011908520

Крепеж

9016850040

Крепеж

9017912071

Крепеж

9020612035

Крепеж

9054106047

Крепеж

9056008041

Крепеж

91511G0608

Крепеж

9155180612

Крепеж

9155180812

Крепеж

91551F0818

Крепеж

9155281025

Крепеж

9326963016

Крепеж

9331313012

Крепеж

9415080630

Крепеж

C4109E

HOUSING SUB-ASSY, SLIDE DOOR LOCK, REAR

C7104C

PLATE SUB-ASSY, SEAT TURN

C7120G

LEG ASSY, WELCAB SEAT

C7160F

PANEL ASSY, SLIDE TABLE

C7179K

BRACKET, WELCAB SEAT COVER

C7192M

PLATE, SEAT HOLDER STOPPER, NO.5

C7208C

PLATE SUB-ASSY, SEAT TURN LOCK

C7225E

PLATE, WELCAB SEAT FOOTREST STEP

C7409H

BRACKET SUB-ASSY, WELCAB SEAT ROD SUPPORT, NO.1

C7409J

BRACKET SUB-ASSY, WELCAB SEAT ROD SUPPORT, NO.2

C7481E

ROD, WELCAB SEAT

C7483E

GEAR, WELCAB SEAT LEG, NO.1

C7495F

BRACKET, WELCAB SEAT MOTOR, NO.2

C8284D

WIRE, POWER LIFT MAIN

C8299G

BRACKET, WELCAB SEAT HARNESS CONNECTOR, NO.1

C8299J

BRACKET, WELCAB SEAT HARNESS CONNECTOR, NO.3

C8417S

SWITCH, LIMIT, NO.5

C8417T

SWITCH, LIMIT, NO.6

C8419R

BRACKET, LIMIT SWITCH, NO.5

C9599C

HOOK, PLATFORM SAFETY LOCK

C9610N

MOTOR ASSY, LIFT UP SEAT SLIDE

C9610P

MOTOR ASSY, LIFT UP SEAT TURN

C9652D1010

Крепеж

C9654S

COLLAR, POWER LIFT CYLINDER

C991010010

Крепеж

C991440001

Крепеж

C991605003

Крепеж

C991708008

Крепеж

Код

Описание

7114930050

Крепеж

9046816019

Крепеж

9046818008

Крепеж

FRONT SEAT & SEAT TRACK TOYOTA NOAH/VOXY/ESQUIRE, 2017/06 - 2025, 2 литра, 16 клапанов, DOHC, EFI, ZS TYPE, ZRR85, вариатор

Товар добавлен в корзину!

Заполните форму
