Каталог
ЯпонияМодель
LAND CRUISERДвигатель
3500CC 24-VALVE DOHCКласс
VX TYPEФрейм
VJA300Опции
7-местный WITH TURBO (HARGER) 810W

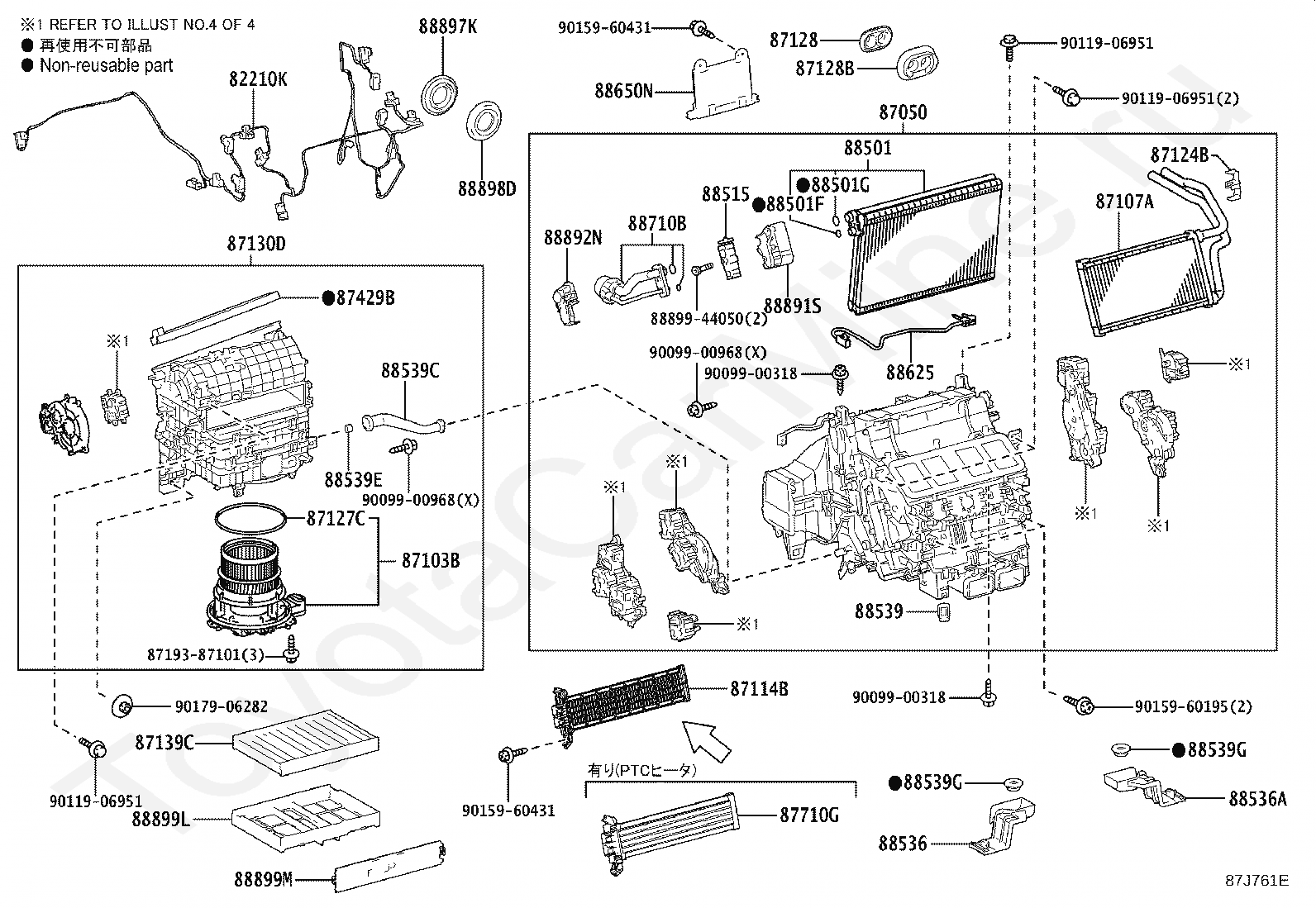

Код
Описание
82210K
HARNESS ASSY, AIR CONDITIONER
87050
RADIATOR ASSY, AIR CONDITIONER
87103B
MOTOR SUB-ASSY, BLOWER W/FAN
87107A
UNIT SUB-ASSY, HEATER RADIATOR
87114B
COVER, HEATER
87124B
CLAMP, HEATER
87127C
PACKING, BLOWER MOTOR SUB-ASSY, NO.1
87128
GROMMET, HEATER
87128B
GROMMET, HEATER, NO.2
87130D
BLOWER ASSY
87139C
FILTER, CLEAN AIR
8719387101
Крепеж
87429B
PACKING, COOLER UNIT, NO.1
87710G
QUICK HEATER ASSY
88501
EVAPORATOR SUB-ASSY, COOLER, NO.1
88501F
O-RING, COOLER EVAPORATOR NO.1(DISCHARGE)
88501G
O-RING, COOLER EVAPORATOR NO.1(SUCTION)
88515
VALVE, COOLER EXPANSION
88536
BRACKET, COOLING UNIT, NO.1
88536A
BRACKET, COOLING UNIT, NO.2
88539
HOSE, COOLER UNIT DRAIN, NO.1
88539C
HOSE, COOLER UNIT DRAIN, NO.2
88539E
HOSE, COOLER UNIT DRAIN, NO.3
88539G
GROMMET (FOR COOLER UNIT DRAIN HOSE)
88625
THERMISTOR, COOLER, NO.1
88650N
AMPLIFIER ASSY, AIR CONDITIONER
88710B
TUBE ASSY, AIR CONDITIONER
88891S
COVER, COOLER, NO.1
88892N
COVER, COOLER, NO.2
88897K
GROMMET, (FOR COOLER PIPE)
88898D
GROMMET
8889944050
Крепеж
88899L
PARTS, COOLING UNIT
88899M
PLATE, COVER(FOR AIR FILTER)
9009900318
Крепеж
9009900968
Крепеж
9011906951
Крепеж
9015960195
Крепеж
9015960431
Крепеж
9017906282
Крепеж

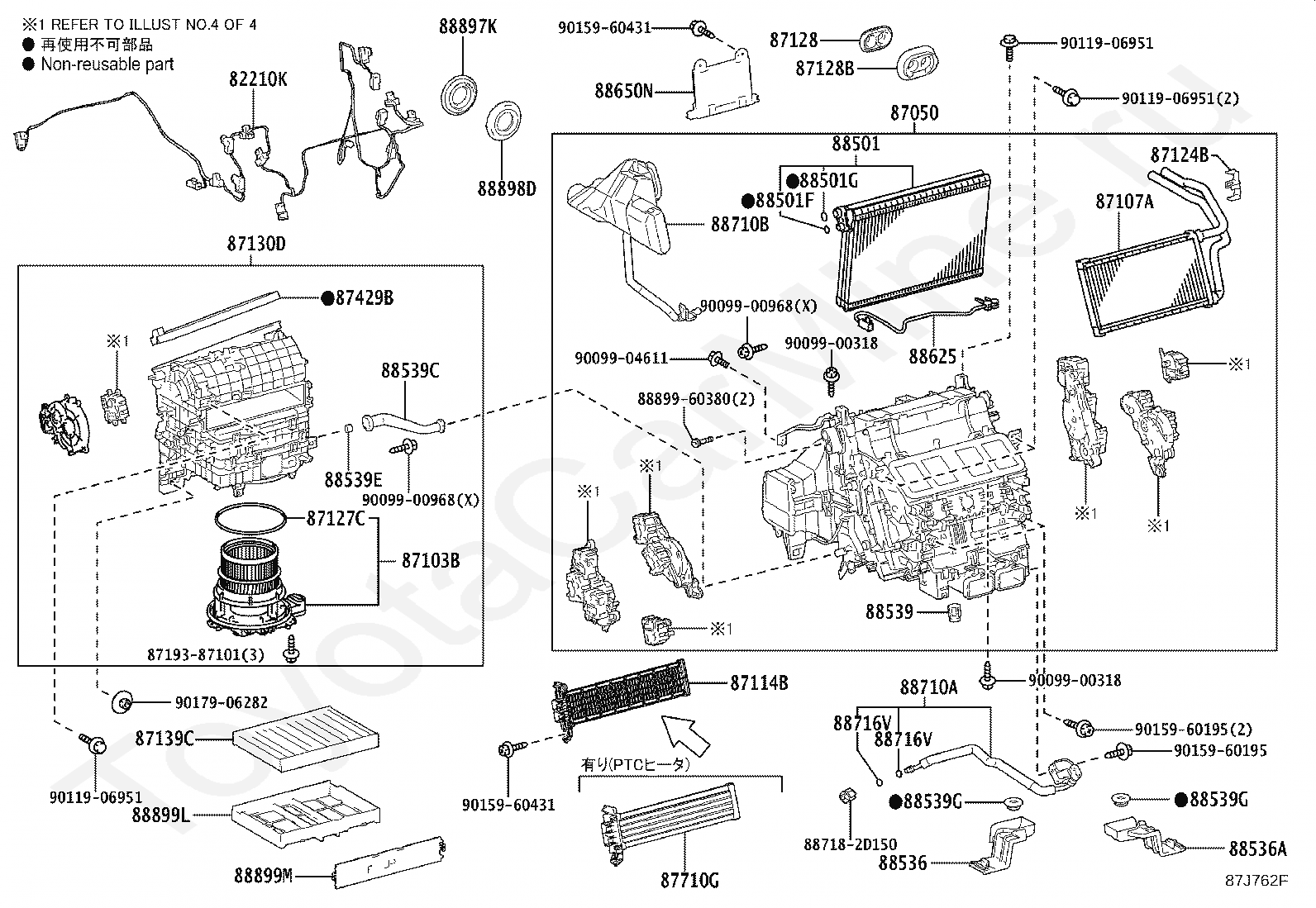

Код
Описание
82210K
HARNESS ASSY, AIR CONDITIONER
87050
RADIATOR ASSY, AIR CONDITIONER
87103B
MOTOR SUB-ASSY, BLOWER W/FAN
87107A
UNIT SUB-ASSY, HEATER RADIATOR
87114B
COVER, HEATER
87124B
CLAMP, HEATER
87127C
PACKING, BLOWER MOTOR SUB-ASSY, NO.1
87128
GROMMET, HEATER
87128B
GROMMET, HEATER, NO.2
87130D
BLOWER ASSY
87139C
FILTER, CLEAN AIR
8719387101
Крепеж
87429B
PACKING, COOLER UNIT, NO.1
87710G
QUICK HEATER ASSY
88501
EVAPORATOR SUB-ASSY, COOLER, NO.1
88501F
O-RING, COOLER EVAPORATOR NO.1(DISCHARGE)
88501G
O-RING, COOLER EVAPORATOR NO.1(SUCTION)
88536
BRACKET, COOLING UNIT, NO.1
88536A
BRACKET, COOLING UNIT, NO.2
88539
HOSE, COOLER UNIT DRAIN, NO.1
88539C
HOSE, COOLER UNIT DRAIN, NO.2
88539E
HOSE, COOLER UNIT DRAIN, NO.3
88539G
GROMMET (FOR COOLER UNIT DRAIN HOSE)
88625
THERMISTOR, COOLER, NO.1
88650N
AMPLIFIER ASSY, AIR CONDITIONER
88710A
TUBE ASSY, AIR CONDITIONER
88710B
TUBE ASSY, AIR CONDITIONER
88716V
RING, O(FOR COOLER UNIT)
887182D150
Крепеж
88897K
GROMMET, (FOR COOLER PIPE)
88898D
GROMMET
8889960380
Крепеж
88899L
PARTS, COOLING UNIT
88899M
PLATE, COVER(FOR AIR FILTER)
9009900318
Крепеж
9009900968
Крепеж
9009904611
Крепеж
9011906951
Крепеж
9015960195
Крепеж
9015960431
Крепеж
9017906282
Крепеж

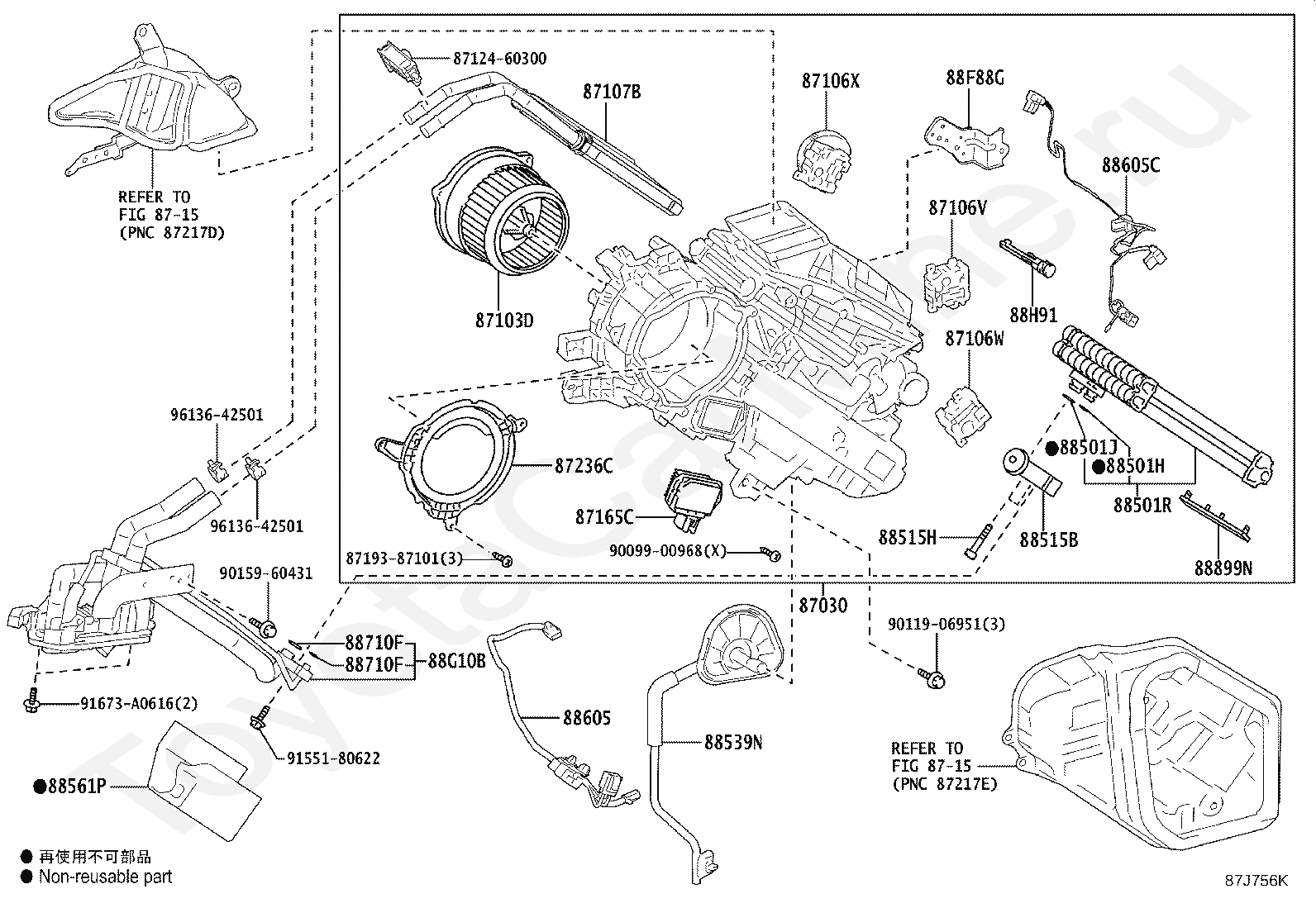

Код
Описание
87030
BLOWER ASSY, AIR CONDITIONER
87103D
MOTOR SUB-ASSY, BLOWER W/FAN(FOR REAR)
87106V
SERVO SUB-ASSY, DAMPER(FOR AIRMIX NO.2)
87106W
SERVO SUB-ASSY, DAMPER(FOR AIRMIX REAR)
87106X
SERVO SUB-ASSY, DAMPER(FOR MODE REAR)
87107B
UNIT SUB-ASSY, HEATER RADIATOR
8712460300
Крепеж
8715
переход к группе запчастей
87165C
CONTROL, BLOWER MOTOR
8719387101
Крепеж
87236C
COVER, HEATER BLOWER
88501H
O-RING, COOLER EVAPORATOR NO.2(DISCHARGE)
88501J
O-RING, COOLER EVAPORATOR NO.2(SUCTION)
88501R
EVAPORATOR SUB-ASSY (REAR)
88515B
VALVE, REAR COOLING UNIT EXPANSION
88515H
BOLT(FOR REAR COOLER EXPANSION VALVE)
88539N
HOSE, COOLER UNIT DRAIN, NO.4
88561P
PACKING, RR AIR CONDITIONER UNIT, NO.1
88605
HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605C
HARNESS SUB-ASSY, COOLER WIRING, NO.2
88710F
RING, O
88899N
PLATE, COVER
88F88G
BRACKET, RR AIR CONDITIONER UNIT, NO.1
88G10B
TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.6
88H91
COVER, REAR COOLER, NO.1
9009900968
Крепеж
9011906951
Крепеж
9015960431
Крепеж
9155180622
Крепеж
91673A0616
Крепеж
9613642501
Крепеж

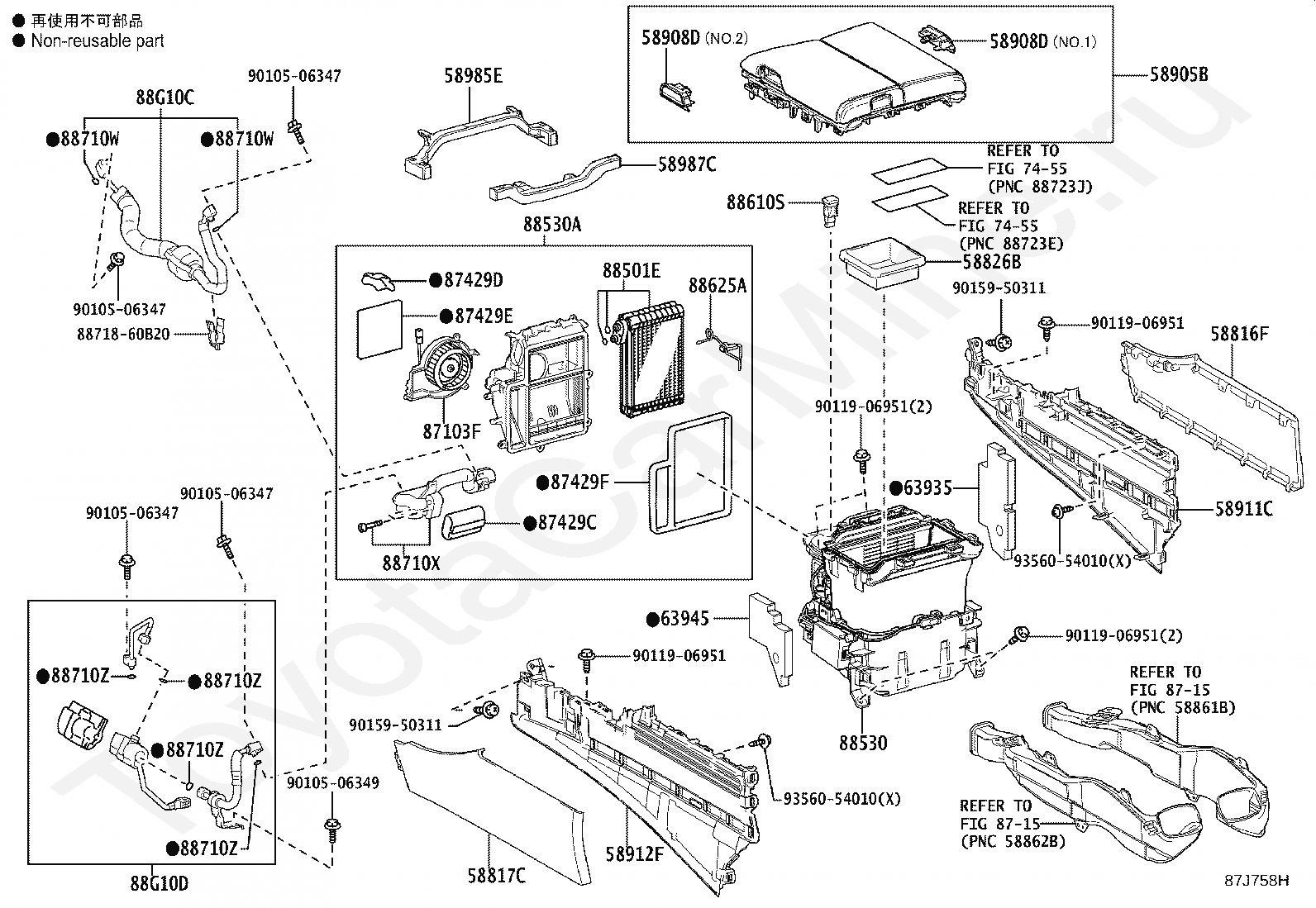

Код
Описание
58816F
INSERT, CONSOLE BOX, FRONT NO.1
58817C
INSERT, CONSOLE BOX, FRONT NO.2
58826B
POCKET, CONSOLE BOX, LOWER
58905B
DOOR SUB-ASSY, CONSOLE COMPARTMENT(FOR COOL BOX)
58908D
LOCK SUB-ASSY, COOLING BOX DOOR
58911C
PANEL, BOX, NO.1(FOR COOL BOX)
58912F
PANEL, BOX, NO.2(FOR COOL BOX)
58985E
RETAINER, COOL BOX, NO.1
58987C
RETAINER, COOL BOX, NO.2
63935
INSULATOR, COOLER DUCT, INNER NO.1 RH
63945
INSULATOR, COOLER DUCT, INNER NO.1 LH
7455
переход к группе запчастей
87103F
MOTOR SUB-ASSY, BLOWER W/FAN(FOR COOL BOX)
8715
переход к группе запчастей
87429C
PACKING, COOLING BOX, NO.1
87429D
PACKING, COOLING BOX, NO.2
87429E
PACKING, COOLING BOX, NO.3
87429F
PACKING, COOLING BOX, NO.4
88501E
EVAPOLATOR SUB-ASSY, COOLER (COOL BOX)
88530
BOX ASSY, COOLING
88530A
BOX ASSY, COOLING, NO.2
88610S
SWITCH ASSY, CONTROL
88625A
THERMISTOR, COOLER NO.2
88710W
RING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
88710X
TUBE & ACCESSORY ASSY, COOLING BOX, NO.1
88710Z
RING, O, NO.2(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
8871860B20
Крепеж
88G10C
TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.7
88G10D
TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.8
9010506347
Крепеж
9010506349
Крепеж
9011906951
Крепеж
9015950311
Крепеж
9356054010
Крепеж

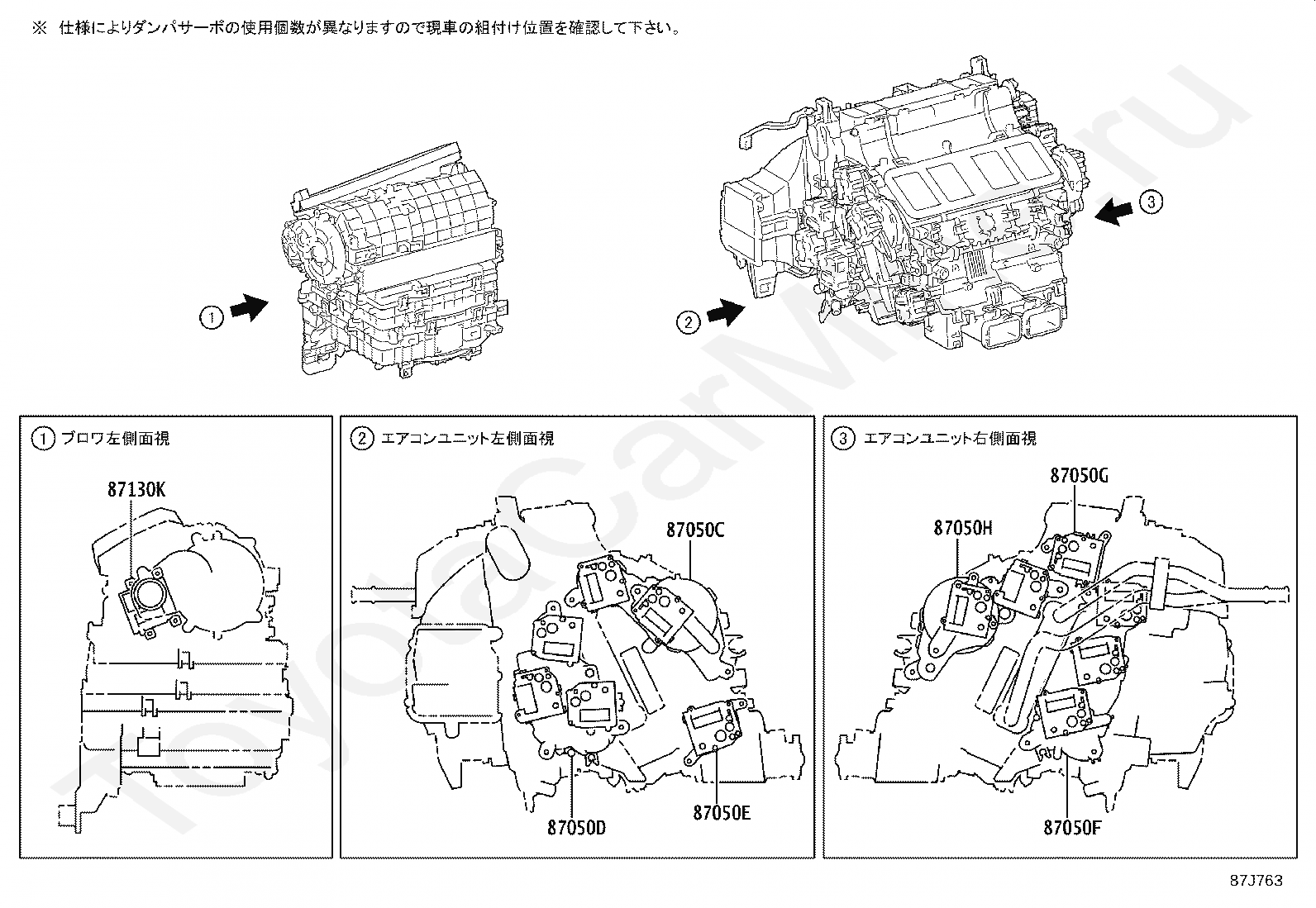

Код
Описание
87050C
DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87050D
DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2
87050E
DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.3
87050F
DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.4
87050G
DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.5
87050H
DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.6
87130K
DAMPER SERVO SUB-ASSY, BLOWER, NO.1
