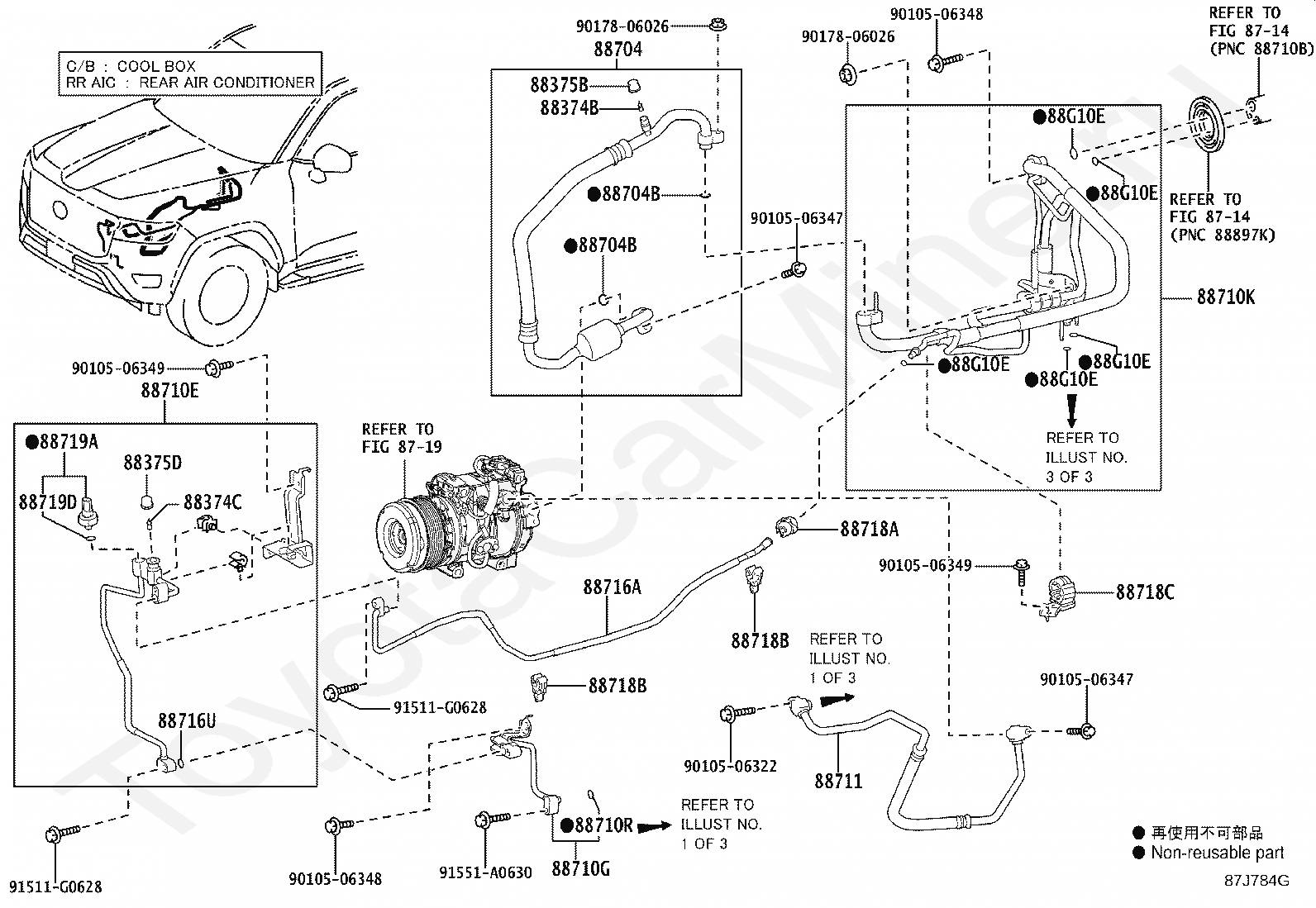

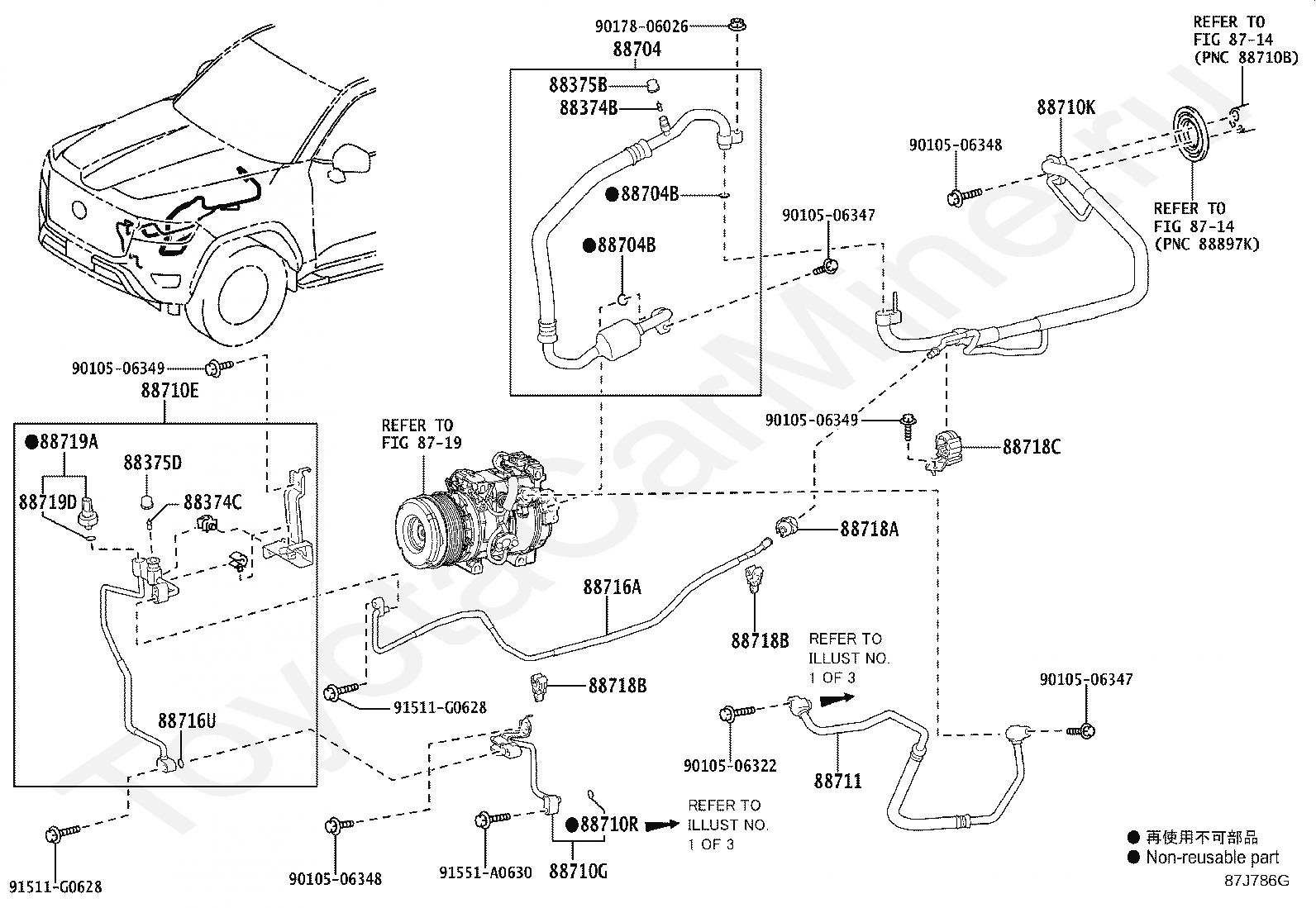

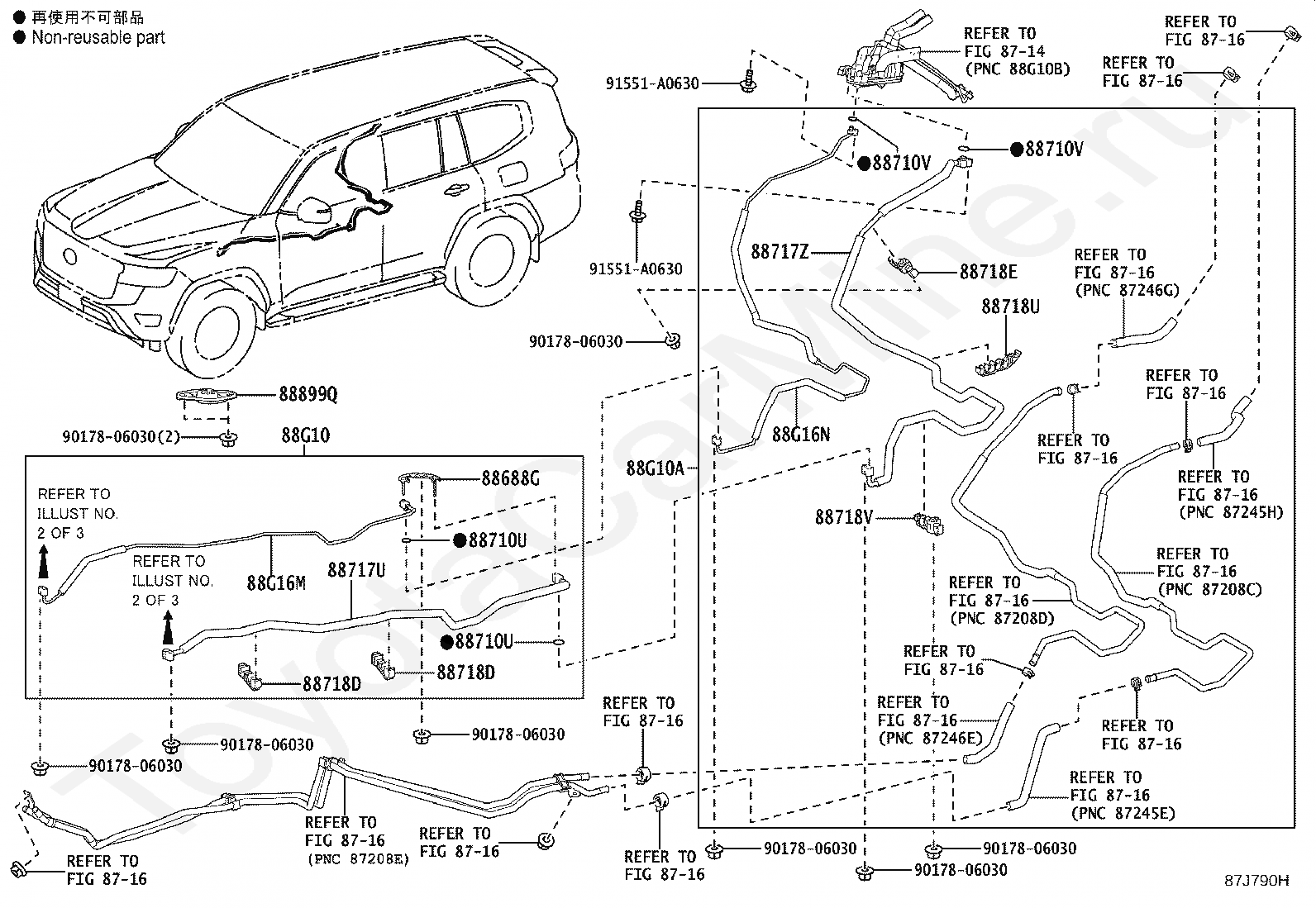

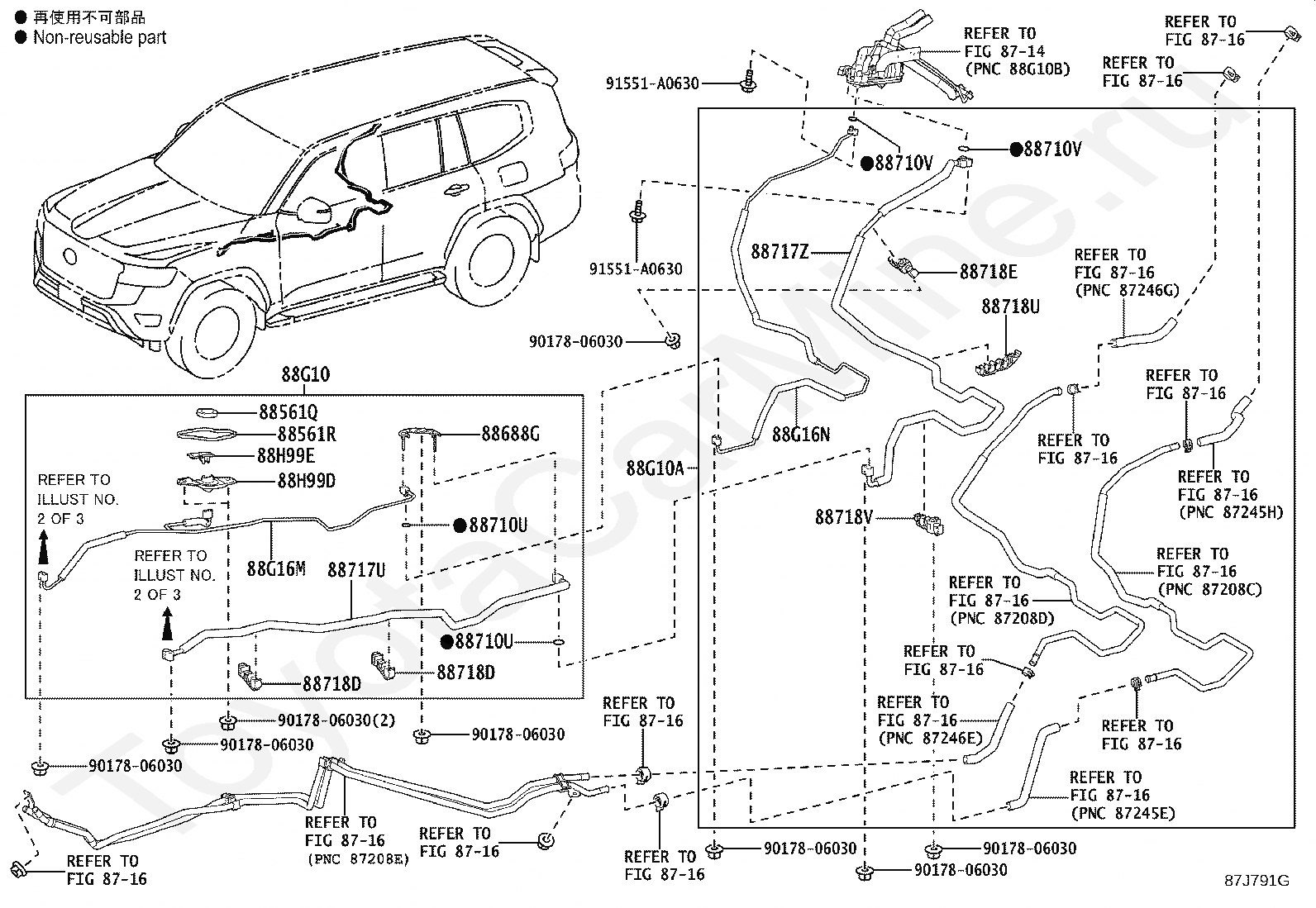

Кондиционер: охлаждающие трубки TOYOTA LAND CRUISER, 2021/07 - 2025, 3500CC 24-VALVE DOHC, VX TYPE, VJA300

Каталог

Япония

Модель

LAND CRUISER

Двигатель

3500CC 24-VALVE DOHC

Класс

VX TYPE

Фрейм

VJA300

Опции

7-местный WITH TURBO (HARGER) 810W

Код

Описание

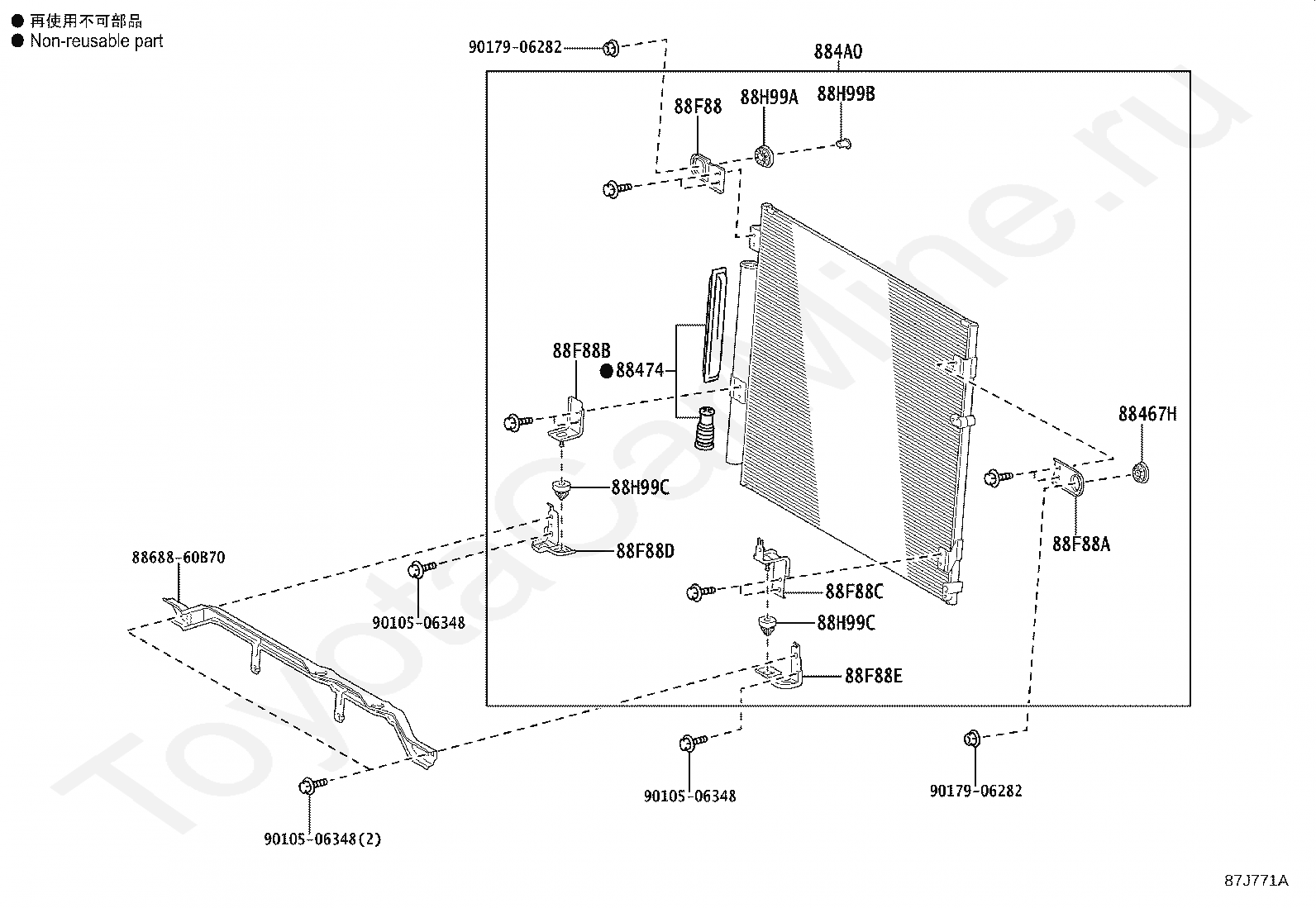

88467H

CUSHION, CONDENSER BRACKET, NO.1

88474

DRYER, COOLER

884A0

CONDENSER ASSY, COOLER

8868860B70

Крепеж

88F88

BRACKET, CONDENSER, NO.1

88F88A

BRACKET, CONDENSER, NO.2

88F88B

BRACKET, CONDENSER, NO.3

88F88C

BRACKET, CONDENSER, NO.4

88F88D

BRACKET, CONDENSER, NO.5

88F88E

BRACKET, CONDENSER, NO.6

88H99A

BUSH, CONDENSER BRACKET, NO.1

88H99B

BUSH, CONDENSER BRACKET, NO.2

88H99C

BUSH, CONDENSER BRACKET, NO.3

9010506348

Крепеж

9017906282

Крепеж

Код

Описание

8714

переход к группе запчастей

8719

переход к группе запчастей

88374B

VALVE, SERVICE, NO.1

88374C

VALVE, SERVICE, NO.2

88375B

CAP, SERVICE VALVE, NO.1

88375D

CAP, SERVICE VALVE, NO.2

88704

HOSE SUB-ASSY, SUCTION

88704B

RING, O(FOR SUCTION HOSE)

88710E

TUBE & ACCESSORY ASSY, AIR CONDITIONER

88710G

TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2

88710K

TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.3

88710R

RING, O, NO.1(FOR TUBE & ACCESSORY ASSY, A/C, NO.2)

88711

HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

88716A

PIPE, COOLER REFRIGERANT LIQUID, A

88716U

RING, O(FOR COOLER REFRIGERANT LIQUID PIPE)

88718A

CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)

88718B

CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)

88718C

CLAMP, NO.3(FOR COOLER REFRIGERANT PIPE)

88719A

SENSOR, AIR CONDITIONER PRESSURE

88719D

RING, O(FOR AIR CONDITIONER PRESSURE SENSOR)

88G10E

RING, O, NO.1 (FOR TUBE & ACCESSORY ASSY, A/C, NO.3)

9010506322

Крепеж

9010506347

Крепеж

9010506348

Крепеж

9010506349

Крепеж

9017806026

Крепеж

91511G0628

Крепеж

91551A0630

Крепеж

Код

Описание

8714

переход к группе запчастей

8719

переход к группе запчастей

88374B

VALVE, SERVICE, NO.1

88374C

VALVE, SERVICE, NO.2

88375B

CAP, SERVICE VALVE, NO.1

88375D

CAP, SERVICE VALVE, NO.2

88704

HOSE SUB-ASSY, SUCTION

88704B

RING, O(FOR SUCTION HOSE)

88710E

TUBE & ACCESSORY ASSY, AIR CONDITIONER

88710G

TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2

88710K

TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.3

88710R

RING, O, NO.1(FOR TUBE & ACCESSORY ASSY, A/C, NO.2)

88711

HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

88716A

PIPE, COOLER REFRIGERANT LIQUID, A

88716U

RING, O(FOR COOLER REFRIGERANT LIQUID PIPE)

88718A

CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)

88718B

CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)

88718C

CLAMP, NO.3(FOR COOLER REFRIGERANT PIPE)

88719A

SENSOR, AIR CONDITIONER PRESSURE

88719D

RING, O(FOR AIR CONDITIONER PRESSURE SENSOR)

9010506322

Крепеж

9010506347

Крепеж

9010506348

Крепеж

9010506349

Крепеж

9017806026

Крепеж

91511G0628

Крепеж

91551A0630

Крепеж

Код

Описание

8714

переход к группе запчастей

8716

переход к группе запчастей

88688G

BRACKET, COOLER REFRIGERANT PIPE

88710U

RING, O, NO.4(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)

88710V

RING, O, NO.5(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)

88717U

TUBE, SUCTION, NO.1

88717Z

TUBE, SUCTION, NO.2

88718D

CLAMP, NO.4(FOR COOLER REFRIGERANT PIPE)

88718E

CLAMP, NO.5(FOR COOLER REFRIGERANT PIPE)

88718U

CLAMP, NO.6(FOR COOLER REFRIGERANT PIPE)

88718V

CLAMP, NO.7(FOR COOLER REFRIGERANT PIPE)

88899Q

PLATE, COVER

88G10

TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.4

88G10A

TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.5

88G16M

TUBE, LIQUID, NO.1

88G16N

TUBE, LIQUID, NO.2

9017806030

Крепеж

91551A0630

Крепеж

Код

Описание

8714

переход к группе запчастей

8716

переход к группе запчастей

88561Q

PACKING, COOLING BOX COVER, NO.1

88561R

PACKING, COOLING BOX COVER, NO.2

88688G

BRACKET, COOLER REFRIGERANT PIPE

88710U

RING, O, NO.4(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)

88710V

RING, O, NO.5(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)

88717U

TUBE, SUCTION, NO.1

88717Z

TUBE, SUCTION, NO.2

88718D

CLAMP, NO.4(FOR COOLER REFRIGERANT PIPE)

88718E

CLAMP, NO.5(FOR COOLER REFRIGERANT PIPE)

88718U

CLAMP, NO.6(FOR COOLER REFRIGERANT PIPE)

88718V

CLAMP, NO.7(FOR COOLER REFRIGERANT PIPE)

88G10

TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.4

88G10A

TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.5

88G16M

TUBE, LIQUID, NO.1

88G16N

TUBE, LIQUID, NO.2

88H99D

COVER, COOLING BOX, NO.1

88H99E

COVER, COOLING BOX, NO.2

9017806030

Крепеж

91551A0630

Крепеж

Кондиционер: охлаждающие трубки TOYOTA LAND CRUISER, 2021/07 - 2025, 3500CC 24-VALVE DOHC, VX TYPE, VJA300
