REAR SEAT & SEAT TRACK TOYOTA LAND CRUISER, 2021/07 - 2025, 3500CC 24-VALVE DOHC, VX TYPE, VJA300

Каталог

Япония

Модель

LAND CRUISER

Двигатель

3500CC 24-VALVE DOHC

Класс

VX TYPE

Фрейм

VJA300

Опции

7-местный WITH TURBO (HARGER) 810W

Код

Описание

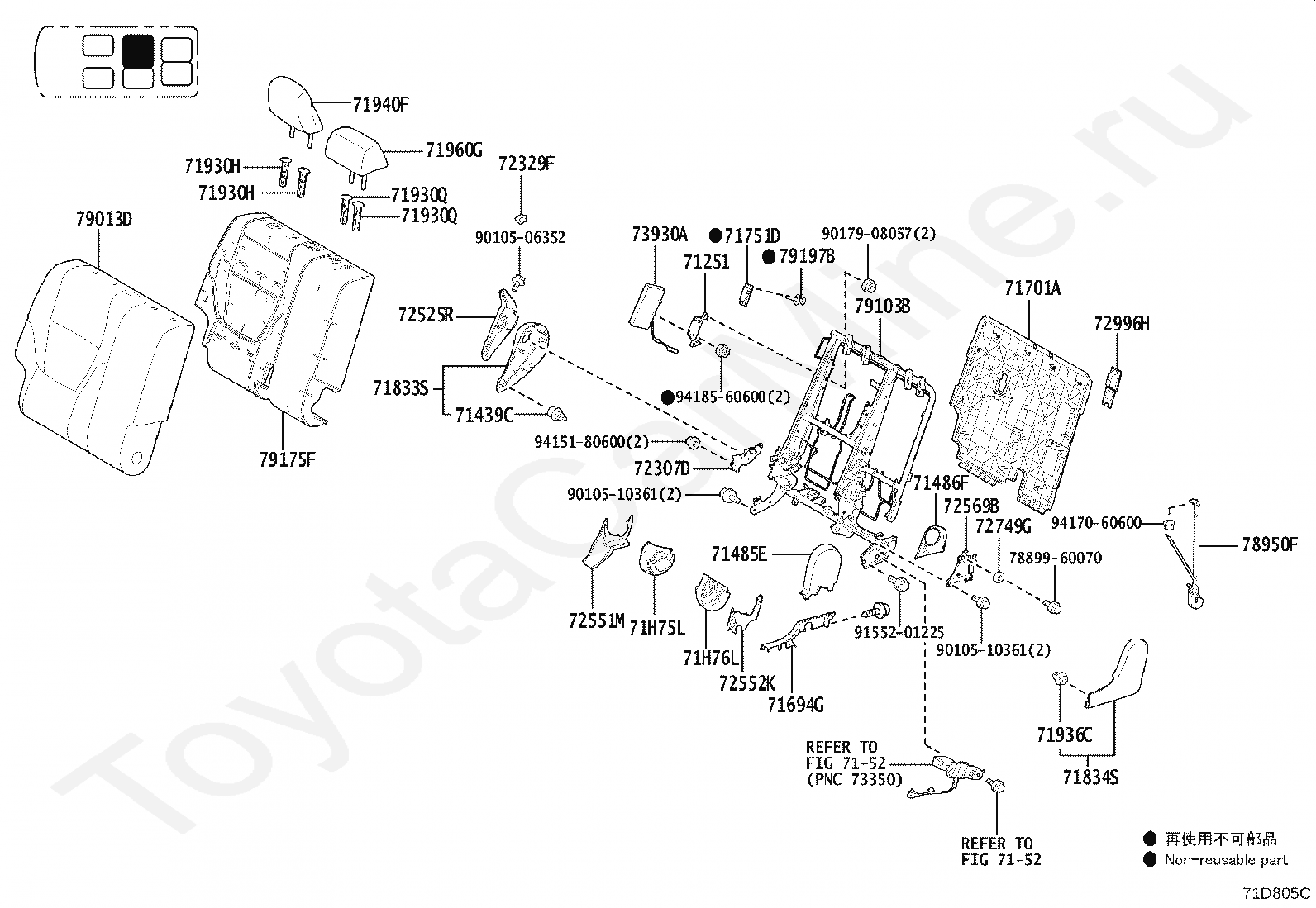

71251

FRAME, REAR SEAT BACK, RH

71439C

CLIP

71485E

COVER, REAR SEAT HINGE

71486F

COVER, REAR SEAT HINGE, LH

7152

переход к группе запчастей

71694G

COVER, REAR SEAT CUSHION HINGE, INNER LH

71701A

BOARD SUB-ASSY, REAR SEAT BACK, RH

71751D

HANGER, REAR SEAT COVER

71833S

COVER, REAR SEAT RECLINING, NO.1 RH

71834S

COVER, REAR SEAT RECLINING, NO.1 LH

71930H

SUPPORT ASSY, NO.1 SEAT HEADREST, RH

71930Q

SUPPORT ASSY, REAR SEAT HEADREST

71936C

CLIP

71940F

HEADREST ASSY, NO.1 SEAT, RH

71960G

HEADREST ASSY, REAR NO.1 SEAT, CENTER

71H75L

COVER, RECLINING ADJUSTER INSIDE, RH NO.1(FOR RH SEAT)

71H76L

COVER, RECLINING ADJUSTER INSIDE, LH NO.1(FOR RH SEAT)

72307D

LINK SUB-ASSY, RECLINING CONTROL, RH NO.1

72329F

COVER, REAR SEAT ADJUSTER BOLT

72525R

HANDLE, RECLINING ADJUSTER RELEASE, RH

72551M

COVER, RECLINING HINGE, RH NO.1(FOR RH SEAT)

72552K

COVER, RECLINING HINGE, LH NO.1(FOR RH SEAT)

72569B

PLATE, SEAT BACK STOPPER

72749G

SPACER, REAR SEAT RECLINING, RH

72996H

COVER, REAR SEAT BACK

73930A

AIR BAG ASSY, REAR SEAT, RH

7889960070

Крепеж

78950F

BAND ASSY, FOLD SEAT STOPPER, NO.1

79013D

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79103B

FRAME SUB-ASSY, NO.1 SEAT BACK, RH

79175F

PAD, NO.1 SEAT BACK, RH

79197B

RIVET

9010506352

Крепеж

9010510361

Крепеж

9017908057

Крепеж

9155201225

Крепеж

9415180600

Крепеж

9417060600

Крепеж

9418560600

Крепеж

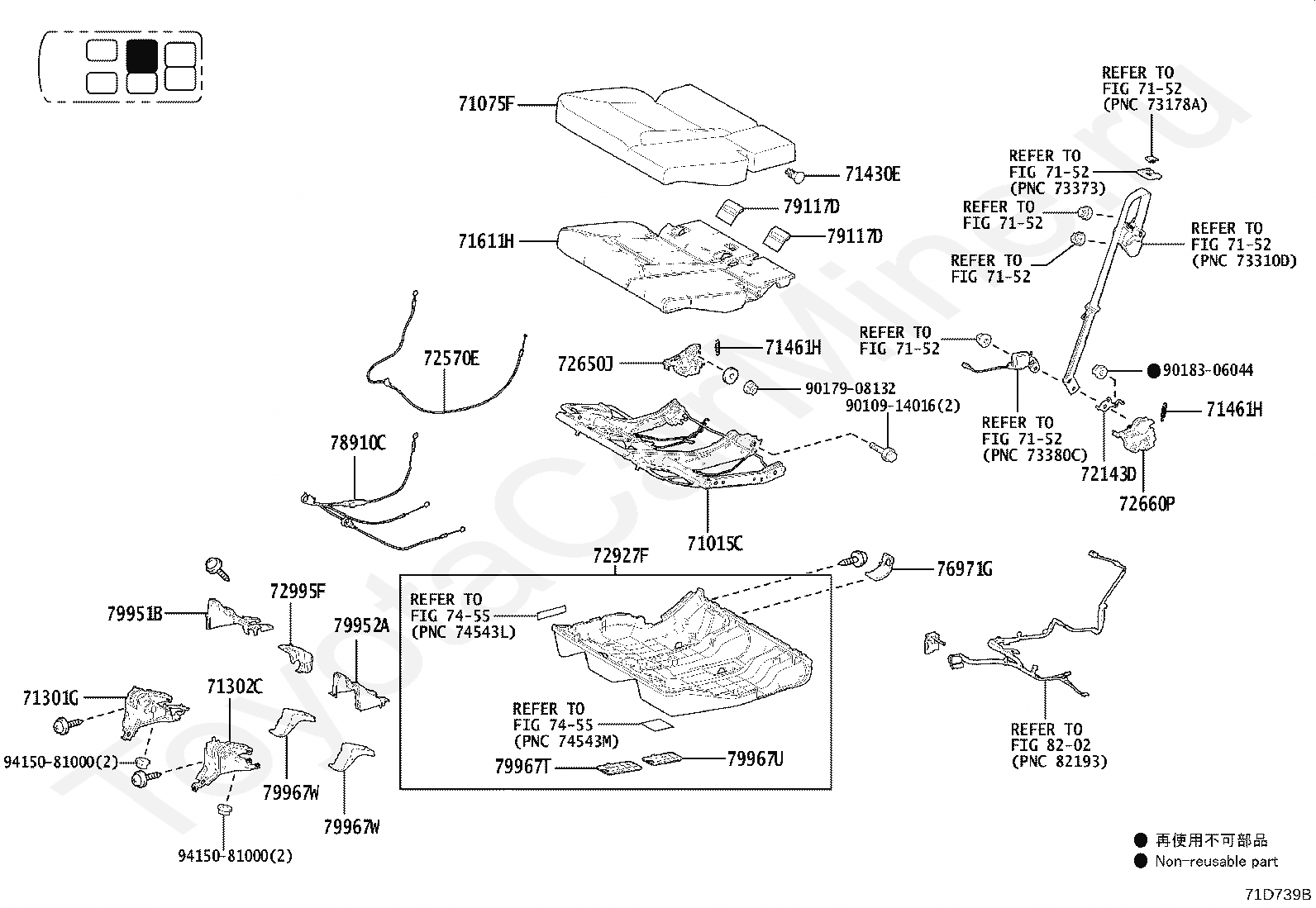

Код

Описание

71015C

FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH

71075F

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

71301G

HINGE SUB-ASSY, REAR NO.1 SEAT, RH(FOR RH SEAT)

71302C

HINGE SUB-ASSY, REAR NO.1 SEAT, LH(FOR RH SEAT)

71430E

CLIP

71461H

SPRING, REAR SEAT CUSHION

7152

переход к группе запчастей

71611H

PAD, REAR NO.1 SEAT CUSHION, RH

72143D

BRACKET, REAR SEAT TRACK, LOWER REAR RH

72570E

CABLE ASSY, NO.1 SEAT RECLINING ADJUSTING, RH

72650J

LOCK ASSY, REAR SEAT, RH

72660P

LOCK ASSY, REAR SEAT, LH

72927F

COVER, REAR SEAT CUSHION UNDER, RH

72995F

COVER, REAR SEAT CUSHION, RH

7455

переход к группе запчастей

76971G

COVER, REAR UNDER

78910C

CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.1(FOR RH SEAT)

79117D

CARPET, NO.1 SEAT CUSHION

79951B

COVER, NO.1 SEAT CUSHION, NO.1

79952A

COVER, NO.1 SEAT CUSHION, NO.2

79967T

COVER, REAR NO.1 SEAT LEG SIDE, NO.1

79967U

COVER, REAR NO.1 SEAT LEG SIDE, NO.2

79967W

COVER, REAR NO.1 SEAT LEG SIDE, NO.4

8202

переход к группе запчастей

9010914016

Крепеж

9017908132

Крепеж

9018306044

Крепеж

9415081000

Крепеж

Код

Описание

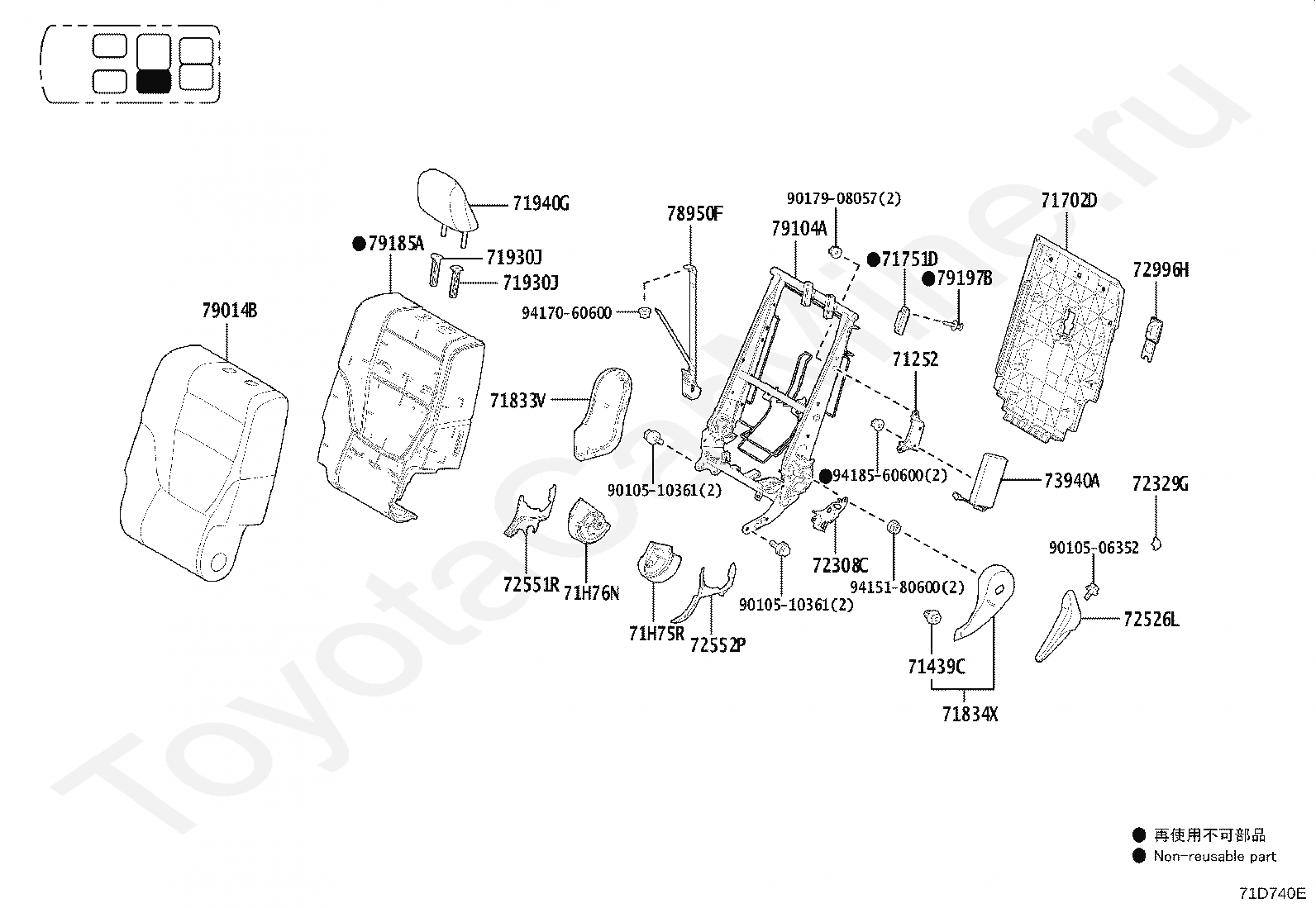

71252

FRAME, REAR SEAT BACK, LH

71439C

CLIP

71702D

BOARD SUB-ASSY, REAR SEAT BACK, LH

71751D

HANGER, REAR SEAT COVER

71833V

COVER, NO.1 SEAT RECLINING, NO.2 RH

71834X

COVER, REAR SEAT RECLINING, NO.2 LH

71930J

SUPPORT ASSY, NO.1 SEAT HEADREST, LH

71940G

HEADREST ASSY, NO.1 SEAT, LH

71H75R

COVER, RECLINING ADJUSTER INSIDE, RH NO.1(FOR LH SEAT)

71H76N

COVER, RECLINING ADJUSTER INSIDE, LH NO.1(FOR LH SEAT)

72308C

LINK SUB-ASSY, RECLINING CONTROL, LH NO.1

72329G

COVER, REAR SEAT ADJUSTER BOLT, NO.2

72526L

HANDLE, RECLINING ADJUSTER RELEASE, LH

72551R

COVER, RECLINING HINGE, RH NO.1(FOR LH SEAT)

72552P

COVER, RECLINING HINGE, LH NO.1(FOR LH SEAT)

72996H

COVER, REAR SEAT BACK

73940A

AIR BAG ASSY, REAR SEAT, LH

78950F

BAND ASSY, FOLD SEAT STOPPER, NO.1

79014B

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79104A

FRAME SUB-ASSY, NO.1 SEAT BACK, LH

79185A

PAD, NO.1 SEAT BACK, LH

79197B

RIVET

9010506352

Крепеж

9010510361

Крепеж

9017908057

Крепеж

9415180600

Крепеж

9417060600

Крепеж

9418560600

Крепеж

Код

Описание

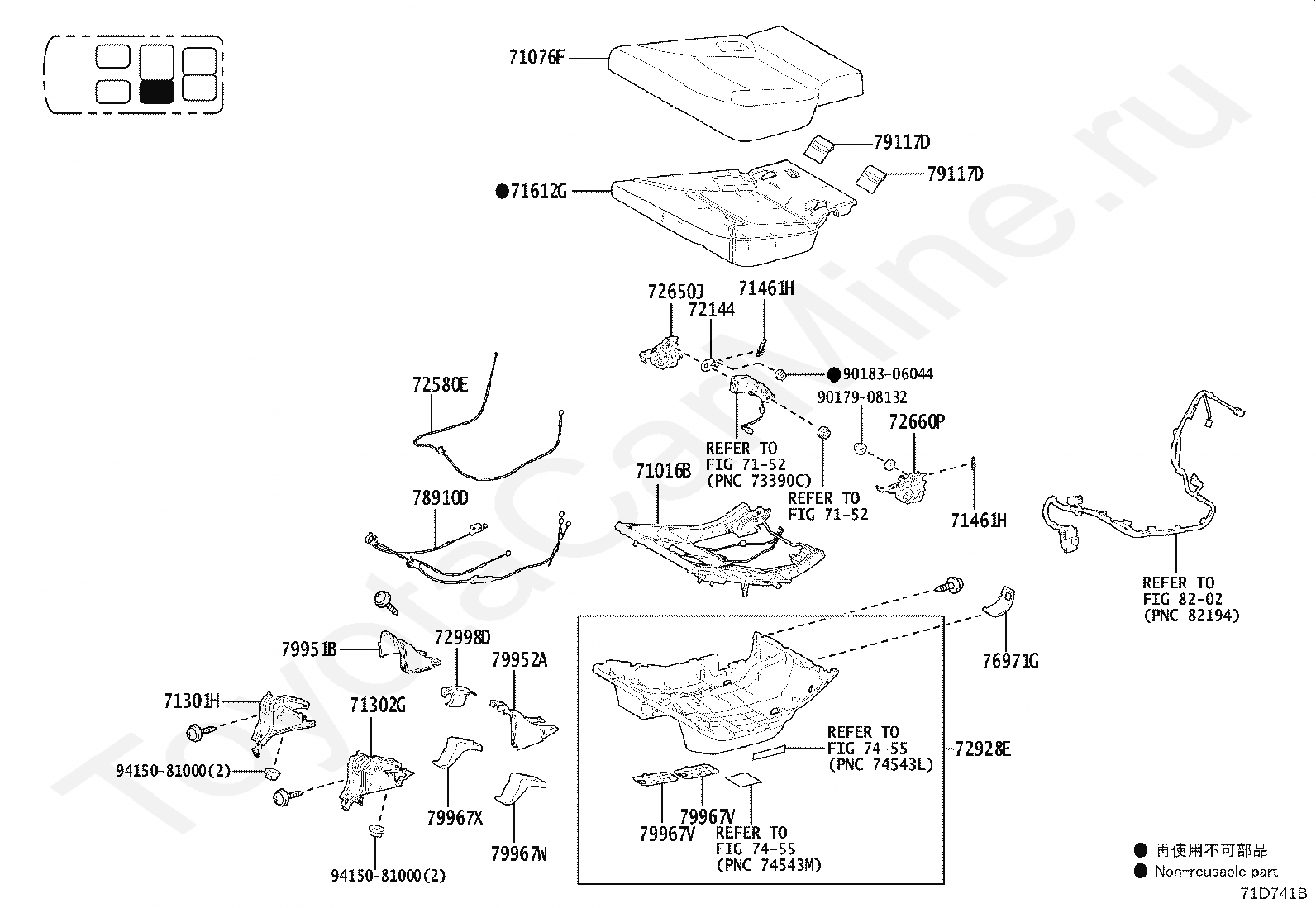

71016B

FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH

71076F

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

71301H

HINGE SUB-ASSY, REAR NO.1 SEAT, RH(FOR LH SEAT)

71302G

HINGE SUB-ASSY, REAR NO.1 SEAT, LH(FOR LH SEAT)

71461H

SPRING, REAR SEAT CUSHION

7152

переход к группе запчастей

71612G

PAD, REAR NO.1 SEAT CUSHION, LH

72144

BRACKET, REAR SEAT TRACK, LOWER REAR LH

72580E

CABLE ASSY, RECLINING ADJUSTING, LH

72650J

LOCK ASSY, REAR SEAT, RH

72660P

LOCK ASSY, REAR SEAT, LH

72928E

COVER, REAR SEAT CUSHION UNDER, LH

72998D

COVER, REAR SEAT CUSHION, LH

7455

переход к группе запчастей

76971G

COVER, REAR UNDER

78910D

CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.1(FOR LH SEAT)

79117D

CARPET, NO.1 SEAT CUSHION

79951B

COVER, NO.1 SEAT CUSHION, NO.1

79952A

COVER, NO.1 SEAT CUSHION, NO.2

79967V

COVER, REAR NO.1 SEAT LEG SIDE, NO.3

79967W

COVER, REAR NO.1 SEAT LEG SIDE, NO.4

79967X

COVER, REAR NO.1 SEAT LEG SIDE, NO.5

8202

переход к группе запчастей

9017908132

Крепеж

9018306044

Крепеж

9415081000

Крепеж

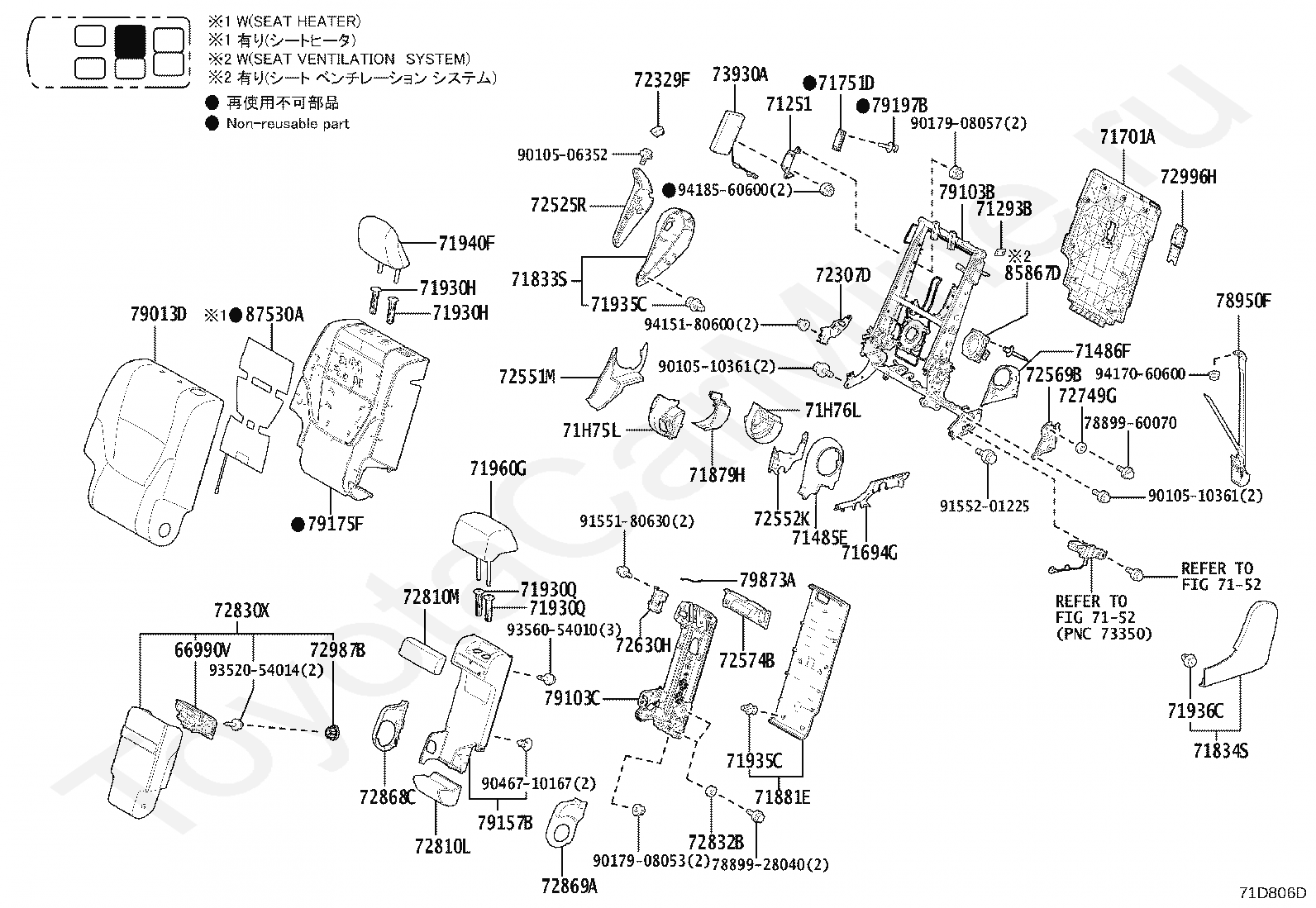

Код

Описание

66990V

HOLDER ASSY, CUP

71251

FRAME, REAR SEAT BACK, RH

71293B

PLATE, REAR SEAT BACK, UPPER

71485E

COVER, REAR SEAT HINGE

71486F

COVER, REAR SEAT HINGE, LH

7152

переход к группе запчастей

71694G

COVER, REAR SEAT CUSHION HINGE, INNER LH

71701A

BOARD SUB-ASSY, REAR SEAT BACK, RH

71751D

HANGER, REAR SEAT COVER

71833S

COVER, REAR SEAT RECLINING, NO.1 RH

71834S

COVER, REAR SEAT RECLINING, NO.1 LH

71879H

COVER, REAR SEAT RECLINING, INNER LH

71881E

BOARD, REAR NO.1 SEAT BACK, CENTER

71930H

SUPPORT ASSY, NO.1 SEAT HEADREST, RH

71930Q

SUPPORT ASSY, REAR SEAT HEADREST

71935C

CLIP

71936C

CLIP

71940F

HEADREST ASSY, NO.1 SEAT, RH

71960G

HEADREST ASSY, REAR NO.1 SEAT, CENTER

71H75L

COVER, RECLINING ADJUSTER INSIDE, RH NO.1(FOR RH SEAT)

71H76L

COVER, RECLINING ADJUSTER INSIDE, LH NO.1(FOR RH SEAT)

72307D

LINK SUB-ASSY, RECLINING CONTROL, RH NO.1

72329F

COVER, REAR SEAT ADJUSTER BOLT

72525R

HANDLE, RECLINING ADJUSTER RELEASE, RH

72551M

COVER, RECLINING HINGE, RH NO.1(FOR RH SEAT)

72552K

COVER, RECLINING HINGE, LH NO.1(FOR RH SEAT)

72569B

PLATE, SEAT BACK STOPPER

72574B

LEVER, RECLINING CONTROL, RH

72630H

LOCK ASSY, NO.1 SEAT BACK

72749G

SPACER, REAR SEAT RECLINING, RH

72810L

ARMREST ASSY, NO.1 SEAT, NO.1

72810M

ARMREST ASSY, NO.1 SEAT, NO.2

72830X

ARMREST ASSY, REAR SEAT, CENTER

72832B

PLATE, REAR SEAT ARMREST

72868C

COVER, CENTER ARMREST HINGE, RH

72869A

COVER, CENTER ARMREST HINGE, LH

72987B

COVER, REAR SEAT CENTER ARMREST

72996H

COVER, REAR SEAT BACK

73930A

AIR BAG ASSY, REAR SEAT, RH

7889928040

Крепеж

7889960070

Крепеж

78950F

BAND ASSY, FOLD SEAT STOPPER, NO.1

79013D

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79103B

FRAME SUB-ASSY, NO.1 SEAT BACK, RH

79103C

FRAME SUB-ASSY, NO.1 SEAT BACK, CENTER

79157B

COVER, NO.1 SEAT BACK BOARD

79175F

PAD, NO.1 SEAT BACK, RH

79197B

RIVET

79873A

WIRE, FOLD SEAT BACK

85867D

BLOWER, NO.1 SEAT BACK CLIMATE CONTROL(FOR RH SEAT)

87530A

HEATER ASSY, REAR NO.1 SEAT BACK, RH

9010506352

Крепеж

9010510361

Крепеж

9017908053

Крепеж

9017908057

Крепеж

9046710167

Крепеж

9155180630

Крепеж

9155201225

Крепеж

9352054014

Крепеж

9356054010

Крепеж

9415180600

Крепеж

9417060600

Крепеж

9418560600

Крепеж

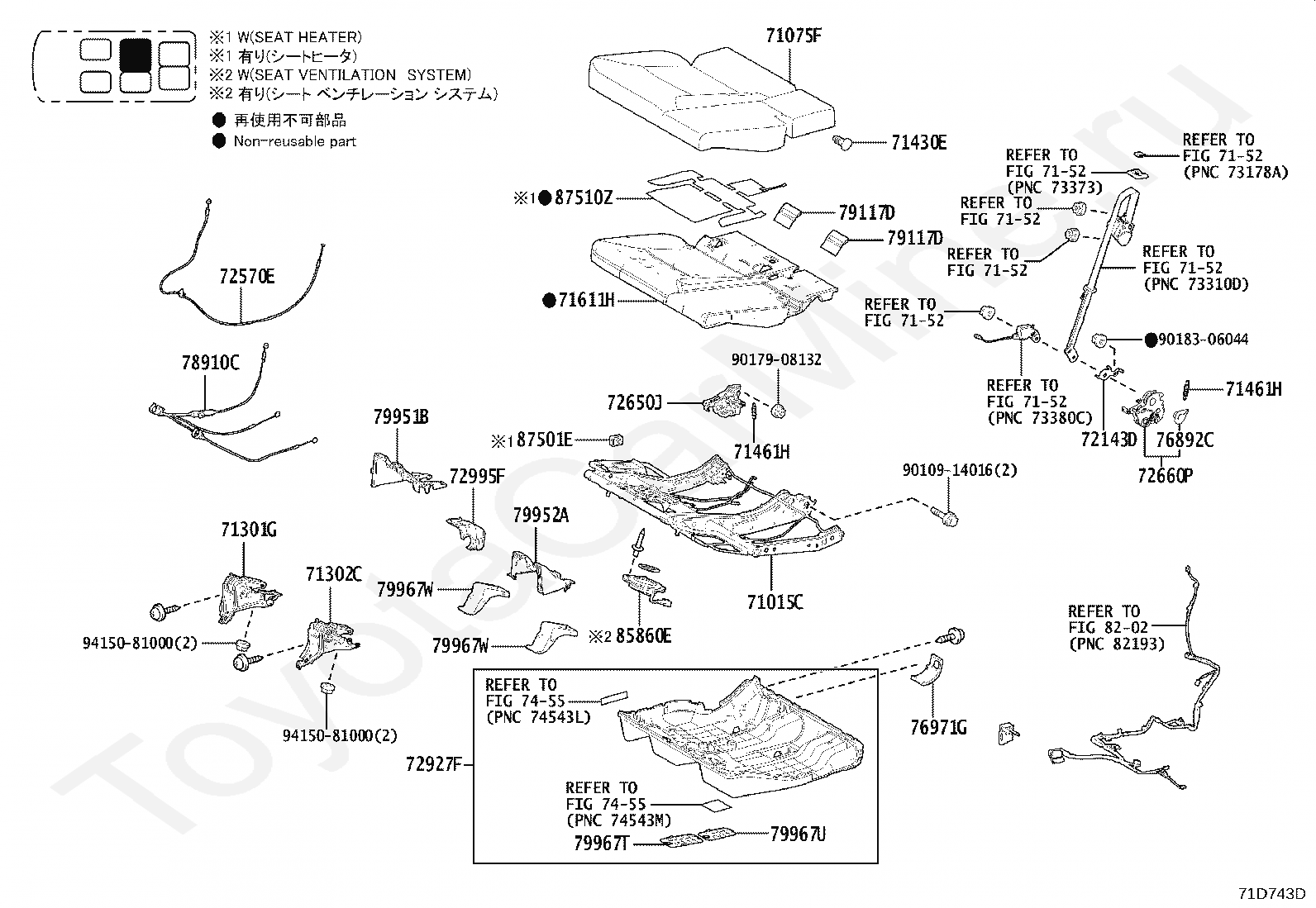

Код

Описание

71015C

FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH

71075F

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

71301G

HINGE SUB-ASSY, REAR NO.1 SEAT, RH(FOR RH SEAT)

71302C

HINGE SUB-ASSY, REAR NO.1 SEAT, LH(FOR RH SEAT)

71430E

CLIP

71461H

SPRING, REAR SEAT CUSHION

7152

переход к группе запчастей

71611H

PAD, REAR NO.1 SEAT CUSHION, RH

72143D

BRACKET, REAR SEAT TRACK, LOWER REAR RH

72570E

CABLE ASSY, NO.1 SEAT RECLINING ADJUSTING, RH

72650J

LOCK ASSY, REAR SEAT, RH

72660P

LOCK ASSY, REAR SEAT, LH

72927F

COVER, REAR SEAT CUSHION UNDER, RH

72995F

COVER, REAR SEAT CUSHION, RH

7455

переход к группе запчастей

76892C

BUSH, REAR SEAT LOCK ASSY

76971G

COVER, REAR UNDER

78910C

CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.1(FOR RH SEAT)

79117D

CARPET, NO.1 SEAT CUSHION

79951B

COVER, NO.1 SEAT CUSHION, NO.1

79952A

COVER, NO.1 SEAT CUSHION, NO.2

79967T

COVER, REAR NO.1 SEAT LEG SIDE, NO.1

79967U

COVER, REAR NO.1 SEAT LEG SIDE, NO.2

79967W

COVER, REAR NO.1 SEAT LEG SIDE, NO.4

8202

переход к группе запчастей

85860E

BLOWER ASSY, NO.1 SEAT CUSHION CLIMATE CONTROL(FOR RH SEAT)

87501E

CONTROL SUB-ASSY, SEAT HEATER, RH

87510Z

HEATER ASSY, REAR NO.1 SEAT CUSHION, RH

9010914016

Крепеж

9017908132

Крепеж

9018306044

Крепеж

9415081000

Крепеж

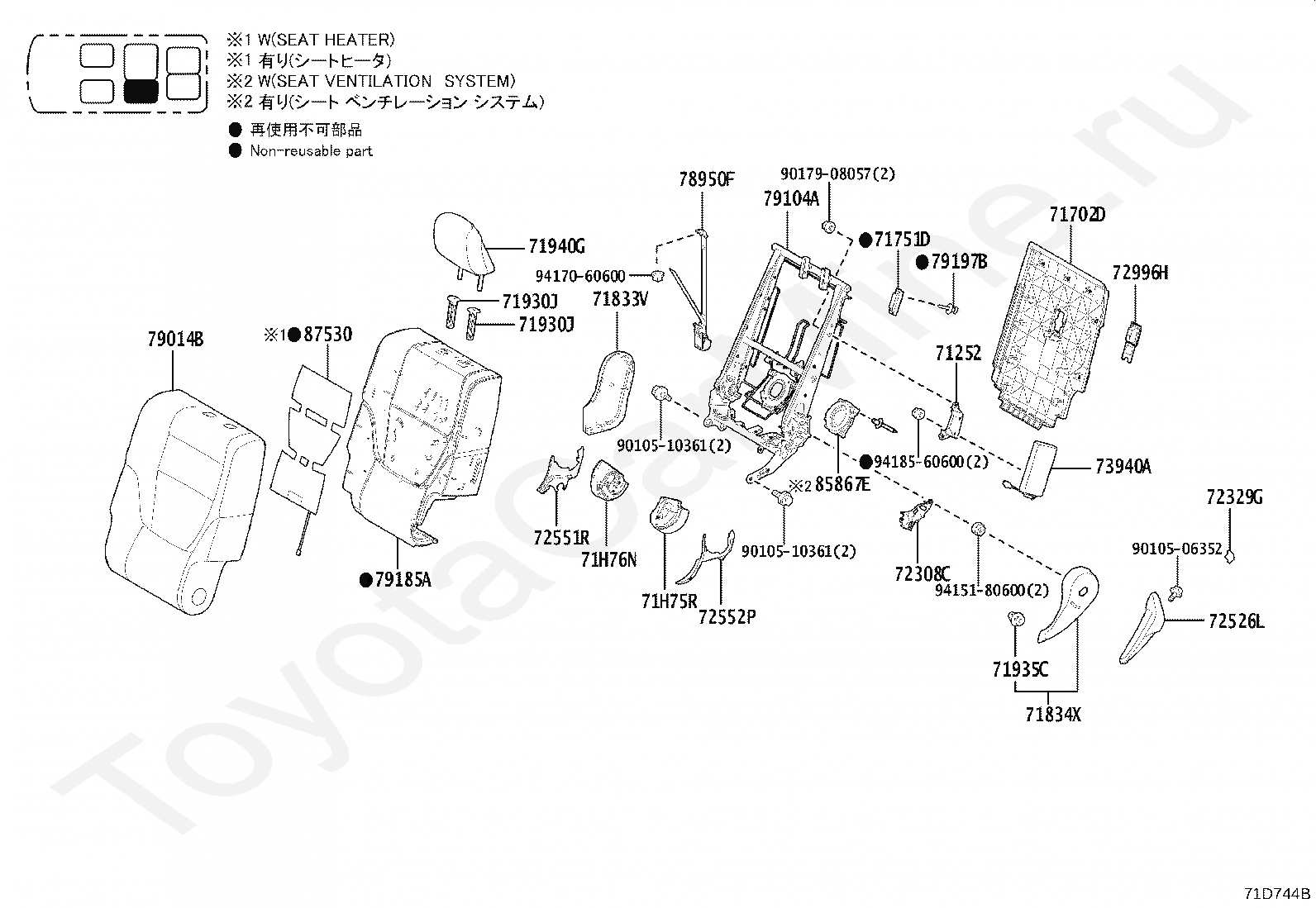

Код

Описание

71252

FRAME, REAR SEAT BACK, LH

71702D

BOARD SUB-ASSY, REAR SEAT BACK, LH

71751D

HANGER, REAR SEAT COVER

71833V

COVER, NO.1 SEAT RECLINING, NO.2 RH

71834X

COVER, REAR SEAT RECLINING, NO.2 LH

71930J

SUPPORT ASSY, NO.1 SEAT HEADREST, LH

71935C

CLIP

71940G

HEADREST ASSY, NO.1 SEAT, LH

71H75R

COVER, RECLINING ADJUSTER INSIDE, RH NO.1(FOR LH SEAT)

71H76N

COVER, RECLINING ADJUSTER INSIDE, LH NO.1(FOR LH SEAT)

72308C

LINK SUB-ASSY, RECLINING CONTROL, LH NO.1

72329G

COVER, REAR SEAT ADJUSTER BOLT, NO.2

72526L

HANDLE, RECLINING ADJUSTER RELEASE, LH

72551R

COVER, RECLINING HINGE, RH NO.1(FOR LH SEAT)

72552P

COVER, RECLINING HINGE, LH NO.1(FOR LH SEAT)

72996H

COVER, REAR SEAT BACK

73940A

AIR BAG ASSY, REAR SEAT, LH

78950F

BAND ASSY, FOLD SEAT STOPPER, NO.1

79014B

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79104A

FRAME SUB-ASSY, NO.1 SEAT BACK, LH

79185A

PAD, NO.1 SEAT BACK, LH

79197B

RIVET

85867E

BLOWER, NO.1 SEAT BACK CLIMATE CONTROL(FOR LH SEAT)

87530

HEATER ASSY, REAR NO.1 SEAT BACK, LH

9010506352

Крепеж

9010510361

Крепеж

9017908057

Крепеж

9415180600

Крепеж

9417060600

Крепеж

9418560600

Крепеж

Код

Описание

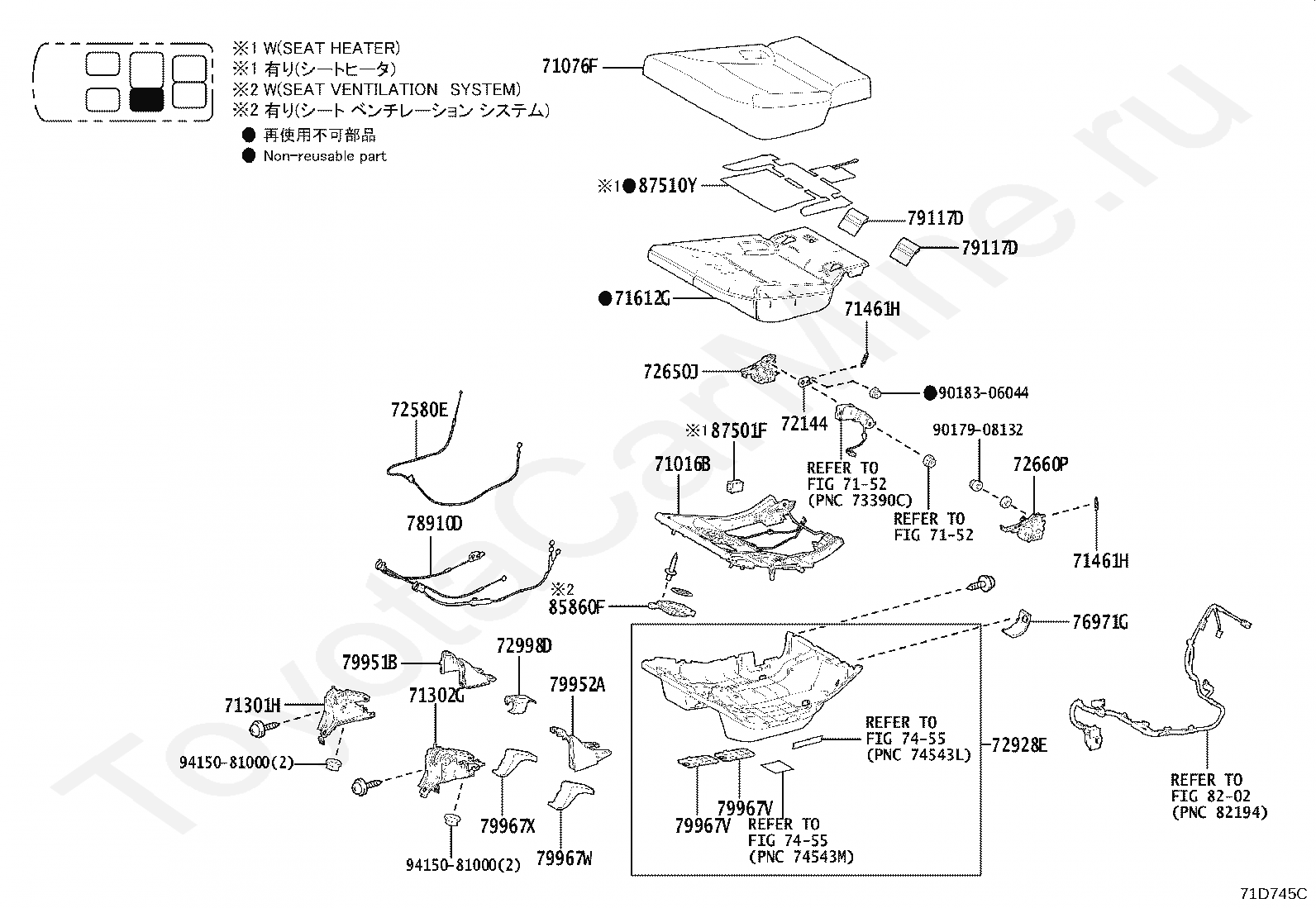

71016B

FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH

71076F

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

71301H

HINGE SUB-ASSY, REAR NO.1 SEAT, RH(FOR LH SEAT)

71302G

HINGE SUB-ASSY, REAR NO.1 SEAT, LH(FOR LH SEAT)

71461H

SPRING, REAR SEAT CUSHION

7152

переход к группе запчастей

71612G

PAD, REAR NO.1 SEAT CUSHION, LH

72144

BRACKET, REAR SEAT TRACK, LOWER REAR LH

72580E

CABLE ASSY, RECLINING ADJUSTING, LH

72650J

LOCK ASSY, REAR SEAT, RH

72660P

LOCK ASSY, REAR SEAT, LH

72928E

COVER, REAR SEAT CUSHION UNDER, LH

72998D

COVER, REAR SEAT CUSHION, LH

7455

переход к группе запчастей

76971G

COVER, REAR UNDER

78910D

CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.1(FOR LH SEAT)

79117D

CARPET, NO.1 SEAT CUSHION

79951B

COVER, NO.1 SEAT CUSHION, NO.1

79952A

COVER, NO.1 SEAT CUSHION, NO.2

79967V

COVER, REAR NO.1 SEAT LEG SIDE, NO.3

79967W

COVER, REAR NO.1 SEAT LEG SIDE, NO.4

79967X

COVER, REAR NO.1 SEAT LEG SIDE, NO.5

8202

переход к группе запчастей

85860F

BLOWER ASSY, NO.1 SEAT CUSHION CLIMATE CONTROL(FOR LH SEAT)

87501F

CONTROL SUB-ASSY, SEAT HEATER, LH

87510Y

HEATER ASSY, REAR NO.1 SEAT CUSHION, LH

9017908132

Крепеж

9018306044

Крепеж

9415081000

Крепеж

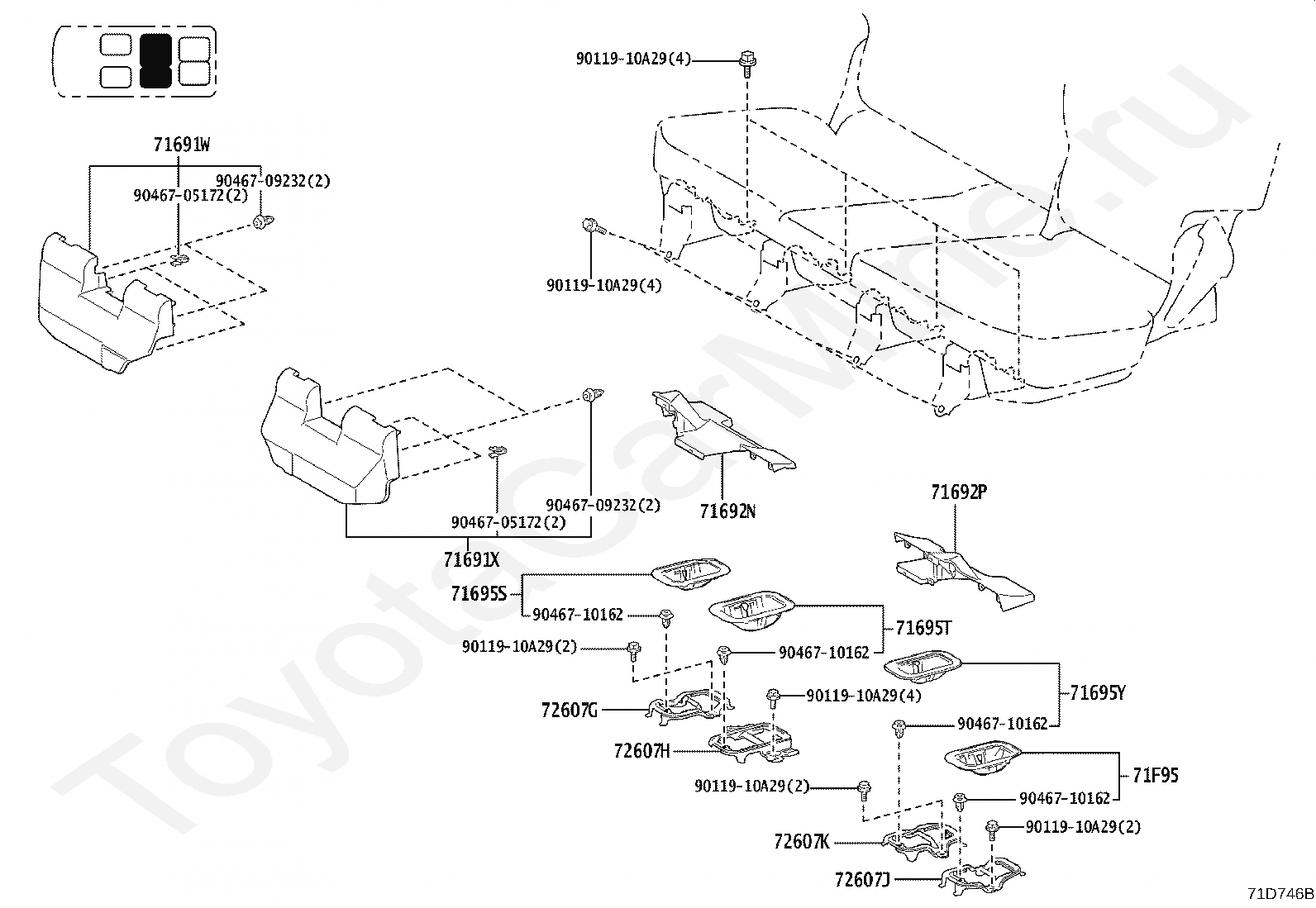

Код

Описание

71691W

COVER, REAR SEAT CUSHION HINGE, NO.1

71691X

COVER, REAR SEAT CUSHION HINGE, NO.2

71692N

COVER, REAR SEAT CUSHION HINGE, NO.3

71692P

COVER, REAR SEAT CUSHION HINGE, NO.4

71695S

PROTECTOR, REAR SEAT, NO.1

71695T

PROTECTOR, REAR SEAT, NO.2

71695Y

PROTECTOR, REAR SEAT, NO.3

71F95

PROTECTOR, REAR SEAT, NO.4

72607G

STRIKER SUB-ASSY, REAR SEAT CUSHION LOCK, NO.1

72607H

STRIKER SUB-ASSY, REAR SEAT CUSHION LOCK, NO.2

72607J

STRIKER SUB-ASSY, REAR SEAT CUSHION LOCK, NO.3

72607K

STRIKER SUB-ASSY, REAR SEAT CUSHION LOCK, NO.4

9011910A29

Крепеж

9046705172

Крепеж

9046709232

Крепеж

9046710162

Крепеж

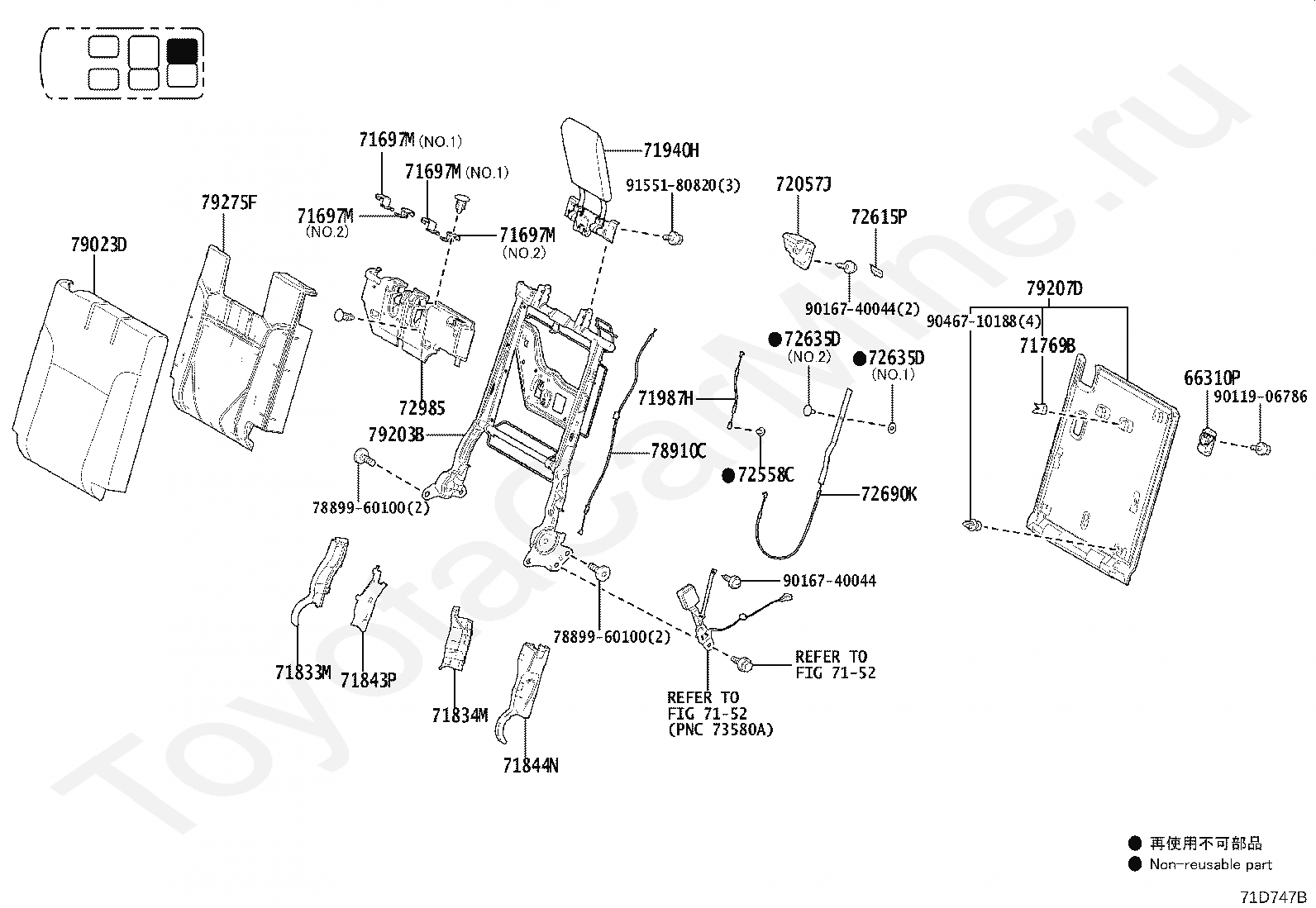

Код

Описание

66310P

HOOK ASSY, ROPE

7152

переход к группе запчастей

71697M

PROTECTOR, REAR SEAT BACK

71769B

CLIP, SEAT BACK BOARD

71833M

COVER, REAR NO.2 SEAT RECLINING, NO.1 RH(FOR RH SEAT)

71834M

COVER, REAR NO.2 SEAT RECLINING, NO.1 LH(FOR RH SEAT)

71843P

COVER, REAR NO.2 SEAT RECLINING, NO.2 RH(FOR RH SEAT)

71844N

COVER, REAR NO.2 SEAT RECLINING, NO.2 LH(FOR RH SEAT)

71940H

HEADREST ASSY, NO.2 SEAT, RH

71987H

CABLE, REAR SEAT HEADREST

72057J

LEVER SUB-ASSY, REAR SEAT LOCK CONTROL(FOR RH SEAT)

72558C

STOPPER, RECLINING, NO.1

72615P

COVER, REAR SEAT BACK LOCK STRIKER

72635D

HOOK, SEAT BACK LOCK

72690K

STRAP ASSY, REAR SEAT LOCK RELEASE

72985

COVER, REAR HEADREST, RH

7889960100

Крепеж

78910C

CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.1(FOR RH SEAT)

79023D

COVER SUB-ASSY, NO.2 SEAT BACK, RH

79203B

FRAME SUB-ASSY, NO.2 SEAT BACK, RH

79207D

BOARD SUB-ASSY, NO.2 SEAT BACK, RH

79275F

PAD, NO.2 SEAT BACK, RH

9011906786

Крепеж

9016740044

Крепеж

9046710188

Крепеж

9155180820

Крепеж

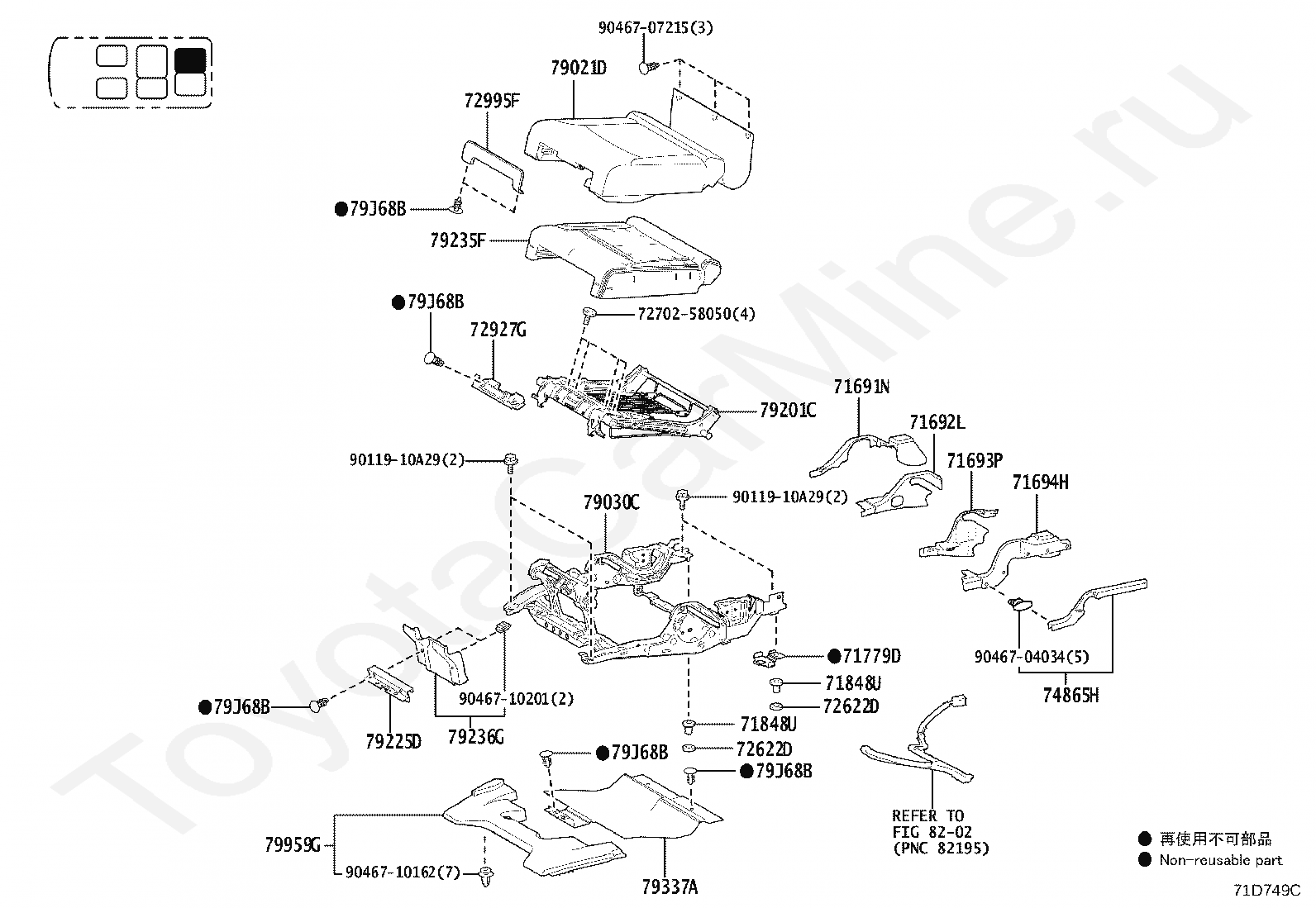

Код

Описание

71691N

COVER, REAR SEAT CUSHION HINGE, UPPER RH NO.1

71692L

COVER, REAR SEAT CUSHION HINGE, UPPER LH NO.1

71693P

COVER, REAR SEAT CUSHION HINGE, LOWER RH NO.1

71694H

COVER, REAR SEAT CUSHION HINGE, LOWER LH NO.1

71779D

PLATE, REAR SEAT(FOR RH SEAT)

71848U

CAP, NO.2 SEAT ADJUSTER COVER, RH

72622D

BUSH(FOR REAR NO.2 SEAT LEG)

7270258050

Крепеж

72927G

COVER, REAR NO.2 SEAT CUSHION UNDER, RH

72995F

COVER, REAR SEAT CUSHION, RH

74865H

COVER, CENTER PROTECTOR

79021D

COVER SUB-ASSY, NO.2 SEAT CUSHION, RH

79030C

LEG ASSY, REAR NO.2 SEAT, RH

79201C

FRAME SUB-ASSY, NO.2 SEAT CUSHION, RH

79225D

CARPET, REAR NO.2 SEAT CUSHION

79235F

PAD, NO.2 SEAT CUSHION, RH

79236G

COVER, NO.2 SEAT LEG, RH

79337A

CARPET, NO.2 SEAT CUSHION UNDER, RH

79959G

COVER, NO.2 SEAT LEG, RH NO.1

79J68B

CLIP

8202

переход к группе запчастей

9011910A29

Крепеж

9046704034

Крепеж

9046707215

Крепеж

9046710162

Крепеж

9046710201

Крепеж

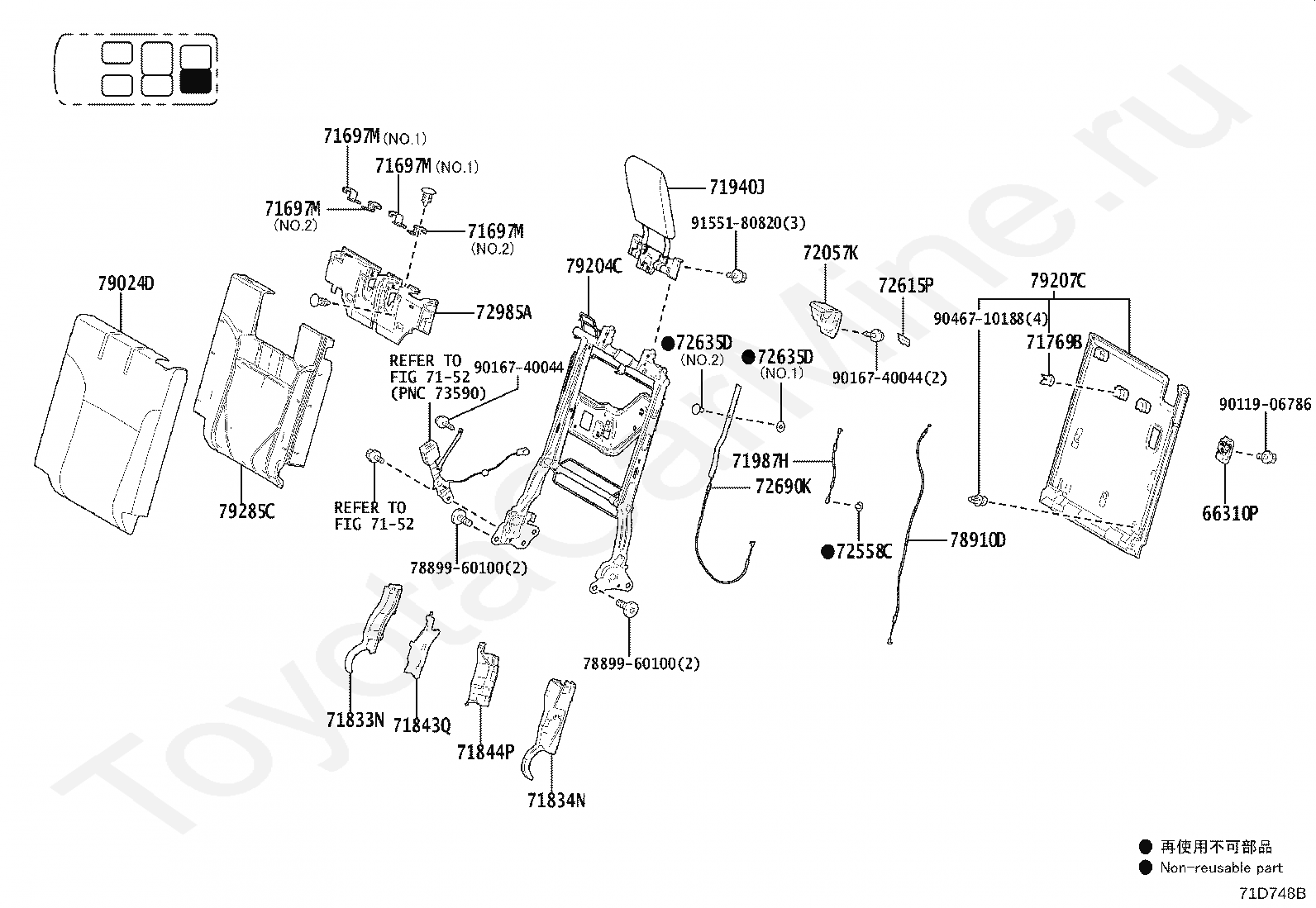

Код

Описание

66310P

HOOK ASSY, ROPE

7152

переход к группе запчастей

71697M

PROTECTOR, REAR SEAT BACK

71769B

CLIP, SEAT BACK BOARD

71833N

COVER, REAR NO.2 SEAT RECLINING, NO.1 RH(FOR LH SEAT)

71834N

COVER, REAR NO.2 SEAT RECLINING, NO.1 LH(FOR LH SEAT)

71843Q

COVER, REAR NO.2 SEAT RECLINING, NO.2 RH(FOR LH SEAT)

71844P

COVER, REAR NO.2 SEAT RECLINING, NO.2 LH(FOR LH SEAT)

71940J

HEADREST ASSY, NO.2 SEAT, LH

71987H

CABLE, REAR SEAT HEADREST

72057K

LEVER SUB-ASSY, REAR SEAT LOCK CONTROL(FOR LH SEAT)

72558C

STOPPER, RECLINING, NO.1

72615P

COVER, REAR SEAT BACK LOCK STRIKER

72635D

HOOK, SEAT BACK LOCK

72690K

STRAP ASSY, REAR SEAT LOCK RELEASE

72985A

COVER, REAR HEADREST, LH

7889960100

Крепеж

78910D

CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.1(FOR LH SEAT)

79024D

COVER SUB-ASSY, NO.2 SEAT BACK, LH

79204C

FRAME SUB-ASSY, NO.2 SEAT BACK, LH

79207C

BOARD SUB-ASSY, NO.2 SEAT BACK, LH

79285C

PAD, NO.2 SEAT BACK, LH

9011906786

Крепеж

9016740044

Крепеж

9046710188

Крепеж

9155180820

Крепеж

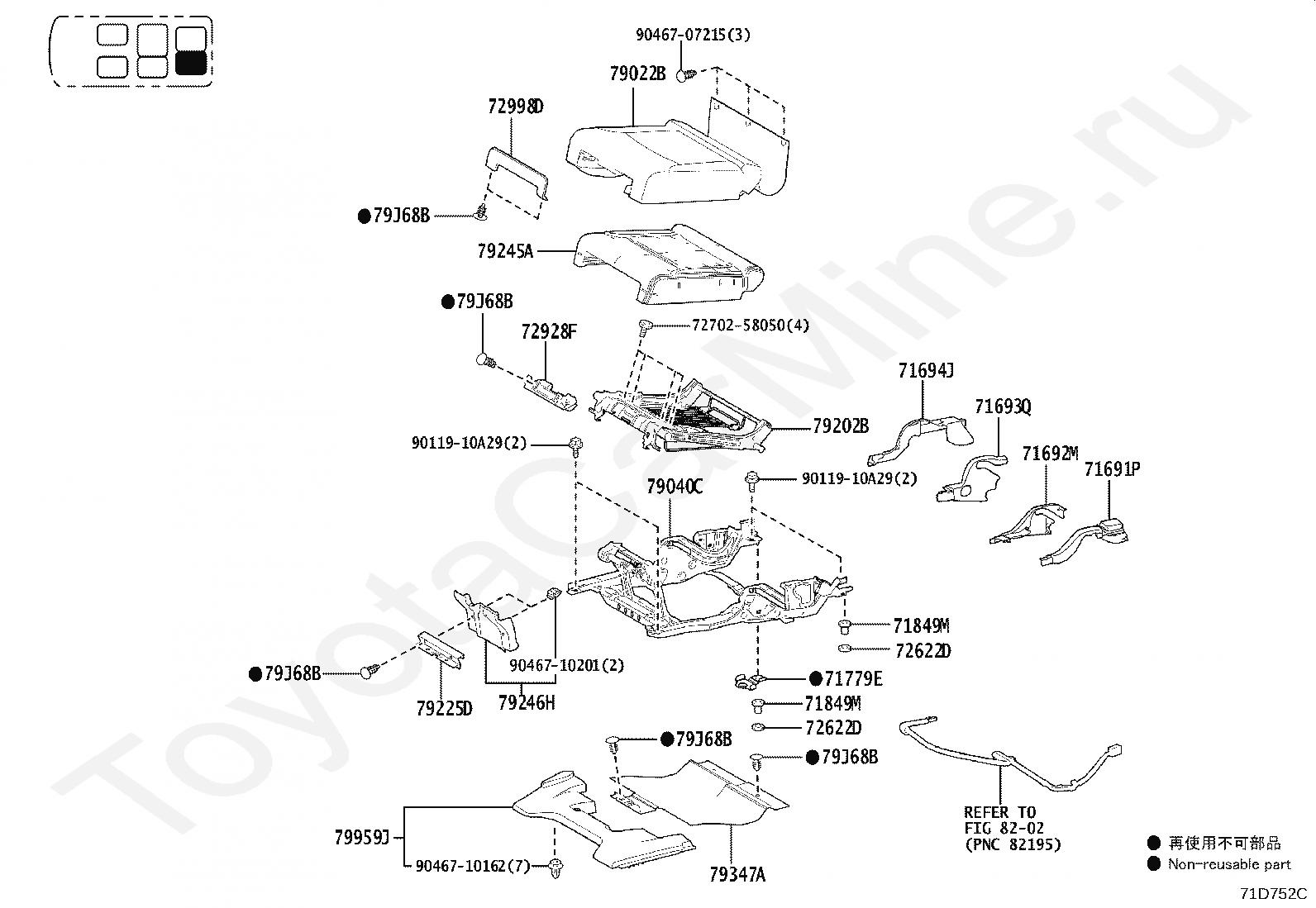

Код

Описание

71691P

COVER, REAR SEAT CUSHION HINGE, UPPER RH NO.2

71692M

COVER, REAR SEAT CUSHION HINGE, UPPER LH NO.2

71693Q

COVER, REAR SEAT CUSHION HINGE, LOWER RH NO.2

71694J

COVER, REAR SEAT CUSHION HINGE, LOWER LH NO.2

71779E

PLATE, REAR SEAT(FOR LH SEAT)

71849M

CAP, NO.2 SEAT ADJUSTER COVER, LH

72622D

BUSH(FOR REAR NO.2 SEAT LEG)

7270258050

Крепеж

72928F

COVER, REAR NO.2 SEAT CUSHION UNDER, LH

72998D

COVER, REAR SEAT CUSHION, LH

79022B

COVER SUB-ASSY, NO.2 SEAT CUSHION, LH

79040C

LEG ASSY, REAR NO.2 SEAT, LH

79202B

FRAME SUB-ASSY, NO.2 SEAT CUSHION, LH

79225D

CARPET, REAR NO.2 SEAT CUSHION

79245A

PAD, NO.2 SEAT CUSHION, LH

79246H

COVER, NO.2 SEAT LEG, LH

79347A

CARPET, NO.2 SEAT CUSHION UNDER, LH

79959J

COVER, NO.2 SEAT LEG, LH NO.1

79J68B

CLIP

8202

переход к группе запчастей

9011910A29

Крепеж

9046707215

Крепеж

9046710162

Крепеж

9046710201

Крепеж

Код

Описание

66310P

HOOK ASSY, ROPE

7152

переход к группе запчастей

71697M

PROTECTOR, REAR SEAT BACK

71769B

CLIP, SEAT BACK BOARD

71833M

COVER, REAR NO.2 SEAT RECLINING, NO.1 RH(FOR RH SEAT)

71834M

COVER, REAR NO.2 SEAT RECLINING, NO.1 LH(FOR RH SEAT)

71843P

COVER, REAR NO.2 SEAT RECLINING, NO.2 RH(FOR RH SEAT)

71844N

COVER, REAR NO.2 SEAT RECLINING, NO.2 LH(FOR RH SEAT)

71940H

HEADREST ASSY, NO.2 SEAT, RH

71987H

CABLE, REAR SEAT HEADREST

72558C

STOPPER, RECLINING, NO.1

72635D

HOOK, SEAT BACK LOCK

72690K

STRAP ASSY, REAR SEAT LOCK RELEASE

72695R

CABLE, REAR NO.2 SEAT LOCK CONTROL, RH

72985

COVER, REAR HEADREST, RH

7889960100

Крепеж

79023D

COVER SUB-ASSY, NO.2 SEAT BACK, RH

79203B

FRAME SUB-ASSY, NO.2 SEAT BACK, RH

79207D

BOARD SUB-ASSY, NO.2 SEAT BACK, RH

79275F

PAD, NO.2 SEAT BACK, RH

9011906786

Крепеж

9016740044

Крепеж

9046710188

Крепеж

9155180820

Крепеж

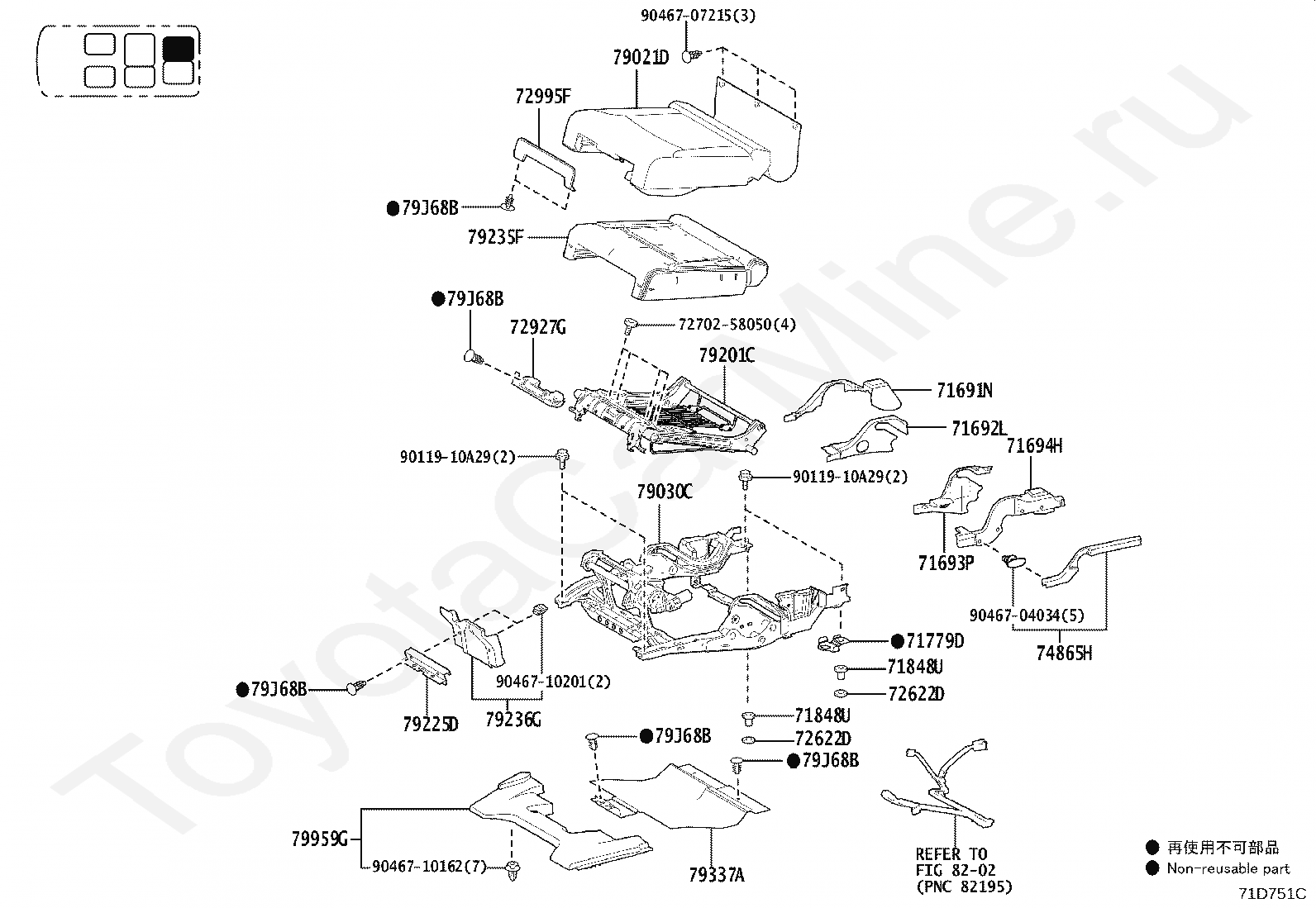

Код

Описание

71691N

COVER, REAR SEAT CUSHION HINGE, UPPER RH NO.1

71692L

COVER, REAR SEAT CUSHION HINGE, UPPER LH NO.1

71693P

COVER, REAR SEAT CUSHION HINGE, LOWER RH NO.1

71694H

COVER, REAR SEAT CUSHION HINGE, LOWER LH NO.1

71779D

PLATE, REAR SEAT(FOR RH SEAT)

71848U

CAP, NO.2 SEAT ADJUSTER COVER, RH

72622D

BUSH(FOR REAR NO.2 SEAT LEG)

7270258050

Крепеж

72927G

COVER, REAR NO.2 SEAT CUSHION UNDER, RH

72995F

COVER, REAR SEAT CUSHION, RH

74865H

COVER, CENTER PROTECTOR

79021D

COVER SUB-ASSY, NO.2 SEAT CUSHION, RH

79030C

LEG ASSY, REAR NO.2 SEAT, RH

79201C

FRAME SUB-ASSY, NO.2 SEAT CUSHION, RH

79225D

CARPET, REAR NO.2 SEAT CUSHION

79235F

PAD, NO.2 SEAT CUSHION, RH

79236G

COVER, NO.2 SEAT LEG, RH

79337A

CARPET, NO.2 SEAT CUSHION UNDER, RH

79959G

COVER, NO.2 SEAT LEG, RH NO.1

79J68B

CLIP

8202

переход к группе запчастей

9011910A29

Крепеж

9046704034

Крепеж

9046707215

Крепеж

9046710162

Крепеж

9046710201

Крепеж

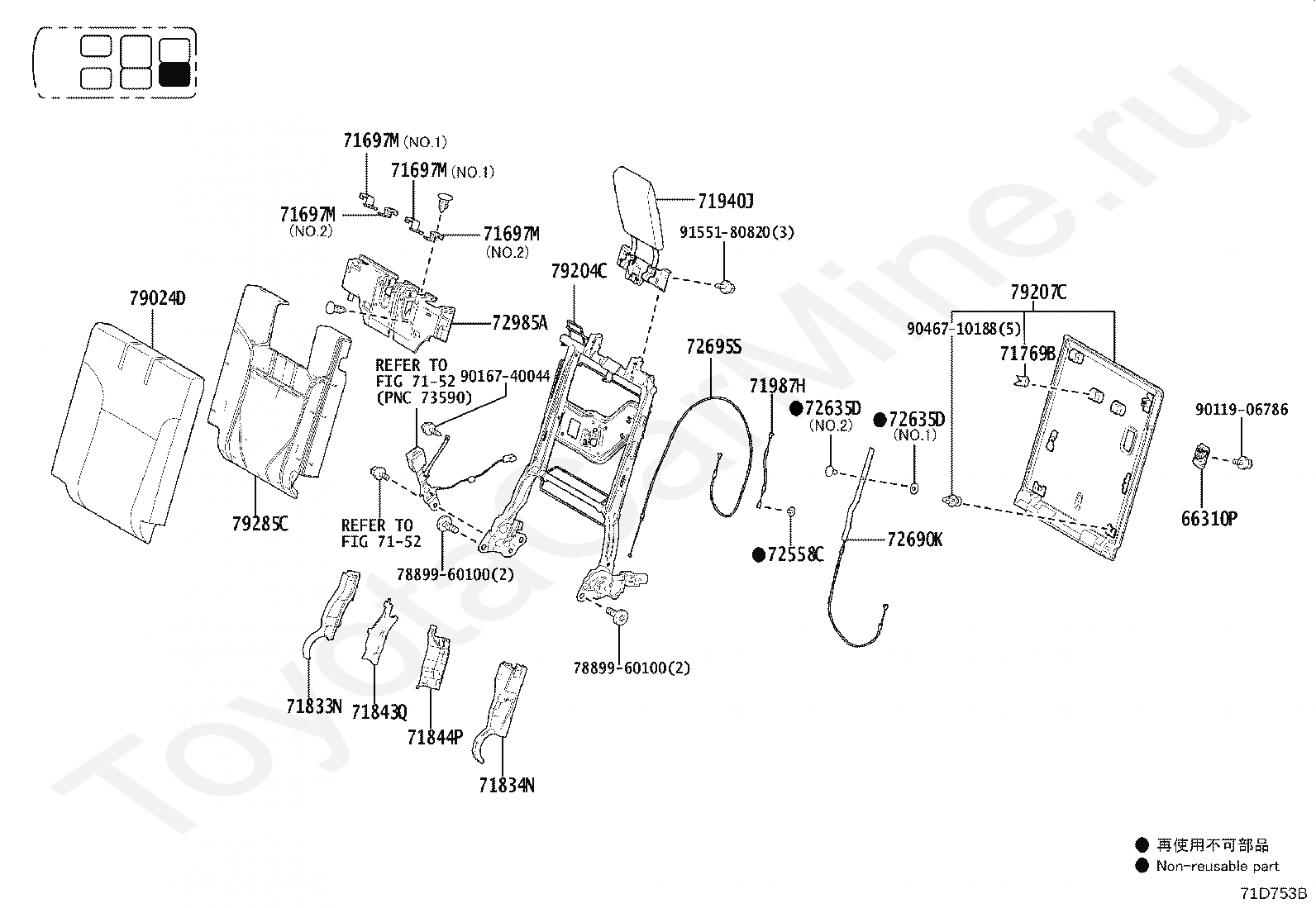

Код

Описание

66310P

HOOK ASSY, ROPE

7152

переход к группе запчастей

71697M

PROTECTOR, REAR SEAT BACK

71769B

CLIP, SEAT BACK BOARD

71833N

COVER, REAR NO.2 SEAT RECLINING, NO.1 RH(FOR LH SEAT)

71834N

COVER, REAR NO.2 SEAT RECLINING, NO.1 LH(FOR LH SEAT)

71843Q

COVER, REAR NO.2 SEAT RECLINING, NO.2 RH(FOR LH SEAT)

71844P

COVER, REAR NO.2 SEAT RECLINING, NO.2 LH(FOR LH SEAT)

71940J

HEADREST ASSY, NO.2 SEAT, LH

71987H

CABLE, REAR SEAT HEADREST

72558C

STOPPER, RECLINING, NO.1

72635D

HOOK, SEAT BACK LOCK

72690K

STRAP ASSY, REAR SEAT LOCK RELEASE

72695S

CABLE, REAR NO.2 SEAT LOCK CONTROL, LH

72985A

COVER, REAR HEADREST, LH

7889960100

Крепеж

79024D

COVER SUB-ASSY, NO.2 SEAT BACK, LH

79204C

FRAME SUB-ASSY, NO.2 SEAT BACK, LH

79207C

BOARD SUB-ASSY, NO.2 SEAT BACK, LH

79285C

PAD, NO.2 SEAT BACK, LH

9011906786

Крепеж

9016740044

Крепеж

9046710188

Крепеж

9155180820

Крепеж

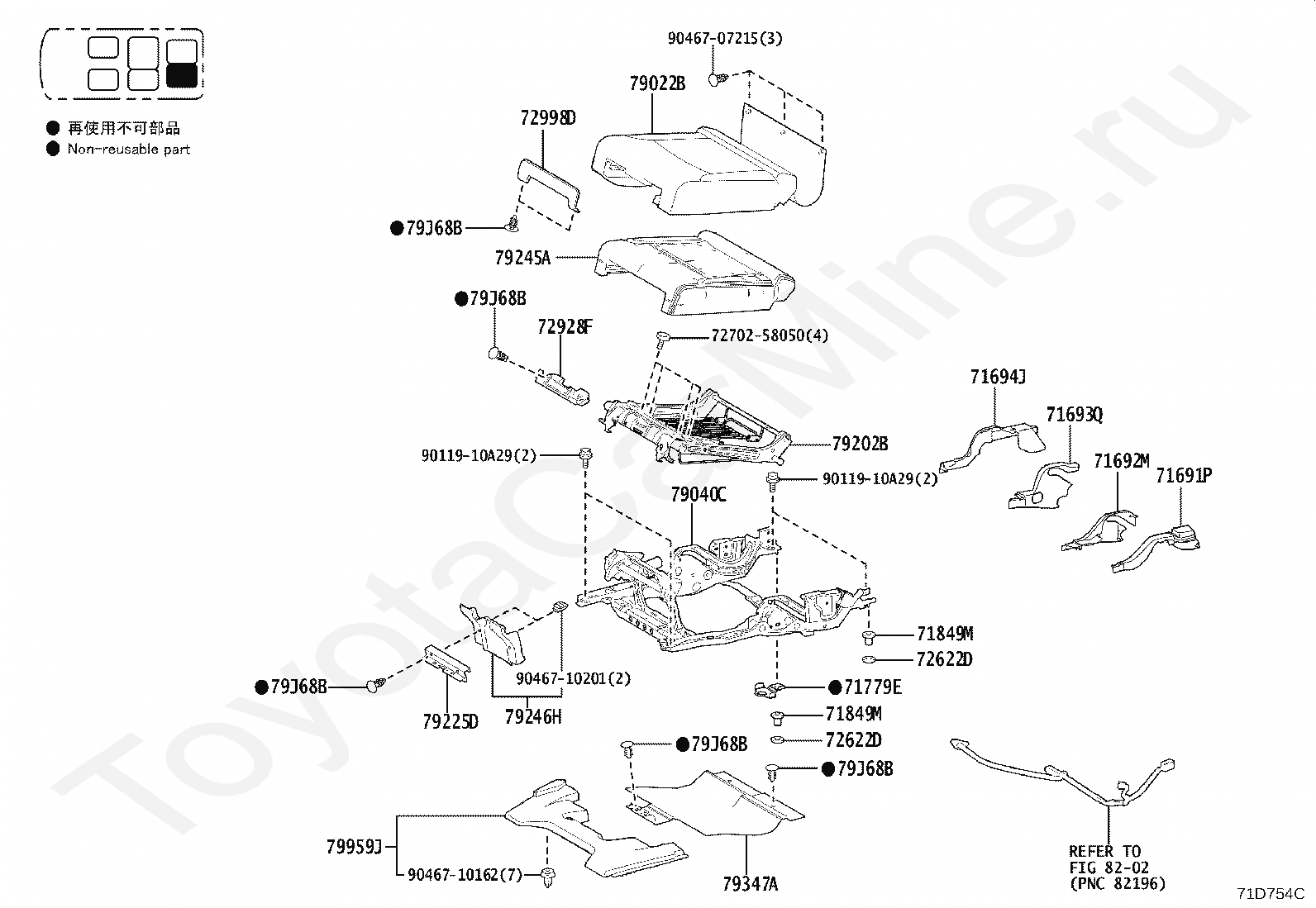

Код

Описание

71691P

COVER, REAR SEAT CUSHION HINGE, UPPER RH NO.2

71692M

COVER, REAR SEAT CUSHION HINGE, UPPER LH NO.2

71693Q

COVER, REAR SEAT CUSHION HINGE, LOWER RH NO.2

71694J

COVER, REAR SEAT CUSHION HINGE, LOWER LH NO.2

71779E

PLATE, REAR SEAT(FOR LH SEAT)

71849M

CAP, NO.2 SEAT ADJUSTER COVER, LH

72622D

BUSH(FOR REAR NO.2 SEAT LEG)

7270258050

Крепеж

72928F

COVER, REAR NO.2 SEAT CUSHION UNDER, LH

72998D

COVER, REAR SEAT CUSHION, LH

79022B

COVER SUB-ASSY, NO.2 SEAT CUSHION, LH

79040C

LEG ASSY, REAR NO.2 SEAT, LH

79202B

FRAME SUB-ASSY, NO.2 SEAT CUSHION, LH

79225D

CARPET, REAR NO.2 SEAT CUSHION

79245A

PAD, NO.2 SEAT CUSHION, LH

79246H

COVER, NO.2 SEAT LEG, LH

79347A

CARPET, NO.2 SEAT CUSHION UNDER, LH

79959J

COVER, NO.2 SEAT LEG, LH NO.1

79J68B

CLIP

8202

переход к группе запчастей

9011910A29

Крепеж

9046707215

Крепеж

9046710162

Крепеж

9046710201

Крепеж

REAR SEAT & SEAT TRACK TOYOTA LAND CRUISER, 2021/07 - 2025, 3500CC 24-VALVE DOHC, VX TYPE, VJA300

Товар добавлен в корзину!

Заполните форму
