FRONT SEAT & SEAT TRACK TOYOTA LAND CRUISER, 2021/07 - 2025, 3500CC 24-VALVE DOHC, VX TYPE, VJA300

Каталог

Япония

Модель

LAND CRUISER

Двигатель

3500CC 24-VALVE DOHC

Класс

VX TYPE

Фрейм

VJA300

Опции

7-местный WITH TURBO (HARGER) 810W

Код

Описание

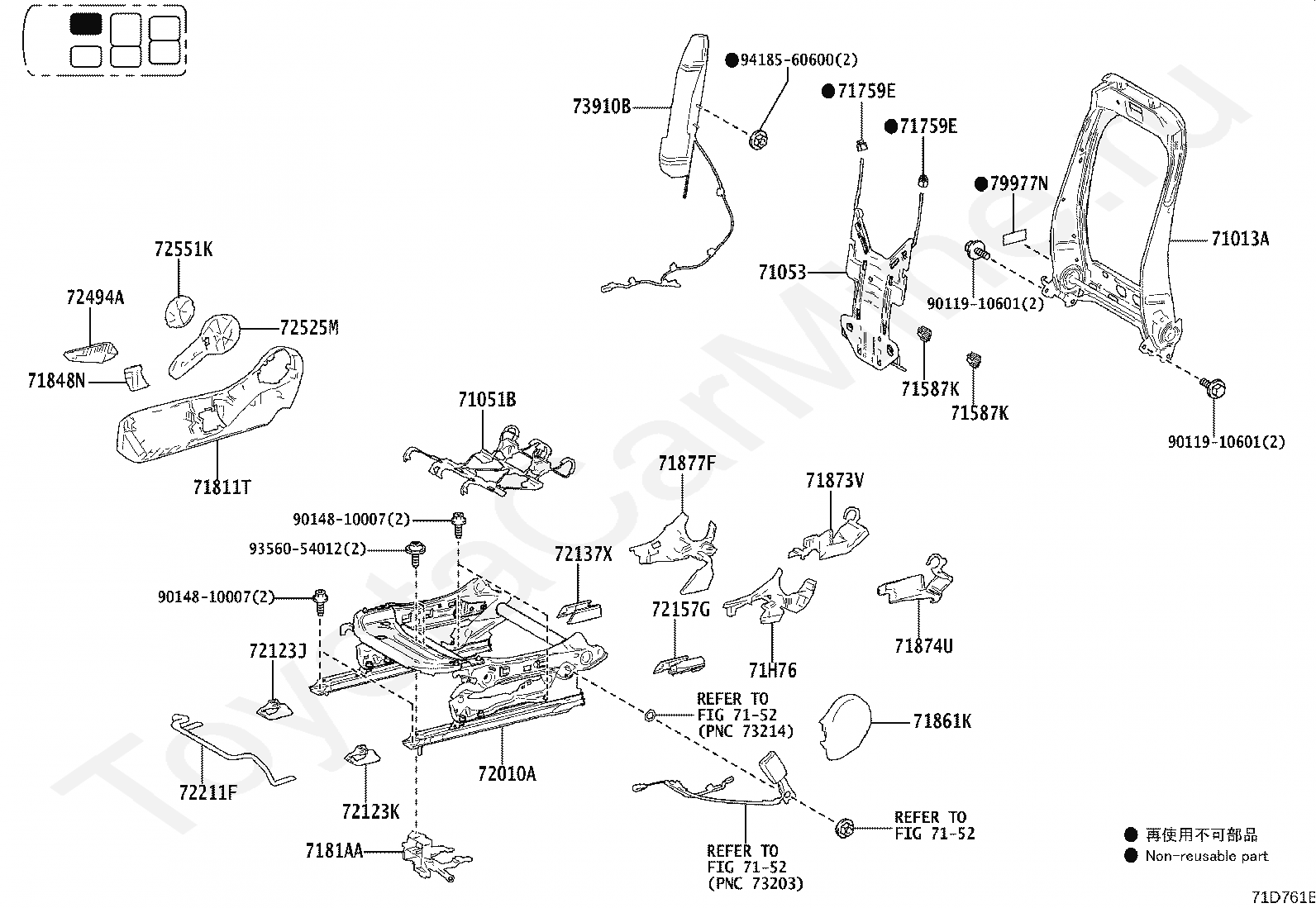

71013A

FRAME SUB-ASSY, FRONT SEAT BACK, RH

71051B

SPRING SUB-ASSY, FRONT SEAT CUSHION, RH

71053

SPRING SUB-ASSY, FRONT SEAT BACK, RH

7152

переход к группе запчастей

71587K

PROTECTOR, FRONT SEAT BACK EDGE, RH

71759E

HOOK, FRONT SEAT BACK, RH

71811T

SHIELD, FRONT SEAT CUSHION, RH

7181AA

HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH

71848N

CAP, FRONT SEAT ADJUSTER COVER, RH NO.1

71861K

SHIELD, FRONT SEAT CUSHION, INNER RH

71873V

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874U

SHIELD, FRONT SEAT CUSHION, LOWER LH

71877F

COVER, RECLINING ADJUSTER INSIDE, RH(FOR RH SEAT)

71H76

COVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT)

72010A

ADJUSTER ASSY, FRONT SEAT, RH

72123J

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72123K

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72137X

COVER, SEAT TRACK BRACKET, OUTER REAR RH

72157G

COVER, SEAT TRACK BRACKET, INNER REAR RH

72211F

HANDLE, SEAT TRACK ADJUSTING, RH

72494A

HANDLE, FRONT SEAT VERTICAL ADJUSTER, RH

72525M

HANDLE, RECLINING ADJUSTER RELEASE, RH

72551K

COVER, RECLINING HINGE, RH

73910B

AIR BAG ASSY, FRONT SEAT, RH

79977N

FELT, SEAT BACK

9011910601

Крепеж

9014810007

Крепеж

9356054012

Крепеж

9418560600

Крепеж

Код

Описание

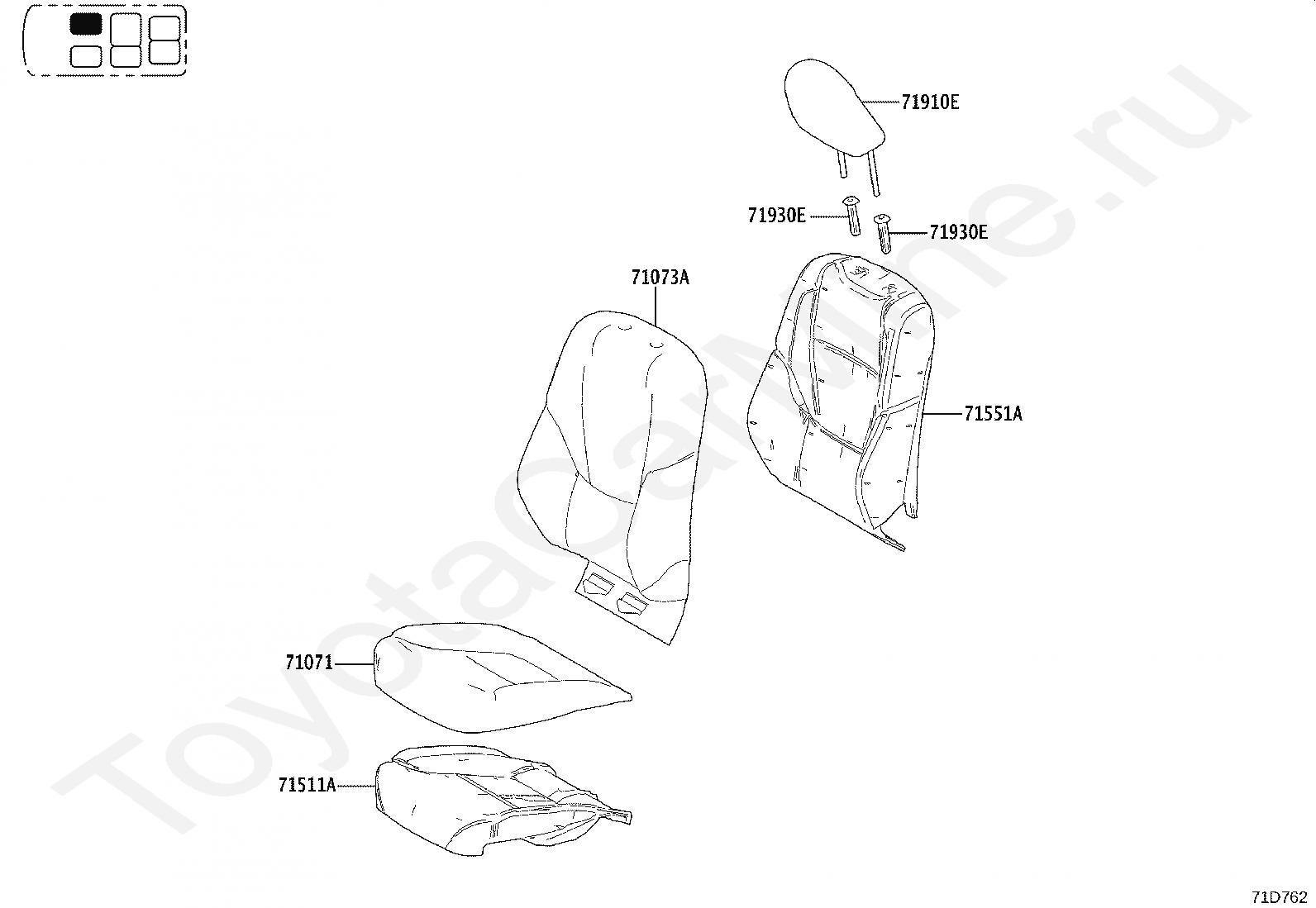

71071

COVER SUB-ASSY, FRONT SEAT CUSHION, RH

71073A

COVER SUB-ASSY, FRONT SEAT BACK, RH

71511A

PAD, FRONT SEAT CUSHION, RH

71551A

PAD, FRONT SEAT BACK, RH

71910E

HEADREST ASSY, FRONT SEAT, RH

71930E

SUPPORT ASSY, FRONT SEAT HEADREST, RH

Код

Описание

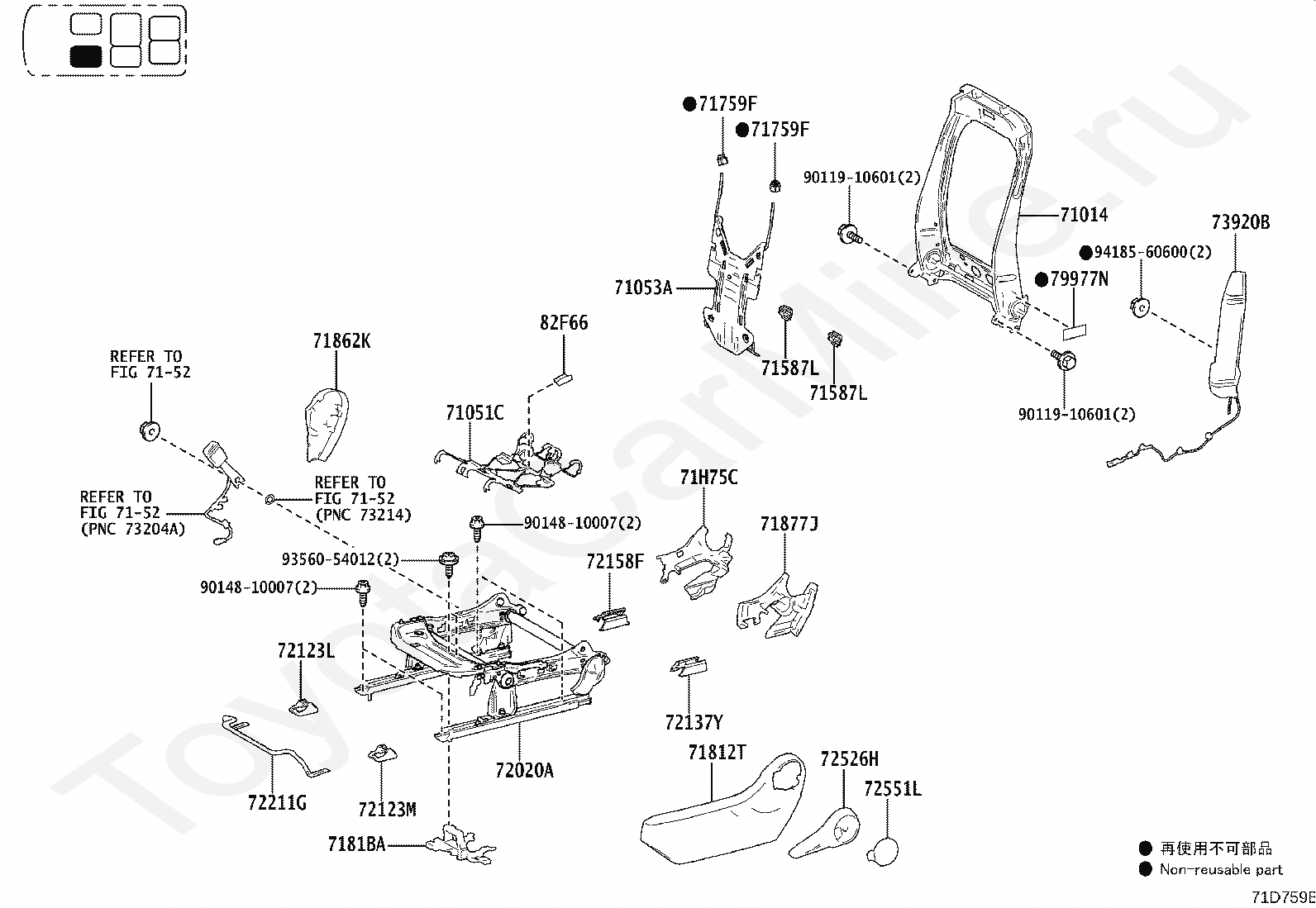

71014

FRAME SUB-ASSY, FRONT SEAT BACK, LH

71051C

SPRING SUB-ASSY, FRONT SEAT CUSHION, LH

71053A

SPRING SUB-ASSY, FRONT SEAT BACK, LH

7152

переход к группе запчастей

71587L

PROTECTOR, FRONT SEAT BACK EDGE, LH

71759F

HOOK, FRONT SEAT BACK, LH

71812T

SHIELD, FRONT SEAT CUSHION, LH

7181BA

HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH

71862K

SHIELD, FRONT SEAT CUSHION, INNER LH

71877J

COVER, RECLINING ADJUSTER INSIDE, LH(FOR LH SEAT)

71H75C

COVER, RECLINING ADJUSTER INSIDE, RH(FOR LH SEAT)

72020A

ADJUSTER ASSY, FRONT SEAT, LH

72123L

COVER, SEAT TRACK BRACKET, INNER FRONT LH

72123M

COVER, SEAT TRACK BRACKET, OUTER FRONT LH

72137Y

COVER, SEAT TRACK BRACKET, OUTER REAR LH

72158F

COVER, SEAT TRACK BRACKET, INNER REAR LH

72211G

HANDLE, SEAT TRACK ADJUSTING, LH

72526H

HANDLE, RECLINING ADJUSTER RELEASE, LH

72551L

COVER, RECLINING HINGE, LH

73920B

AIR BAG ASSY, FRONT SEAT, LH

79977N

FELT, SEAT BACK

82F66

HOLDER, CONNECTOR

9011910601

Крепеж

9014810007

Крепеж

9356054012

Крепеж

9418560600

Крепеж

Код

Описание

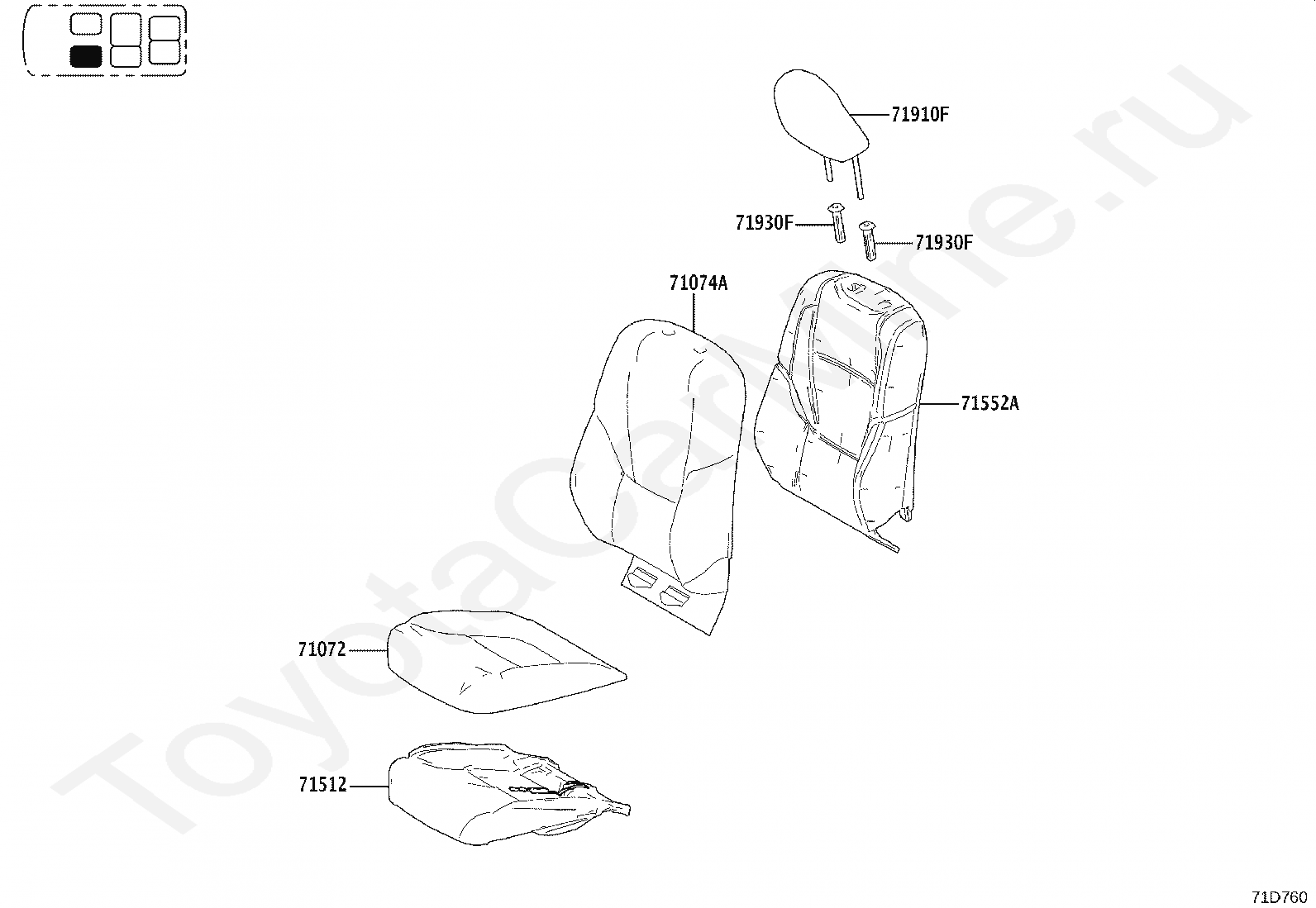

71072

COVER SUB-ASSY, FRONT SEAT CUSHION, LH

71074A

COVER SUB-ASSY, FRONT SEAT BACK, LH

71512

PAD, FRONT SEAT CUSHION, LH

71552A

PAD, FRONT SEAT BACK, LH

71910F

HEADREST ASSY, FRONT SEAT, LH

71930F

SUPPORT ASSY, FRONT SEAT HEADREST, LH

Код

Описание

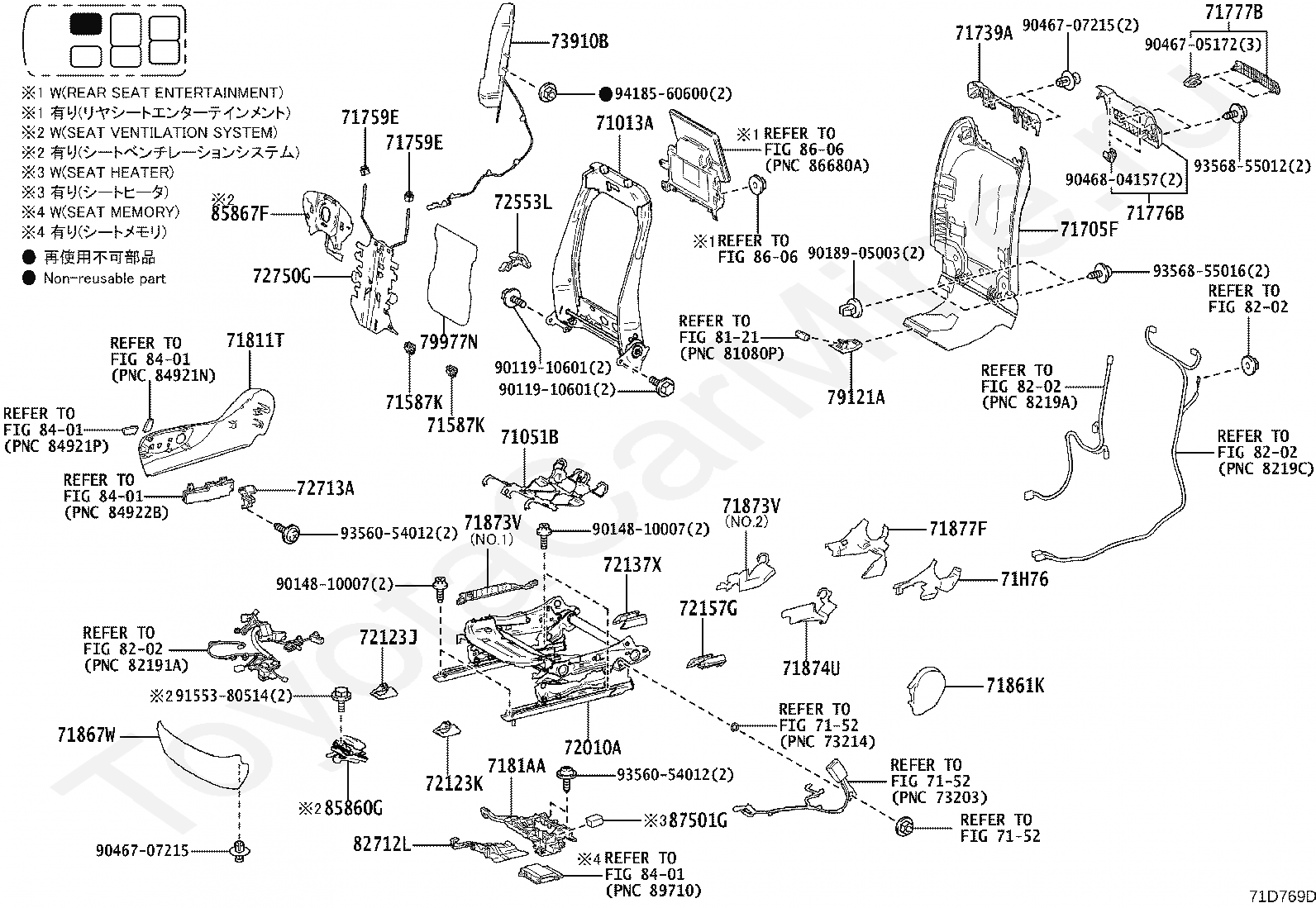

71013A

FRAME SUB-ASSY, FRONT SEAT BACK, RH

71051B

SPRING SUB-ASSY, FRONT SEAT CUSHION, RH

7152

переход к группе запчастей

71587K

PROTECTOR, FRONT SEAT BACK EDGE, RH

71705F

BOARD SUB-ASSY, FRONT SEAT BACK, RH

71739A

BEZEL, FRONT SEAT BACK

71759E

HOOK, FRONT SEAT BACK, RH

71776B

COVER, FRONT SEAT BACK BOARD, NO.1

71777B

COVER, FRONT SEAT BACK BOARD, NO.2

71811T

SHIELD, FRONT SEAT CUSHION, RH

7181AA

HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH

71861K

SHIELD, FRONT SEAT CUSHION, INNER RH

71867W

SHIELD, FRONT SEAT CUSHION, FRONT RH

71873V

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874U

SHIELD, FRONT SEAT CUSHION, LOWER LH

71877F

COVER, RECLINING ADJUSTER INSIDE, RH(FOR RH SEAT)

71H76

COVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT)

72010A

ADJUSTER ASSY, FRONT SEAT, RH

72123J

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72123K

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72137X

COVER, SEAT TRACK BRACKET, OUTER REAR RH

72157G

COVER, SEAT TRACK BRACKET, INNER REAR RH

72553L

PROTECTOR, RECLINING COVER, RH

72713A

BRACKET, SEAT ADJUSTER SHIELD CLAMP, RH

72750G

ADJUSTER ASSY, LUMBAR SUPPORT, RH

73910B

AIR BAG ASSY, FRONT SEAT, RH

79121A

BRACKET, FRONT SEAT CUSHION, RH

79977N

FELT, SEAT BACK

8121

переход к группе запчастей

8202

переход к группе запчастей

82712L

SUPPORT, WIRING HARNESS

8401

переход к группе запчастей

85860G

BLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, RH

85867F

BLOWER, SEAT BACK CLIMATE CONTROL, RH

8606

переход к группе запчастей

87501G

CONTROL SUB-ASSY, SEAT HEATER, RH

9011910601

Крепеж

9014810007

Крепеж

9018905003

Крепеж

9046705172

Крепеж

9046707215

Крепеж

9046804157

Крепеж

9155380514

Крепеж

9356054012

Крепеж

9356855012

Крепеж

9356855016

Крепеж

9418560600

Крепеж

Код

Описание

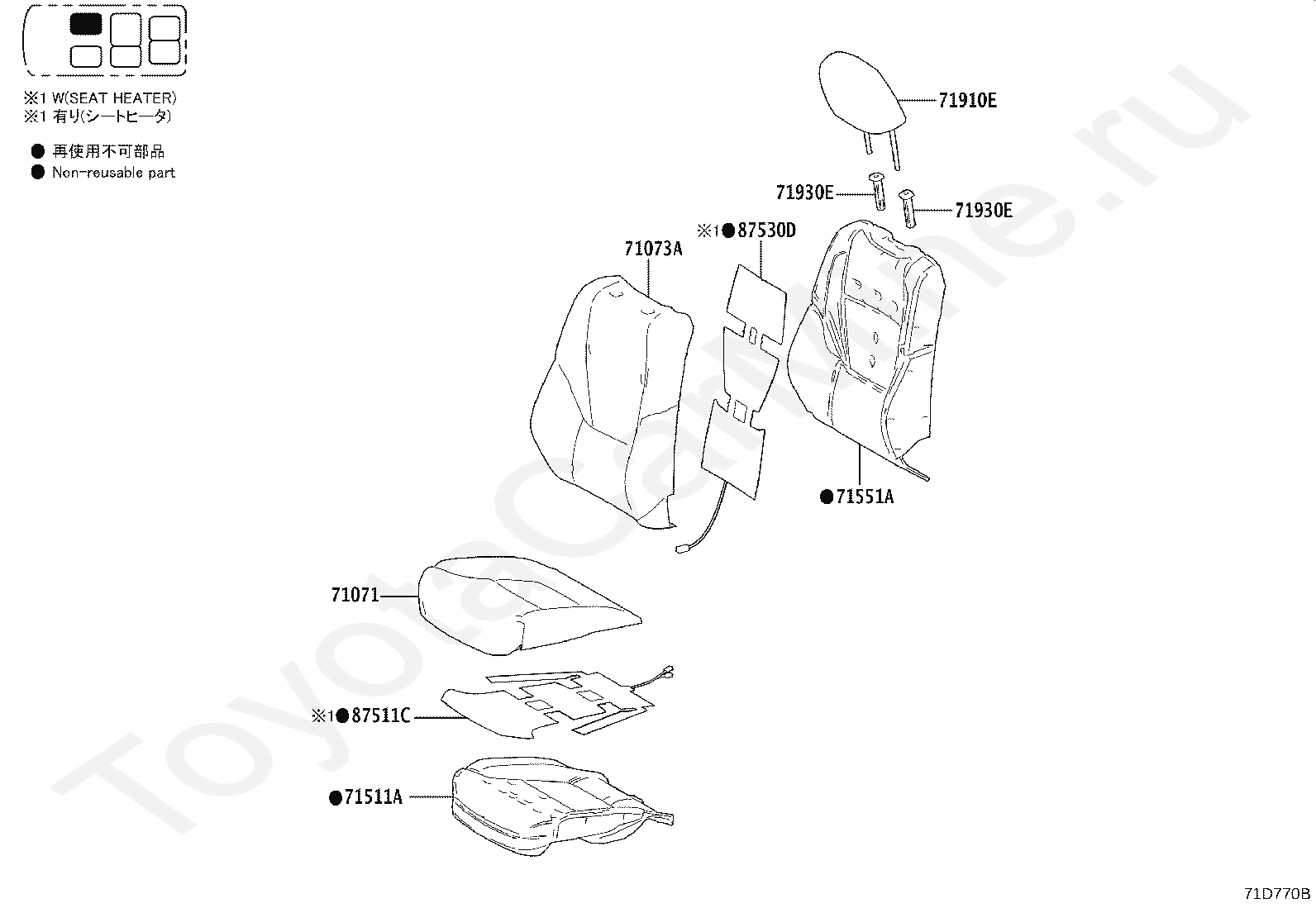

71071

COVER SUB-ASSY, FRONT SEAT CUSHION, RH

71073A

COVER SUB-ASSY, FRONT SEAT BACK, RH

71511A

PAD, FRONT SEAT CUSHION, RH

71551A

PAD, FRONT SEAT BACK, RH

71910E

HEADREST ASSY, FRONT SEAT, RH

71930E

SUPPORT ASSY, FRONT SEAT HEADREST, RH

87511C

HEATER ASSY, FRONT SEAT CUSHION, RH

87530D

HEATER ASSY, FRONT SEAT BACK, RH

Код

Описание

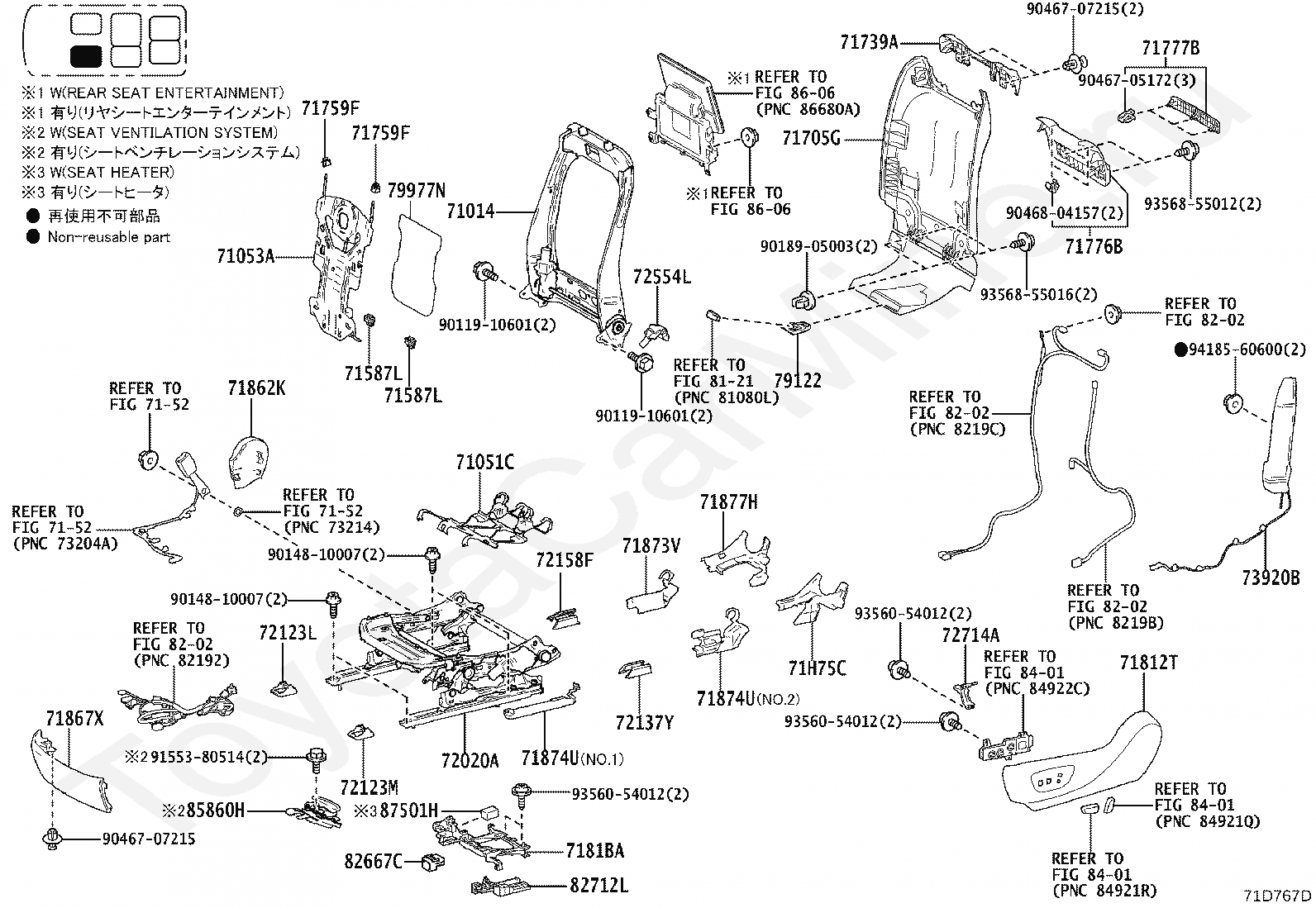

71014

FRAME SUB-ASSY, FRONT SEAT BACK, LH

71051C

SPRING SUB-ASSY, FRONT SEAT CUSHION, LH

71053A

SPRING SUB-ASSY, FRONT SEAT BACK, LH

7152

переход к группе запчастей

71587L

PROTECTOR, FRONT SEAT BACK EDGE, LH

71705G

BOARD SUB-ASSY, FRONT SEAT BACK, LH

71739A

BEZEL, FRONT SEAT BACK

71759F

HOOK, FRONT SEAT BACK, LH

71776B

COVER, FRONT SEAT BACK BOARD, NO.1

71777B

COVER, FRONT SEAT BACK BOARD, NO.2

71812T

SHIELD, FRONT SEAT CUSHION, LH

7181BA

HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH

71862K

SHIELD, FRONT SEAT CUSHION, INNER LH

71867X

SHIELD, FRONT SEAT CUSHION, FRONT LH

71873V

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874U

SHIELD, FRONT SEAT CUSHION, LOWER LH

71877H

COVER, RECLINING ADJUSTER INSIDE, RH(FOR LH SEAT)

71H75C

COVER, RECLINING ADJUSTER INSIDE, RH(FOR LH SEAT)

72020A

ADJUSTER ASSY, FRONT SEAT, LH

72123L

COVER, SEAT TRACK BRACKET, INNER FRONT LH

72123M

COVER, SEAT TRACK BRACKET, OUTER FRONT LH

72137Y

COVER, SEAT TRACK BRACKET, OUTER REAR LH

72158F

COVER, SEAT TRACK BRACKET, INNER REAR LH

72554L

PROTECTOR, RECLINING COVER, LH

72714A

BRACKET, SEAT ADJUSTER SHIELD CLAMP, LH

73920B

AIR BAG ASSY, FRONT SEAT, LH

79122

BRACKET, FRONT SEAT CUSHION, LH

79977N

FELT, SEAT BACK

8121

переход к группе запчастей

8202

переход к группе запчастей

82667C

HOLDER, CONNECTOR

82712L

SUPPORT, WIRING HARNESS

8401

переход к группе запчастей

85860H

BLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, LH

8606

переход к группе запчастей

87501H

CONTROL SUB-ASSY, SEAT HEATER, LH

9011910601

Крепеж

9014810007

Крепеж

9018905003

Крепеж

9046705172

Крепеж

9046707215

Крепеж

9046804157

Крепеж

9155380514

Крепеж

9356054012

Крепеж

9356855012

Крепеж

9356855016

Крепеж

9418560600

Крепеж

Код

Описание

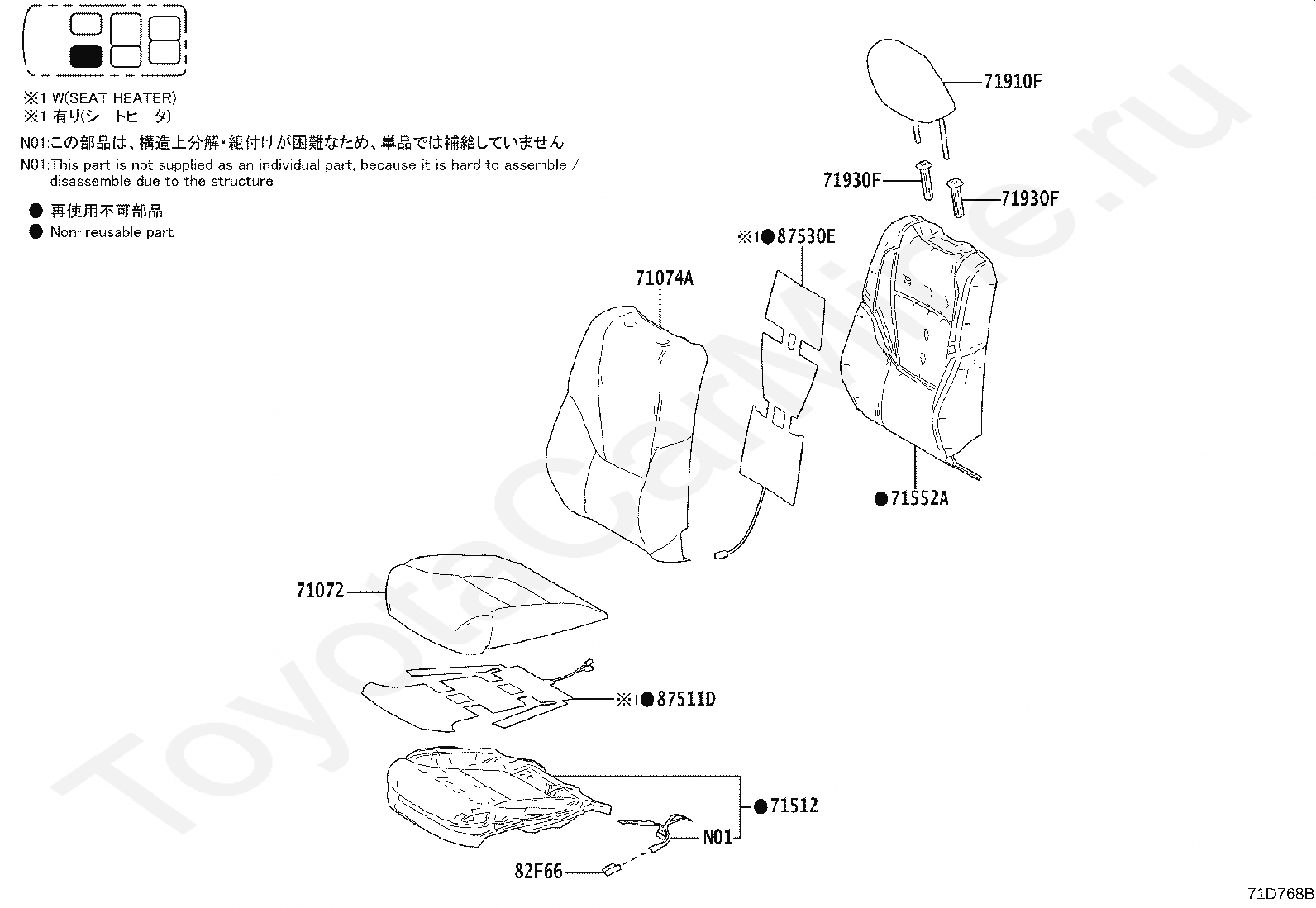

71072

COVER SUB-ASSY, FRONT SEAT CUSHION, LH

71074A

COVER SUB-ASSY, FRONT SEAT BACK, LH

71512

PAD, FRONT SEAT CUSHION, LH

71552A

PAD, FRONT SEAT BACK, LH

71910F

HEADREST ASSY, FRONT SEAT, LH

71930F

SUPPORT ASSY, FRONT SEAT HEADREST, LH

82F66

HOLDER, CONNECTOR

87511D

HEATER ASSY, FRONT SEAT CUSHION, LH

87530E

HEATER ASSY, FRONT SEAT BACK, LH

FRONT SEAT & SEAT TRACK TOYOTA LAND CRUISER, 2021/07 - 2025, 3500CC 24-VALVE DOHC, VX TYPE, VJA300
