REAR SEAT & SEAT TRACK TOYOTA GRNVA/HIACE/MJSTY, 2019/03 - 2025, 2,8 литра, турбо-дизель, GDH320, механика, МКПП, 6 скоростей

Каталог

Ближний Восток

Модель

GRNVA/HIACE/MJSTY

Двигатель

2,8 литра, турбо-дизель

Фрейм

GDH320

Трансмиссия

механика МКПП, 6 скоростей

Опции

левый руль высокая крыша 5 дверей SEPARATE SEAT D GEN 694W

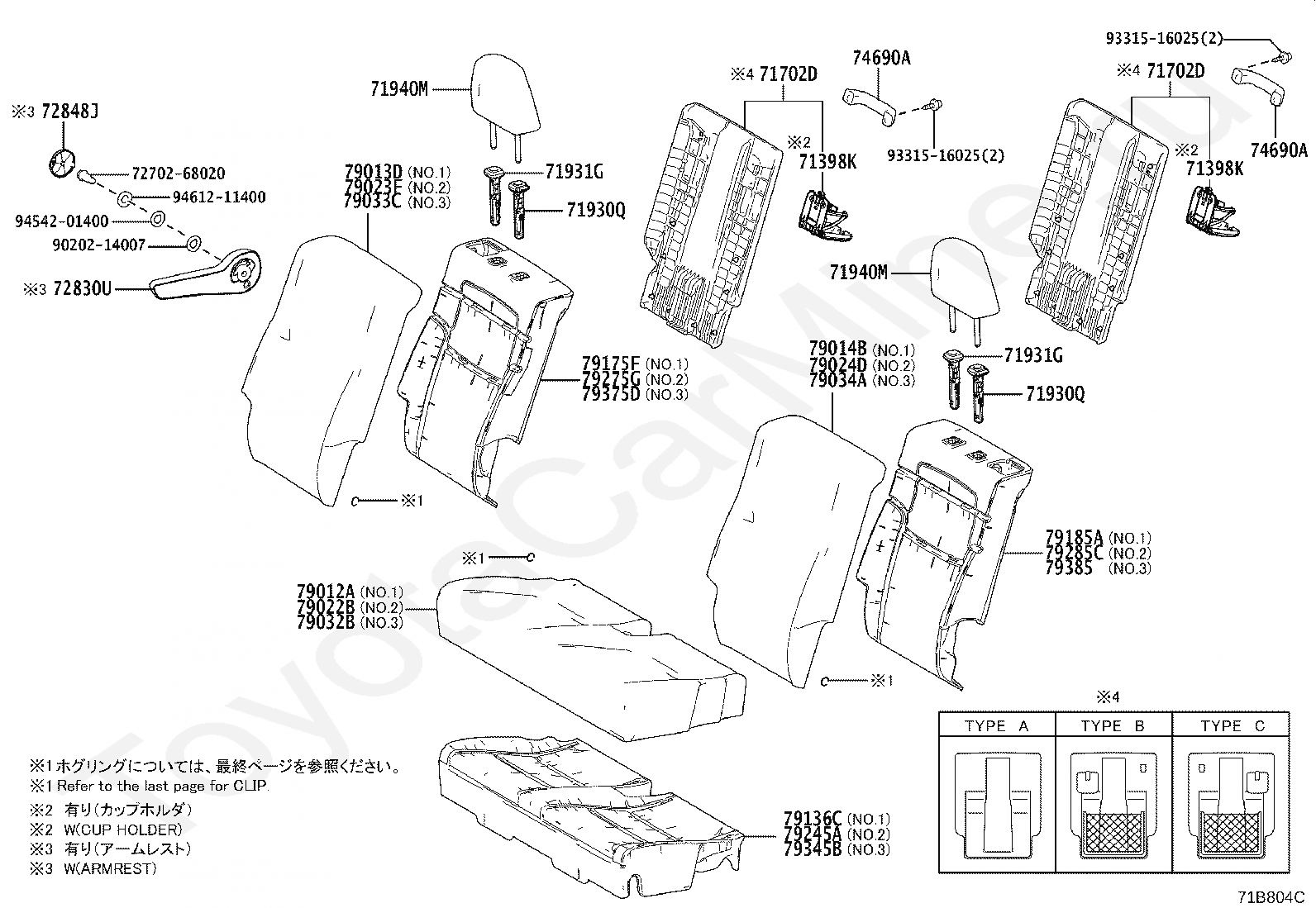

Код

Описание

71398K

CUP HOLDER, REAR SEAT BACK

71702D

BOARD SUB-ASSY, REAR SEAT BACK, LH

71930Q

SUPPORT ASSY, REAR SEAT HEADREST

71931G

SUPPORT ASSY, REAR SEAT HEADREST

71940M

HEADREST ASSY, REAR SEAT

7270268020

Крепеж

72830U

ARMREST ASSY, REAR SEAT, RH

72848J

CAP, SEAT ARMREST, NO.1

74690A

GRIP ASSY, SEAT ASSIST, REAR

79012A

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79013D

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79014B

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79022B

COVER SUB-ASSY, NO.2 SEAT CUSHION, LH

79023F

COVER SUB-ASSY, NO.2 SEAT BACK, RH(FOR LH SEAT)

79024D

COVER SUB-ASSY, NO.2 SEAT BACK, LH

79032B

COVER, SUB-ASSY, NO.3 SEAT CUSHION, LH

79033C

COVER SUB-ASSY, NO.3 SEAT BACK, RH(FOR LH SEAT)

79034A

COVER SUB-ASSY, NO.3 SEAT BACK, LH

79136C

PAD, NO.1 SEAT CUSHION, LH

79175F

PAD, NO.1 SEAT BACK, RH

79185A

PAD, NO.1 SEAT BACK, LH

79245A

PAD, NO.2 SEAT CUSHION, LH

79275G

PAD, NO.2 SEAT BACK, RH(FOR LH SEAT)

79285C

PAD, NO.2 SEAT BACK, LH

79345B

PAD, NO.3 SEAT CUSHION, LH

79375D

PAD, NO.3 SEAT BACK, RH(FOR LH SEAT)

79385

PAD, NO.3 SEAT BACK, LH

9020214007

Крепеж

9331516025

Крепеж

9454201400

Крепеж

9461211400

Крепеж

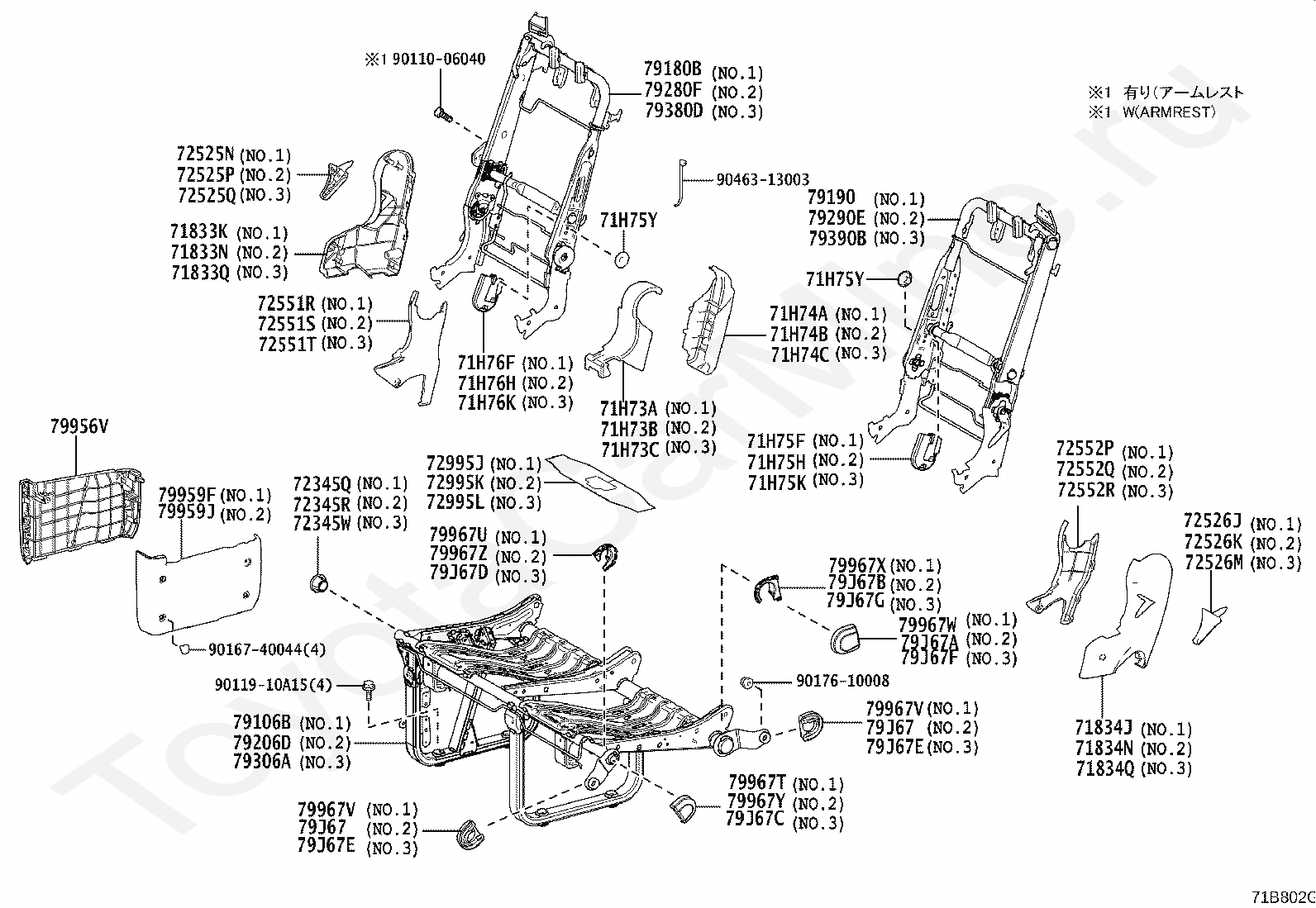

Код

Описание

71833K

COVER, NO.1 SEAT RECLINING, NO.1 RH OUTER

71833N

COVER, REAR NO.2 SEAT RECLINING, NO.1 RH(FOR LH SEAT)

71833Q

COVER, REAR NO.3 SEAT RECLINING, NO.1 RH(FOR LH SEAT)

71834J

COVER, NO.1 SEAT RECLINING, NO.1 LH OUTER

71834N

COVER, REAR NO.2 SEAT RECLINING, NO.1 LH(FOR LH SEAT)

71834Q

COVER, REAR NO.3 SEAT RECLINING, NO.1 LH(FOR LH SEAT)

71H73A

SHIELD, REAR NO.1 SEAT CUSHION, LOWER

71H73B

SHIELD, REAR NO.2 SEAT CUSHION, LOWER

71H73C

SHIELD, REAR NO.3 SEAT CUSHION, LOWER

71H74A

SHIELD, NO.1 SEAT CUSHION, LOWER LH

71H74B

SHIELD, NO.2 SEAT CUSHION, LOWER LH

71H74C

SHIELD, NO.3 SEAT CUSHION, LOWER LH

71H75F

COVER, RECLINING ADJUSTER INSIDE, RH(FOR REAR NO.1 LH SEAT)

71H75H

COVER, RECLINING ADJUSTER INSIDE, RH(FOR REAR NO.2 LH SEAT)

71H75K

COVER, RECLINING ADJUSTER INSIDE, RH(FOR REAR NO.3 LH SEAT)

71H75Y

CLIP, REAR SEAT RECLINING COVER

71H76F

COVER, RECLINING ADJUSTER INSIDE, LH(FOR REAR NO.1 LH SEAT)

71H76H

COVER, RECLINING ADJUSTER INSIDE, LH(FOR REAR NO.2 LH SEAT)

71H76K

COVER, RECLINING ADJUSTER INSIDE, LH(FOR REAR NO.3 LH SEAT)

72345Q

CAP, SEAT STAND FRAME, LH NO.1

72345R

CAP, SEAT STAND FRAME, LH NO.2

72345W

CAP, SEAT STAND FRAME, LH NO.3

72525N

HANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, RH

72525P

HANDLE, NO.2 SEAT RECLINING ADJUSTER RELEASE, RH

72525Q

HANDLE, NO.3 SEAT RECLINING ADJUSTER RELEASE, RH

72526J

HANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, LH

72526K

HANDLE, NO.2 SEAT RECLINING ADJUSTER RELEASE, LH

72526M

HANDLE, NO.3 SEAT RECLINING ADJUSTER RELEASE, LH

72551R

COVER, RECLINING HINGE, RH NO.1(FOR LH SEAT)

72551S

COVER, RECLINING HINGE, RH NO.2(FOR LH SEAT)

72551T

COVER, RECLINING HINGE, RH NO.3(FOR LH SEAT)

72552P

COVER, RECLINING HINGE, LH NO.1(FOR LH SEAT)

72552Q

COVER, RECLINING HINGE, LH NO.2(FOR LH SEAT)

72552R

COVER, RECLINING HINGE, LH NO.3(FOR LH SEAT)

72995J

COVER, REAR NO.1 SEAT CUSHION

72995K

COVER, REAR NO.2 SEAT CUSHION

72995L

COVER, REAR NO.3 SEAT CUSHION

79106B

LEG SUB-ASSY, NO.1 SEAT, LH

79180B

SPRING ASSY, NO.1 SEAT BACK, RH

79190

SPRING ASSY, NO.1 SEAT BACK, LH

79206D

LEG SUB-ASSY, NO.2 SEAT, LH

79280F

SPRING ASSY, NO.2 SEAT BACK RH

79290E

SPRING ASSY, NO.2 SEAT BACK LH

79306A

LEG SUB-ASSY, NO.3 SEAT, LH

79380D

SPRING ASSY, NO.3 SEAT BACK, RH(FOR LH SEAT)

79390B

SPRING ASSY, NO.3 SEAT BACK, LH

79956V

COVER, REAR SEAT LEG SIDE, RH

79959F

COVER, NO.1 SEAT LEG, LH

79959J

COVER, NO.2 SEAT LEG, LH NO.1

79967T

COVER, REAR NO.1 SEAT LEG SIDE, NO.1

79967U

COVER, REAR NO.1 SEAT LEG SIDE, NO.2

79967V

COVER, REAR NO.1 SEAT LEG SIDE, NO.3

79967W

COVER, REAR NO.1 SEAT LEG SIDE, NO.4

79967X

COVER, REAR NO.1 SEAT LEG SIDE, NO.5

79967Y

COVER, REAR NO.2 SEAT LEG SIDE, NO.1

79967Z

COVER, REAR NO.2 SEAT LEG SIDE, NO.2

79J67

COVER, REAR NO.2 SEAT LEG SIDE, NO.3

79J67A

COVER, REAR NO.2 SEAT LEG SIDE, NO.4

79J67B

COVER, REAR NO.2 SEAT LEG SIDE, NO.5

79J67C

COVER, REAR NO.3 SEAT LEG SIDE, NO.1

79J67D

COVER, REAR NO.3 SEAT LEG SIDE, NO.2

79J67E

COVER, REAR NO.3 SEAT LEG SIDE, NO.3

79J67F

COVER, REAR NO.3 SEAT LEG SIDE, NO.4

79J67G

COVER, REAR NO.3 SEAT LEG SIDE, NO.5

9011006040

Крепеж

9011910A15

Крепеж

9016740044

Крепеж

9017610008

Крепеж

9046313003

Крепеж

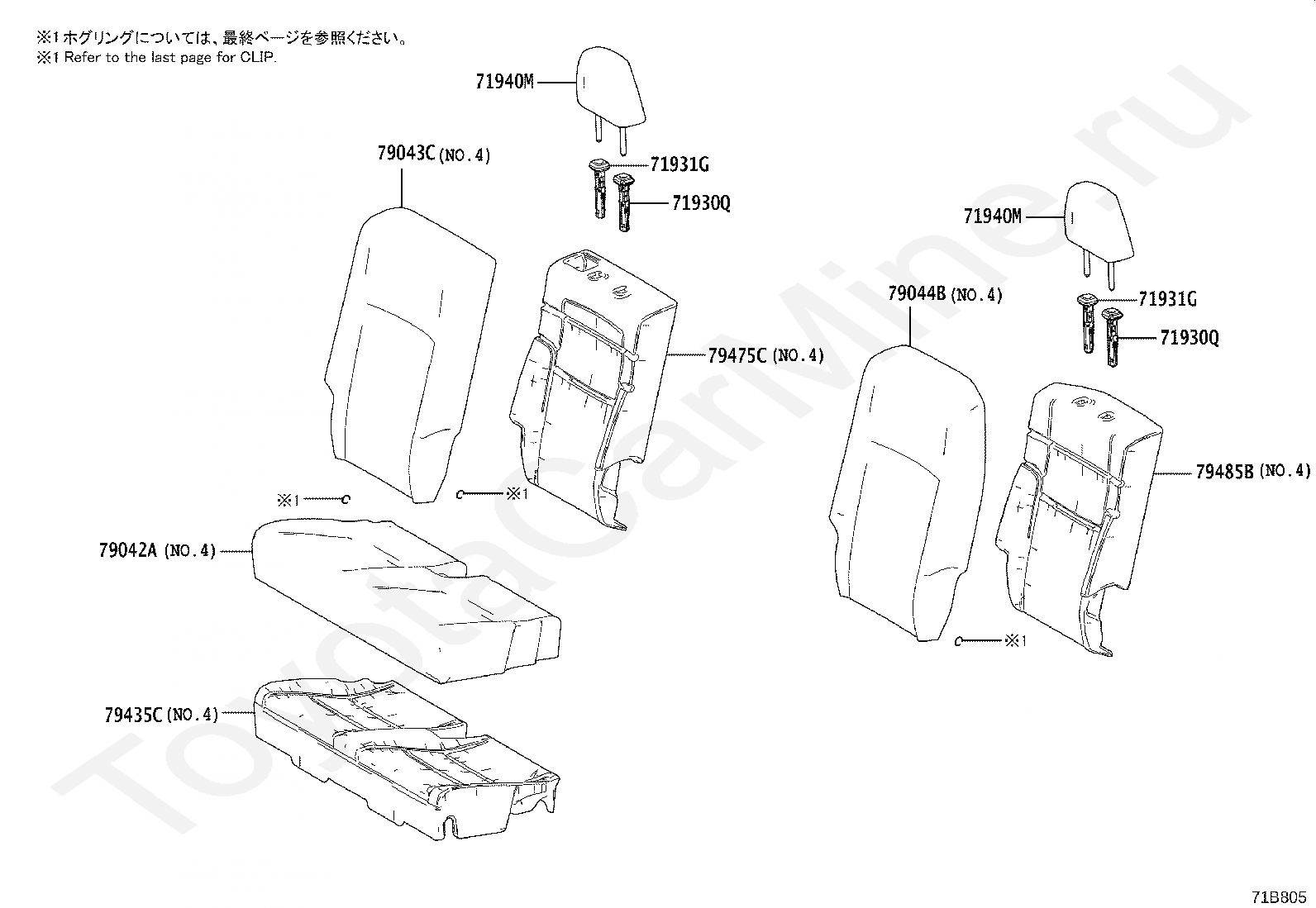

Код

Описание

71930Q

SUPPORT ASSY, REAR SEAT HEADREST

71931G

SUPPORT ASSY, REAR SEAT HEADREST

71940M

HEADREST ASSY, REAR SEAT

79042A

COVER SUB-ASSY, NO.4 SEAT CUSHION, LH

79043C

COVER SUB-ASSY, NO.4 SEAT BACK, RH(FOR LH SEAT)

79044B

COVER SUB-ASSY, NO.4 SEAT BACK, LH(FOR LH SEAT)

79435C

PAD, NO.4 SEAT CUSHION, LH

79475C

PAD, NO.4 SEAT BACK, RH(FOR LH SEAT)

79485B

PAD, NO.4 SEAT BACK, LH(FOR LH SEAT)

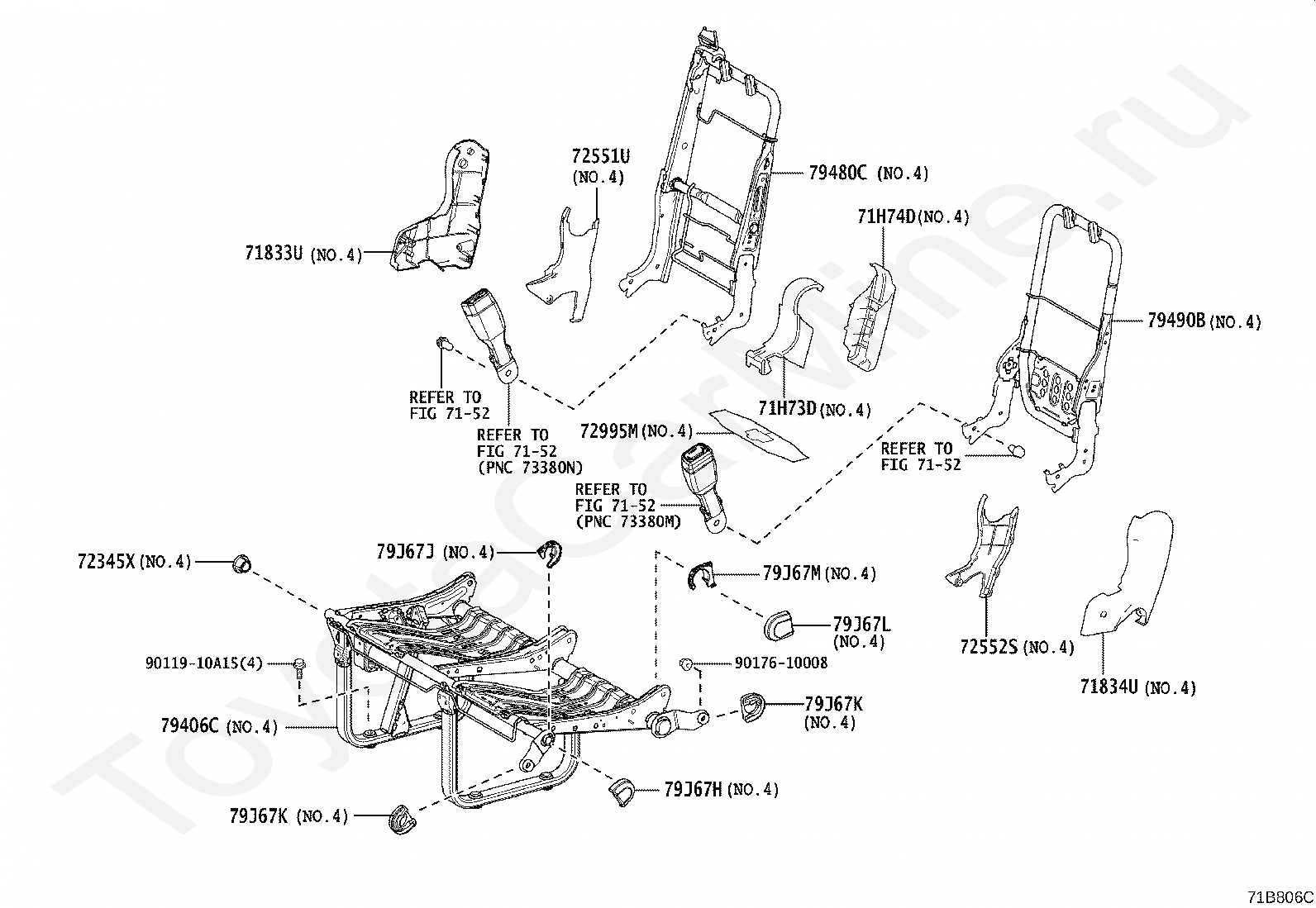

Код

Описание

7152

переход к группе запчастей

71833U

COVER, REAR NO.4 SEAT RECLINING, RH(FOR LH SEAT)

71834U

COVER, REAR NO.4 SEAT RECLINING, LH(FOR LH SEAT)

71H73D

SHIELD, NO.4 SEAT CUSHION, LOWER

71H74D

SHIELD, NO.4 SEAT CUSHION, LOWER LH

72345X

CAP, SEAT STAND FRAME, LH NO.4

72551U

COVER, RECLINING HINGE, RH NO.4(FOR LH SEAT)

72552S

COVER, RECLINING HINGE, LH NO.4(FOR LH SEAT)

72995M

COVER, REAR NO.4 SEAT CUSHION

79406C

LEG SUB-ASSY, NO.4 SEAT, LH

79480C

SPRING ASSY, NO.4 SEAT BACK, RH(FOR LH SEAT)

79490B

SPRING ASSY, NO.4 SEAT BACK, LH(FOR LH SEAT)

79J67H

COVER, REAR NO.4 SEAT LEG SIDE, NO.1

79J67J

COVER, REAR NO.4 SEAT LEG SIDE, NO.2

79J67K

COVER, REAR NO.4 SEAT LEG SIDE, NO.3

79J67L

COVER, REAR NO.4 SEAT LEG SIDE, NO.4

79J67M

COVER, REAR NO.4 SEAT LEG SIDE, NO.5

9011910A15

Крепеж

9017610008

Крепеж

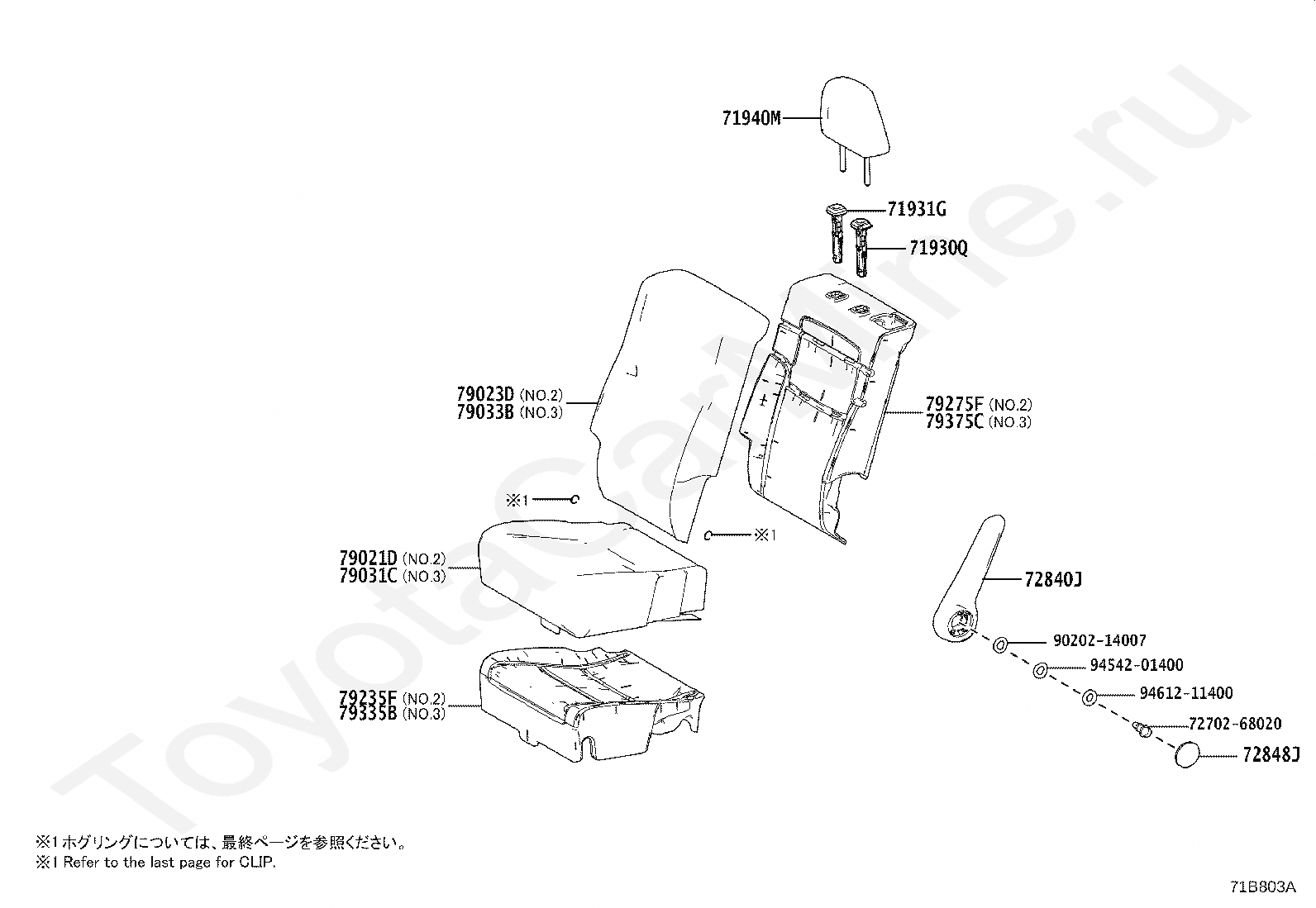

Код

Описание

71930Q

SUPPORT ASSY, REAR SEAT HEADREST

71931G

SUPPORT ASSY, REAR SEAT HEADREST

71940M

HEADREST ASSY, REAR SEAT

7270268020

Крепеж

72840J

ARMREST ASSY, REAR SEAT, LH

72848J

CAP, SEAT ARMREST, NO.1

79021D

COVER SUB-ASSY, NO.2 SEAT CUSHION, RH

79023D

COVER SUB-ASSY, NO.2 SEAT BACK, RH

79031C

COVER, SUB-ASSY, NO.3 SEAT CUSHION, RH

79033B

COVER SUB-ASSY, NO.3 SEAT BACK, RH

79235F

PAD, NO.2 SEAT CUSHION, RH

79275F

PAD, NO.2 SEAT BACK, RH

79335B

PAD, NO.3 SEAT CUSHION, RH

79375C

PAD, NO.3 SEAT BACK, RH

9020214007

Крепеж

9454201400

Крепеж

9461211400

Крепеж

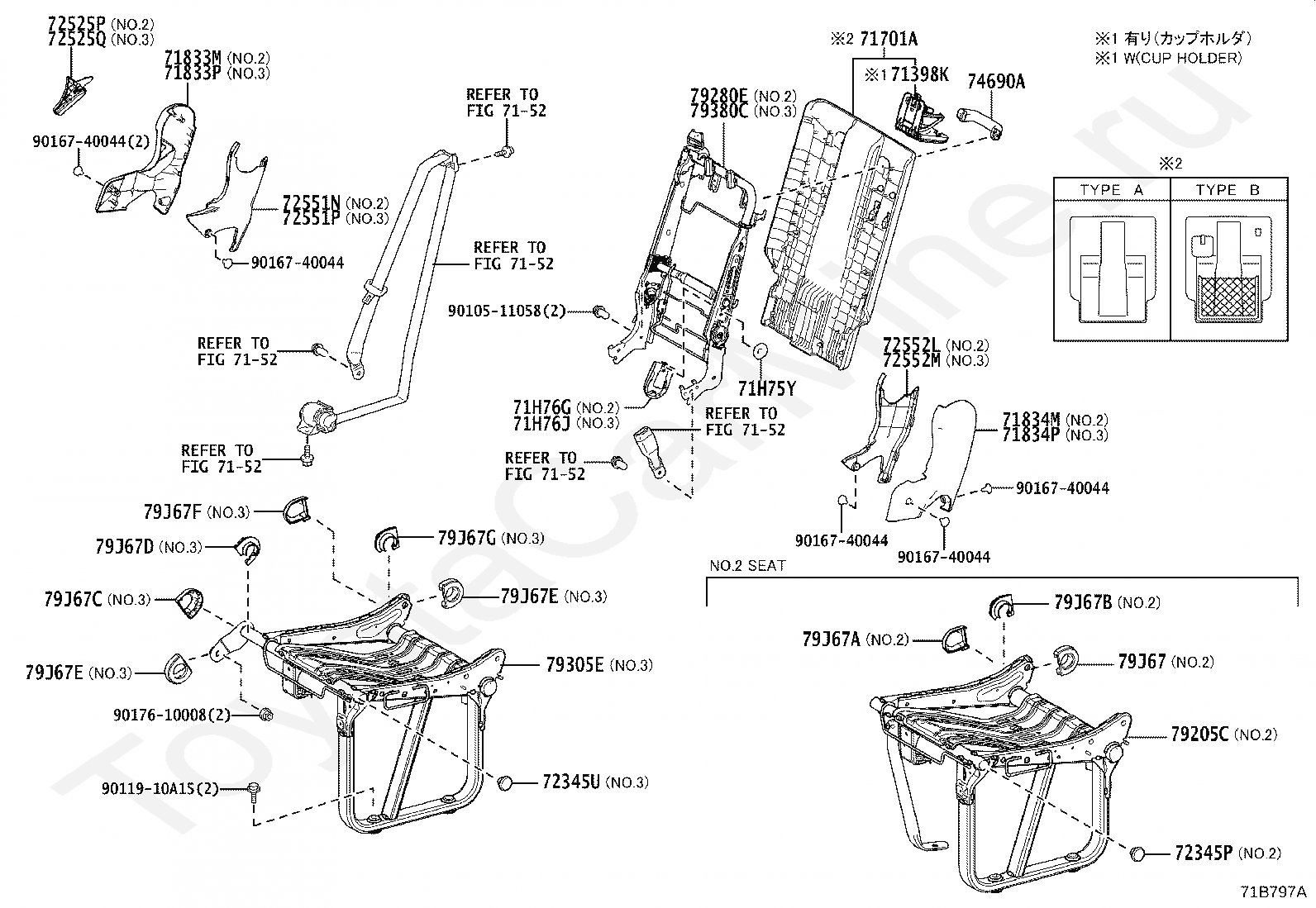

Код

Описание

71398K

CUP HOLDER, REAR SEAT BACK

7152

переход к группе запчастей

71701A

BOARD SUB-ASSY, REAR SEAT BACK, RH

71833M

COVER, REAR NO.2 SEAT RECLINING, NO.1 RH(FOR RH SEAT)

71833P

COVER, REAR NO.3 SEAT RECLINING, NO.1 RH(FOR RH SEAT)

71834M

COVER, REAR NO.2 SEAT RECLINING, NO.1 LH(FOR RH SEAT)

71834P

COVER, REAR NO.3 SEAT RECLINING, NO.1 LH(FOR RH SEAT)

71H75Y

CLIP, REAR SEAT RECLINING COVER

71H76G

COVER, RECLINING ADJUSTER INSIDE, LH(FOR REAR NO.2 RH SEAT)

71H76J

COVER, RECLINING ADJUSTER INSIDE, LH(FOR REAR NO.3 RH SEAT)

72345P

CAP, SEAT STAND FRAME, RH NO.2

72345U

CAP, SEAT STAND FRAME, RH NO.3

72525P

HANDLE, NO.2 SEAT RECLINING ADJUSTER RELEASE, RH

72525Q

HANDLE, NO.3 SEAT RECLINING ADJUSTER RELEASE, RH

72551N

COVER, RECLINING HINGE, RH NO.2(FOR RH SEAT)

72551P

COVER, RECLINING HINGE, RH NO.3(FOR RH SEAT)

72552L

COVER, RECLINING HINGE, LH NO.2(FOR RH SEAT)

72552M

COVER, RECLINING HINGE, LH NO.3(FOR RH SEAT)

74690A

GRIP ASSY, SEAT ASSIST, REAR

79205C

LEG SUB-ASSY, NO.2 SEAT, RH

79280E

SPRING ASSY, NO.2 SEAT BACK RH

79305E

LEG SUB-ASSY, NO.3 SEAT, RH

79380C

SPRING ASSY, NO.3 SEAT BACK, RH

79J67

COVER, REAR NO.2 SEAT LEG SIDE, NO.3

79J67A

COVER, REAR NO.2 SEAT LEG SIDE, NO.4

79J67B

COVER, REAR NO.2 SEAT LEG SIDE, NO.5

79J67C

COVER, REAR NO.3 SEAT LEG SIDE, NO.1

79J67D

COVER, REAR NO.3 SEAT LEG SIDE, NO.2

79J67E

COVER, REAR NO.3 SEAT LEG SIDE, NO.3

79J67F

COVER, REAR NO.3 SEAT LEG SIDE, NO.4

79J67G

COVER, REAR NO.3 SEAT LEG SIDE, NO.5

9010511058

Крепеж

9011910A15

Крепеж

9016740044

Крепеж

9017610008

Крепеж

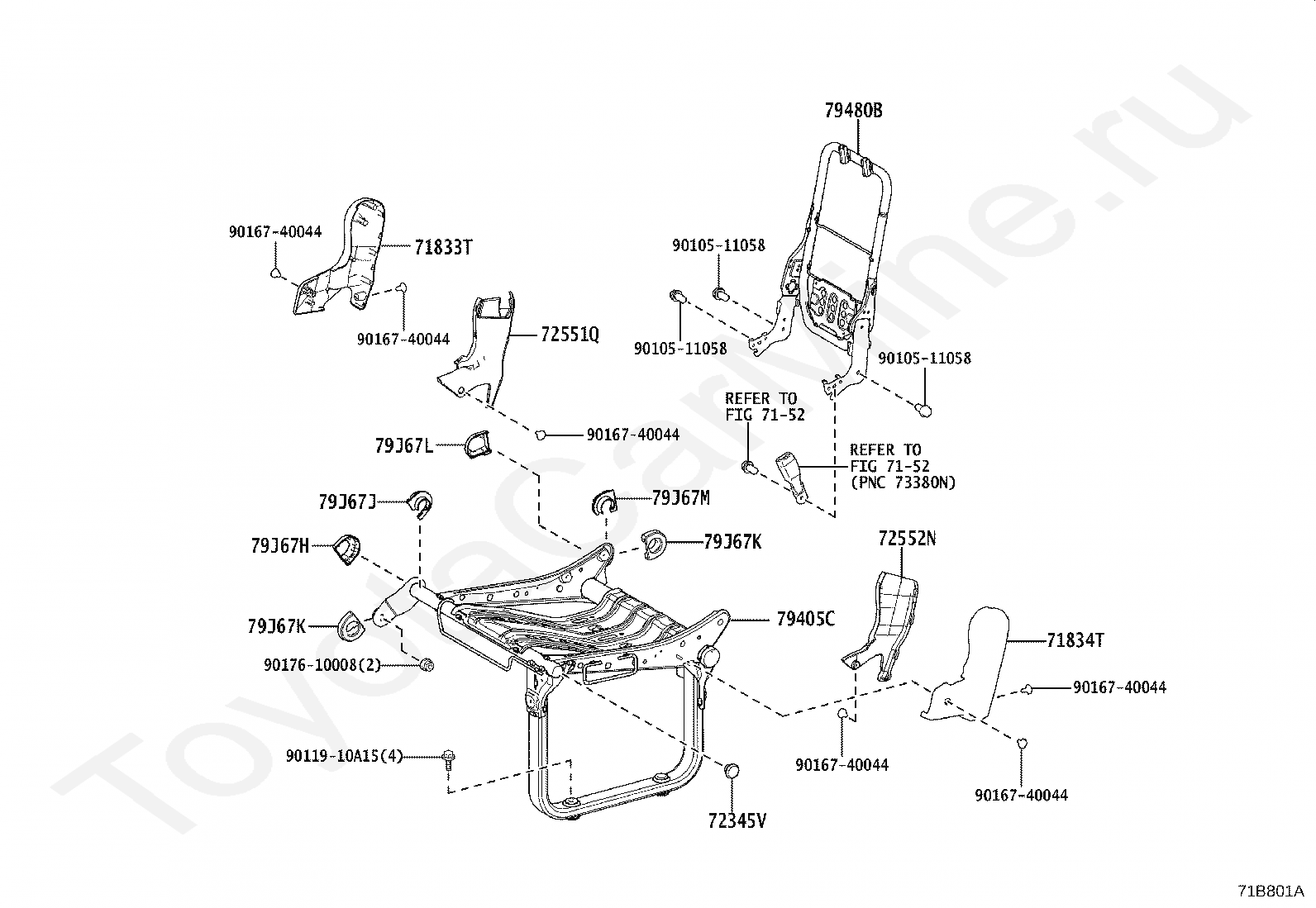

Код

Описание

7152

переход к группе запчастей

71833T

COVER, REAR NO.4 SEAT RECLINING, RH(FOR RH SEAT)

71834T

COVER, REAR NO.4 SEAT RECLINING, LH(FOR RH SEAT)

72345V

CAP, SEAT STAND FRAME, RH NO.4

72551Q

COVER, RECLINING HINGE, RH NO.4(FOR RH SEAT)

72552N

COVER, RECLINING HINGE, LH NO.4(FOR RH SEAT)

79405C

LEG SUB-ASSY, NO.4 SEAT, RH

79480B

SPRING ASSY, NO.4 SEAT BACK, RH(FOR RH SEAT)

79J67H

COVER, REAR NO.4 SEAT LEG SIDE, NO.1

79J67J

COVER, REAR NO.4 SEAT LEG SIDE, NO.2

79J67K

COVER, REAR NO.4 SEAT LEG SIDE, NO.3

79J67L

COVER, REAR NO.4 SEAT LEG SIDE, NO.4

79J67M

COVER, REAR NO.4 SEAT LEG SIDE, NO.5

9010511058

Крепеж

9011910A15

Крепеж

9016740044

Крепеж

9017610008

Крепеж

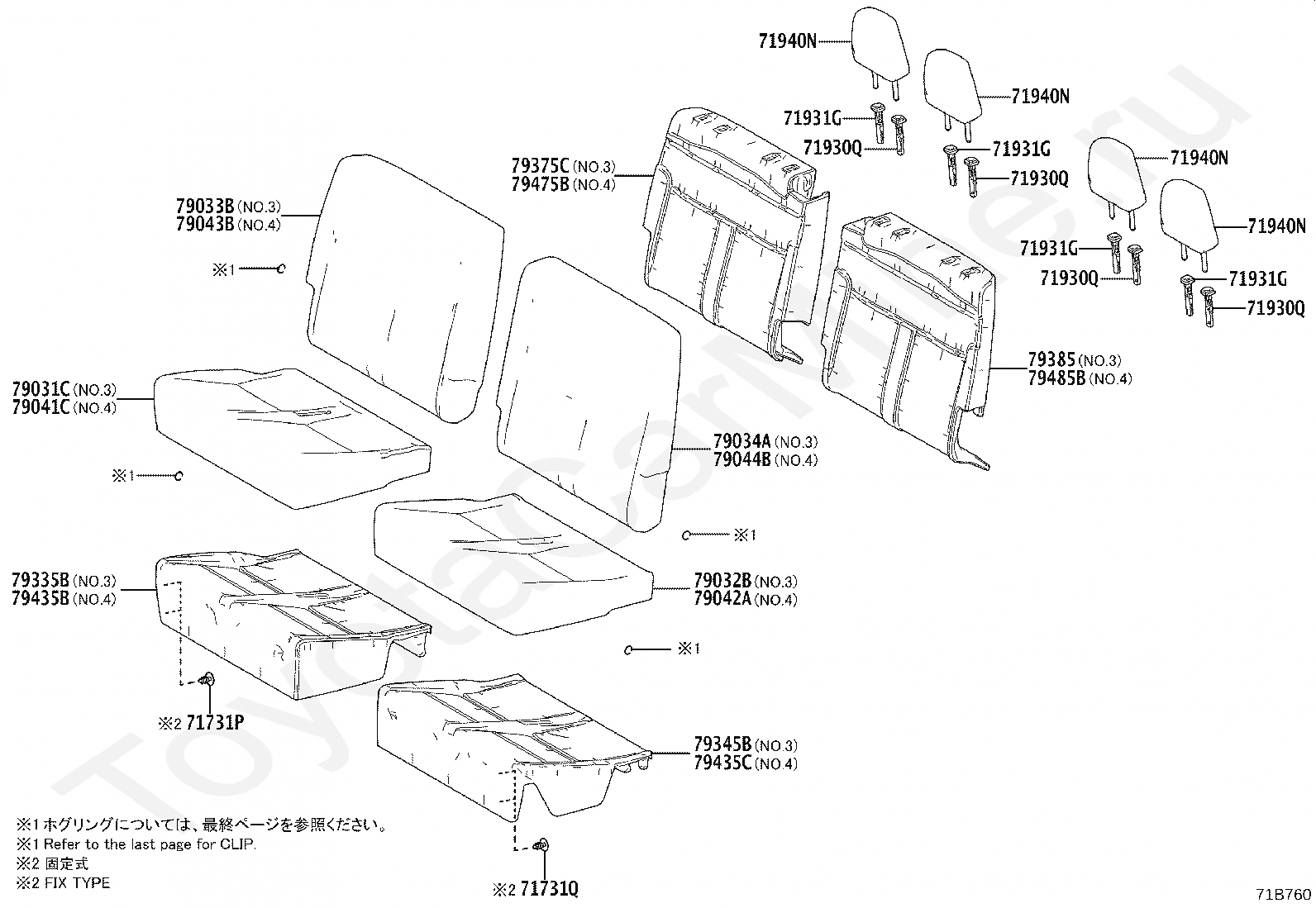

Код

Описание

71731P

FASTENER, SEAT COVER, RH

71731Q

FASTENER, SEAT COVER, LH

71930Q

SUPPORT ASSY, REAR SEAT HEADREST

71931G

SUPPORT ASSY, REAR SEAT HEADREST

71940N

HEADREST ASSY, REAR SEAT, NO.2

79031C

COVER, SUB-ASSY, NO.3 SEAT CUSHION, RH

79032B

COVER, SUB-ASSY, NO.3 SEAT CUSHION, LH

79033B

COVER SUB-ASSY, NO.3 SEAT BACK, RH

79034A

COVER SUB-ASSY, NO.3 SEAT BACK, LH

79041C

COVER SUB-ASSY, NO.4 SEAT CUSHION, RH

79042A

COVER SUB-ASSY, NO.4 SEAT CUSHION, LH

79043B

COVER SUB-ASSY, NO.4 SEAT BACK, RH(FOR RH SEAT)

79044B

COVER SUB-ASSY, NO.4 SEAT BACK, LH(FOR LH SEAT)

79335B

PAD, NO.3 SEAT CUSHION, RH

79345B

PAD, NO.3 SEAT CUSHION, LH

79375C

PAD, NO.3 SEAT BACK, RH

79385

PAD, NO.3 SEAT BACK, LH

79435B

PAD, NO.4 SEAT CUSHION, RH

79435C

PAD, NO.4 SEAT CUSHION, LH

79475B

PAD, NO.4 SEAT BACK, RH(FOR RH SEAT)

79485B

PAD, NO.4 SEAT BACK, LH(FOR LH SEAT)

Код

Описание

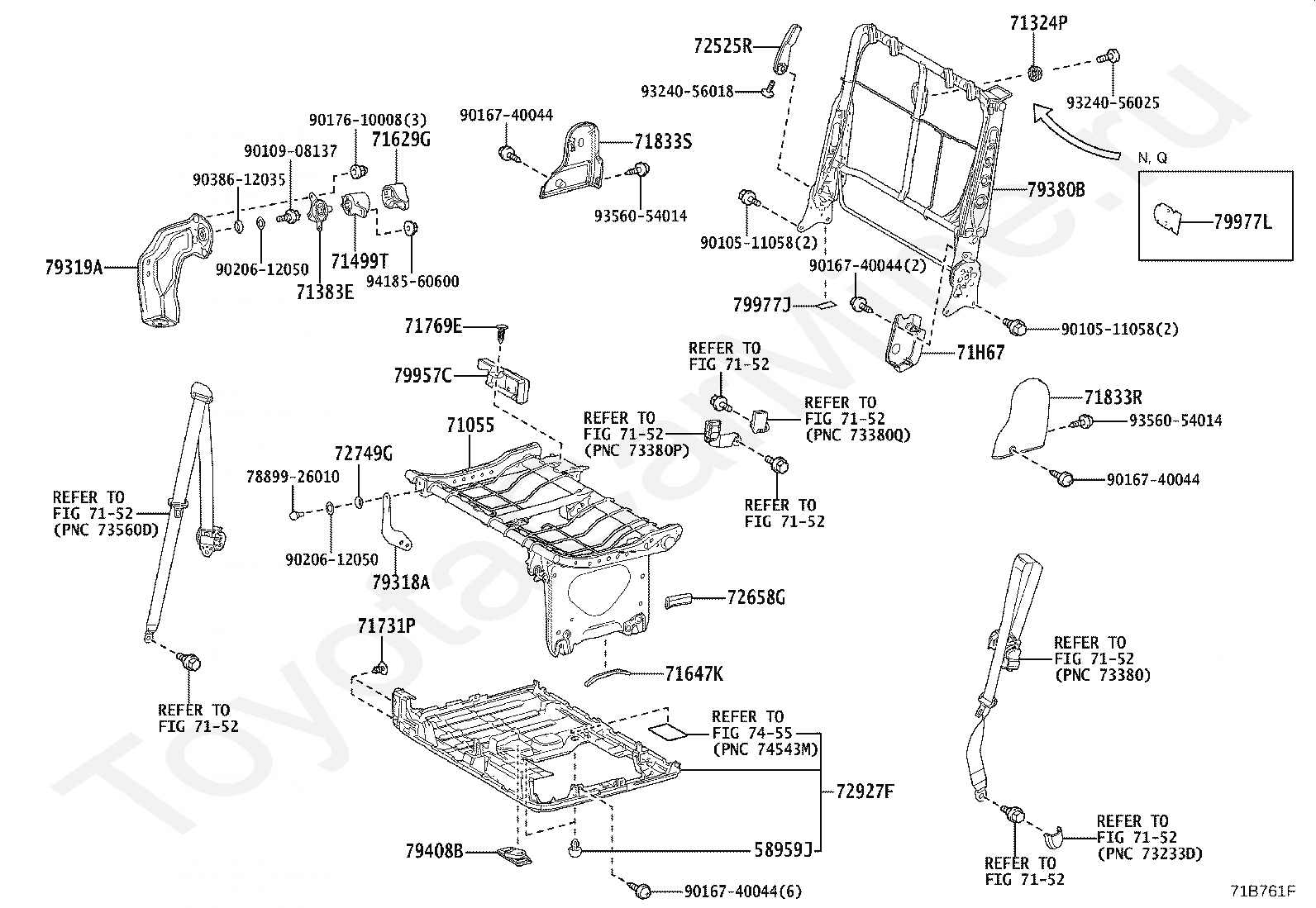

58959J

CUSHION, REAR SEAT CUSHION UNDER COVER, RH

71055

SPRING SUB-ASSY, REAR SEAT CUSHION, RH

71324P

CUSHION, NO.1 SEAT, RH

71383E

BRACKET, REAR SEAT CUSHION SET, REAR RH

71499T

DAMPER, SEAT CUSHION SPRING, RH

7152

переход к группе запчастей

71629G

COVER, REAR SEAT CUSHION HINGE

71647K

PROTECTOR, REAR SEAT CUSHION EDGE, RH

71731P

FASTENER, SEAT COVER, RH

71769E

COVER, SEAT UNDER TRAY BRACKET, RH

71833R

COVER, REAR SEAT RECLINING, RH

71833S

COVER, REAR SEAT RECLINING, NO.1 RH

71H67

SHIELD, REAR SEAT CUSHION, INNER NO.1 RH

72525R

HANDLE, RECLINING ADJUSTER RELEASE, RH

72658G

KNOB, REAR SEAT LOCK HANDLE, RH

72749G

SPACER, REAR SEAT RECLINING, RH

72927F

COVER, REAR SEAT CUSHION UNDER, RH

7455

переход к группе запчастей

7889926010

Крепеж

79318A

BRACKET, REAR SEAT LEG, FRONT RH

79319A

BRACKET, REAR SEAT LEG, REAR RH

79380B

SPRING ASSY, REAR SEAT BACK, RH

79408B

HOOK SUB-ASSY, REAR SEAT, RH

79957C

COVER, REAR SEAT REAR BRACKET, RH

79977J

FELT, SEAT BACK

79977L

FELT, SEAT BACK(FOR SPACE UP SEAT)

9010511058

Крепеж

9010908137

Крепеж

9016740044

Крепеж

9017610008

Крепеж

9020612050

Крепеж

9038612035

Крепеж

9324056018

Крепеж

9324056025

Крепеж

9356054014

Крепеж

9418560600

Крепеж

Код

Описание

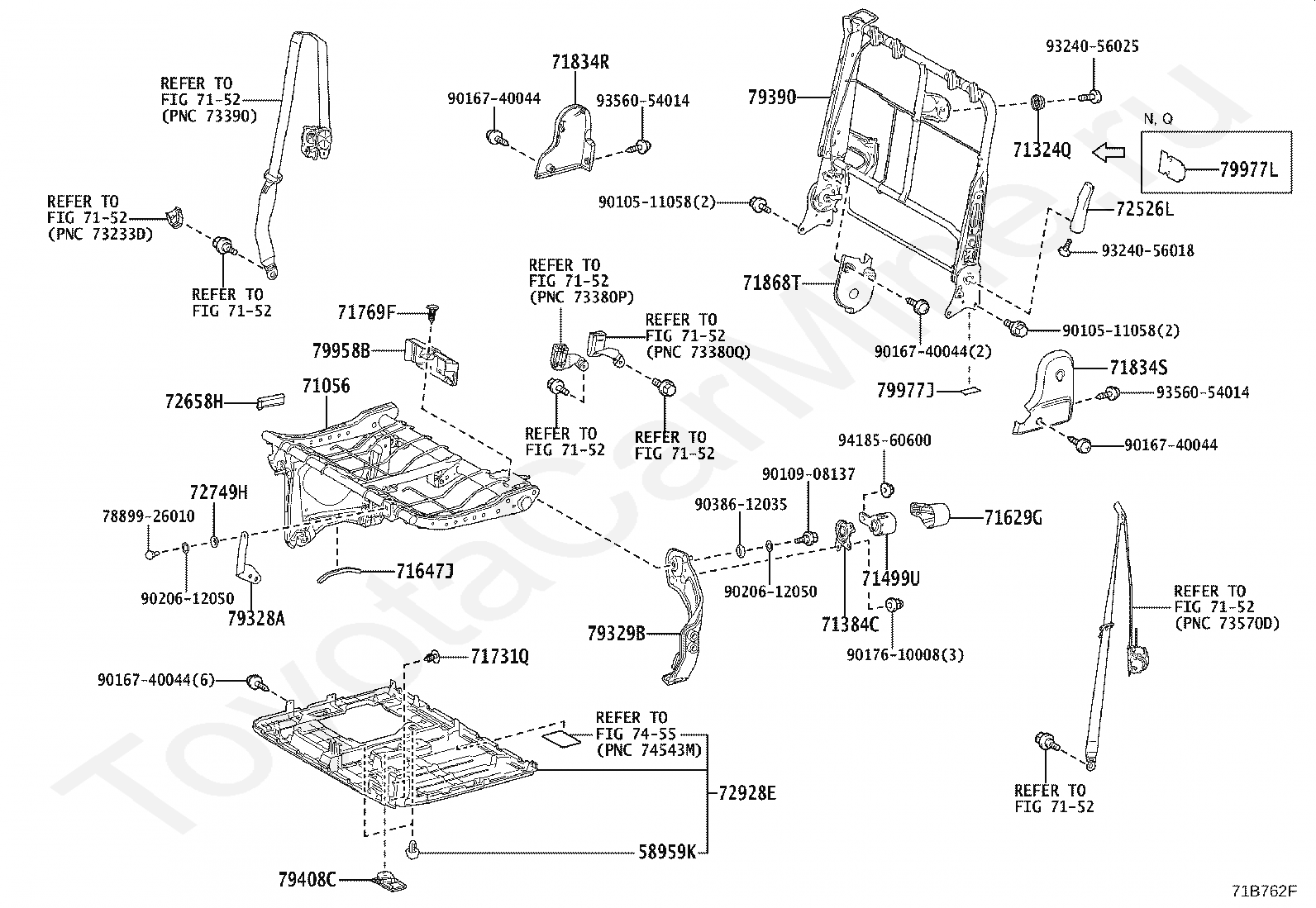

58959K

CUSHION, REAR SEAT CUSHION UNDER COVER, LH

71056

SPRING SUB-ASSY, REAR SEAT CUSHION, LH

71324Q

CUSHION, NO.1 SEAT, LH

71384C

BRACKET, REAR SEAT CUSHION SET, REAR LH

71499U

DAMPER, SEAT CUSHION SPRING, LH

7152

переход к группе запчастей

71629G

COVER, REAR SEAT CUSHION HINGE

71647J

PROTECTOR, REAR SEAT CUSHION EDGE, LH

71731Q

FASTENER, SEAT COVER, LH

71769F

COVER, SEAT UNDER TRAY BRACKET, LH

71834R

COVER, REAR SEAT RECLINING, LH

71834S

COVER, REAR SEAT RECLINING, NO.1 LH

71868T

SHIELD, REAR SEAT CUSHION, INNER NO.1 LH

72526L

HANDLE, RECLINING ADJUSTER RELEASE, LH

72658H

KNOB, REAR SEAT LOCK HANDLE, LH

72749H

SPACER, REAR SEAT RECLINING, LH

72928E

COVER, REAR SEAT CUSHION UNDER, LH

7455

переход к группе запчастей

7889926010

Крепеж

79328A

BRACKET, REAR SEAT LEG, FRONT LH

79329B

BRACKET, REAR SEAT LEG, REAR LH

79390

SPRING ASSY, REAR SEAT BACK, LH

79408C

HOOK SUB-ASSY, REAR SEAT, LH

79958B

COVER, REAR SEAT REAR BRACKET, LH

79977J

FELT, SEAT BACK

79977L

FELT, SEAT BACK(FOR SPACE UP SEAT)

9010511058

Крепеж

9010908137

Крепеж

9016740044

Крепеж

9017610008

Крепеж

9020612050

Крепеж

9038612035

Крепеж

9324056018

Крепеж

9324056025

Крепеж

9356054014

Крепеж

9418560600

Крепеж

Код

Описание

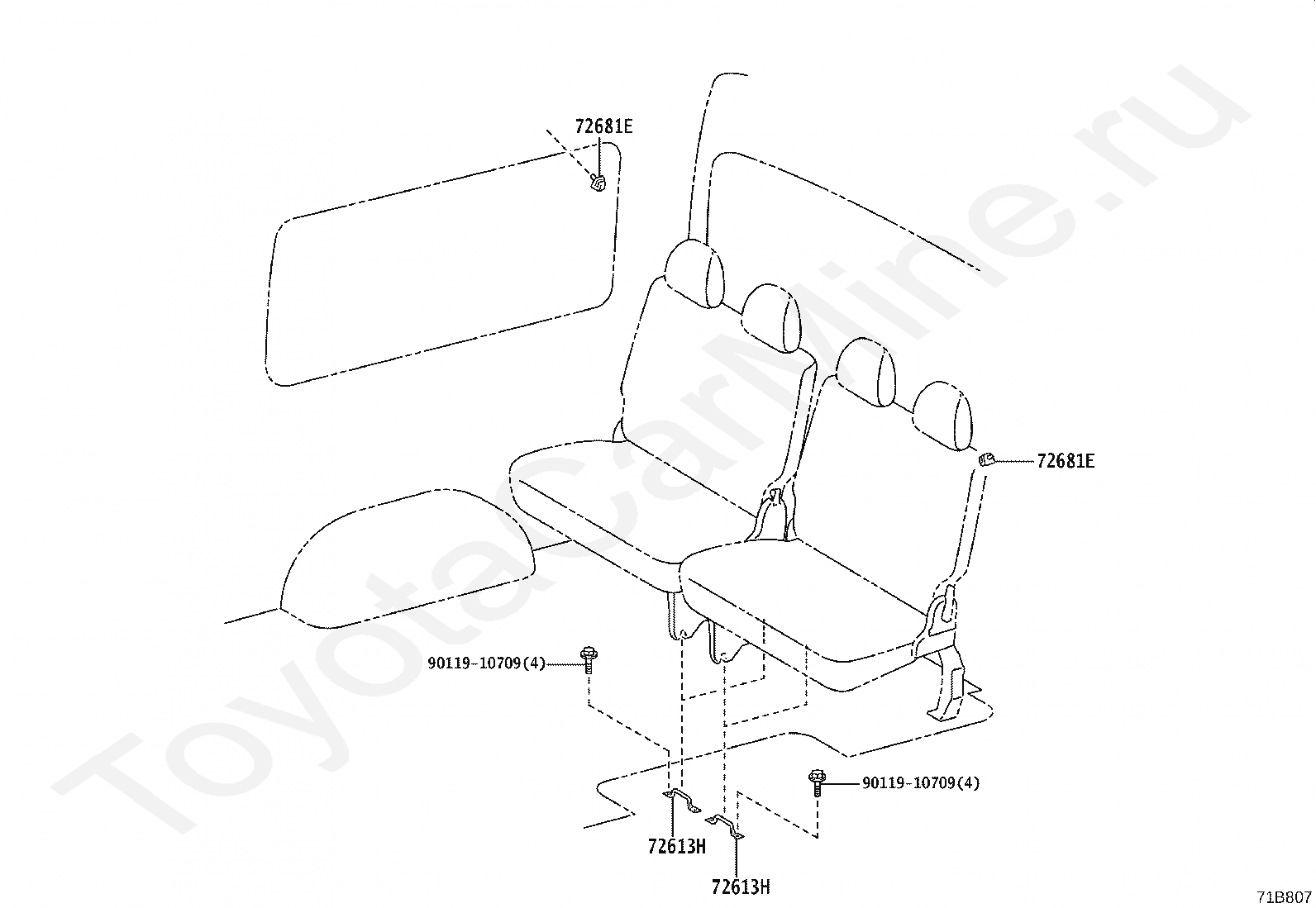

72613H

STRIKER, REAR SEAT LOCK

72681E

HOOK, REAR SEAT

9011910709

Крепеж

Код

Описание

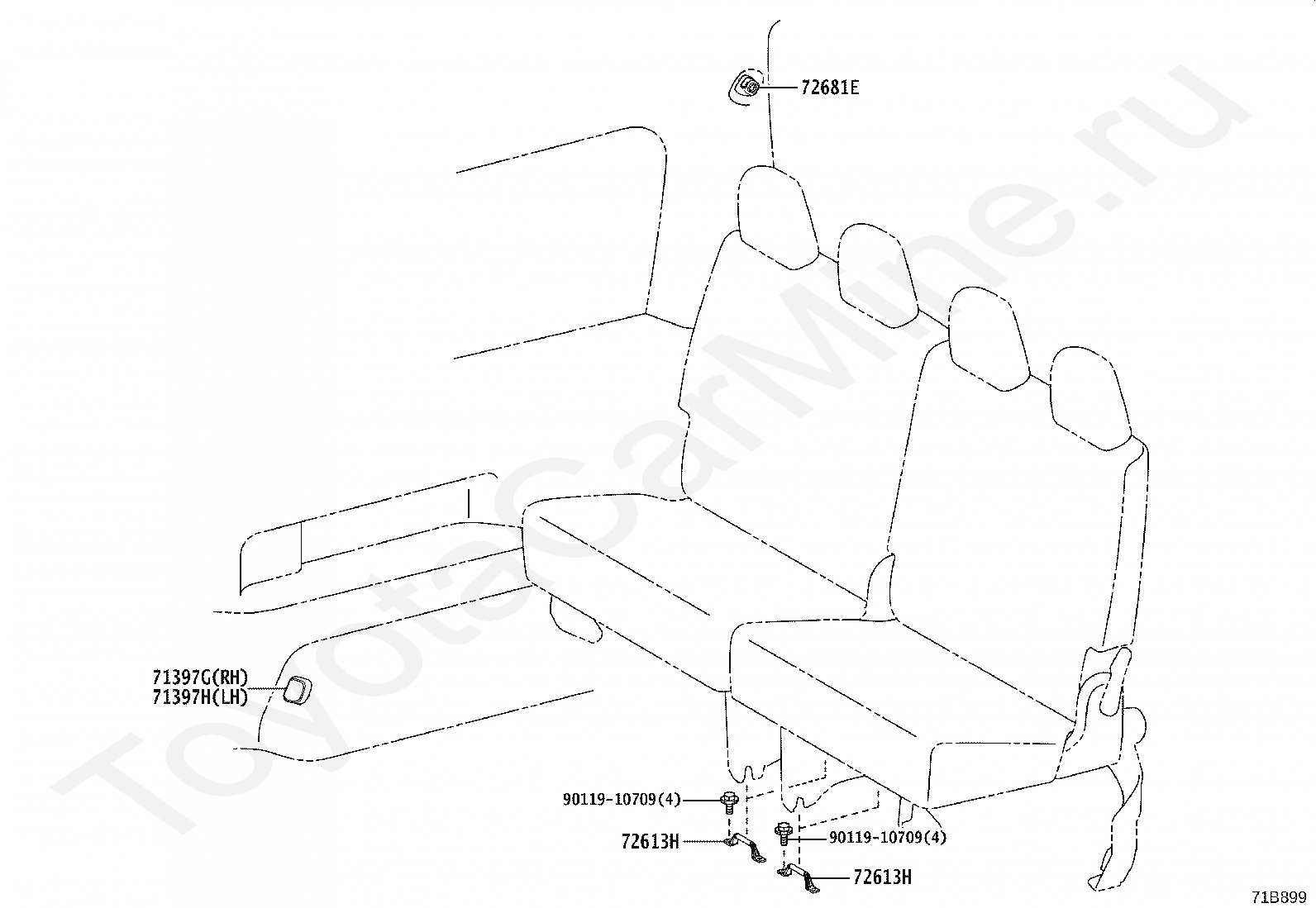

71397G

STOPPER, REAR SEAT, RH

71397H

STOPPER, REAR SEAT, LH

72613H

STRIKER, REAR SEAT LOCK

72681E

HOOK, REAR SEAT

9011910709

Крепеж

Код

Описание

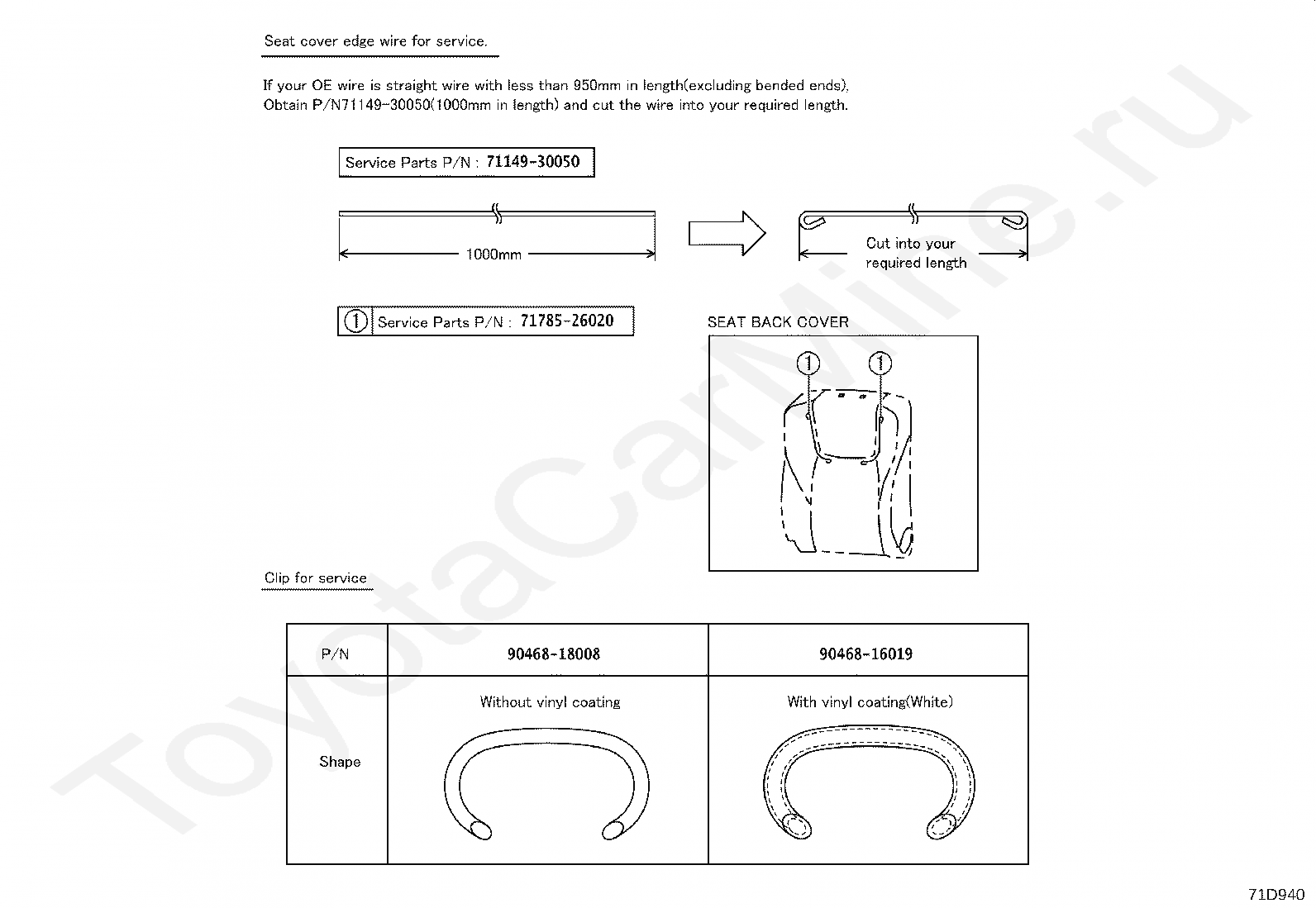

7114930050

Крепеж

7178526020

Крепеж

9046816019

Крепеж

9046818008

Крепеж

REAR SEAT & SEAT TRACK TOYOTA GRNVA/HIACE/MJSTY, 2019/03 - 2025, 2,8 литра, турбо-дизель, GDH320, механика, МКПП, 6 скоростей

Товар добавлен в корзину!

Заполните форму
