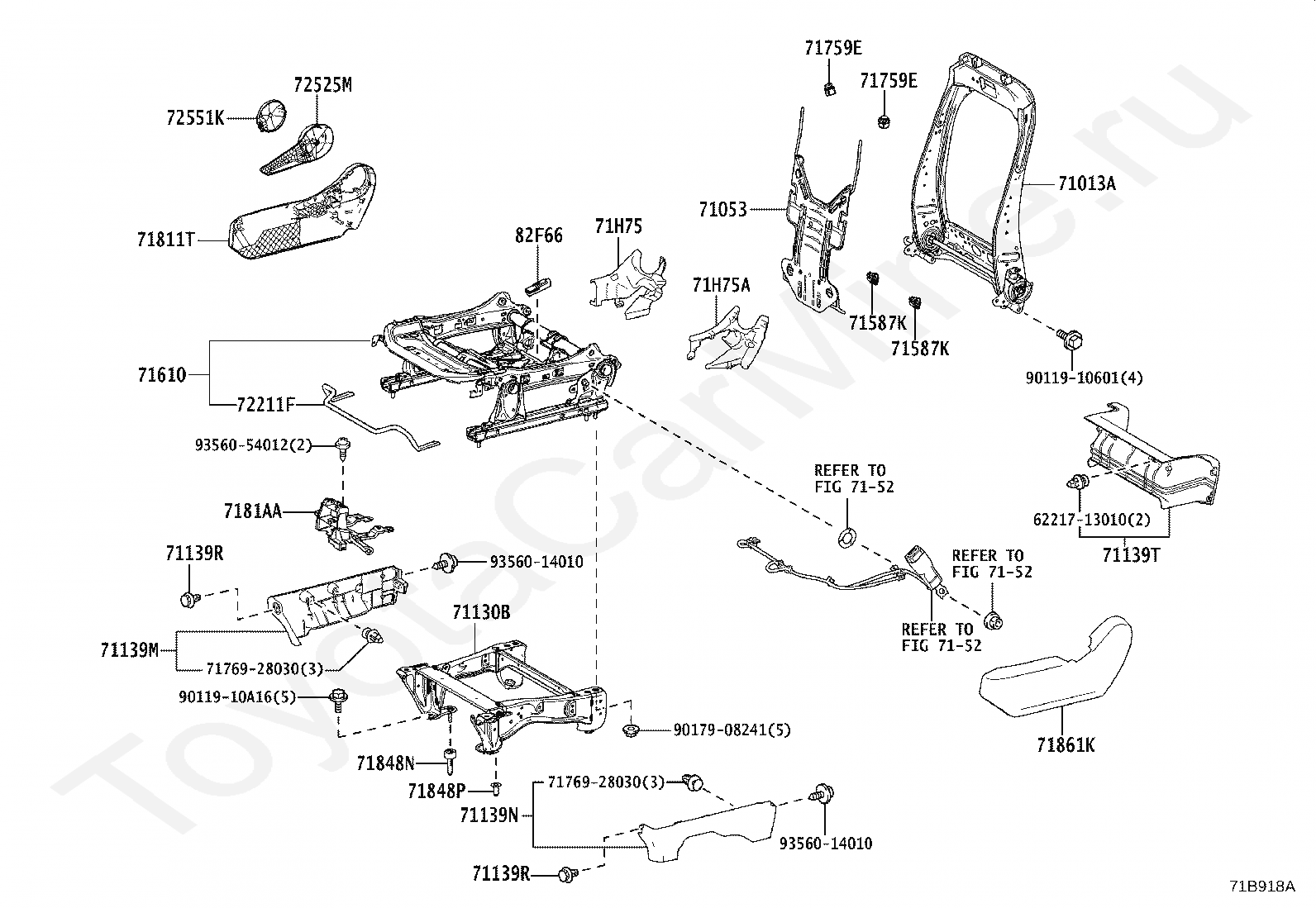

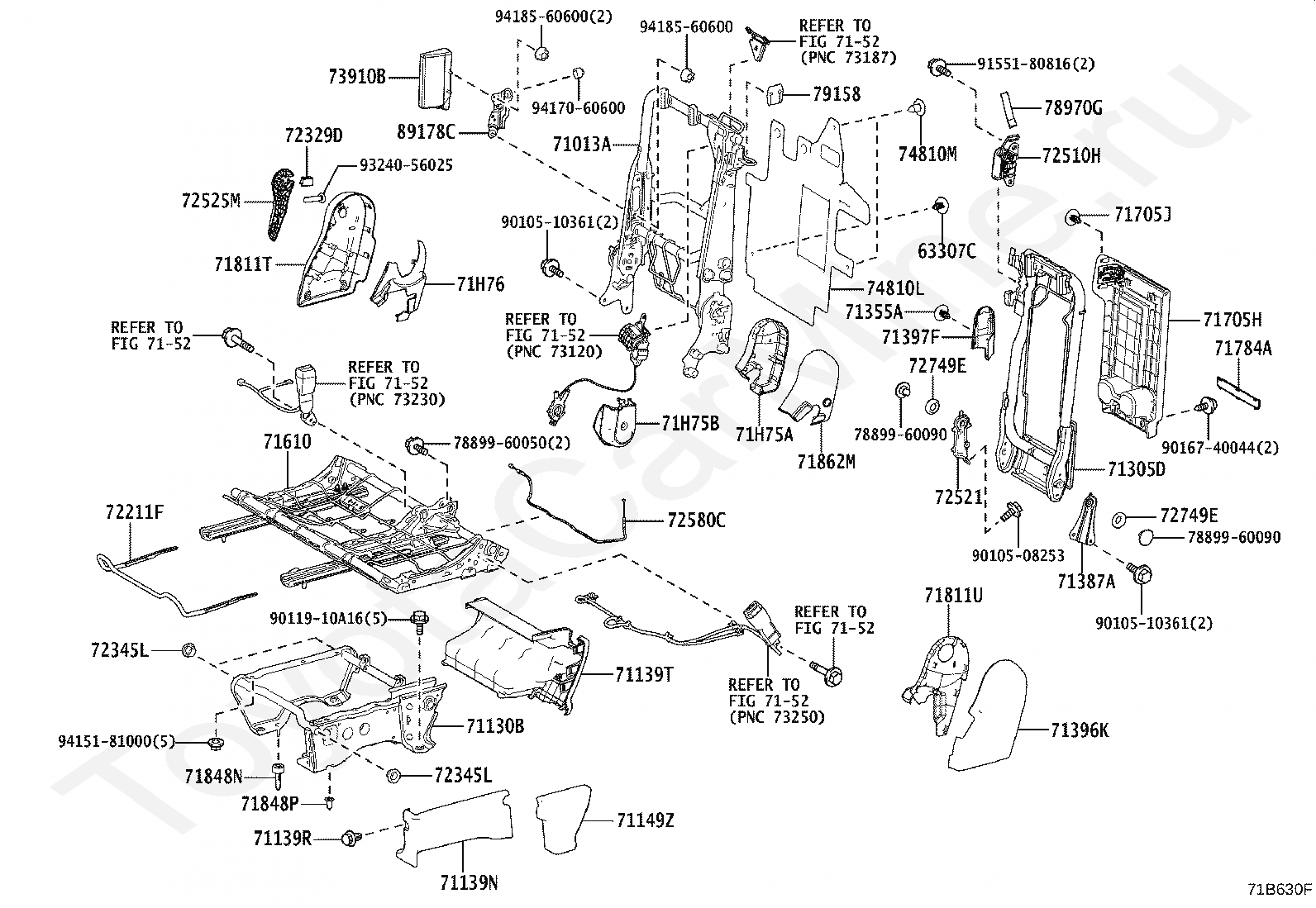

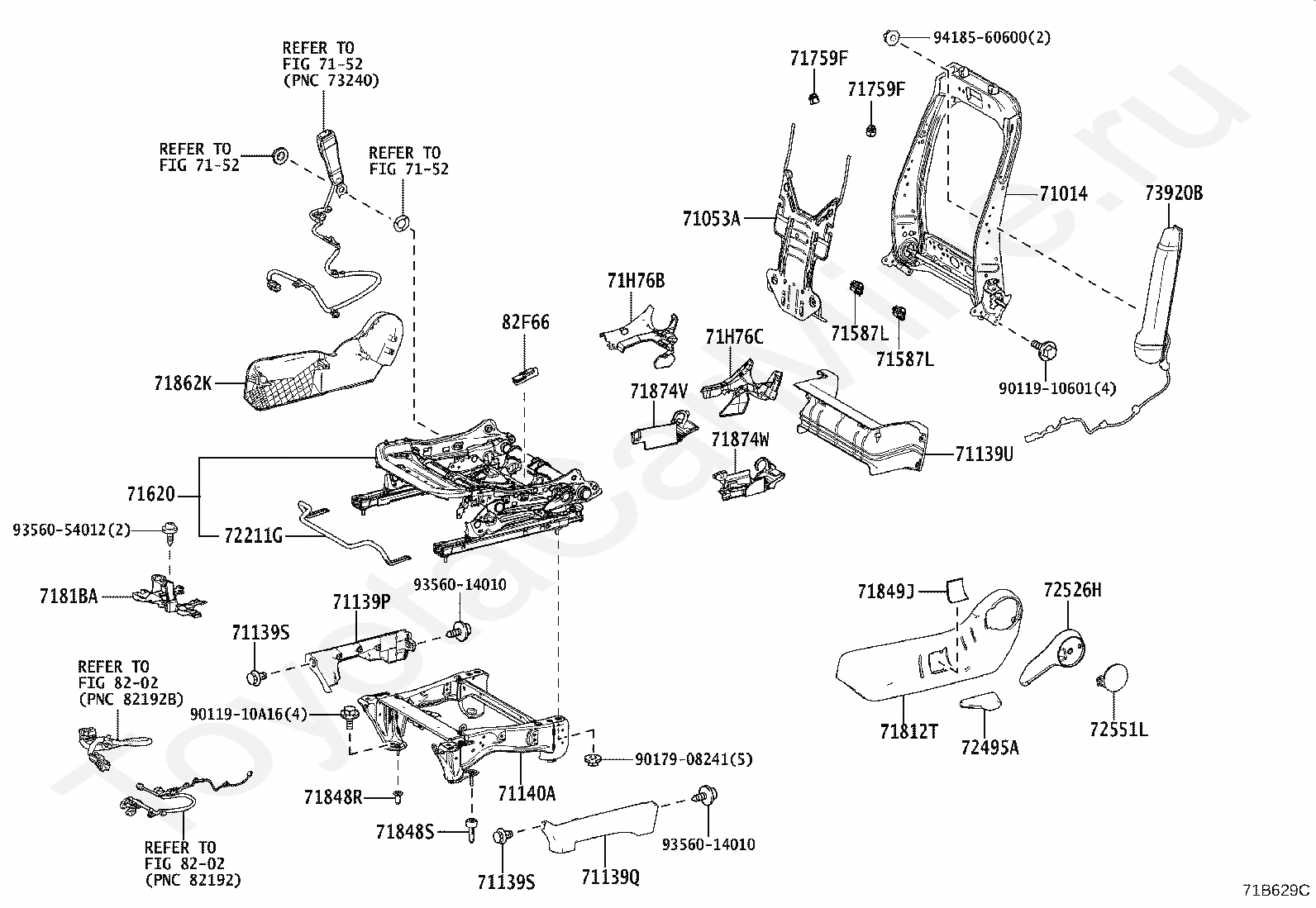

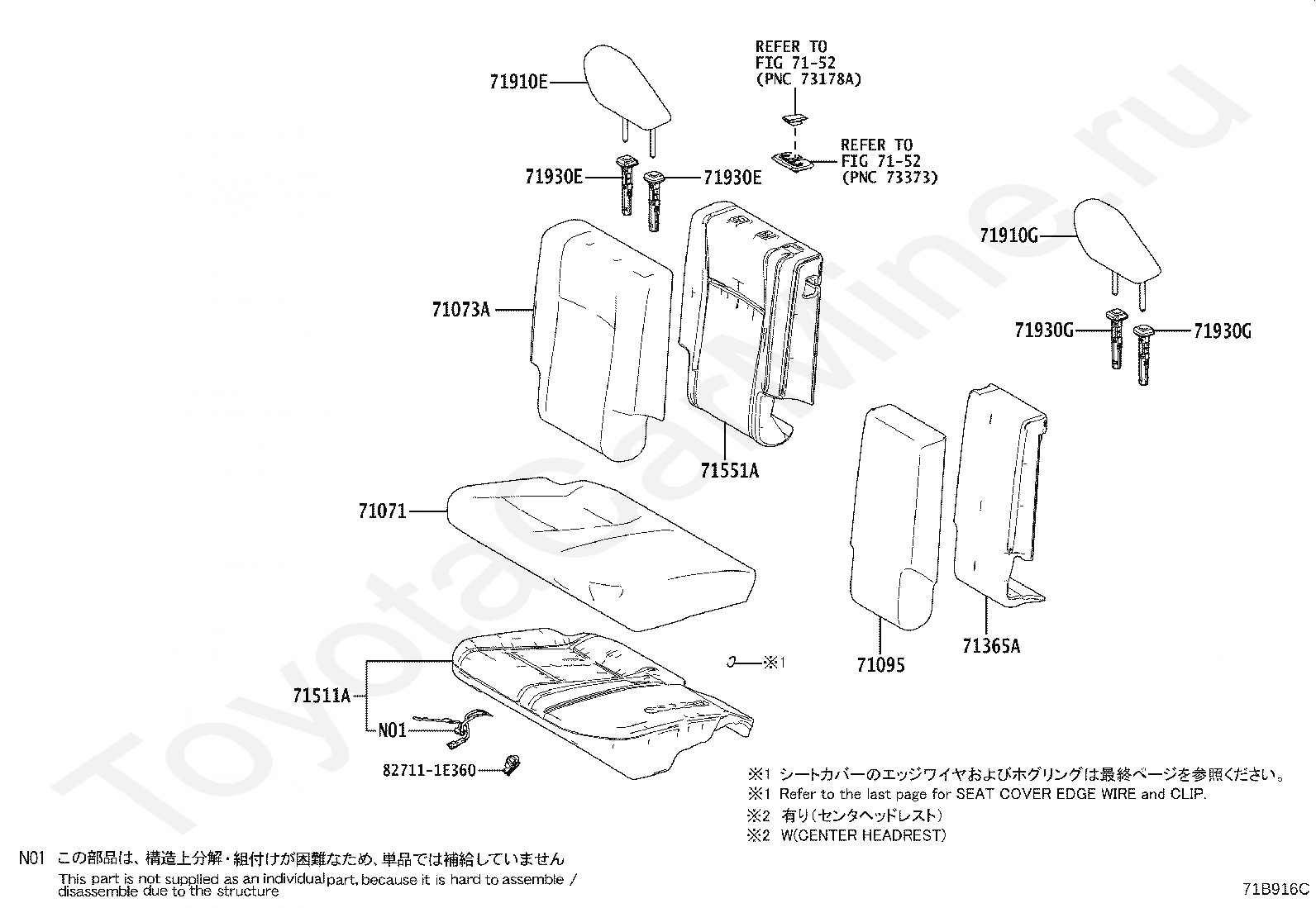

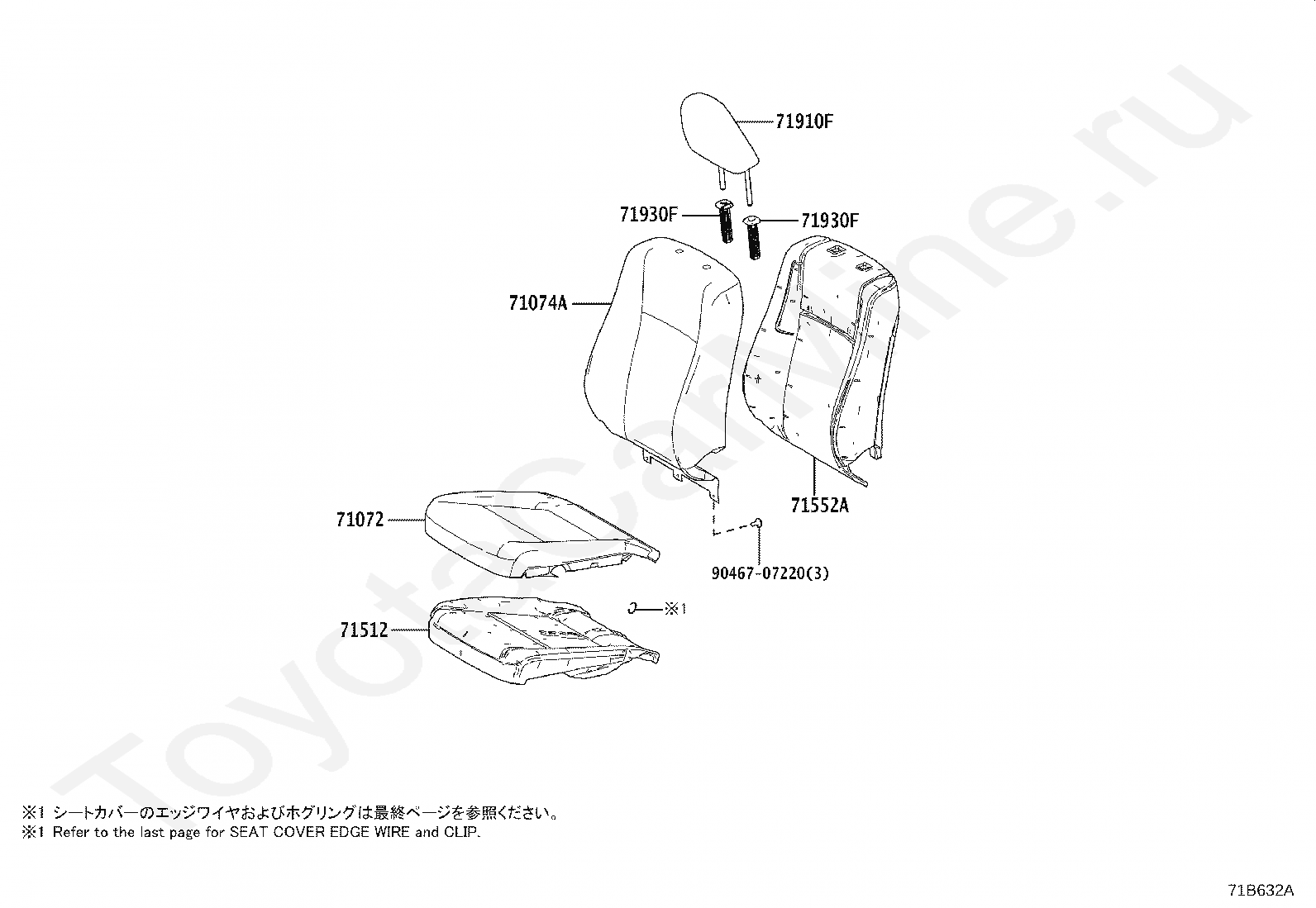

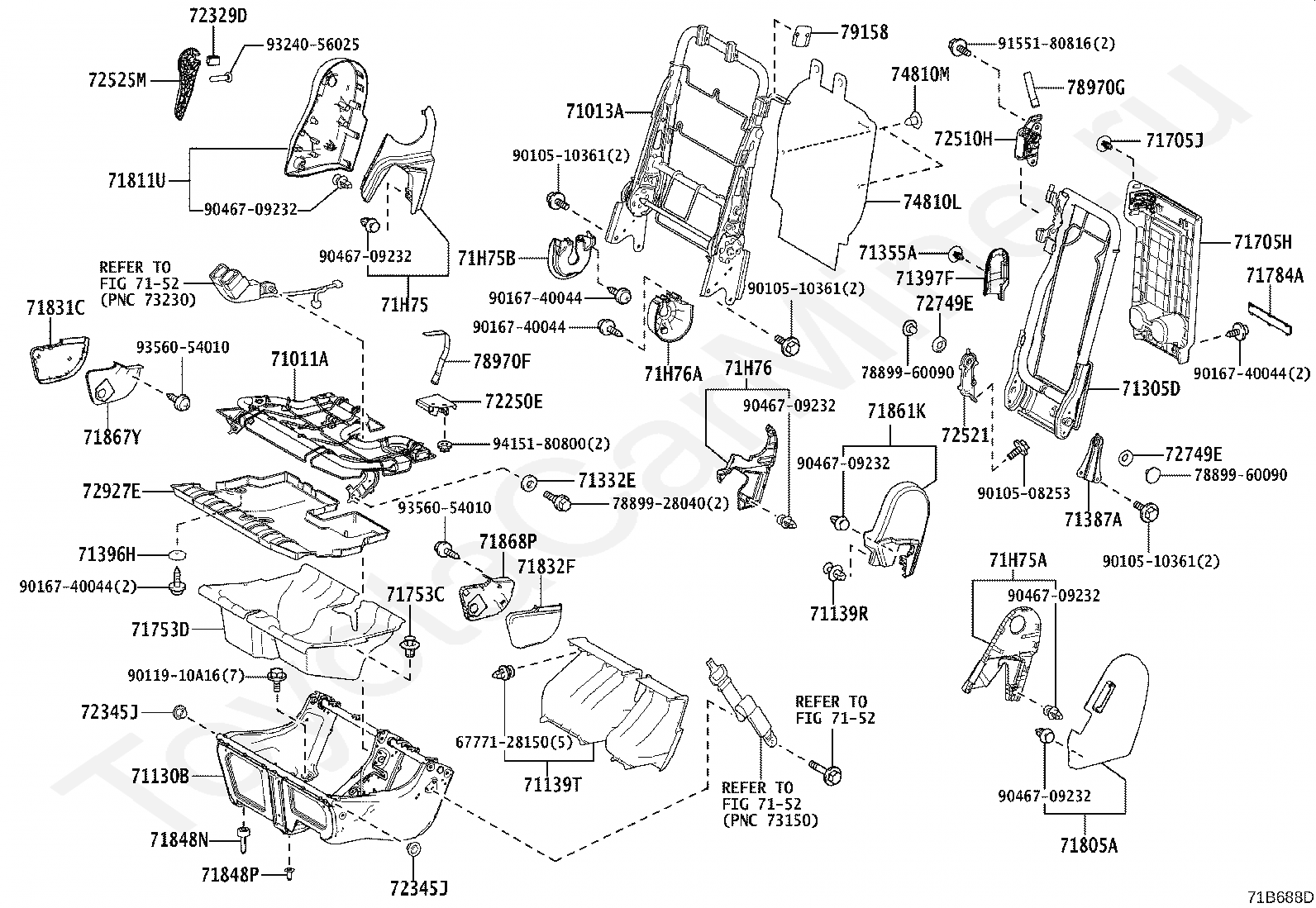

FRONT SEAT & SEAT TRACK TOYOTA GRNVA/HIACE/MJSTY, 2019/03 - 2025, 2,8 литра, турбо-дизель, GDH320, механика, МКПП, 6 скоростей

Каталог

Ближний Восток

Модель

GRNVA/HIACE/MJSTY

Двигатель

2,8 литра, турбо-дизель

Фрейм

GDH320

Трансмиссия

механика МКПП, 6 скоростей

Опции

левый руль высокая крыша 5 дверей SEPARATE SEAT D GEN 694W

Код

Описание

71072

COVER SUB-ASSY, FRONT SEAT CUSHION, LH

71074A

COVER SUB-ASSY, FRONT SEAT BACK, LH

71512

PAD, FRONT SEAT CUSHION, LH

71552A

PAD, FRONT SEAT BACK, LH

71910F

HEADREST ASSY, FRONT SEAT, LH

71930F

SUPPORT ASSY, FRONT SEAT HEADREST, LH

9046707220

Крепеж

Код

Описание

71014

FRAME SUB-ASSY, FRONT SEAT BACK, LH

71053A

SPRING SUB-ASSY, FRONT SEAT BACK, LH

71139P

COVER, FRONT SEAT LEG, LH OUTER

71139Q

COVER, FRONT SEAT LEG, LH INNER

71139S

CLIP, FRONT SEAT LEG COVER, LH

71139U

COVER, FRONT SEAT LEG, REAR LH

71140A

LEG ASSY, FRONT SEAT, LH

7152

переход к группе запчастей

71587L

PROTECTOR, FRONT SEAT BACK EDGE, LH

71620

SPRING ASSY, FRONT SEAT CUSHION, LH

71759F

HOOK, FRONT SEAT BACK, LH

71812T

SHIELD, FRONT SEAT CUSHION, LH

7181BA

HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH

71848R

CAP, FRONT SEAT ADJUSTER COVER, LH NO.1

71848S

CAP, FRONT SEAT ADJUSTER COVER, LH NO.2

71849J

CAP, FRONT SEAT ADJUSTER COVER, LH NO.3

71862K

SHIELD, FRONT SEAT CUSHION, INNER LH

71874V

SHIELD, FRONT SEAT CUSHION, LOWER LH, OUTER

71874W

SHIELD, FRONT SEAT CUSHION, LOWER LH, INNER

71H76B

COVER, RECLINING ADJUSTER INSIDE, LH INNER(FOR LH SEAT)

71H76C

COVER, RECLINING ADJUSTER INSIDE, LH OUTER(FOR LH SEAT)

72211G

HANDLE, SEAT TRACK ADJUSTING, LH

72495A

HANDLE, FRONT SEAT VERTICAL ADJUSTER, LH

72526H

HANDLE, RECLINING ADJUSTER RELEASE, LH

72551L

COVER, RECLINING HINGE, LH

73920B

AIR BAG ASSY, FRONT SEAT, LH

8202

переход к группе запчастей

82F66

HOLDER, CONNECTOR

9011910601

Крепеж

9011910A16

Крепеж

9017908241

Крепеж

9356014010

Крепеж

9356054012

Крепеж

9418560600

Крепеж

Код

Описание

71071

COVER SUB-ASSY, FRONT SEAT CUSHION, RH

71073A

COVER SUB-ASSY, FRONT SEAT BACK, RH

71095

COVER SUB-ASSY, CENTER SEAT BACK

71365A

PAD, CENTER SEAT BACK

71511A

PAD, FRONT SEAT CUSHION, RH

7152

переход к группе запчастей

71551A

PAD, FRONT SEAT BACK, RH

71910E

HEADREST ASSY, FRONT SEAT, RH

71910G

HEADREST ASSY, FRONT SEAT, CENTER

71930E

SUPPORT ASSY, FRONT SEAT HEADREST, RH

71930G

SUPPORT ASSY, FRONT SEAT HEADREST, CENTER

827111E360

Крепеж

Код

Описание

6777128150

Крепеж

71011A

FRAME SUB-ASSY, FRONT SEAT CUSHION, RH

71013A

FRAME SUB-ASSY, FRONT SEAT BACK, RH

71130B

LEG ASSY, FRONT SEAT, RH

71139R

CLIP, FRONT SEAT LEG COVER, RH

71139T

COVER, FRONT SEAT LEG, REAR RH

71305D

FRAME SUB-ASSY, CENTER SEAT BACK, RH

71332E

SPACER, FRONT SEAT BACK HINGE

71355A

CLIP

71387A

ARM, CENTER SEAT HINGE, LOWER RH

71396H

CUSHION, FRONT SEAT SUPPORT, REAR RH

71397F

COVER, CENTER SEAT HINGE, UPPER RH

7152

переход к группе запчастей

71705H

BOARD SUB-ASSY, FRONT CENTER SEAT BACK, RH

71705J

CLIP, FRONT CENTER SEAT BACK BOARD, RH

71753C

CLIP, FRONT SEAT UNDER TRAY

71753D

TRAY, FRONT SEAT UNDER

71784A

CAP, FRONT SEAT BACK BOARD

71805A

SHIELD SUB-ASSY, FRONT SEAT CUSHION, RH

71811U

SHIELD, FRONT SEAT CUSHION, RH(FOR BENCH TYPE)

71831C

COVER, FRONT SEAT HINGE, RH(FOR RH SEAT)

71832F

COVER, FRONT SEAT HINGE, LH(FOR RH SEAT)

71848N

CAP, FRONT SEAT ADJUSTER COVER, RH NO.1

71848P

CAP, FRONT SEAT ADJUSTER COVER, RH NO.2

71861K

SHIELD, FRONT SEAT CUSHION, INNER RH

71867Y

SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH(FOR RH SEAT)

71868P

SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH(FOR RH SEAT)

71H75

COVER, RECLINING ADJUSTER INSIDE, RH OUTER(FOR RH SEAT)

71H75A

COVER, RECLINING ADJUSTER INSIDE, RH INNER(FOR RH SEAT)

71H75B

COVER, RECLINING ADJUSTER INSIDE, RH(FOR RH SEAT BACK FRAME)

71H76

COVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT)

71H76A

COVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT BACK FRAME)

72250E

LOCK ASSY, FRONT SEAT CUSHION, RH

72329D

COVER, SEAT ADJUSTER BOLT, RH

72345J

CAP, SEAT STAND FRAME, RH

72510H

LOCK ASSY, FRONT SEAT BACK, RH

72521

ARM, RECLINING ADJUSTER, LOWER RH

72525M

HANDLE, RECLINING ADJUSTER RELEASE, RH

72749E

SPACER, FRONT SEAT RECLINING, RH

72927E

COVER, FRONT SEAT CUSHION UNDER, RH

74810L

PROTECTOR ASSY, FRONT RH

74810M

CLIP, FRONT SEAT BACK PROTECTOR, RH

7889928040

Крепеж

7889960090

Крепеж

78970F

BAND ASSY, FRONT SEAT CUSHION LOCK, RH

78970G

BAND ASSY, FRONT SEAT BACK LOCK, RH

79158

PLATE, SEAT BACK COVER, RH

9010508253

Крепеж

9010510361

Крепеж

9011910A16

Крепеж

9016740044

Крепеж

9046709232

Крепеж

9155180816

Крепеж

9324056025

Крепеж

9356054010

Крепеж

9415180800

Крепеж

Код

Описание

63307C

CLIP

71013A

FRAME SUB-ASSY, FRONT SEAT BACK, RH

71130B

LEG ASSY, FRONT SEAT, RH

71139N

COVER, FRONT SEAT LEG, RH INNER

71139R

CLIP, FRONT SEAT LEG COVER, RH

71139T

COVER, FRONT SEAT LEG, REAR RH

71149Z

COVER, FRONT SEAT LEG, INNER(FOR BENCH TYPE)

71305D

FRAME SUB-ASSY, CENTER SEAT BACK, RH

71355A

CLIP

71387A

ARM, CENTER SEAT HINGE, LOWER RH

71396K

COVER, CENTER SEAT HINGE, LH

71397F

COVER, CENTER SEAT HINGE, UPPER RH

7152

переход к группе запчастей

71610

SPRING ASSY, FRONT SEAT CUSHION, RH

71705H

BOARD SUB-ASSY, FRONT CENTER SEAT BACK, RH

71705J

CLIP, FRONT CENTER SEAT BACK BOARD, RH

71784A

CAP, FRONT SEAT BACK BOARD

71811T

SHIELD, FRONT SEAT CUSHION, RH

71811U

SHIELD, FRONT SEAT CUSHION, RH(FOR BENCH TYPE)

71848N

CAP, FRONT SEAT ADJUSTER COVER, RH NO.1

71848P

CAP, FRONT SEAT ADJUSTER COVER, RH NO.2

71862M

SHIELD, FRONT SEAT CUSHION, INNER LH NO.2

71H75A

COVER, RECLINING ADJUSTER INSIDE, RH INNER(FOR RH SEAT)

71H75B

COVER, RECLINING ADJUSTER INSIDE, RH(FOR RH SEAT BACK FRAME)

71H76

COVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT)

72211F

HANDLE, SEAT TRACK ADJUSTING, RH

72329D

COVER, SEAT ADJUSTER BOLT, RH

72345L

PIPE, RECLINING CONNECTING, RH

72510H

LOCK ASSY, FRONT SEAT BACK, RH

72521

ARM, RECLINING ADJUSTER, LOWER RH

72525M

HANDLE, RECLINING ADJUSTER RELEASE, RH

72580C

CABLE ASSY, RECLINING ADJUSTING(FOR RH SEAT)

72749E

SPACER, FRONT SEAT RECLINING, RH

73910B

AIR BAG ASSY, FRONT SEAT, RH

74810L

PROTECTOR ASSY, FRONT RH

74810M

CLIP, FRONT SEAT BACK PROTECTOR, RH

7889960050

Крепеж

7889960090

Крепеж

78970G

BAND ASSY, FRONT SEAT BACK LOCK, RH

79158

PLATE, SEAT BACK COVER, RH

89178C

BRACKET, AIR BAG, NO.2

9010508253

Крепеж

9010510361

Крепеж

9011910A16

Крепеж

9016740044

Крепеж

9155180816

Крепеж

9324056025

Крепеж

9415181000

Крепеж

9417060600

Крепеж

9418560600

Крепеж

Код

Описание

71071

COVER SUB-ASSY, FRONT SEAT CUSHION, RH

71073A

COVER SUB-ASSY, FRONT SEAT BACK, RH

71511A

PAD, FRONT SEAT CUSHION, RH

71551A

PAD, FRONT SEAT BACK, RH

71910E

HEADREST ASSY, FRONT SEAT, RH

71930E

SUPPORT ASSY, FRONT SEAT HEADREST, RH

827111E360

Крепеж

9046707220

Крепеж

Код

Описание

6221713010

Крепеж

71013A

FRAME SUB-ASSY, FRONT SEAT BACK, RH

71053

SPRING SUB-ASSY, FRONT SEAT BACK, RH

71130B

LEG ASSY, FRONT SEAT, RH

71139M

COVER, FRONT SEAT LEG, RH OUTER

71139N

COVER, FRONT SEAT LEG, RH INNER

71139R

CLIP, FRONT SEAT LEG COVER, RH

71139T

COVER, FRONT SEAT LEG, REAR RH

7152

переход к группе запчастей

71587K

PROTECTOR, FRONT SEAT BACK EDGE, RH

71610

SPRING ASSY, FRONT SEAT CUSHION, RH

71759E

HOOK, FRONT SEAT BACK, RH

7176928030

Крепеж

71811T

SHIELD, FRONT SEAT CUSHION, RH

7181AA

HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH

71848N

CAP, FRONT SEAT ADJUSTER COVER, RH NO.1

71848P

CAP, FRONT SEAT ADJUSTER COVER, RH NO.2

71861K

SHIELD, FRONT SEAT CUSHION, INNER RH

71H75

COVER, RECLINING ADJUSTER INSIDE, RH OUTER(FOR RH SEAT)

71H75A

COVER, RECLINING ADJUSTER INSIDE, RH INNER(FOR RH SEAT)

72211F

HANDLE, SEAT TRACK ADJUSTING, RH

72525M

HANDLE, RECLINING ADJUSTER RELEASE, RH

72551K

COVER, RECLINING HINGE, RH

82F66

HOLDER, CONNECTOR

9011910601

Крепеж

9011910A16

Крепеж

9017908241

Крепеж

9356014010

Крепеж

9356054012

Крепеж

Код

Описание

7114930050

Крепеж

7178526020

Крепеж

9046816019

Крепеж

9046818008

Крепеж

FRONT SEAT & SEAT TRACK TOYOTA GRNVA/HIACE/MJSTY, 2019/03 - 2025, 2,8 литра, турбо-дизель, GDH320, механика, МКПП, 6 скоростей
