Тормозная магистраль TOYOTA DYNA, 2001/10 - 2006/10, 4,6 литра, дизель, XZU414, механика

Каталог

Европа

Модель

DYNA

Двигатель

4,6 литра, дизель

Фрейм

XZU414

Трансмиссия

механика

Опции

правый руль 7,5 тонн DOUBLE TIRE GENERAL COUNTRIES IV3 TD 5F

Код

Описание

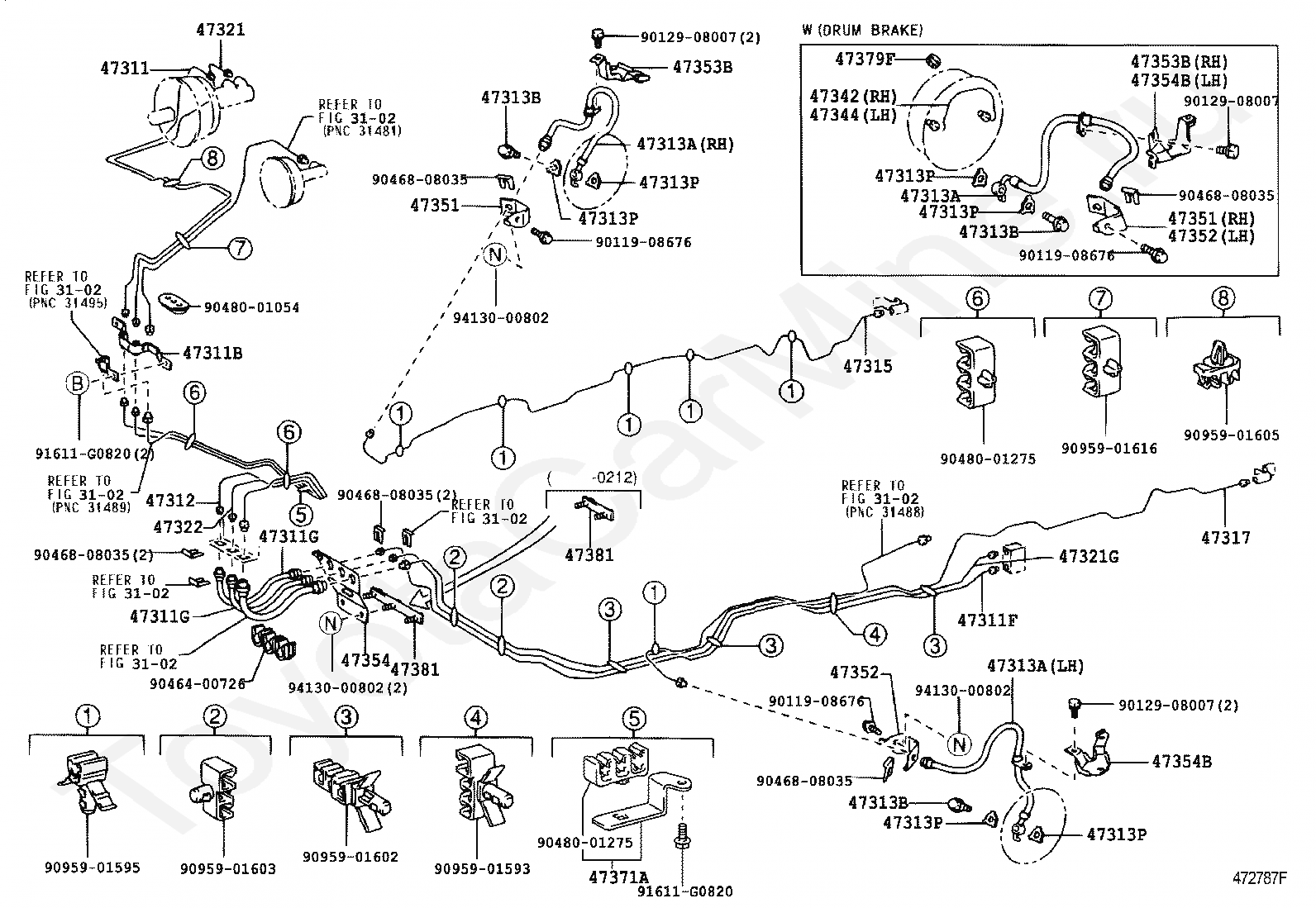

3102

переход к группе запчастей

47311

TUBE, FRONT BRAKE, NO.1

47311B

WAY, NO.1(FOR FRONT BRAKE TUBE)

47311F

TUBE, FRONT BRAKE, FRAME NO.1

47311G

HOSE, FLEXIBLE(FOR BRAKE TUBE)

47312

TUBE, FRONT BRAKE, NO.2

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47315

TUBE, FRONT BRAKE, NO.5

47317

TUBE, FRONT BRAKE, NO.7

47321

TUBE, REAR BRAKE, NO.1

47321G

TUBE, REAR BRAKE, FRAME NO.1

47322

TUBE, REAR BRAKE, NO.2

47342

TUBE, WHEEL CYLINDER, FRONT RH NO.2

47344

TUBE, WHEEL CYLINDER, FRONT LH NO.2

47351

BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

47352

BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

47353B

BRACKET, FLEXIBLE HOSE, NO.3

47354

BRACKET, FRONT FLEXIBLE HOSE

47354B

BRACKET, FLEXIBLE HOSE, NO.4

47371A

CLAMP, BRAKE TUBE, NO.1

47379F

DAMPER, TUBE(FOR FRONT)

47381

BRACKET, BRAKE TUBE CLAMP NO.1

9011908676

Крепеж

9012908007

Крепеж

9046400726

Крепеж

9046808035

Крепеж

9048001054

Крепеж

9048001275

Крепеж

9095901593

Крепеж

9095901595

Крепеж

9095901602

Крепеж

9095901603

Крепеж

9095901605

Крепеж

9095901616

Крепеж

91611G0820

Крепеж

9413000802

Крепеж

Код

Описание

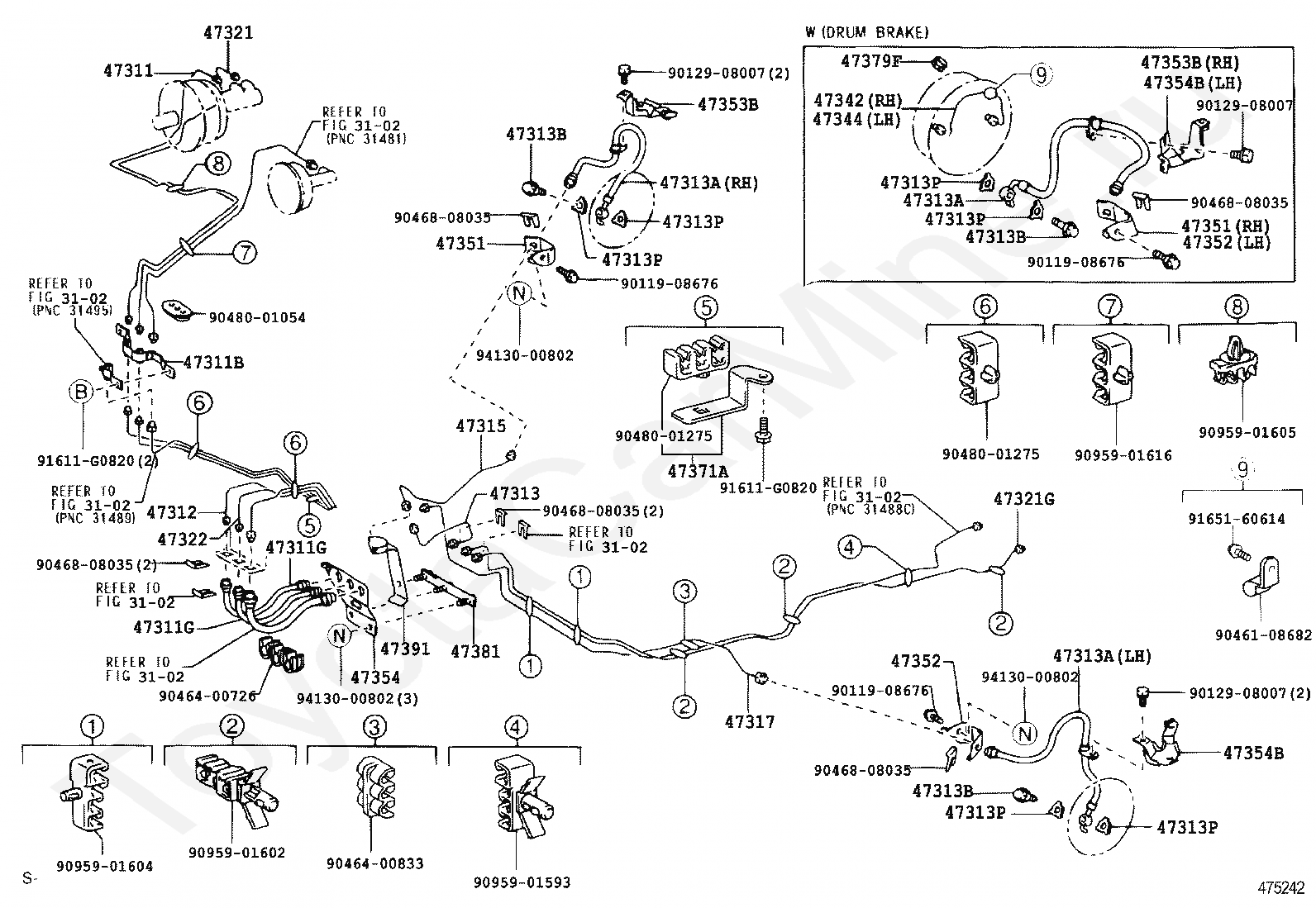

3102

переход к группе запчастей

47311

TUBE, FRONT BRAKE, NO.1

47311B

WAY, NO.1(FOR FRONT BRAKE TUBE)

47311F

TUBE, FRONT BRAKE, FRAME NO.1

47311G

HOSE, FLEXIBLE(FOR BRAKE TUBE)

47312

TUBE, FRONT BRAKE, NO.2

47313

TUBE, FRONT BRAKE, NO.3

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47315

TUBE, FRONT BRAKE, NO.5

47317

TUBE, FRONT BRAKE, NO.7

47321

TUBE, REAR BRAKE, NO.1

47321G

TUBE, REAR BRAKE, FRAME NO.1

47322

TUBE, REAR BRAKE, NO.2

47342

TUBE, WHEEL CYLINDER, FRONT RH NO.2

47344

TUBE, WHEEL CYLINDER, FRONT LH NO.2

47351

BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

47352

BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

47353B

BRACKET, FLEXIBLE HOSE, NO.3

47354

BRACKET, FRONT FLEXIBLE HOSE

47354B

BRACKET, FLEXIBLE HOSE, NO.4

47371A

CLAMP, BRAKE TUBE, NO.1

47379F

DAMPER, TUBE(FOR FRONT)

47381

BRACKET, BRAKE TUBE CLAMP NO.1

47391

WAY, BRAKE TUBE

9011908676

Крепеж

9012908007

Крепеж

9046108682

Крепеж

9046400726

Крепеж

9046400833

Крепеж

9046808035

Крепеж

9048001054

Крепеж

9048001275

Крепеж

9048001628

Крепеж

9095901593

Крепеж

9095901602

Крепеж

9095901604

Крепеж

9095901605

Крепеж

9095901616

Крепеж

91611G0820

Крепеж

9165160614

Крепеж

9413000802

Крепеж

Код

Описание

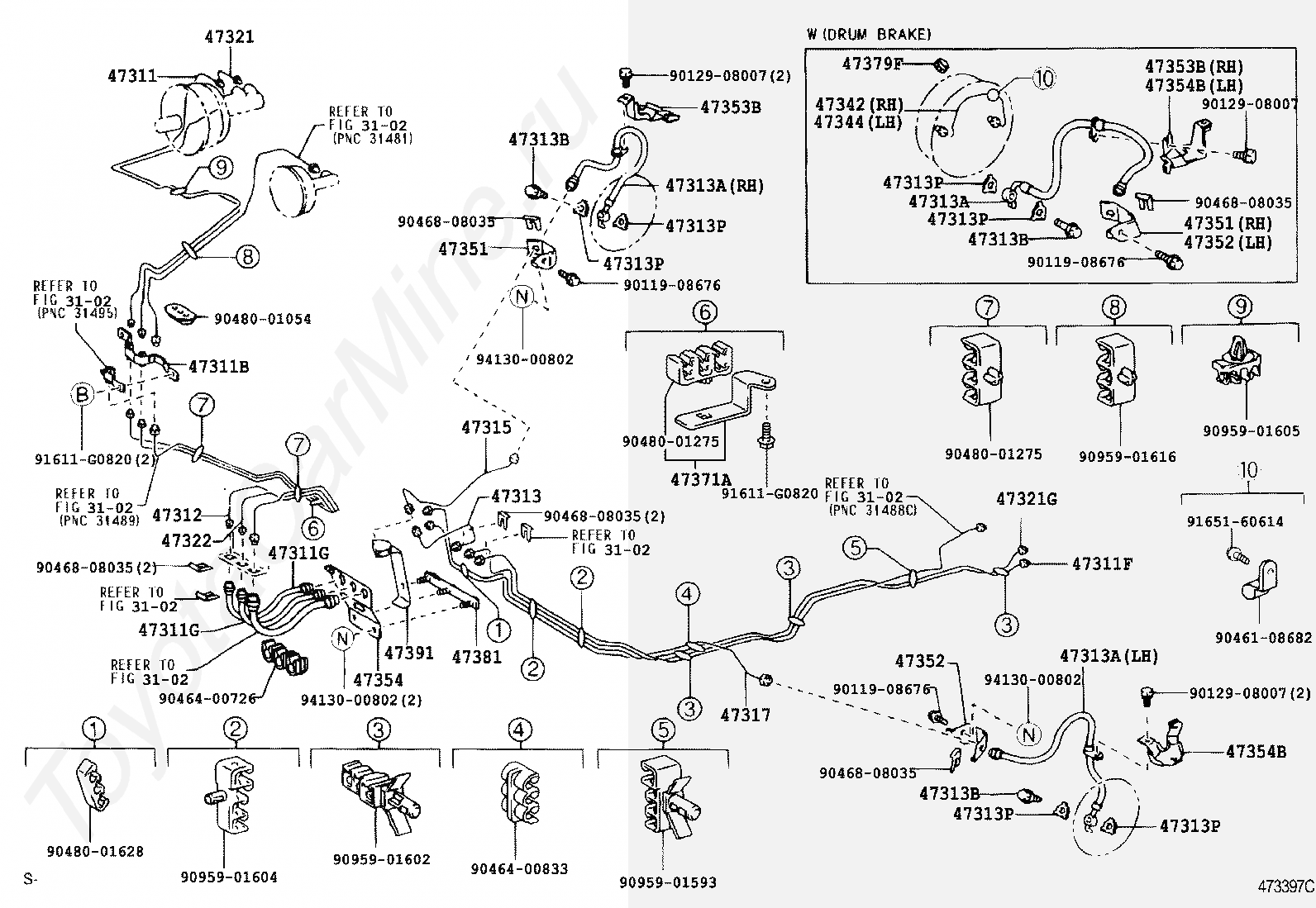

3102

переход к группе запчастей

47311

TUBE, FRONT BRAKE, NO.1

47311B

WAY, NO.1(FOR FRONT BRAKE TUBE)

47311G

HOSE, FLEXIBLE(FOR BRAKE TUBE)

47312

TUBE, FRONT BRAKE, NO.2

47313

TUBE, FRONT BRAKE, NO.3

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47315

TUBE, FRONT BRAKE, NO.5

47317

TUBE, FRONT BRAKE, NO.7

47321

TUBE, REAR BRAKE, NO.1

47321G

TUBE, REAR BRAKE, FRAME NO.1

47322

TUBE, REAR BRAKE, NO.2

47342

TUBE, WHEEL CYLINDER, FRONT RH NO.2

47344

TUBE, WHEEL CYLINDER, FRONT LH NO.2

47351

BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

47352

BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

47353B

BRACKET, FLEXIBLE HOSE, NO.3

47354

BRACKET, FRONT FLEXIBLE HOSE

47354B

BRACKET, FLEXIBLE HOSE, NO.4

47371A

CLAMP, BRAKE TUBE, NO.1

47379F

DAMPER, TUBE(FOR FRONT)

47381

BRACKET, BRAKE TUBE CLAMP NO.1

47391

WAY, BRAKE TUBE

9011908676

Крепеж

9012908007

Крепеж

9046108682

Крепеж

9046400726

Крепеж

9046400833

Крепеж

9046808035

Крепеж

9048001054

Крепеж

9048001275

Крепеж

9095901593

Крепеж

9095901602

Крепеж

9095901604

Крепеж

9095901605

Крепеж

9095901616

Крепеж

91611G0820

Крепеж

9165160614

Крепеж

9413000802

Крепеж

Код

Описание

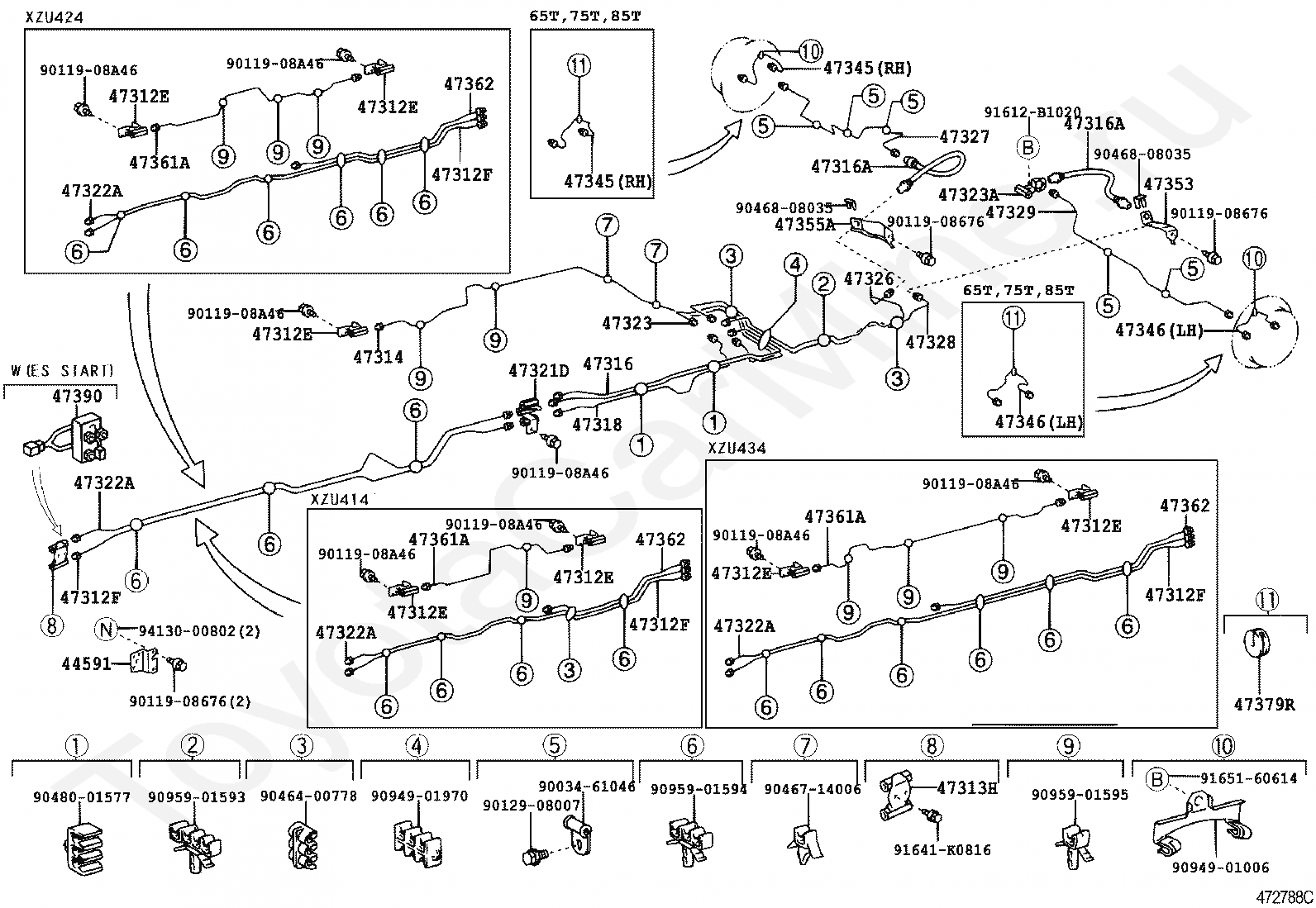

44591

BRACKET, BRAKE ACTUATOR, NO.1

47312E

WAY, NO.2(FOR FRONT BRAKE TUBE)

47312F

TUBE, FRONT BRAKE, FRAME, NO.2

47313H

WAY, NO.3(FOR FRONT BRAKE TUBE)

47314

TUBE, FRONT BRAKE, NO.4

47316

TUBE, FRONT BRAKE, NO.6

47316A

HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

47318

TUBE, FRONT BRAKE, NO.8

47321D

WAY, NO.1(FOR REAR BRAKE TUBE)

47322A

TUBE, REAR BRAKE, FRAME NO.2

47323

TUBE, REAR BRAKE, NO.3

47323A

WAY, NO.3(FOR REAR BRAKE TUBE)

47326

TUBE, REAR BRAKE, NO.6

47327

TUBE, REAR BRAKE, NO.7

47328

TUBE, REAR BRAKE, NO.8

47329

TUBE, REAR BRAKE, NO.9

47345

TUBE, WHEEL CYLINDER, REAR RH

47346

TUBE, WHEEL CYLINDER, REAR LH

47353

BRACKET, FLEXIBLE HOSE(FOR REAR)

47355A

BRACKET, FLEXIBLE HOSE, NO.5

47361A

TUBE, FRONT BRAKE, NO.10

47362

TUBE, FRONT BRAKE, NO.11

47379R

DAMPER, TUBE(FOR REAR)

47390

VALVE ASSY, HILL HOLDER BRAKE LOCK

9003461046

Крепеж

9011908676

Крепеж

9011908A46

Крепеж

9012908007

Крепеж

9046400778

Крепеж

9046714006

Крепеж

9046808035

Крепеж

9048001577

Крепеж

9094901006

Крепеж

9094901970

Крепеж

9095901593

Крепеж

9095901594

Крепеж

9095901595

Крепеж

91612B1020

Крепеж

91641K0816

Крепеж

9165160614

Крепеж

9413000802

Крепеж

Код

Описание

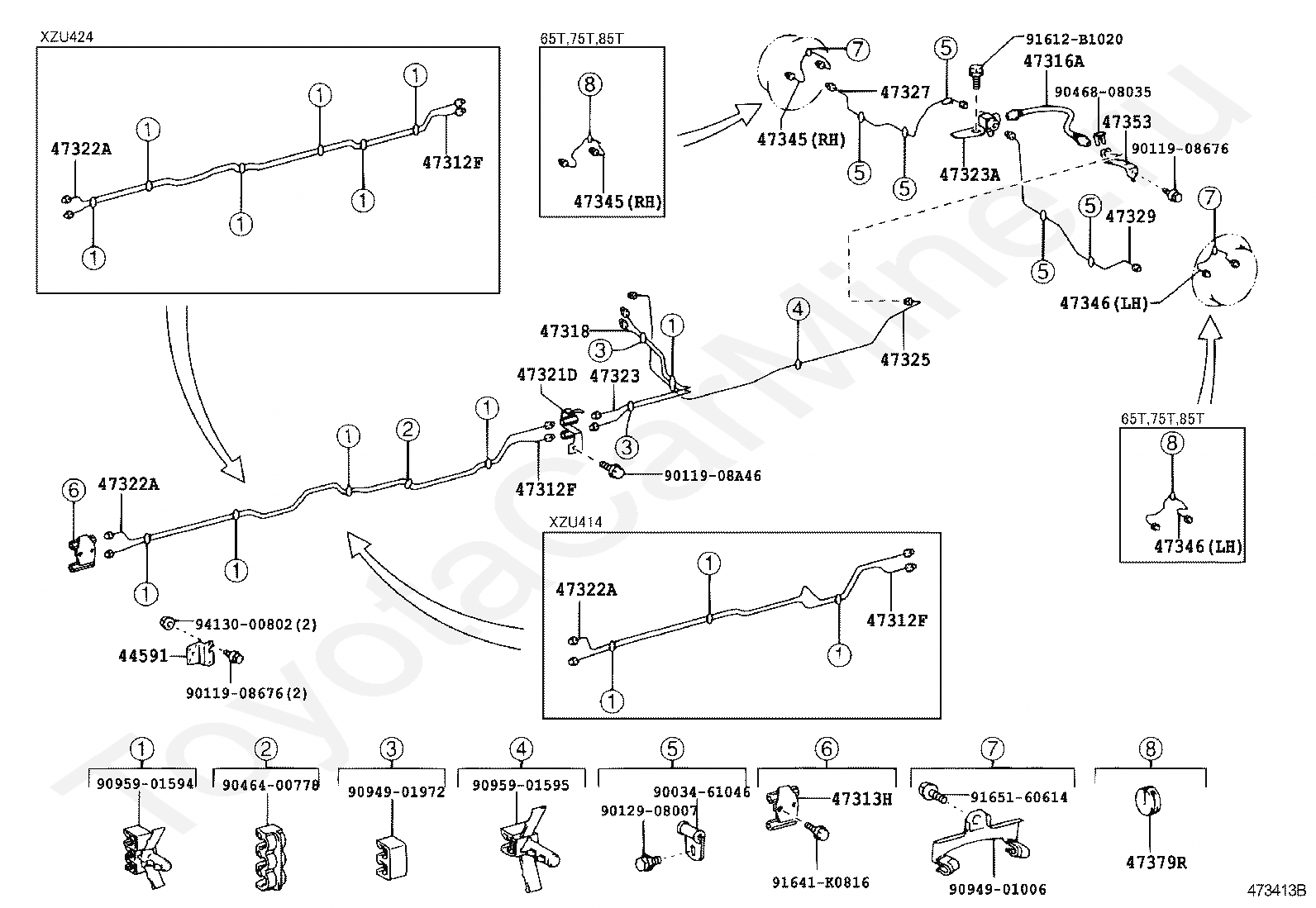

44591

BRACKET, BRAKE ACTUATOR, NO.1

47312F

TUBE, FRONT BRAKE, FRAME, NO.2

47313H

WAY, NO.3(FOR FRONT BRAKE TUBE)

47316A

HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

47318

TUBE, FRONT BRAKE, NO.8

47321D

WAY, NO.1(FOR REAR BRAKE TUBE)

47322A

TUBE, REAR BRAKE, FRAME NO.2

47323

TUBE, REAR BRAKE, NO.3

47323A

WAY, NO.3(FOR REAR BRAKE TUBE)

47325

TUBE, REAR BRAKE, NO.5

47327

TUBE, REAR BRAKE, NO.7

47329

TUBE, REAR BRAKE, NO.9

47345

TUBE, WHEEL CYLINDER, REAR RH

47346

TUBE, WHEEL CYLINDER, REAR LH

47353

BRACKET, FLEXIBLE HOSE(FOR REAR)

47379R

DAMPER, TUBE(FOR REAR)

9003461046

Крепеж

9011908676

Крепеж

9011908A46

Крепеж

9012908007

Крепеж

9046400778

Крепеж

9046808035

Крепеж

9094901006

Крепеж

9094901972

Крепеж

9095901594

Крепеж

9095901595

Крепеж

91612B1020

Крепеж

91641K0816

Крепеж

9165160614

Крепеж

9413000802

Крепеж

Код

Описание

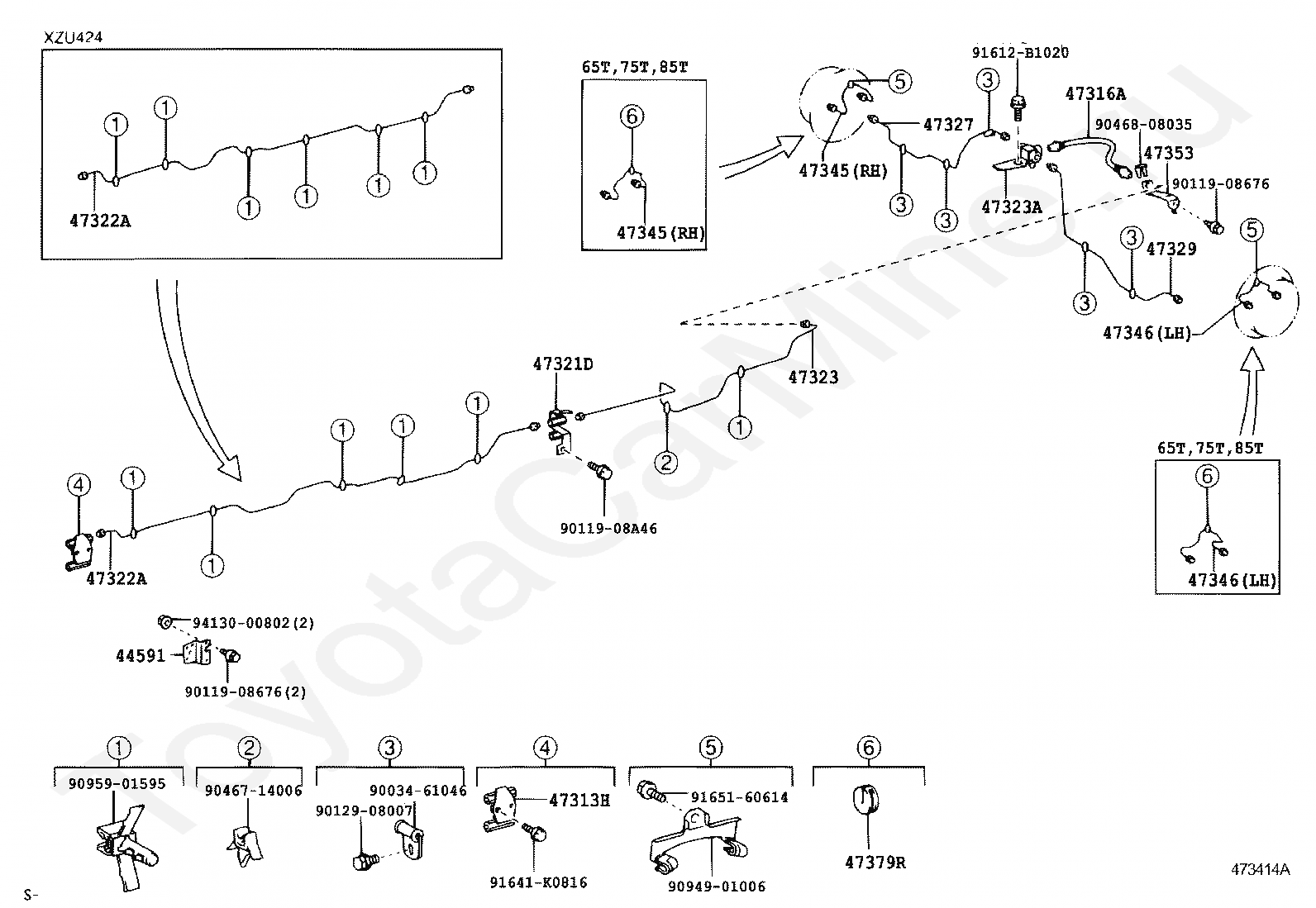

44591

BRACKET, BRAKE ACTUATOR, NO.1

47313H

WAY, NO.3(FOR FRONT BRAKE TUBE)

47316A

HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

47321D

WAY, NO.1(FOR REAR BRAKE TUBE)

47322A

TUBE, REAR BRAKE, FRAME NO.2

47323

TUBE, REAR BRAKE, NO.3

47323A

WAY, NO.3(FOR REAR BRAKE TUBE)

47327

TUBE, REAR BRAKE, NO.7

47329

TUBE, REAR BRAKE, NO.9

47345

TUBE, WHEEL CYLINDER, REAR RH

47346

TUBE, WHEEL CYLINDER, REAR LH

47353

BRACKET, FLEXIBLE HOSE(FOR REAR)

47379R

DAMPER, TUBE(FOR REAR)

9003461046

Крепеж

9011908676

Крепеж

9011908A46

Крепеж

9012908007

Крепеж

9046714006

Крепеж

9046808035

Крепеж

9094901006

Крепеж

9095901595

Крепеж

91612B1020

Крепеж

91641K0816

Крепеж

9165160614

Крепеж

9413000802

Крепеж

Код

Описание

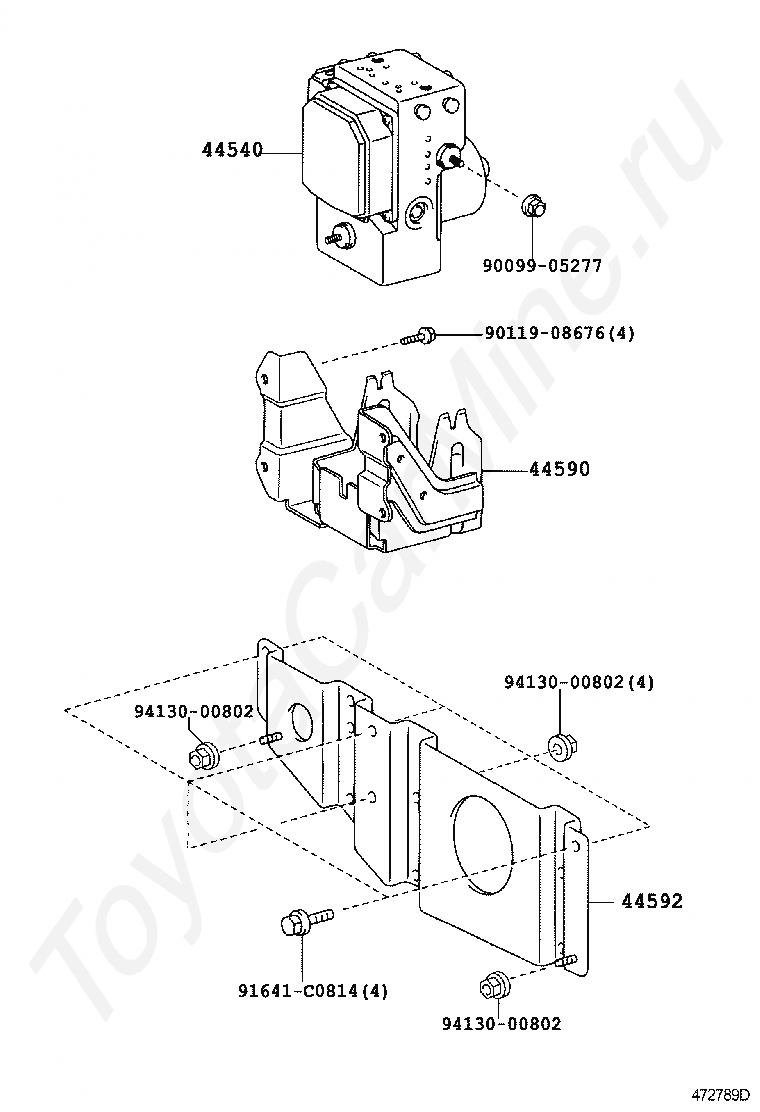

44540

ACTUATOR ASSY, ABS & TRACTION

44590

BRACKET ASSY, BRAKE ACTUATOR

44592

BRACKET, BRAKE ACTUATOR, NO.2

9009905277

Крепеж

9011908676

Крепеж

91641C0814

Крепеж

9413000802

Крепеж

Тормозная магистраль TOYOTA DYNA, 2001/10 - 2006/10, 4,6 литра, дизель, XZU414, механика
