Каталог
ЕвропаМодель
DYNAДвигатель
4,6 литра, дизельФрейм
XZU414Трансмиссия
механикаОпции
правый руль 7,5 тонн DOUBLE TIRE GENERAL COUNTRIES IV3 TD 5F

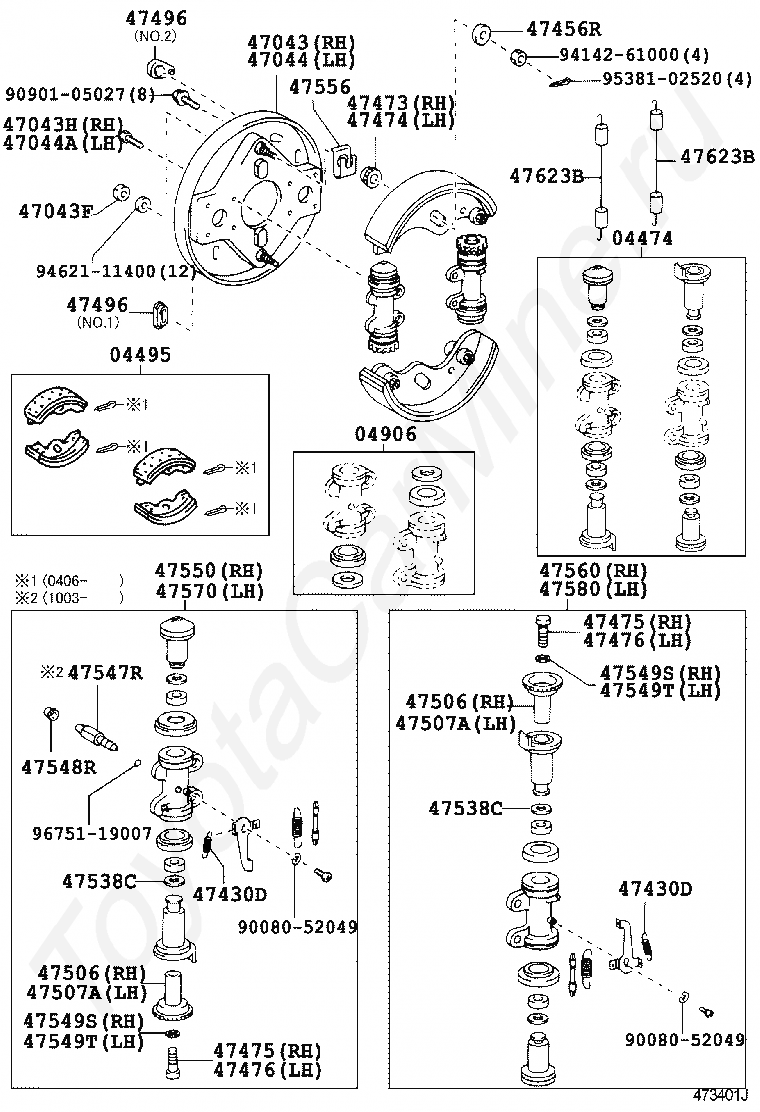

Код
Описание
04474
CYLINDER KIT, REAR WHEEL
04495
SHOE KIT, REAR BRAKE
04906
CUP KIT, REAR WHEEL CYLINDER
47043
PLATE SUB-ASSY, BRAKE BACKING, REAR RH
47043F
NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
47043H
BOLT, NO.1(FOR REAR BRAKE BACKING PLATE RH)
47044
PLATE SUB-ASSY, BRAKE BACKING, REAR LH
47044A
BOLT, NO.1(FOR REAR BRAKE BACKING PLATE LH)
47445R
ROD, REAR WHEEL CYLINDER
47456R
PLATE, REAR BRAKE SHOE GUIDE
47473
NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE)
47474
NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)
47496
PLUG, HOLE(FOR REAR BRAKE)
47525A
PIN, WHEEL CYLINDER ADJUSTER
47526A
RING, AUTOMATIC ADJUSTER
47547R
PLUG, BLEEDER(FOR DRUM BRAKE, REAR)
47548R
CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
47550
CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
47552A
NUT, REAR WHEEL CYLINDER ADJUSTING
47556
SPRING, ADJUSTER LOCK(FOR REAR BRAKE)
47560
CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER)
47570
CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
47580
CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER)
47623B
SPRING, TENSION(FOR PARKING BRAKE BELL CRANK RETURN)
47777D
PROTECTOR, DUST BOOT
9090105027
Крепеж
9414261000
Крепеж
9462111400
Крепеж
9538102520
Крепеж
9675119007
Крепеж

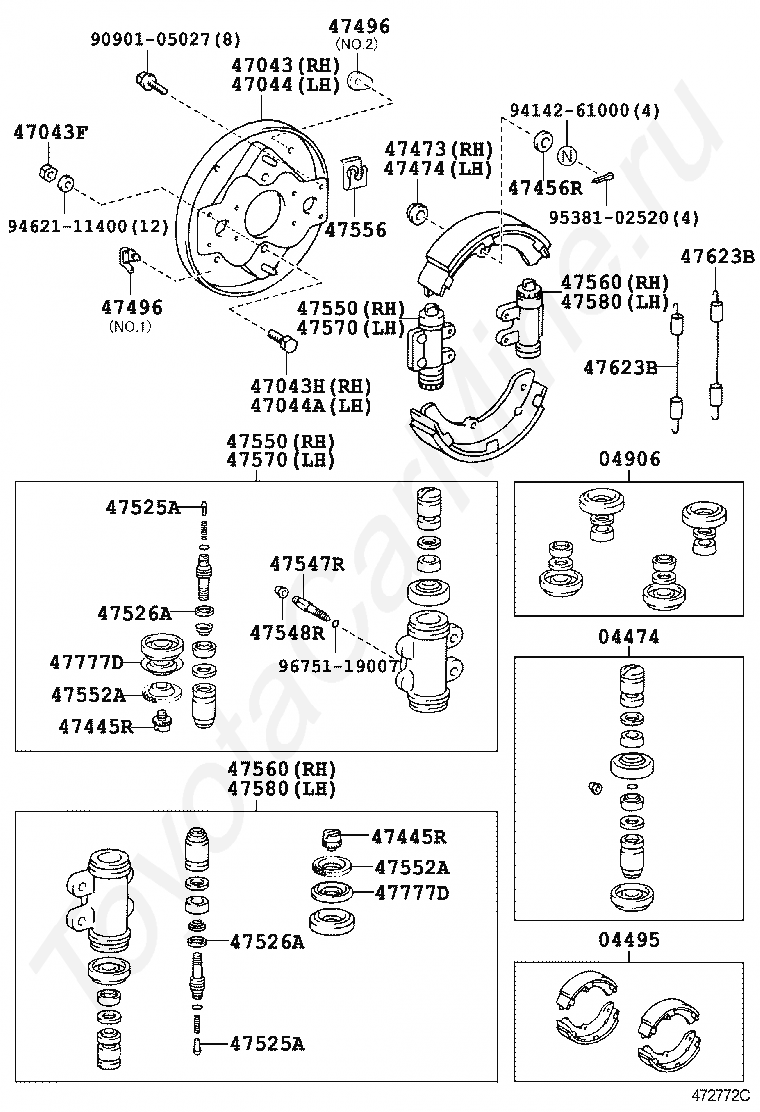

Код
Описание
04474
CYLINDER KIT, REAR WHEEL
04495
SHOE KIT, REAR BRAKE
04906
CUP KIT, REAR WHEEL CYLINDER
47043
PLATE SUB-ASSY, BRAKE BACKING, REAR RH
47043F
NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
47043H
BOLT, NO.1(FOR REAR BRAKE BACKING PLATE RH)
47044
PLATE SUB-ASSY, BRAKE BACKING, REAR LH
47044A
BOLT, NO.1(FOR REAR BRAKE BACKING PLATE LH)
47430D
SPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
47456R
PLATE, REAR BRAKE SHOE GUIDE
47473
NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE)
47474
NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)
47475
BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE)
47476
BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)
47496
PLUG, HOLE(FOR REAR BRAKE)
47506
NUT SUB-ASSY, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)
47507A
NUT SUB-ASSY, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)
47538C
PLATE, WHEEL CYLINDER ADJUSTER SPRING, RR
47547R
PLUG, BLEEDER(FOR DRUM BRAKE, REAR)
47548R
CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
47549S
SEAT, REAR BRAKE AUTOMATIC ADJUST NUT, RH
47549T
SEAT, REAR BRAKE AUTOMATIC ADJUST NUT, LH
47550
CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
47556
SPRING, ADJUSTER LOCK(FOR REAR BRAKE)
47560
CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER)
47570
CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
47580
CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER)
47623B
SPRING, TENSION(FOR PARKING BRAKE BELL CRANK RETURN)
9008052049
Крепеж
9090105027
Крепеж
9414261000
Крепеж
9462111400
Крепеж
9538102520
Крепеж
9675119007
Крепеж
