Каталог
Ближний ВостокМодель
CROWNДвигатель
3 литра, 24 клапана, DOHC, EFIКласс
ROYAL SALOON TYPEФрейм
JZS133Трансмиссия
автомат АКПП, 4 ступениОпции
правый руль GENERAL COUNTRIES Q TYPE

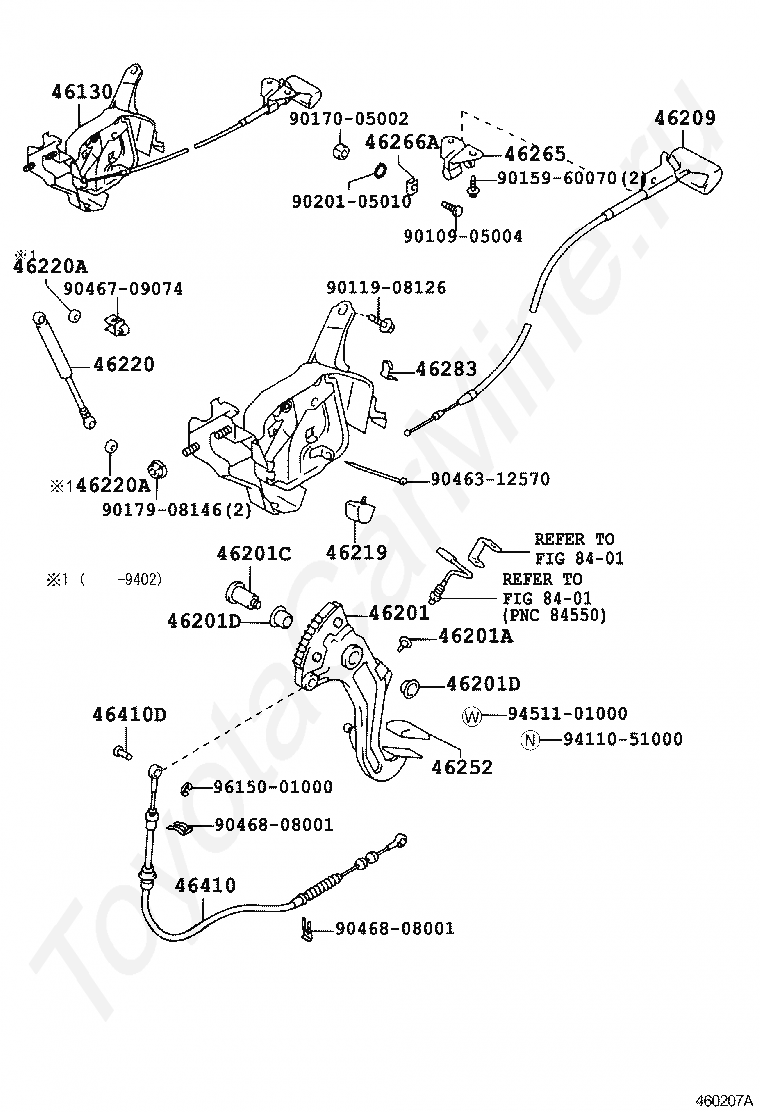

Код
Описание
46130
BRACKET ASSY, PARKING BRAKE PEDAL
46201
PEDAL SUB-ASSY, PARKING BRAKE
46201A
CUSHION(FOR PARKING BRAKE PEDAL)
46201C
SHAFT, PEDAL
46201D
BUSH(FOR PARKING BRAKE PEDAL)
46209
CABLE SUB-ASSY, PARKING BRAKE RELEASE
46219
STOPPER, PARKING PEDAL
46220
ABSORBER ASSY, PARKING BRAKE PEDAL RETURN
46220A
CUSHION(FOR PARKING BRAKE PEDAL RETURN ABSORBER)
46252
PAD, PARKING PEDAL
46265
GUIDE, PARKING BRAKE RELEASE ROD
46266A
CUSHION, RELEASE ROD GUIDE INTERMEDIATE
46283
PROTECTOR, PARKING BRAKE SIGNAL SWITCH
46410
CABLE ASSY, PARKING BRAKE, NO.1
46410D
PIN(FOR PARKING BRAKE FRONT CABLE)
8401
переход к группе запчастей
9010905004
Крепеж
9011908126
Крепеж
9015960070
Крепеж
9017005002
Крепеж
9017908146
Крепеж
9020105010
Крепеж
9046312570
Крепеж
9046709074
Крепеж
9046808001
Крепеж
9411051000
Крепеж
9451101000
Крепеж
9615001000
Крепеж

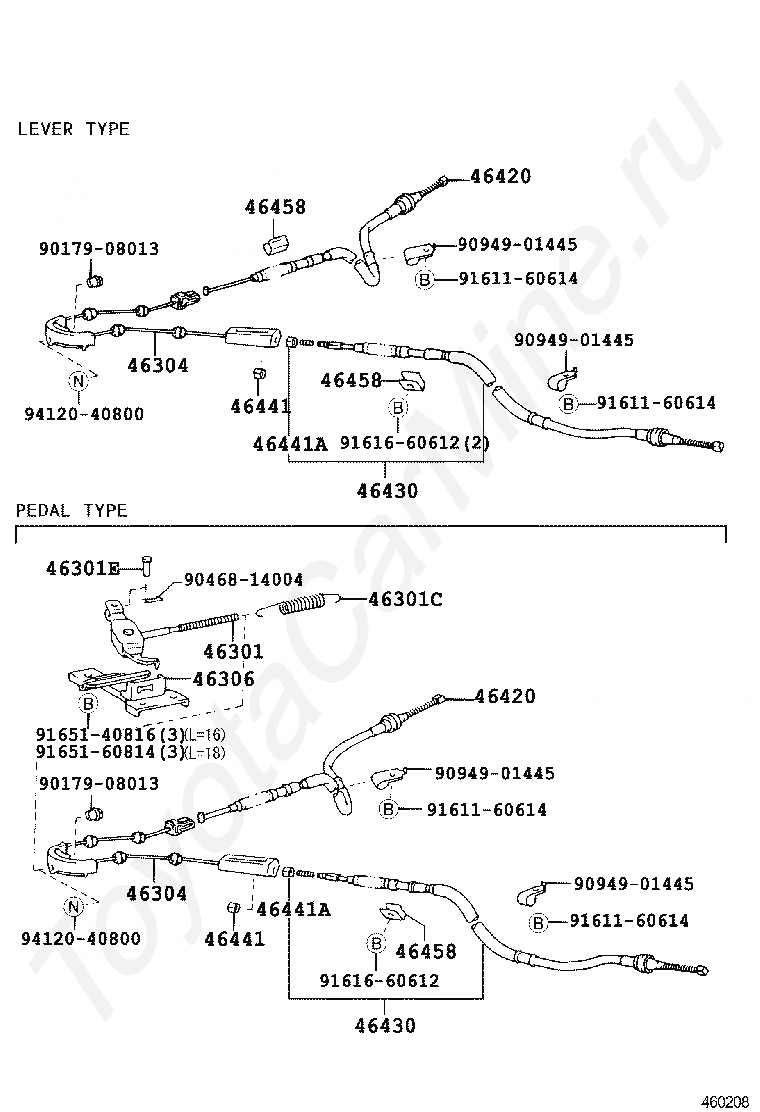

Код
Описание
46301
LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE
46301C
SPRING, TENSION(FOR INTERMEDIATE LEVER)
46301E
PIN, W/HOLE(FOR INTERMEDIATE LEVER)
46304
EQUALIZER SUB-ASSY, PARKING BRAKE
46306
BRACKET SUB-ASSY, INTERMEDIATE LEVER(FOR PARKING BRAKE)
46420
CABLE ASSY, PARKING BRAKE, NO.2
46430
CABLE ASSY, PARKING BRAKE, NO.3
46441
NUT, WIRE ADJUSTING, NO.1
46441A
NUT, WIRE ADJUSTING, NO.2
46458
RETAINER, CABLE
9017908013
Крепеж
9046814004
Крепеж
9094901445
Крепеж
9161160614
Крепеж
9161660612
Крепеж
9165140816
Крепеж
9165160814
Крепеж
9412040800
Крепеж

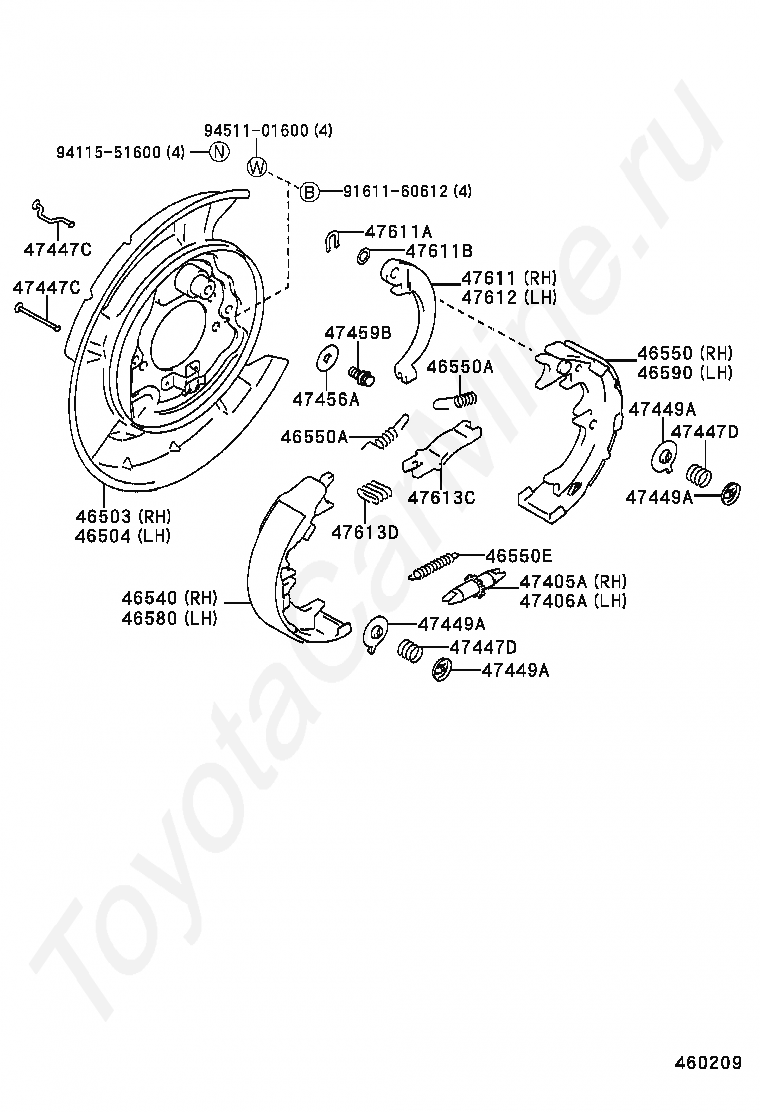

Код
Описание
46503
PLATE SUB-ASSY, PARKING BRAKE, RH
46504
PLATE SUB-ASSY, PARKING BRAKE, LH
46540
SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1
46550
SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2
46550A
SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN)
46550E
SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN)
46580
SHOE ASSY, PARKING BRAKE, LH NO.1
46590
SHOE ASSY, PARKING BRAKE, LH NO.2
47405A
SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE)
47406A
SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE)
47447C
PIN, SHOE HOLD DOWN SPRING(FOR PARKING BRAKE)
47447D
SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN)
47449A
CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE)
47456A
PLATE, SHOE GUIDE(FOR PARKING BRAKE)
47459B
BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE)
47611
LEVER, PARKING BRAKE SHOE, RH
47611A
WASHER, TYPE C(FOR PARKING BRAKE SHOE LEVER)
47611B
SHIM(FOR PARKING BRAKE SHOE LEVER)
47612
LEVER, PARKING BRAKE SHOE, LH
47613C
STRUT, PARKING BRAKE SHOE
47613D
SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT)
9161160612
Крепеж
9411551600
Крепеж
9451101600
Крепеж
