Каталог
Ближний ВостокМодель
CROWNДвигатель
3 литра, 24 клапана, DOHC, EFIКласс
ROYAL SALOON TYPEФрейм
JZS133Трансмиссия
автомат АКПП, 4 ступениОпции
правый руль GENERAL COUNTRIES Q TYPE

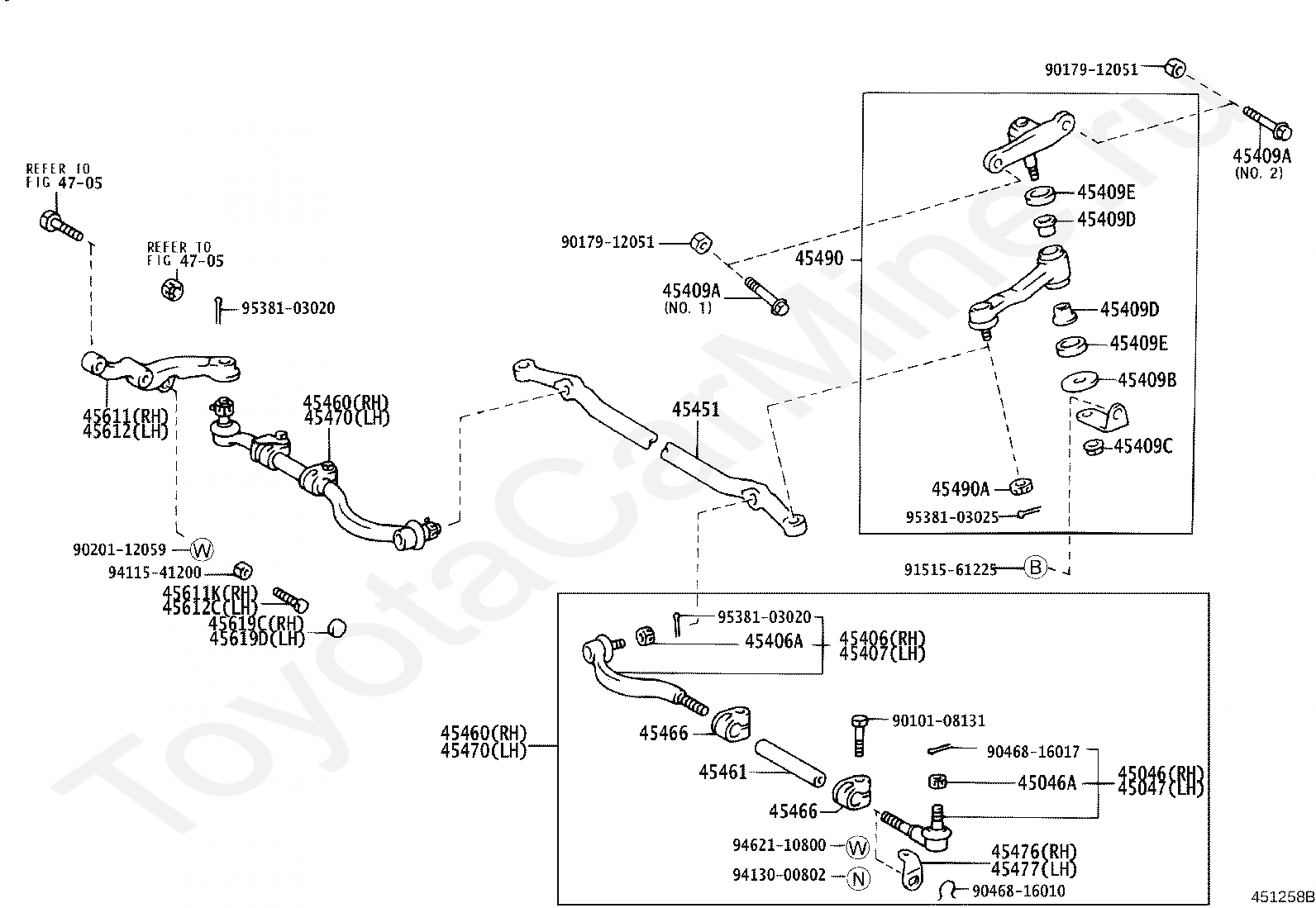

Код
Описание
45046
END SUB-ASSY, TIE ROD, RH
45046A
NUT, CASTLE(FOR TIE ROD END)
45047
END SUB-ASSY, TIE ROD, LH
45406
ROD SUB-ASSY, TIE, RH
45406A
NUT, CASTLE(FOR TIE ROD)
45407
ROD SUB-ASSY, TIE, LH
45409A
BOLT, HEXAGON(FOR IDLER ARM SUPPORT SETTING)
45409B
WASHER, PLATE(FOR IDLER ARM RUBBER BUSH)
45409C
NUT(FOR IDLER ARM SUPPORT)
45409D
BUSH(FOR IDLER ARM)
45409E
SEAL, DUST(FOR IDLER ARM SUPPORT)
45451
ROD, STEERING RELAY
45460
ROD ASSY, TIE, RH
45461
ROD, STEERING TIE
45466
CLAMP, TIE ROD END
45470
ROD ASSY, TIE, LH
45476
PLATE, TURNING STOPPER
45477
PLATE, STOPPER
45490
ARM ASSY, STEERING IDLER
45490A
NUT, CASTLE(FOR IDLER ARM)
45611
ARM, STEERING KNUCKLE, RH
45611K
BOLT(FOR STEERING KNUCKLE STOPPER RH)
45612
ARM, STEERING KNUCKLE, LH
45612C
BOLT(FOR STEERING KNUCKLE STOPPER LH)
45619C
COVER, STEERING KNUCKLE STOPPER, RH
45619D
COVER, STEERING KNUCKLE STOPPER, LH
4705
переход к группе запчастей
9010108131
Крепеж
9017912051
Крепеж
9020112059
Крепеж
9046816010
Крепеж
9046816017
Крепеж
9151561225
Крепеж
9411541200
Крепеж
9413000802
Крепеж
9462110800
Крепеж
9538103020
Крепеж
9538103025
Крепеж

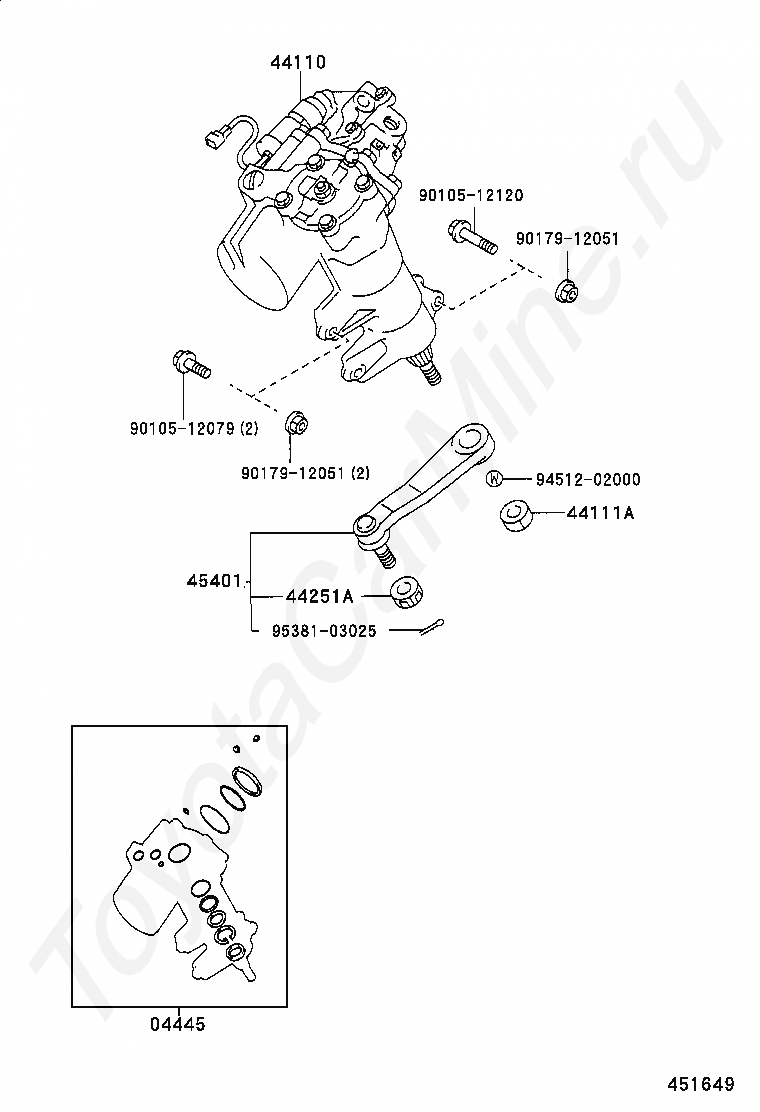

Код
Описание
04445
GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL)
44110
GEAR ASSY, POWER STEERING
44111A
NUT, HEXAGON(FOR CROSS SHAFT TO PITMAN ARM SETTING)
44251A
NUT, CASTLE(FOR PITMAN ARM)
45401
ARM SUB-ASSY, PITMAN
9010512079
Крепеж
9010512120
Крепеж
9017912051
Крепеж
9451202000
Крепеж
9538103025
Крепеж

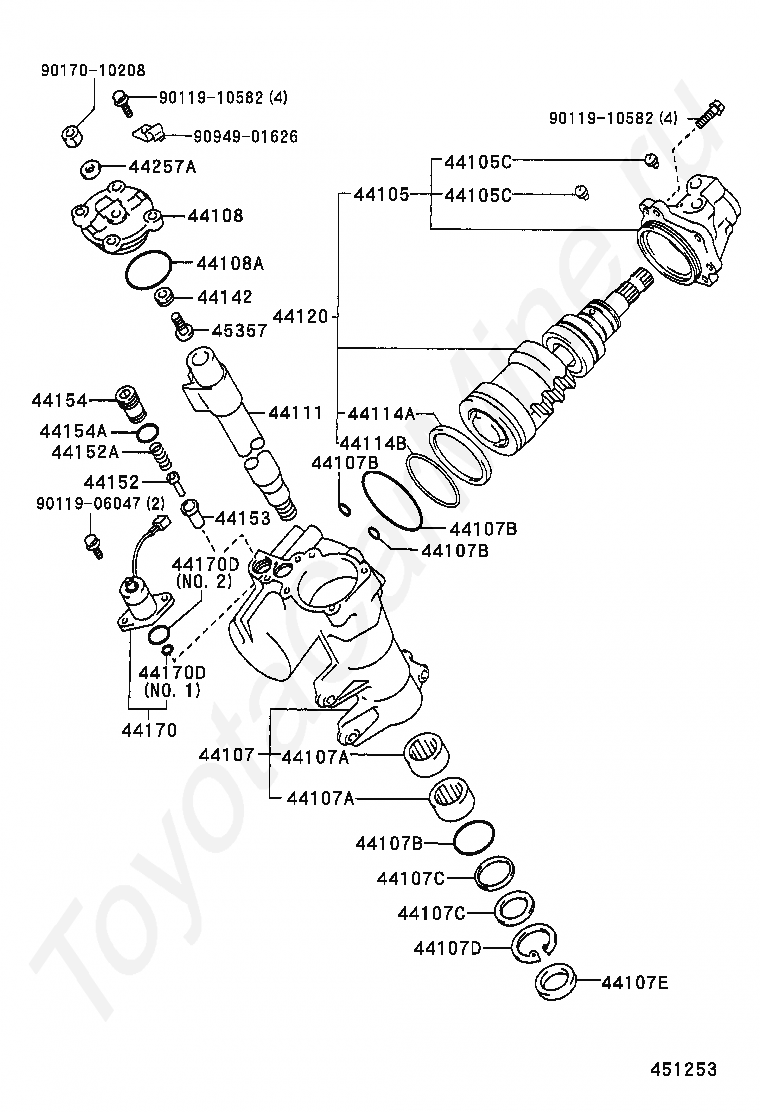

Код
Описание
44105
HOUSING SUB-ASSY, VALVE
44105C
SEAT, UNION(FOR VALVE BODY HOUSING)
44107
HOUSING SUB-ASSY, POWER STEERING GEAR
44107A
BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING)
44107B
RING, O(FOR POWER STEERING GEAR HOUSING)
44107C
RING(FOR POWER STEERING GEAR HOUSING)
44107D
RING, HOLE SNAP(FOR POWER STEERING GEAR HOUSING)
44107E
SEAL, OIL(FOR POWER STEERING GEAR HOUSING)
44108
COVER SUB-ASSY, SIDE
44108A
RING, O(FOR SIDE COVER)
44111
SHAFT, CROSS
44114A
RING(FOR POWER PISTON NUT)
44114B
RING, O(FOR POWER PISTON NUT)
44120
VALVE ASSY, W/BALL NUT
44142
NUT, LOCK
44152
PLUNGER, POWER PISTON
44152A
SPRING, COMPRESSION(FOR POWER PISTON PLUNGER)
44153
GUIDE, POWER PISTON PLUNGER
44154
NUT, POWER PISTON PLUNGER GUIDE
44154A
RING, O(FOR POWER PISTON PLUNGER GUIDE NUT)
44170
VALVE ASSY, SOLENOID(FOR POWER STEERING)
44170D
RING, O(FOR POWER STEERING SOLENOID VALVE)
44257A
WASHER, SEAL(FOR CROSS SHAFT ADJUSTING SCREW)
45357
SCREW, SECTOR SHAFT ADJUSTING
9011906047
Крепеж
9011910582
Крепеж
9017010208
Крепеж
9094901626
Крепеж

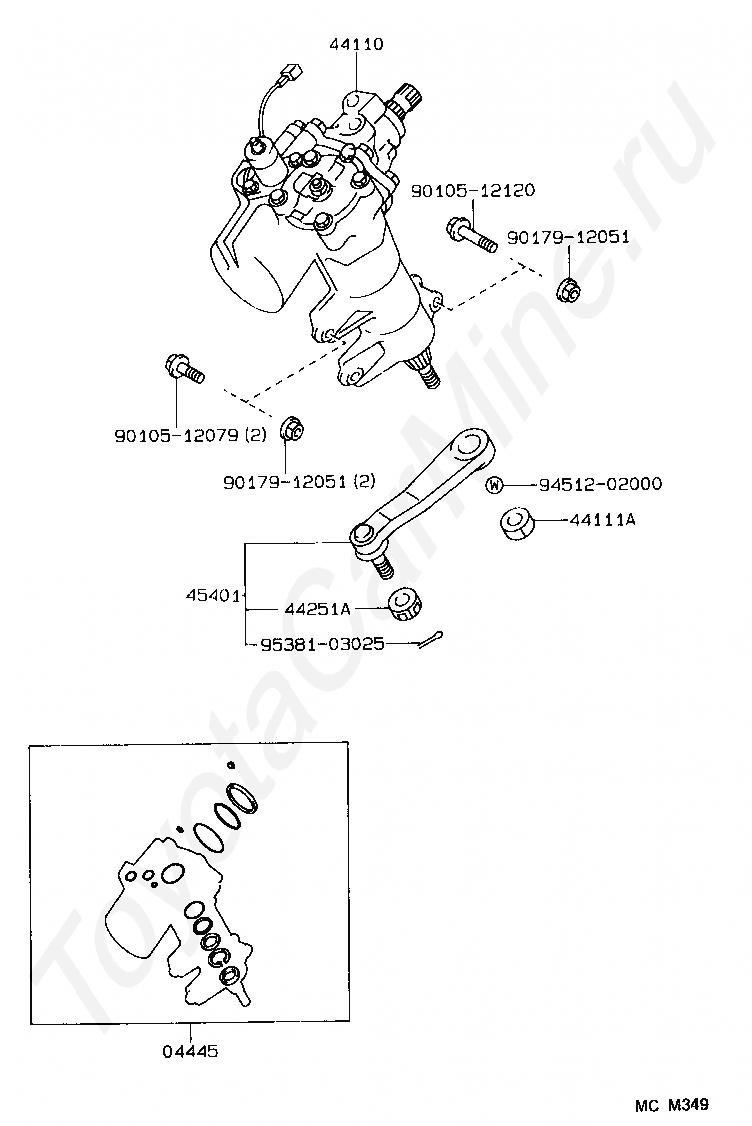

Код
Описание
04445
GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL)
44110
GEAR ASSY, POWER STEERING
44111A
NUT, HEXAGON(FOR CROSS SHAFT TO PITMAN ARM SETTING)
44251A
NUT, CASTLE(FOR PITMAN ARM)
45401
ARM SUB-ASSY, PITMAN
9010512079
Крепеж
9010512120
Крепеж
9017912051
Крепеж
9451202000
Крепеж
9538103025
Крепеж

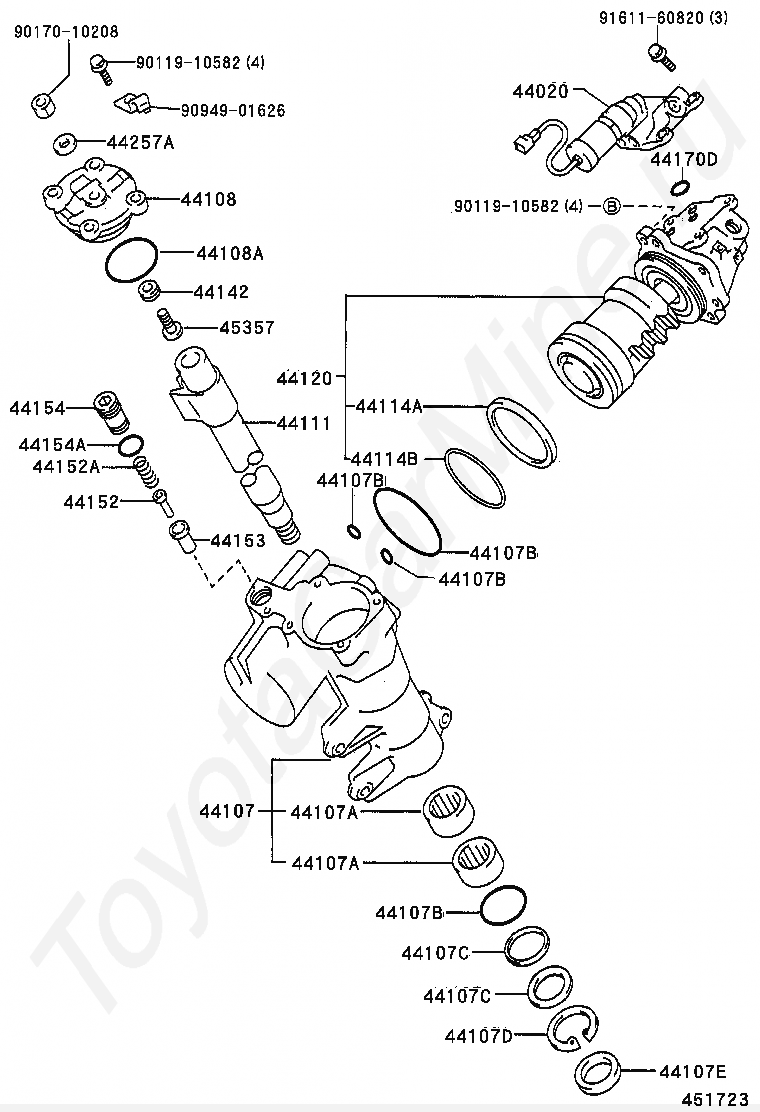

Код
Описание
44020
VALVE ASSY, PRESSURE CONTROL W/SOLENOID VALVE
44107
HOUSING SUB-ASSY, POWER STEERING GEAR
44107A
BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING)
44107B
RING, O(FOR POWER STEERING GEAR HOUSING)
44107C
RING(FOR POWER STEERING GEAR HOUSING)
44107D
RING, HOLE SNAP(FOR POWER STEERING GEAR HOUSING)
44107E
SEAL, OIL(FOR POWER STEERING GEAR HOUSING)
44108
COVER SUB-ASSY, SIDE
44108A
RING, O(FOR SIDE COVER)
44111
SHAFT, CROSS
44114A
RING(FOR POWER PISTON NUT)
44114B
RING, O(FOR POWER PISTON NUT)
44120
VALVE ASSY, W/BALL NUT
44142
NUT, LOCK
44152
PLUNGER, POWER PISTON
44152A
SPRING, COMPRESSION(FOR POWER PISTON PLUNGER)
44153
GUIDE, POWER PISTON PLUNGER
44154
NUT, POWER PISTON PLUNGER GUIDE
44154A
RING, O(FOR POWER PISTON PLUNGER GUIDE NUT)
44170D
RING, O(FOR POWER STEERING SOLENOID VALVE)
44257A
WASHER, SEAL(FOR CROSS SHAFT ADJUSTING SCREW)
45357
SCREW, SECTOR SHAFT ADJUSTING
9011910582
Крепеж
9017010208
Крепеж
9094901626
Крепеж
9161160820
Крепеж
