Задняя рулевая рейка TOYOTA CARINA ED, 1993/09 - 1995/08, 2 литра, 16 клапанов, DOHC, EFI, G-LIMITED TYPE, ST202, механика

Каталог

Япония

Модель

CARINA ED

Двигатель

2 литра, 16 клапанов, DOHC, EFI

Класс

G-LIMITED TYPE

Фрейм

ST202

Трансмиссия

механика

Опции

Двигатель

Подвеска

Кузов

Электрика

  • 1
  • 2
  • 3
  • 4
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

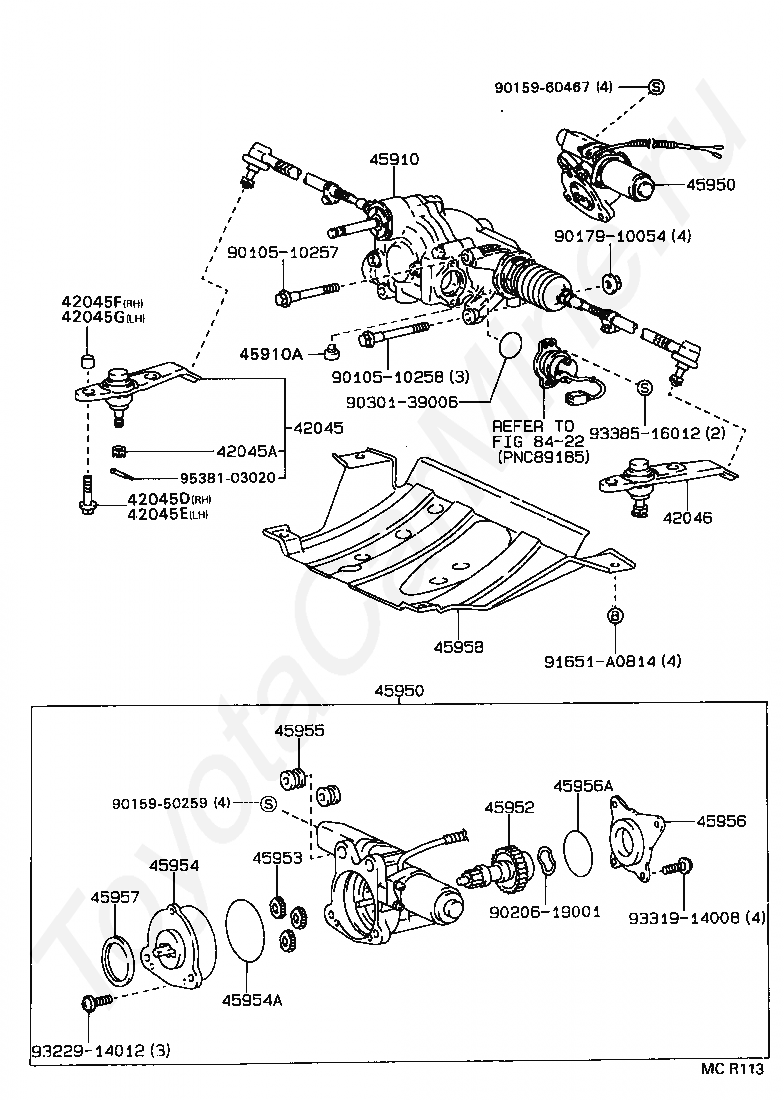

Код

Описание

42045

ARM SUB-ASSY, REAR STEERING KNUCKLE, RH

42045A

NUT (FOR REAR STEERING KNUCKLE ARM)

42045D

BOLT (FOR REAR STEERING KNUCKLE ARM, RH)

42045E

BOLT (FOR REAR STEERING KNUCKLE ARM, LH)

42045F

PIN (FOR REAR STEERING KNUCKLE ARM, RH)

42045G

PIN (FOR REAR STEERING KNUCKLE ARM, LH)

42046

ARM SUB-ASSY, REAR STEERING KNUCKLE, LH

45910

GEAR ASSY, REAR STEERING

45910A

BOLT(FOR REAR STEERING GEAR)

45950

CONVERTER ASSY, REAR STEERING ANGLE RATIO

45952

SHAFT, REAR STEERING ANGLE RATIO CONVERTER

45953

GEAR, REAR STEERING ANGLE RATIO CONVERTER

45954

FRAME, REAR STEERING ANGLE RATIO CONVERTER

45954A

RING, O(FOR REAR STEERING ANGLE RATIO CONVERTER FRAME)

45955

BUSH, REAR STEERING ANGLE RATIO CONVERTER

45956

CAP, REAR STEERING ANGLE RATIO CONVERTER

45956A

RING, O(FOR REAR STEERING ANGLE RATIO CONVERTER CAP)

45957

SEAL(FOR REAR STEERING ANGLE RATIO CONVERTER)

45958

PROTECTOR, REAR STEERING ANGLE RATIO CONVERTER

8422

переход к группе запчастей

9010510257

Крепеж

9010510258

Крепеж

9015950259

Крепеж

9015960467

Крепеж

9017910054

Крепеж

9020619001

Крепеж

9030139006

Крепеж

91651A0814

Крепеж

9322914012

Крепеж

9331914008

Крепеж

9338516012

Крепеж

9538103020

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

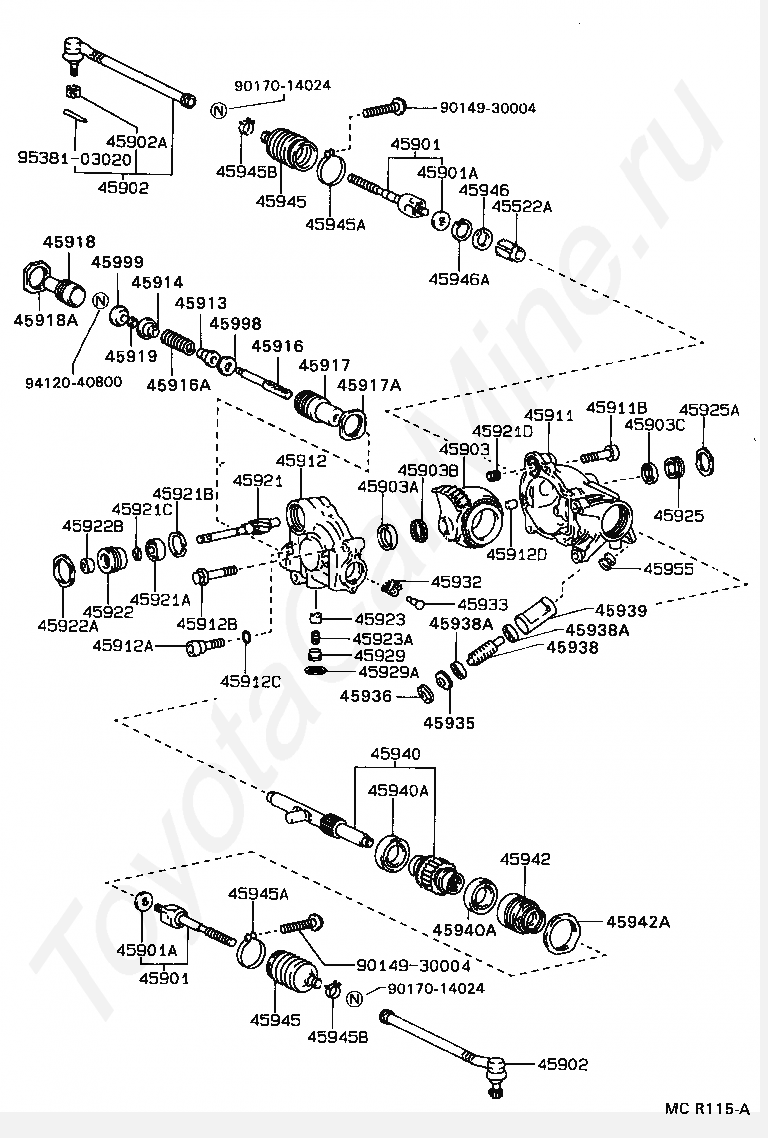

Код

Описание

45522A

BUSH, STEERING RACK

45901

END SUB-ASSY, REAR STEERING RACK

45901A

WASHER, CLAW(FOR REAR STEERING GEAR ASSY)

45902

END SUB-ASSY, REAR STEERING TIE ROD

45902A

NUT, CASTLE(FOR REAR STEERING TIE ROD END)

45903

BEARING SUB-ASSY, REAR STEERING PIVOT

45903A

BEARING, FRONT(FOR REAR STEERING PIVOT BEARING)

45903B

BEARING, FRONT NO.2(FOR REAR STEERING PIVOT BEARING)

45903C

BEARING, REAR(FOR REAR STEERING PIVOT BEARING)

45911

HOUSING, REAR STEERING GEAR

45911B

BOLT, NO.2(FOR REAR STEERING GEAR HOUSING)

45912

COVER, REAR STEERING GEAR

45912A

BOLT, HEAD CAP(FOR REAR STEERING GEAR COVER)

45912B

BOLT(FOR REAR STEERING GEAR COVER)

45912C

RING, O(FOR REAR STEERING GEAR COVER)

45912D

PIN, SLOTTED SPRING(FOR REAR STEERING GEAR)

45913

RETAINER, REAR STEERING RETURN SPRING

45914

RETAINER, REAR STEERING RETURN SPRING, NO.2

45916

RACK, REAR STEERING RETURN

45916A

SPRING, COMPRESSION(REAR STEERING RETURN RACK)

45917

HOLDER, REAR STEERING RETURN RACK SPRING

45917A

NUT(REAR STEERING RETURN RACK ASSY)

45918

HOLDER, NO.2, REAR STEERING RETURN RACK SPRING

45918A

NUT, NO.2(REAR STEERING RETURN RACK ASSY)

45919

STOPPER, REAR STEERING RETURN SPRING RETAINER

45921

PINION, REAR STEERING GEAR

45921A

BEARING, FRONT(FOR REAR STEERING GEAR PINION)

45921B

RING, SNAP(FOR REAR STEERING GEAR PINION NO.1)

45921C

RING, SNAP(FOR REAR STEERING GEAR PINION NO.2)

45921D

BEARING, REAR(FOR REAR STEERING GEAR PINION)

45922

SCREW, REAR STEERING GEAR PINION BEARING ADJUST

45922A

NUT(FOR REAR STEERING PINION BEARING ADJUST SCREW)

45922B

SEAL, OIL(FOR REAR STEERING PINION BEARING ADJUST SCREW)

45923

GUISE, REAR STEERING RETURN RACK

45923A

SPRING(FOR REAR STEERING RETURN RACK GUIDE)

45925

CAP, REAR STEERING PIVOT BEARING

45925A

NUT(FOR REAR STEERING PIVOT BEARING CAP)

45929

CAP, REAR STEERING RETURN RACK GUIDE SPRING

45929A

NUT(FOR REAR STEERING RETURN RACK GUIDE SPRING CAP)

45932

GEAR, REAR STEERING SENSOR DRIVE, NO.2

45933

SHAFT, REAR STEERING SENSOR DRIVE GEAR

45935

NUT, REAR STEERING WORM ADJUST, NO,1

45936

NUT, REAR STEERING WORM ADJUST, NO,2

45938

WORM, REAR STEERING LEVER RATIO CONTROL

45938A

BEARING(FOR REAR STEERING LEVER RATIO CONTROL WORM)

45939

CAM, REAR STEERING WORM CONTROL

45940

WORM ASSY, REAR STEERING RELAY

45940A

BEARING(FOR REAR STEERING RELAY WORM)

45942

CAP, REAR STEERING RELAY ROD

45942A

NUT(FOR REAR STEERING RELAY ROD CAP)

45945

BOOT, REAR STEERING RELAY ROD

45945A

CLAMP(FOR REAR STEERING RELAY ROD BOOT)

45945B

CLIP(FOR REAR STEERING RELAY ROD BOOT)

45946

STOPPER, REAR STEERING RELAY ROD

45946A

RING, SNAP(FOR REAR STEERING RELAY ROD STOPPER)

45955

BUSH, REAR STEERING ANGLE RATIO CONVERTER

45998

CUSHION(FOR REAR STEERING RETURN RACK)

45999

CUSHION, NO.2(FOR REAR STEERING RETURN RACK)

9014930004

Крепеж

9017014024

Крепеж

9412040800

Крепеж

9538103020

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

42045

ARM SUB-ASSY, REAR STEERING KNUCKLE, RH

42045A

NUT (FOR REAR STEERING KNUCKLE ARM)

42045D

BOLT (FOR REAR STEERING KNUCKLE ARM, RH)

42045E

BOLT (FOR REAR STEERING KNUCKLE ARM, LH)

42045F

PIN (FOR REAR STEERING KNUCKLE ARM, RH)

42045G

PIN (FOR REAR STEERING KNUCKLE ARM, LH)

42046

ARM SUB-ASSY, REAR STEERING KNUCKLE, LH

45910

GEAR ASSY, REAR STEERING

45910A

BOLT(FOR REAR STEERING GEAR)

45950

CONVERTER ASSY, REAR STEERING ANGLE RATIO

45952

SHAFT, REAR STEERING ANGLE RATIO CONVERTER

45953

GEAR, REAR STEERING ANGLE RATIO CONVERTER

45954

FRAME, REAR STEERING ANGLE RATIO CONVERTER

45954A

RING, O(FOR REAR STEERING ANGLE RATIO CONVERTER FRAME)

45955

BUSH, REAR STEERING ANGLE RATIO CONVERTER

45956

CAP, REAR STEERING ANGLE RATIO CONVERTER

45956A

RING, O(FOR REAR STEERING ANGLE RATIO CONVERTER CAP)

45957

SEAL(FOR REAR STEERING ANGLE RATIO CONVERTER)

45958

PROTECTOR, REAR STEERING ANGLE RATIO CONVERTER

8422

переход к группе запчастей

9010510257

Крепеж

9010510258

Крепеж

9015950259

Крепеж

9015960467

Крепеж

9017910054

Крепеж

9020619001

Крепеж

9030139006

Крепеж

91651A0814

Крепеж

9322914012

Крепеж

9331914008

Крепеж

9338516012

Крепеж

9538103020

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

45522A

BUSH, STEERING RACK

45901

END SUB-ASSY, REAR STEERING RACK

45901A

WASHER, CLAW(FOR REAR STEERING GEAR ASSY)

45902

END SUB-ASSY, REAR STEERING TIE ROD

45902A

NUT, CASTLE(FOR REAR STEERING TIE ROD END)

45903

BEARING SUB-ASSY, REAR STEERING PIVOT

45903A

BEARING, FRONT(FOR REAR STEERING PIVOT BEARING)

45903B

BEARING, FRONT NO.2(FOR REAR STEERING PIVOT BEARING)

45903C

BEARING, REAR(FOR REAR STEERING PIVOT BEARING)

45911

HOUSING, REAR STEERING GEAR

45911B

BOLT, NO.2(FOR REAR STEERING GEAR HOUSING)

45912

COVER, REAR STEERING GEAR

45912A

BOLT, HEAD CAP(FOR REAR STEERING GEAR COVER)

45912B

BOLT(FOR REAR STEERING GEAR COVER)

45912C

RING, O(FOR REAR STEERING GEAR COVER)

45912D

PIN, SLOTTED SPRING(FOR REAR STEERING GEAR)

45913

RETAINER, REAR STEERING RETURN SPRING

45914

RETAINER, REAR STEERING RETURN SPRING, NO.2

45916

RACK, REAR STEERING RETURN

45916A

SPRING, COMPRESSION(REAR STEERING RETURN RACK)

45917

HOLDER, REAR STEERING RETURN RACK SPRING

45917A

NUT(REAR STEERING RETURN RACK ASSY)

45918

HOLDER, NO.2, REAR STEERING RETURN RACK SPRING

45918A

NUT, NO.2(REAR STEERING RETURN RACK ASSY)

45919

STOPPER, REAR STEERING RETURN SPRING RETAINER

45921

PINION, REAR STEERING GEAR

45921A

BEARING, FRONT(FOR REAR STEERING GEAR PINION)

45921B

RING, SNAP(FOR REAR STEERING GEAR PINION NO.1)

45921C

RING, SNAP(FOR REAR STEERING GEAR PINION NO.2)

45921D

BEARING, REAR(FOR REAR STEERING GEAR PINION)

45922

SCREW, REAR STEERING GEAR PINION BEARING ADJUST

45922A

NUT(FOR REAR STEERING PINION BEARING ADJUST SCREW)

45922B

SEAL, OIL(FOR REAR STEERING PINION BEARING ADJUST SCREW)

45923

GUISE, REAR STEERING RETURN RACK

45923A

SPRING(FOR REAR STEERING RETURN RACK GUIDE)

45925

CAP, REAR STEERING PIVOT BEARING

45925A

NUT(FOR REAR STEERING PIVOT BEARING CAP)

45929

CAP, REAR STEERING RETURN RACK GUIDE SPRING

45929A

NUT(FOR REAR STEERING RETURN RACK GUIDE SPRING CAP)

45932

GEAR, REAR STEERING SENSOR DRIVE, NO.2

45933

SHAFT, REAR STEERING SENSOR DRIVE GEAR

45935

NUT, REAR STEERING WORM ADJUST, NO,1

45936

NUT, REAR STEERING WORM ADJUST, NO,2

45938

WORM, REAR STEERING LEVER RATIO CONTROL

45938A

BEARING(FOR REAR STEERING LEVER RATIO CONTROL WORM)

45939

CAM, REAR STEERING WORM CONTROL

45940

WORM ASSY, REAR STEERING RELAY

45940A

BEARING(FOR REAR STEERING RELAY WORM)

45942

CAP, REAR STEERING RELAY ROD

45942A

NUT(FOR REAR STEERING RELAY ROD CAP)

45945

BOOT, REAR STEERING RELAY ROD

45945A

CLAMP(FOR REAR STEERING RELAY ROD BOOT)

45945B

CLIP(FOR REAR STEERING RELAY ROD BOOT)

45946

STOPPER, REAR STEERING RELAY ROD

45946A

RING, SNAP(FOR REAR STEERING RELAY ROD STOPPER)

45955

BUSH, REAR STEERING ANGLE RATIO CONVERTER

45998

CUSHION(FOR REAR STEERING RETURN RACK)

45999

CUSHION, NO.2(FOR REAR STEERING RETURN RACK)

9014930004

Крепеж

9017014024

Крепеж

9412040800

Крепеж

9538103020

Крепеж
