Каталог
ЯпонияМодель
CARINA EDДвигатель
2 литра, 16 клапанов, DOHC, EFIКласс
G-LIMITED TYPEФрейм
ST202Трансмиссия
механикаОпции
Код
Описание

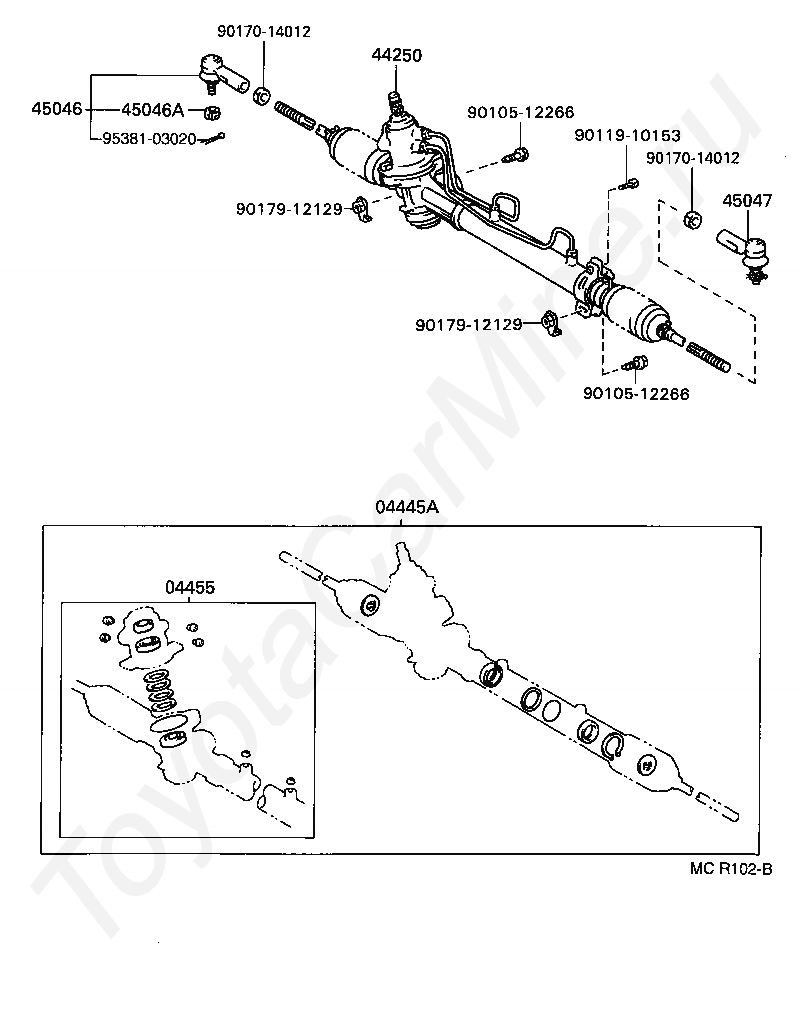

04445A
GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)
04455
GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE
44250
GEAR ASSY, POWER STEERING(FOR RACK & PINION)
45046
END SUB-ASSY, TIE ROD, RH
45046A
NUT, CASTLE(FOR TIE ROD END)
45047
END SUB-ASSY, TIE ROD, LH
9010512266
Крепеж
9011910153
Крепеж
9017014012
Крепеж
9017912129
Крепеж
9538103020
Крепеж
Код
Описание

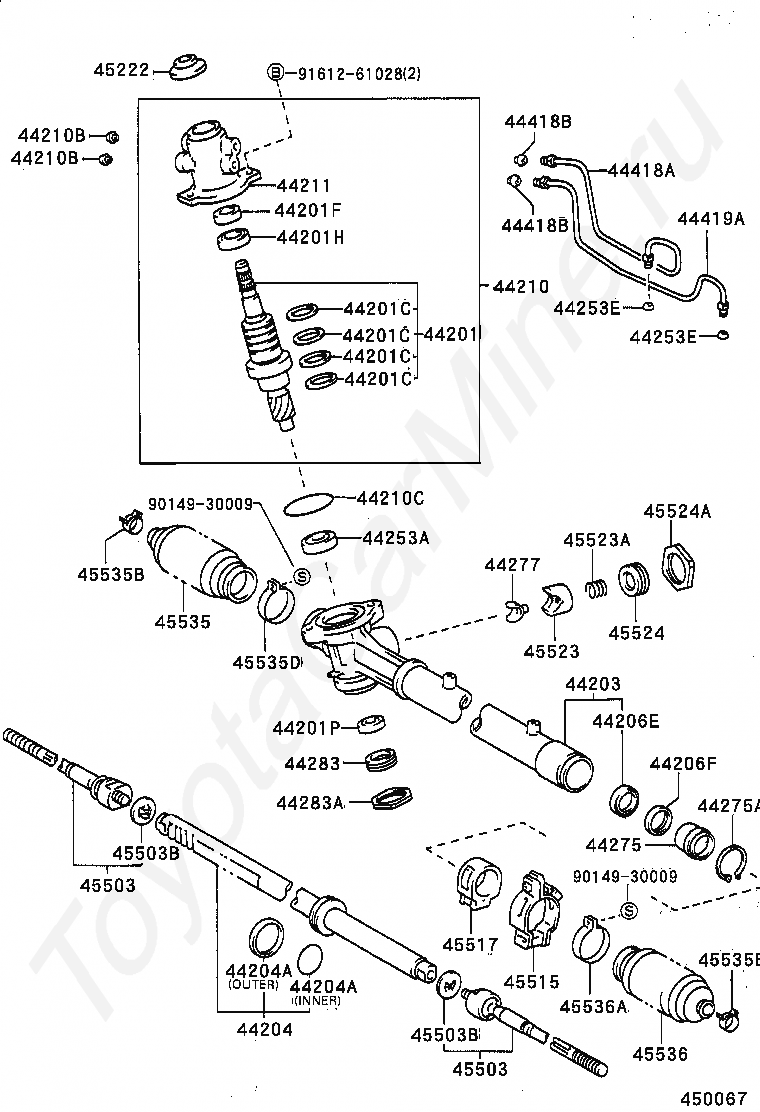

44201
VALVE SUB-ASSY, POWER STEERING CONTROL
44201C
RING(FOR POWER STEERING CONTROL VALVE)
44201F
SEAL, OIL(FOR POWER STEERING CONTROL VALVE)
44201H
BEARING(FOR POWER STEERING CONTROL VALVE UPPER)
44201P
BEARING(FOR POWER STEERING CONTROL VALVE LOWER)
44203
HOUSING SUB-ASSY, POWER STEERING RACK
44204
RACK SUB-ASSY, POWER STEERING
44204A
RING(FOR RACK STEERING PISTON)
44206E
SEAL, OIL, NO.1(FOR POWER STEERING CYLINDER TUBE)
44206F
SEAL, OIL, NO.2(FOR POWER STEERING CYLINDER TUBE)
44210
VALVE ASSY, POWER STEERING CONTROL
44210B
SEAT, UNION(FOR POWER STEERING CONTROL VALVE)
44210C
RING, O(FOR POWER STEERING CONTROL VALVE)
44211
HOUSING, CONTROL VALVE
44253A
SEAL, OIL(FOR POWER STEERING RACK HOUSING)
44253E
SEAT, UNION(FOR POWER STEERING RACK HOUSING)
44275
STOPPER, CYLINDER END
44275A
RING, HOLE SNAP(FOR CYLINDER END STOPPER)
44277
SEAT, RACK GUIDE
44283
CAP, RACK HOUSING
44283A
NUT(FOR RACK HOUSING CAP)
44418A
TUBE, STEERING RIGHT TURN PRESSURE
44418B
SEAT, UNION(FOR STEERING TURN PRESSURE TUBE)
44419A
TUBE, STEERING LEFT TURN PRESSURE
45222
COVER, STEERING GEAR DUST
45503
END SUB-ASSY, STEERING RACK
45503B
WASHER, CLAW(FOR STEERING RACK END)
45515
BRACKET, STEERING RACK HOUSING, NO.2
45517
GROMMET, STEERING RACK HOUSING, NO.2
45523
GUIDE, RACK(FOR STEERING GEAR)
45523A
SPRING(FOR STEERING GEAR RACK GUIDE)
45524
CAP, STEERING RACK GUIDE SPRING
45524A
NUT(FOR STEERING RACK GUIDE SPRING CAP)
45535
BOOT, STEERING RACK, NO.1
45535B
CLIP(FOR STEERING RACK BOOT)
45535D
CLAMP(FOR STEERING RACK BOOT NO.1)
45536
BOOT, STEERING RACK, NO.2
45536A
CLAMP(FOR STEERING RACK BOOT NO.2)
9014930009
Крепеж
9161261028
Крепеж
Код
Описание
04445A
GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)
04455
GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE
44250
GEAR ASSY, POWER STEERING(FOR RACK & PINION)
45046
END SUB-ASSY, TIE ROD, RH
45046A
NUT, CASTLE(FOR TIE ROD END)
45047
END SUB-ASSY, TIE ROD, LH
9010512266
Крепеж
9011910153
Крепеж
9017014012
Крепеж
9017912129
Крепеж
9538103020
Крепеж
Код
Описание
44201
VALVE SUB-ASSY, POWER STEERING CONTROL
44201C
RING(FOR POWER STEERING CONTROL VALVE)
44201F
SEAL, OIL(FOR POWER STEERING CONTROL VALVE)
44201H
BEARING(FOR POWER STEERING CONTROL VALVE UPPER)
44201P
BEARING(FOR POWER STEERING CONTROL VALVE LOWER)
44203
HOUSING SUB-ASSY, POWER STEERING RACK
44204
RACK SUB-ASSY, POWER STEERING
44204A
RING(FOR RACK STEERING PISTON)
44206E
SEAL, OIL, NO.1(FOR POWER STEERING CYLINDER TUBE)
44206F
SEAL, OIL, NO.2(FOR POWER STEERING CYLINDER TUBE)
44210
VALVE ASSY, POWER STEERING CONTROL
44210B
SEAT, UNION(FOR POWER STEERING CONTROL VALVE)
44210C
RING, O(FOR POWER STEERING CONTROL VALVE)
44211
HOUSING, CONTROL VALVE
44253A
SEAL, OIL(FOR POWER STEERING RACK HOUSING)
44253E
SEAT, UNION(FOR POWER STEERING RACK HOUSING)
44275
STOPPER, CYLINDER END
44275A
RING, HOLE SNAP(FOR CYLINDER END STOPPER)
44277
SEAT, RACK GUIDE
44283
CAP, RACK HOUSING
44283A
NUT(FOR RACK HOUSING CAP)
44418A
TUBE, STEERING RIGHT TURN PRESSURE
44418B
SEAT, UNION(FOR STEERING TURN PRESSURE TUBE)
44419A
TUBE, STEERING LEFT TURN PRESSURE
45222
COVER, STEERING GEAR DUST
45503
END SUB-ASSY, STEERING RACK
45503B
WASHER, CLAW(FOR STEERING RACK END)
45515
BRACKET, STEERING RACK HOUSING, NO.2
45517
GROMMET, STEERING RACK HOUSING, NO.2
45523
GUIDE, RACK(FOR STEERING GEAR)
45523A
SPRING(FOR STEERING GEAR RACK GUIDE)
45524
CAP, STEERING RACK GUIDE SPRING
45524A
NUT(FOR STEERING RACK GUIDE SPRING CAP)
45535
BOOT, STEERING RACK, NO.1
45535B
CLIP(FOR STEERING RACK BOOT)
45535D
CLAMP(FOR STEERING RACK BOOT NO.1)
45536
BOOT, STEERING RACK, NO.2
45536A
CLAMP(FOR STEERING RACK BOOT NO.2)
9014930009
Крепеж
9161261028
Крепеж
