Задние кресла TOYOTA YARIS, 2016/07 - 2017/08, 1,3 литра, 16 клапанов DOHC, EFI, NSP150, вариатор

Каталог

Ближний Восток

Модель

YARIS

Двигатель

1,3 литра, 16 клапанов DOHC, EFI

Фрейм

NSP150

Трансмиссия

вариатор

Опции

левый руль 5 дверей страны Персидского залива G A 565W

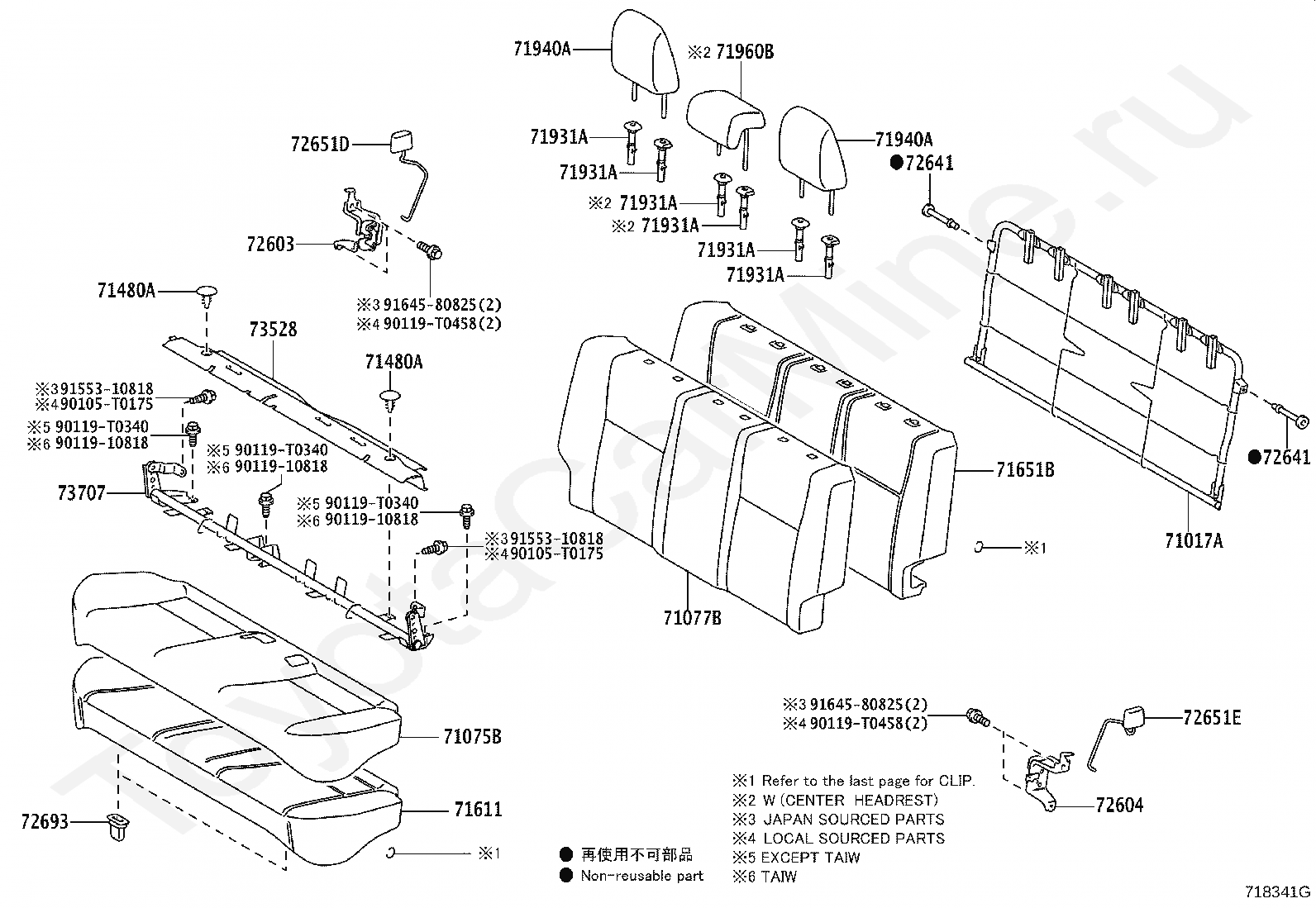

Код

Описание

71017A

FRAME SUB-ASSY, REAR SEAT BACK

71075B

COVER, REAR SEAT CUSHION (FOR BENCH TYPE)

71077B

COVER, REAR SEAT BACK (FOR BENCH TYPE)

71480A

CLIP (FOR REAR SEAT BACK)

71611

PAD, REAR SEAT CUSHION

71651B

PAD, REAR SEAT BACK(FOR BENCH TYPE)

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71960B

HEADREST ASSY, REAR SEAT, CENTER

72603

LOCK SUB-ASSY, REAR SEAT BACK, RH

72604

LOCK SUB-ASSY, REAR SEAT BACK, LH

72641

PIN, REAR SEAT BACK LOCK

72651D

ROD, REAR SEAT BACK LOCK, RH

72651E

ROD, REAR SEAT BACK LOCK, LH

72693

HOOK, REAR SEAT CUSHION LOCK

73528

CARPET, REAR SEAT SUB FLOOR, REAR

73707

BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, INNER

90105T0175

Крепеж

9011910818

Крепеж

90119T0340

Крепеж

90119T0458

Крепеж

9155310818

Крепеж

9164580825

Крепеж

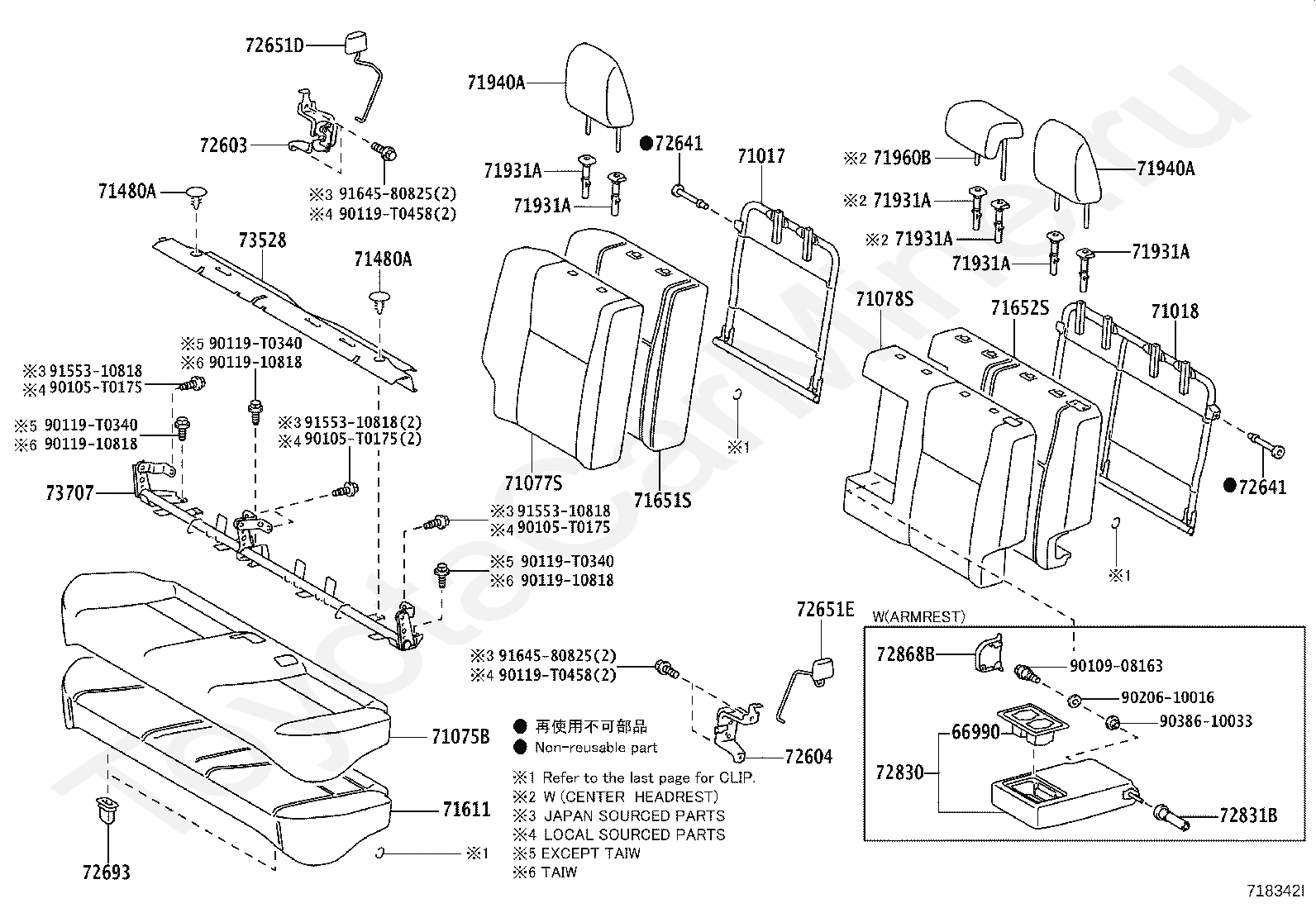

Код

Описание

66990

HOLDER ASSY, CUP

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

71075B

COVER, REAR SEAT CUSHION (FOR BENCH TYPE)

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71480A

CLIP (FOR REAR SEAT BACK)

71611

PAD, REAR SEAT CUSHION

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71960B

HEADREST ASSY, REAR SEAT, CENTER

72603

LOCK SUB-ASSY, REAR SEAT BACK, RH

72604

LOCK SUB-ASSY, REAR SEAT BACK, LH

72641

PIN, REAR SEAT BACK LOCK

72651D

ROD, REAR SEAT BACK LOCK, RH

72651E

ROD, REAR SEAT BACK LOCK, LH

72693

HOOK, REAR SEAT CUSHION LOCK

72830

ARMREST ASSY, REAR SEAT, CENTER

72831B

PLATE, REAR SEAT CENTER ARMREST, NO.1

72868B

COVER, CENTER ARMREST HINGE

73528

CARPET, REAR SEAT SUB FLOOR, REAR

73707

BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, INNER

90105T0175

Крепеж

9010908163

Крепеж

9011910818

Крепеж

90119T0340

Крепеж

90119T0458

Крепеж

9020610016

Крепеж

9038610033

Крепеж

9155310818

Крепеж

9164580825

Крепеж

Код

Описание

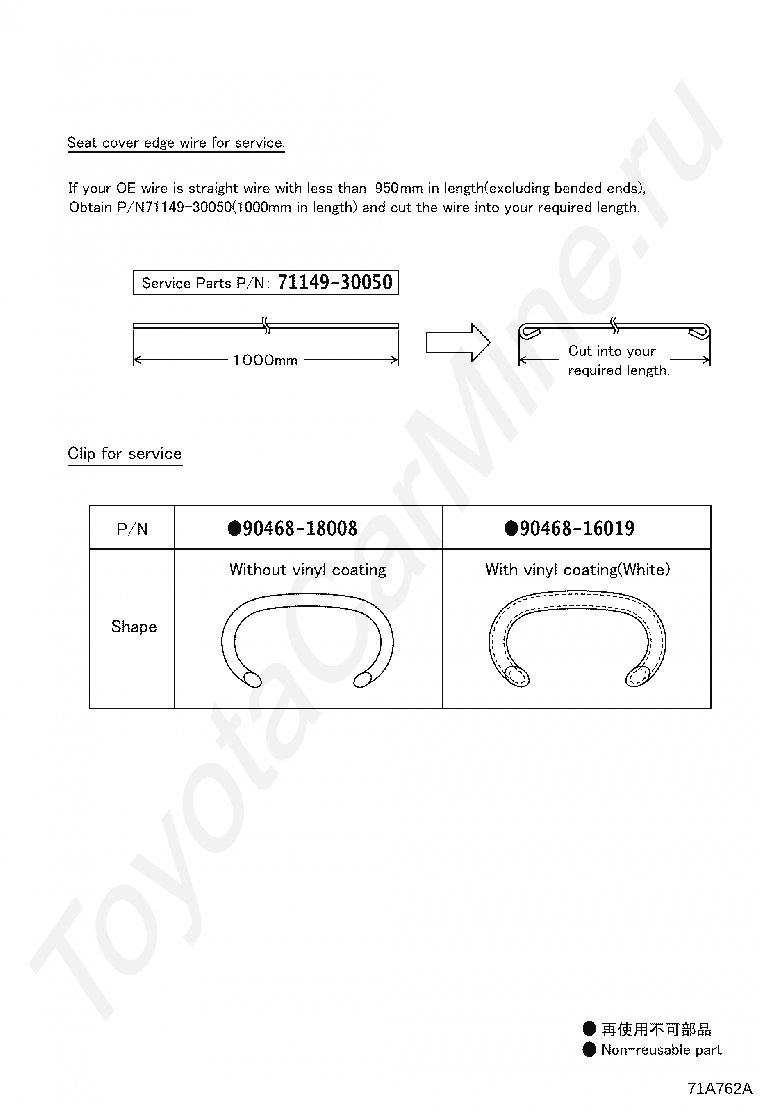

7114930050

Крепеж

9046816019

Крепеж

9046818008

Крепеж

Задние кресла TOYOTA YARIS, 2016/07 - 2017/08, 1,3 литра, 16 клапанов DOHC, EFI, NSP150, вариатор
