Боковая панель кузова TOYOTA YARIS, 2016/07 - 2017/08, 1,3 литра, 16 клапанов DOHC, EFI, NSP150, вариатор

Каталог

Ближний Восток

Модель

YARIS

Двигатель

1,3 литра, 16 клапанов DOHC, EFI

Фрейм

NSP150

Трансмиссия

вариатор

Опции

левый руль 5 дверей страны Персидского залива G A 565W

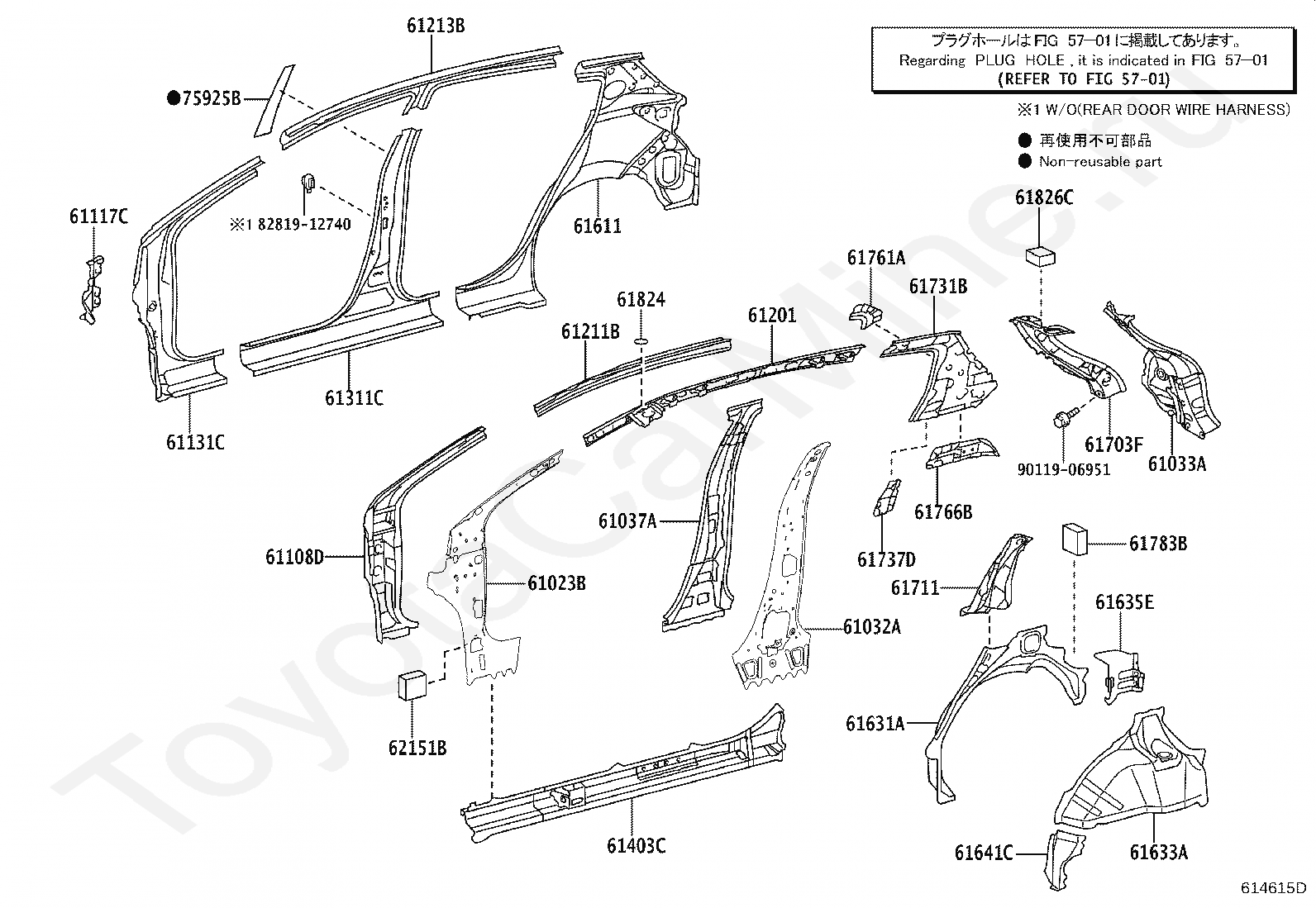

Код

Описание

5701

переход к группе запчастей

61023B

PILLAR SUB-ASSY, FRONT BODY, INNER RH

61032A

PILLAR SUB-ASSY, NO.1 INNER, RH

61033A

REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE

61037A

REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

61108D

REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER RH

61117C

GUSSET, SIDE PANEL TO COWL, RH

61131C

PILLAR, FRONT BODY, OUTER RH

61201

RAIL SUB-ASSY, ROOF SIDE, RH

61211B

RAIL, ROOF SIDE, OUTER REAR RH

61213B

RAIL, ROOF SIDE, OUTER NO.2 RH

61311C

PANEL, REAR BODY FRONT OUTSIDE, RH

61403C

REINFORCE SUB-ASSY, ROCKER, OUTER RH

61611

PANEL, QUARTER, RH

61631A

PANEL, QUARTER WHEEL HOUSE, OUTER RH

61633A

PANEL, QUARTER WHEEL HOUSE, INNER RH

61635E

EXTENSION, QUARTER WHEEL HOUSE, RH

61641C

GUSSET, QUARTER WHEEL HOUSE, FRONT RH

61703F

PANEL SUB-ASSY, QUARTER, INNER FRONT RH

61711

PANEL, ROOF SIDE, OUTER RH

61731B

PANEL, ROOF SIDE, INNER RH

61737D

REINFORCEMENT, ROOF SIDE, INNER RH

61761A

REINFORCE, SEAT BELT ANCHOR, NO.1 UPPER RH

61766B

REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH

61783B

PAD, REAR WHEEL OPENING EXTENSION, NO.1

61824

PLATE, NOISE CONTROL, NO.1

61826C

PAD, NOISE SHUTTER, NO.3

62151B

PAD, COWL SIDE SILENCER

75925B

TAPE, BLACK OUT, NO.3 RH

8281912740

Крепеж

9011906951

Крепеж

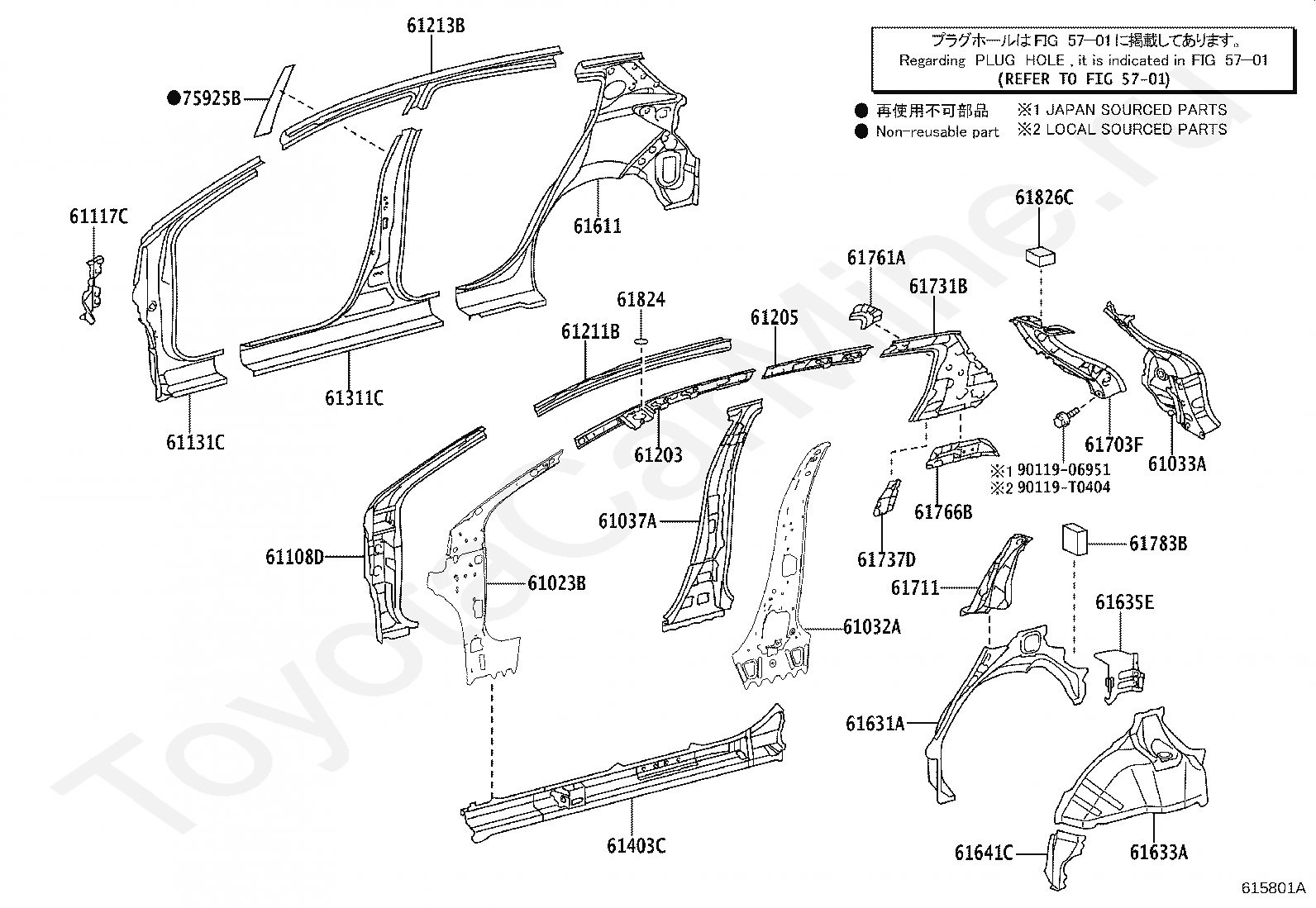

Код

Описание

5701

переход к группе запчастей

61023B

PILLAR SUB-ASSY, FRONT BODY, INNER RH

61032A

PILLAR SUB-ASSY, NO.1 INNER, RH

61033A

REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE

61037A

REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

61108D

REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER RH

61117C

GUSSET, SIDE PANEL TO COWL, RH

61131C

PILLAR, FRONT BODY, OUTER RH

61203

RAIL SUB-ASSY, ROOF SIDE, INNER RH

61205

RAIL SUB-ASSY, ROOF SIDE, INNER REAR RH

61211B

RAIL, ROOF SIDE, OUTER REAR RH

61213B

RAIL, ROOF SIDE, OUTER NO.2 RH

61311C

PANEL, REAR BODY FRONT OUTSIDE, RH

61403C

REINFORCE SUB-ASSY, ROCKER, OUTER RH

61611

PANEL, QUARTER, RH

61631A

PANEL, QUARTER WHEEL HOUSE, OUTER RH

61633A

PANEL, QUARTER WHEEL HOUSE, INNER RH

61635E

EXTENSION, QUARTER WHEEL HOUSE, RH

61641C

GUSSET, QUARTER WHEEL HOUSE, FRONT RH

61703F

PANEL SUB-ASSY, QUARTER, INNER FRONT RH

61711

PANEL, ROOF SIDE, OUTER RH

61731B

PANEL, ROOF SIDE, INNER RH

61737D

REINFORCEMENT, ROOF SIDE, INNER RH

61761A

REINFORCE, SEAT BELT ANCHOR, NO.1 UPPER RH

61766B

REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH

61783B

PAD, REAR WHEEL OPENING EXTENSION, NO.1

61824

PLATE, NOISE CONTROL, NO.1

61826C

PAD, NOISE SHUTTER, NO.3

75925B

TAPE, BLACK OUT, NO.3 RH

9011906951

Крепеж

90119T0404

Крепеж

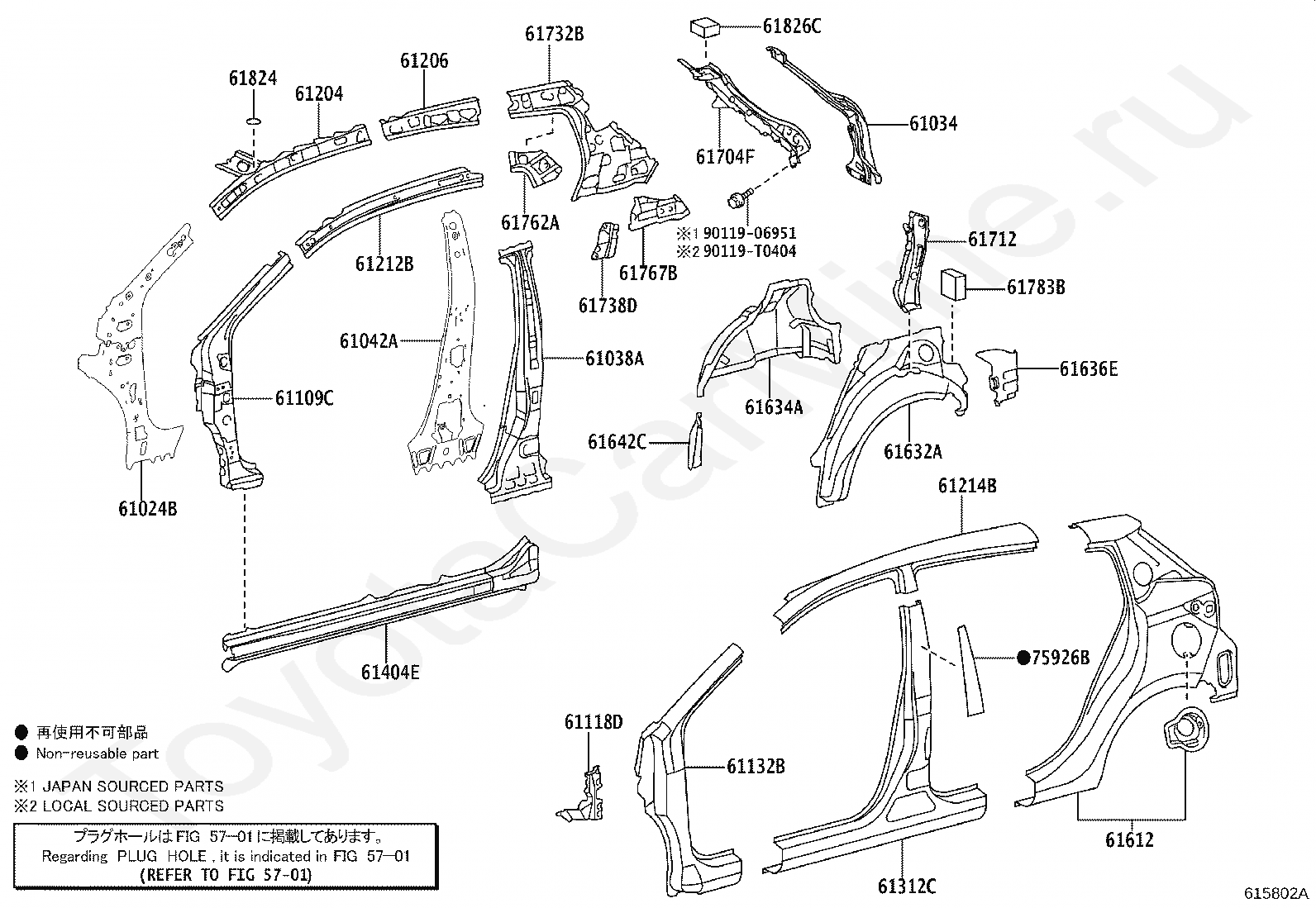

Код

Описание

5701

переход к группе запчастей

61024B

PILLAR SUB-ASSY, FRONT BODY, INNER LH

61034

REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE, LH

61038A

REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH

61042A

PILLAR SUB-ASSY, NO.1 INNER, LH

61109C

REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER LH

61118D

GUSSET, SIDE PANEL TO COWL, LH

61132B

PILLAR, FRONT BODY, OUTER LH

61202

RAIL SUB-ASSY, ROOF SIDE, LH

61212B

RAIL, ROOF SIDE, OUTER REAR LH

61214B

RAIL, ROOF SIDE, OUTER NO.2 LH

61312C

PANEL, REAR BODY FRONT OUTSIDE, LH

61404E

REINFORCE SUB-ASSY, ROCKER, OUTER LH

61612

PANEL, QUARTER, LH

61632A

PANEL, QUARTER WHEEL HOUSE, OUTER LH

61634A

PANEL, QUARTER WHEEL HOUSE, INNER LH

61636E

EXTENSION, QUARTER WHEEL HOUSE, LH

61642C

GUSSET, QUARTER WHEEL HOUSE, FRONT LH

61704F

PANEL SUB-ASSY, QUARTER, INNER FRONT LH

61712

PANEL, ROOF SIDE, OUTER LH

61725

BOX, FUEL INLET

61732B

PANEL, ROOF SIDE, INNER LH

61738D

REINFORCEMENT, ROOF SIDE, INNER LH

61762A

REINFORCE, SEAT BELT ANCHOR, NO.1 UPPER LH

61767B

REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH

61783B

PAD, REAR WHEEL OPENING EXTENSION, NO.1

61824

PLATE, NOISE CONTROL, NO.1

61826C

PAD, NOISE SHUTTER, NO.3

62151B

PAD, COWL SIDE SILENCER

75926B

TAPE, BLACK OUT, NO.3 LH

8281912740

Крепеж

9011906951

Крепеж

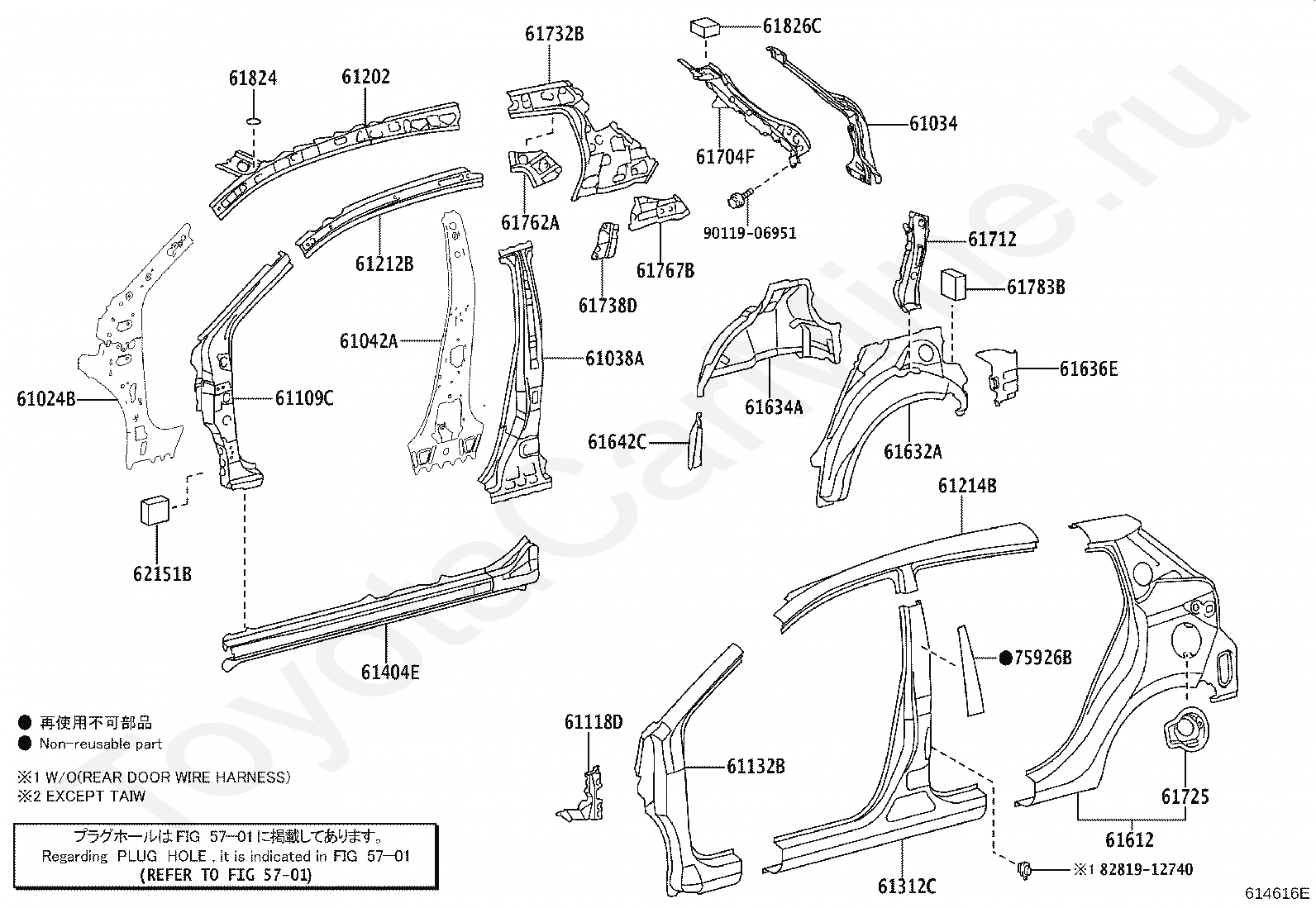

Код

Описание

5701

переход к группе запчастей

61024B

PILLAR SUB-ASSY, FRONT BODY, INNER LH

61034

REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE, LH

61038A

REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH

61042A

PILLAR SUB-ASSY, NO.1 INNER, LH

61109C

REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER LH

61118D

GUSSET, SIDE PANEL TO COWL, LH

61132B

PILLAR, FRONT BODY, OUTER LH

61204

RAIL SUB-ASSY, ROOF SIDE, INNER LH

61206

RAIL SUB-ASSY, ROOF SIDE, INNER REAR LH

61212B

RAIL, ROOF SIDE, OUTER REAR LH

61214B

RAIL, ROOF SIDE, OUTER NO.2 LH

61312C

PANEL, REAR BODY FRONT OUTSIDE, LH

61404E

REINFORCE SUB-ASSY, ROCKER, OUTER LH

61612

PANEL, QUARTER, LH

61632A

PANEL, QUARTER WHEEL HOUSE, OUTER LH

61634A

PANEL, QUARTER WHEEL HOUSE, INNER LH

61636E

EXTENSION, QUARTER WHEEL HOUSE, LH

61642C

GUSSET, QUARTER WHEEL HOUSE, FRONT LH

61704F

PANEL SUB-ASSY, QUARTER, INNER FRONT LH

61712

PANEL, ROOF SIDE, OUTER LH

61732B

PANEL, ROOF SIDE, INNER LH

61738D

REINFORCEMENT, ROOF SIDE, INNER LH

61762A

REINFORCE, SEAT BELT ANCHOR, NO.1 UPPER LH

61767B

REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH

61783B

PAD, REAR WHEEL OPENING EXTENSION, NO.1

61824

PLATE, NOISE CONTROL, NO.1

61826C

PAD, NOISE SHUTTER, NO.3

75926B

TAPE, BLACK OUT, NO.3 LH

9011906951

Крепеж

90119T0404

Крепеж

Боковая панель кузова TOYOTA YARIS, 2016/07 - 2017/08, 1,3 литра, 16 клапанов DOHC, EFI, NSP150, вариатор
