Торпеда с бардачком TOYOTA YARIS, 2016/07 - 2017/08, 1,3 литра, 16 клапанов DOHC, EFI, NSP150, вариатор

Каталог

Ближний Восток

Модель

YARIS

Двигатель

1,3 литра, 16 клапанов DOHC, EFI

Фрейм

NSP150

Трансмиссия

вариатор

Опции

левый руль 5 дверей страны Персидского залива G A 565W

Код

Описание

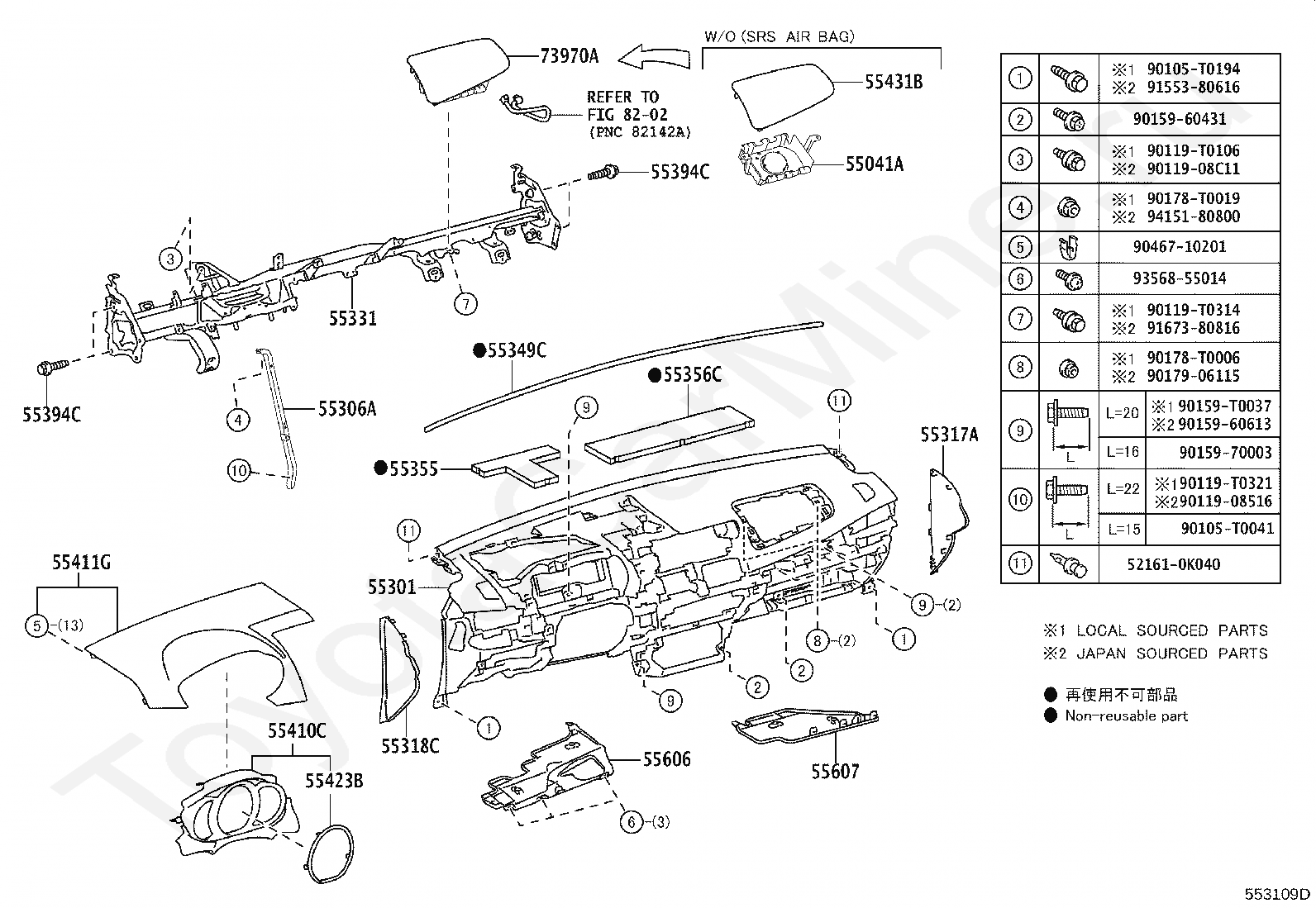

521610K040

Крепеж

55041A

BRACKET SUB-ASSY, AIR BAG PASSENGER MOUNTING

55301

PANEL SUB-ASSY, INSTRUMENT

55306A

BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

55317A

PANEL, INSTRUMENT SIDE, RH

55318C

PANEL, INSTRUMENT SIDE, LH

55331

REINFORCEMENT, INSTRUMENT PANEL

55349C

CUSHION, INSTRUMENT PANEL

55355

CUSHION, INSTRUMENT PANEL, NO.1

55356C

CUSHION, INSTRUMENT PANEL, NO.2

55394C

BOLT, INSTRUMENT PANEL

55410C

PANEL ASSY, INSTRUMENT CLUSTER FINISH

55411G

PANEL, INSTRUMENT CLUSTER FINISH, NO.1

55423B

COVER, INSTRUMENT CLUSTER FINISH PANEL

55431B

PANEL, INSTRUMENT PANEL FINISH, UPPER

55606

COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

55607

COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

73970A

AIR BAG ASSY, INSTRUMENT PANEL PASSENGER

8202

переход к группе запчастей

90105T0041

Крепеж

90105T0194

Крепеж

9011908516

Крепеж

9011908C11

Крепеж

90119T0106

Крепеж

90119T0314

Крепеж

90119T0321

Крепеж

9015960431

Крепеж

9015960613

Крепеж

9015970003

Крепеж

90159T0037

Крепеж

90178T0006

Крепеж

90178T0019

Крепеж

9017906115

Крепеж

9046710201

Крепеж

9155380616

Крепеж

9167380816

Крепеж

9356855014

Крепеж

9415180800

Крепеж

Код

Описание

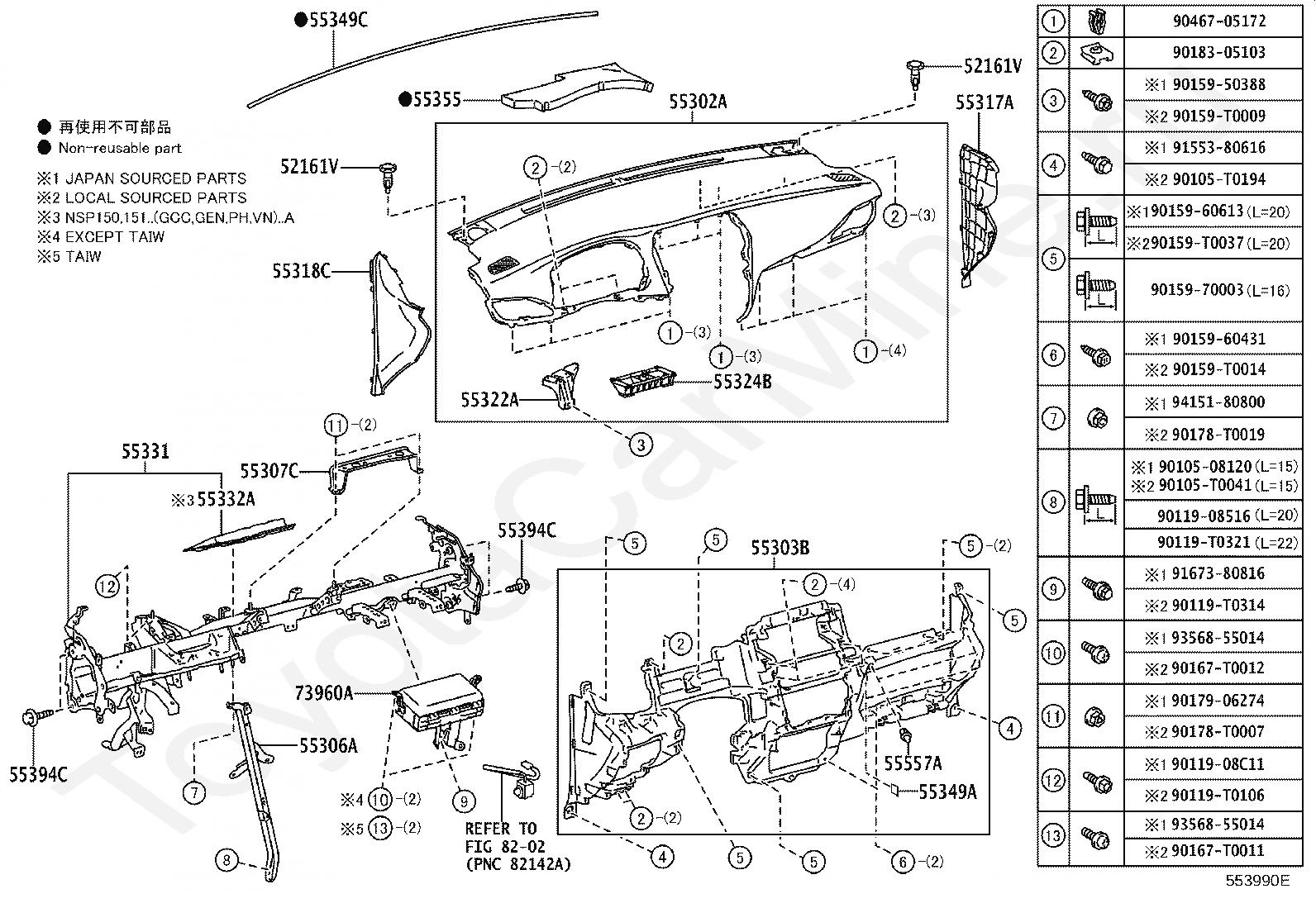

52161V

PIECE, INSTRUMENT PANEL

55302A

PANEL SUB-ASSY, INSTRUMENT, UPPER

55303B

PANEL SUB-ASSY, INSTRUMENT, LOWER

55306A

BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

55307C

BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

55317A

PANEL, INSTRUMENT SIDE, RH

55318C

PANEL, INSTRUMENT SIDE, LH

55322A

BRACKET, INSTRUMENT PANEL, NO.2

55324B

BRACKET, INSTRUMENT PANEL, NO.4

55331

REINFORCEMENT, INSTRUMENT PANEL

55332A

REINFORCEMENT, INSTRUMENT PANEL, NO.2

55349A

CUSHION, INSTRUMENT PANEL

55349C

CUSHION, INSTRUMENT PANEL

55355

CUSHION, INSTRUMENT PANEL, NO.1

55394C

BOLT, INSTRUMENT PANEL

55557A

CUSHION, GLOVE COMPARTMENT DOOR CHECK

73960A

AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

8202

переход к группе запчастей

9010508120

Крепеж

90105T0041

Крепеж

90105T0194

Крепеж

9011908516

Крепеж

9011908C11

Крепеж

90119T0106

Крепеж

90119T0314

Крепеж

90119T0321

Крепеж

9015950388

Крепеж

9015960431

Крепеж

9015960613

Крепеж

9015970003

Крепеж

90159T0009

Крепеж

90159T0014

Крепеж

90159T0037

Крепеж

90167T0011

Крепеж

90167T0012

Крепеж

90178T0007

Крепеж

90178T0019

Крепеж

9017906274

Крепеж

9018305103

Крепеж

9046705172

Крепеж

9155380616

Крепеж

9167380816

Крепеж

9356855014

Крепеж

9415180800

Крепеж

Код

Описание

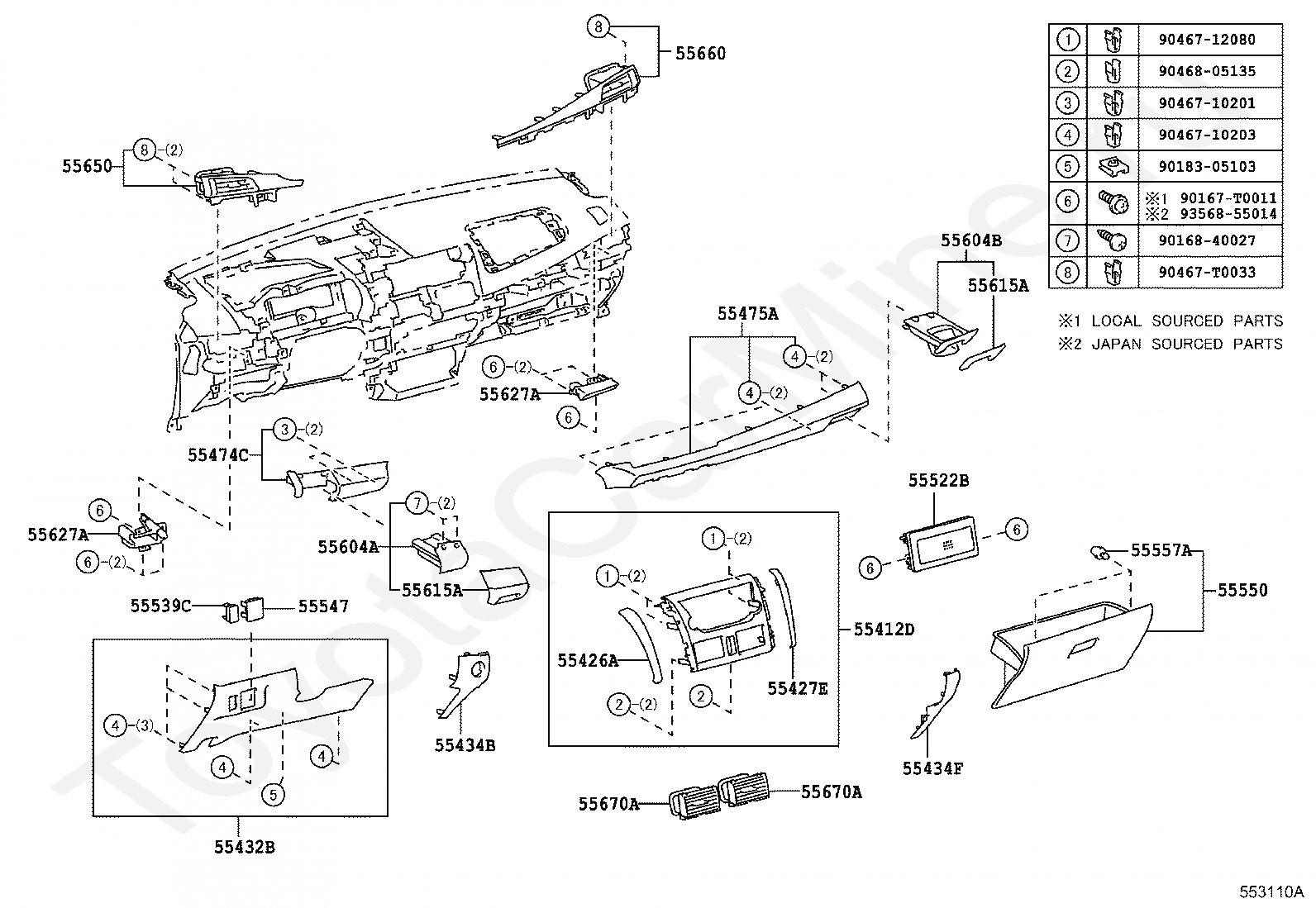

55412D

PANEL, INSTRUMENT CLUSTER FINISH, CENTER

55426A

BRACKET, CLUSTER FINISH PANEL, NO.1

55427E

BRACKET, CLUSTER FINISH PANEL, NO.2

55432B

PANEL, INSTRUMENT PANEL FINISH, LOWER

55434B

PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER

55434F

PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER

55474C

GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1

55475A

GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2

55522B

COVER, RADIO TUNER OPENING

55539C

COVER, SPARE SWITCH HOLE

55547

COVER, REMOTE CONTROL MIRROR HOLE

55550

DOOR ASSY, GLOVE COMPARTMENT

55557A

CUSHION, GLOVE COMPARTMENT DOOR CHECK

55604A

HOLDER SUB-ASSY, INSTRUMENT PANEL CUP

55604B

HOLDER SUB-ASSY, INSTRUMENT PANEL CUP

55615A

CASE, INSTRUMENT PANEL CUP HOLDER, OUTER

55627A

RAIL, INSTRUMENT PANEL CUP HOLDER

55650

55660

55670A

90167T0011

Крепеж

9016840027

Крепеж

9018305103

Крепеж

9046710201

Крепеж

9046710203

Крепеж

9046712080

Крепеж

90467T0033

Крепеж

9046805135

Крепеж

9356855014

Крепеж

Код

Описание

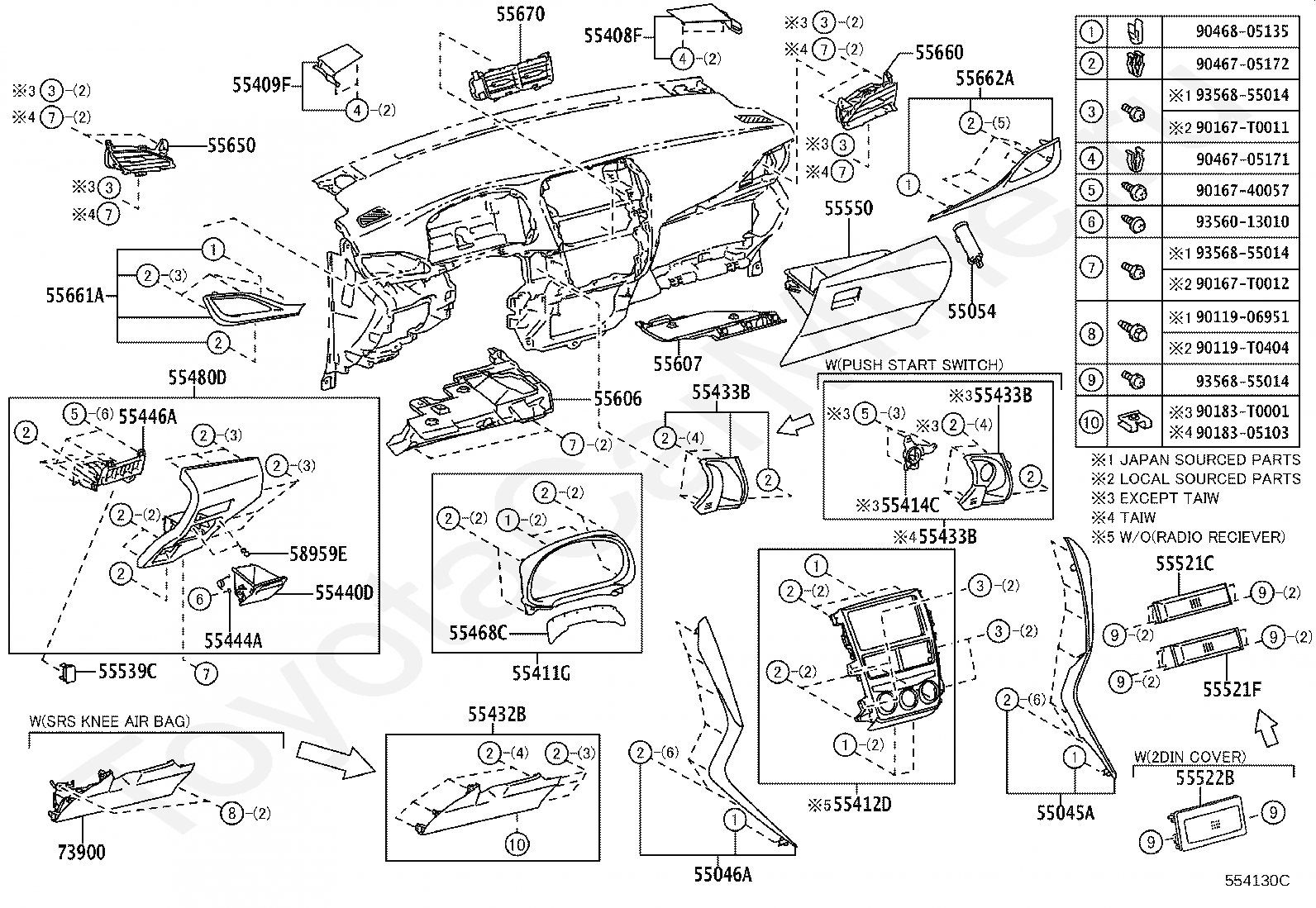

55045A

PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER RH

55046A

PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER LH

55054

STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR

55408F

PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

55409F

PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

55411G

PANEL, INSTRUMENT CLUSTER FINISH, NO.1

55412D

PANEL, INSTRUMENT CLUSTER FINISH, CENTER

55414C

BEZEL, STARTER SWITCH

55432B

PANEL, INSTRUMENT PANEL FINISH, LOWER

55433B

PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2

55440D

BOX ASSY, INSTRUMENT PANEL

55444A

SPRING, INSTRUMENT PANEL BOX

55446A

BASE, SWITCH HOLE, NO.1

55468C

SEAL, INSTRUMENT CLUSTER FINISH PANEL, NO.1

55480D

PANEL ASSY, INSTRUMENT PANEL FINISH, LWR

55521C

COVER, STEREO OPENING

55521F

COVER, STEREO OPENING, NO.2

55522B

COVER, RADIO TUNER OPENING

55539C

COVER, SPARE SWITCH HOLE

55550

DOOR ASSY, GLOVE COMPARTMENT

55606

COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

55607

COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

55650

55660

55661A

BEZEL, INSTRUMENT PANEL REGISTER

55662A

BEZEL, INSTRUMENT PANEL RESISTER, NO.2

55670

58959E

CUSHION, CONSOLE COMPARTMENT DOOR

73900

AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1

9011906951

Крепеж

90119T0404

Крепеж

9016740057

Крепеж

90167T0011

Крепеж

90167T0012

Крепеж

9018305103

Крепеж

90183T0001

Крепеж

9046705171

Крепеж

9046705172

Крепеж

9046805135

Крепеж

9356013010

Крепеж

9356855014

Крепеж

Торпеда с бардачком TOYOTA YARIS, 2016/07 - 2017/08, 1,3 литра, 16 клапанов DOHC, EFI, NSP150, вариатор
