Передние кресла TOYOTA VITZ, 2005/01 - 2007/08, 1,3 литра, 16 клапанов, DOHC, EFI, 3900CC:F TYPE, SCP90, автомат, бесступенчатая АКПП

Каталог

Япония

Модель

VITZ

Двигатель

1,3 литра, 16 клапанов, DOHC, EFI

Класс

3900CC:F TYPE

Фрейм

SCP90

Трансмиссия

автомат бесступенчатая АКПП

Опции

5 дверей 315W

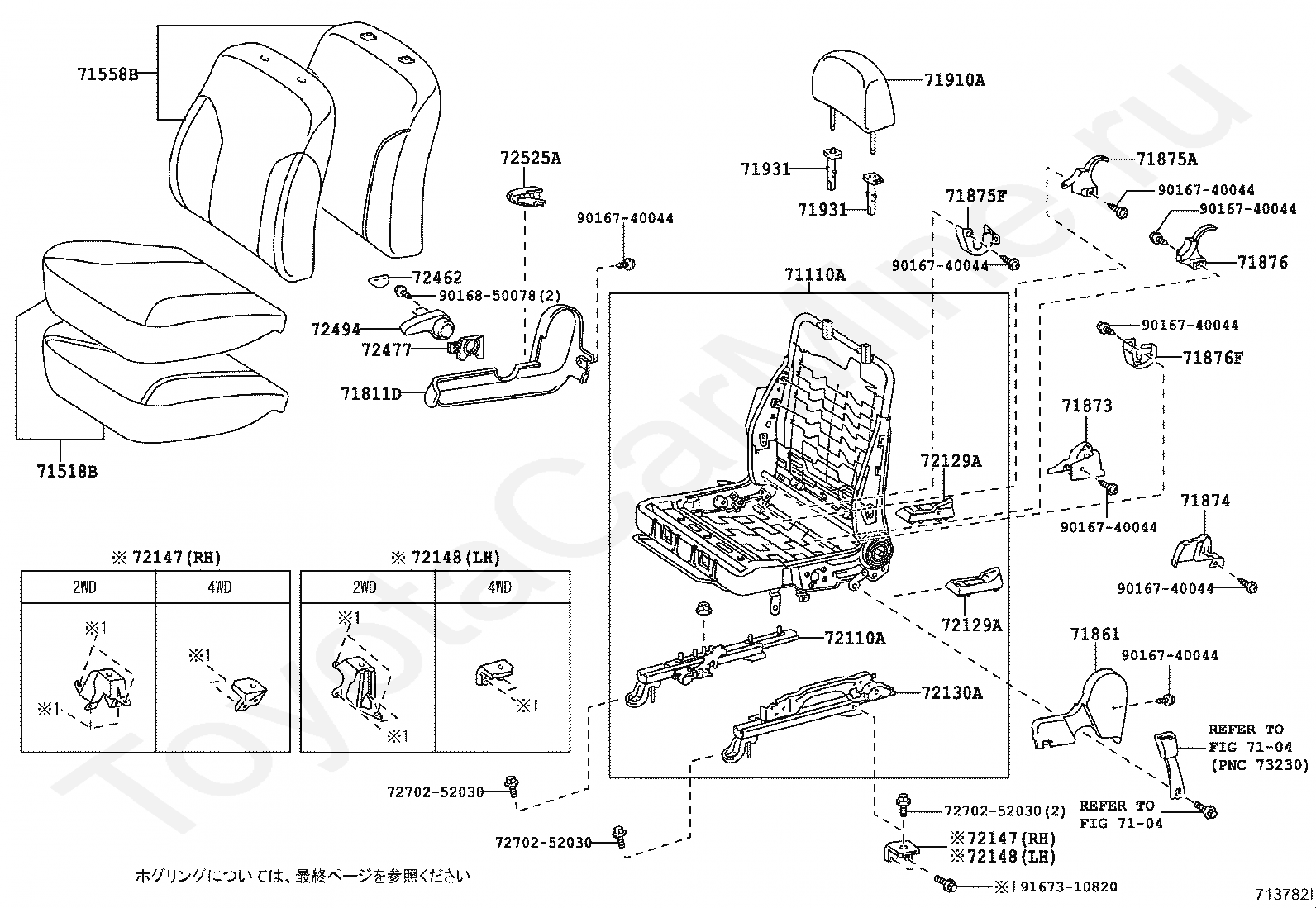

Код

Описание

7104

переход к группе запчастей

71110A

FRAME ASSY, FRONT SEAT W/ADJUSTER, RH

71518B

PAD, FRONT SEAT CUSHION W/COVER, RH

71558B

PAD, FRONT SEAT BACK W/COVER, RH

71811D

SHIELD, FRONT SEAT CUSHION, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71875F

COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)

71876

COVER, RECLINING ADJUSTER INSIDE, LH

71876F

COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72110A

TRACK ASSY, FRONT SEAT, OUTER RH

72129A

PROTECTOR, SEAT TRACK LOWER RAIL, NO.2

72130A

TRACK ASSY, FRONT SEAT, INNER RH

72147

BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH

72148

BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH

72462

COVER, VERTICAL ADJUSTER RH

72477

SPACER, VERTICAL ADJUSTER

72494

HANDLE, VERTICAL ADJUSTING, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

7270252030

Крепеж

9016740044

Крепеж

9016850078

Крепеж

9167310820

Крепеж

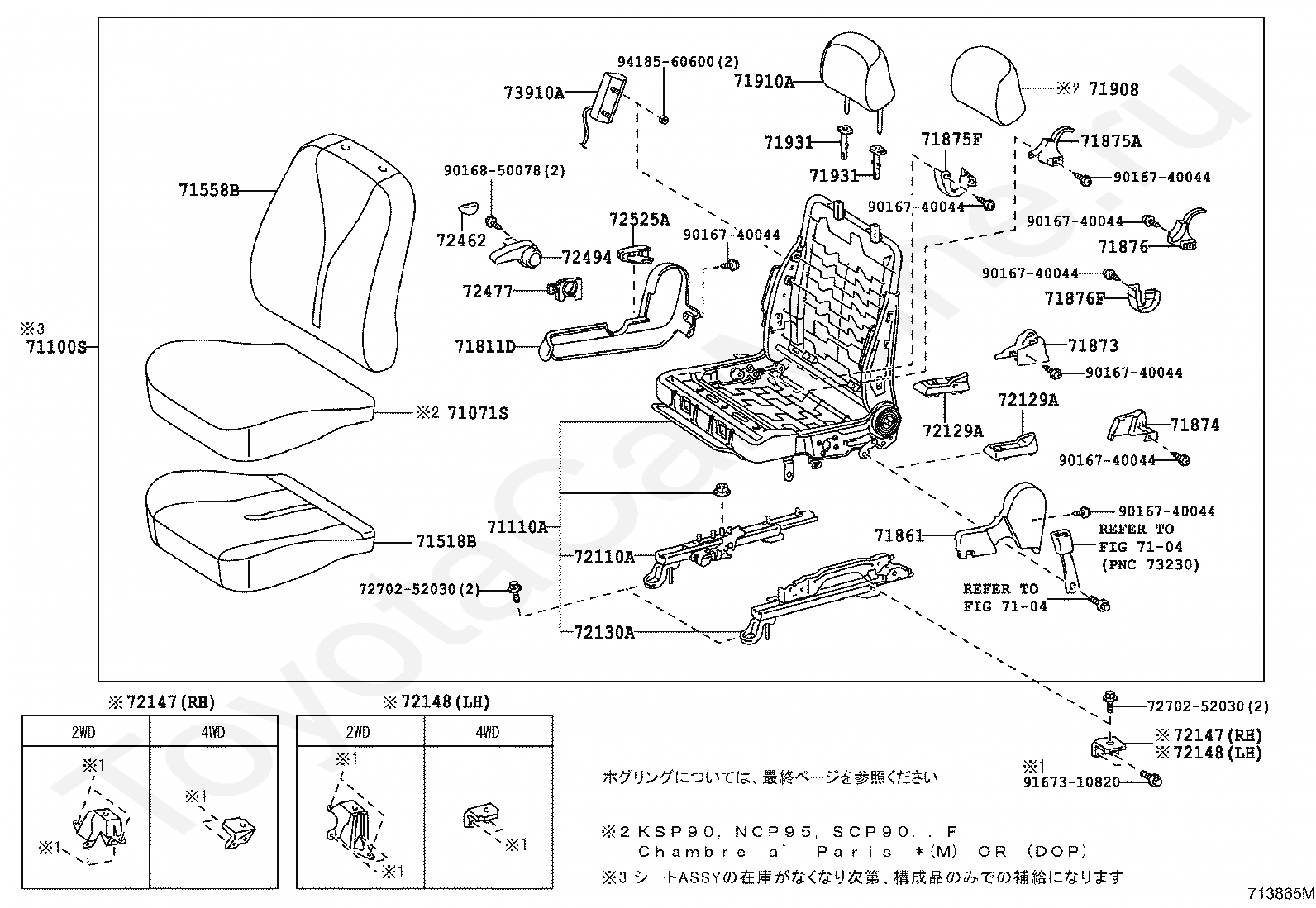

Код

Описание

7104

переход к группе запчастей

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71100S

SEAT ASSY, FRONT RH

71110A

FRAME ASSY, FRONT SEAT W/ADJUSTER, RH

71518B

PAD, FRONT SEAT CUSHION W/COVER, RH

71558B

PAD, FRONT SEAT BACK W/COVER, RH

71811D

SHIELD, FRONT SEAT CUSHION, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71875F

COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)

71876

COVER, RECLINING ADJUSTER INSIDE, LH

71876F

COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)

71908

COVER SUB-ASSY, FRONT SEAT HEADREST

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72110A

TRACK ASSY, FRONT SEAT, OUTER RH

72129A

PROTECTOR, SEAT TRACK LOWER RAIL, NO.2

72130A

TRACK ASSY, FRONT SEAT, INNER RH

72147

BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH

72148

BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH

72462

COVER, VERTICAL ADJUSTER RH

72477

SPACER, VERTICAL ADJUSTER

72494

HANDLE, VERTICAL ADJUSTING, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

7270252030

Крепеж

73910A

AIR BAG ASSY, FRONT SEAT, RH

9016740044

Крепеж

9016850078

Крепеж

9167310820

Крепеж

9418560600

Крепеж

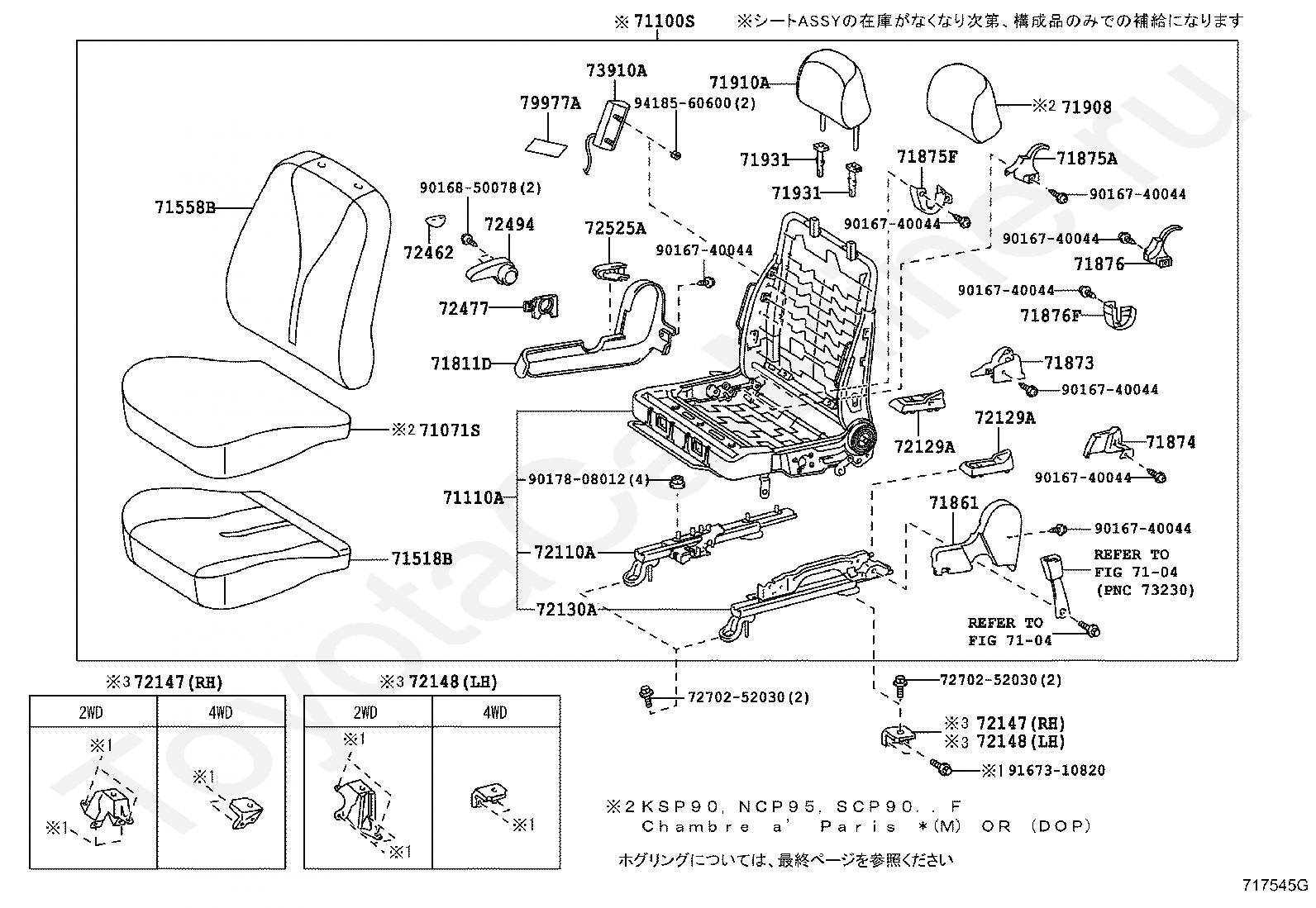

Код

Описание

7104

переход к группе запчастей

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71100S

SEAT ASSY, FRONT RH

71110A

FRAME ASSY, FRONT SEAT W/ADJUSTER, RH

71518B

PAD, FRONT SEAT CUSHION W/COVER, RH

71558B

PAD, FRONT SEAT BACK W/COVER, RH

71811D

SHIELD, FRONT SEAT CUSHION, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71875F

COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)

71876

COVER, RECLINING ADJUSTER INSIDE, LH

71876F

COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)

71908

COVER SUB-ASSY, FRONT SEAT HEADREST

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72110A

TRACK ASSY, FRONT SEAT, OUTER RH

72129A

PROTECTOR, SEAT TRACK LOWER RAIL, NO.2

72130A

TRACK ASSY, FRONT SEAT, INNER RH

72147

BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH

72148

BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH

72462

COVER, VERTICAL ADJUSTER RH

72477

SPACER, VERTICAL ADJUSTER

72494

HANDLE, VERTICAL ADJUSTING, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

7270252030

Крепеж

73910A

AIR BAG ASSY, FRONT SEAT, RH

9016740044

Крепеж

9016850078

Крепеж

9167310820

Крепеж

9418560600

Крепеж

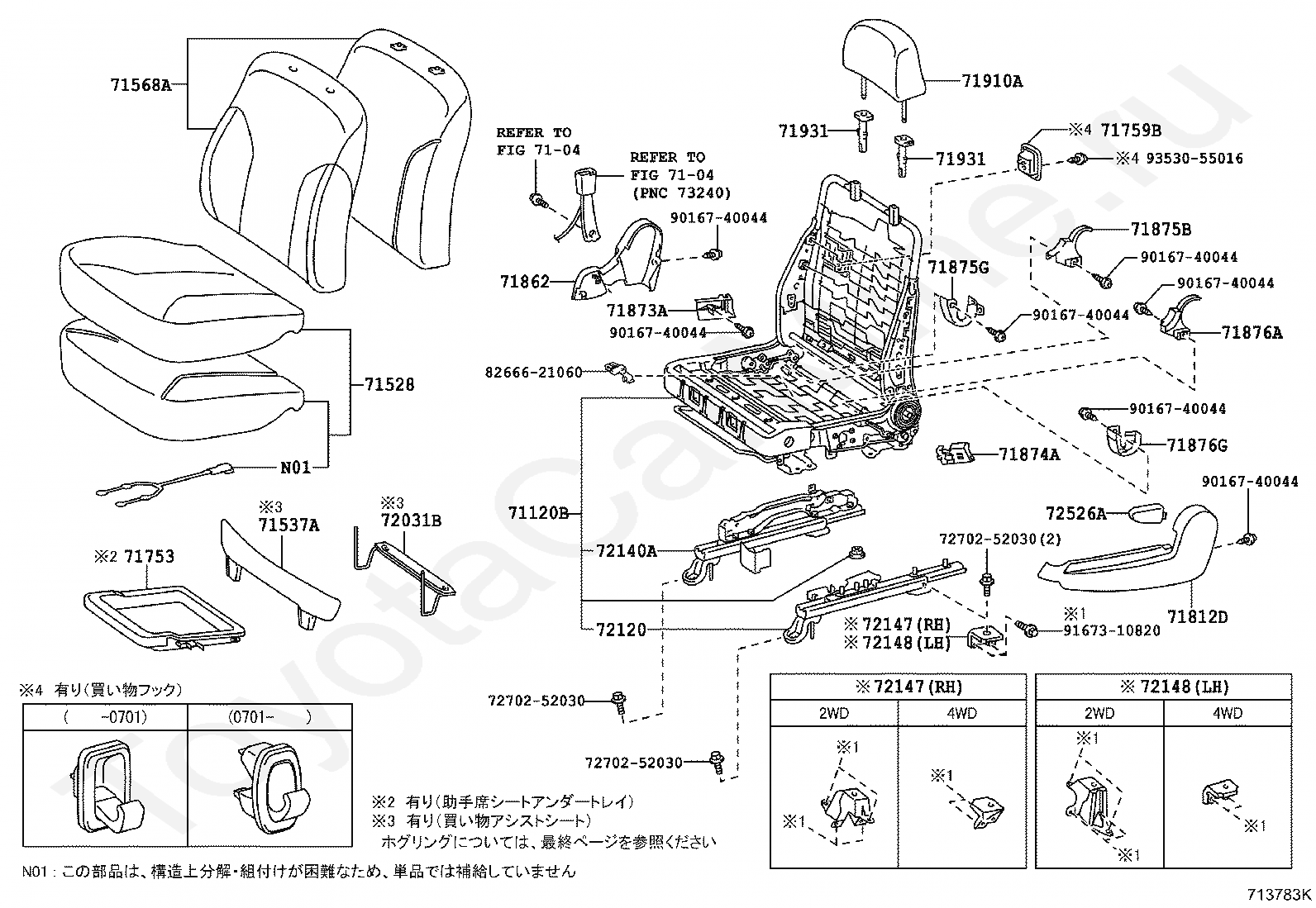

Код

Описание

7104

переход к группе запчастей

71120B

FRAME ASSY, FRONT SEAT W/ADJUSTER, LH

71528

PAD, FRONT SEAT CUSHION W/COVER, LH

71537A

PROTECTOR, FRONT SEAT CUSHION

71568A

PAD, FRONT SEAT BACK W/COVER, LH

71753

TRAY, FRONT SEAT UNDER

71759B

HOOK, FRONT SEAT BACK

71812D

SHIELD, FRONT SEAT CUSHION, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71873A

SHIELD, FRONT SEAT CUSHION, LOWER

71874A

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

71875G

COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

71876A

COVER, RECLINING ADJUSTER INSIDE, LH

71876G

COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72031B

LEG, FRONT SEAT SET

72120

TRACK ASSY, FRONT SEAT, OUTER LH

72140A

TRACK ASSY, FRONT SEAT,INNER LH

72147

BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH

72148

BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

7270252030

Крепеж

8266621060

Крепеж

9016740044

Крепеж

9167310820

Крепеж

9353055016

Крепеж

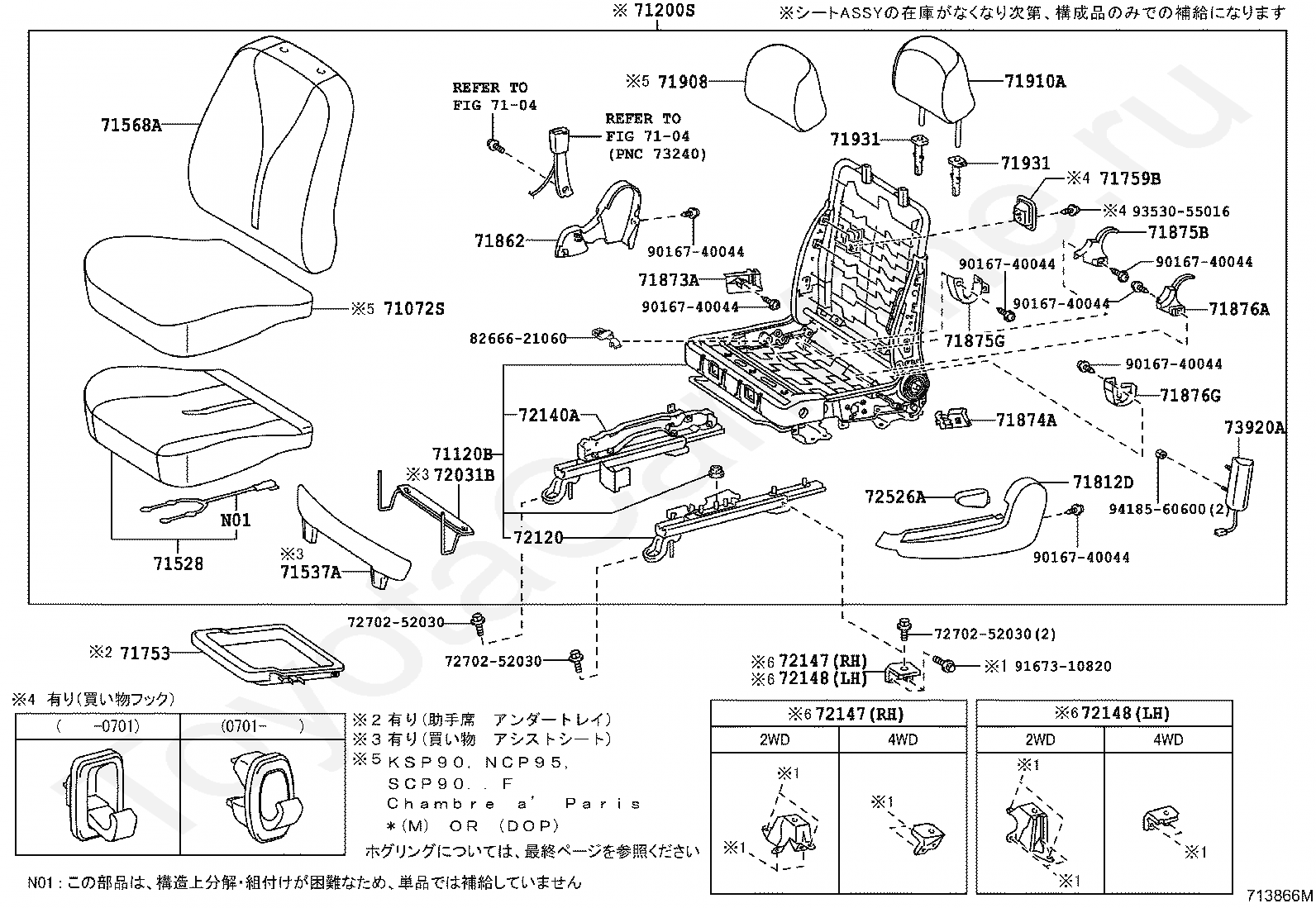

Код

Описание

7104

переход к группе запчастей

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71120B

FRAME ASSY, FRONT SEAT W/ADJUSTER, LH

71200S

SEAT ASSY, FRONT LH

71528

PAD, FRONT SEAT CUSHION W/COVER, LH

71537A

PROTECTOR, FRONT SEAT CUSHION

71568A

PAD, FRONT SEAT BACK W/COVER, LH

71753

TRAY, FRONT SEAT UNDER

71759B

HOOK, FRONT SEAT BACK

71812D

SHIELD, FRONT SEAT CUSHION, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71873A

SHIELD, FRONT SEAT CUSHION, LOWER

71874A

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

71875G

COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

71876A

COVER, RECLINING ADJUSTER INSIDE, LH

71876G

COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

71908

COVER SUB-ASSY, FRONT SEAT HEADREST

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72031B

LEG, FRONT SEAT SET

72120

TRACK ASSY, FRONT SEAT, OUTER LH

72140A

TRACK ASSY, FRONT SEAT,INNER LH

72147

BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH

72148

BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

7270252030

Крепеж

73920A

AIR BAG ASSY, FRONT SEAT, LH

8266621060

Крепеж

9016740044

Крепеж

9167310820

Крепеж

9353055016

Крепеж

9418560600

Крепеж

Код

Описание

7104

переход к группе запчастей

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71120B

FRAME ASSY, FRONT SEAT W/ADJUSTER, LH

71200S

SEAT ASSY, FRONT LH

71528

PAD, FRONT SEAT CUSHION W/COVER, LH

71537A

PROTECTOR, FRONT SEAT CUSHION

71568A

PAD, FRONT SEAT BACK W/COVER, LH

71753

TRAY, FRONT SEAT UNDER

71759B

HOOK, FRONT SEAT BACK

71812D

SHIELD, FRONT SEAT CUSHION, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71873A

SHIELD, FRONT SEAT CUSHION, LOWER

71874A

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

71875G

COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

71876A

COVER, RECLINING ADJUSTER INSIDE, LH

71876G

COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

71908

COVER SUB-ASSY, FRONT SEAT HEADREST

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72031B

LEG, FRONT SEAT SET

72120

TRACK ASSY, FRONT SEAT, OUTER LH

72140A

TRACK ASSY, FRONT SEAT,INNER LH

72147

BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH

72148

BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

7270252030

Крепеж

73920A

AIR BAG ASSY, FRONT SEAT, LH

8266621060

Крепеж

9016740044

Крепеж

9167310820

Крепеж

9353055016

Крепеж

9418560600

Крепеж

Код

Описание

7104

переход к группе запчастей

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71100S

SEAT ASSY, FRONT RH

71110A

FRAME ASSY, FRONT SEAT W/ADJUSTER, RH

71518B

PAD, FRONT SEAT CUSHION W/COVER, RH

71558B

PAD, FRONT SEAT BACK W/COVER, RH

71811D

SHIELD, FRONT SEAT CUSHION, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71875F

COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)

71876

COVER, RECLINING ADJUSTER INSIDE, LH

71876F

COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)

71908

COVER SUB-ASSY, FRONT SEAT HEADREST

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72110A

TRACK ASSY, FRONT SEAT, OUTER RH

72129A

PROTECTOR, SEAT TRACK LOWER RAIL, NO.2

72130A

TRACK ASSY, FRONT SEAT, INNER RH

72147

BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH

72148

BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH

72462

COVER, VERTICAL ADJUSTER RH

72477

SPACER, VERTICAL ADJUSTER

72494

HANDLE, VERTICAL ADJUSTING, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

7270252030

Крепеж

73910A

AIR BAG ASSY, FRONT SEAT, RH

79977A

FELT, SEAT BACK

9016740044

Крепеж

9016850078

Крепеж

9017808012

Крепеж

9167310820

Крепеж

9418560600

Крепеж

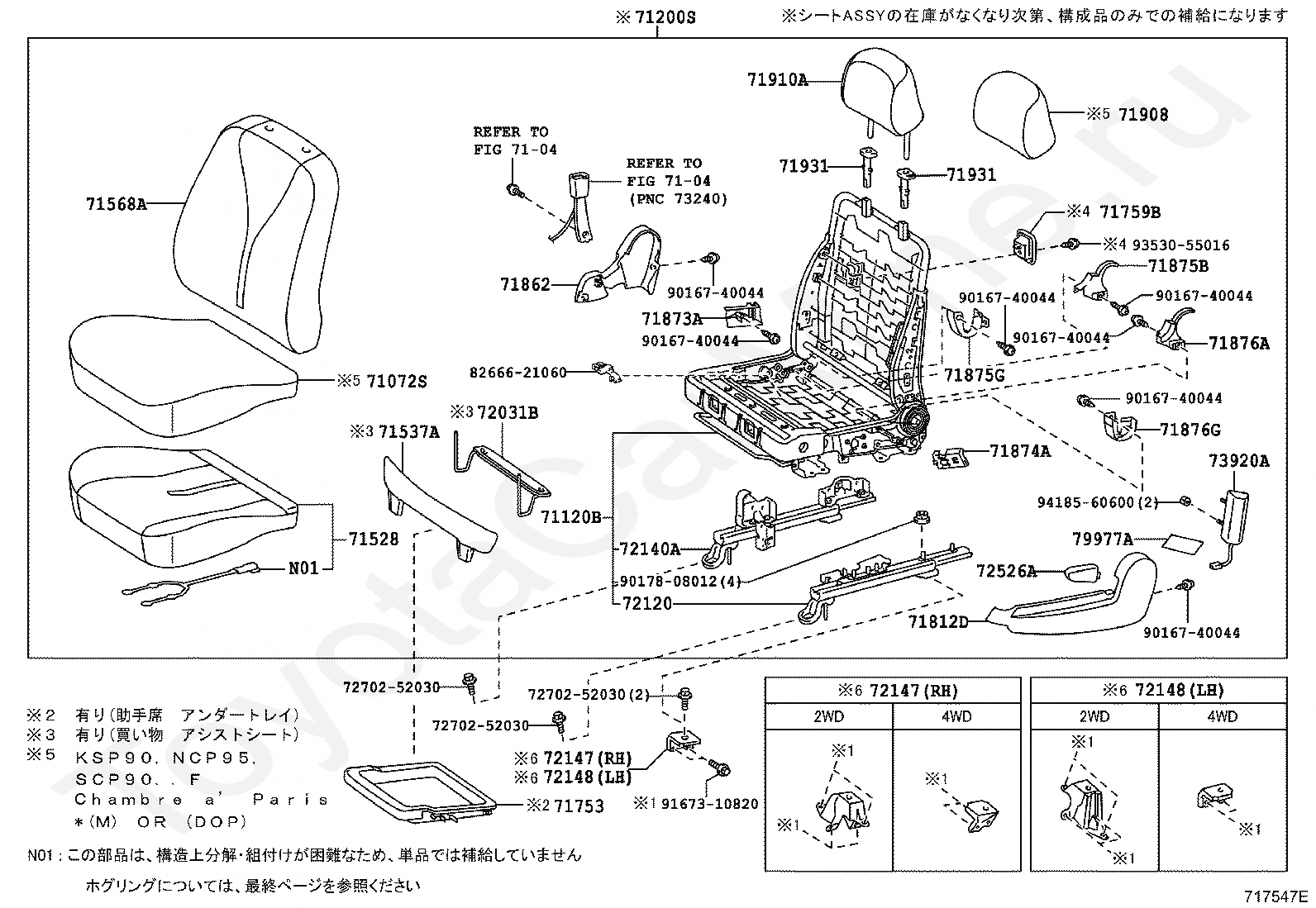

Код

Описание

7104

переход к группе запчастей

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71120B

FRAME ASSY, FRONT SEAT W/ADJUSTER, LH

71200S

SEAT ASSY, FRONT LH

71528

PAD, FRONT SEAT CUSHION W/COVER, LH

71537A

PROTECTOR, FRONT SEAT CUSHION

71568A

PAD, FRONT SEAT BACK W/COVER, LH

71753

TRAY, FRONT SEAT UNDER

71759B

HOOK, FRONT SEAT BACK

71812D

SHIELD, FRONT SEAT CUSHION, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71873A

SHIELD, FRONT SEAT CUSHION, LOWER

71874A

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

71875G

COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

71876A

COVER, RECLINING ADJUSTER INSIDE, LH

71876G

COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

71908

COVER SUB-ASSY, FRONT SEAT HEADREST

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72031B

LEG, FRONT SEAT SET

72120

TRACK ASSY, FRONT SEAT, OUTER LH

72140A

TRACK ASSY, FRONT SEAT,INNER LH

72147

BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH

72148

BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

7270252030

Крепеж

73920A

AIR BAG ASSY, FRONT SEAT, LH

79977A

FELT, SEAT BACK

8266621060

Крепеж

9016740044

Крепеж

9017808012

Крепеж

9167310820

Крепеж

9353055016

Крепеж

9418560600

Крепеж

Код

Описание

9046816019

Крепеж

9046818008

Крепеж

Передние кресла TOYOTA VITZ, 2005/01 - 2007/08, 1,3 литра, 16 клапанов, DOHC, EFI, 3900CC:F TYPE, SCP90, автомат, бесступенчатая АКПП

Товар добавлен в корзину!

Заполните форму
