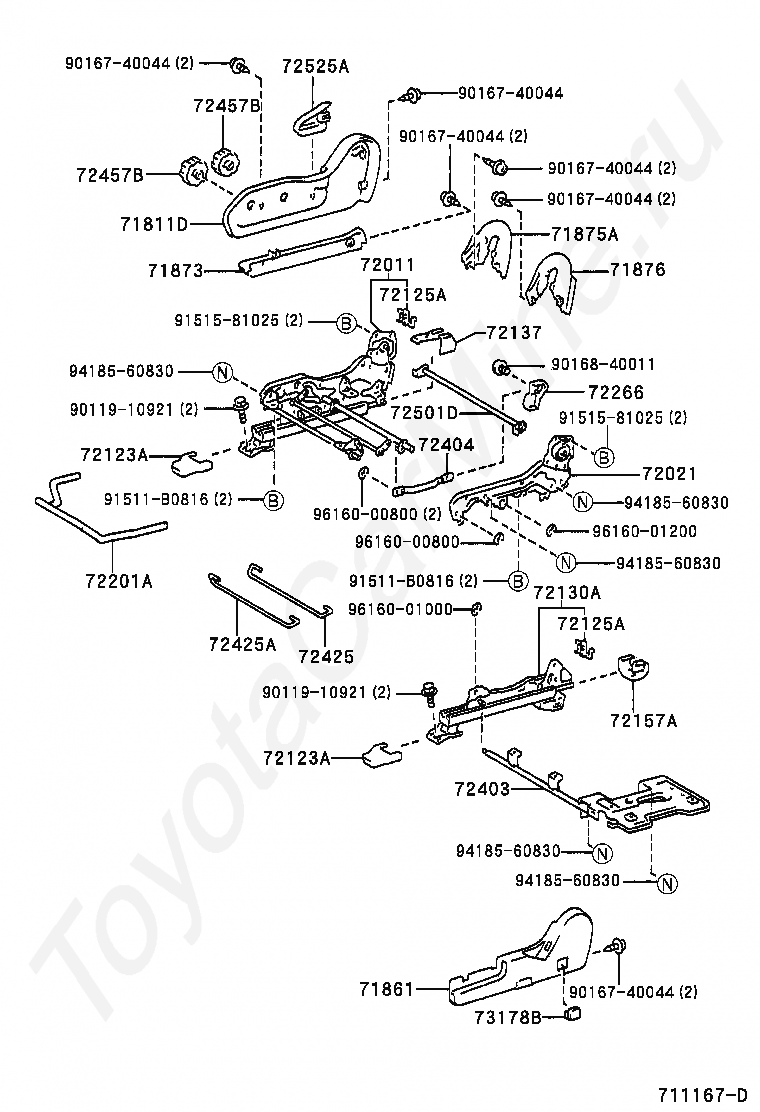

Передние кресла TOYOTA VISTA/VISTA ARDEO, 2000/04 - 2001/08, 2 литра, 16 клапанов, DOHC, EFI, фургон, ARDEO 200 G TYPE, SV50

Каталог

Япония

Модель

VISTA/VISTA ARDEO

Двигатель

2 литра, 16 клапанов, DOHC, EFI

Кузов

фургон

Класс

ARDEO 200 G TYPE

Фрейм

SV50

Опции

Код

Описание

55620D

HOLDER ASSY, FRONT SEAT CUP

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71121

BRACKET, FRONT SEAT CUSHION, RH

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71620S

SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72877

COVER, SEAT ARMREST, RH

72880

ARMREST ASSY, SEAT, C RH

9354054012

Крепеж

Код

Описание

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71410S

CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71420S

CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71620S

SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72085

COVER SUB-ASSY, FRONT SEAT CENTER ARMREST

72801A

FRAME SUB-ASSY, FRONT SEAT CENTER ARMREST

72802

HINGE SUB-ASSY, ARMREST CONSOLE

72809A

LOCK SUB-ASSY, CENTER ARMREST

72878

COVER, SEAT ARMREST, LH

72890

ARMREST ASSY, SEAT, C LH

8603

переход к группе запчастей

9016126007

Крепеж

9016140026

Крепеж

9016740022

Крепеж

9353054016

Крепеж

9356815012

Крепеж

Код

Описание

71811D

SHIELD, FRONT SEAT CUSHION, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

72011

ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH

72021

ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH

72123A

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72125A

COVER, SEAT TRACK, UPPER REAR

72130A

TRACK ASSY, FRONT SEAT, INNER RH

72137

COVER, SEAT TRACK, OUTER RH

72157A

COVER, SEAT TRACK BRACKET, INNER RH

72201A

HANDLE SUB-ASSY, SEAT TRACK RH

72266

COVER, SEAT TRACK UPPER RAIL, LH

72404

LINK SUB-ASSY, VERTICAL SEAT

72425

BAR, VERTICAL ADJUSTER TORSION, NO.1

72425A

BAR, VERTICAL ADJUSTER TORSION NO.2

72457B

KNOB, VERTICAL SEAT ADJUSTER, RH

72501D

PIPE SUB-ASSY, RECLINING CONNECTING, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

73178B

CAP, SEAT BELT ANCHOR COVER

9011910921

Крепеж

9016740044

Крепеж

9016840011

Крепеж

91511B0816

Крепеж

9151581025

Крепеж

9418560830

Крепеж

9616000800

Крепеж

9616001000

Крепеж

9616001200

Крепеж

Код

Описание

71811D

SHIELD, FRONT SEAT CUSHION, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

72011C

ADJUSTER SUB-ASSY, FRONT SEAT, RH

72123A

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72137

COVER, SEAT TRACK, OUTER RH

72157A

COVER, SEAT TRACK BRACKET, INNER RH

72455

BRACKET, SEAT FRAME SET, NO.1

72456

BRACKET, SEAT FRAME SET, NO.2

8513

переход к группе запчастей

9011910921

Крепеж

9015940159

Крепеж

9016740044

Крепеж

91511B0816

Крепеж

9151581025

Крепеж

9418560830

Крепеж

Код

Описание

71811D

SHIELD, FRONT SEAT CUSHION, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

72011

ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH

72021

ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH

72123A

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72125A

COVER, SEAT TRACK, UPPER REAR

72130A

TRACK ASSY, FRONT SEAT, INNER RH

72137

COVER, SEAT TRACK, OUTER RH

72157A

COVER, SEAT TRACK BRACKET, INNER RH

72201A

HANDLE SUB-ASSY, SEAT TRACK RH

72266

COVER, SEAT TRACK UPPER RAIL, LH

72403

BRACKET SUB-ASSY, SEAT FRAME SET

72404

LINK SUB-ASSY, VERTICAL SEAT

72425

BAR, VERTICAL ADJUSTER TORSION, NO.1

72425A

BAR, VERTICAL ADJUSTER TORSION NO.2

72457B

KNOB, VERTICAL SEAT ADJUSTER, RH

72501D

PIPE SUB-ASSY, RECLINING CONNECTING, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

73178B

CAP, SEAT BELT ANCHOR COVER

9011910921

Крепеж

9016740044

Крепеж

9016840011

Крепеж

91511B0816

Крепеж

9151581025

Крепеж

9418560830

Крепеж

9616000800

Крепеж

9616001000

Крепеж

9616001200

Крепеж

Код

Описание

71812D

SHIELD, FRONT SEAT CUSHION, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

71876A

COVER, RECLINING ADJUSTER INSIDE, LH

72012

ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH

72022

ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH

72124

COVER, SEAT TRACK BRACKET, OUTER FRONT LH

72125A

COVER, SEAT TRACK, UPPER REAR

72138

COVER, SEAT TRACK, OUTER LH

72158

COVER, SEAT TRACK BRACKET, INNER LH

72201B

HANDLE SUB-ASSY, SEAT TRACK LH

72501E

PIPE SUB-ASSY, RECLINING CONNECTING, LH

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

73178B

CAP, SEAT BELT ANCHOR COVER

9011910921

Крепеж

9016740044

Крепеж

91511B0816

Крепеж

9151581025

Крепеж

Код

Описание

9046816019

Крепеж

9046818008

Крепеж

Передние кресла TOYOTA VISTA/VISTA ARDEO, 2000/04 - 2001/08, 2 литра, 16 клапанов, DOHC, EFI, фургон, ARDEO 200 G TYPE, SV50
