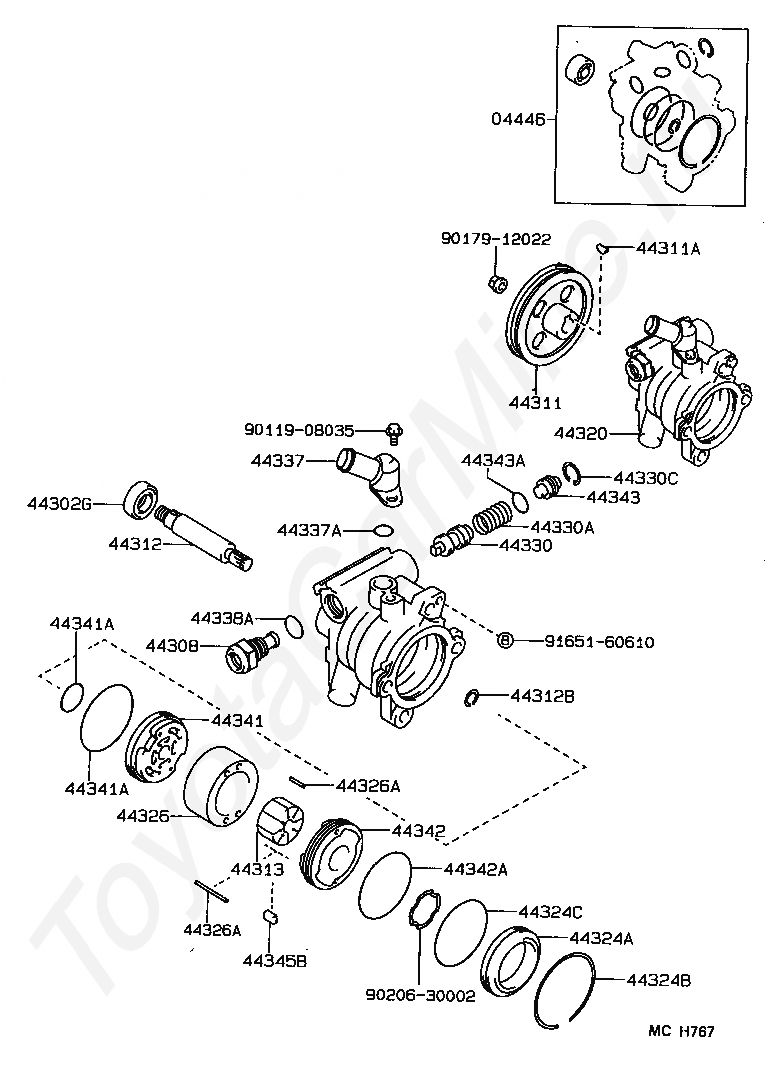

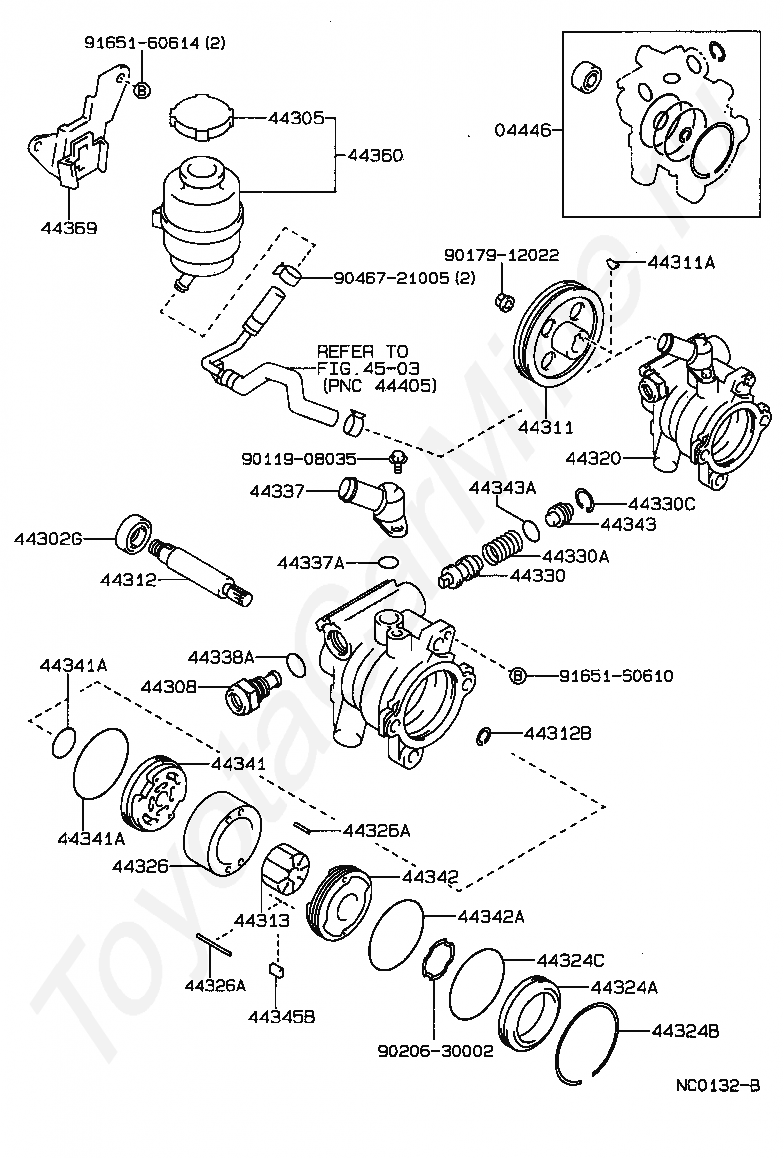

VANE PUMP & RESERVOIR (POWER STEERING) TOYOTA SPRINTER TRUENO, 1987/05 - 1991/06, 1,6 литра, 20 клапанов, DOHC, EFI, AE92, GT APPEX SPECIFICATION, электронная система впрыска топлива

Каталог

Япония

Модель

SPRINTER TRUENO

Двигатель

1,6 литра, 20 клапанов, DOHC, EFI

Фрейм

AE92

Трансмиссия

GT APPEX SPECIFICATION электронная система впрыска топлива

Опции

Код

Описание

04446

GASKET KIT, POWER STEERING PUMP

44302G

SEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

44305

CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

44308

UNION SUB-ASSY, PRESSURE PORT

44311

PULLEY, VANE PUMP

44311A

KEY, VANE PUMP PULLEY

44312

SHAFT, VANE PUMP

44312B

RING, SNAP, NO.1(FOR VANE PUMP SHAFT)

44313

ROTOR, VANE PUMP

44320

PUMP ASSY, VANE

44324A

HOUSING, PUMP, REAR

44324B

RING, HOLE SNAP(FOR PUMP HOUSING REAR)

44324C

RING, O(FOR PUMP HOUSING REAR)

44326

RING, CAM(FOR VANE PUMP)

44326A

PIN, STRAIGHT(FOR VANE PUMP CAM RING)

44330

VALVE ASSY, FLOW CONTROL

44330A

SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

44330C

RING, SNAP(FOR FLOW CONTROL VALVE)

44337

UNION, POWER STEERING SUCTION PORT

44337A

RING, O(FOR POWER STEERING SUCTION PORT)

44338A

RING, O(FOR PRESSURE PORT UNION)

44341

PLATE, VANE PUMP SIDE, FRONT

44341A

RING, O(FOR VANE PUMP FRONT SIDE PLATE)

44342

PLATE, VANE PUMP SIDE, REAR

44342A

RING, O(FOR VANE PUMP SIDE PLATE REAR)

44343

SEAT, FLOW CONTROL SPRING

44343A

RING, O(FOR FLOW CONTROL SPRING SEAT)

44345B

PLATE, VANE PUMP

44360

RESERVOIR ASSY, VANE PUMP OIL

44369

BRACKET, OIL RESERVOIR, NO.1

4503

переход к группе запчастей

9011908035

Крепеж

9017912022

Крепеж

9020630002

Крепеж

9046721005

Крепеж

9165160610

Крепеж

9165160614

Крепеж

Код

Описание

04446

GASKET KIT, POWER STEERING PUMP

44302G

SEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

44308

UNION SUB-ASSY, PRESSURE PORT

44311

PULLEY, VANE PUMP

44311A

KEY, VANE PUMP PULLEY

44312

SHAFT, VANE PUMP

44312B

RING, SNAP, NO.1(FOR VANE PUMP SHAFT)

44313

ROTOR, VANE PUMP

44320

PUMP ASSY, VANE

44324A

HOUSING, PUMP, REAR

44324B

RING, HOLE SNAP(FOR PUMP HOUSING REAR)

44324C

RING, O(FOR PUMP HOUSING REAR)

44326

RING, CAM(FOR VANE PUMP)

44326A

PIN, STRAIGHT(FOR VANE PUMP CAM RING)

44330

VALVE ASSY, FLOW CONTROL

44330A

SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

44330C

RING, SNAP(FOR FLOW CONTROL VALVE)

44337

UNION, POWER STEERING SUCTION PORT

44337A

RING, O(FOR POWER STEERING SUCTION PORT)

44338A

RING, O(FOR PRESSURE PORT UNION)

44341

PLATE, VANE PUMP SIDE, FRONT

44341A

RING, O(FOR VANE PUMP FRONT SIDE PLATE)

44342

PLATE, VANE PUMP SIDE, REAR

44342A

RING, O(FOR VANE PUMP SIDE PLATE REAR)

44343

SEAT, FLOW CONTROL SPRING

44343A

RING, O(FOR FLOW CONTROL SPRING SEAT)

44345B

PLATE, VANE PUMP

9011908035

Крепеж

9017912022

Крепеж

9020630002

Крепеж

9165160610

Крепеж

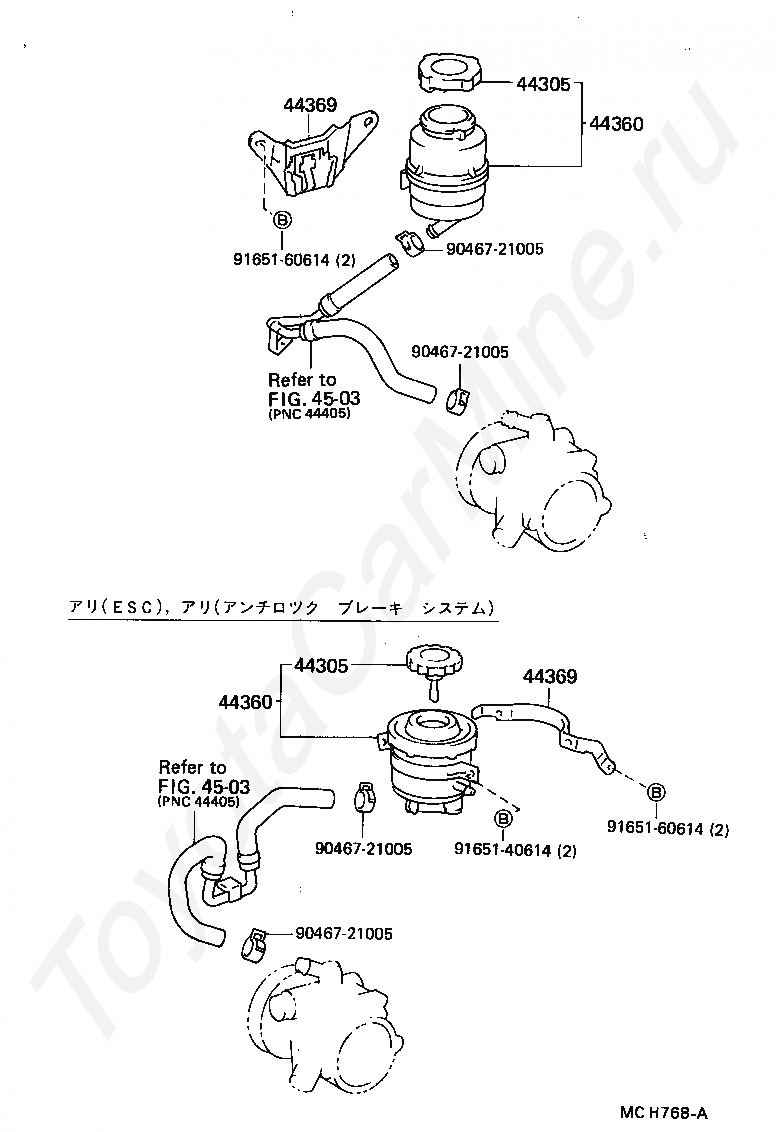

Код

Описание

44305

CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

44360

RESERVOIR ASSY, VANE PUMP OIL

44369

BRACKET, OIL RESERVOIR, NO.1

4503

переход к группе запчастей

9046721005

Крепеж

9165140614

Крепеж

9165160614

Крепеж

VANE PUMP & RESERVOIR (POWER STEERING) TOYOTA SPRINTER TRUENO, 1987/05 - 1991/06, 1,6 литра, 20 клапанов, DOHC, EFI, AE92, GT APPEX SPECIFICATION, электронная система впрыска топлива
