ЯпонияМодель
SPRINTER TRUENOДвигатель
1,6 литра, 20 клапанов, DOHC, EFIФрейм
AE92Трансмиссия
GT APPEX SPECIFICATION электронная система впрыска топливаОпции

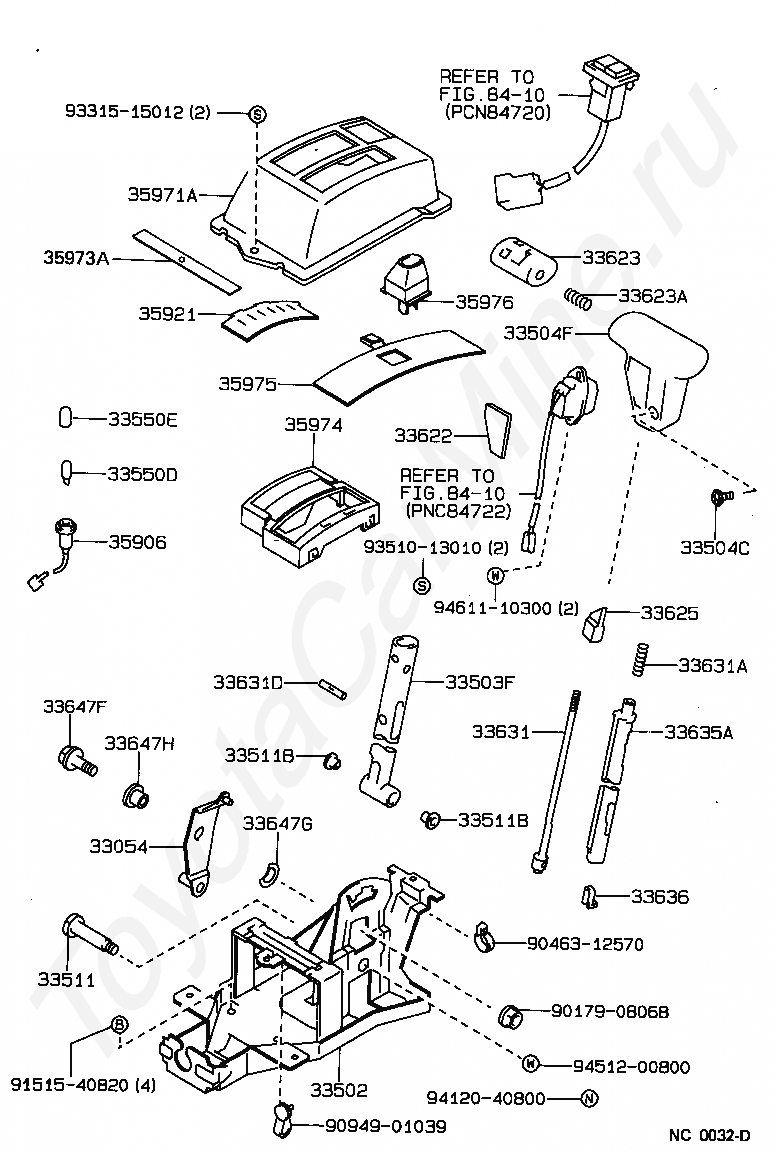

Код
Описание
33054
LEVER SUB-ASSY, SHIFT, NO.2(FOR FLOOR SHIFT)
33502
PLATE SUB-ASSY, SHIFT LEVER
33503F
LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33504C
SCREW (FOR SHIFT LEVER KNOB SETTING)
33504F
KNOB SUB-ASSY, SHIFT LEVER
33511
SHAFT, CONTROL (FOR FLOOR SHIFT)
33511B
BUSH (FOR CONTROL SHAFT)
33550D
BULB, POSITION INDICATOR LAMP
33550E
CAP, POSITION INDICATOR LAMP
33622
COVER, SHIFT LEVER KNOB, NO.1
33623
BUTTON, SHIFT LEVER KNOB
33623A
SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
33625
SLEEVE, SHIFT LEVER KNOB
33631
ROD, DETENT
33631A
SPRING, COMPRESSION (FOR DETENT ROD)
33631D
PIN, GROOVED (FOR DETENT ROD)
33635A
GUIDE, WIRE, NO.1 (FOR SHIFT LEVER)
33636
GUIDE, WIRE, NO.2 (FOR SHIFT LEVER)
33647F
SHAFT, CONTROL LINK (FOR FLOOR SHIFT)
33647G
WASHER, WAVE (FOR CONTROL LINK SHAFT)
33647H
BUSH (FOR CONTROL LINK SHAFT)
35906
WIRE SUB-ASSY, INDICATOR LAMP
35921
PLATE, CONTROL POSITION INDICATOR
35971A
HOUSING, POSITION INDICATOR, UPPER
35973A
ATTACHMENT, POSITION INDICATOR HOUSING COVER
35974
HOUSING, POSITION INDICATOR, LOWER
35975
COVER, SLIDE (FOR POSITION INDICATOR)
35976
COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
8410
переход к группе запчастей
9017908068
Крепеж
9046312570
Крепеж
9094901039
Крепеж
9151540820
Крепеж
9331515012
Крепеж
9351013010
Крепеж
9412040800
Крепеж
9451200800
Крепеж
9461110300
Крепеж

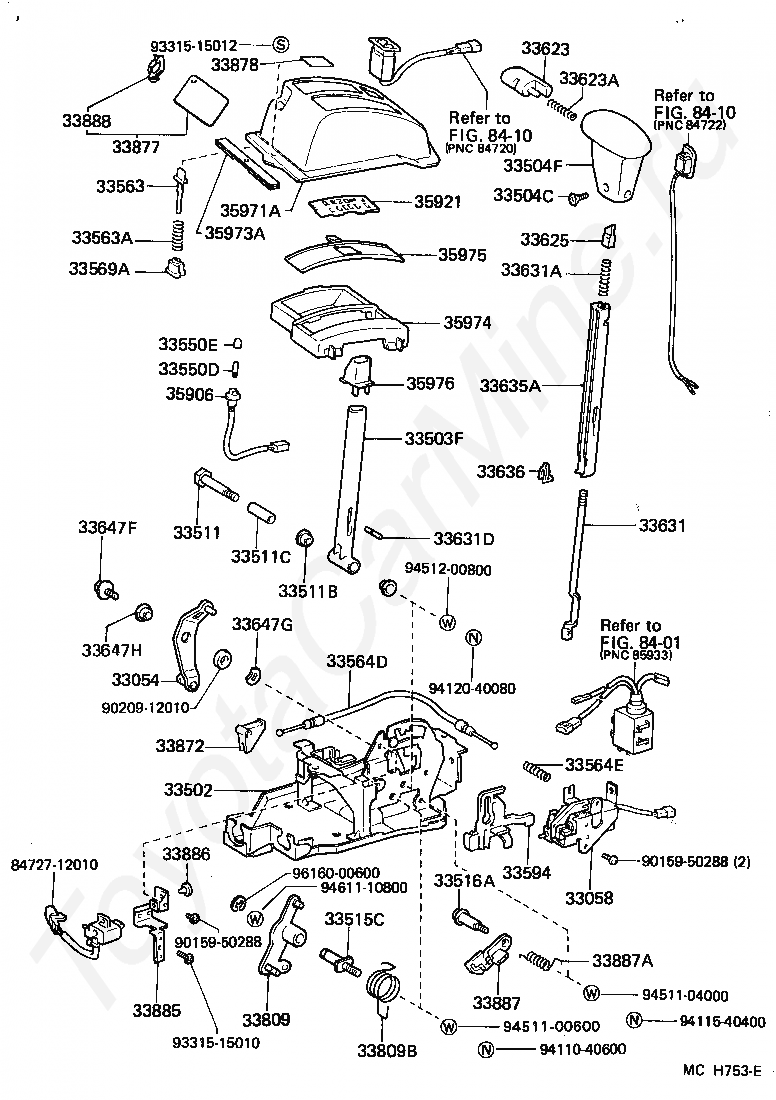

Код
Описание
33054
LEVER SUB-ASSY, SHIFT, NO.2(FOR FLOOR SHIFT)
33058
BRACKET SUB-ASSY, SHIFT LOCK SOLENOID
33502
PLATE SUB-ASSY, SHIFT LEVER
33503F
LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33504C
SCREW (FOR SHIFT LEVER KNOB SETTING)
33504F
KNOB SUB-ASSY, SHIFT LEVER
33511
SHAFT, CONTROL (FOR FLOOR SHIFT)
33511B
BUSH (FOR CONTROL SHAFT)
33511C
COLLAR (FOR CONTROL SHAFT)
33515C
SHAFT, CONTROL, NO.2
33516A
SHAFT, CONTROL, NO.3
33550D
BULB, POSITION INDICATOR LAMP
33550E
CAP, POSITION INDICATOR LAMP
33563
BUTTON, SHIFT LOCK RELEASE
33563A
SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON)
33564D
CABLE, SHIFT LOCK RELEASE
33564E
SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE CABLE)
33569A
GUIDE, SHIFT LOCK RELEASE BUTTON
33594
PLATE, SHIFT LOCK (FOR FLOOR SHIFT)
33623
BUTTON, SHIFT LEVER KNOB
33623A
SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
33625
SLEEVE, SHIFT LEVER KNOB
33631
ROD, DETENT
33631A
SPRING, COMPRESSION (FOR DETENT ROD)
33631D
PIN, GROOVED (FOR DETENT ROD)
33635A
GUIDE, WIRE, NO.1 (FOR SHIFT LEVER)
33636
GUIDE, WIRE, NO.2 (FOR SHIFT LEVER)
33647F
SHAFT, CONTROL LINK (FOR FLOOR SHIFT)
33647G
WASHER, WAVE (FOR CONTROL LINK SHAFT)
33647H
BUSH (FOR CONTROL LINK SHAFT)
33809
LEVER SUB-ASSY, CABLE CONTROL
33809B
SPRING, TORSION (FOR CABLE CONTROL LEVER)
33872
LINK, SHIFT LOCK RELEASE, NO.2
33877
LABEL, SHIFT LOCK INFORMATION, NO.1
33878
LABEL, SHIFT LOCK INFORMATION, NO.2
33885
BRACKET, SHIFT LEVER STOPPER
33886
STOPPER, SHIFT LEVER
33887
STOPPER, CABLE CONTROL LEVER
33887A
SPRING, TORSION (FOR CABLE CONTOROL LEVER STOPPER)
33888
CLAMP, SHIFT LOCK INFORMATION LABEL
35906
WIRE SUB-ASSY, INDICATOR LAMP
35921
PLATE, CONTROL POSITION INDICATOR
35971A
HOUSING, POSITION INDICATOR, UPPER
35973A
ATTACHMENT, POSITION INDICATOR HOUSING COVER
35974
HOUSING, POSITION INDICATOR, LOWER
35975
COVER, SLIDE (FOR POSITION INDICATOR)
35976
COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
8401
переход к группе запчастей
8410
переход к группе запчастей
8472712010
Крепеж
9015950288
Крепеж
9020912010
Крепеж
9331515010
Крепеж
9331515012
Крепеж
9411040600
Крепеж
9411540400
Крепеж
9412040080
Крепеж
9451100600
Крепеж
9451104000
Крепеж
9451200800
Крепеж
9461110800
Крепеж
9616000600
Крепеж

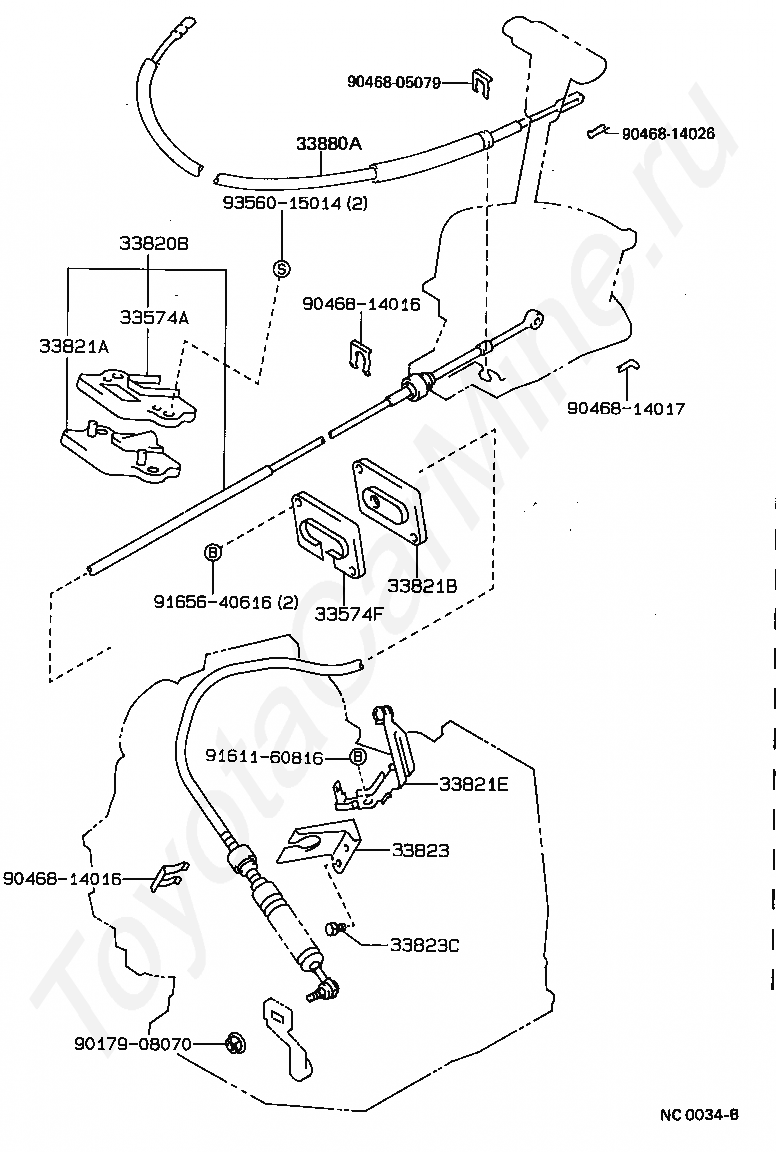

Код
Описание
33574A
RETAINER, SHIFT CABLE GROMMET, NO.1
33574F
RETAINER, DUST SEAL (FOR FLOOR SHIFT)
33820B
CABLE ASSY, TRANSMISSION CONTROL
33821A
GROMMET, NO.1 (FOR TRANSMISSION CONTROL CABLE)
33821B
GROMMET, NO.2 (FOR TRANSMISSION CONTROL CABLE)
33821E
CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE)
33823
BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823C
BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
33880A
CABLE ASSY, PARKING LOCK (FOR FLOOR SHIFT)
9017908070
Крепеж
9046805079
Крепеж
9046814016
Крепеж
9046814017
Крепеж
9046814026
Крепеж
9161160816
Крепеж
9165640616
Крепеж
9356015014
Крепеж
