Каталог
ЯпонияМодель
SPRINTERДвигатель
1,3 литра, 16 клапанов, DOHC, EFIКузов
4 двериКласс
LX SPECIFICATIONФрейм
EE101Трансмиссия
автомат АКПП, 3 ступениОпции
Код
Описание

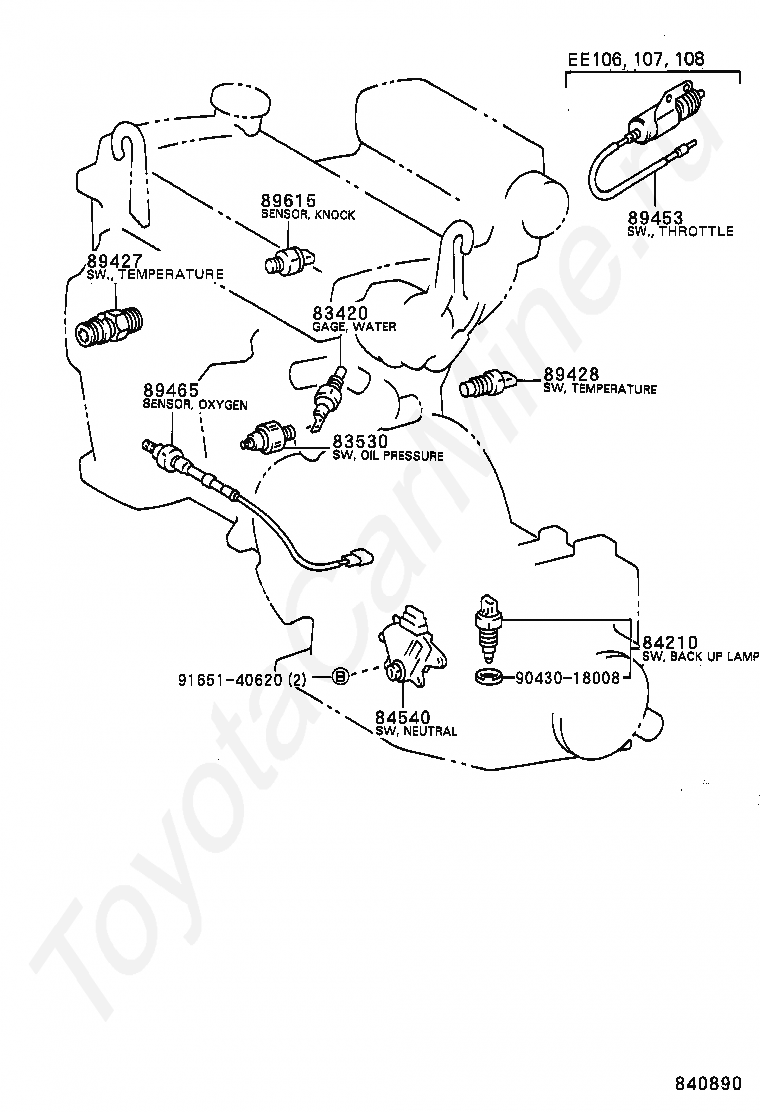

83420
GAGE ASSY, WATER TEMPERATURE SENDER
83530
SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
84210
SWITCH ASSY, BACK-UP LAMP
84540
SWITCH ASSY, NEUTRAL START
89427
SWITCH, TEMPERATURE DETECT
89428
SWITCH, TEMPERATURE DETECT, NO.2
89453
SWITCH, THROTTLE POSITION (FOR T.C.S.)
89465
SENSOR, OXYGEN
89615
SENSOR, KNOCK CONTROL
9043018008
Крепеж
9165140620
Крепеж
Код
Описание

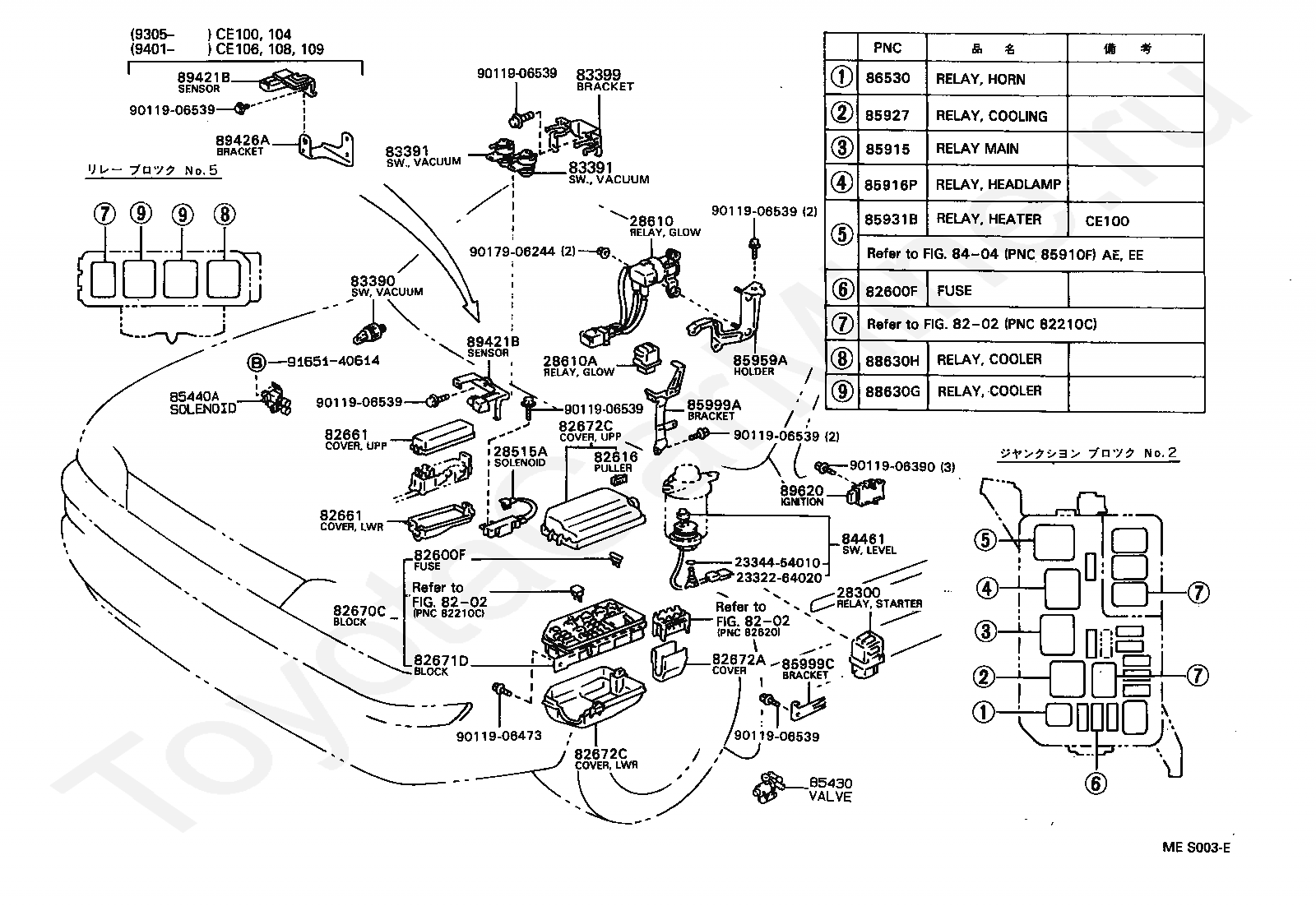

2332264020
Крепеж
2334454010
Крепеж
28300
RELAY ASSY, STARTER
28515A
RESISTOR, SOLENOID
28610
RELAY ASSY, INTAKE HEATER OR GLOW PLUG
28610A
RELAY ASSY, GLOW PLUG(SUB)
8202
переход к группе запчастей
82600F
FUSE, FUSE BLOCK
82616
PULLER, FUSE
82661
COVER, RELAY BLOCK, NO.1
82670C
BLOCK ASSY, JUNCTION, NO.3
82671D
BLOCK, JUNCTION
82672A
COVER, JUNCTION BLOCK
82672C
COVER, JUNCTION BLOCK
83390
SWITCH ASSY, VACUUM WARNING
83391
SWITCH, VACUUM
83399
BRACKET, VACUUM SWITCH
8404
переход к группе запчастей
84461
SWITCH, LEVEL WARNING
85430
VALVE, OUTER VENT CONTROL
85440A
SOLENOID ASSY, FOUR WHEEL DRIVE CONTROL
85915
RELAY, MAIN
85916P
RELAY, HEADLAMP
85927
RELAY, COOLING FAN
85931B
RELAY, FUEL HEATER
85959A
HOLDER, RELAY
85999A
BRACKET, RELAY, NO.2
85999C
BRACKET, RELAY, NO.3
86530
RELAY ASSY, HORN
88630G
RELAY ASSY, COOLER
88630H
RELAY ASSY, COOLER
89421B
SENSOR, VACUUM
89426A
BRACKET, VACUUM SENSOR
89620
IGNITER ASSY
9011906390
Крепеж
9011906473
Крепеж
9011906539
Крепеж
9017906244
Крепеж
9165140614
Крепеж
Код
Описание

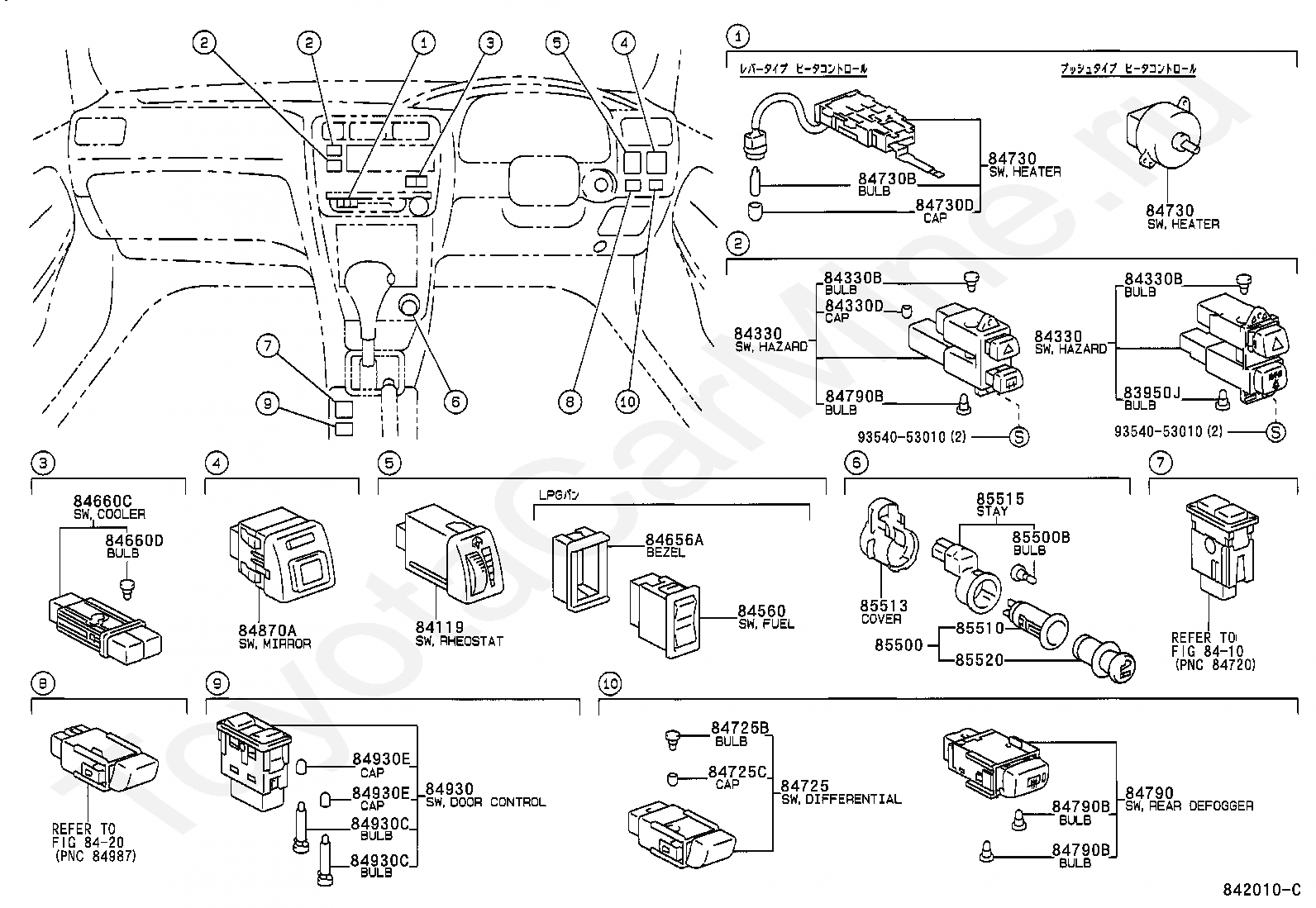

83950J
BULB, PASSENGER SEAT BELT WARNING LAMP
8410
переход к группе запчастей
84119
RHEOSTAT, LIGHT CONTROL
8420
переход к группе запчастей
84330
SWITCH ASSY, HAZARD WARNING SIGNAL
84330B
BULB, HAZARD WARNING SIGNAL SWITCH
84330D
CAP, HAZARD WARNING SWITCH BULB
84560
SWITCH ASSY, FUEL VALVE CONTROL
84656A
BEZEL, SWITCH
84660C
SWITCH, COOLER
84660D
BULB(FOR COOLER SWITCH)
84725
SWITCH, CENTER DIFFERENTIAL LOCK
84725B
BLUB, DIFFERENTIAL LOCK SWITCH
84725C
CAP, DIFFERENTIAL LOCK SWITCH BULB
84730
SWITCH ASSY, HEATER BLOWER
84730B
BULB, HEATER BLOWER SWITCH
84730D
CAP, HEATER BLOWER SWITCH BULB
84790
SWITCH ASSY, REAR WINDOW DEFOGGER
84790B
BULB(FOR REAR WINDOW DEFOGGER SWITCH)
84870A
SWITCH ASSY, OUTER MIRROR
84930
SWITCH ASSY, DOOR CONTROL
84930C
BULB(FOR DOOR CONTROL SWITCH)
84930E
CAP(FOR DOOR CONTROL SWITCH BULB)
85500
LIGHTER ASSY, CIGARETTE
85500B
BULB, CIGARETTE LIGHTER
85510
SOCKET & RETAINER ASSY, CIGARLIGHTER
85513
COVER, CIGARETTE LIGHTER
85515
STAY, CIGARETTE LIGHTER BEZEL
85520
KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER
9354053010
Крепеж
Код
Описание

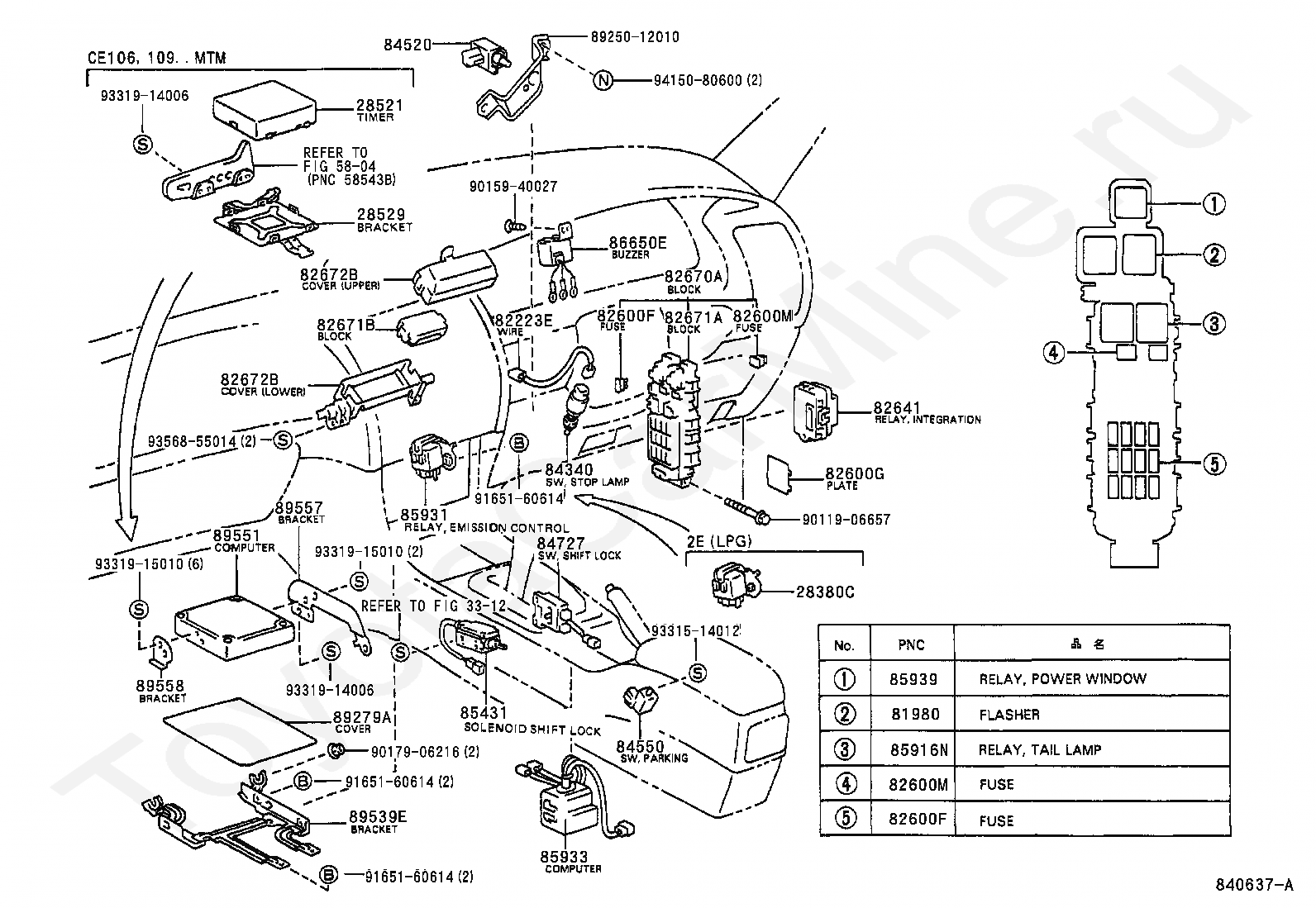

28380C
RELAY ASSY, FUEL PUMP
28521
TIMER, PREHEATING
28529
BRACKET, PREHEATING TIMER, NO.1
3312
переход к группе запчастей
5804
переход к группе запчастей
81980
FLASHER ASSY, TURN SIGNAL
82223E
WIRE, CLUTCH START SWITCH
82600F
FUSE, FUSE BLOCK
82600G
PLATE, CAUTION(FOR FUSE)
82600M
FUSE, MEDIUM CURRENT
82641
RELAY, INTEGRATION NO.1
82670A
BLOCK ASSY, JUNCTION, NO.1
82671A
BLOCK, JUNCTION
82671B
BLOCK, JUNCTION
82672B
COVER, JUNCTION BLOCK
84340
SWITCH ASSY, STOP LAMP
84520
SWITCH ASSY, CLUTCH START
84550
SWITCH ASSY, PARKING BRAKE
84727
SWITCH, SHIFT LOCK CONTROL
85431
SOLENOID, SHIFT LOCK
85916N
RELAY, TAIL LAMP
85931
RELAY, EMISSION CONTROL
85933
COMPUTER, SHIFT LOCK CONTROL
85939
RELAY, POWER WINDOW
86650E
BUZZER ASSY
8925012010
Крепеж
89279A
COVER, COMPUTER
89539E
BRACKET, COMPUTER
89551
COMPUTER, EMISSION CONTROL
89557
BRACKET, EMISSION CONTROL COMPUTER, NO.1
89558
BRACKET, EMISSION CONTROL COMPUTER, NO.2
9011906657
Крепеж
9015940027
Крепеж
9017906216
Крепеж
9165160614
Крепеж
9331514012
Крепеж
9331914006
Крепеж
9331915010
Крепеж
9356855014
Крепеж
9415080600
Крепеж
Код
Описание

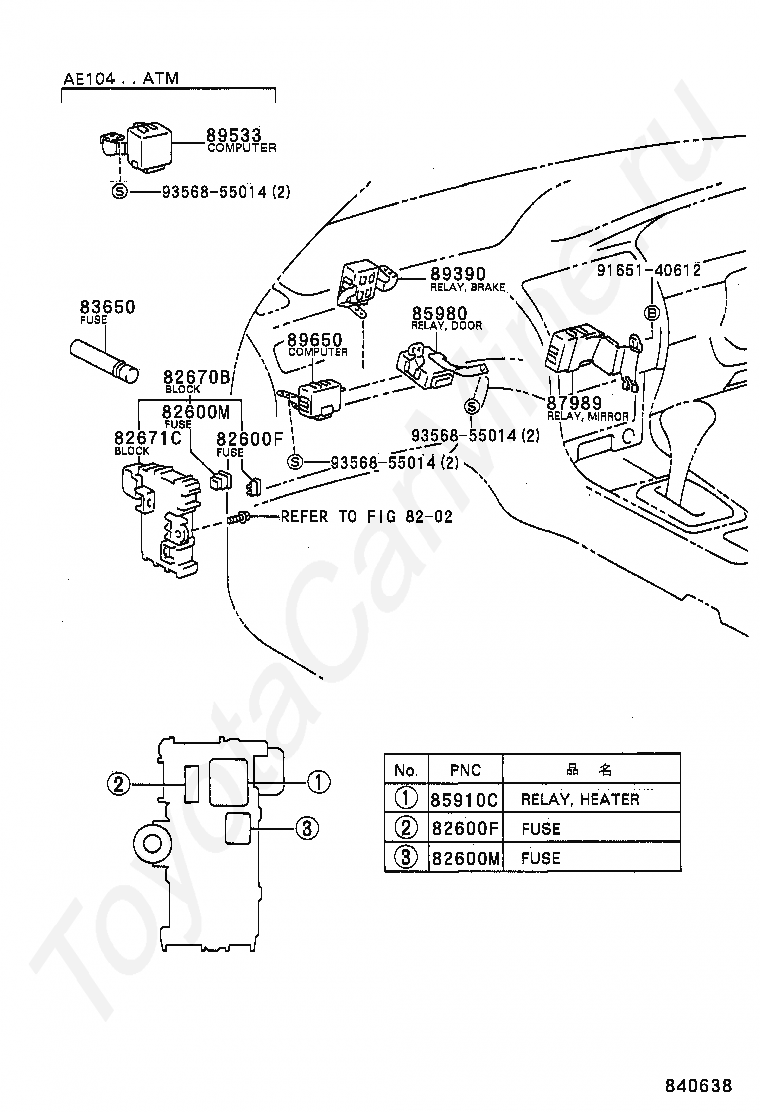

8202
переход к группе запчастей
82600F
FUSE, FUSE BLOCK
82600M
FUSE, MEDIUM CURRENT
82670B
BLOCK ASSY, JUNCTION, NO.2
82671C
BLOCK, JUNCTION
83650
FUSEE
85910C
RELAY ASSY (FOR HEATER BLOWER MOTOR)
85980
RELAY ASSY, DOOR CONTROL
87989
RELAY, MIRROR CONTROL
89390
RELAY, BRAKE WARNING
89533
COMPUTER, 4 WHEEL DRIVE CONTROL
89650
COMPUTER ASSY, POWER STEERING
9165140612
Крепеж
9356855014
Крепеж
Код
Описание

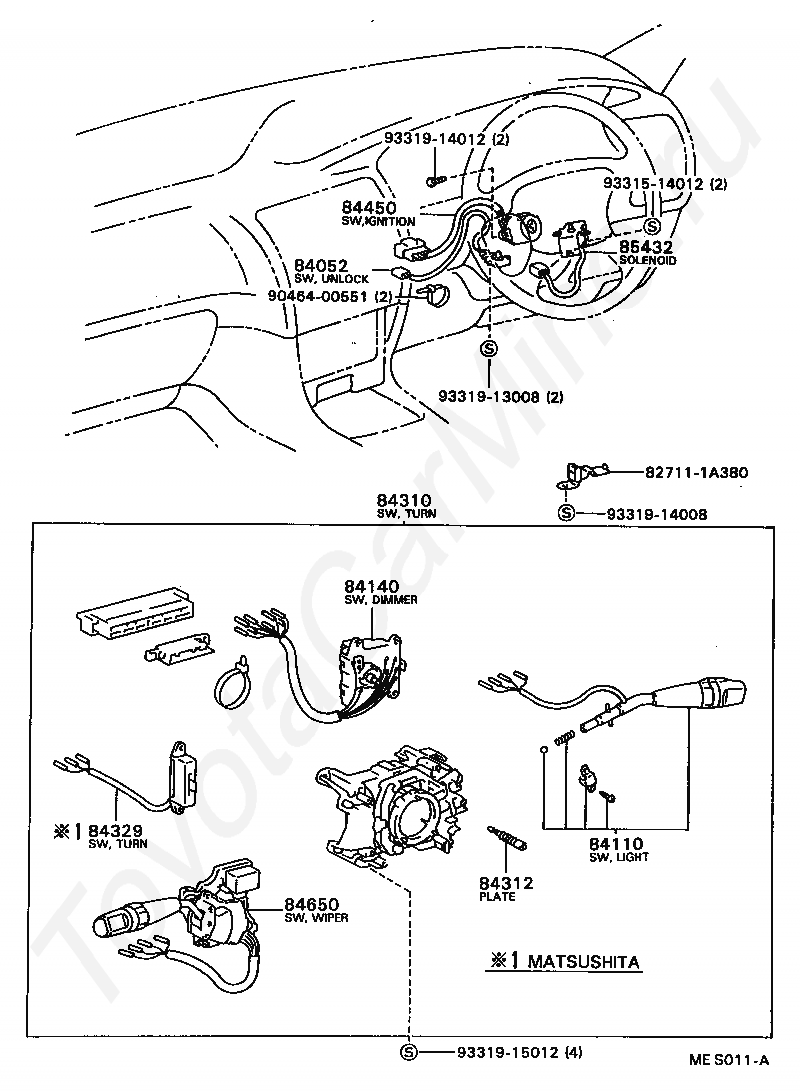

827111A380
Крепеж
84052
SWITCH ASSY, UN-LOCK WARNING
84110
SWITCH ASSY, LIGHT CONTROL, NO.1
84140
SWITCH ASSY, HEADLAMP DIMMER
84310
SWITCH ASSY, TURN SIGNAL
84312
PLATE, HORN CONTACT
84329
SWITCH, TURN SIGNAL
84450
SWITCH ASSY, IGNITION OR STARTER
84650
SWITCH ASSY, WINDSHIELD WIPER
85432
SOLENOID, KEY INTER LOCK
9046400551
Крепеж
9331514012
Крепеж
9331913008
Крепеж
9331914008
Крепеж
9331914012
Крепеж
9331915012
Крепеж
Код
Описание

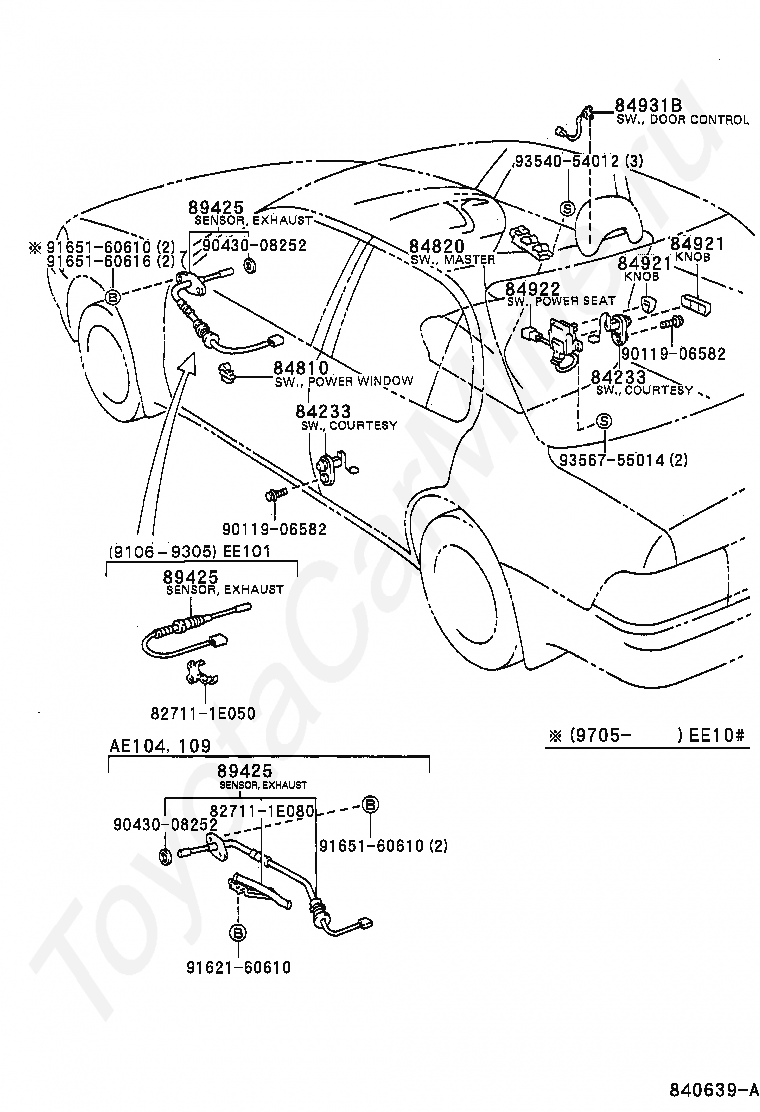

827111E050
Крепеж
827111E080
Крепеж
84233
SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84810
SWITCH ASSY, POWER WINDOW REGULATOR
84820
MASTER SWITCH ASSY, POWER WINDOW REGULATOR
84921
KNOB, POWER SEAT SWITCH
84922
SWITCH, FRONT POWER SEAT
84931B
SWITCH, DOOR CONTROL
89425
SENSOR, EXHAUST GAS TEMPERATURE
9011906582
Крепеж
9043008252
Крепеж
9162160610
Крепеж
9165160610
Крепеж
9165160616
Крепеж
9354054012
Крепеж
9356755014
Крепеж
Код
Описание

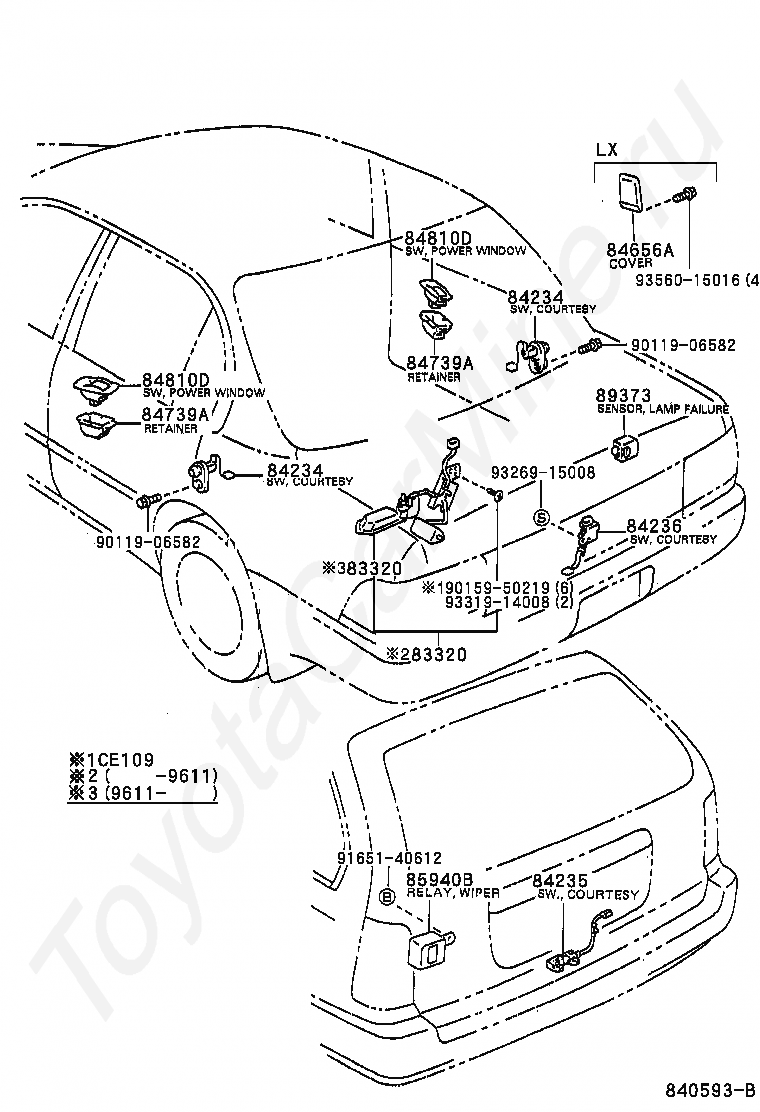

83320
GAGE ASSY, FUEL SENDER
84234
SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84235
SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR)
84236
SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM)
84656A
BEZEL, SWITCH
84739A
RETAINER, SWITCH
84810D
SWITCH ASSY, POWER WINDOW REGULATOR, REAR
85940B
RELAY ASSY, REAR WIPER
89373
SENSOR, LAMP FAILURE INDICATOR
9011906582
Крепеж
9015950219
Крепеж
9165140612
Крепеж
9326915008
Крепеж
9331914008
Крепеж
9356015016
Крепеж
