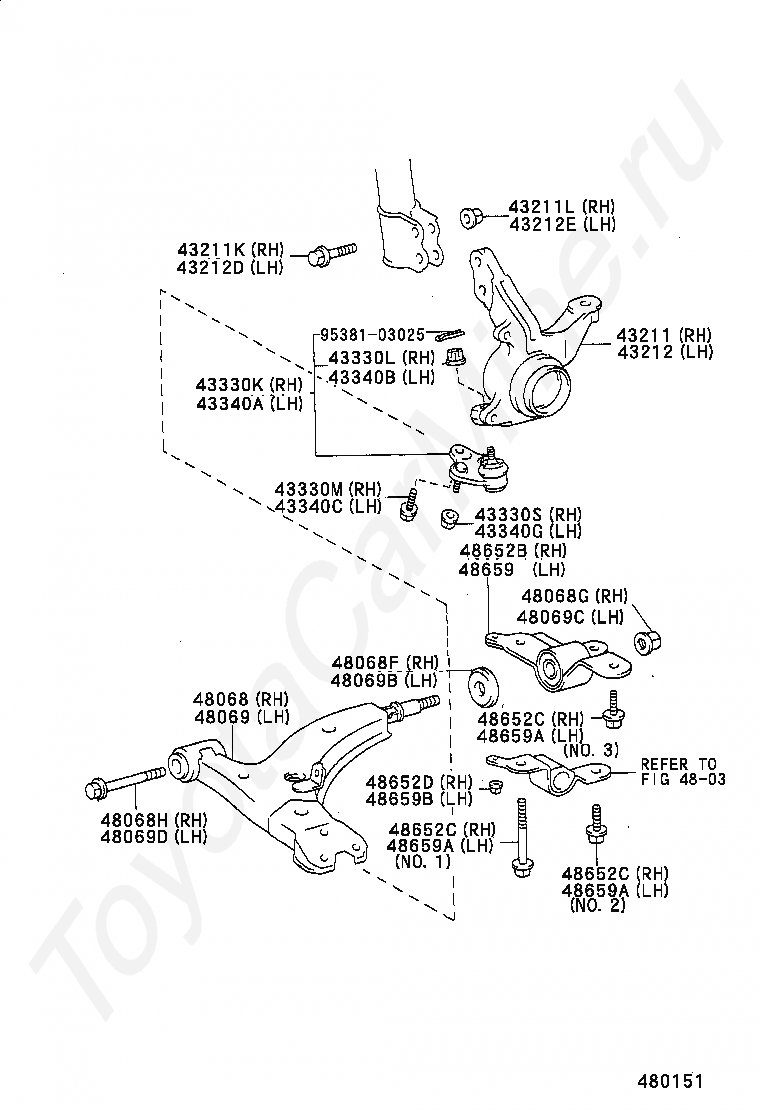

Рычаги передней подвески TOYOTA SPRINTER, 1991/06 - 1995/05, 1,3 литра, 16 клапанов, DOHC, EFI, 4 двери, LX SPECIFICATION, EE101, автомат, АКПП, 3 ступени

Каталог

Япония

Модель

SPRINTER

Двигатель

1,3 литра, 16 клапанов, DOHC, EFI

Кузов

4 двери

Класс

LX SPECIFICATION

Фрейм

EE101

Трансмиссия

автомат АКПП, 3 ступени

Опции

Код

Описание

43211

KNUCKLE, STEERING, RH

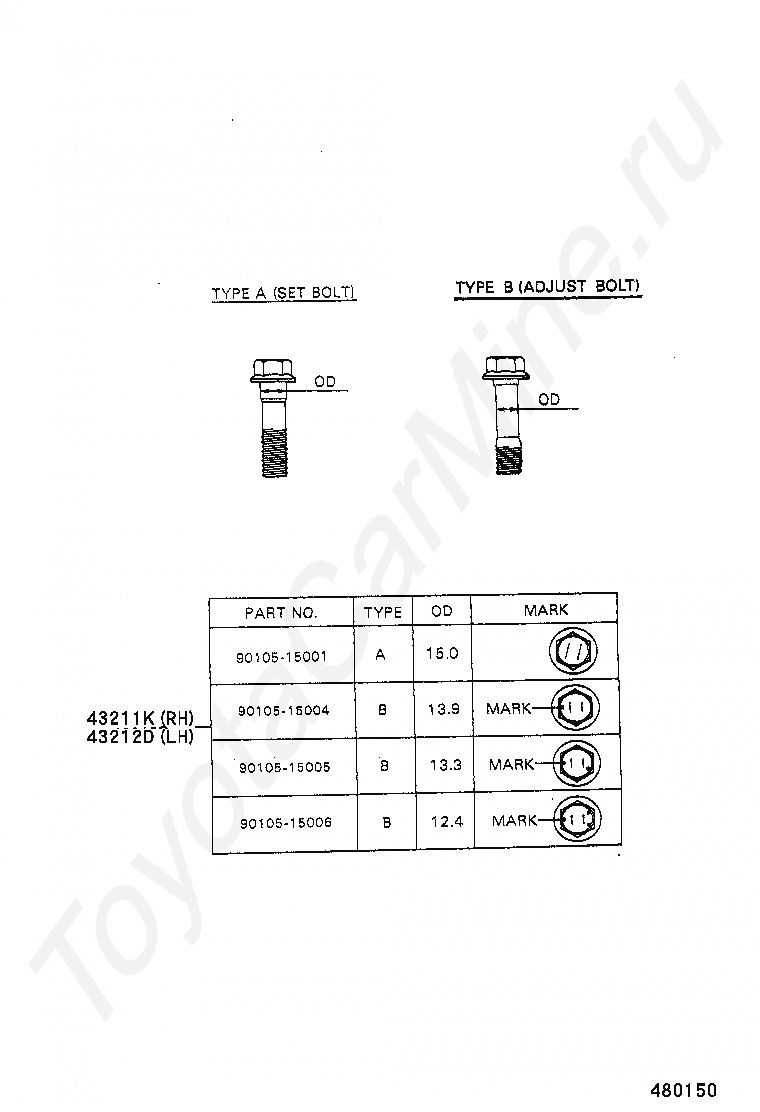

43211K

BOLT (FOR STEERING KNUCKLE RH)

43211L

NUT (FOR STEERING KNUCKLE RH)

43212

KNUCKLE, STEERING, LH

43212D

BOLT (FOR STEERING KNUCKLE LH)

43212E

NUT (FOR STEERING KNUCKLE LH)

43330K

JOINT ASSY, LOWER BALL, FRONT RH

43330L

NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

43330M

BOLT (FOR FRONT LOWER BALL JOINT RH)

43330S

NUT (FOR FRONT LOWER BALL JOINT RH)

43340A

JOINT ASSY, LOWER BALL, FRONT LH

43340B

NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

43340C

BOLT (FOR FRONT LOWER BALL JOINT LH)

43340G

NUT (FOR FRONT LOWER BALL JOINT LH)

4803

переход к группе запчастей

48068

ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

48068F

RETAINER, CUSHION(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

48068G

NUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

48068H

BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

48069

ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

48069B

RETAINER, CUSHION(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

48069C

NUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

48069D

BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

48652B

BRACKET, FRONT LOWER ARM, RH

48652C

BOLT(FOR FRONT LOWER ARM BRACKET RH)

48652D

NUT(FOR FRONT LOWER ARM BRACKET RH)

48659

BRACKET, FRONT LOWER ARM, LH

48659A

BOLT(FOR FRONT LOWER ARM BRACKET LH)

48659B

NUT(FOR FRONT LOWER ARM BRACKET LH)

9538103025

Крепеж
