Задние кресла TOYOTA SIENTA (ASIA), 2019/07 - 2025, 1,5 литра, 16 клапанов, DOHC, EFI, NSP170, вариатор

Каталог

Ближний Восток

Модель

SIENTA (ASIA)

Двигатель

1,5 литра, 16 клапанов, DOHC, EFI

Фрейм

NSP170

Трансмиссия

вариатор

Опции

правый руль 7-местный Индонезия V(MODEL MARK) 785W

Код

Описание

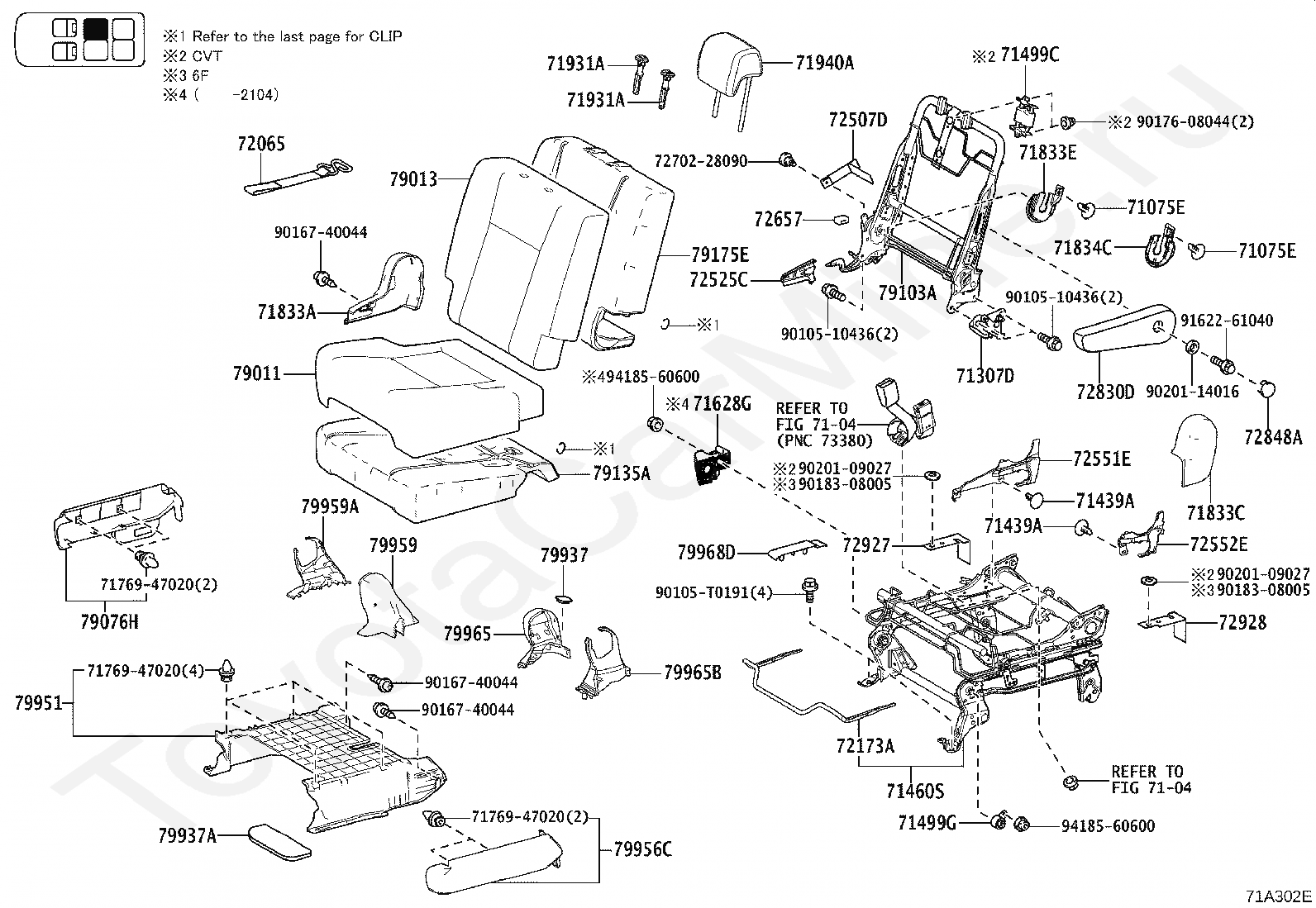

7104

переход к группе запчастей

71075E

CLIP(FOR REAR SEAT)

71307D

BRACKET SUB-ASSY, REAR SEAT CUSHION SUPPORT, RH

71439A

CLIP

71460S

CUSHION ASSY, REAR SEAT, RH(FOR SEPARATE TYPE)

71499C

DAMPER, REAR SEAT CUSHION SPRING

71499G

DAMPER, REAR SEAT BACK SPRING, RH

71628G

SPACER, REAR SEAT CUSHION, RH

7176947020

Крепеж

71833A

COVER, REAR SEAT RECLINING, NO.1 RH

71833C

COVER, REAR SEAT RECLINING, NO.2 RH

71833E

COVER, REAR SEAT RECLINING, NO.3 RH

71834C

COVER, REAR SEAT RECLINING, NO.3 LH

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72065

BELT SUB-ASSY, REAR SEAT HOOK, RH

72173A

HANDLE, REAR SEAT TRACK ADJUSTING, RH

72507D

HANDLE SUB-ASSY, NO.2 SEAT RECLINING RELEASE

72525C

HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH

72551E

COVER, RECLINING HINGE, RH

72552E

COVER, RECLINING HINGE, LH

72657

SILENCER, REAR SEAT BACK LOCK CONTROL ROD

7270228090

Крепеж

72830D

ARMREST ASSY, REAR SEAT, RH

72848A

CAP, SEAT ARMREST, NO.1

72927

COVER, REAR SEAT CUSHION UNDER, RH

72928

COVER, REAR SEAT CUSHION UNDER, LH

79011

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

79013

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79076H

COVER SUB-ASSY, NO.1 SEAT LEG, RH

79103A

FRAME SUB-ASSY, NO.1 SEAT BACK, RH

79135A

PAD, NO.1 SEAT CUSHION, RH

79175E

PAD, NO.1 SEAT BACK, RH

79937

COVER, REAR SEAT LEG, NO.2

79937A

COVER, REAR SEAT LEG, NO.2

79951

COVER, NO.1 SEAT CUSHION

79956C

COVER, REAR SEAT LEG SIDE, LH

79959

COVER, RR SEAT LEG

79959A

COVER, REAR SEAT LEG, RH

79965

COVER, REAR SEAT LEG SIDE, NO.2

79965B

COVER, REAR SEAT LEG SIDE, NO.2

79968D

COVER, REAR SEAT LEG SIDE, NO.5, RH

9010510436

Крепеж

90105T0191

Крепеж

9016740044

Крепеж

9017608044

Крепеж

9018308005

Крепеж

9020109027

Крепеж

9020114016

Крепеж

9162261040

Крепеж

9418560600

Крепеж

Код

Описание

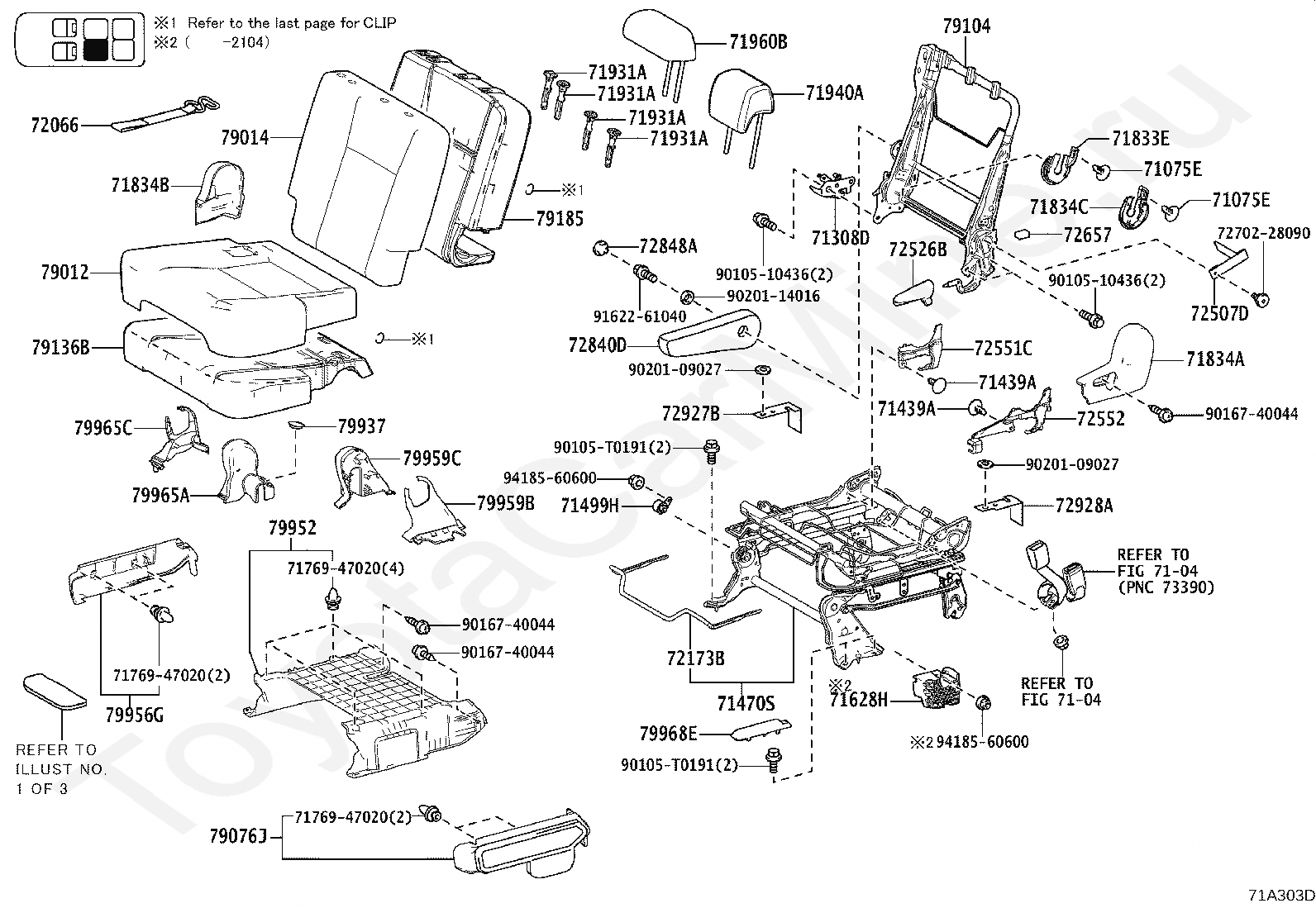

7104

переход к группе запчастей

71075E

CLIP(FOR REAR SEAT)

71308D

BRACKET SUB-ASSY, REAR SEAT CUSHION SUPPORT, LH

71439A

CLIP

71470S

CUSHION ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)

71499H

DAMPER, REAR SEAT BACK SPRING, LH

71628H

SPACER, REAR SEAT CUSHION, LH

7176947020

Крепеж

71833E

COVER, REAR SEAT RECLINING, NO.3 RH

71834A

COVER, REAR SEAT RECLINING, NO.1 LH

71834B

COVER, REAR SEAT RECLINING, NO.2 LH

71834C

COVER, REAR SEAT RECLINING, NO.3 LH

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71960B

HEADREST ASSY, REAR SEAT, CENTER

72066

BELT SUB-ASSY, REAR SEAT HOOK, LH

72173B

HANDLE, REAR SEAT TRACK ADJUSTING, LH

72507D

HANDLE SUB-ASSY, NO.2 SEAT RECLINING RELEASE

72526B

HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH

72551C

COVER, RECLINING HINGE, NO.2

72552

COVER, RECLINING HINGE, NO.2

72657

SILENCER, REAR SEAT BACK LOCK CONTROL ROD

7270228090

Крепеж

72840D

ARMREST ASSY, REAR SEAT, LH

72848A

CAP, SEAT ARMREST, NO.1

72927B

COVER, REAR SEAT CUSHION UNDER

72928A

COVER, REAR SEAT CUSHION UNDER, NO.2

79012

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79014

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79076J

COVER SUB-ASSY, NO.1 SEAT LEG, LH

79104

FRAME SUB-ASSY, NO.1 SEAT BACK, LH

79136B

PAD, NO.1 SEAT CUSHION, LH

79185

PAD, NO.1 SEAT BACK, LH

79937

COVER, REAR SEAT LEG, NO.2

79952

COVER, NO.2 SEAT CUSHION

79956G

COVER, NO.3 SEAT LEG SIDE, RH

79959B

COVER, REAR SEAT LEG, LH

79959C

COVER, REAR SEAT LEG

79965A

COVER, REAR SEAT LEG SIDE, NO.2

79965C

COVER, REAR SEAT LEG SIDE, NO.2

79968E

COVER, REAR SEAT LEG SIDE, NO.5, LH

9010510436

Крепеж

90105T0191

Крепеж

9016740044

Крепеж

9020109027

Крепеж

9020114016

Крепеж

9162261040

Крепеж

9418560600

Крепеж

Код

Описание

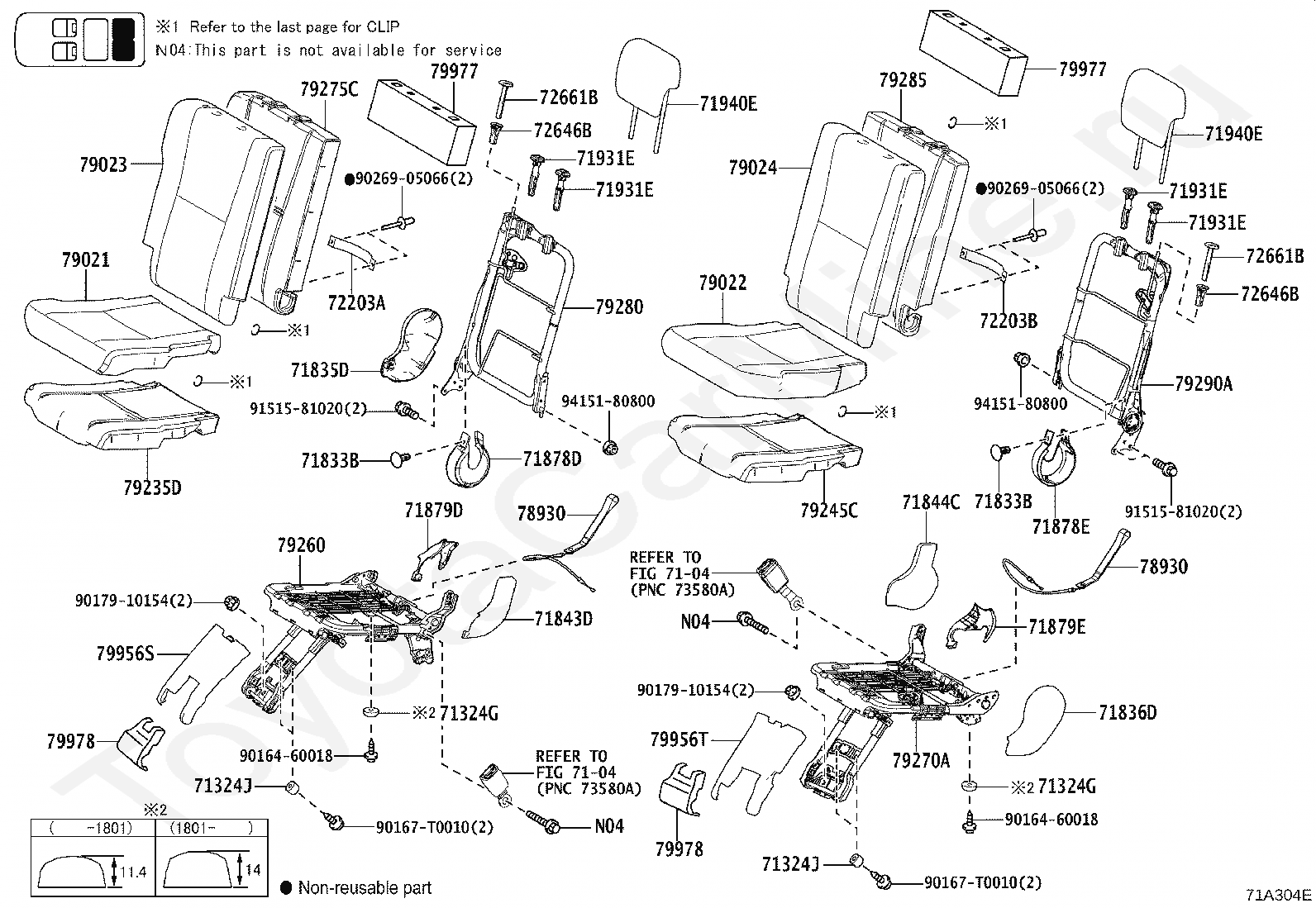

7104

переход к группе запчастей

71324G

CUSHION, REAR NO.2 SEAT

71324J

CUSHION, REAR SEAT

71833B

CLIP (FOR REAR SEAT RECLINING COVER)

71835D

COVER, REAR SEAT RECLINING, LOWER RH

71836D

COVER, REAR SEAT RECLINING, LOWER LH

71843D

COVER, REAR SEAT RECLINING, NO.2 RH

71844C

COVER, REAR SEAT RECLINING, NO.2 LH

71878D

COVER, REAR SEAT RECLINING, INNER RH

71878E

COVER, REAR SEAT RECLINING, INNER RH

71879D

COVER, REAR SEAT RECLINING, INNER LH

71879E

COVER, REAR SEAT RECLINING, INNER LH

71931E

SUPPORT ASSY, REAR NO.3 SEAT HEADREST

71940E

HEADREST ASSY, NO.2 SEAT

72203A

HANDLE SUB-ASSY, REAR SEAT TRACK, RH

72203B

HANDLE SUB-ASSY, REAR SEAT TRACK, LH

72646B

GROMMET, REAR SEAT BACK STOP BUTTON

72661B

LEVER, REAR SEAT BACK ROD CONTROL, OUTER

78930

CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.3

79021

COVER SUB-ASSY, NO.2 SEAT CUSHION, RH

79022

COVER SUB-ASSY, NO.2 SEAT CUSHION, LH

79023

COVER SUB-ASSY, NO.2 SEAT BACK, RH

79024

COVER SUB-ASSY, NO.2 SEAT BACK, LH

79235D

PAD, NO.2 SEAT CUSHION, RH

79245C

PAD, NO.2 SEAT CUSHION, LH

79260

SPRING ASSY, NO.2 SEAT CUSHION

79270A

SPRING ASSY, NO.2 SEAT CUSHION, LH

79275C

PAD, NO.2 SEAT BACK, RH

79280

SPRING ASSY, NO.2 SEAT BACK

79285

PAD, NO.2 SEAT BACK, LH

79290A

SPRING ASSY, NO.2 SEAT BACK, LH

79956S

COVER, REAR SEAT LEG SIDE

79956T

COVER, REAR SEAT LEG SIDE

79977

FELT, SEAT BACK

79978

COVER, REAR SEAT LEG GARNISH, NO.1

9016460018

Крепеж

90167T0010

Крепеж

9017910154

Крепеж

9026905066

Крепеж

9151581020

Крепеж

9415180800

Крепеж

Код

Описание

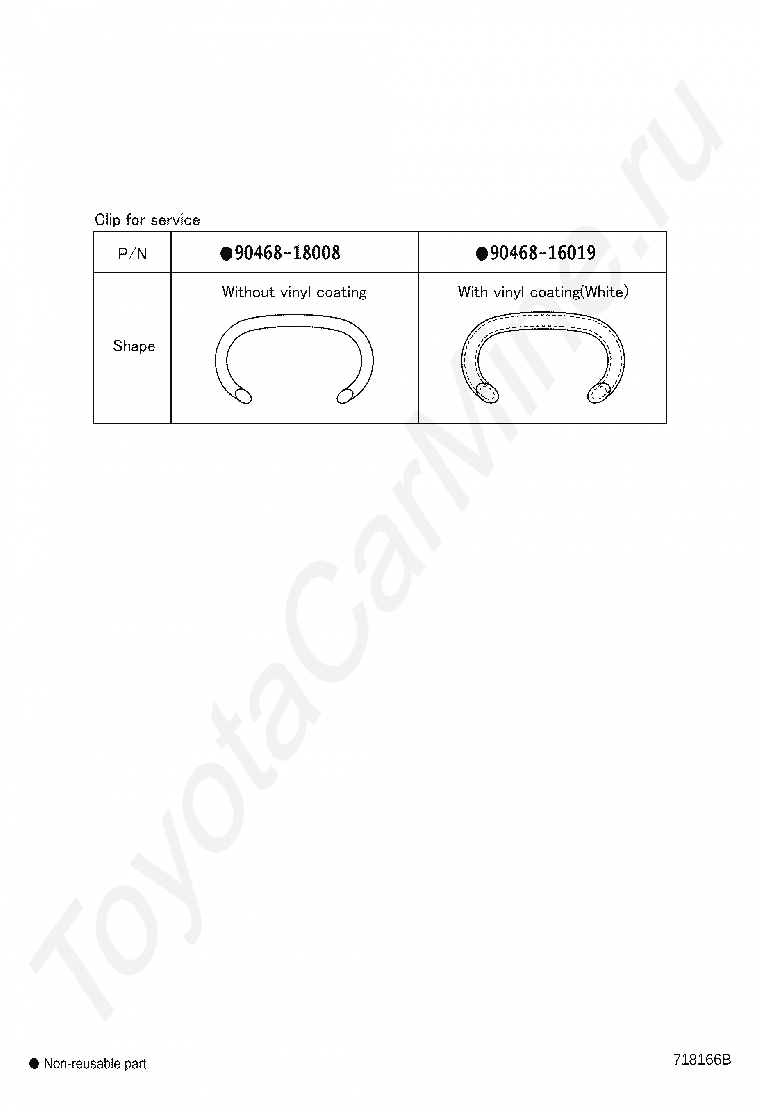

9046816019

Крепеж

9046818008

Крепеж

Задние кресла TOYOTA SIENTA (ASIA), 2019/07 - 2025, 1,5 литра, 16 клапанов, DOHC, EFI, NSP170, вариатор
