Радиатор и шланги TOYOTA SIENTA (ASIA), 2019/07 - 2025, 1,5 литра, 16 клапанов, DOHC, EFI, NSP170, вариатор

Каталог

Ближний Восток

Модель

SIENTA (ASIA)

Двигатель

1,5 литра, 16 клапанов, DOHC, EFI

Фрейм

NSP170

Трансмиссия

вариатор

Опции

правый руль 7-местный Индонезия V(MODEL MARK) 785W

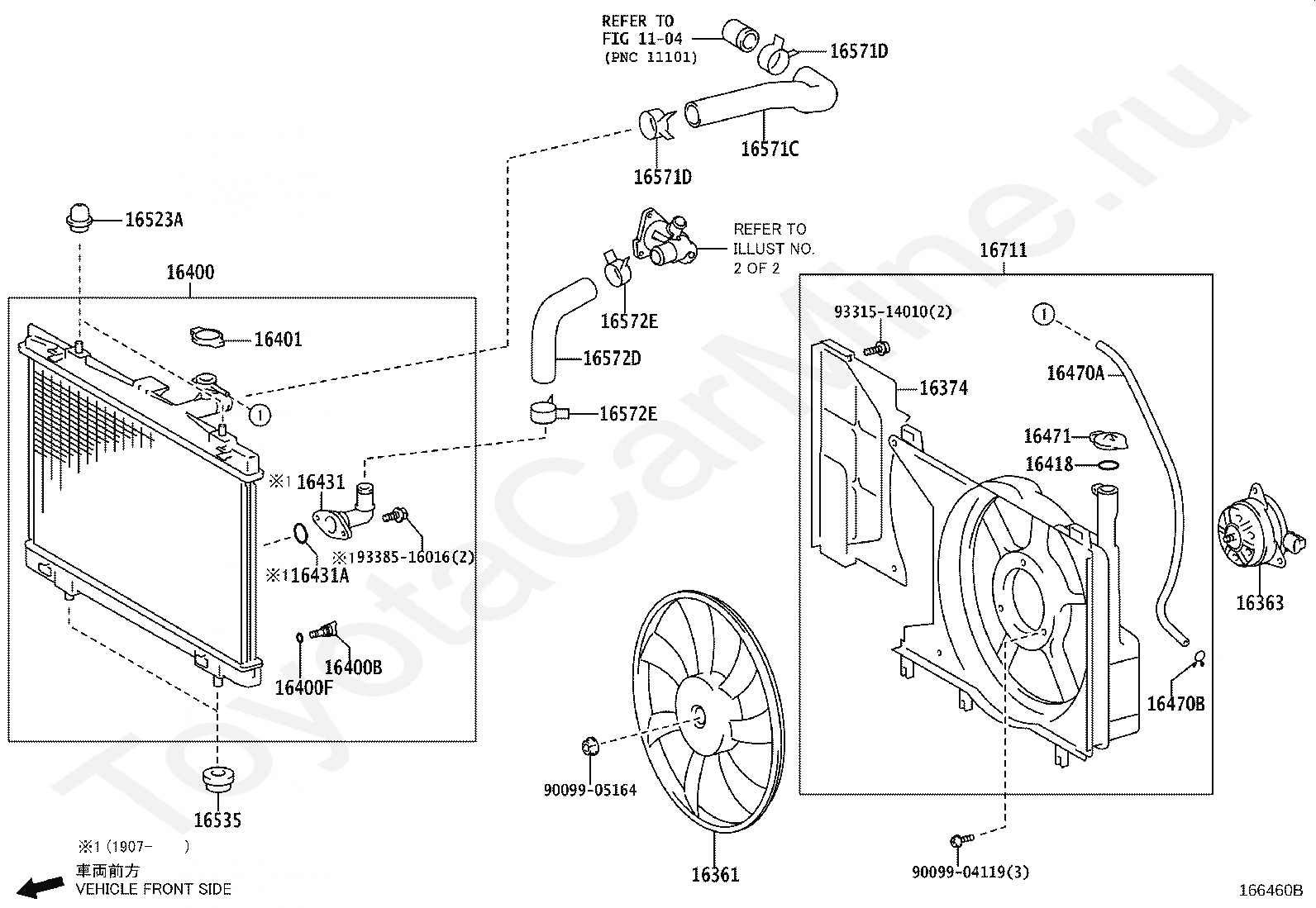

Код

Описание

1104

переход к группе запчастей

16361

FAN

16363

MOTOR, COOLING FAN

16374

INSULATOR, COOLING FAN MOTOR

16400

RADIATOR ASSY

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16401

CAP SUB-ASSY, RADIATOR

16418

PACKING

16431

INLET, RADIATOR WATER

16431A

RING, O(FOR RADIATOR WATER INLET)

16470A

HOSE OR PIPE(FOR RADIATOR RESERVE TANK)

16470B

CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

16471

CAP SUB-ASSY, RESERVE TANK

16523A

CUSHION, RADIATOR SUPPORT

16535

SUPPORT, RADIATOR, LOWER

16571C

HOSE, RADIATOR, NO.1

16571D

CLIP, RADIATOR HOSE, NO.1

16572D

HOSE, RADIATOR, NO.2

16572E

CLIP, RADIATOR HOSE, NO.2

16711

SHROUD, FAN

9009904119

Крепеж

9009905164

Крепеж

9331514010

Крепеж

9338516016

Крепеж

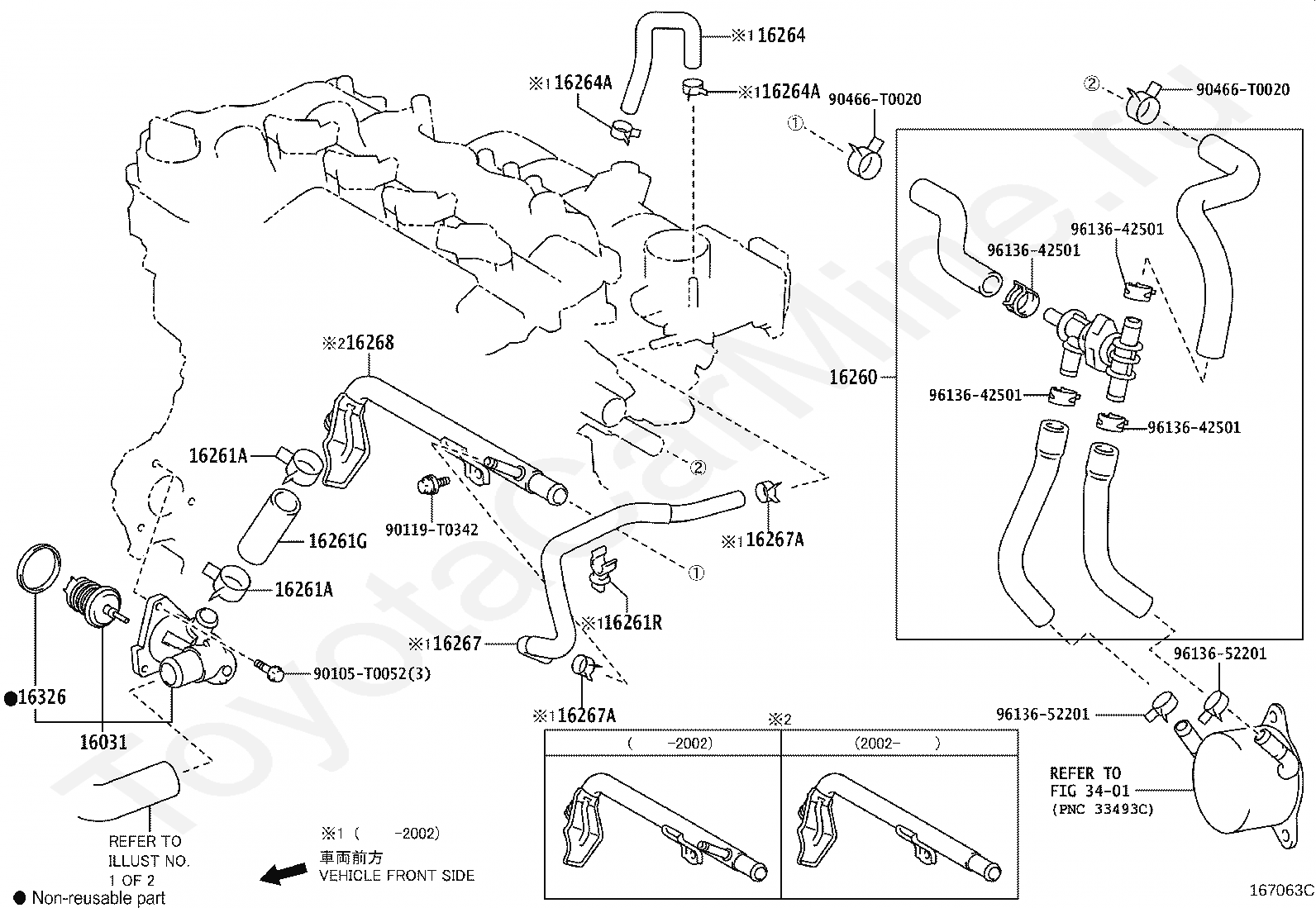

Код

Описание

16031

WATER INLET SUB-ASSY, W/THERMOSTAT

16260

HOSE ASSY, WATER BY-PASS

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261G

HOSE, WATER BY-PASS, NO.1

16261R

CLAMP OR CLIP(FOR WATER BY-PASS HOSE)

16264

HOSE, WATER BY-PASS, NO.2

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16267

HOSE, WATER BY-PASS, NO.3

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16268

PIPE, WATER BY-PASS, NO.1

16326

GASKET, WATER INLET HOUSING, NO.2

3401

переход к группе запчастей

90105T0052

Крепеж

90119T0342

Крепеж

90466T0020

Крепеж

9613642501

Крепеж

9613652201

Крепеж

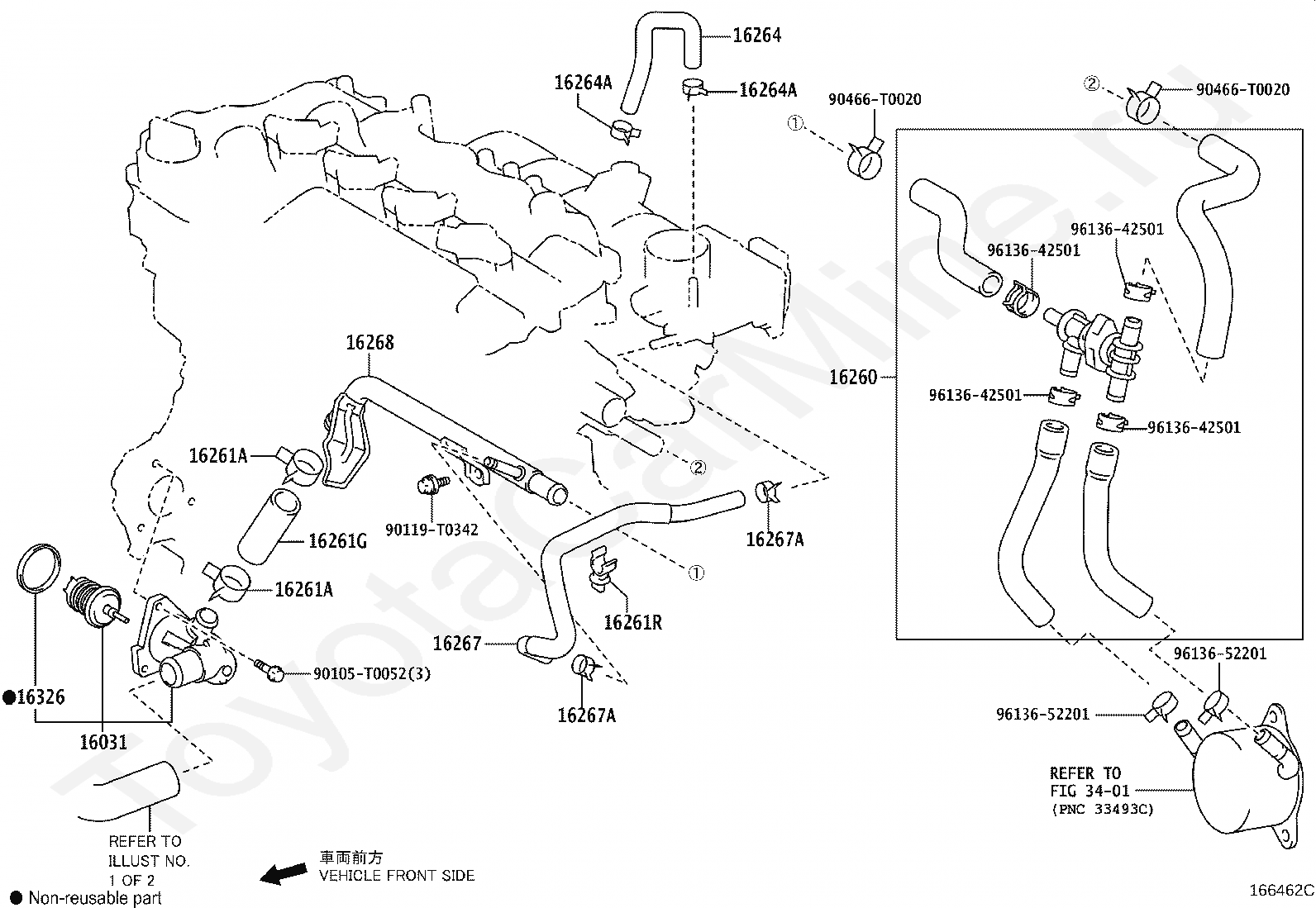

Код

Описание

16031

WATER INLET SUB-ASSY, W/THERMOSTAT

16260

HOSE ASSY, WATER BY-PASS

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261G

HOSE, WATER BY-PASS, NO.1

16261R

CLAMP OR CLIP(FOR WATER BY-PASS HOSE)

16264

HOSE, WATER BY-PASS, NO.2

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16267

HOSE, WATER BY-PASS, NO.3

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16268

PIPE, WATER BY-PASS, NO.1

16326

GASKET, WATER INLET HOUSING, NO.2

3401

переход к группе запчастей

90105T0052

Крепеж

90119T0342

Крепеж

90466T0020

Крепеж

9613642501

Крепеж

9613652201

Крепеж

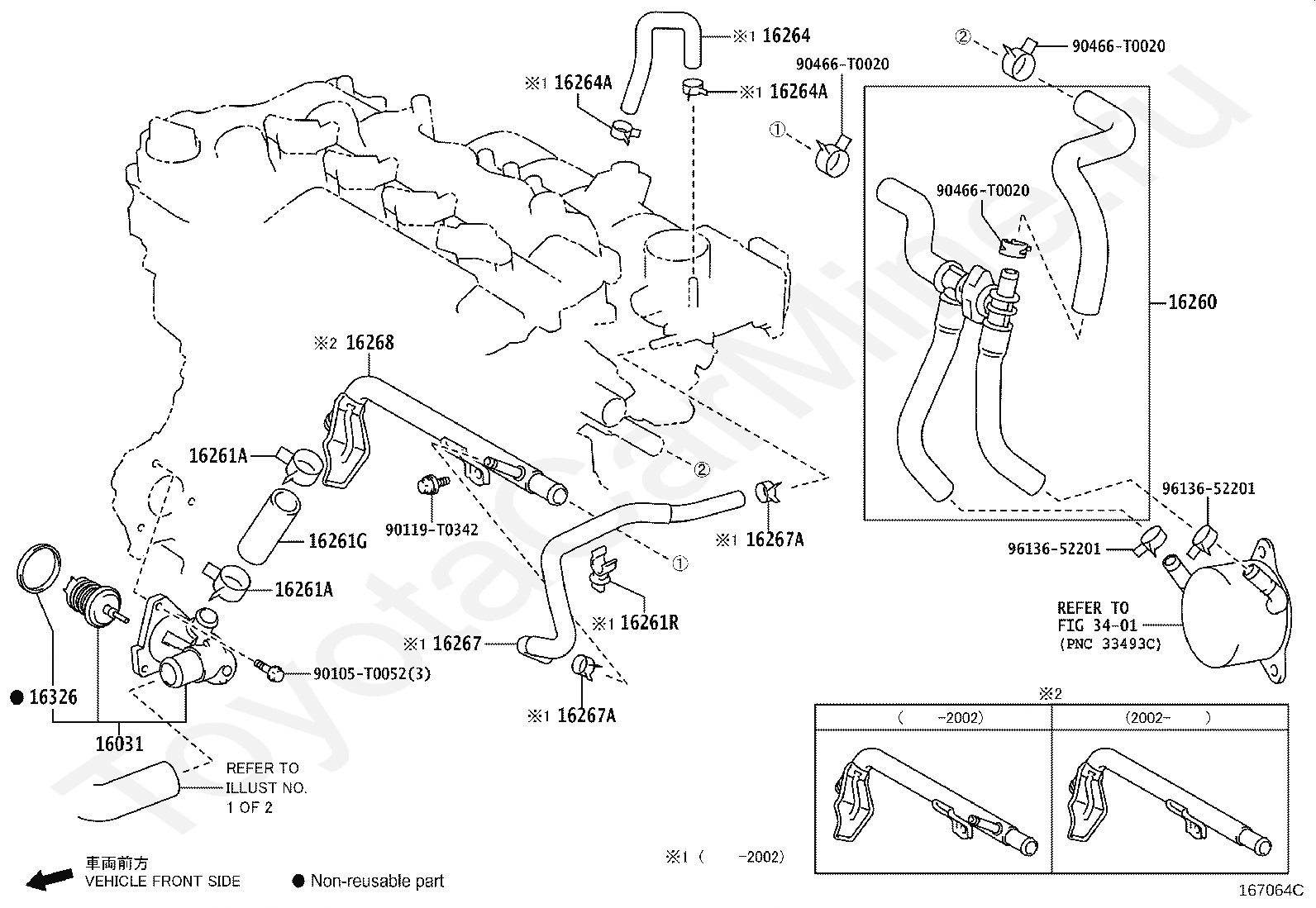

Код

Описание

16031

WATER INLET SUB-ASSY, W/THERMOSTAT

16260

HOSE ASSY, WATER BY-PASS

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261G

HOSE, WATER BY-PASS, NO.1

16261R

CLAMP OR CLIP(FOR WATER BY-PASS HOSE)

16264

HOSE, WATER BY-PASS, NO.2

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16267

HOSE, WATER BY-PASS, NO.3

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16268

PIPE, WATER BY-PASS, NO.1

16326

GASKET, WATER INLET HOUSING, NO.2

3401

переход к группе запчастей

90105T0052

Крепеж

90119T0342

Крепеж

90466T0020

Крепеж

9613652201

Крепеж

Радиатор и шланги TOYOTA SIENTA (ASIA), 2019/07 - 2025, 1,5 литра, 16 клапанов, DOHC, EFI, NSP170, вариатор
