Каталог
ЕвропаМодель
RAV4Двигатель
2,2 литра, турбо-дизельКласс
GRAMSФрейм
ALA30Трансмиссия
механика МКПП, 6 скоростейОпции
правый руль система впрыска дизельного топлива (низкое загрязнение) Европа A TYPE 426W
Код
Описание
71071S
COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71073S
COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71110A
FRAME ASSY, FRONT SEAT W/ADJUSTER, RH
71511S
PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
7152
переход к группе запчастей
71551S
PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71705
BOARD SUB-ASSY, FRONT SEAT BACK, RH
71811D
SHIELD, FRONT SEAT CUSHION, RH
71861
SHIELD, FRONT SEAT CUSHION, INNER RH
71873
SHIELD, FRONT SEAT CUSHION, LOWER RH
71874
SHIELD, FRONT SEAT CUSHION, LOWER LH
71875A
COVER, RECLINING ADJUSTER INSIDE, RH
71875B
COVER, RECLINING ADJUSTER INSIDE, RH
71876A
COVER, RECLINING ADJUSTER INSIDE, LH
71876B
COVER, RECLINING ADJUSTER INSIDE, LH
71910A
HEADREST ASSY, FRONT SEAT
71931
SUPPORT, FRONT SEAT HEADREST
72110A
TRACK ASSY, FRONT SEAT, OUTER RH
72130A
TRACK ASSY, FRONT SEAT, INNER RH
72462
COVER, VERTICAL ADJUSTER RH
72477
SPACER, VERTICAL ADJUSTER
72494
HANDLE, VERTICAL ADJUSTING, RH
72525A
HANDLE, RECLINING ADJUSTER RELEASE, RH
727020K100
Крепеж
7270248010
Крепеж
7270258050
Крепеж
8421
переход к группе запчастей
9016740044
Крепеж
9356855016
Крепеж
Код
Описание
71071S
COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71073S
COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71100S
SEAT ASSY, FRONT RH
71110A
FRAME ASSY, FRONT SEAT W/ADJUSTER, RH
71511S
PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
7152
переход к группе запчастей
71551S
PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71705
BOARD SUB-ASSY, FRONT SEAT BACK, RH
71811D
SHIELD, FRONT SEAT CUSHION, RH
71861
SHIELD, FRONT SEAT CUSHION, INNER RH
71873
SHIELD, FRONT SEAT CUSHION, LOWER RH
71874
SHIELD, FRONT SEAT CUSHION, LOWER LH
71875A
COVER, RECLINING ADJUSTER INSIDE, RH
71875B
COVER, RECLINING ADJUSTER INSIDE, RH
71876A
COVER, RECLINING ADJUSTER INSIDE, LH
71876B
COVER, RECLINING ADJUSTER INSIDE, LH
71910A
HEADREST ASSY, FRONT SEAT
71931
SUPPORT, FRONT SEAT HEADREST
72462
COVER, VERTICAL ADJUSTER RH
72477
SPACER, VERTICAL ADJUSTER
72494
HANDLE, VERTICAL ADJUSTING, RH
72525A
HANDLE, RECLINING ADJUSTER RELEASE, RH
73910A
AIR BAG ASSY, FRONT SEAT, RH
8421
переход к группе запчастей
9016740044
Крепеж
9356855016
Крепеж
9418560600
Крепеж
Код
Описание
71071S
COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71073S
COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71511S
PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71551S
PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71705
BOARD SUB-ASSY, FRONT SEAT BACK, RH
71811D
SHIELD, FRONT SEAT CUSHION, RH
71861
SHIELD, FRONT SEAT CUSHION, INNER RH
71867A
SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH
71873
SHIELD, FRONT SEAT CUSHION, LOWER RH
71874
SHIELD, FRONT SEAT CUSHION, LOWER LH
71875A
COVER, RECLINING ADJUSTER INSIDE, RH
71875B
COVER, RECLINING ADJUSTER INSIDE, RH
71876A
COVER, RECLINING ADJUSTER INSIDE, LH
71876B
COVER, RECLINING ADJUSTER INSIDE, LH
71910A
HEADREST ASSY, FRONT SEAT
71931
SUPPORT, FRONT SEAT HEADREST
72750D
ADJUSTER ASSY, LUMBAR SUPPORT, RH
85820Y
MOTOR ASSY, POWER SEAT
87510K
HEATER ASSY, FRONT SEAT CUSHION, RH
87510M
HEATER ASSY, FRONT SEAT BACK, RH
9016740044
Крепеж
9038910041
Крепеж
9356054012
Крепеж
9356855016
Крепеж
Код
Описание
71071S
COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71073S
COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71100S
SEAT ASSY, FRONT RH
71511S
PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
7152
переход к группе запчастей
71551S
PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71705
BOARD SUB-ASSY, FRONT SEAT BACK, RH
71811D
SHIELD, FRONT SEAT CUSHION, RH
71861
SHIELD, FRONT SEAT CUSHION, INNER RH
71867A
SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH
71873
SHIELD, FRONT SEAT CUSHION, LOWER RH
71874
SHIELD, FRONT SEAT CUSHION, LOWER LH
71875A
COVER, RECLINING ADJUSTER INSIDE, RH
71875B
COVER, RECLINING ADJUSTER INSIDE, RH
71876A
COVER, RECLINING ADJUSTER INSIDE, LH
71876B
COVER, RECLINING ADJUSTER INSIDE, LH
71910A
HEADREST ASSY, FRONT SEAT
71931
SUPPORT, FRONT SEAT HEADREST
72750D
ADJUSTER ASSY, LUMBAR SUPPORT, RH
73910A
AIR BAG ASSY, FRONT SEAT, RH
8202
переход к группе запчастей
8401
переход к группе запчастей
8421
переход к группе запчастей
85820Y
MOTOR ASSY, POWER SEAT
87510K
HEATER ASSY, FRONT SEAT CUSHION, RH
87510M
HEATER ASSY, FRONT SEAT BACK, RH
9016740044
Крепеж
9038910041
Крепеж
9356054012
Крепеж
9356855016
Крепеж
9418560600
Крепеж
Код
Описание
71071S
COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71073S
COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71100S
SEAT ASSY, FRONT RH
71110A
FRAME ASSY, FRONT SEAT W/ADJUSTER, RH
71511S
PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
7152
переход к группе запчастей
71551S
PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71643A
UNIT, ACTIVE HEADREST, UPR
71644
UNIT, ACTIVE HEADREST, LWR
71705
BOARD SUB-ASSY, FRONT SEAT BACK, RH
71811D
SHIELD, FRONT SEAT CUSHION, RH
71861
SHIELD, FRONT SEAT CUSHION, INNER RH
71873
SHIELD, FRONT SEAT CUSHION, LOWER RH
71874
SHIELD, FRONT SEAT CUSHION, LOWER LH
71875A
COVER, RECLINING ADJUSTER INSIDE, RH
71875B
COVER, RECLINING ADJUSTER INSIDE, RH
71876A
COVER, RECLINING ADJUSTER INSIDE, LH
71876B
COVER, RECLINING ADJUSTER INSIDE, LH
71910A
HEADREST ASSY, FRONT SEAT
71931
SUPPORT, FRONT SEAT HEADREST
72110A
TRACK ASSY, FRONT SEAT, OUTER RH
72125A
COVER, SEAT TRACK, UPPER REAR
72130A
TRACK ASSY, FRONT SEAT, INNER RH
72462
COVER, VERTICAL ADJUSTER RH
72477
SPACER, VERTICAL ADJUSTER
72494
HANDLE, VERTICAL ADJUSTING, RH
72525A
HANDLE, RECLINING ADJUSTER RELEASE, RH
727020K100
Крепеж
7270248010
Крепеж
7270258050
Крепеж
73910A
AIR BAG ASSY, FRONT SEAT, RH
8421
переход к группе запчастей
9016740044
Крепеж
9017906178
Крепеж
9017908057
Крепеж
9356855016
Крепеж
9418560600
Крепеж
Код
Описание
71071S
COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71073S
COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71100S
SEAT ASSY, FRONT RH
71110A
FRAME ASSY, FRONT SEAT W/ADJUSTER, RH
71511S
PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
7152
переход к группе запчастей
71551S
PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71705
BOARD SUB-ASSY, FRONT SEAT BACK, RH
71811D
SHIELD, FRONT SEAT CUSHION, RH
71861
SHIELD, FRONT SEAT CUSHION, INNER RH
71867A
SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH
71873
SHIELD, FRONT SEAT CUSHION, LOWER RH
71874
SHIELD, FRONT SEAT CUSHION, LOWER LH
71875A
COVER, RECLINING ADJUSTER INSIDE, RH
71875B
COVER, RECLINING ADJUSTER INSIDE, RH
71876A
COVER, RECLINING ADJUSTER INSIDE, LH
71876B
COVER, RECLINING ADJUSTER INSIDE, LH
71910A
HEADREST ASSY, FRONT SEAT
71931
SUPPORT, FRONT SEAT HEADREST
72750D
ADJUSTER ASSY, LUMBAR SUPPORT, RH
73910A
AIR BAG ASSY, FRONT SEAT, RH
8202
переход к группе запчастей
8401
переход к группе запчастей
8421
переход к группе запчастей
85820Y
MOTOR ASSY, POWER SEAT
87510K
HEATER ASSY, FRONT SEAT CUSHION, RH
87510M
HEATER ASSY, FRONT SEAT BACK, RH
9016740044
Крепеж
9038910041
Крепеж
9356054012
Крепеж
9356855016
Крепеж
9418560600
Крепеж
Код
Описание
71072S
COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71074S
COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71120B
FRAME ASSY, FRONT SEAT W/ADJUSTER, LH
71512S
PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
7152
переход к группе запчастей
71552S
PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71706
BOARD SUB-ASSY, FRONT SEAT BACK, LH
71812D
SHIELD, FRONT SEAT CUSHION, LH
71862
SHIELD, FRONT SEAT CUSHION, INNER LH
71873A
SHIELD, FRONT SEAT CUSHION, LOWER
71874A
SHIELD, FRONT SEAT CUSHION, LOWER LH
71875E
COVER, RECLINING ADJUSTER INSIDE, RH
71875G
COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
71876E
COVER, RECLINING ADJUSTER INSIDE, LH
71876G
COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
71910A
HEADREST ASSY, FRONT SEAT
71931
SUPPORT, FRONT SEAT HEADREST
72526A
HANDLE, RECLINING ADJUSTER RELEASE, LH
87510L
HEATER ASSY, FRONT SEAT CUSHION, LH
87510N
HEATER ASSY, FRONT SEAT BACK, LH
9016740044
Крепеж
9356855016
Крепеж
Код
Описание
71072S
COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71074S
COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71120B
FRAME ASSY, FRONT SEAT W/ADJUSTER, LH
71200S
SEAT ASSY, FRONT LH
71512S
PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
7152
переход к группе запчастей
71552S
PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71706
BOARD SUB-ASSY, FRONT SEAT BACK, LH
71812D
SHIELD, FRONT SEAT CUSHION, LH
71862
SHIELD, FRONT SEAT CUSHION, INNER LH
71873A
SHIELD, FRONT SEAT CUSHION, LOWER
71874A
SHIELD, FRONT SEAT CUSHION, LOWER LH
71875E
COVER, RECLINING ADJUSTER INSIDE, RH
71875G
COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
71876E
COVER, RECLINING ADJUSTER INSIDE, LH
71876G
COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
71910A
HEADREST ASSY, FRONT SEAT
71931
SUPPORT, FRONT SEAT HEADREST
72526A
HANDLE, RECLINING ADJUSTER RELEASE, LH
73920A
AIR BAG ASSY, FRONT SEAT, LH
87510L
HEATER ASSY, FRONT SEAT CUSHION, LH
87510N
HEATER ASSY, FRONT SEAT BACK, LH
9016740044
Крепеж
9356855016
Крепеж
9418560600
Крепеж
Код
Описание
71072S
COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71074S
COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71120B
FRAME ASSY, FRONT SEAT W/ADJUSTER, LH
71200S
SEAT ASSY, FRONT LH
71512S
PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
7152
переход к группе запчастей
71552S
PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71643A
UNIT, ACTIVE HEADREST, UPR
71644
UNIT, ACTIVE HEADREST, LWR
71706
BOARD SUB-ASSY, FRONT SEAT BACK, LH
71812D
SHIELD, FRONT SEAT CUSHION, LH
71862
SHIELD, FRONT SEAT CUSHION, INNER LH
71873A
SHIELD, FRONT SEAT CUSHION, LOWER
71874A
SHIELD, FRONT SEAT CUSHION, LOWER LH
71875E
COVER, RECLINING ADJUSTER INSIDE, RH
71875G
COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
71876E
COVER, RECLINING ADJUSTER INSIDE, LH
71876G
COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
71910A
HEADREST ASSY, FRONT SEAT
71931
SUPPORT, FRONT SEAT HEADREST
72120
TRACK ASSY, FRONT SEAT, OUTER LH
72125A
COVER, SEAT TRACK, UPPER REAR
72140A
TRACK ASSY, FRONT SEAT,INNER LH
72526A
HANDLE, RECLINING ADJUSTER RELEASE, LH
7270248010
Крепеж
7270258050
Крепеж
73920A
AIR BAG ASSY, FRONT SEAT, LH
87510L
HEATER ASSY, FRONT SEAT CUSHION, LH
87510N
HEATER ASSY, FRONT SEAT BACK, LH
9016740044
Крепеж
9017906178
Крепеж
9017908057
Крепеж
9356855016
Крепеж
9418560600
Крепеж
Код
Описание
4131548010
Крепеж
4415948020
Крепеж

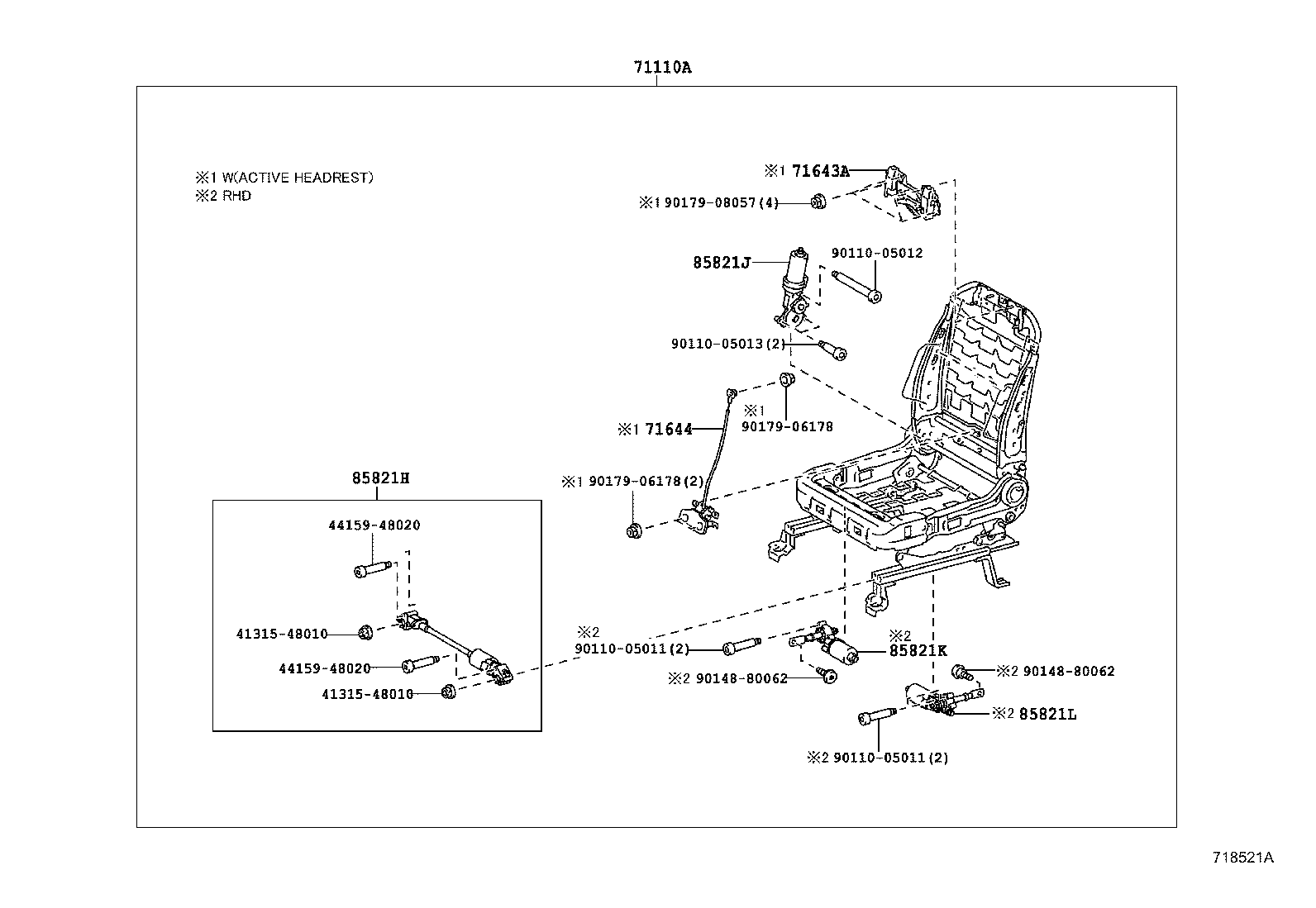

71110A
FRAME ASSY, FRONT SEAT W/ADJUSTER, RH
71643A
UNIT, ACTIVE HEADREST, UPR
71644
UNIT, ACTIVE HEADREST, LWR
85821H
MOTOR ASSY, POWER SEAT SLIDE, RH
85821J
MOTOR ASSY, POWER SEAT RECLINING, RH
85821K
MOTOR ASSY, POWER SEAT TILT, RH
85821L
MOTOR ASSY, POWER SEAT LIFTER, RH
9011005011
Крепеж
9011005012
Крепеж
9011005013
Крепеж
9014880062
Крепеж
9017906178
Крепеж
9017908057
Крепеж
Код
Описание
4131548010
Крепеж
4415948020
Крепеж

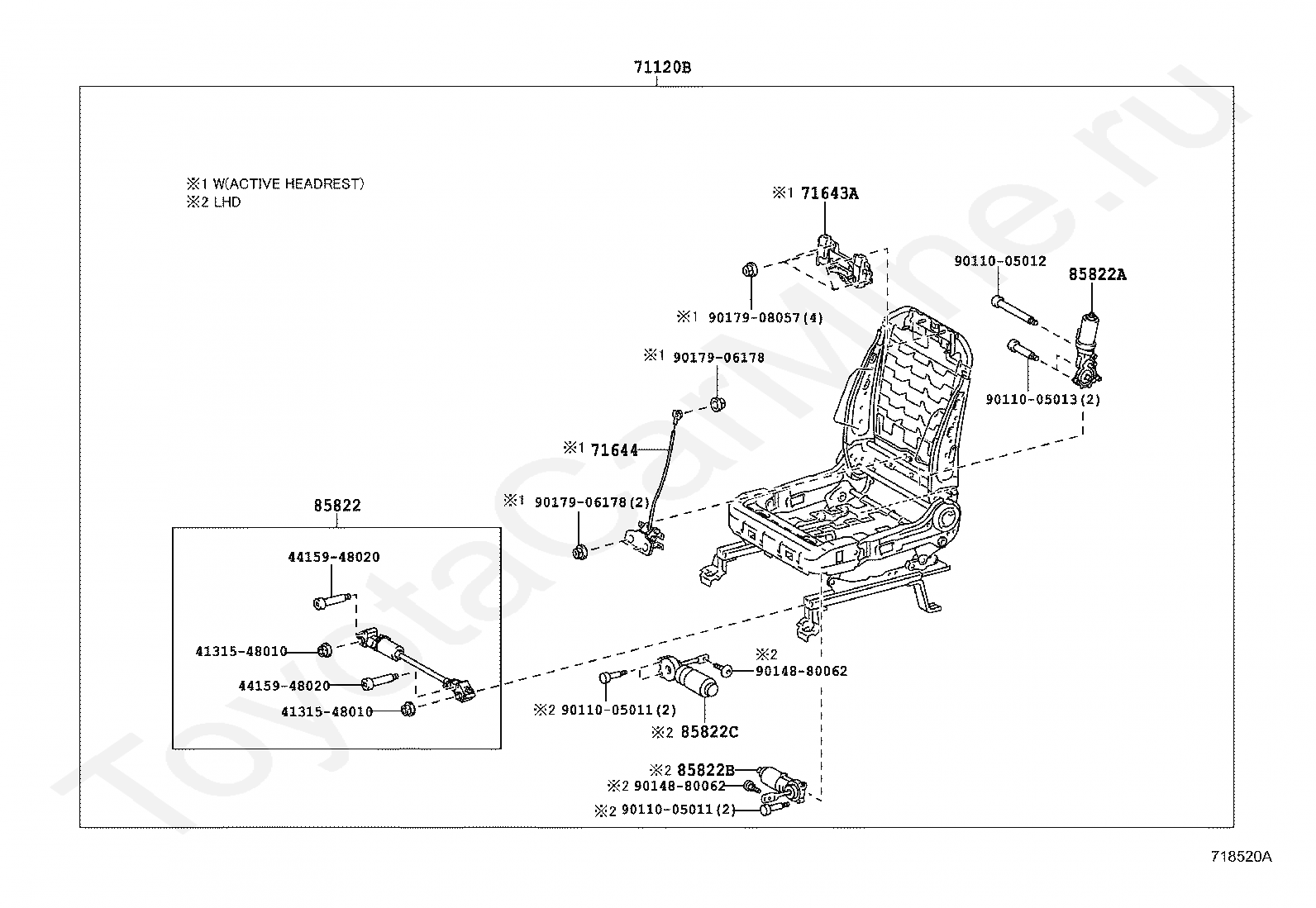

71120B
FRAME ASSY, FRONT SEAT W/ADJUSTER, LH
71643A
UNIT, ACTIVE HEADREST, UPR
71644
UNIT, ACTIVE HEADREST, LWR
85822
MOTOR ASSY, POWER SEAT SLIDE, LH
85822A
MOTOR ASSY, POWER SEAT RECLINING, LH
85822B
MOTOR ASSY, POWER SEAT TILT, LH
85822C
MOTOR ASSY, POWER SEAT LIFTER, LH
9011005011
Крепеж
9011005012
Крепеж
9011005013
Крепеж
9014880062
Крепеж
9017906178
Крепеж
9017908057
Крепеж
Код
Описание

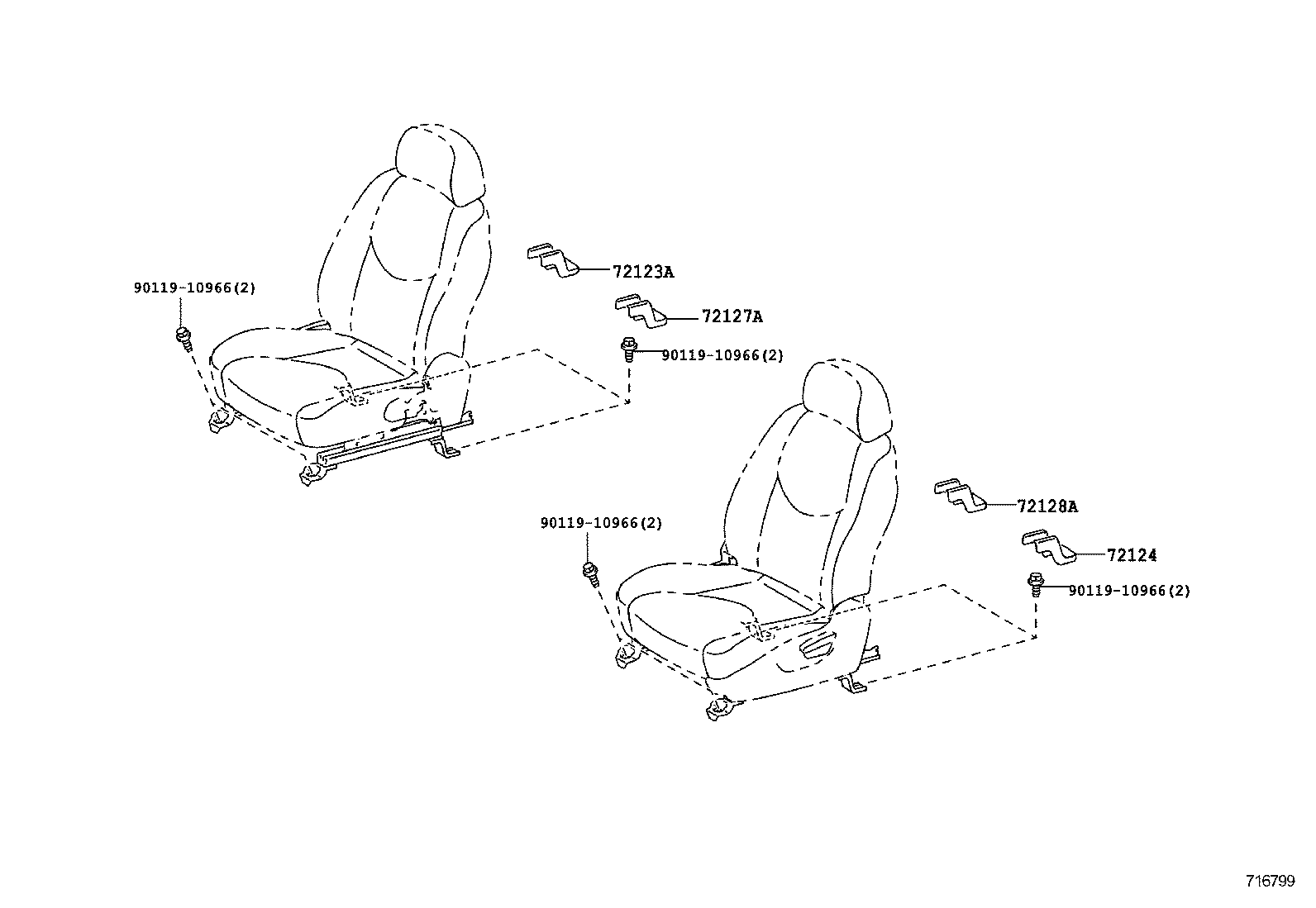

72123A
COVER, SEAT TRACK BRACKET, OUTER FRONT RH
72124
COVER, SEAT TRACK BRACKET, OUTER FRONT LH
72127A
COVER, SEAT TRACK BRACKET, INNER FRONT RH
72128A
COVER, SEAT TRACK BRACKET, INNER FRONT LH
9011910966
Крепеж
Код
Описание

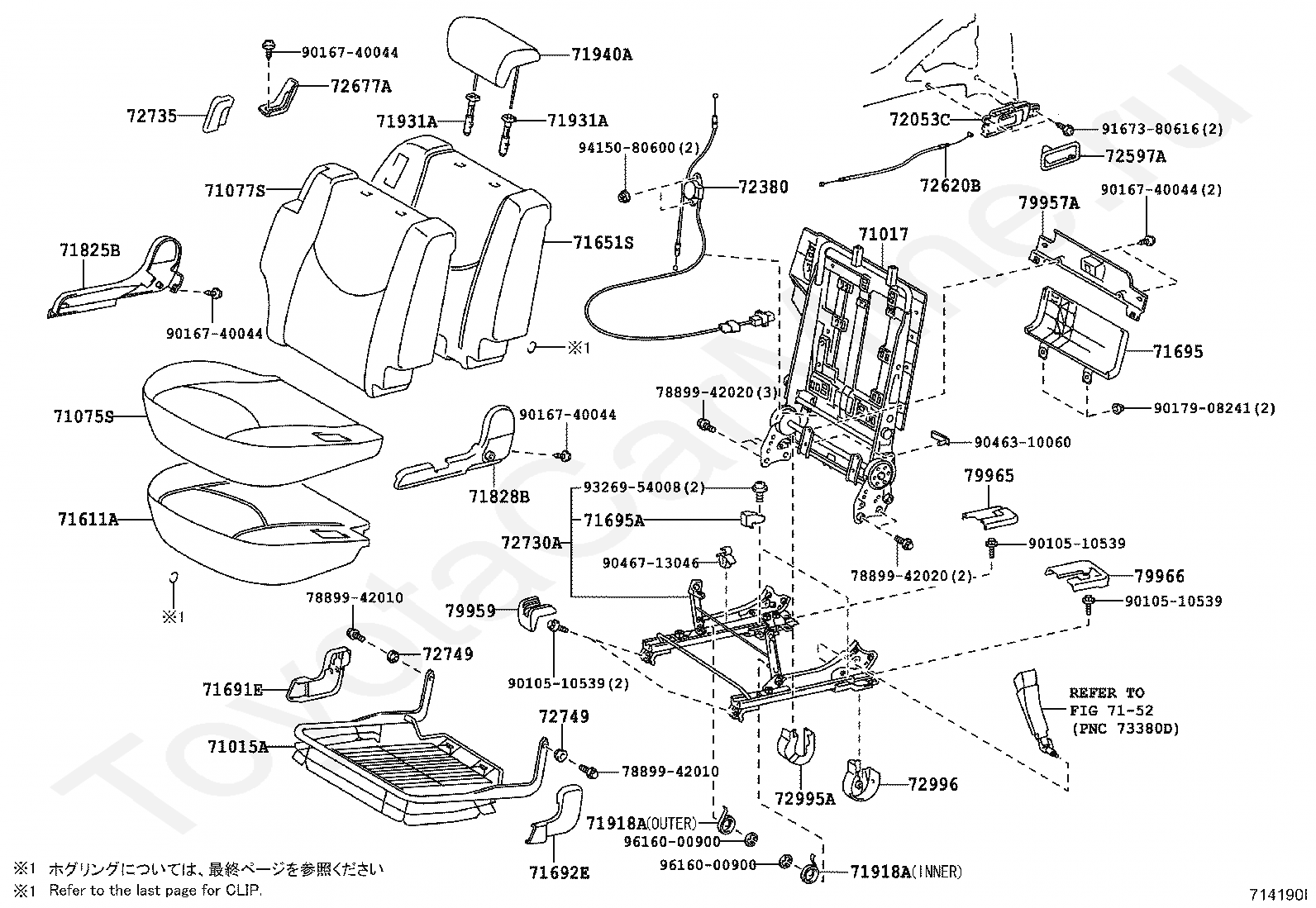

71015A
FRAME SUB-ASSY, REAR SEAT CUSHION, RH
71017
FRAME SUB-ASSY, REAR SEAT BACK, RH
71075S
COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)
71077S
COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)
7152
переход к группе запчастей
71611A
PAD, REAR SEAT CUSHION, RH
71651S
PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)
71691E
COVER, REAR SEAT CUSHION HINGE, NO.1
71692E
COVER, REAR SEAT CUSHION HINGE, NO.2
71695
PROTECTOR, REAR SEAT BACK
71695A
PROTECTOR, REAR SEAT, NO.1 RH
71825B
MOULDING, REAR SEAT CUSHION, RH
71828B
MOULDING, REAR SEAT CUSHION, REAR RH
71918A
SPRING, CENTER SEAT CUSHION CATCH
71931A
SUPPORT, REAR SEAT HEADREST
71940A
HEADREST ASSY, REAR SEAT
72053C
LEVER SUB-ASSY, RECLINING REMOTE CONTROL, RH
72380
CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2
72597A
BEZEL, RECLINING REMOTE CONTROL LEVER, RH
72620B
CABLE ASSY, REAR NO.1 SEAT LOCK
72677A
BASE, REAR SEAT BACK LOCK CONTROL LEVER, RH
72730A
ADJUSTER ASSY, REAR SEAT RECLINING, RH
72735
LEVER, REAR SEAT RECLINING RELEASE
72749
SPACER, REAR SEAT RECLINING
72995A
COVER, REAR SEAT
72996
COVER, REAR SEAT BACK, RH
7889942010
Крепеж
7889942020
Крепеж
79957A
COVER, REAR SEAT REAR BRACKET, RH
79959
COVER, RR SEAT LEG
79965
COVER, REAR SEAT LEG SIDE, NO.2
79966
COVER, REAR SEAT LEG SIDE, NO.3
9010510539
Крепеж
9016740044
Крепеж
9017908241
Крепеж
9046310060
Крепеж
9046713046
Крепеж
9167380616
Крепеж
9326954008
Крепеж
9415080600
Крепеж
9616000900
Крепеж
Код
Описание

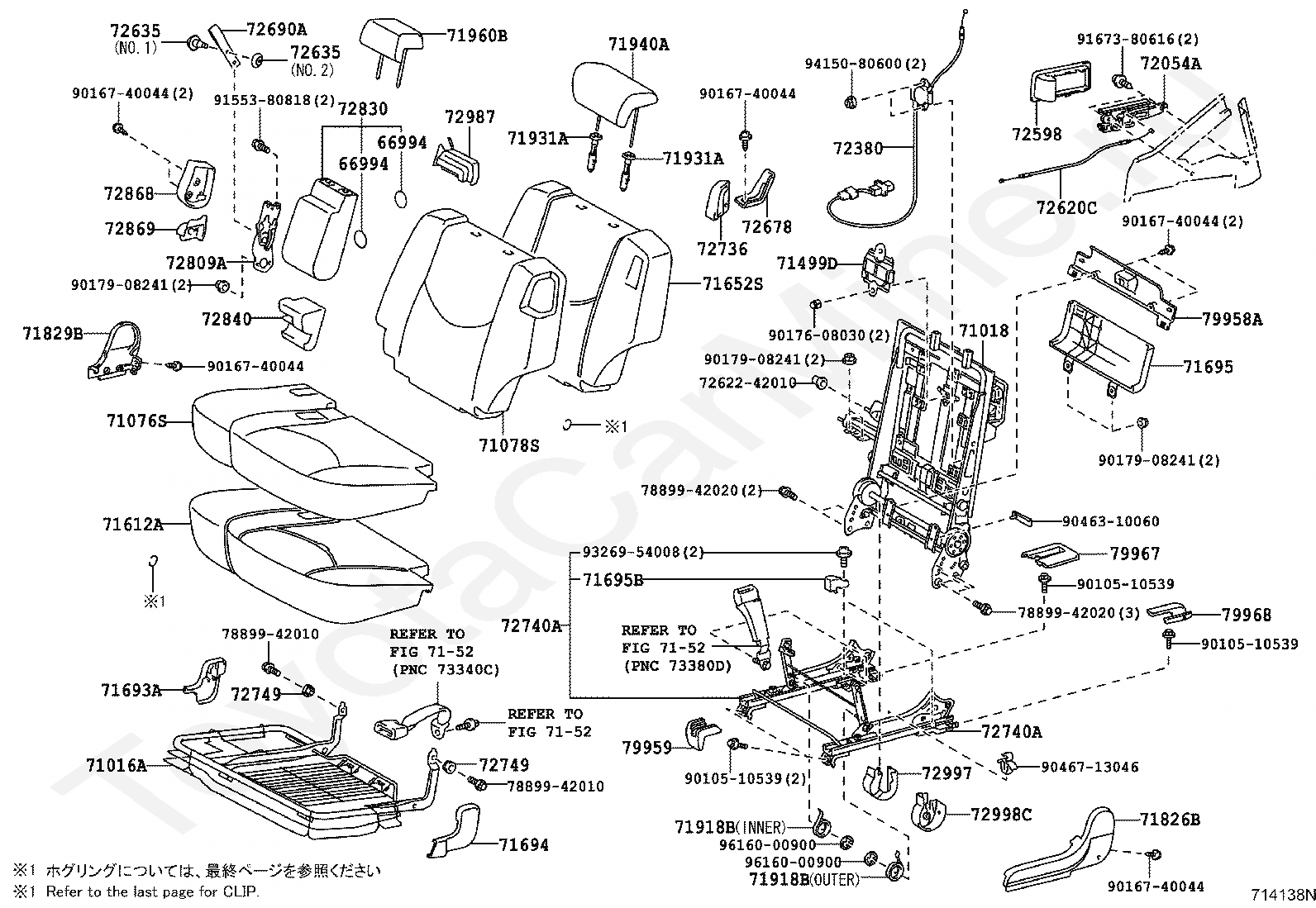

66994
COVER, CUP HOLDER
71016A
FRAME SUB-ASSY, REAR SEAT CUSHION, LH
71018
FRAME SUB-ASSY, REAR SEAT BACK, LH
71076S
COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE)
71078S
COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71499D
DAMPER, REAR SEAT BACK SPRING
7152
переход к группе запчастей
71612A
PAD, REAR SEAT CUSHION, LH
71652S
PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71693A
COVER, REAR SEAT CUSHION HINGE, NO.3
71694
COVER, REAR SEAT CUSHION HINGE, LOWER LH
71695
PROTECTOR, REAR SEAT BACK
71695B
PROTECTOR, REAR SEAT, NO.1 LH
71826B
MOULDING, REAR SEAT CUSHION, LH
71829B
MOULDING, REAR SEAT CUSHION, REAR LH
71918B
SPRING, CENTER SEAT CUSHION CATCH, NO.2
71931A
SUPPORT, REAR SEAT HEADREST
71940A
HEADREST ASSY, REAR SEAT
71960B
HEADREST ASSY, REAR SEAT, CENTER
72054A
LEVER SUB-ASSY, RECLINING REMOTE CONTROL, LH
72380
CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2
72598
BEZEL, RECLINING REMOTE CONTROL LEVER, LH
72620C
CABLE ASSY, REAR NO.1 SEAT LOCK
7262242010
Крепеж
72635
HOOK, REAR SEAT BACK LOCK
72678
BASE, REAR SEAT BACK LOCK CONTROL LEVER, LH
72690A
STRAP ASSY, REAR SEAT LOCK RELEASE
72736
LEVER, REAR SEAT RECLINING RELEASE, LH
72740A
ADJUSTER ASSY, REAR SEAT RECLINING, LH
72749
SPACER, REAR SEAT RECLINING
72809A
LOCK SUB-ASSY, CENTER ARMREST
72830
ARMREST ASSY, REAR SEAT, CENTER
72840
ARMREST ASSY, REAR NO.1 SEAT, LH
72868
COVER, CENTER ARMREST HINGE, RH
72869
COVER, CENTER ARMREST HINGE, LH
72987
COVER, REAR SEAT CENTER ARMREST
72997
COVER, REAR SEAT BACK, LH
72998C
COVER, REAR SEAT, LH
7889942010
Крепеж
7889942020
Крепеж
79958A
COVER, REAR SEAT REAR BRACKET, LH
79959
COVER, RR SEAT LEG
79967
COVER, REAR SEAT LEG SIDE, NO.4
79968
COVER, REAR SEAT LEG SIDE, NO.5
9010510539
Крепеж
9016740044
Крепеж
9017608030
Крепеж
9017908241
Крепеж
9046310060
Крепеж
9046713046
Крепеж
9155380818
Крепеж
9167380616
Крепеж
9326954008
Крепеж
9415080600
Крепеж
9616000900
Крепеж
Код
Описание
9046816019
Крепеж
9046818008
Крепеж
Наш менеджер перезвонит в ближайшее время
