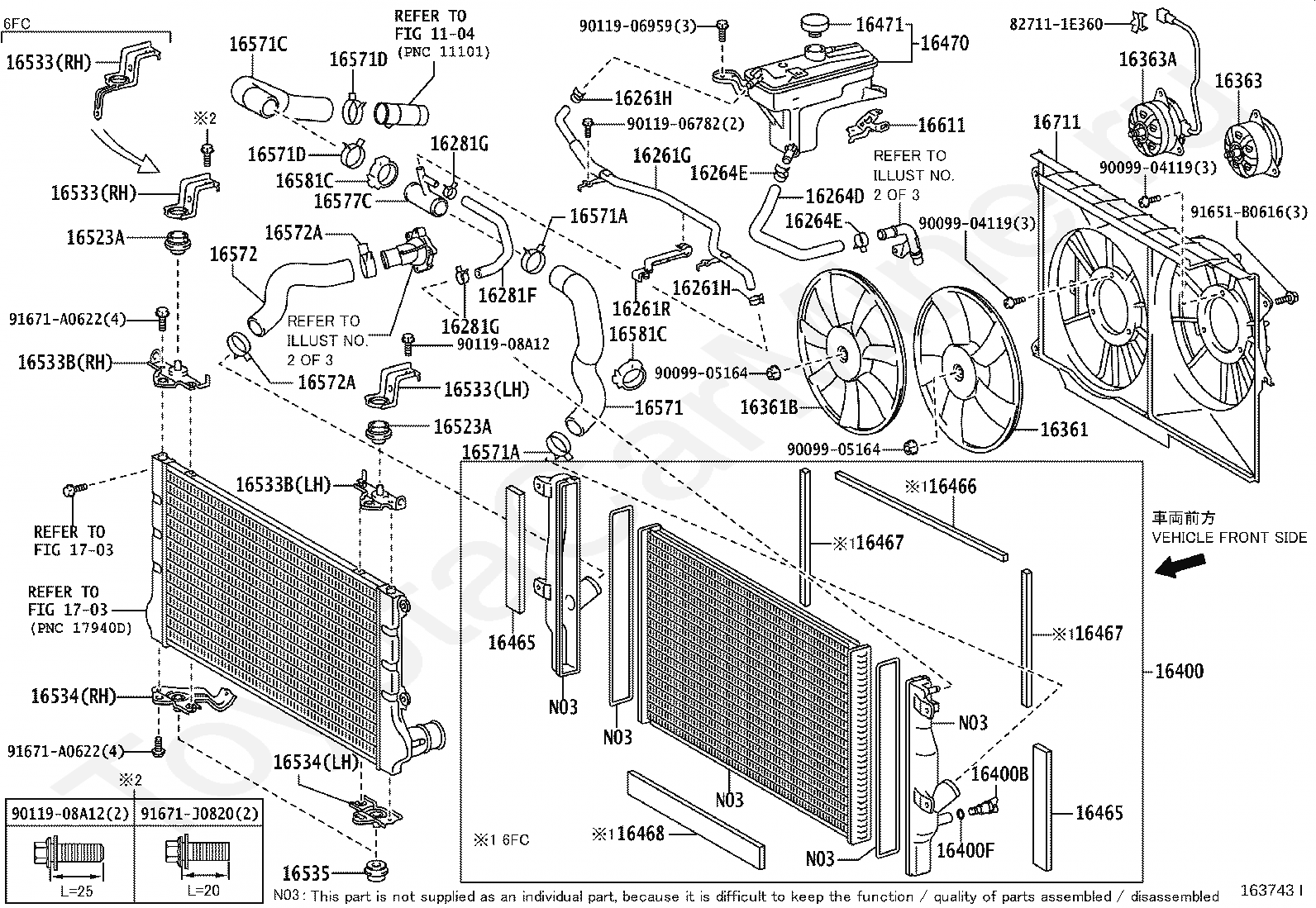

Радиатор и шланги TOYOTA RAV4, 2008/12 - 2010/02, 2,2 литра, турбо-дизель, GRAMS, ALA30, механика, МКПП, 6 скоростей

Каталог

Европа

Модель

RAV4

Двигатель

2,2 литра, турбо-дизель

Класс

GRAMS

Фрейм

ALA30

Трансмиссия

механика МКПП, 6 скоростей

Опции

правый руль система впрыска дизельного топлива (низкое загрязнение) Европа A TYPE 426W

Код

Описание

1104

переход к группе запчастей

16261G

HOSE, WATER BY-PASS, NO.1

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16261R

CLAMP OR CLIP(FOR WATER BY-PASS HOSE)

16264D

HOSE, WATER BY-PASS, NO.2

16264E

CLIP(FOR WATER BY-PASS HOSE NO.2)

16267B

CLIP(FOR WATER BY-PASS HOSE)

16282

HOSE, WATER BY-PASS, NO.5

16282A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)

16361

FAN

16361B

FAN, NO.2

16363

MOTOR, COOLING FAN

16363A

MOTOR, COOLING FAN, NO.2

16400

RADIATOR ASSY

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16465

PACKING, RADIATOR

16470

TANK ASSY, RADIATOR RESERVE

16471

CAP SUB-ASSY, RESERVE TANK

16523A

CUSHION, RADIATOR SUPPORT

16533

SUPPORT, RADIATOR, UPPER

16533B

SUPPORT, RADIATOR, NO.1

16534

SUPPORT, RADIATOR, NO.2

16535

SUPPORT, RADIATOR, LOWER

16571

HOSE, RADIATOR, INLET

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16571C

HOSE, RADIATOR, NO.1

16571D

CLIP, RADIATOR HOSE, NO.1

16572

HOSE, RADIATOR, OUTLET

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16577C

PIPE, RADIATOR

16581C

CLAMP, HOSE(FOR RADIATOR HOSE NO.2)

16611

BRACKET, RADIATOR RESERVE TANK

16711

SHROUD, FAN

1703

переход к группе запчастей

827111E360

Крепеж

9009904119

Крепеж

9009905164

Крепеж

9011906782

Крепеж

9011906959

Крепеж

9011908A12

Крепеж

91651B0616

Крепеж

91671A0622

Крепеж

Код

Описание

1104

переход к группе запчастей

16261G

HOSE, WATER BY-PASS, NO.1

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16261R

CLAMP OR CLIP(FOR WATER BY-PASS HOSE)

16264D

HOSE, WATER BY-PASS, NO.2

16264E

CLIP(FOR WATER BY-PASS HOSE NO.2)

16267B

CLIP(FOR WATER BY-PASS HOSE)

16267K

HOSE, WATER BY-PASS, NO.3

16268J

PIPE, WATER BY-PASS, NO.5

16282

HOSE, WATER BY-PASS, NO.5

16282A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)

16361

FAN

16361B

FAN, NO.2

16363

MOTOR, COOLING FAN

16363A

MOTOR, COOLING FAN, NO.2

16400

RADIATOR ASSY

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16465

PACKING, RADIATOR

16470

TANK ASSY, RADIATOR RESERVE

16471

CAP SUB-ASSY, RESERVE TANK

16523A

CUSHION, RADIATOR SUPPORT

16533

SUPPORT, RADIATOR, UPPER

16533B

SUPPORT, RADIATOR, NO.1

16534

SUPPORT, RADIATOR, NO.2

16535

SUPPORT, RADIATOR, LOWER

16571

HOSE, RADIATOR, INLET

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16571C

HOSE, RADIATOR, NO.1

16571D

CLIP, RADIATOR HOSE, NO.1

16572

HOSE, RADIATOR, OUTLET

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16577C

PIPE, RADIATOR

16581C

CLAMP, HOSE(FOR RADIATOR HOSE NO.2)

16611

BRACKET, RADIATOR RESERVE TANK

16711

SHROUD, FAN

1703

переход к группе запчастей

827111E360

Крепеж

9009904119

Крепеж

9009905164

Крепеж

9011906782

Крепеж

9011906959

Крепеж

9011908A12

Крепеж

91651B0616

Крепеж

91671A0622

Крепеж

Код

Описание

1104

переход к группе запчастей

16261G

HOSE, WATER BY-PASS, NO.1

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16261R

CLAMP OR CLIP(FOR WATER BY-PASS HOSE)

16264D

HOSE, WATER BY-PASS, NO.2

16264E

CLIP(FOR WATER BY-PASS HOSE NO.2)

16281F

HOSE, WATER BY-PASS, NO.5

16281G

CLIP(FOR WATER BY-PASS HOSE NO.5)

16361

FAN

16361B

FAN, NO.2

16363

MOTOR, COOLING FAN

16363A

MOTOR, COOLING FAN, NO.2

16400

RADIATOR ASSY

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16465

PACKING, RADIATOR

16466

SEAL, RADIATOR

16467

SIDE SEAL

16468

PACKING, RADIATOR

16470

TANK ASSY, RADIATOR RESERVE

16471

CAP SUB-ASSY, RESERVE TANK

16523A

CUSHION, RADIATOR SUPPORT

16533

SUPPORT, RADIATOR, UPPER

16533B

SUPPORT, RADIATOR, NO.1

16534

SUPPORT, RADIATOR, NO.2

16535

SUPPORT, RADIATOR, LOWER

16571

HOSE, RADIATOR, INLET

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16571C

HOSE, RADIATOR, NO.1

16571D

CLIP, RADIATOR HOSE, NO.1

16572

HOSE, RADIATOR, OUTLET

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16577C

PIPE, RADIATOR

16581C

CLAMP, HOSE(FOR RADIATOR HOSE NO.2)

16611

BRACKET, RADIATOR RESERVE TANK

16711

SHROUD, FAN

1703

переход к группе запчастей

827111E360

Крепеж

9009904119

Крепеж

9009905164

Крепеж

9011906782

Крепеж

9011906959

Крепеж

9011908A12

Крепеж

91651B0616

Крепеж

91671A0622

Крепеж

91671J0820

Крепеж

Код

Описание

1104

переход к группе запчастей

16027

PIPE SUB-ASSY, TURBO WATER, NO.1

16027A

BOLT, UNION(FOR TURBO WATER PIPE)

16027B

GASKET(FOR TURBO WATER PIPE)

16028

PIPE SUB-ASSY, TURBO WATER, NO.2

16028A

BOLT, UNION(FOR TURBO WATER PIPE NO.2)

16028B

GASKET(FOR TURBO WATER PIPE NO.2)

16261

HOSE, WATER BY-PASS

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16267

HOSE, WATER BY-PASS, NO.3

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16278

PIPE, WATER BY-PASS, NO.2

16278A

GASKET, WATER BY-PASS

16279

PIPE, WATER BY-PASS, NO.3

16281

HOSE, WATER BY-PASS, NO.4

16281A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)

16284

HOSE, TURBO WATER, NO.1

16284A

CLIP(FOR TURBO WATER HOSE NO.1)

16288

PIPE, WATER BY-PASS, NO.4

16321

INLET, WATER

16323

HOUSING, WATER INLET

16325

GASKET, WATER INLET HOUSING, NO.1

16326

GASKET, WATER INLET HOUSING, NO.2

16331A

THERMOSTAT

8716

переход к группе запчастей

90105W0033

Крепеж

9012606024

Крепеж

9012606026

Крепеж

9030116013

Крепеж

9155180616

Крепеж

9155180618

Крепеж

9155180625

Крепеж

9155180630

Крепеж

9155180816

Крепеж

9155180818

Крепеж

9415180600

Крепеж

Код

Описание

1104

переход к группе запчастей

16027

PIPE SUB-ASSY, TURBO WATER, NO.1

16027A

BOLT, UNION(FOR TURBO WATER PIPE)

16027B

GASKET(FOR TURBO WATER PIPE)

16028

PIPE SUB-ASSY, TURBO WATER, NO.2

16028A

BOLT, UNION(FOR TURBO WATER PIPE NO.2)

16028B

GASKET(FOR TURBO WATER PIPE NO.2)

16261

HOSE, WATER BY-PASS

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16267

HOSE, WATER BY-PASS, NO.3

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16278

PIPE, WATER BY-PASS, NO.2

16278A

GASKET, WATER BY-PASS

16279

PIPE, WATER BY-PASS, NO.3

16281

HOSE, WATER BY-PASS, NO.4

16281A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)

16284

HOSE, TURBO WATER, NO.1

16284A

CLIP(FOR TURBO WATER HOSE NO.1)

16288

PIPE, WATER BY-PASS, NO.4

16321

INLET, WATER

16323

HOUSING, WATER INLET

16325

GASKET, WATER INLET HOUSING, NO.1

16326

GASKET, WATER INLET HOUSING, NO.2

16331A

THERMOSTAT

8716

переход к группе запчастей

90105W0033

Крепеж

9012606024

Крепеж

9012606026

Крепеж

9030116013

Крепеж

9155180616

Крепеж

9155180618

Крепеж

9155180625

Крепеж

9155180630

Крепеж

9155180816

Крепеж

9155180818

Крепеж

9167180820

Крепеж

9415180600

Крепеж

Код

Описание

1104

переход к группе запчастей

16027

PIPE SUB-ASSY, TURBO WATER, NO.1

16027A

BOLT, UNION(FOR TURBO WATER PIPE)

16027B

GASKET(FOR TURBO WATER PIPE)

16028

PIPE SUB-ASSY, TURBO WATER, NO.2

16028A

BOLT, UNION(FOR TURBO WATER PIPE NO.2)

16028B

GASKET(FOR TURBO WATER PIPE NO.2)

16261

HOSE, WATER BY-PASS

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16267

HOSE, WATER BY-PASS, NO.3

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16278

PIPE, WATER BY-PASS, NO.2

16278A

GASKET, WATER BY-PASS

16279

PIPE, WATER BY-PASS, NO.3

16281

HOSE, WATER BY-PASS, NO.4

16281A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)

16282

HOSE, WATER BY-PASS, NO.5

16282A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)

16284

HOSE, TURBO WATER, NO.1

16284A

CLIP(FOR TURBO WATER HOSE NO.1)

16288

PIPE, WATER BY-PASS, NO.4

16321

INLET, WATER

16323

HOUSING, WATER INLET

16325

GASKET, WATER INLET HOUSING, NO.1

16326

GASKET, WATER INLET HOUSING, NO.2

16331A

THERMOSTAT

8716

переход к группе запчастей

90105W0033

Крепеж

9012606026

Крепеж

9030116013

Крепеж

9155180616

Крепеж

9155180618

Крепеж

9155180625

Крепеж

9155180630

Крепеж

9167180820

Крепеж

9415180600

Крепеж

Код

Описание

16283

HOSE, WATER BY-PASS, NO.6

16283A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)

16295

HOSE, WATER BY-PASS, NO.7

16295A

CLIP(FOR WATER BY-PASS HOSE NO.7)

16296

HOSE, WATER BY-PASS, NO.8

16296A

CLIP(FOR WATER BY-PASS HOSE NO.8)

16297

HOSE, WATER BY-PASS, NO.9

16297A

CLIP(FOR WATER BY-PASS HOSE NO.9)

16331J

THERMOSTAT, MANIFOLD

2606

переход к группе запчастей

Код

Описание

1104

переход к группе запчастей

16283

HOSE, WATER BY-PASS, NO.6

16283A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)

16295

HOSE, WATER BY-PASS, NO.7

16295A

CLIP(FOR WATER BY-PASS HOSE NO.7)

16296

HOSE, WATER BY-PASS, NO.8

16296A

CLIP(FOR WATER BY-PASS HOSE NO.8)

Радиатор и шланги TOYOTA RAV4, 2008/12 - 2010/02, 2,2 литра, турбо-дизель, GRAMS, ALA30, механика, МКПП, 6 скоростей
