Тормозная магистраль TOYOTA RAV4, 1995/04 - 2000/05, 2 литра, 16 клапанов, DOHC, EFI, STANDARD TYPE, SXA11, автомат

Каталог

Япония

Модель

RAV4

Двигатель

2 литра, 16 клапанов, DOHC, EFI

Класс

STANDARD TYPE

Фрейм

SXA11

Трансмиссия

автомат

Опции

5 дверей NORMAL BODY

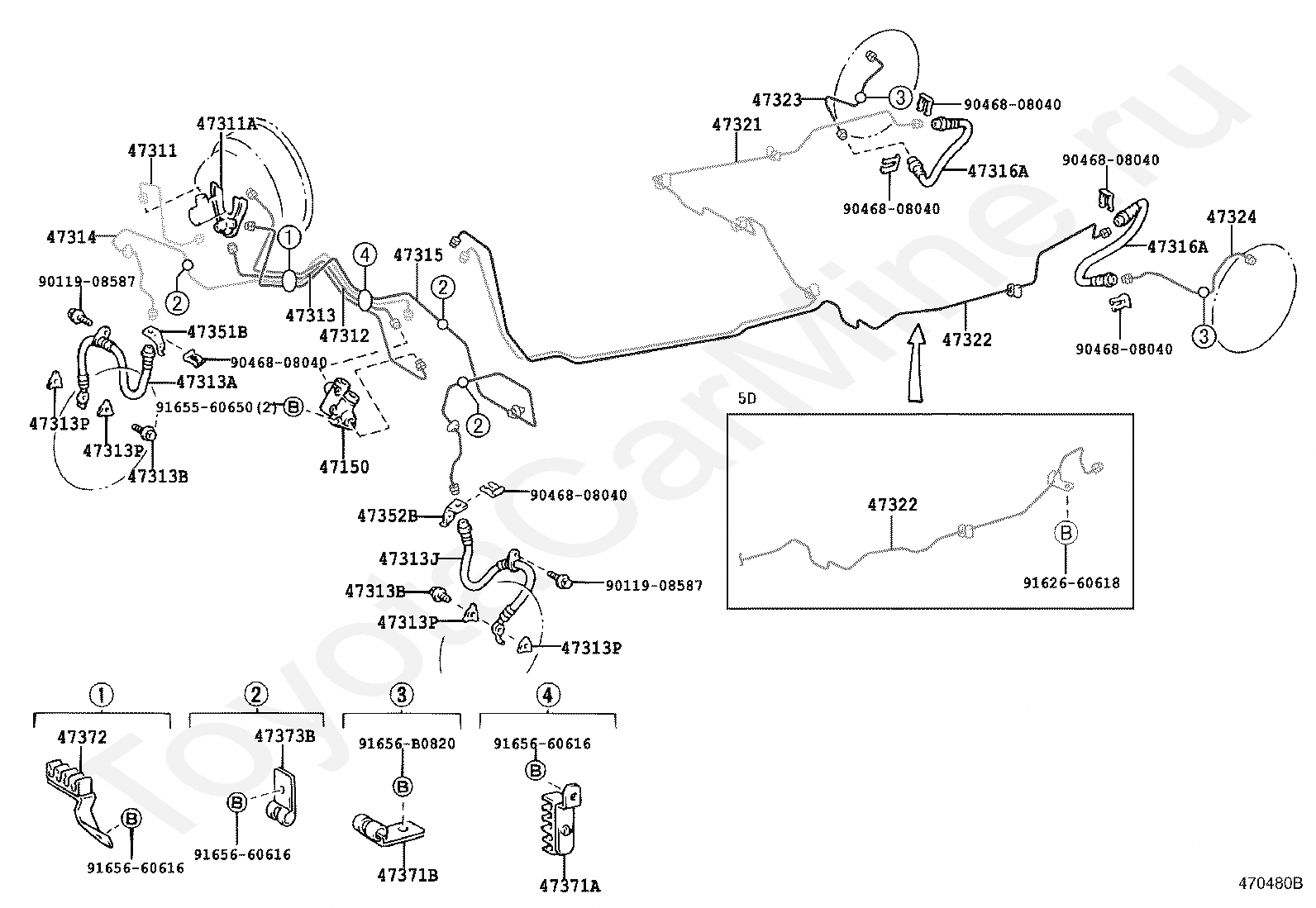

Код

Описание

47150

VALVE ASSY, PROPORTIONING

47311

TUBE, FRONT BRAKE, NO.1

47311A

WAY(FOR FRONT BRAKE TUBE)

47312

TUBE, FRONT BRAKE, NO.2

47313

TUBE, FRONT BRAKE, NO.3

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313J

HOSE, FLEXIBLE, NO.2(FOR FRONT)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47314

TUBE, FRONT BRAKE, NO.4

47315

TUBE, FRONT BRAKE, NO.5

47316A

HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

47321

TUBE, REAR BRAKE, NO.1

47322

TUBE, REAR BRAKE, NO.2

47323

TUBE, REAR BRAKE, NO.3

47324

TUBE, REAR BRAKE, NO.4

47351B

BRACKET, FLEXIBLE HOSE, NO.1

47352B

BRACKET, FLEXIBLE HOSE, NO.2

47371A

CLAMP, BRAKE TUBE, NO.1

47371B

CLAMP, BRAKE TUBE, NO.6

47372

CLAMP, BRAKE TUBE, NO.2

47373B

CLAMP, BRAKE TUBE, NO.3

9011908587

Крепеж

9046808040

Крепеж

9162660618

Крепеж

9165560650

Крепеж

9165660616

Крепеж

91656B0820

Крепеж

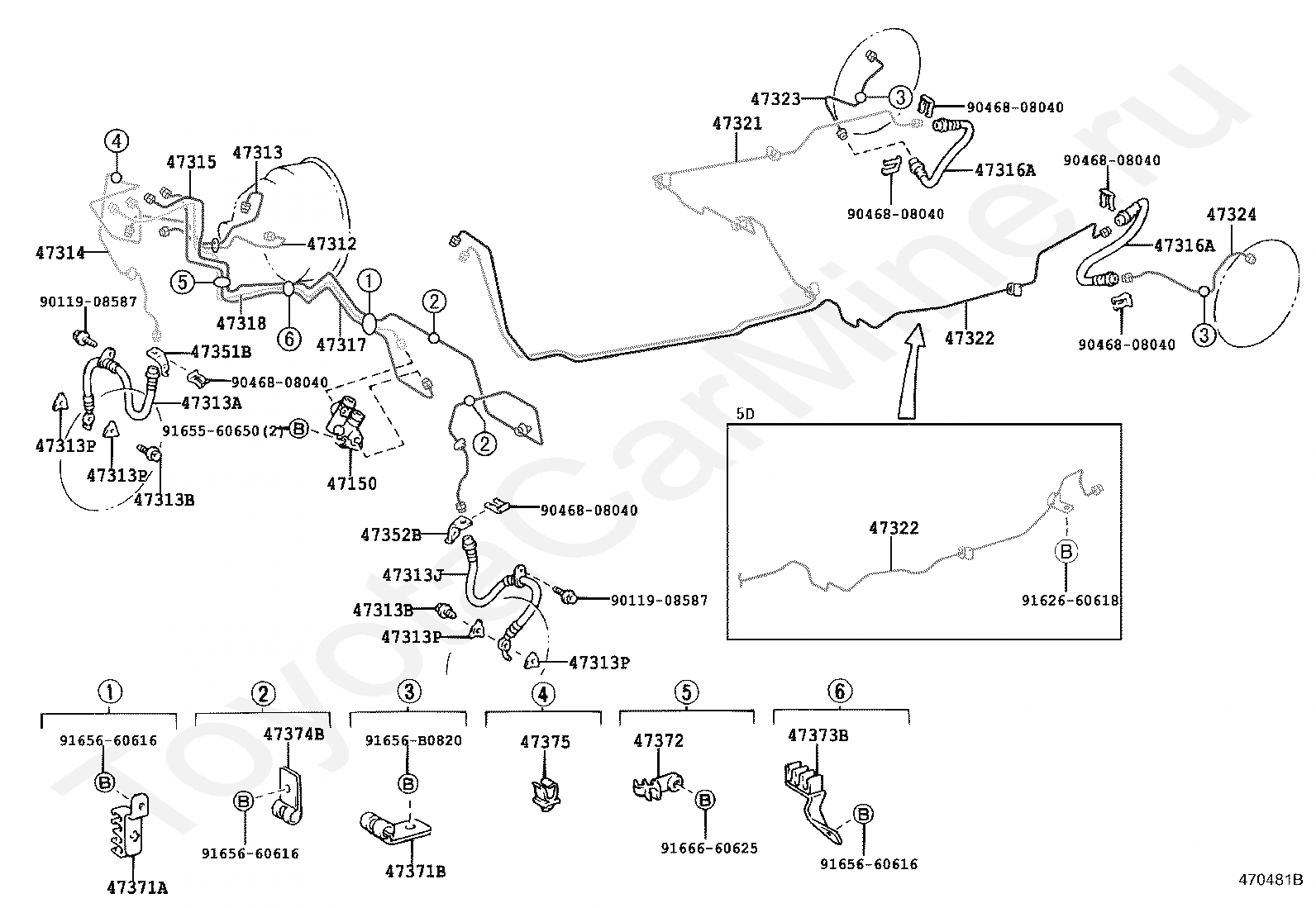

Код

Описание

47150

VALVE ASSY, PROPORTIONING

47312

TUBE, FRONT BRAKE, NO.2

47313

TUBE, FRONT BRAKE, NO.3

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313J

HOSE, FLEXIBLE, NO.2(FOR FRONT)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47314

TUBE, FRONT BRAKE, NO.4

47315

TUBE, FRONT BRAKE, NO.5

47316A

HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

47317

TUBE, FRONT BRAKE, NO.7

47318

TUBE, FRONT BRAKE, NO.8

47321

TUBE, REAR BRAKE, NO.1

47322

TUBE, REAR BRAKE, NO.2

47323

TUBE, REAR BRAKE, NO.3

47324

TUBE, REAR BRAKE, NO.4

47351B

BRACKET, FLEXIBLE HOSE, NO.1

47352B

BRACKET, FLEXIBLE HOSE, NO.2

47371A

CLAMP, BRAKE TUBE, NO.1

47371B

CLAMP, BRAKE TUBE, NO.6

47372

CLAMP, BRAKE TUBE, NO.2

47373B

CLAMP, BRAKE TUBE, NO.3

47374B

CLAMP, BRAKE TUBE, NO.4

47375

CLAMP, BRAKE TUBE, NO.5

9011908587

Крепеж

9046808040

Крепеж

9162660618

Крепеж

9165560650

Крепеж

9165660616

Крепеж

91656B0820

Крепеж

9166660625

Крепеж

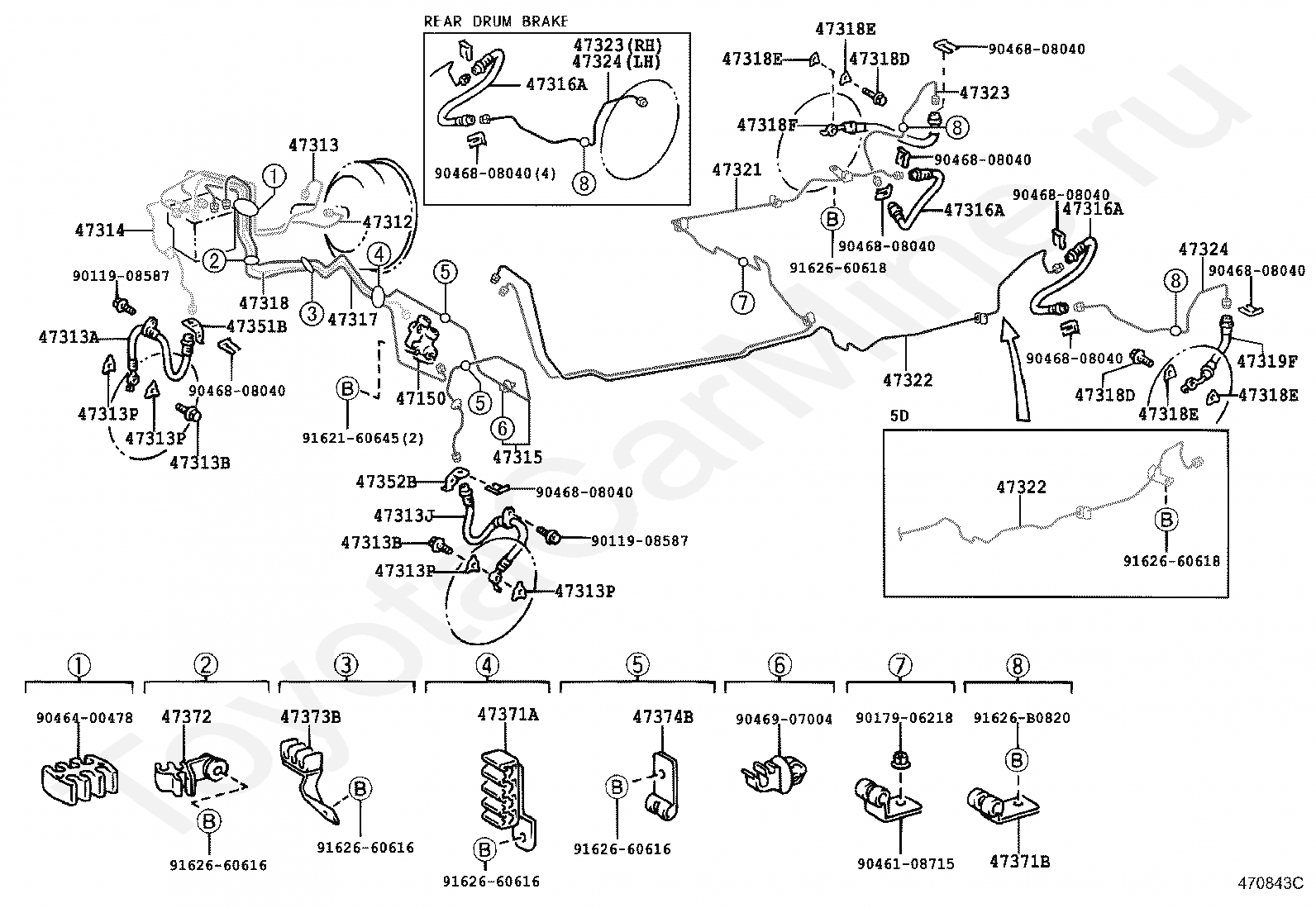

Код

Описание

47150

VALVE ASSY, PROPORTIONING

47312

TUBE, FRONT BRAKE, NO.2

47313

TUBE, FRONT BRAKE, NO.3

47313A

HOSE, FLEXIBLE, NO.1(FOR FRONT)

47313B

BOLT, UNION(FOR FRONT FLEXIBLE HOSE)

47313J

HOSE, FLEXIBLE, NO.2(FOR FRONT)

47313P

GASKET(FOR FRONT FLEXIBLE HOSE)

47314

TUBE, FRONT BRAKE, NO.4

47315

TUBE, FRONT BRAKE, NO.5

47316A

HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

47317

TUBE, FRONT BRAKE, NO.7

47318

TUBE, FRONT BRAKE, NO.8

47318D

BOLT, UNION(FOR REAR FLEXIBLE HOSE)

47318E

GASKET(FOR REAR FLEXIBLE HOSE)

47318F

HOSE, FLEXIBLE(FOR REAR RH)

47319F

HOSE, FLEXIBLE(FOR REAR LH)

47321

TUBE, REAR BRAKE, NO.1

47322

TUBE, REAR BRAKE, NO.2

47323

TUBE, REAR BRAKE, NO.3

47324

TUBE, REAR BRAKE, NO.4

47351B

BRACKET, FLEXIBLE HOSE, NO.1

47352B

BRACKET, FLEXIBLE HOSE, NO.2

47371A

CLAMP, BRAKE TUBE, NO.1

47371B

CLAMP, BRAKE TUBE, NO.6

47372

CLAMP, BRAKE TUBE, NO.2

47373B

CLAMP, BRAKE TUBE, NO.3

47374B

CLAMP, BRAKE TUBE, NO.4

9011908587

Крепеж

9017906218

Крепеж

9046108715

Крепеж

9046400478

Крепеж

9046808040

Крепеж

9046907004

Крепеж

9162160645

Крепеж

9162660616

Крепеж

9162660618

Крепеж

91626B0820

Крепеж

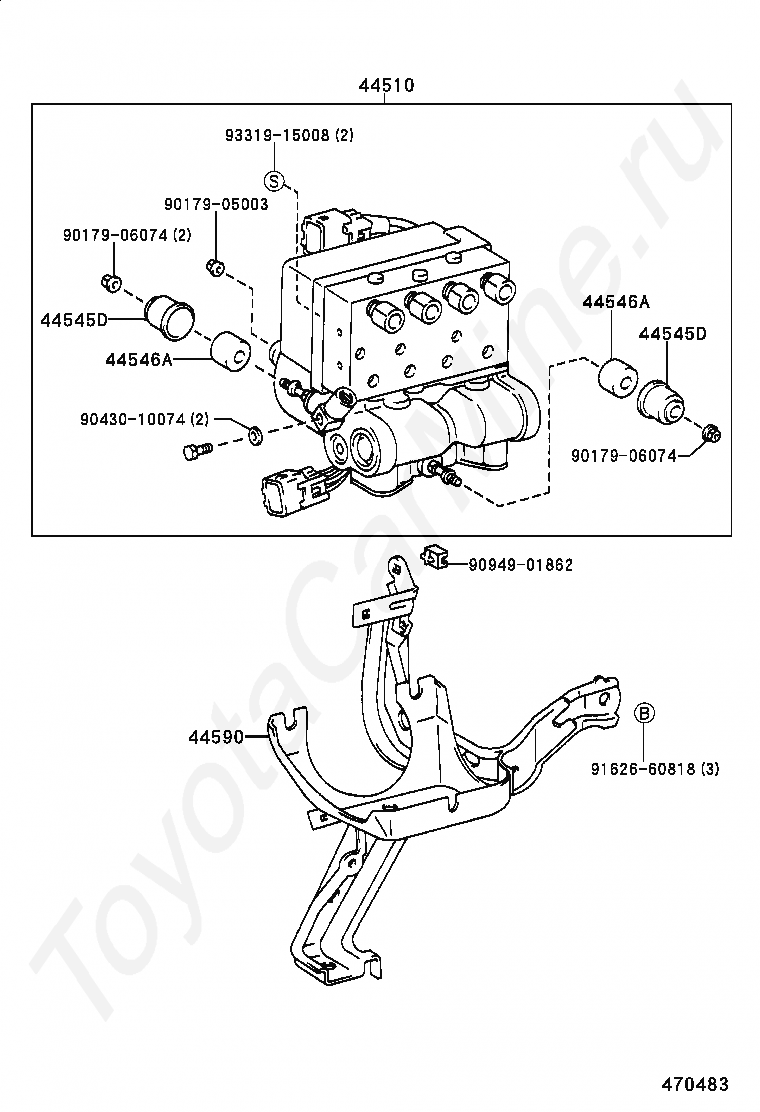

Код

Описание

44510

ACTUATOR ASSY, BRAKE

44545D

HOLDER, BRAKE ACTUATOR BOLT

44546A

CUSHION, BRAKE ACTUATOR BOLT

44590

BRACKET ASSY, BRAKE ACTUATOR

9017905003

Крепеж

9017906074

Крепеж

9043010074

Крепеж

9094901862

Крепеж

9162660818

Крепеж

9331915008

Крепеж

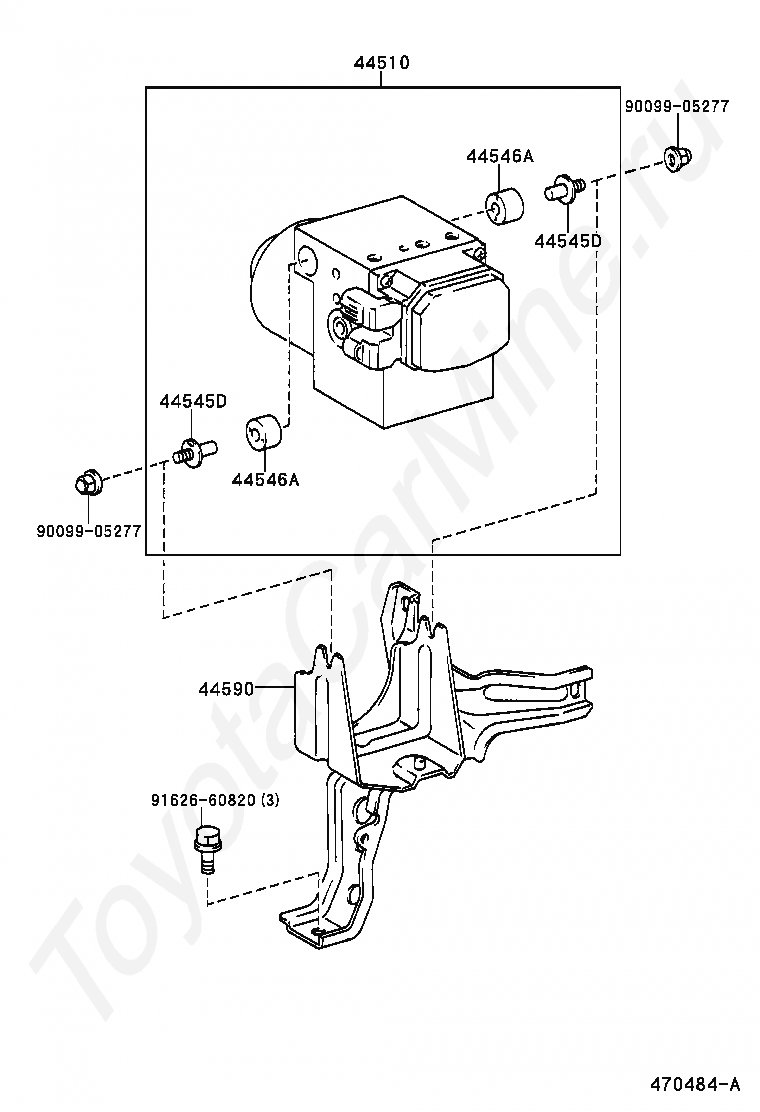

Код

Описание

44510

ACTUATOR ASSY, BRAKE

44545D

HOLDER, BRAKE ACTUATOR BOLT

44546A

CUSHION, BRAKE ACTUATOR BOLT

44590

BRACKET ASSY, BRAKE ACTUATOR

9009905277

Крепеж

9162660820

Крепеж
