Каталог
ЯпонияМодель
RAV4Двигатель
2 литра, 16 клапанов, DOHC, EFIКласс
STANDARD TYPEФрейм
SXA11Трансмиссия
автоматОпции
5 дверей NORMAL BODY

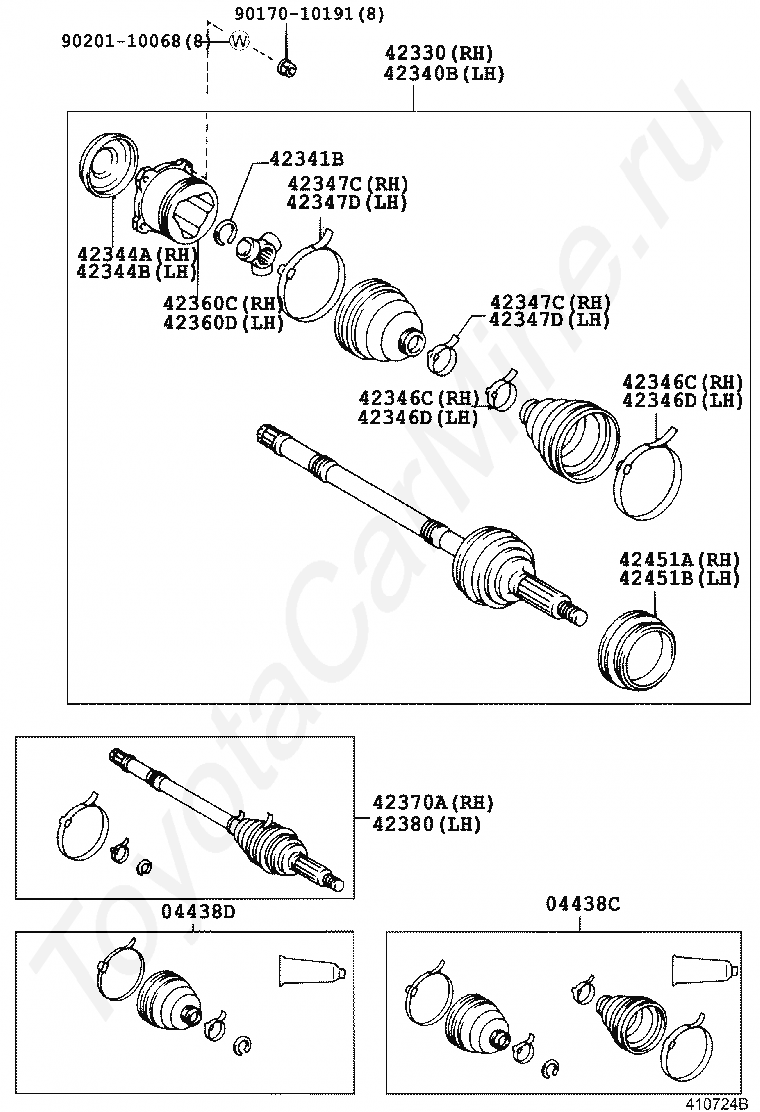

Код
Описание
04438C
BOOT KIT, REAR DRIVE SHAFT
04438D
BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT
42330
SHAFT ASSY, REAR DRIVE, RH
42340B
SHAFT ASSY, REAR DRIVE, LH
42341B
RING, SNAP (FOR REAR DRIVE SHAFT RH)
42344A
COVER, REAR AXLE INBOARD JOINT END, RH
42344B
COVER, REAR AXLE INBOARD JOINT END, LH
42346C
CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)
42346D
CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)
42347C
CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)
42347D
CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH)
42360C
JOINT ASSY, REAR DRIVE SHAFT INBOARD, RH
42360D
JOINT ASSY, REAR DRIVE SHAFT INBOARD, LH
42370A
SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH
42380
SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH
42451A
DEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH
42451B
DEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH
9017010191
Крепеж
9020110068
Крепеж

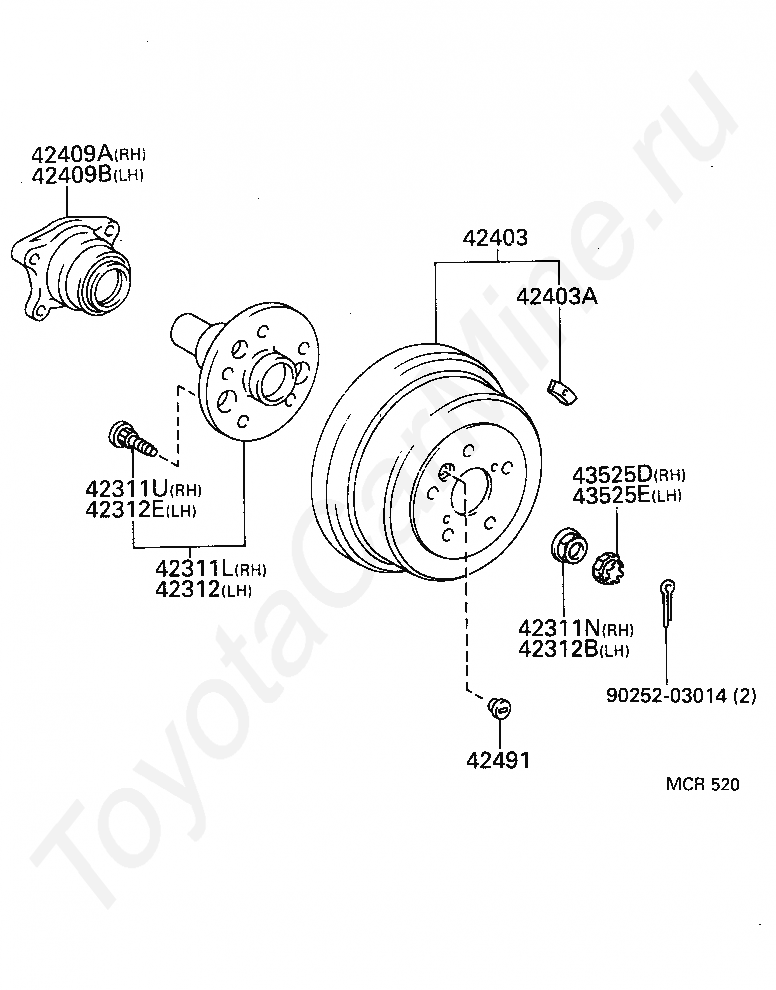

Код
Описание
42311L
SHAFT, REAR AXLE, RH
42311N
NUT (FOR REAR AXLE SHAFT RH)
42311U
BOLT, HUB (FOR REAR AXLE RH)
42312
SHAFT, REAR AXLE, LH
42312B
NUT (FOR REAR AXLE SHAFT LH)
42312E
BOLT, HUB (FOR REAR AXLE LH)
42403
DRUM SUB-ASSY, REAR BRAKE
42403A
PIECE, BALANCE (FOR REAR BRAKE DRUM)
42409A
BEARING SUB-ASSY, REAR AXLE, RH
42409B
BEARING SUB-ASSY, REAR AXLE, LH
42491
PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)
43525D
CAP, REAR WHEEL ADJUSTING LOCK, RH
43525E
CAP, REAR WHEEL ADJUSTING LOCK, LH
9025203014
Крепеж

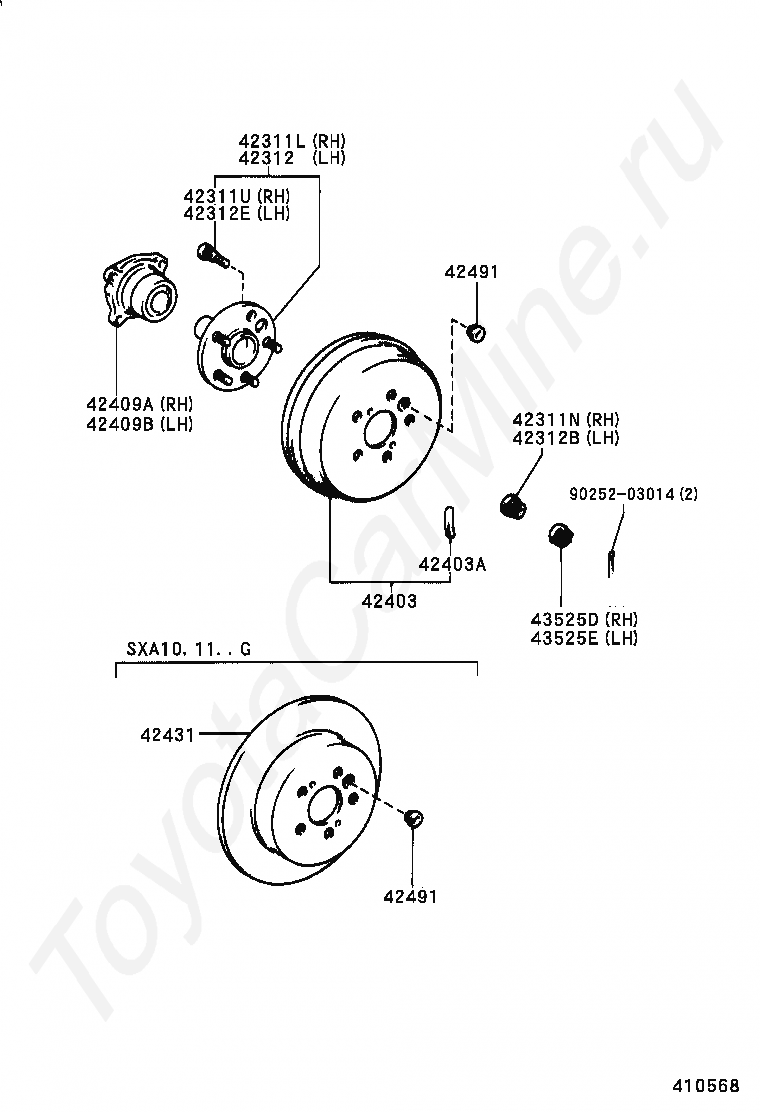

Код
Описание
42311L
SHAFT, REAR AXLE, RH
42311N
NUT (FOR REAR AXLE SHAFT RH)
42311U
BOLT, HUB (FOR REAR AXLE RH)
42312
SHAFT, REAR AXLE, LH
42312B
NUT (FOR REAR AXLE SHAFT LH)
42312E
BOLT, HUB (FOR REAR AXLE LH)
42403
DRUM SUB-ASSY, REAR BRAKE
42403A
PIECE, BALANCE (FOR REAR BRAKE DRUM)
42409A
BEARING SUB-ASSY, REAR AXLE, RH
42409B
BEARING SUB-ASSY, REAR AXLE, LH
42431
DISC, REAR
42491
PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)
43525D
CAP, REAR WHEEL ADJUSTING LOCK, RH
43525E
CAP, REAR WHEEL ADJUSTING LOCK, LH
9025203014
Крепеж
