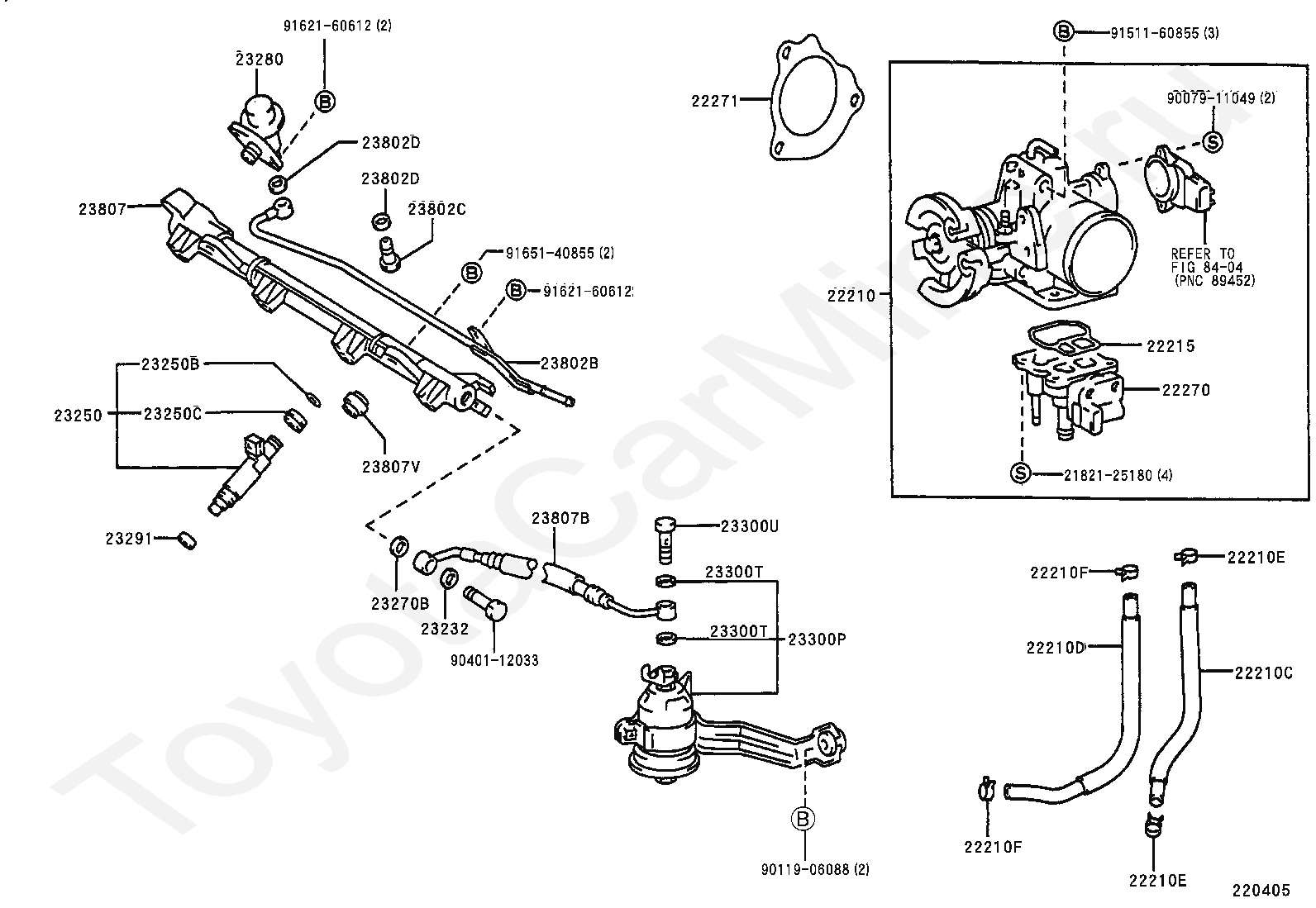

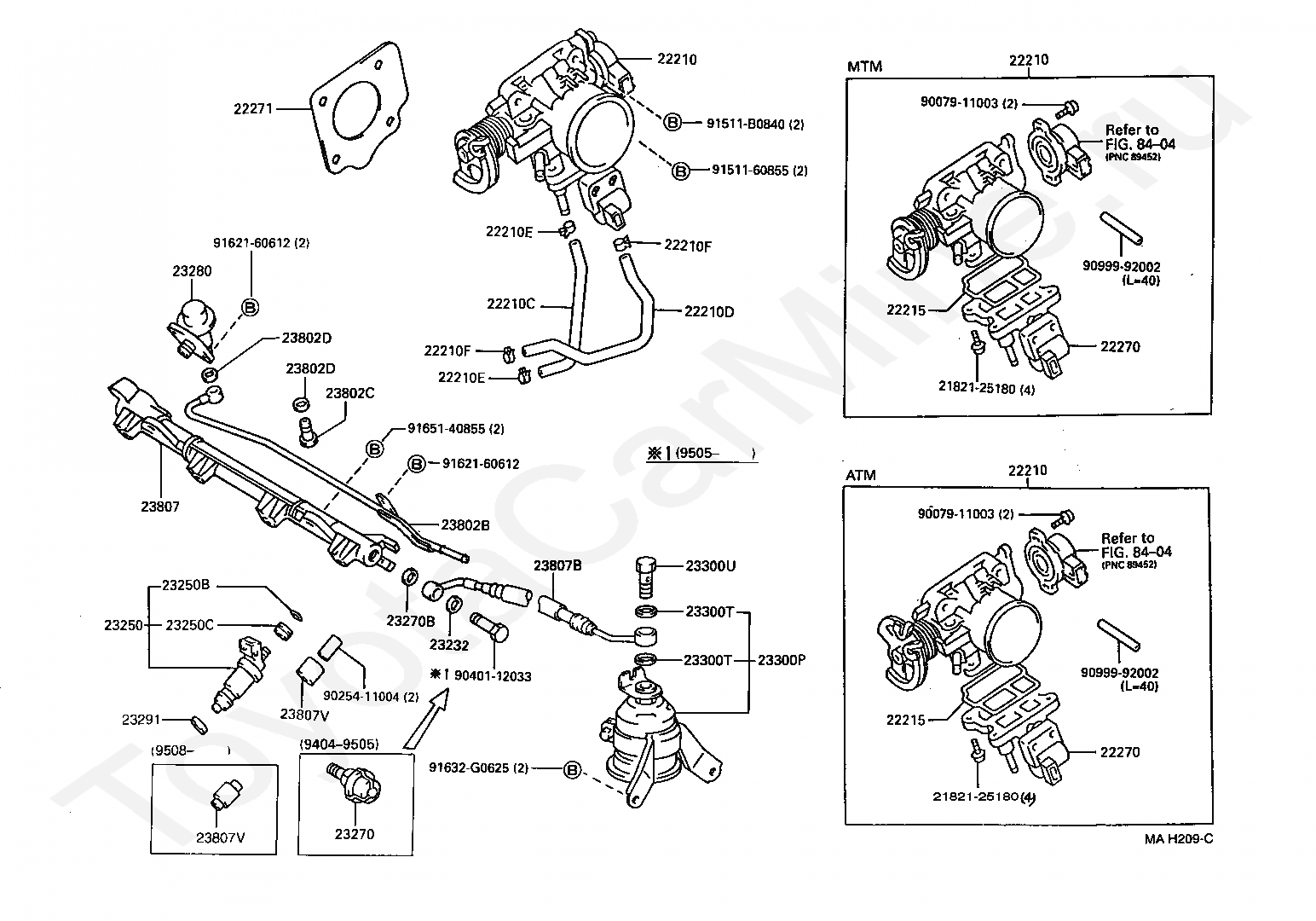

Топливная система TOYOTA RAV4, 1995/04 - 2000/05, 2 литра, 16 клапанов, DOHC, EFI, STANDARD TYPE, SXA11, автомат

Каталог

Япония

Модель

RAV4

Двигатель

2 литра, 16 клапанов, DOHC, EFI

Класс

STANDARD TYPE

Фрейм

SXA11

Трансмиссия

автомат

Опции

5 дверей NORMAL BODY

Код

Описание

2182125180

Крепеж

22210

BODY ASSY, THROTTLE

22210C

HOSE, WATER BY-PASS, NO.1

22210D

HOSE, WATER BY-PASS, NO.2

22210E

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)

22210F

CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)

22215

GASKET, THROTTLE BODY COVER

22270

VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

22271

GASKET, THROTTLE BODY

23232

GASKET(FOR FUEL PUMP HOSE)

23250

INJECTOR ASSY, FUEL

23250B

RING, O(FOR FUEL INJECTOR)

23250C

GROMMET(FOR FUEL INJECTOR)

23270

DAMPER ASSY, FUEL PRESSURE PULSATION

23270B

GASKET(FOR PULSATION DAMPER HOSE)

23280

REGULATOR ASSY, FUEL PRESSURE

23291

INSULATOR, INJECTOR VIBRATION

23300P

FILTER, FUEL(FOR EFI)

23300T

GASKET(FOR FUEL FILTER)

23300U

BOLT, UNION(FOR FUEL FILTER)

23802B

PIPE SUB-ASSY, FUEL, NO.2

23802C

BOLT, UNION(FOR FUEL PIPE NO.2)

23802D

GASKET(FOR FUEL PIPE NO.2)

23807

PIPE SUB-ASSY, FUEL DELIVERY

23807B

HOSE, FUEL DELIVERY PIPE

23807V

SPACER, NO.1(FOR DELIVERY PIPE)

8404

переход к группе запчастей

9007911003

Крепеж

9025411004

Крепеж

9040112033

Крепеж

9099992002

Крепеж

9151160855

Крепеж

91511B0840

Крепеж

9162160612

Крепеж

91632G0625

Крепеж

9165140855

Крепеж

Код

Описание

2182125180

Крепеж

22210

BODY ASSY, THROTTLE

22210C

HOSE, WATER BY-PASS, NO.1

22210D

HOSE, WATER BY-PASS, NO.2

22210E

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)

22210F

CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)

22215

GASKET, THROTTLE BODY COVER

22270

VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

22271

GASKET, THROTTLE BODY

23232

GASKET(FOR FUEL PUMP HOSE)

23250

INJECTOR ASSY, FUEL

23250B

RING, O(FOR FUEL INJECTOR)

23250C

GROMMET(FOR FUEL INJECTOR)

23270B

GASKET(FOR PULSATION DAMPER HOSE)

23280

REGULATOR ASSY, FUEL PRESSURE

23291

INSULATOR, INJECTOR VIBRATION

23300P

FILTER, FUEL(FOR EFI)

23300T

GASKET(FOR FUEL FILTER)

23300U

BOLT, UNION(FOR FUEL FILTER)

23802B

PIPE SUB-ASSY, FUEL, NO.2

23802C

BOLT, UNION(FOR FUEL PIPE NO.2)

23802D

GASKET(FOR FUEL PIPE NO.2)

23807

PIPE SUB-ASSY, FUEL DELIVERY

23807B

HOSE, FUEL DELIVERY PIPE

23807V

SPACER, NO.1(FOR DELIVERY PIPE)

8404

переход к группе запчастей

9007911049

Крепеж

9011906088

Крепеж

9040112033

Крепеж

9151160855

Крепеж

9162160612

Крепеж

9165140855

Крепеж

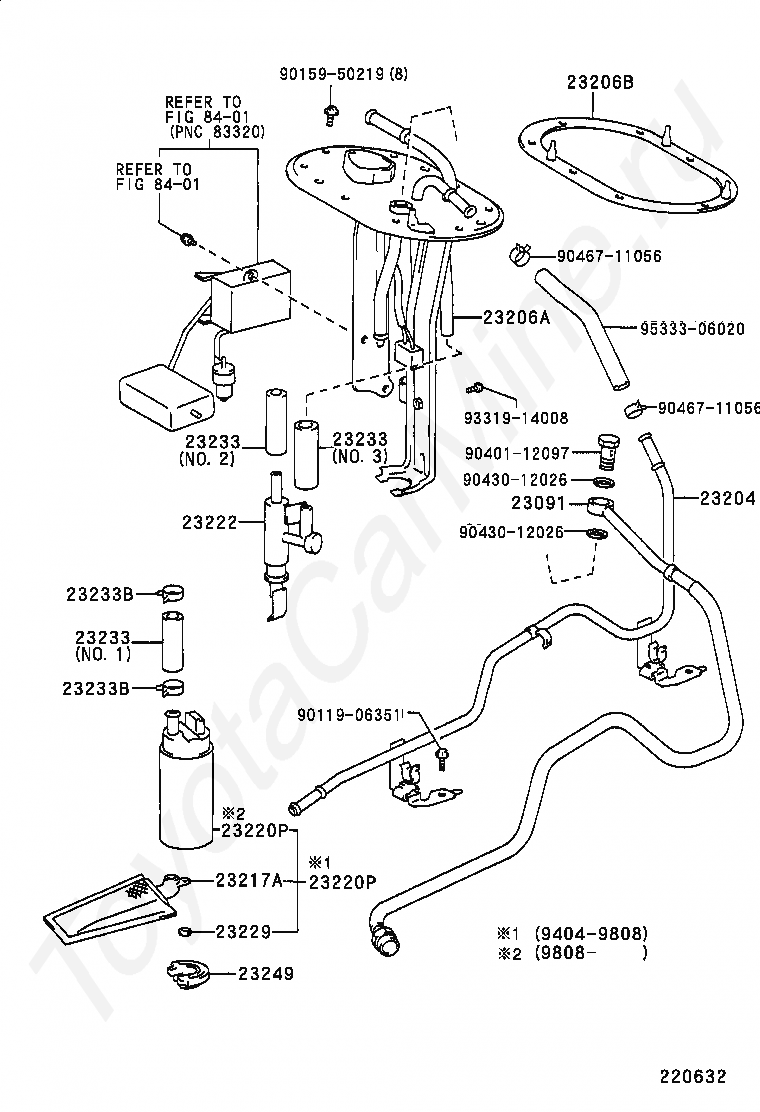

Код

Описание

23091

TUBE SUB-ASSY, FUEL PUMP

23204

TUBE SUB-ASSY, FUEL PUMP RETURN

23206A

BRACKET, FUEL PUMP

23206B

GASKET, FUEL PUMP BRACKET

23217A

FILTER, FUEL PUMP

23220P

PUMP ASSY, FUEL

23222

TUBE, FUEL RETURN JET

23229

CLIP(FOR FUEL PUMP FILTER)

23233

HOSE, FUEL PUMP

23233B

CLIP(FOR FUEL PUMP HOSE)

23249

RUBBER, CUSHION(FOR FUEL PUMP)

8401

переход к группе запчастей

9011906351

Крепеж

9015950219

Крепеж

9040112097

Крепеж

9043012026

Крепеж

9046711056

Крепеж

9331914008

Крепеж

9533306020

Крепеж

Топливная система TOYOTA RAV4, 1995/04 - 2000/05, 2 литра, 16 клапанов, DOHC, EFI, STANDARD TYPE, SXA11, автомат
