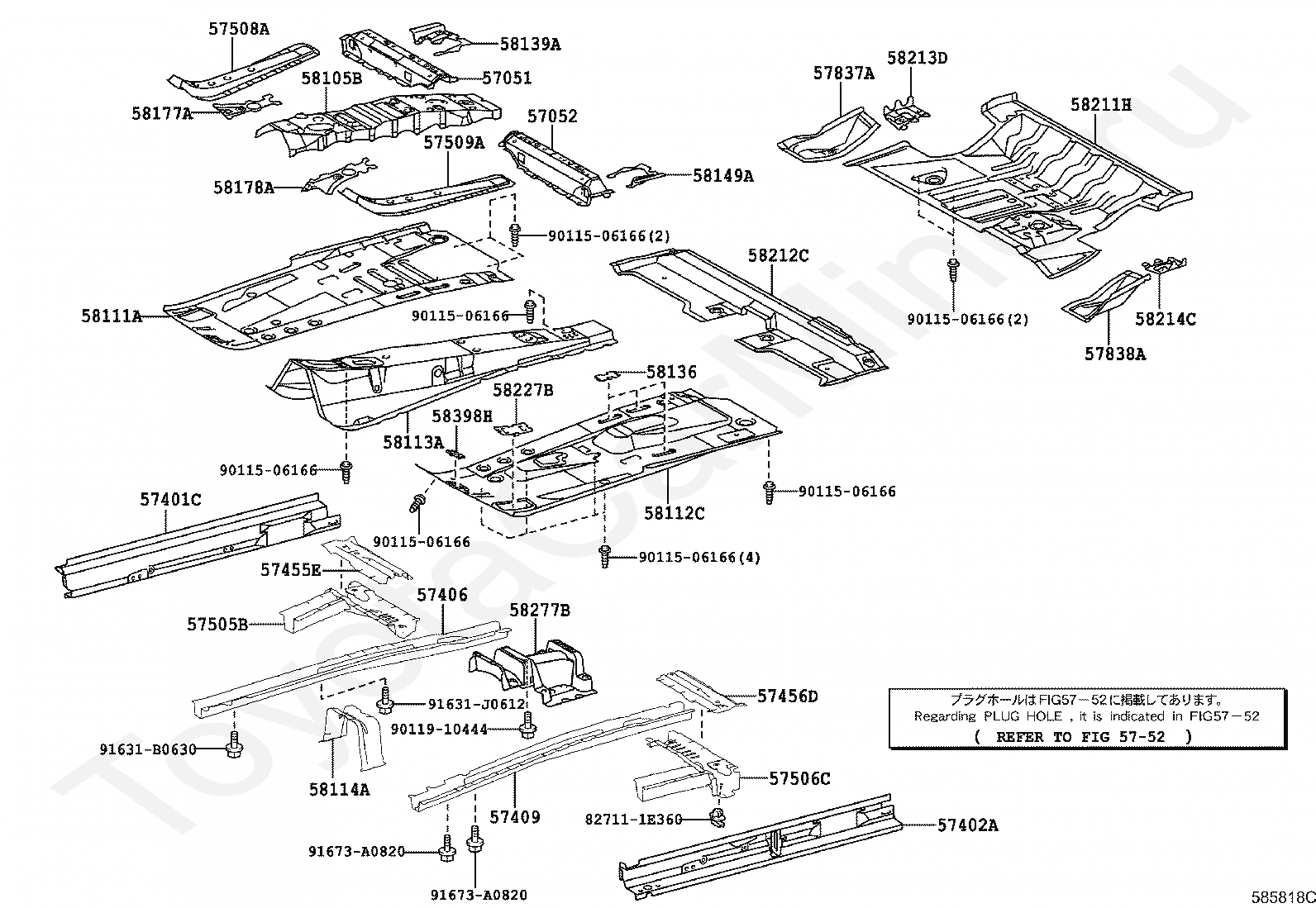

Нижняя часть кузова TOYOTA RAV4, 2016/10 - 2019/09, 2 литра, 16 клапанов, DOHC, EFI, ZSA44, вариатор, 3 литра, дизель

Каталог

Европа

Модель

RAV4

Двигатель

2 литра, 16 клапанов, DOHC, EFI

Фрейм

ZSA44

Трансмиссия

вариатор 3 литра, дизель

Опции

RUSSIA PRODUCT левый руль электронная система впрыска топлива Россия METERS 650W

Код

Описание

51401B

BRACKET SUB-ASSY, ENGINE FRONT MOUNTING

51402A

BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

57016

REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

57017

REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

57025C

MEMBER SUB-ASSY, FRONT SIDE, OUTER RH

57026B

MEMBER SUB-ASSY, FRONT SIDE, OUTER LH

57043

REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

57044A

REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

57053

REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH

57054A

REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH

57101

MEMBER SUB-ASSY, FRONT SIDE, RH

57102

MEMBER SUB-ASSY, FRONT SIDE, LH

57107A

PLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

57108A

PLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

57111

MEMBER, FRONT SIDE, RH

57112

MEMBER, FRONT SIDE, LH

57113

EXTENSION, FRONT SIDE MEMBER, RH

57114

EXTENSION, FRONT SIDE MEMBER, LH

57188B

GUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, RH

57189A

GUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, LH

57191A

MEMBER, FRONT SIDE, INNER REAR RH

57192A

MEMBER, FRONT SIDE, INNER REAR LH

57197

BOX, TORQUE, FRONT RH

57198

BOX, TORQUE, FRONT LH

5752

переход к группе запчастей

91631J0612

Крепеж

Код

Описание

57051

MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

57052

MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

57401C

MEMBER SUB-ASSY, FLOOR SIDE, INNER RH

57402A

MEMBER SUB-ASSY, FLOOR SIDE, INNER LH

57406

MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

57409

MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

57455E

PLATE, FRONT FLOOR CROSS MEMBER, NO.3 RH

57456D

PLATE, FRONT FLOOR CROSS MEMBER, NO.3 LH

57505B

REINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER, RH

57506C

REINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER, LH

57508A

REINFORCEMENT SUB-ASSY, FRONT FLOOR, RH

57509A

REINFORCEMENT SUB-ASSY, FRONT FLOOR, LH

5752

переход к группе запчастей

57837A

REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.3

57838A

REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.4

58105B

PANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB

58111A

PAN, FRONT FLOOR, RH

58112C

PAN, FRONT FLOOR, LH

58113A

PANEL, FRONT FLOOR, CENTER

58114A

REINFORCEMENT, FRONT FLOOR PANEL

58136

COVER, FRONT FLOOR HOLE

58139A

PLATE, FRONT FLOOR SIDE, REAR RH

58149A

PLATE, FRONT FLOOR SIDE, REAR LH

58177A

EXTENSION, FRONT FLOOR PANEL, RH

58178A

EXTENSION, FRONT FLOOR PANEL, LH

58211H

PAN, CENTER FLOOR

58212C

PAN, CENTER FLOOR, FRONT

58213D

REINFORCEMENT, CENTER FLOOR PANEL

58214C

REINFORCEMENT, CENTER FLOOR PANEL, LH

58227B

PLATE, FRONT FLOOR PANEL SIDE, RH

58277B

REINFORCEMENT, DRIVE SHAFT CENTER SUPPORT

58398H

COVER, FLOOR UNDER, NO.1

827111E360

Крепеж

9011506166

Крепеж

9011910444

Крепеж

91631B0630

Крепеж

91631J0612

Крепеж

91673A0820

Крепеж
