> Запчасти RAV4 > Поиск по каталогу
Запчасти Аксессуары Масло Расходники Каталог Шины, Диски

Кресла TOYOTA RAV4 (JPP), 2019/01 - 2020/07, 2,5 литра, 16 клапанов, DOHC, AXAH52, вариатор

Каталог

Европа

Модель

RAV4 (JPP)

Двигатель

2,5 литра, 16 клапанов, DOHC

Фрейм

AXAH52

Трансмиссия

вариатор

Опции

правый руль GRAMS Австралия 721W

Двигатель

Подвеска

Кузов

Электрика

  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

82667D

HOLDER, CONNECTOR

87510K

HEATER ASSY, FRONT SEAT CUSHION, RH

87510L

HEATER ASSY, FRONT SEAT CUSHION, LH

87510M

HEATER ASSY, FRONT SEAT BACK, RH

87510N

HEATER ASSY, FRONT SEAT BACK, LH

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

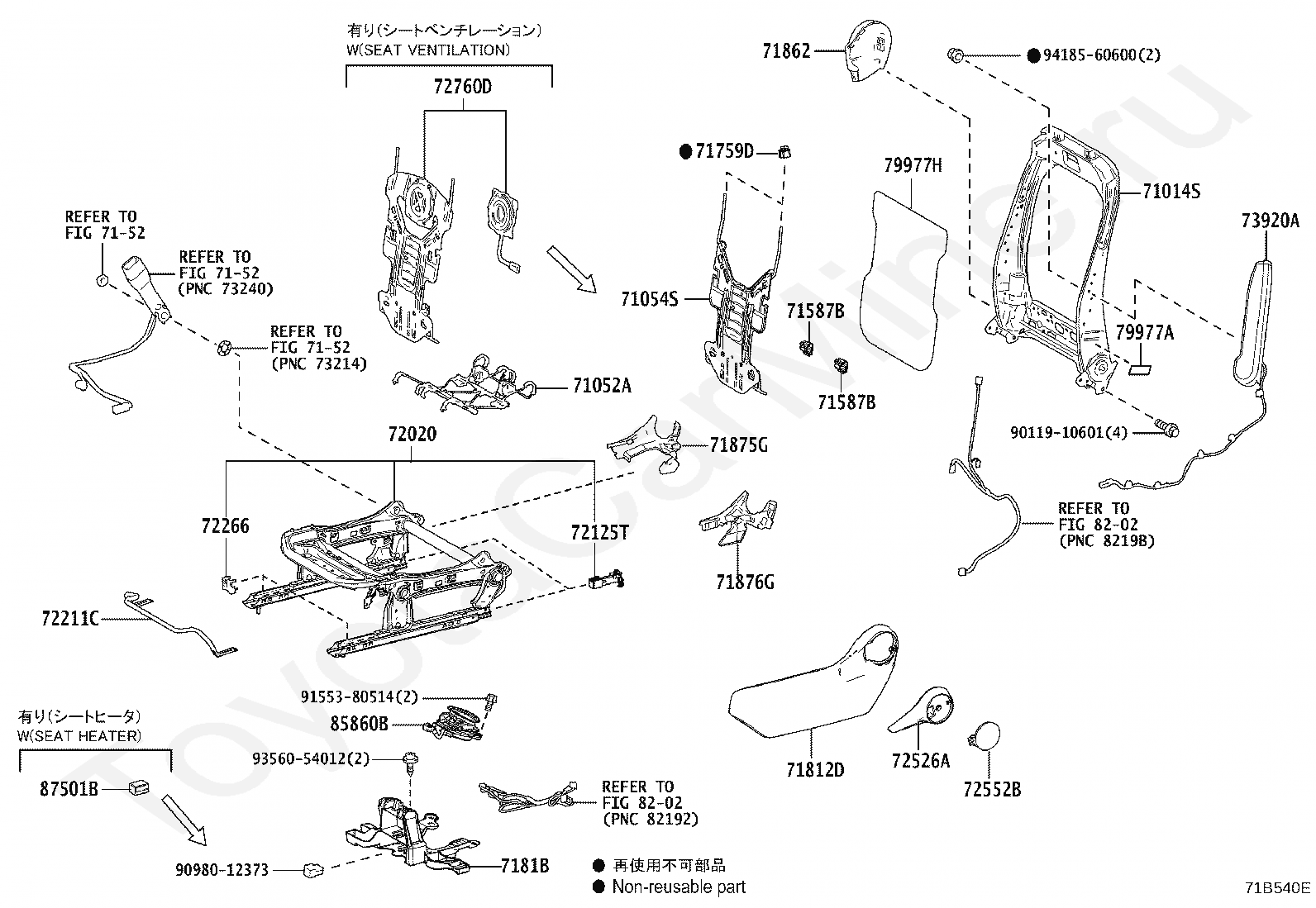

Код

Описание

71014S

FRAME SUB-ASSY, FRONT SEAT BACK, LH

71052A

SPRING SUB-ASSY, FRONT SEAT CUSHION, LH

71054S

SPRING SUB-ASSY, FRONT SEAT BACK, LH

7152

переход к группе запчастей

71587B

PROTECTOR, FRONT SEAT BACK EDGE

71759D

HOOK, FRONT SEAT BACK, NO.2

71812D

SHIELD, FRONT SEAT CUSHION, LH

7181B

HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71875G

COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

71876G

COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

72020

ADJUSTER ASSY, FRONT SEAT, LH

72125T

COVER, FRONT SEAT TRACK, UPPER REAR LH

72211C

HANDLE, SEAT TRACK ADJUSTING

72266

COVER, SEAT TRACK UPPER RAIL, LH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

72552B

COVER, RECLINING HINGE, LH

72760D

ADJUSTER ASSY, LUMBAR SUPPORT, LH

73920A

AIR BAG ASSY, FRONT SEAT, LH

79977A

FELT, SEAT BACK

79977H

FELT, FRONT SEAT BACK, LH

8202

переход к группе запчастей

85860B

BLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, LH

87501B

CONTROL SUB-ASSY, SEAT HEATER, LH

9011910601

Крепеж

9098012373

Крепеж

9155380514

Крепеж

9356054012

Крепеж

9418560600

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

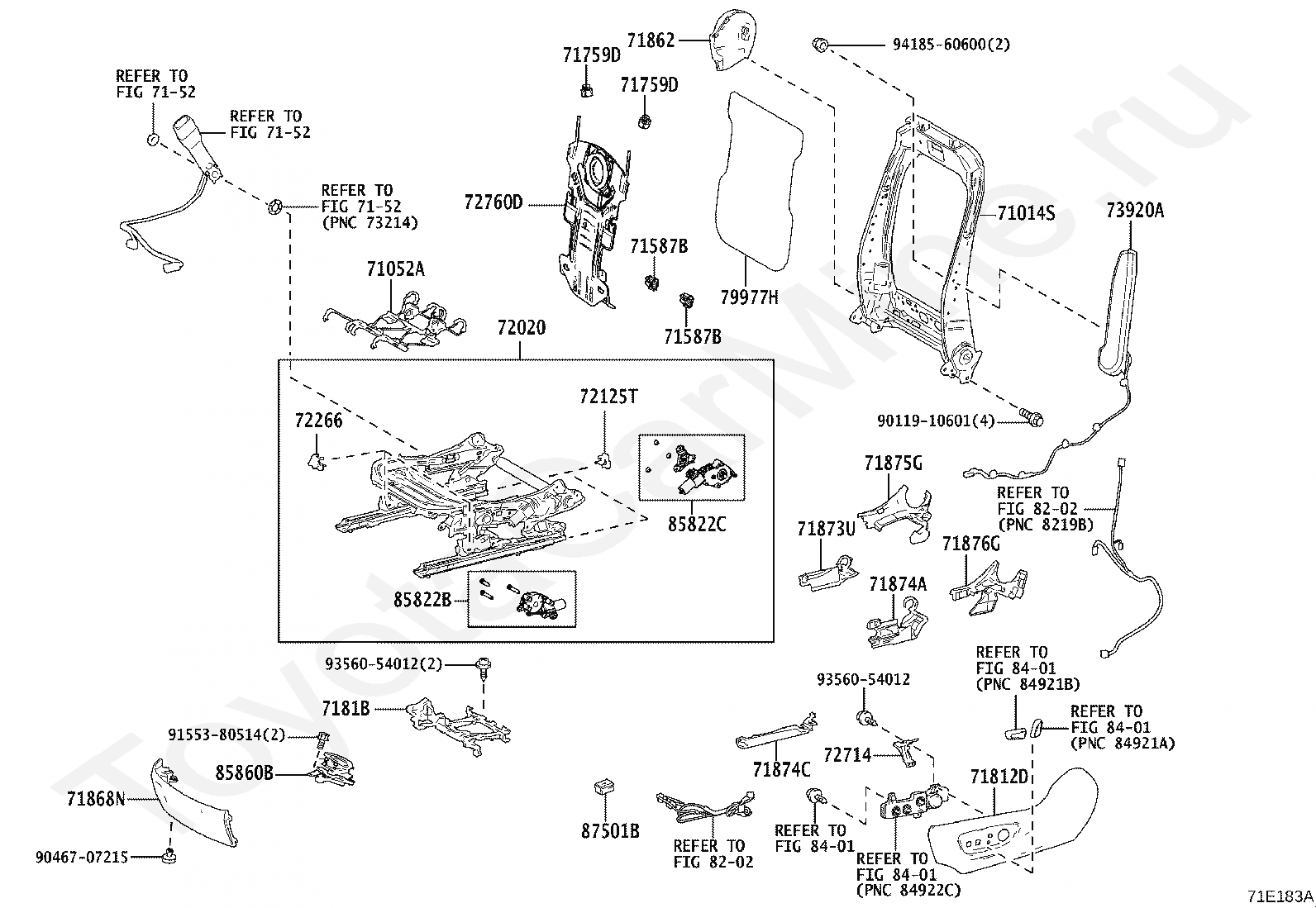

Код

Описание

71014S

FRAME SUB-ASSY, FRONT SEAT BACK, LH

71052A

SPRING SUB-ASSY, FRONT SEAT CUSHION, LH

7152

переход к группе запчастей

71587B

PROTECTOR, FRONT SEAT BACK EDGE

71759D

HOOK, FRONT SEAT BACK, NO.2

71812D

SHIELD, FRONT SEAT CUSHION, LH

7181B

HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71868N

SHIELD, FRONT SEAT CUSHION, FRONT LH

71873U

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874A

SHIELD, FRONT SEAT CUSHION, LOWER LH

71874C

SHIELD, FRONT SEAT CUSHION, LOWER

71875G

COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

71876G

COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

72020

ADJUSTER ASSY, FRONT SEAT, LH

72125T

COVER, FRONT SEAT TRACK, UPPER REAR LH

72266

COVER, SEAT TRACK UPPER RAIL, LH

72714

BRACKET, SEAT ADJUSTER SHIELD CLAMP, LH

72760D

ADJUSTER ASSY, LUMBAR SUPPORT, LH

73920A

AIR BAG ASSY, FRONT SEAT, LH

79977H

FELT, FRONT SEAT BACK, LH

8202

переход к группе запчастей

8401

переход к группе запчастей

85822B

MOTOR ASSY, POWER SEAT TILT, LH

85822C

MOTOR ASSY, POWER SEAT LIFTER, LH

85860B

BLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, LH

87501B

CONTROL SUB-ASSY, SEAT HEATER, LH

9011910601

Крепеж

9046707215

Крепеж

9155380514

Крепеж

9356054012

Крепеж

9418560600

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

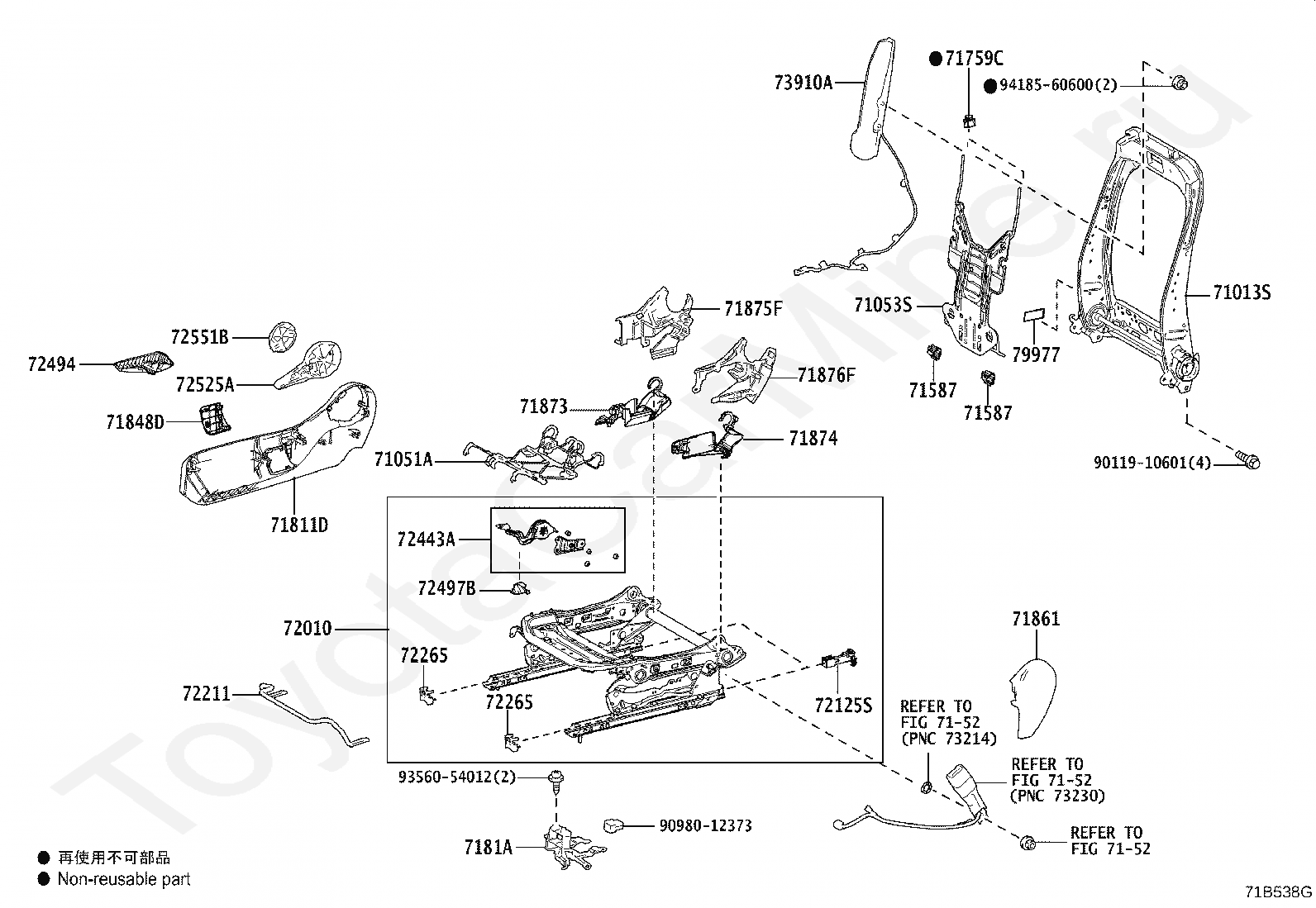

Код

Описание

71013S

FRAME SUB-ASSY, FRONT SEAT BACK, RH

71051A

SPRING SUB-ASSY, FRONT SEAT CUSHION, RH

71053S

SPRING SUB-ASSY, FRONT SEAT BACK, RH

7152

переход к группе запчастей

71587

PROTECTOR, FRONT SEAT BACK EDGE

71759C

HOOK, FRONT SEAT BACK, NO.1

71811D

SHIELD, FRONT SEAT CUSHION, RH

7181A

HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH

71848D

CAP, SEAT ADJUSTER COVER, RH(FOR RH SEAT)

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875F

COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)

71876F

COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)

72010

ADJUSTER ASSY, FRONT SEAT, RH

72125S

COVER, FRONT SEAT TRACK, UPPER REAR RH

72211

HANDLE, SEAT TRACK ADJUSTING

72265

COVER, SEAT TRACK UPPER RAIL, RH

72443A

GEAR, VERTICAL ADJUSTER, RH

72494

HANDLE, VERTICAL ADJUSTING, RH

72497B

COVER, VERTICAL ADJUSTER BRACKET, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72551B

COVER, RECLINING HINGE, RH

73910A

AIR BAG ASSY, FRONT SEAT, RH

79977

FELT, SEAT BACK

9011910601

Крепеж

9098012373

Крепеж

9356054012

Крепеж

9418560600

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

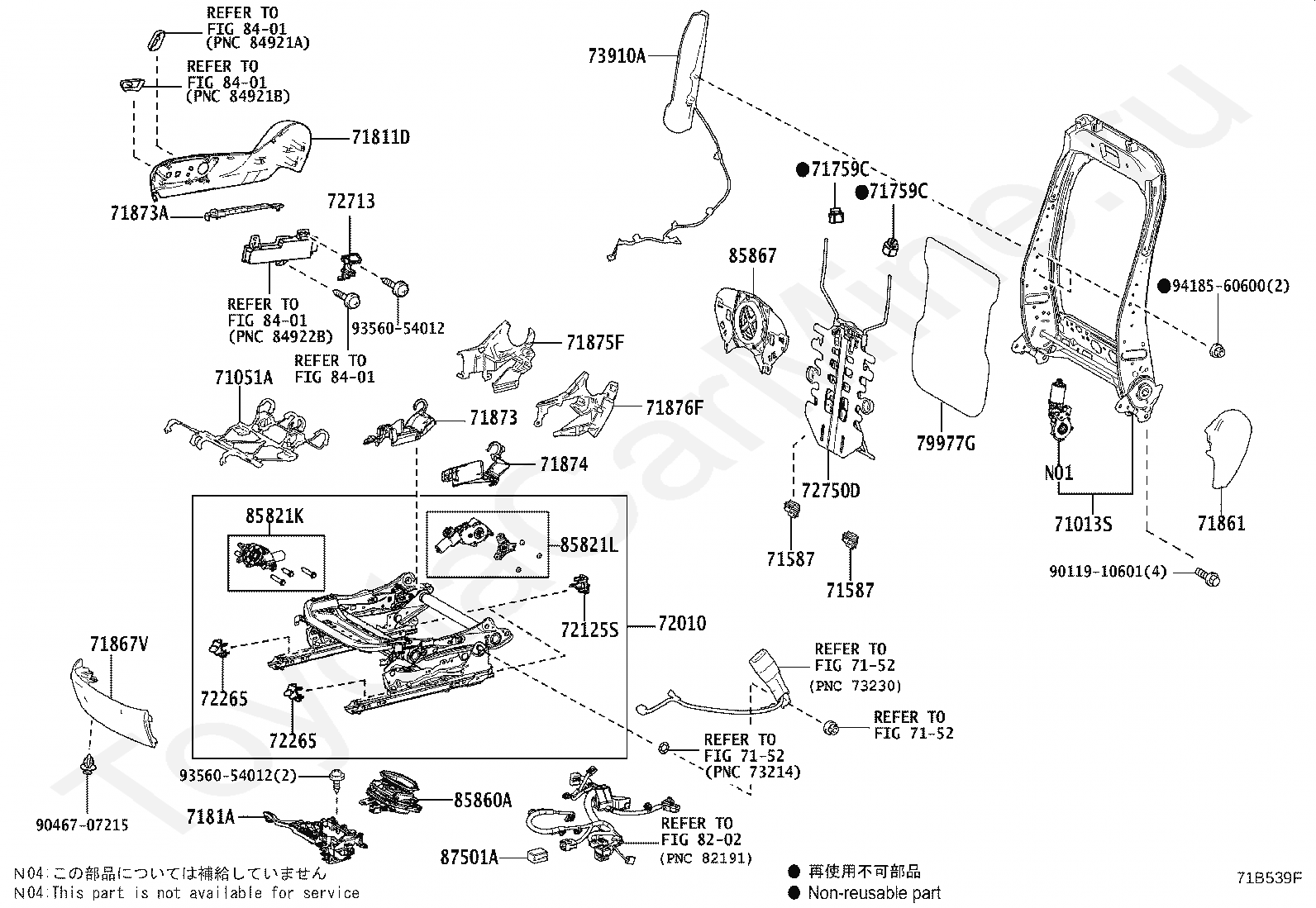

Код

Описание

71013S

FRAME SUB-ASSY, FRONT SEAT BACK, RH

71051A

SPRING SUB-ASSY, FRONT SEAT CUSHION, RH

7152

переход к группе запчастей

71587

PROTECTOR, FRONT SEAT BACK EDGE

71759C

HOOK, FRONT SEAT BACK, NO.1

71811D

SHIELD, FRONT SEAT CUSHION, RH

7181A

HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71867V

SHIELD, FRONT SEAT CUSHION, FRONT RH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71873A

SHIELD, FRONT SEAT CUSHION, LOWER

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875F

COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)

71876F

COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)

72010

ADJUSTER ASSY, FRONT SEAT, RH

72125S

COVER, FRONT SEAT TRACK, UPPER REAR RH

72265

COVER, SEAT TRACK UPPER RAIL, RH

72713

BRACKET, SEAT ADJUSTER SHIELD CLAMP, RH

72750D

ADJUSTER ASSY, LUMBAR SUPPORT, RH

73910A

AIR BAG ASSY, FRONT SEAT, RH

79977G

FELT, FRONT SEAT BACK, RH

8202

переход к группе запчастей

8401

переход к группе запчастей

85821K

MOTOR ASSY, POWER SEAT TILT, RH

85821L

MOTOR ASSY, POWER SEAT LIFTER, RH

85860A

BLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, RH

85867

BLOWER, SEAT BACK CLIMATE CONTROL, RH

87501A

CONTROL SUB-ASSY, SEAT HEATER, RH

9011910601

Крепеж

9046707215

Крепеж

9356054012

Крепеж

9418560600

Крепеж

+
+
+
+
+
+
+
+

Код

Описание

72123A

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72123E

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72124

COVER, SEAT TRACK BRACKET, OUTER FRONT LH

72124A

COVER, SEAT TRACK BRACKET, INNER FRONT LH

72137T

COVER, SEAT TRACK BRACKET, OUTER REAR RH

72138N

COVER, SEAT TRACK BRACKET, OUTER REAR LH

72157F

COVER, SEAT TRACK BRACKET, INNER REAR RH

72158E

COVER, SEAT TRACK BRACKET, INNER REAR LH

9014810007

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

7152

переход к группе запчастей

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71701B

BOARD SUB-ASSY, REAR SEAT BACK, RH

71702B

BOARD SUB-ASSY, REAR SEAT BACK, LH

71769A

CLIP, REAR SEAT BACK BOARD

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71956B

SUPPORT, REAR SEAT HEADREST

71960B

HEADREST ASSY, REAR SEAT, CENTER

72057

LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH

72058A

LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH

72630C

LOCK ASSY, REAR SEAT BACK, RH

72640A

LOCK ASSY, REAR SEAT BACK, LH

72667A

BEZEL, REAR SEAT BACK LOCK, UPPER RH

72667B

BEZEL, REAR SEAT BACK LOCK, UPPER LH

72668E

BEZEL, REAR SEAT BACK LOCK, LOWER RH

72668F

BEZEL, REAR SEAT BACK LOCK, LOWER LH

72806B

HOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP

72830

ARMREST ASSY, REAR SEAT, CENTER

72839

SHIM, REAR SEAT ARMREST HINGE

72868B

COVER, CENTER ARMREST HINGE

7889960070

Крепеж

87510R

HEATER ASSY, SEAT

87510S

HEATER ASSY, SEAT

9016740044

Крепеж

9020612064

Крепеж

9155380820

Крепеж

+
+
+
+
+
+

Код

Описание

71075B

COVER, REAR SEAT CUSHION (FOR BENCH TYPE)

71611

PAD, REAR SEAT CUSHION

87510P

HEATER ASSY, SEAT

87510Q

HEATER ASSY, SEAT

+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

71033

LEG SUB-ASSY, REAR SEAT CUSHION

71303C

HINGE SUB-ASSY, REAR SEAT BACK, RH

71304C

HINGE SUB-ASSY, REAR SEAT BACK, LH

71305A

HINGE SUB-ASSY, REAR SEAT BACK, CENTER

72601A

STRIKER SUB-ASSY, REAR SEAT BACK LOOK, RH

72602A

STRIKER SUB-ASSY, REAR SEAT BACK LOCK, LH

72693

HOOK, REAR SEAT CUSHION LOCK

73705

BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH

73706

BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH

9011908C96

Крепеж

9011910990

Крепеж

9167180820

Крепеж

9167281022

Крепеж

Код

Описание

9046816019

Крепеж

9046818008

Крепеж
