Радиатор и шланги TOYOTA RAV4 (JPP), 2019/01 - 2020/07, 2,5 литра, 16 клапанов, DOHC, AXAH52, вариатор

Каталог

Европа

Модель

RAV4 (JPP)

Двигатель

2,5 литра, 16 клапанов, DOHC

Фрейм

AXAH52

Трансмиссия

вариатор

Опции

правый руль GRAMS Австралия 721W

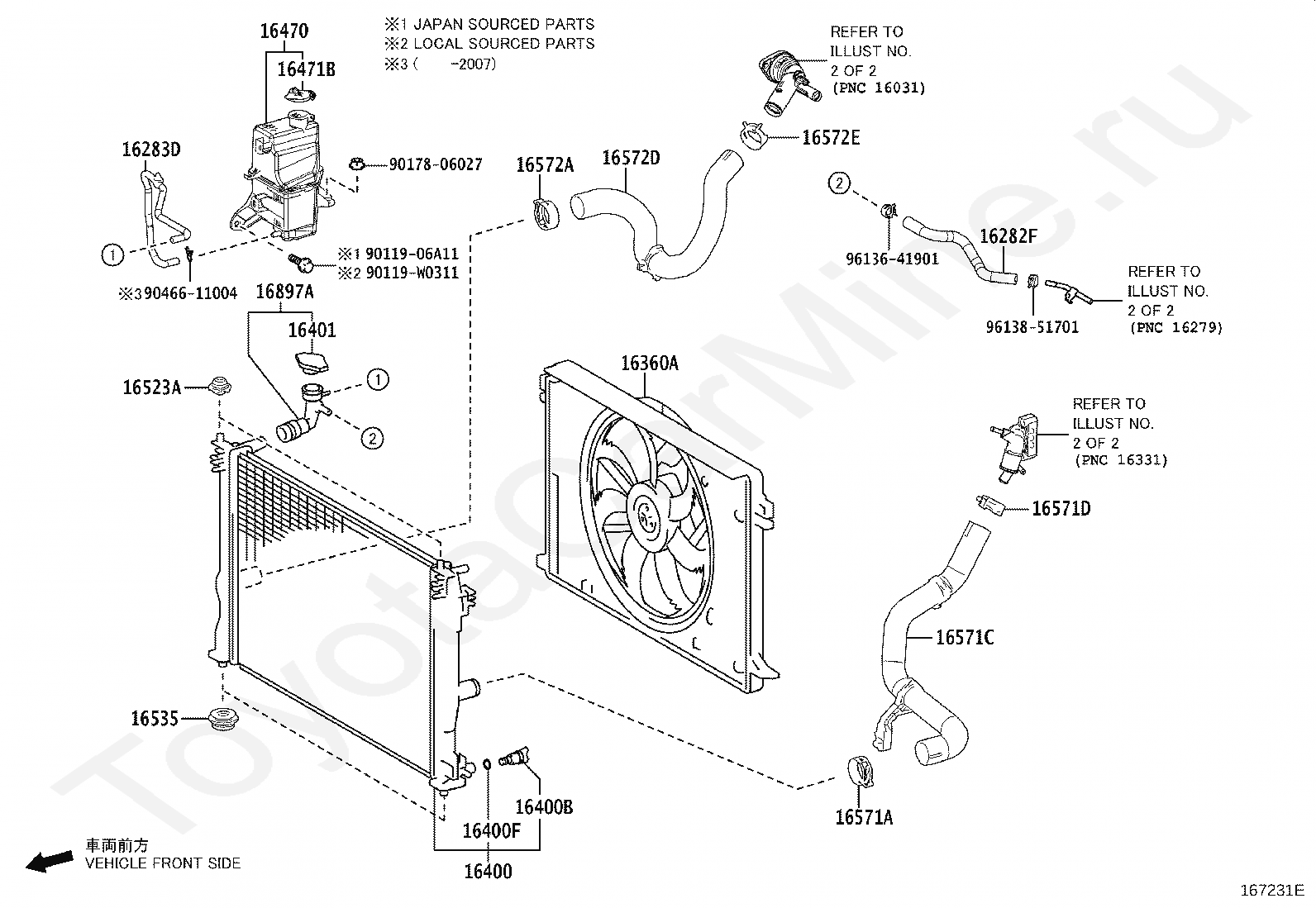

Код

Описание

16282F

HOSE, WATER BY-PASS, NO.5

16283D

HOSE, WATER BY-PASS, NO.6

16360A

FAN ASSY, W/MOTOR

16400

RADIATOR ASSY

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16401

CAP SUB-ASSY, RADIATOR

16470

TANK ASSY, RADIATOR RESERVE

16471B

CAP, RESERVE TANK

16523A

CUSHION, RADIATOR SUPPORT

16535

SUPPORT, RADIATOR, LOWER

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16571C

HOSE, RADIATOR, NO.1

16571D

CLIP, RADIATOR HOSE, NO.1

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16572D

HOSE, RADIATOR, NO.2

16572E

CLIP, RADIATOR HOSE, NO.2

16897A

NECK, FILLER

9011906A11

Крепеж

90119W0311

Крепеж

9017806027

Крепеж

9046611004

Крепеж

9613641901

Крепеж

9613851701

Крепеж

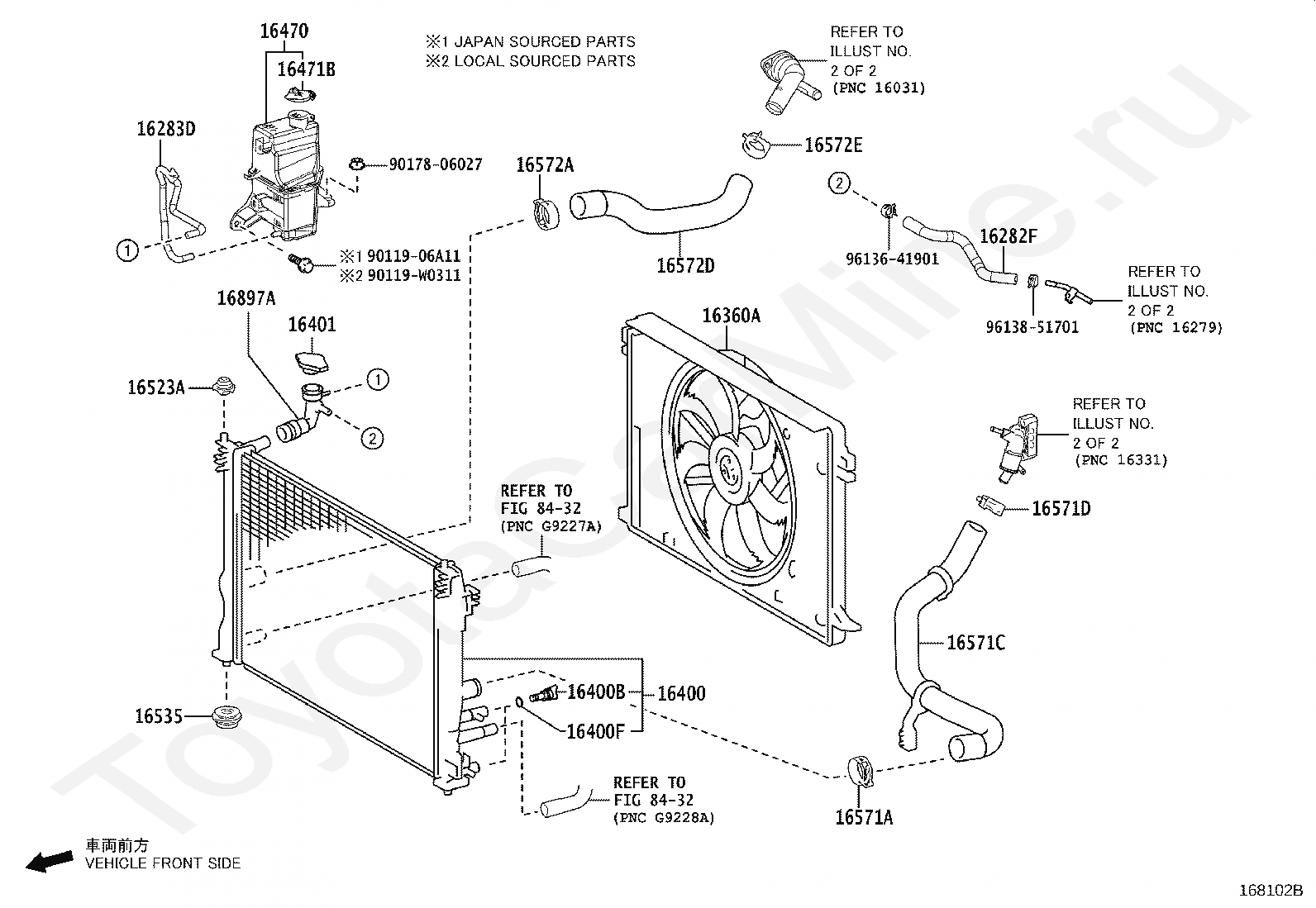

Код

Описание

16282F

HOSE, WATER BY-PASS, NO.5

16283D

HOSE, WATER BY-PASS, NO.6

16360A

FAN ASSY, W/MOTOR

16400

RADIATOR ASSY

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16401

CAP SUB-ASSY, RADIATOR

16470

TANK ASSY, RADIATOR RESERVE

16471B

CAP, RESERVE TANK

16523A

CUSHION, RADIATOR SUPPORT

16535

SUPPORT, RADIATOR, LOWER

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16571C

HOSE, RADIATOR, NO.1

16571D

CLIP, RADIATOR HOSE, NO.1

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16572D

HOSE, RADIATOR, NO.2

16572E

CLIP, RADIATOR HOSE, NO.2

16897A

NECK, FILLER

8432

переход к группе запчастей

9011906A11

Крепеж

90119W0311

Крепеж

9017806027

Крепеж

9613641901

Крепеж

9613851701

Крепеж

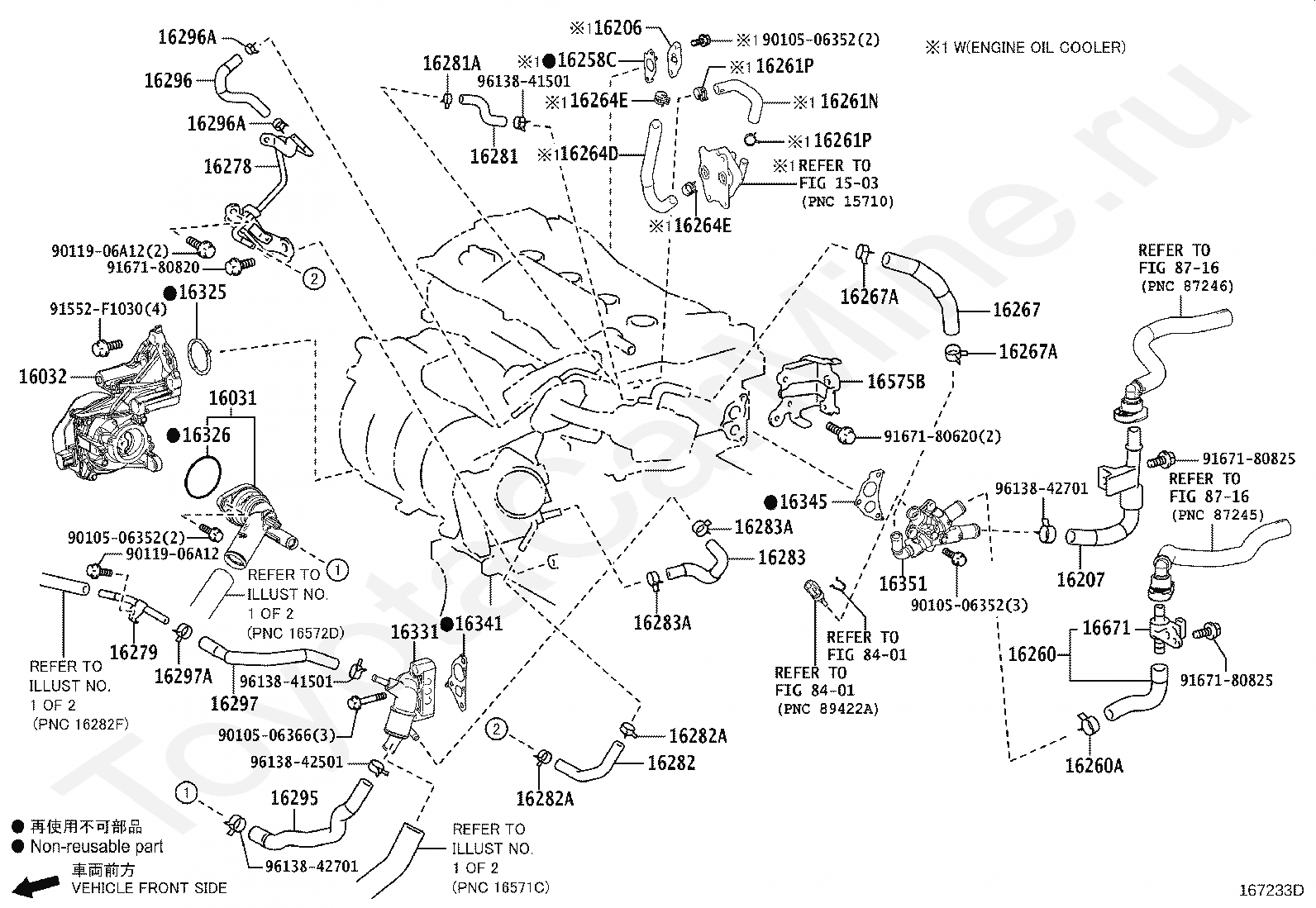

Код

Описание

1503

переход к группе запчастей

16031

WATER INLET SUB-ASSY, W/THERMOSTAT

16032

HOUSING SUB-ASSY, WATER INLET W/WATER PUMP

16206

PIPE SUB-ASSY, WATER BY-PASS

16207

PIPE SUB-ASSY, WATER BY-PASS, NO.2

16258C

GASKET(FOR WATER BY-PASS PIPE)

16260

HOSE ASSY, WATER BY-PASS

16260A

CLIP(FOR WATER BY-PASS HOSE ASSY)

16261N

HOSE, WATER BY-PASS, NO.2

16261P

CLIP(FOR WATER BY-PASS HOSE NO.2)

16264D

HOSE, WATER BY-PASS, NO.2

16264E

CLIP(FOR WATER BY-PASS HOSE NO.2)

16267

HOSE, WATER BY-PASS, NO.3

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16278

PIPE, WATER BY-PASS, NO.2

16279

PIPE, WATER BY-PASS, NO.3

16281

HOSE, WATER BY-PASS, NO.4

16281A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)

16282

HOSE, WATER BY-PASS, NO.5

16282A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)

16283

HOSE, WATER BY-PASS, NO.6

16283A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)

16295

HOSE, WATER BY-PASS, NO.7

16296

HOSE, WATER BY-PASS, NO.8

16296A

CLIP(FOR WATER BY-PASS HOSE NO.8)

16297

HOSE, WATER BY-PASS, NO.9

16297A

CLIP(FOR WATER BY-PASS HOSE NO.9)

16325

GASKET, WATER INLET HOUSING, NO.1

16326

GASKET, WATER INLET HOUSING, NO.2

16331

OUTLET, WATER

16341

GASKET, WATER OUTLET

16345

GASKET, WATER OUTLET PIPE

16351

OUTLET, WATER BY-PASS

16575B

BRACKET, WATER HOSE CLAMP, NO.2

16671

VALVE, WATER

8401

переход к группе запчастей

8716

переход к группе запчастей

9010506352

Крепеж

9010506366

Крепеж

9011906A12

Крепеж

91552F1030

Крепеж

9167180620

Крепеж

9167180820

Крепеж

9167180825

Крепеж

9613841501

Крепеж

9613842501

Крепеж

9613842701

Крепеж

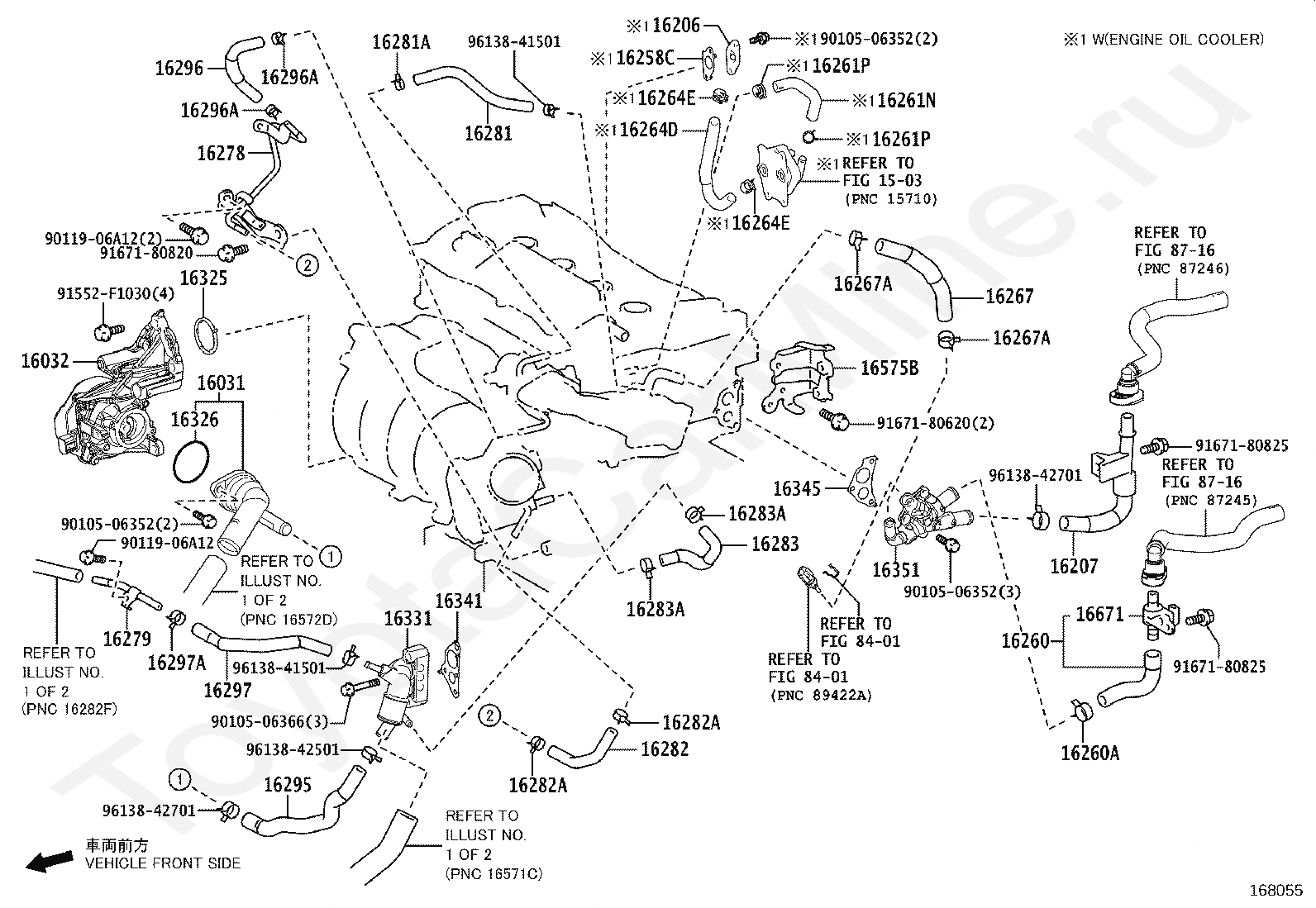

Код

Описание

1503

переход к группе запчастей

16031

WATER INLET SUB-ASSY, W/THERMOSTAT

16032

HOUSING SUB-ASSY, WATER INLET W/WATER PUMP

16206

PIPE SUB-ASSY, WATER BY-PASS

16207

PIPE SUB-ASSY, WATER BY-PASS, NO.2

16258C

GASKET(FOR WATER BY-PASS PIPE)

16260

HOSE ASSY, WATER BY-PASS

16260A

CLIP(FOR WATER BY-PASS HOSE ASSY)

16261N

HOSE, WATER BY-PASS, NO.2

16261P

CLIP(FOR WATER BY-PASS HOSE NO.2)

16264D

HOSE, WATER BY-PASS, NO.2

16264E

CLIP(FOR WATER BY-PASS HOSE NO.2)

16267

HOSE, WATER BY-PASS, NO.3

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16278

PIPE, WATER BY-PASS, NO.2

16279

PIPE, WATER BY-PASS, NO.3

16281

HOSE, WATER BY-PASS, NO.4

16281A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)

16282

HOSE, WATER BY-PASS, NO.5

16282A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)

16283

HOSE, WATER BY-PASS, NO.6

16283A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)

16295

HOSE, WATER BY-PASS, NO.7

16296

HOSE, WATER BY-PASS, NO.8

16296A

CLIP(FOR WATER BY-PASS HOSE NO.8)

16297

HOSE, WATER BY-PASS, NO.9

16297A

CLIP(FOR WATER BY-PASS HOSE NO.9)

16325

GASKET, WATER INLET HOUSING, NO.1

16326

GASKET, WATER INLET HOUSING, NO.2

16331

OUTLET, WATER

16341

GASKET, WATER OUTLET

16345

GASKET, WATER OUTLET PIPE

16351

OUTLET, WATER BY-PASS

16575B

BRACKET, WATER HOSE CLAMP, NO.2

16671

VALVE, WATER

8401

переход к группе запчастей

8716

переход к группе запчастей

9010506352

Крепеж

9010506366

Крепеж

9011906A12

Крепеж

91552F1030

Крепеж

9167180620

Крепеж

9167180820

Крепеж

9167180825

Крепеж

9613841501

Крепеж

9613842501

Крепеж

9613842701

Крепеж
