Кресла TOYOTA RAV4, 2015/10 - 2025, 2 литра, 16 клапанов, DOHC, EFI, METERS, ZSA44, механика, МКПП, 6 скоростей

Каталог

Европа

Модель

RAV4

Двигатель

2 литра, 16 клапанов, DOHC, EFI

Класс

METERS

Фрейм

ZSA44

Трансмиссия

механика МКПП, 6 скоростей

Опции

JAPAN PRODUCT левый руль HIGH EFFICIENCY TWIN CAM (VALVEMATIC) Европа 650W

Двигатель

Подвеска

Кузов

Электрика

  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71910A

HEADREST ASSY, FRONT SEAT

71920A

HEADREST ASSY, FRONT SEAT, LH

71930A

SUPPORT ASSY, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

87510K

HEATER ASSY, FRONT SEAT CUSHION, RH

87510L

HEATER ASSY, FRONT SEAT CUSHION, LH

87510M

HEATER ASSY, FRONT SEAT BACK, RH

87510N

HEATER ASSY, FRONT SEAT BACK, LH

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

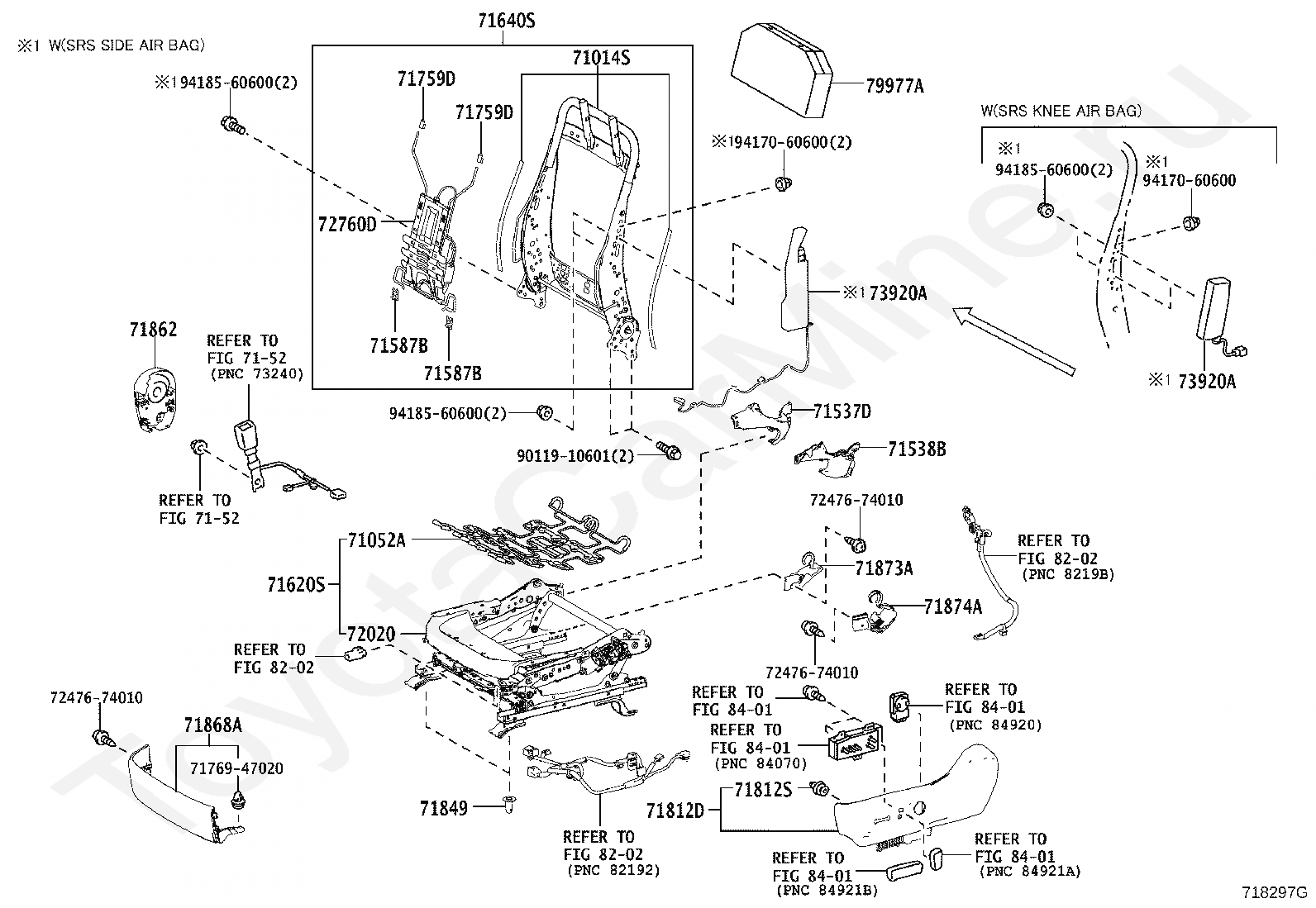

71014S

FRAME SUB-ASSY, FRONT SEAT BACK, LH

71052A

SPRING SUB-ASSY, FRONT SEAT CUSHION, LH

71054S

SPRING SUB-ASSY, FRONT SEAT BACK, LH

7152

переход к группе запчастей

71537A

PROTECTOR, FRONT SEAT CUSHION

71537D

PROTECTOR, FRONT SEAT CUSHION EDGE, LH

71538B

PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)

71587B

PROTECTOR, FRONT SEAT BACK EDGE

71620S

SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71759D

HOOK, FRONT SEAT BACK, NO.2

71812D

SHIELD, FRONT SEAT CUSHION, LH

71812S

CLIP, FRONT SEAT CUSHION SHIELD, LH

71849

CAP, SEAT ADJUSTER COVER, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71873A

SHIELD, FRONT SEAT CUSHION, LOWER

71874A

SHIELD, FRONT SEAT CUSHION, LOWER LH

72020

ADJUSTER ASSY, FRONT SEAT, LH

72211C

HANDLE, SEAT TRACK ADJUSTING

72266

COVER, SEAT TRACK UPPER RAIL, LH

72495

HANDLE, VERTICAL ADJUSTING, LH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

73920A

AIR BAG ASSY, FRONT SEAT, LH

79977A

FELT, SEAT BACK

8202

переход к группе запчастей

9011910601

Крепеж

9016740044

Крепеж

9326955010

Крепеж

9417060600

Крепеж

9418560600

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

71014S

FRAME SUB-ASSY, FRONT SEAT BACK, LH

71052A

SPRING SUB-ASSY, FRONT SEAT CUSHION, LH

7152

переход к группе запчастей

71537D

PROTECTOR, FRONT SEAT CUSHION EDGE, LH

71538B

PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)

71587B

PROTECTOR, FRONT SEAT BACK EDGE

71620S

SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71759D

HOOK, FRONT SEAT BACK, NO.2

7176947020

Крепеж

71812D

SHIELD, FRONT SEAT CUSHION, LH

71812S

CLIP, FRONT SEAT CUSHION SHIELD, LH

71849

CAP, SEAT ADJUSTER COVER, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71868A

SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH

71873A

SHIELD, FRONT SEAT CUSHION, LOWER

71874A

SHIELD, FRONT SEAT CUSHION, LOWER LH

72020

ADJUSTER ASSY, FRONT SEAT, LH

7247674010

Крепеж

72760D

ADJUSTER ASSY, LUMBAR SUPPORT, LH

73920A

AIR BAG ASSY, FRONT SEAT, LH

79977A

FELT, SEAT BACK

8202

переход к группе запчастей

8401

переход к группе запчастей

9011910601

Крепеж

9417060600

Крепеж

9418560600

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

71013S

FRAME SUB-ASSY, FRONT SEAT BACK, RH

71051A

SPRING SUB-ASSY, FRONT SEAT CUSHION, RH

71053S

SPRING SUB-ASSY, FRONT SEAT BACK, RH

7152

переход к группе запчастей

71537C

PROTECTOR, FRONT SEAT CUSHION EDGE, RH

71538A

PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)

71587

PROTECTOR, FRONT SEAT BACK EDGE

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71759C

HOOK, FRONT SEAT BACK, NO.1

71811D

SHIELD, FRONT SEAT CUSHION, RH

71811R

CLIP, FRONT SEAT CUSHION SHIELD, RH

71848A

CAP, SEAT ADJUSTER COVER, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

72010

ADJUSTER ASSY, FRONT SEAT, RH

72211

HANDLE, SEAT TRACK ADJUSTING

72265

COVER, SEAT TRACK UPPER RAIL, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

73910A

AIR BAG ASSY, FRONT SEAT, RH

79977A

FELT, SEAT BACK

8202

переход к группе запчастей

9011910601

Крепеж

9417060600

Крепеж

9418560600

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

71015A

FRAME SUB-ASSY, REAR SEAT CUSHION, RH

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71075S

COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71303C

HINGE SUB-ASSY, REAR SEAT BACK, RH

71304C

HINGE SUB-ASSY, REAR SEAT BACK, LH

7152

переход к группе запчастей

71611A

PAD, REAR SEAT CUSHION, RH

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71691E

COVER, REAR SEAT CUSHION HINGE, NO.1

71692E

COVER, REAR SEAT CUSHION HINGE, NO.2

71825B

MOULDING, REAR SEAT CUSHION, RH

71828B

MOULDING, REAR SEAT CUSHION, REAR RH

71845D

CAP, REAR SEAT COVER, RH

71848B

CAP, SEAT ADJUSTER COVER, RH

71881

BOARD, REAR SEAT BACK, RH

71897

HOOK, SEAT COVER SIDE

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72380

CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2

72525B

HANDLE, RECLINING ADJUSTER RELEASE, RH

72730A

ADJUSTER ASSY, REAR SEAT RECLINING, RH

72749

SPACER, REAR SEAT RECLINING

72995A

COVER, REAR SEAT

72996

COVER, REAR SEAT BACK, RH

72996A

COVER, REAR SEAT BACK

7889942010

Крепеж

79977B

FELT, SEAT BACK FRAME

87510P

HEATER ASSY, SEAT

87510R

HEATER ASSY, SEAT

9010510539

Крепеж

9011910578

Крепеж

9016740044

Крепеж

9016850078

Крепеж

9092901366

Крепеж

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

Код

Описание

71016A

FRAME SUB-ASSY, REAR SEAT CUSHION, LH

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

71076S

COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71303C

HINGE SUB-ASSY, REAR SEAT BACK, RH

71304C

HINGE SUB-ASSY, REAR SEAT BACK, LH

7152

переход к группе запчастей

71612A

PAD, REAR SEAT CUSHION, LH

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71693A

COVER, REAR SEAT CUSHION HINGE, NO.3

71694

COVER, REAR SEAT CUSHION HINGE, LOWER LH

71826B

MOULDING, REAR SEAT CUSHION, LH

71829B

MOULDING, REAR SEAT CUSHION, REAR LH

71846B

CAP, REAR SEAT BACK BOARD, NO.1

71849C

CAP, SEAT ADJUSTER COVER, LH(FOR LH SEAT)

71882A

BOARD, REAR SEAT BACK, LH

71897

HOOK, SEAT COVER SIDE

71931A

SUPPORT, REAR SEAT HEADREST

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71960B

HEADREST ASSY, REAR SEAT, CENTER

72380

CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2

72526B

HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH

72740A

ADJUSTER ASSY, REAR SEAT RECLINING, LH

72749

SPACER, REAR SEAT RECLINING

72830

ARMREST ASSY, REAR SEAT, CENTER

72831B

PLATE, REAR SEAT CENTER ARMREST, NO.1

72831C

PLATE, REAR SEAT CENTER ARMREST, NO.2

72868

COVER, CENTER ARMREST HINGE, RH

72996A

COVER, REAR SEAT BACK

72997

COVER, REAR SEAT BACK, LH

72998C

COVER, REAR SEAT, LH

7889928050

Крепеж

7889942010

Крепеж

7889960070

Крепеж

87510Q

HEATER ASSY, SEAT

87510S

HEATER ASSY, SEAT

9011910578

Крепеж

9016740044

Крепеж

9016850078

Крепеж

9092901366

Крепеж

+
+
+
+
+
+
+
+

Код

Описание

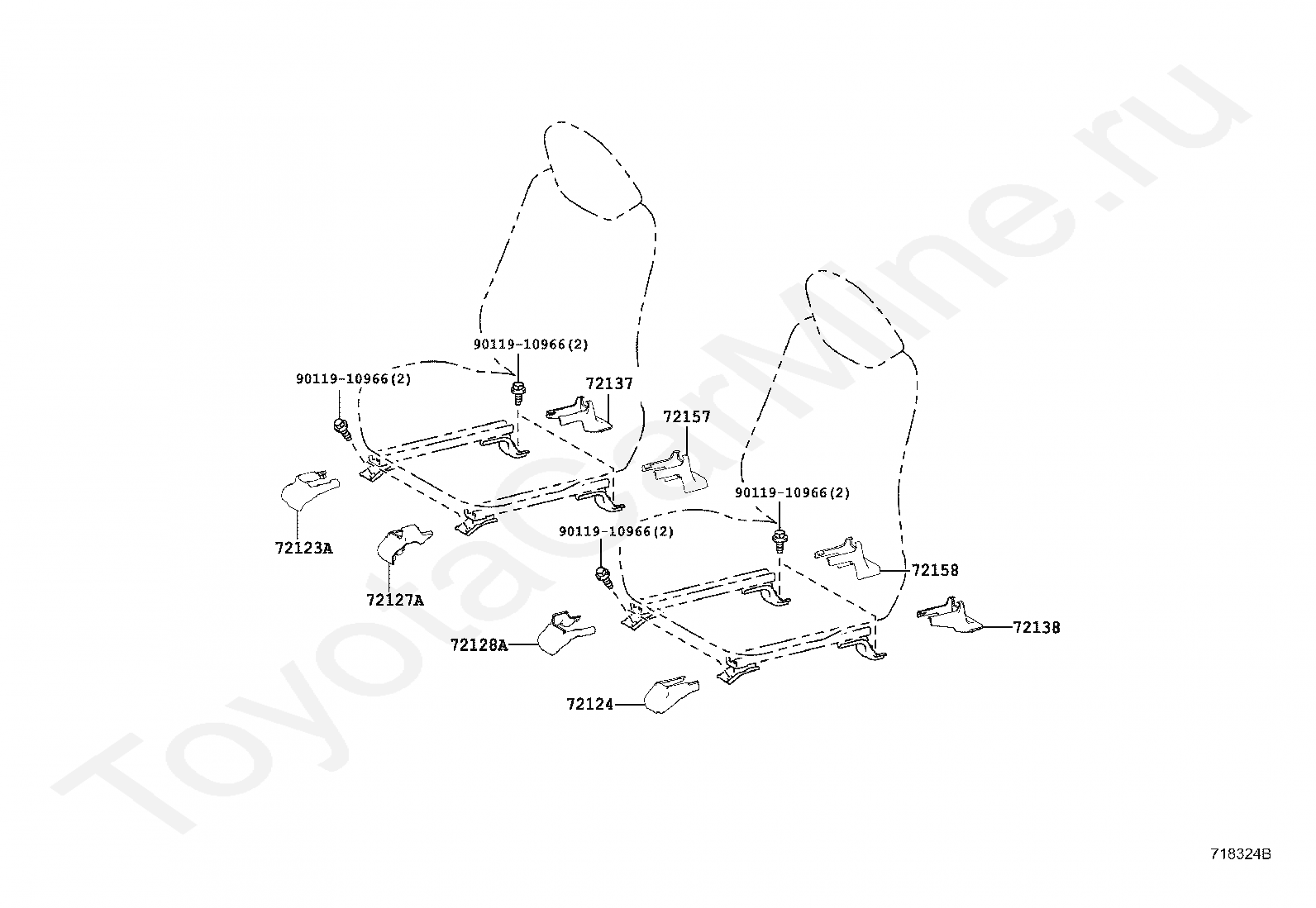

72123A

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72124

COVER, SEAT TRACK BRACKET, OUTER FRONT LH

72127A

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72128A

COVER, SEAT TRACK BRACKET, INNER FRONT LH

72137

COVER, SEAT TRACK, OUTER RH

72138

COVER, SEAT TRACK, OUTER LH

72157

COVER, SEAT TRACK BRACKET, INNER

72158

COVER, SEAT TRACK BRACKET, INNER LH

9011910966

Крепеж

+
+
+
+
+

Код

Описание

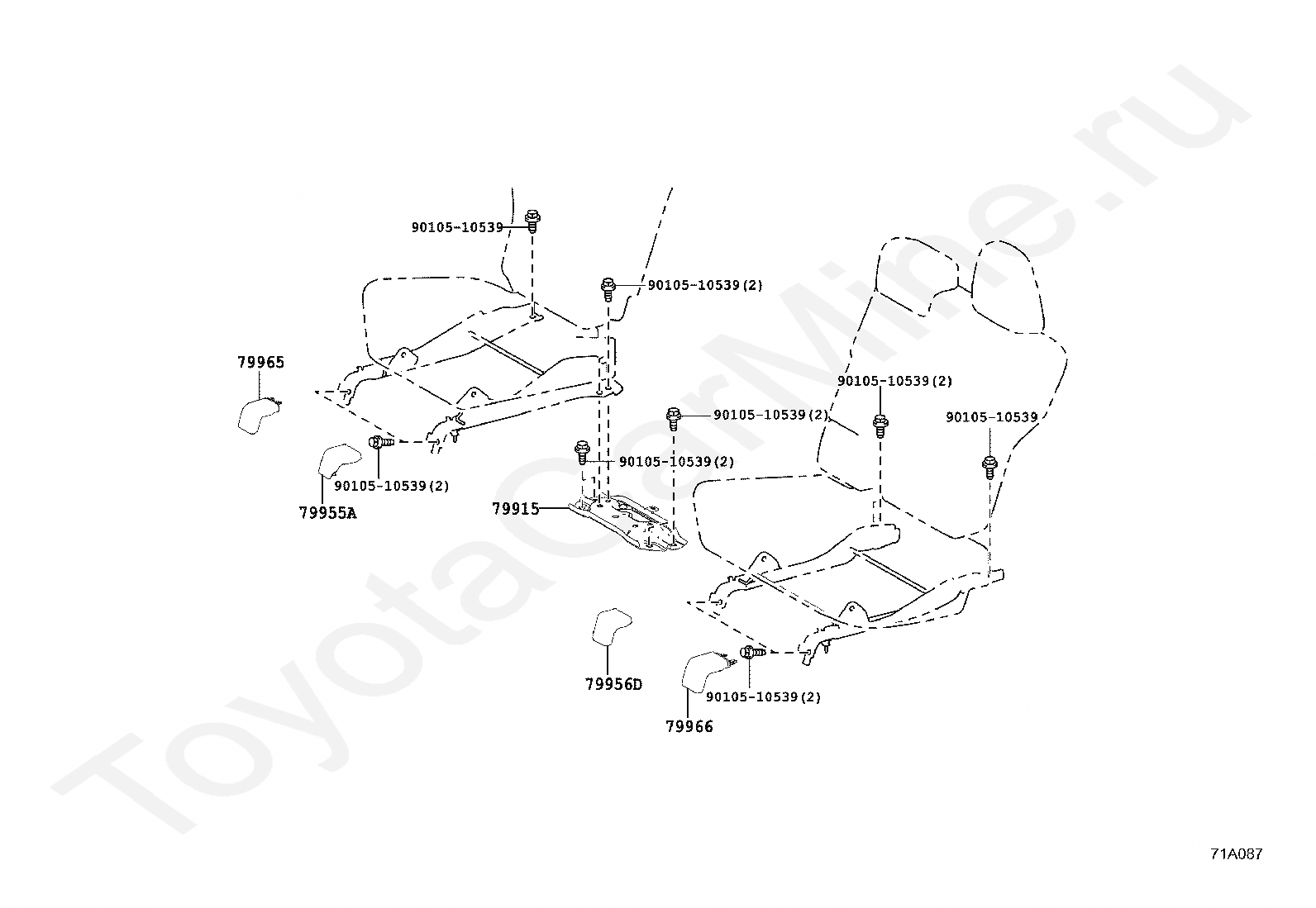

79915

BRACKET, SEAT LEG

79955A

COVER, REAR SEAT FRONT BRACKET, RH

79956D

COVER, REAR SEAT FRONT BRACKET, LH

79965

COVER, REAR SEAT LEG SIDE, NO.2

79966

COVER, REAR SEAT LEG SIDE, NO.3

9010510539

Крепеж

Код

Описание

7114930050

Крепеж

9046816019

Крепеж

9046818008

Крепеж
