Каталог
ЕвропаМодель
RAV4Двигатель
2 литра, 16 клапанов, DOHC, EFIКласс
METERSФрейм
ZSA44Трансмиссия
механика МКПП, 6 скоростейОпции
JAPAN PRODUCT левый руль HIGH EFFICIENCY TWIN CAM (VALVEMATIC) Европа 650W

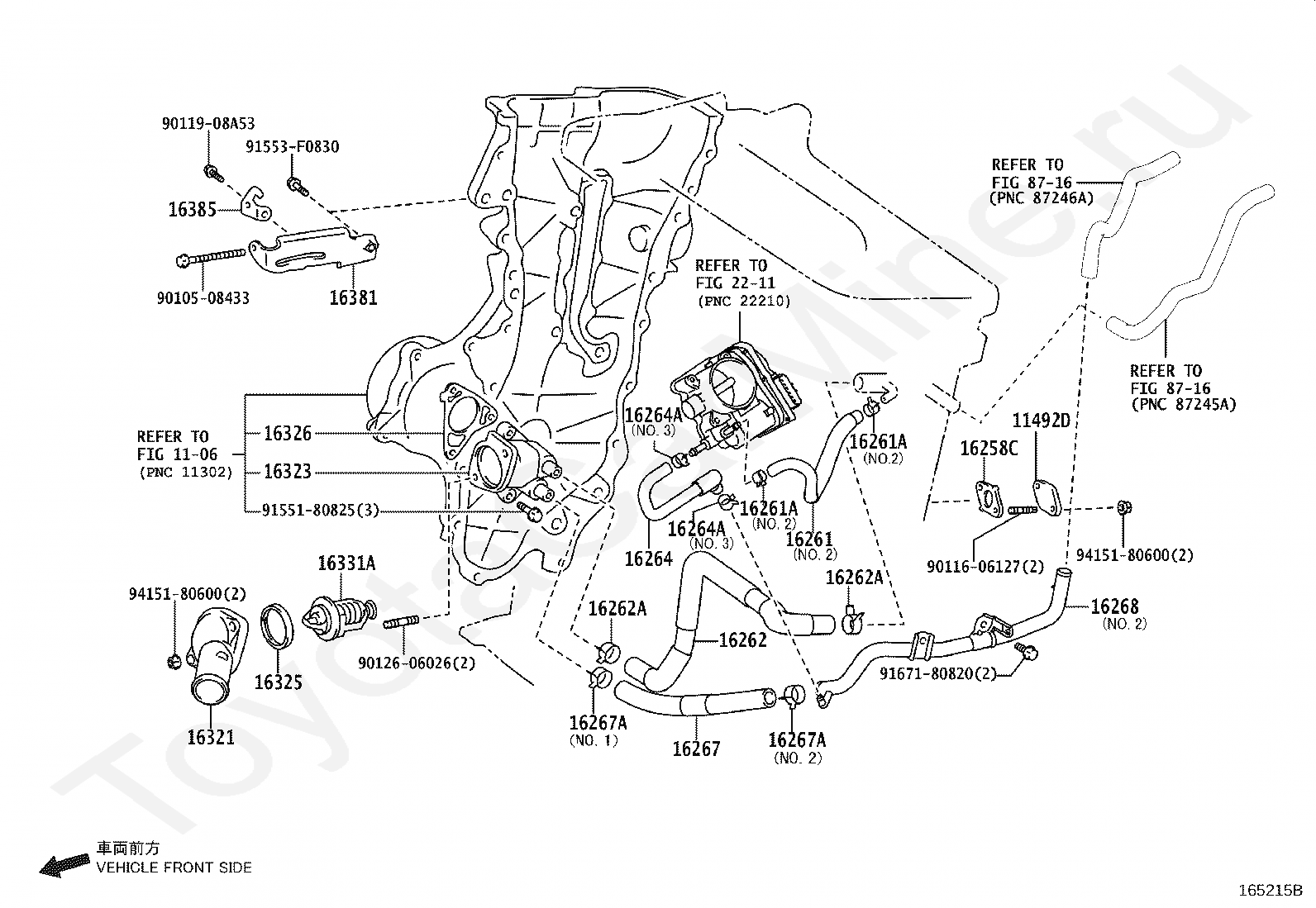

Код
Описание
16057
HOSE SUB-ASSY, RADIATOR
16261
HOSE, WATER BY-PASS
16261A
CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16264A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
16264D
HOSE, WATER BY-PASS, NO.2
16268
PIPE, WATER BY-PASS, NO.1
16282
HOSE, WATER BY-PASS, NO.5
16282A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)
16361
FAN
16361B
FAN, NO.2
16363
MOTOR, COOLING FAN
16363A
MOTOR, COOLING FAN, NO.2
16400
RADIATOR ASSY
16400B
PLUG, RADIATOR DRAIN COCK
16400F
PACKING(FOR RADIATOR DRAIN COCK)
16441
TANK, RADIATOR, UPPER
16442
RING, O(FOR RADIATOR UPPER TANK)
16461
TANK, RADIATOR, LOWER
16462
RING, O(FOR RADIATOR LOWER TANK)
16470
TANK ASSY, RADIATOR RESERVE
16475A
CAP, RESERVE TANK
16523A
CUSHION, RADIATOR SUPPORT
16533
SUPPORT, RADIATOR, UPPER
16535
SUPPORT, RADIATOR, LOWER
16571
HOSE, RADIATOR, INLET
16571A
CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16571D
CLIP, RADIATOR HOSE, NO.1
16572
HOSE, RADIATOR, OUTLET
16572A
CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16611
BRACKET, RADIATOR RESERVE TANK
16711
SHROUD, FAN
16712
SHROUD, FAN, NO.2
9009904117
Крепеж
9009904119
Крепеж
9009905164
Крепеж
9011906959
Крепеж
91671A0820
Крепеж
91671J0820
Крепеж
9167380820
Крепеж
Код
Описание
1104
переход к группе запчастей
16057
HOSE SUB-ASSY, RADIATOR
16261
HOSE, WATER BY-PASS
16264A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
16264D
HOSE, WATER BY-PASS, NO.2
16264E
CLIP(FOR WATER BY-PASS HOSE NO.2)
16268
PIPE, WATER BY-PASS, NO.1
16281G
CLIP(FOR WATER BY-PASS HOSE NO.5)
16282
HOSE, WATER BY-PASS, NO.5
16282A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)
16361
FAN
16361B
FAN, NO.2
16363
MOTOR, COOLING FAN
16363A
MOTOR, COOLING FAN, NO.2
16400
RADIATOR ASSY
16400B
PLUG, RADIATOR DRAIN COCK
16400F
PACKING(FOR RADIATOR DRAIN COCK)
16441
TANK, RADIATOR, UPPER
16442
RING, O(FOR RADIATOR UPPER TANK)
16461
TANK, RADIATOR, LOWER
16462
RING, O(FOR RADIATOR LOWER TANK)
16470
TANK ASSY, RADIATOR RESERVE
16475A
CAP, RESERVE TANK
16523A
CUSHION, RADIATOR SUPPORT
16533
SUPPORT, RADIATOR, UPPER
16535
SUPPORT, RADIATOR, LOWER
16571
HOSE, RADIATOR, INLET
16571A
CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16572
HOSE, RADIATOR, OUTLET
16572A
CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16611
BRACKET, RADIATOR RESERVE TANK
16711
SHROUD, FAN
16712
SHROUD, FAN, NO.2
9009904117
Крепеж
9009904119
Крепеж
9009905164
Крепеж
9011906959
Крепеж
91671A0820
Крепеж
91671J0820
Крепеж
9167380820
Крепеж

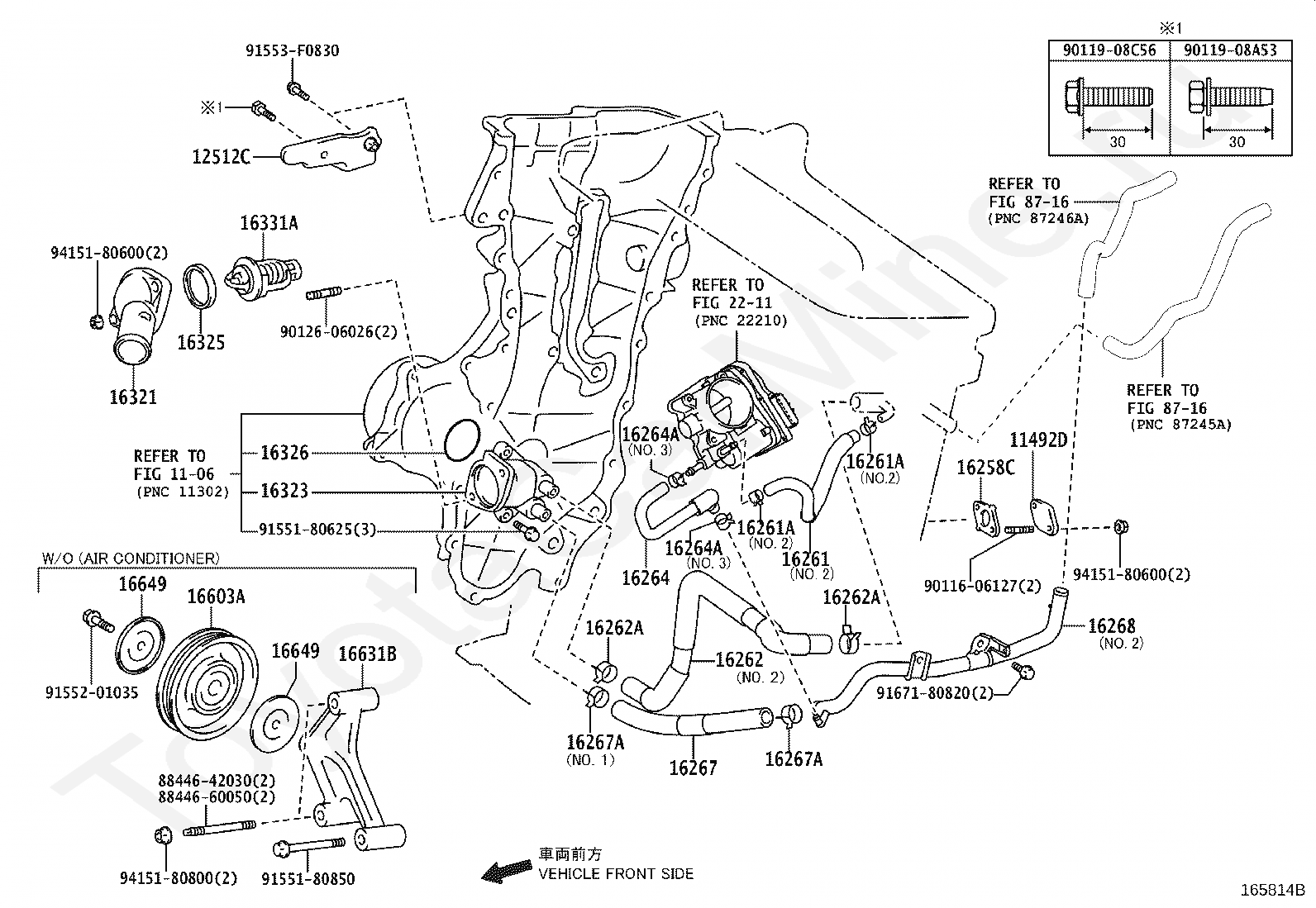

Код
Описание
1106
переход к группе запчастей
11492D
PLATE, SEAL, NO.1
16258C
GASKET(FOR WATER BY-PASS PIPE)
16261
HOSE, WATER BY-PASS
16261A
CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16262
HOSE, WATER INLET
16262A
CLIP(FOR WATER INLET HOSE)
16264
HOSE, WATER BY-PASS, NO.2
16264A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
16267
HOSE, WATER BY-PASS, NO.3
16267A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
16268
PIPE, WATER BY-PASS, NO.1
16321
INLET, WATER
16323
HOUSING, WATER INLET
16325
GASKET, WATER INLET HOUSING, NO.1
16326
GASKET, WATER INLET HOUSING, NO.2
16331A
THERMOSTAT
16381
BAR, FAN BELT ADJUSTING
16385
SLIDER, FAN BELT ADJUSTING
2211
переход к группе запчастей
8716
переход к группе запчастей
9010508433
Крепеж
9011606127
Крепеж
9011908A53
Крепеж
9012606026
Крепеж
9155180825
Крепеж
91553F0830
Крепеж
9167180820
Крепеж
9415180600
Крепеж
Код
Описание
1106
переход к группе запчастей
11492D
PLATE, SEAL, NO.1
12512C
BRACKET, ALTERNATOR, NO.2
16258C
GASKET(FOR WATER BY-PASS PIPE)
16261
HOSE, WATER BY-PASS
16261A
CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16262
HOSE, WATER INLET
16262A
CLIP(FOR WATER INLET HOSE)
16264
HOSE, WATER BY-PASS, NO.2
16264A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
16267
HOSE, WATER BY-PASS, NO.3
16267A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
16268
PIPE, WATER BY-PASS, NO.1
16321
INLET, WATER
16323
HOUSING, WATER INLET
16325
GASKET, WATER INLET HOUSING, NO.1
16326
GASKET, WATER INLET HOUSING, NO.2
16331A
THERMOSTAT
16603A
PULLEY SUB-ASSY, IDLER, NO.1
16631B
BRACKET, IDLER PULLEY
16649
PLATE, IDLER PULLEY COVER
2211
переход к группе запчастей
8716
переход к группе запчастей
8844642030
Крепеж
8844660050
Крепеж
9011606127
Крепеж
9011908A53
Крепеж
9011908C56
Крепеж
9012606026
Крепеж
9155180625
Крепеж
9155180850
Крепеж
9155201035
Крепеж
91553F0830
Крепеж
9167180820
Крепеж
9415180600
Крепеж
9415180800
Крепеж

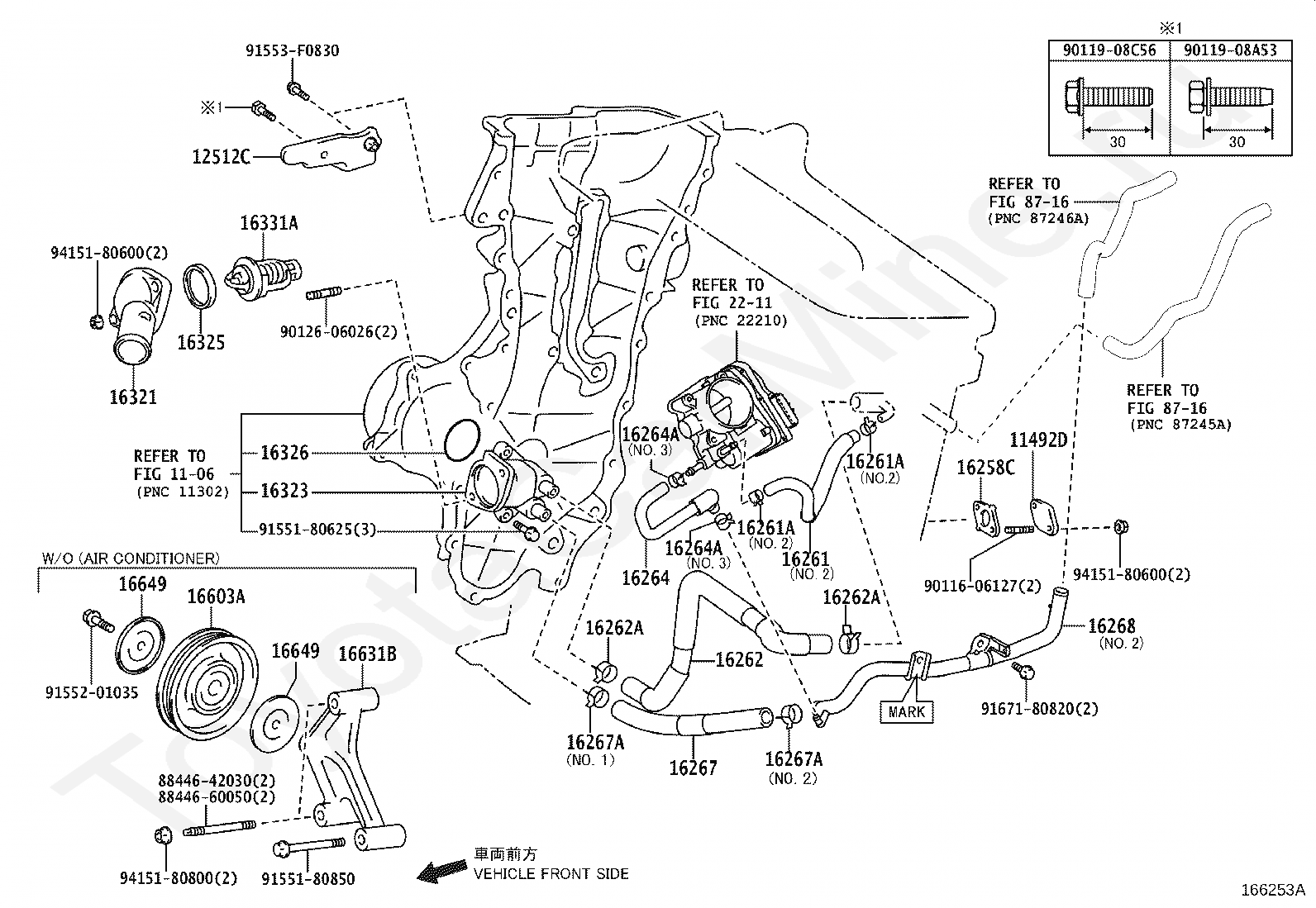

Код
Описание
1106
переход к группе запчастей
11492D
PLATE, SEAL, NO.1
12512C
BRACKET, ALTERNATOR, NO.2
16258C
GASKET(FOR WATER BY-PASS PIPE)
16261
HOSE, WATER BY-PASS
16261A
CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16262
HOSE, WATER INLET
16262A
CLIP(FOR WATER INLET HOSE)
16264
HOSE, WATER BY-PASS, NO.2
16264A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
16267
HOSE, WATER BY-PASS, NO.3
16267A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
16268
PIPE, WATER BY-PASS, NO.1
16321
INLET, WATER
16323
HOUSING, WATER INLET
16325
GASKET, WATER INLET HOUSING, NO.1
16326
GASKET, WATER INLET HOUSING, NO.2
16331A
THERMOSTAT
16603A
PULLEY SUB-ASSY, IDLER, NO.1
16631B
BRACKET, IDLER PULLEY
16649
PLATE, IDLER PULLEY COVER
2211
переход к группе запчастей
8716
переход к группе запчастей
8844642030
Крепеж
8844660050
Крепеж
9011606127
Крепеж
9011908A53
Крепеж
9011908C56
Крепеж
9012606026
Крепеж
9155180625
Крепеж
9155180850
Крепеж
9155201035
Крепеж
91553F0830
Крепеж
9167180820
Крепеж
9415180600
Крепеж
9415180800
Крепеж
