Передние кресла TOYOTA RAIZE, 2021/08 - 2025, 1 литр, 12 клапанов DOHC, EFI, двойной наддув, седан, A250, механика, МКПП, 5 скоростей

Каталог

Ближний Восток

Модель

RAIZE

Двигатель

1 литр, 12 клапанов DOHC, EFI, двойной наддув

Кузов

седан

Фрейм

A250

Трансмиссия

механика МКПП, 5 скоростей

Опции

левый руль 5 дверей V(MODEL MARK) WITH TURBO (HARGER) GENERAL COUNTRIES D26H

Код

Описание

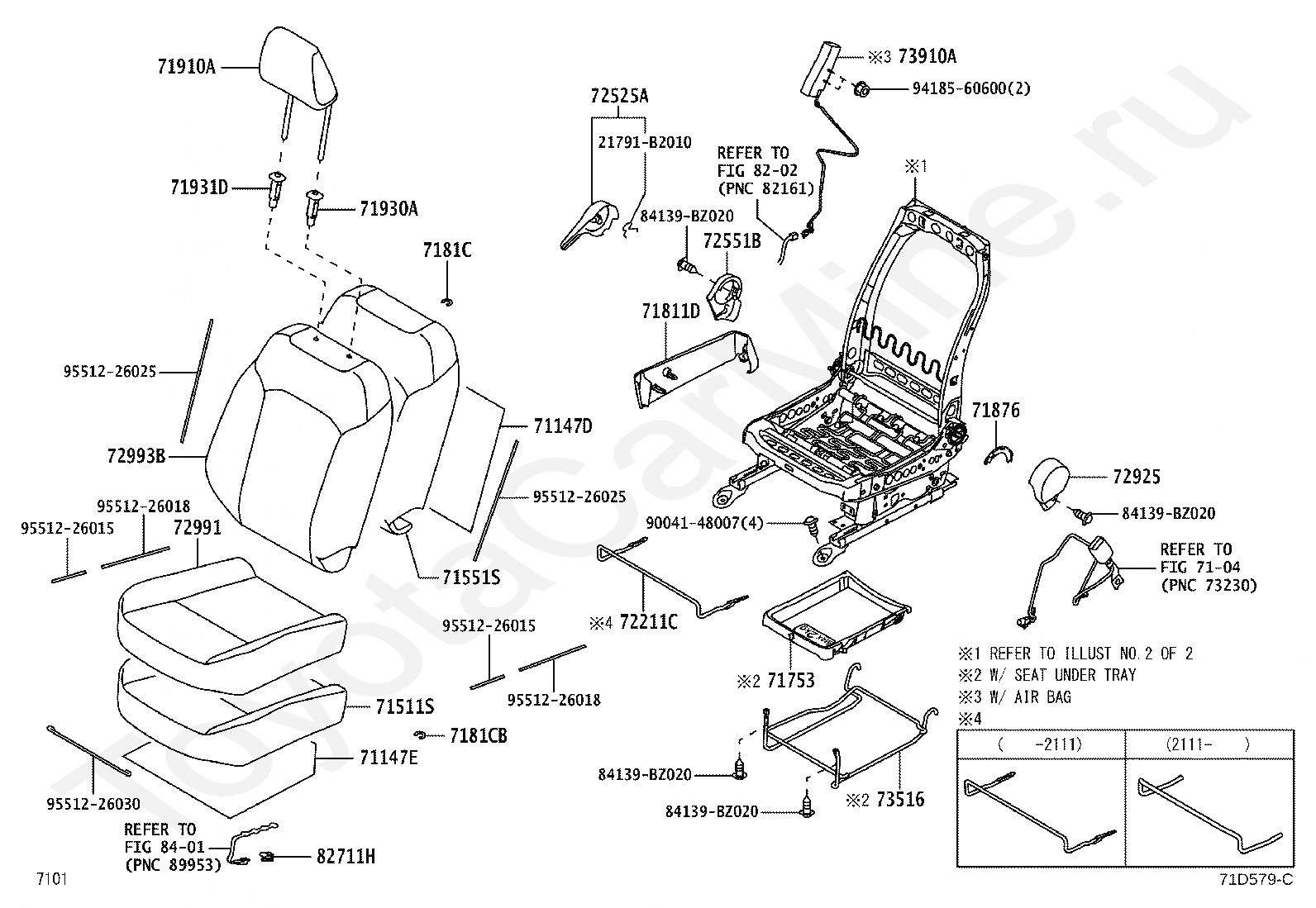

21791B2010

Крепеж

7104

переход к группе запчастей

71147D

SILENCER, SEAT SPRING, RH(FOR SEAT BACK)

71147E

SILENCER, SEAT SPRING, RH(FOR SEAT CUSHION)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71753

TRAY, FRONT SEAT UNDER

71811D

SHIELD, FRONT SEAT CUSHION, RH

7181C

RING, HOG, SMALL (FOR FRONT SEAT BACK)

7181CB

RING, HOG, SMALL (FOR FRONT SEAT CUSHION)

71876

COVER, RECLINING ADJUSTER INSIDE, LH

71910A

HEADREST ASSY, FRONT SEAT

71930A

SUPPORT ASSY, FRONT SEAT HEADREST

71931D

SUPPORT, FRONT SEAT HEADREST, RH

72211C

HANDLE, SEAT TRACK ADJUSTING

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72551B

COVER, RECLINING HINGE, RH

72925

COVER, FRONT SEAT CUSHION

72991

COVER, FRONT SEAT CUSHION, RH

72993B

COVER, FRONT SEAT BACK, RH

73516

RAIL, FRONT SEAT UNDER TRAY, NO.2

73910A

AIR BAG ASSY, FRONT SEAT, RH

8202

переход к группе запчастей

82711H

CLAMP, WIRING HARNESS

8401

переход к группе запчастей

84139BZ020

Крепеж

9004148007

Крепеж

9418560600

Крепеж

9551226015

Крепеж

9551226018

Крепеж

9551226025

Крепеж

9551226030

Крепеж

Код

Описание

21791B2010

Крепеж

7104

переход к группе запчастей

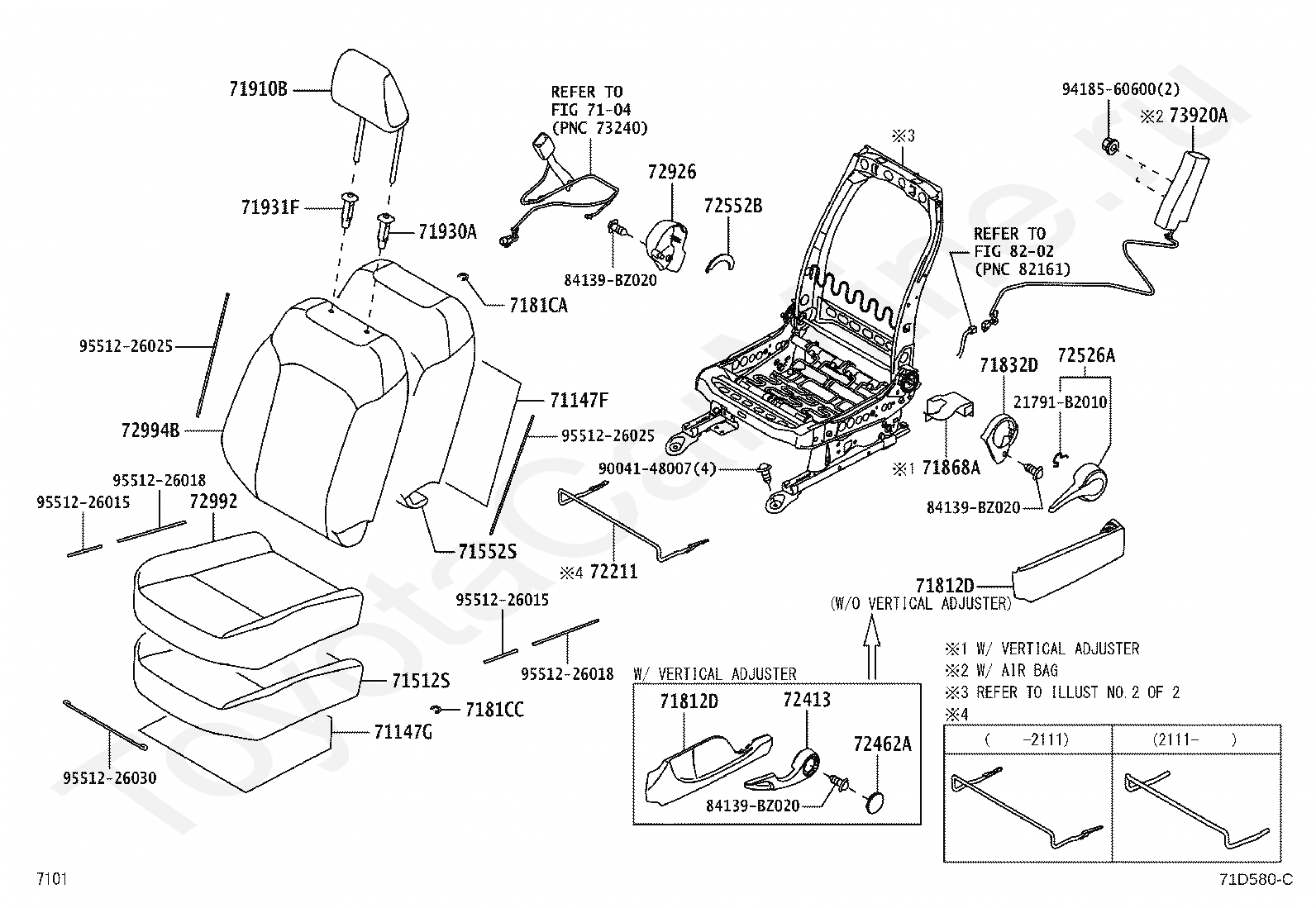

71147F

SILENCER, SEAT SPRING, LH(FOR SEAT BACK)

71147G

SILENCER, SEAT SPRING, LH(FOR SEAT CUSHION)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71812D

SHIELD, FRONT SEAT CUSHION, LH

7181CA

RING, HOG, SMALL (FOR FRONT SEAT BACK)

7181CC

RING, HOG, SMALL (FOR FRONT SEAT CUSHION)

71832D

COVER, FRONT SEAT HINGE, LH

71868A

SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH

71910B

HEADREST ASSY, FRONT SEAT

71930A

SUPPORT ASSY, FRONT SEAT HEADREST

71931F

SUPPORT, FRONT SEAT HEADREST, LH

72211

HANDLE, SEAT TRACK ADJUSTING

72413

LEVER, VERTICAL ADJUSTER LOCK

72462A

COVER, VERTICAL ADJUSTER LH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

72552B

COVER, RECLINING HINGE, LH

72926

COVER, FRONT SEAT CUSHION, NO.1

72992

COVER, FRONT SEAT CUSHION, LH

72994B

COVER, FRONT SEAT BACK, LH

73920A

AIR BAG ASSY, FRONT SEAT, LH

8202

переход к группе запчастей

84139BZ020

Крепеж

9004148007

Крепеж

9418560600

Крепеж

9551226015

Крепеж

9551226018

Крепеж

9551226025

Крепеж

9551226030

Крепеж

Код

Описание

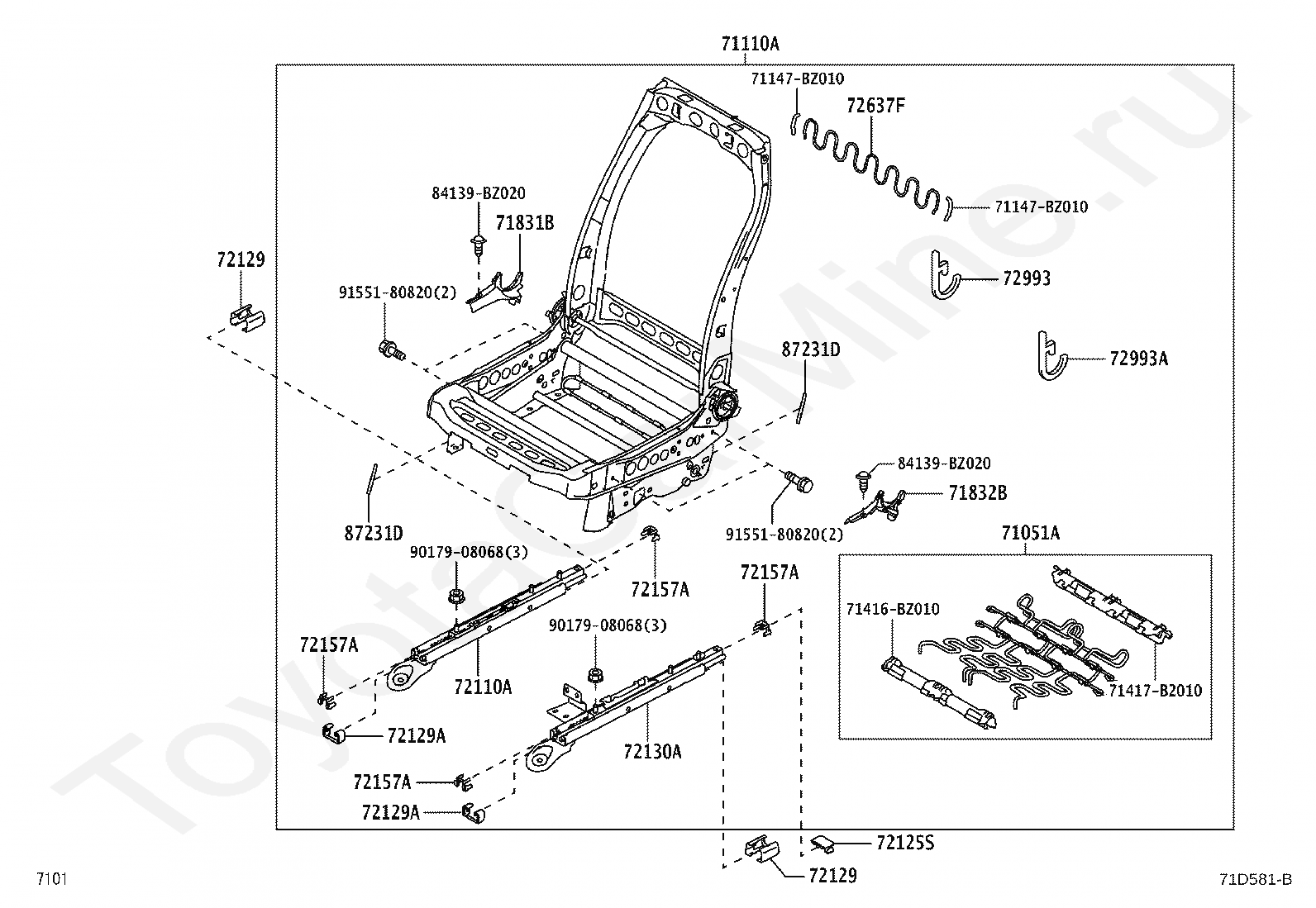

71051A

SPRING SUB-ASSY, FRONT SEAT CUSHION, RH

71110A

FRAME ASSY, FRONT SEAT W/ADJUSTER, RH

71147BZ010

Крепеж

71416BZ010

Крепеж

71417B2010

Крепеж

71831B

COVER, FRONT SEAT HINGE, RH

71832B

COVER, FRONT SEAT HINGE, LH

72110A

TRACK ASSY, FRONT SEAT, OUTER RH

72125S

COVER, FRONT SEAT TRACK, UPPER REAR RH

72129

PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

72129A

PROTECTOR, SEAT TRACK LOWER RAIL, NO.2

72130A

TRACK ASSY, FRONT SEAT, INNER RH

72157A

COVER, SEAT TRACK BRACKET, INNER RH

72637F

SPRING, SEAT BACK, RH

72993

COVER, FRONT SEAT BACK

72993A

COVER, FRONT SEAT BACK

84139BZ020

Крепеж

87231D

PROTECTOR

9017908068

Крепеж

9155180820

Крепеж

Код

Описание

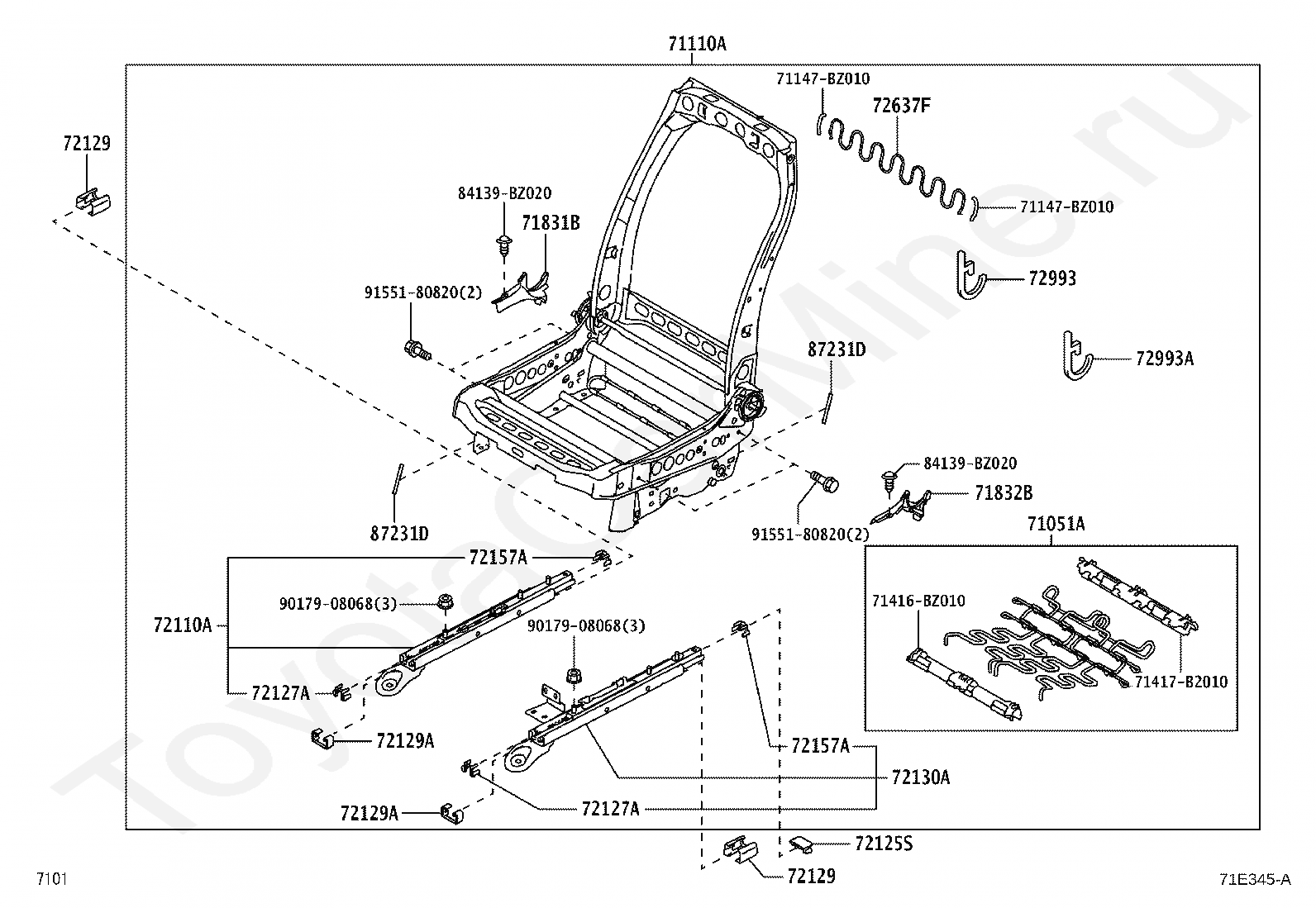

71051A

SPRING SUB-ASSY, FRONT SEAT CUSHION, RH

71110A

FRAME ASSY, FRONT SEAT W/ADJUSTER, RH

71147BZ010

Крепеж

71416BZ010

Крепеж

71417B2010

Крепеж

71831B

COVER, FRONT SEAT HINGE, RH

71832B

COVER, FRONT SEAT HINGE, LH

72110A

TRACK ASSY, FRONT SEAT, OUTER RH

72125S

COVER, FRONT SEAT TRACK, UPPER REAR RH

72127A

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72129

PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

72129A

PROTECTOR, SEAT TRACK LOWER RAIL, NO.2

72130A

TRACK ASSY, FRONT SEAT, INNER RH

72157A

COVER, SEAT TRACK BRACKET, INNER RH

72637F

SPRING, SEAT BACK, RH

72993

COVER, FRONT SEAT BACK

72993A

COVER, FRONT SEAT BACK

84139BZ020

Крепеж

87231D

PROTECTOR

9017908068

Крепеж

9155180820

Крепеж

Код

Описание

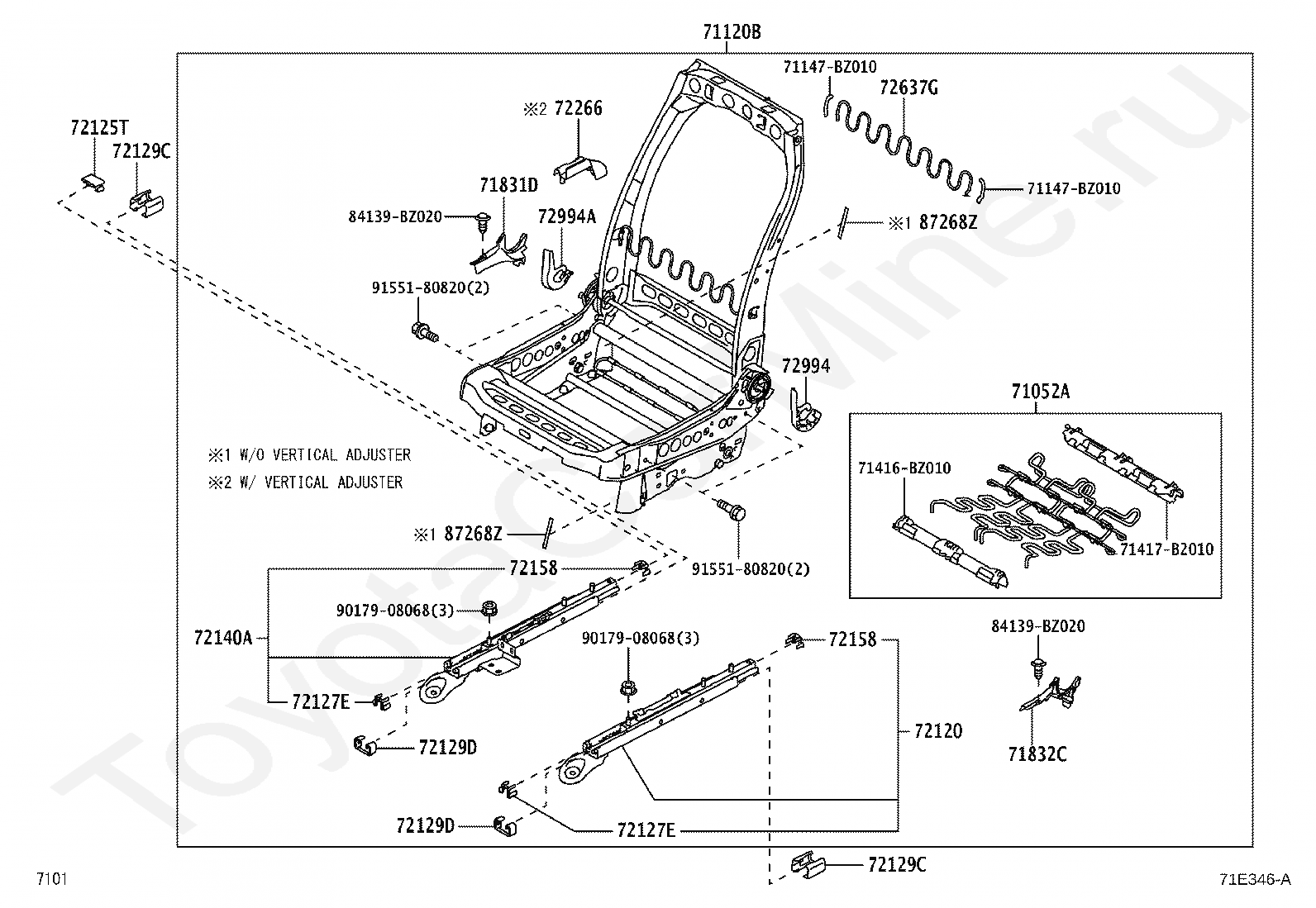

71052A

SPRING SUB-ASSY, FRONT SEAT CUSHION, LH

71120B

FRAME ASSY, FRONT SEAT W/ADJUSTER, LH

71147BZ010

Крепеж

71416BZ010

Крепеж

71417B2010

Крепеж

71831D

COVER, FRONT SEAT HINGE, RH

71832C

COVER, FRONT LH SEAT HINGE

72120

TRACK ASSY, FRONT SEAT, OUTER LH

72125T

COVER, FRONT SEAT TRACK, UPPER REAR LH

72129C

PROTECTOR, SEAT TRACK LOWER RAIL, NO.3

72129D

PROTECTOR, SEAT TRACK LOWER RAIL, NO.4

72140A

TRACK ASSY, FRONT SEAT,INNER LH

72158

COVER, SEAT TRACK BRACKET, INNER LH

72266

COVER, SEAT TRACK UPPER RAIL, LH

72637G

SPRING, SEAT BACK, LH

72994

COVER, FRONT SEAT BACK

72994A

COVER, FRONT SEAT BACK

84139BZ020

Крепеж

87268Z

PROTECTOR

9017908068

Крепеж

9155180820

Крепеж

Код

Описание

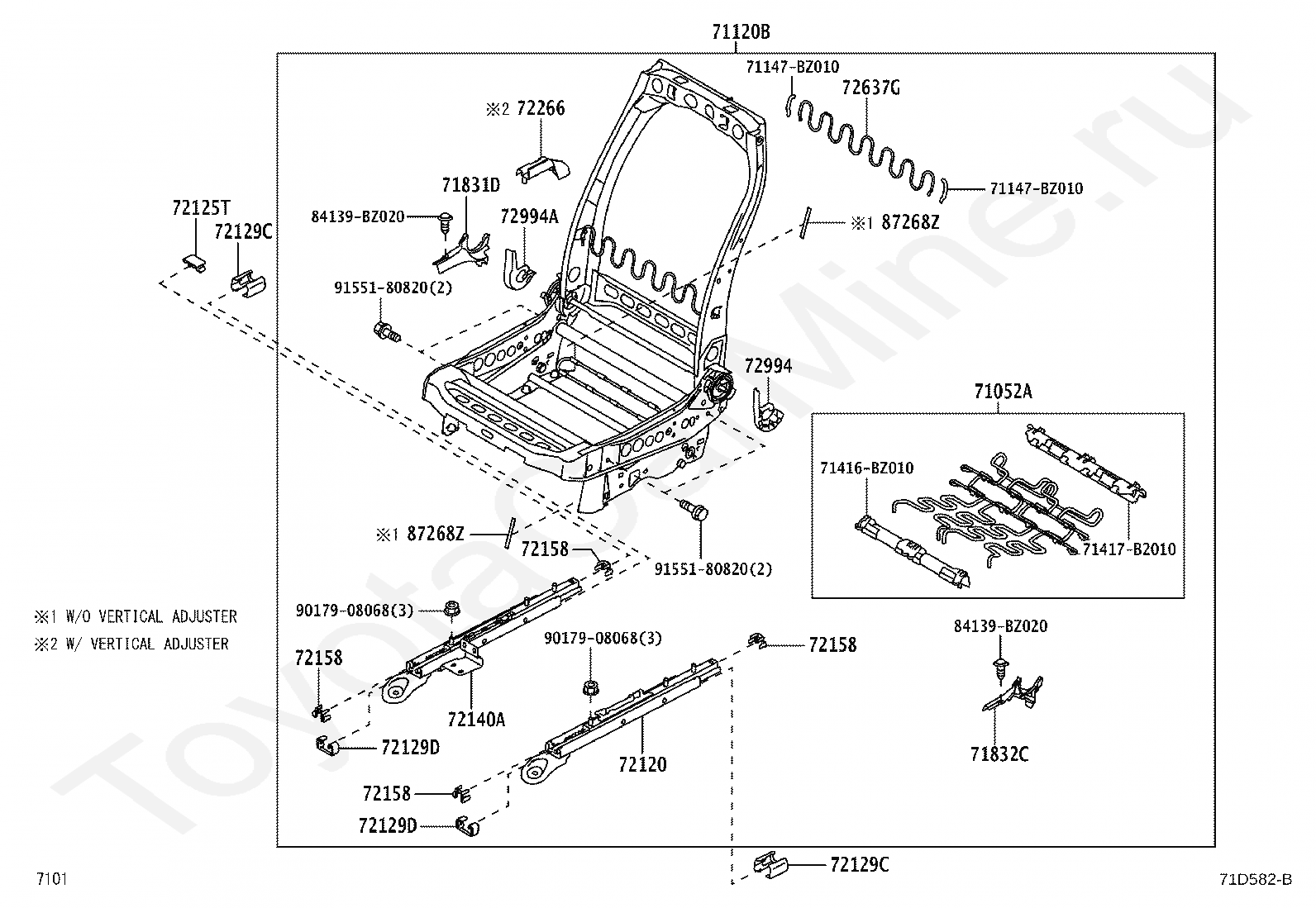

71052A

SPRING SUB-ASSY, FRONT SEAT CUSHION, LH

71120B

FRAME ASSY, FRONT SEAT W/ADJUSTER, LH

71147BZ010

Крепеж

71416BZ010

Крепеж

71417B2010

Крепеж

71831D

COVER, FRONT SEAT HINGE, RH

71832C

COVER, FRONT LH SEAT HINGE

72120

TRACK ASSY, FRONT SEAT, OUTER LH

72125T

COVER, FRONT SEAT TRACK, UPPER REAR LH

72127E

COVER, SEAT TRACK BRACKET, INNER FRONT

72129C

PROTECTOR, SEAT TRACK LOWER RAIL, NO.3

72129D

PROTECTOR, SEAT TRACK LOWER RAIL, NO.4

72140A

TRACK ASSY, FRONT SEAT,INNER LH

72158

COVER, SEAT TRACK BRACKET, INNER LH

72266

COVER, SEAT TRACK UPPER RAIL, LH

72637G

SPRING, SEAT BACK, LH

72994

COVER, FRONT SEAT BACK

72994A

COVER, FRONT SEAT BACK

84139BZ020

Крепеж

87268Z

PROTECTOR

9017908068

Крепеж

9155180820

Крепеж

Передние кресла TOYOTA RAIZE, 2021/08 - 2025, 1 литр, 12 клапанов DOHC, EFI, двойной наддув, седан, A250, механика, МКПП, 5 скоростей
