Кресла TOYOTA LAND CRUISER PRADO, 2002/09 - 2004/08, 3 литра, турбо-дизель, GX SPECIFICATION, KDJ125, механика, МКПП, 5 скоростей

Каталог

Европа

Модель

LAND CRUISER PRADO

Двигатель

3 литра, турбо-дизель

Класс

GX SPECIFICATION

Фрейм

KDJ125

Трансмиссия

механика МКПП, 5 скоростей

Опции

правый руль 3 двери 244W

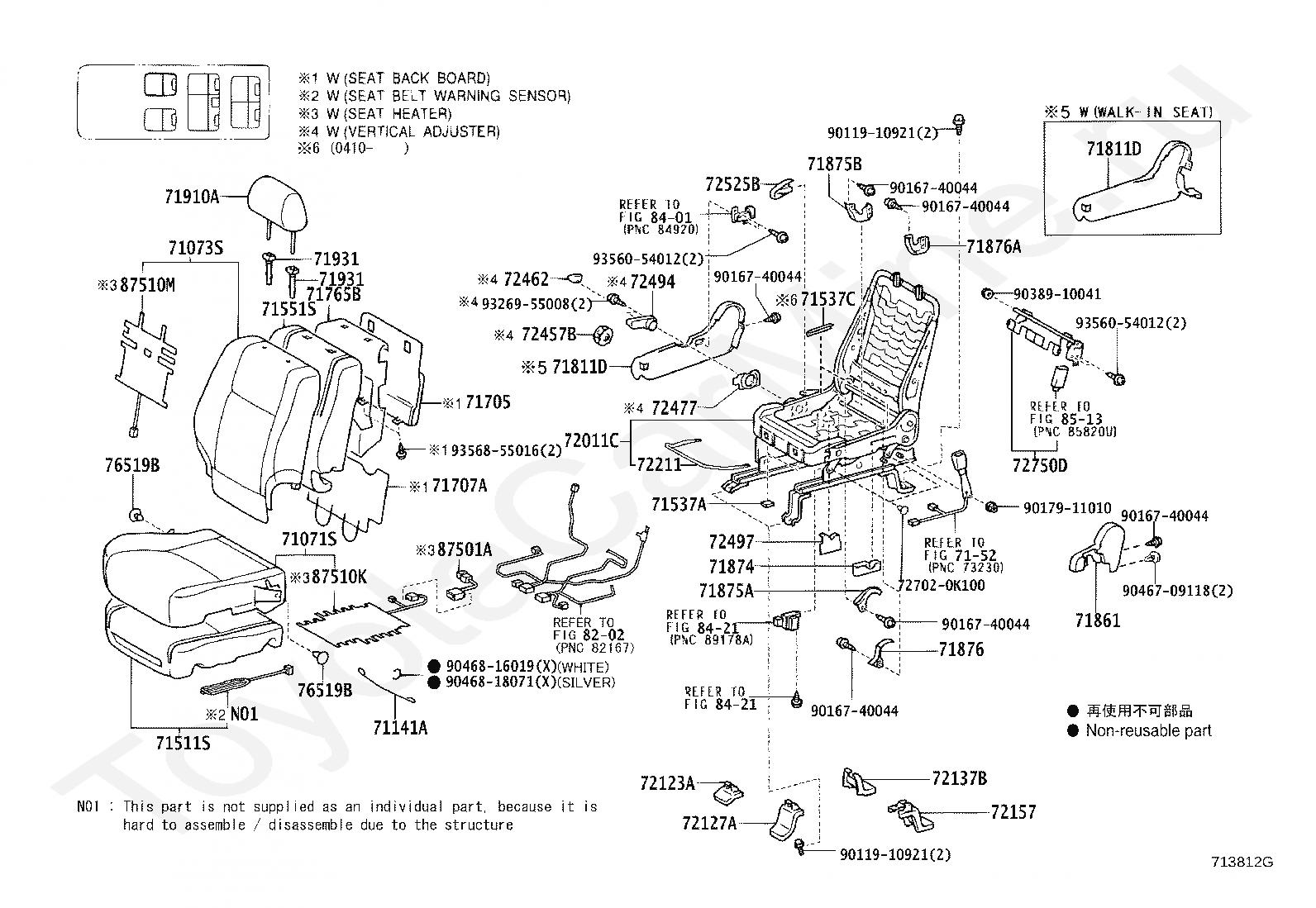

Код

Описание

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71141A

WIRE, FRONT SEAT CUSHION COVER,

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

7152

переход к группе запчастей

71537A

PROTECTOR, FRONT SEAT CUSHION

71537C

PROTECTOR, FRONT SEAT CUSHION EDGE, RH

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71705

BOARD SUB-ASSY, FRONT SEAT BACK, RH

71707A

COVER SUB-ASSY, FRONT SEAT BACK BOARD

71765B

PROTECTOR, FRONT SEAT BACK, RH

71811D

SHIELD, FRONT SEAT CUSHION, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

71876A

COVER, RECLINING ADJUSTER INSIDE, LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72011C

ADJUSTER SUB-ASSY, FRONT SEAT, RH

72123A

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72127A

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72137B

COVER, SEAT TRACK, RH

72157

COVER, SEAT TRACK BRACKET, INNER

72211

HANDLE, SEAT TRACK ADJUSTING

72457B

KNOB, VERTICAL SEAT ADJUSTER, RH

72462

COVER, VERTICAL ADJUSTER RH

72477

SPACER, VERTICAL ADJUSTER

72494

HANDLE, VERTICAL ADJUSTING, RH

72497

COVER, VERTICAL ADJUSTER BRACKET, OUTER

72525B

HANDLE, RECLINING ADJUSTER RELEASE, RH

727020K100

Крепеж

72750D

ADJUSTER ASSY, LUMBAR SUPPORT, RH

76519B

CLIP, FRONT SEAT CUSHION COVER

8202

переход к группе запчастей

8401

переход к группе запчастей

8421

переход к группе запчастей

8513

переход к группе запчастей

87501A

CONTROL SUB-ASSY, SEAT HEATER, RH

87510K

HEATER ASSY, FRONT SEAT CUSHION, RH

87510M

HEATER ASSY, FRONT SEAT BACK, RH

9011910921

Крепеж

9016740044

Крепеж

9017911010

Крепеж

9038910041

Крепеж

9046709118

Крепеж

9046816019

Крепеж

9046818071

Крепеж

9326955008

Крепеж

9356054012

Крепеж

9356855016

Крепеж

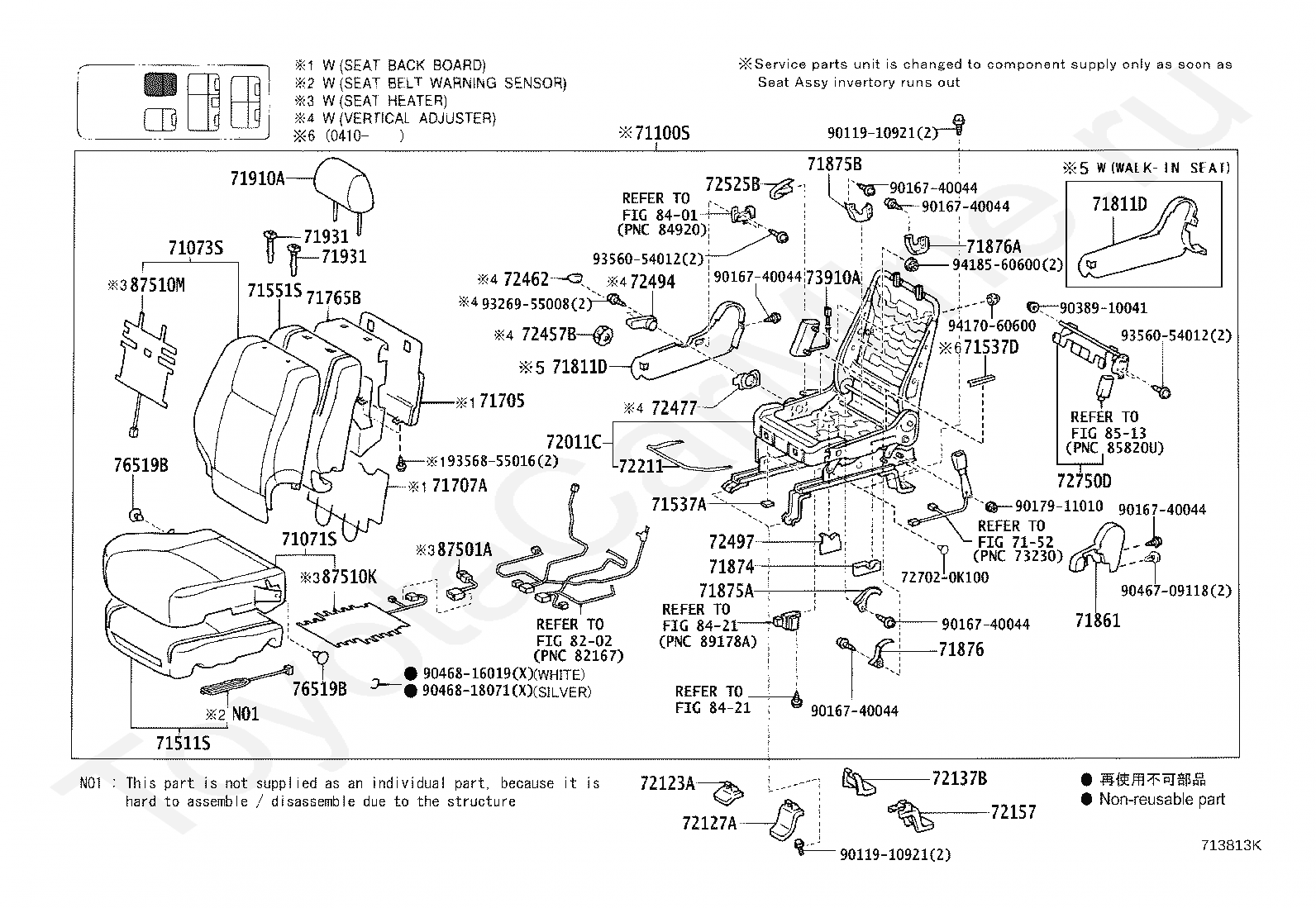

Код

Описание

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71100S

SEAT ASSY, FRONT RH

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

7152

переход к группе запчастей

71537A

PROTECTOR, FRONT SEAT CUSHION

71537D

PROTECTOR, FRONT SEAT CUSHION EDGE, LH

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71705

BOARD SUB-ASSY, FRONT SEAT BACK, RH

71707A

COVER SUB-ASSY, FRONT SEAT BACK BOARD

71765B

PROTECTOR, FRONT SEAT BACK, RH

71811D

SHIELD, FRONT SEAT CUSHION, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

71876A

COVER, RECLINING ADJUSTER INSIDE, LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72011C

ADJUSTER SUB-ASSY, FRONT SEAT, RH

72123A

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72127A

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72137B

COVER, SEAT TRACK, RH

72157

COVER, SEAT TRACK BRACKET, INNER

72211

HANDLE, SEAT TRACK ADJUSTING

72457B

KNOB, VERTICAL SEAT ADJUSTER, RH

72462

COVER, VERTICAL ADJUSTER RH

72477

SPACER, VERTICAL ADJUSTER

72494

HANDLE, VERTICAL ADJUSTING, RH

72497

COVER, VERTICAL ADJUSTER BRACKET, OUTER

72525B

HANDLE, RECLINING ADJUSTER RELEASE, RH

727020K100

Крепеж

72750D

ADJUSTER ASSY, LUMBAR SUPPORT, RH

73910A

AIR BAG ASSY, FRONT SEAT, RH

76519B

CLIP, FRONT SEAT CUSHION COVER

8202

переход к группе запчастей

8401

переход к группе запчастей

8421

переход к группе запчастей

8513

переход к группе запчастей

87501A

CONTROL SUB-ASSY, SEAT HEATER, RH

87510K

HEATER ASSY, FRONT SEAT CUSHION, RH

87510M

HEATER ASSY, FRONT SEAT BACK, RH

9011910921

Крепеж

9016740044

Крепеж

9017911010

Крепеж

9038910041

Крепеж

9046709118

Крепеж

9046816019

Крепеж

9046818071

Крепеж

9326955008

Крепеж

9356054012

Крепеж

9356855016

Крепеж

9417060600

Крепеж

9418560600

Крепеж

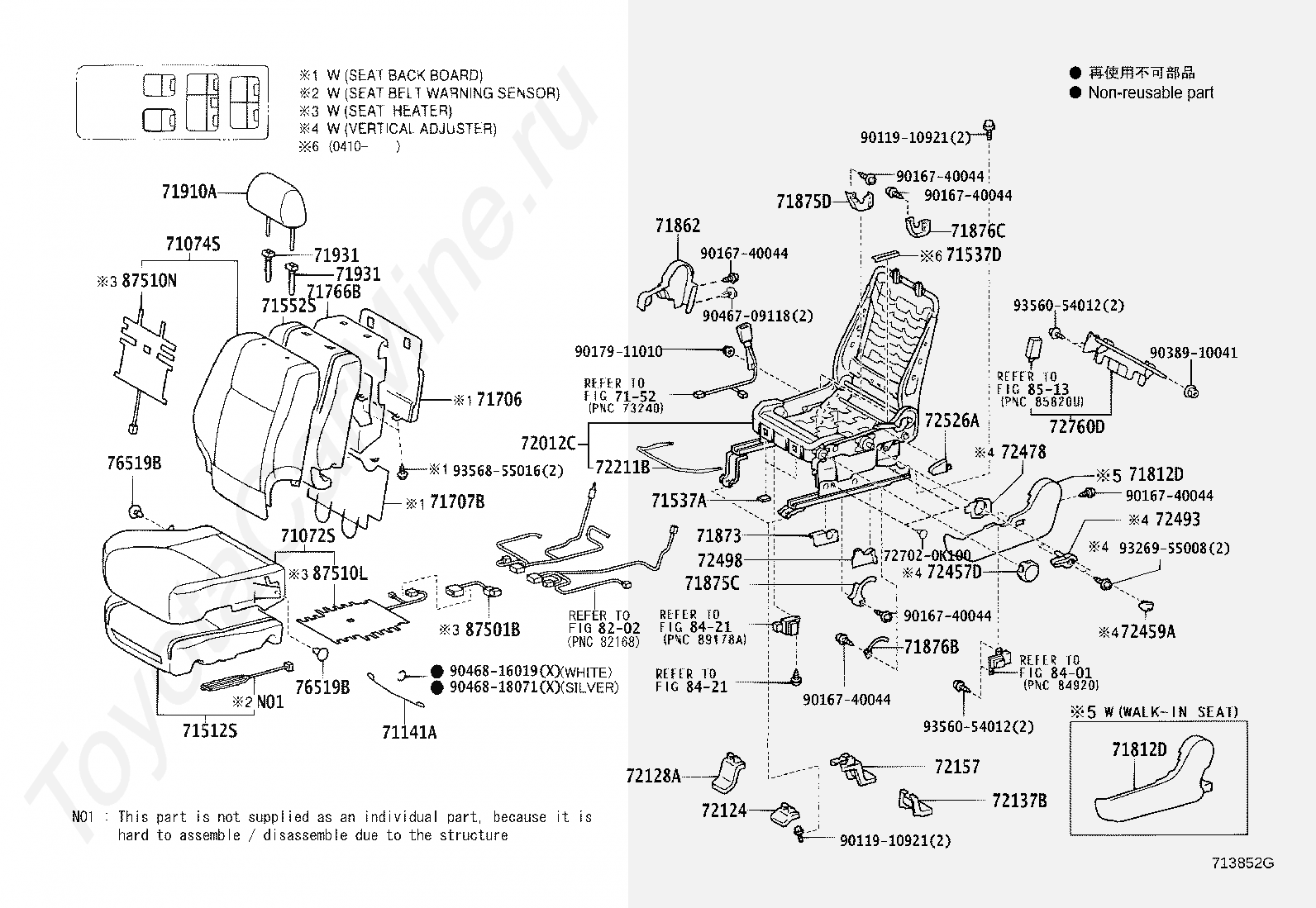

Код

Описание

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71141A

WIRE, FRONT SEAT CUSHION COVER,

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

7152

переход к группе запчастей

71537A

PROTECTOR, FRONT SEAT CUSHION

71537D

PROTECTOR, FRONT SEAT CUSHION EDGE, LH

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71706

BOARD SUB-ASSY, FRONT SEAT BACK, LH

71707B

COVER SUB-ASSY, FRONT SEAT BACK BOARD

71766B

PROTECTOR, FRONT SEAT BACK, LH

71812D

SHIELD, FRONT SEAT CUSHION, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71875C

COVER, RECLINING ADJUSTER INSIDE, RH

71875D

COVER, RECLINING ADJUSTER OUTSIDE, RH

71876B

COVER, RECLINING ADJUSTER INSIDE, LH

71876C

COVER, RECLINING ADJUSTER INSIDE, LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72012C

ADJUSTER SUB-ASSY, FRONT SEAT, LH

72124

COVER, SEAT TRACK BRACKET, OUTER FRONT LH

72128A

COVER, SEAT TRACK BRACKET, INNER FRONT LH

72137B

COVER, SEAT TRACK, RH

72157

COVER, SEAT TRACK BRACKET, INNER

72211B

HANDLE, SEAT TRACK ADJUSTING

72457D

KNOB, VERTICAL SEAT ADJUSTER, LH

72459A

CAP, VERTICAL SEAT ADJUSTER KNOB

72478

BUSH, VERTICAL ADJUSTER

72493

HANDLE, VERTICAL ADJUSTING, NO.2

72498

COVER, VERTICAL ADJUSTER BRACKET

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

727020K100

Крепеж

72760D

ADJUSTER ASSY, LUMBAR SUPPORT, LH

76519B

CLIP, FRONT SEAT CUSHION COVER

8202

переход к группе запчастей

8401

переход к группе запчастей

8421

переход к группе запчастей

8513

переход к группе запчастей

87501B

CONTROL SUB-ASSY, SEAT HEATER, LH

87510L

HEATER ASSY, FRONT SEAT CUSHION, LH

87510N

HEATER ASSY, FRONT SEAT BACK, LH

9011910921

Крепеж

9016740044

Крепеж

9017911010

Крепеж

9038910041

Крепеж

9046709118

Крепеж

9046816019

Крепеж

9046818071

Крепеж

9326955008

Крепеж

9356054012

Крепеж

9356855016

Крепеж

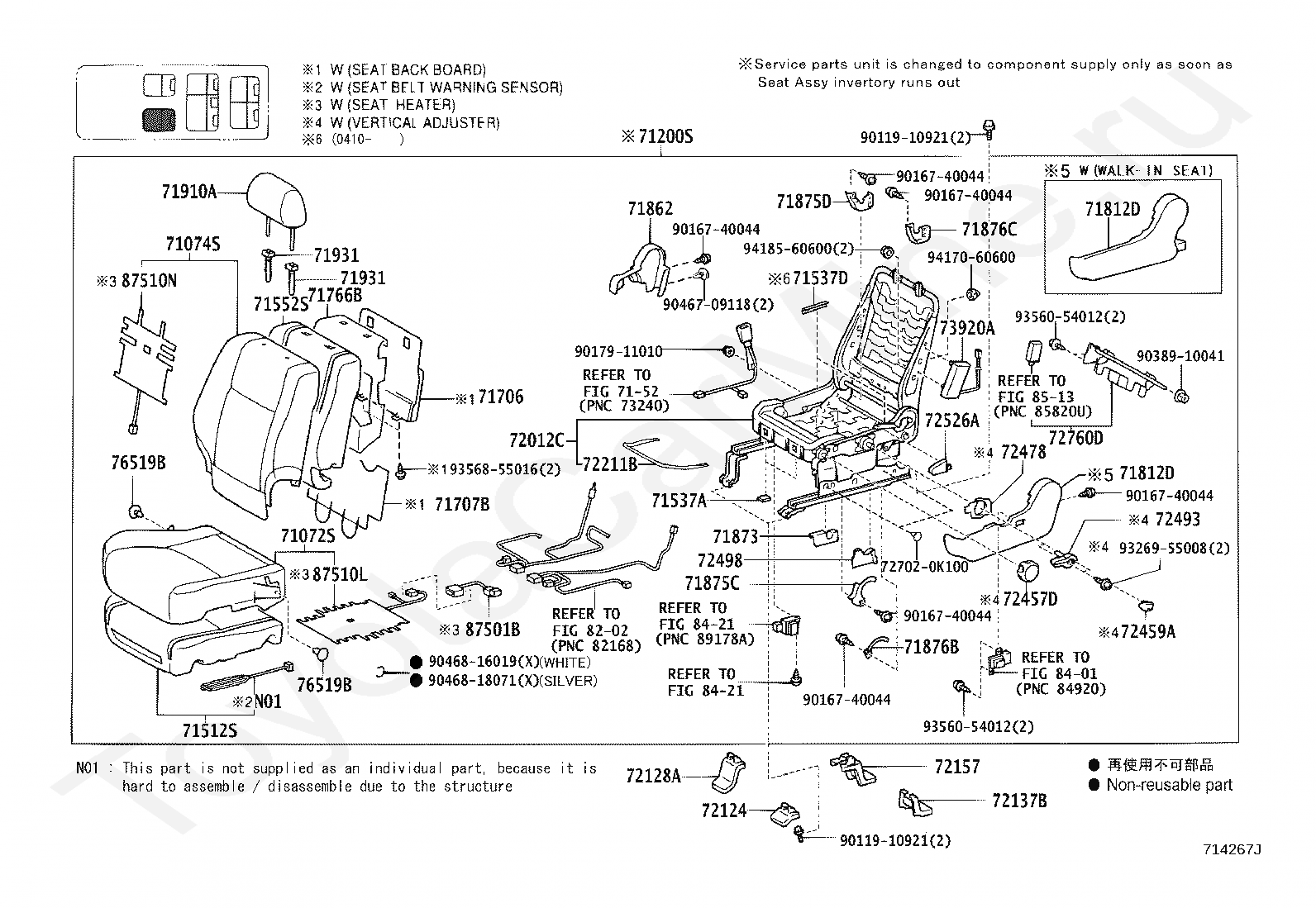

Код

Описание

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71200S

SEAT ASSY, FRONT LH

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

7152

переход к группе запчастей

71537A

PROTECTOR, FRONT SEAT CUSHION

71537D

PROTECTOR, FRONT SEAT CUSHION EDGE, LH

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71706

BOARD SUB-ASSY, FRONT SEAT BACK, LH

71707B

COVER SUB-ASSY, FRONT SEAT BACK BOARD

71766B

PROTECTOR, FRONT SEAT BACK, LH

71812D

SHIELD, FRONT SEAT CUSHION, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71875C

COVER, RECLINING ADJUSTER INSIDE, RH

71875D

COVER, RECLINING ADJUSTER OUTSIDE, RH

71876B

COVER, RECLINING ADJUSTER INSIDE, LH

71876C

COVER, RECLINING ADJUSTER INSIDE, LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72012C

ADJUSTER SUB-ASSY, FRONT SEAT, LH

72124

COVER, SEAT TRACK BRACKET, OUTER FRONT LH

72128A

COVER, SEAT TRACK BRACKET, INNER FRONT LH

72137B

COVER, SEAT TRACK, RH

72157

COVER, SEAT TRACK BRACKET, INNER

72211B

HANDLE, SEAT TRACK ADJUSTING

72457D

KNOB, VERTICAL SEAT ADJUSTER, LH

72459A

CAP, VERTICAL SEAT ADJUSTER KNOB

72478

BUSH, VERTICAL ADJUSTER

72493

HANDLE, VERTICAL ADJUSTING, NO.2

72498

COVER, VERTICAL ADJUSTER BRACKET

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

727020K100

Крепеж

72760D

ADJUSTER ASSY, LUMBAR SUPPORT, LH

73920A

AIR BAG ASSY, FRONT SEAT, LH

76519B

CLIP, FRONT SEAT CUSHION COVER

8202

переход к группе запчастей

8401

переход к группе запчастей

8421

переход к группе запчастей

8513

переход к группе запчастей

87501B

CONTROL SUB-ASSY, SEAT HEATER, LH

87510L

HEATER ASSY, FRONT SEAT CUSHION, LH

87510N

HEATER ASSY, FRONT SEAT BACK, LH

9011910921

Крепеж

9016740044

Крепеж

9017911010

Крепеж

9038910041

Крепеж

9046709118

Крепеж

9046816019

Крепеж

9046818071

Крепеж

9326955008

Крепеж

9356054012

Крепеж

9356855016

Крепеж

9417060600

Крепеж

9418560600

Крепеж

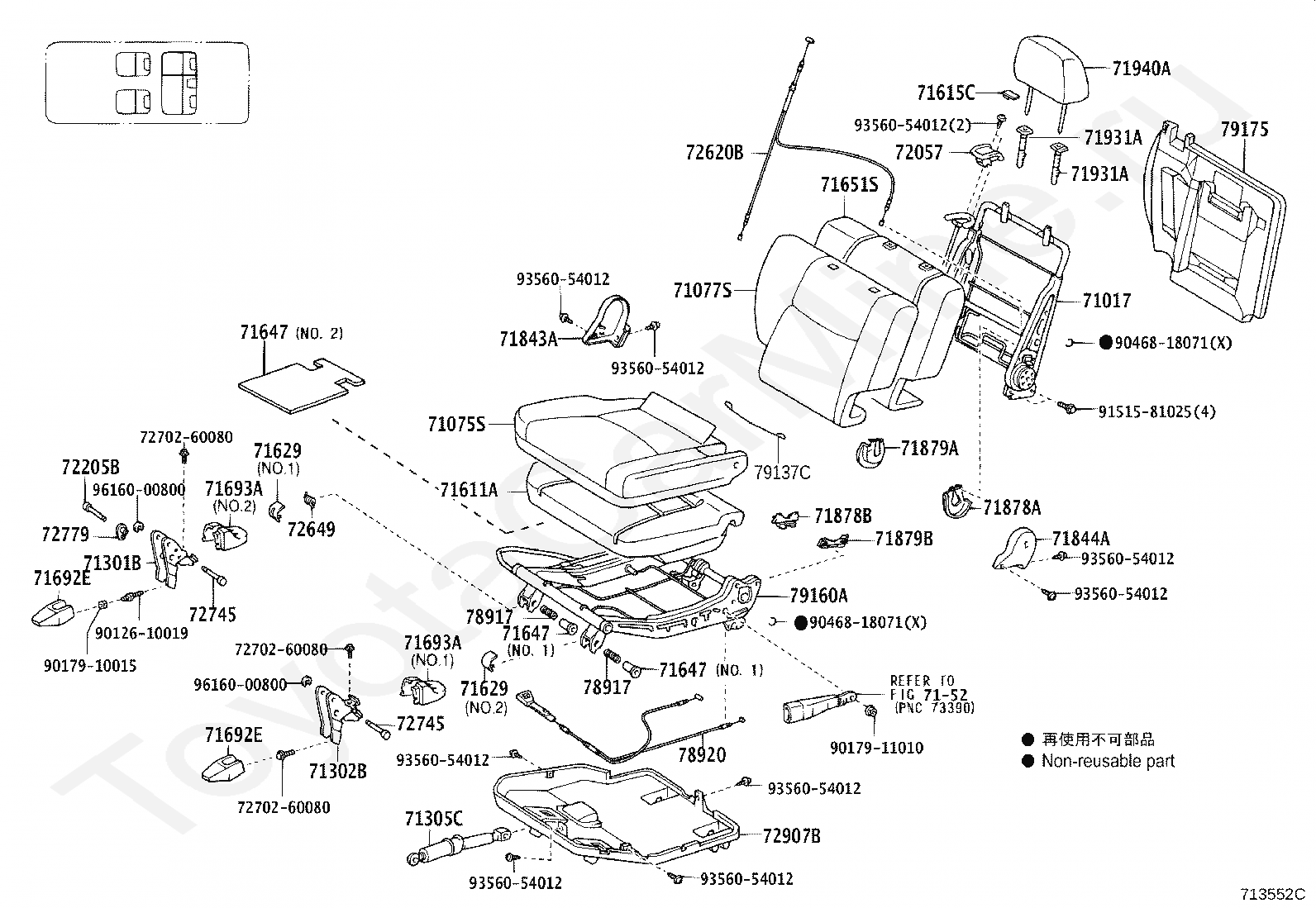

Код

Описание

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71075S

COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71301B

HINGE SUB-ASSY, REAR NO.1 SEAT, RH

71302B

HINGE SUB-ASSY, REAR NO.1 SEAT, LH

71305C

STAY SUB-ASSY, REAR SEAT

7152

переход к группе запчастей

71611A

PAD, REAR SEAT CUSHION, RH

71615C

COVER, REAR SEAT LOCK STRIKER

71629

COVER, REAR SEAT CUSHION HINGE

71647

PROTECTOR, REAR SEAT CUSHION EDGE

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71692E

COVER, REAR SEAT CUSHION HINGE, NO.2

71693A

COVER, REAR SEAT CUSHION HINGE, NO.3

71843A

COVER, REAR SEAT RECLINING, NO.2 RH

71844A

COVER, REAR SEAT RECLINING, NO.2 LH

71878A

COVER, REAR SEAT RECLINING, INNER RH

71878B

COVER, REAR SEAT RECLINING, INNER RH

71879A

COVER, REAR SEAT RECLINING, INNER LH

71879B

COVER, REAR SEAT RECLINING, INNER LH

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72057

LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH

72205B

PIN SUB-ASSY, SEAT TRACK OPEN LEVER

72620B

CABLE ASSY, REAR NO.1 SEAT LOCK

72649

SPRING, REAR SEAT CUSHION SUPPORT

7270260080

Крепеж

72745

PIN, REAR SEAT RECLINING HINGE

72779

GUIDE, REAR SEAT HINGE PAWL

72907B

COVER SUB-ASSY, REAR SEAT CUSHION UNDER, RH

78917

CUSHION, FOLD SEAT LEG LOCK

78920

CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.2

79137C

WIRE, NO.1 SEAT CUSHION

79160A

SPRING ASSY, NO.1 SEAT CUSHION, RH

79175

PAD, NO.1 SEAT BACK

9012610019

Крепеж

9017910015

Крепеж

9017911010

Крепеж

9046818071

Крепеж

9151581025

Крепеж

9356054012

Крепеж

9616000800

Крепеж

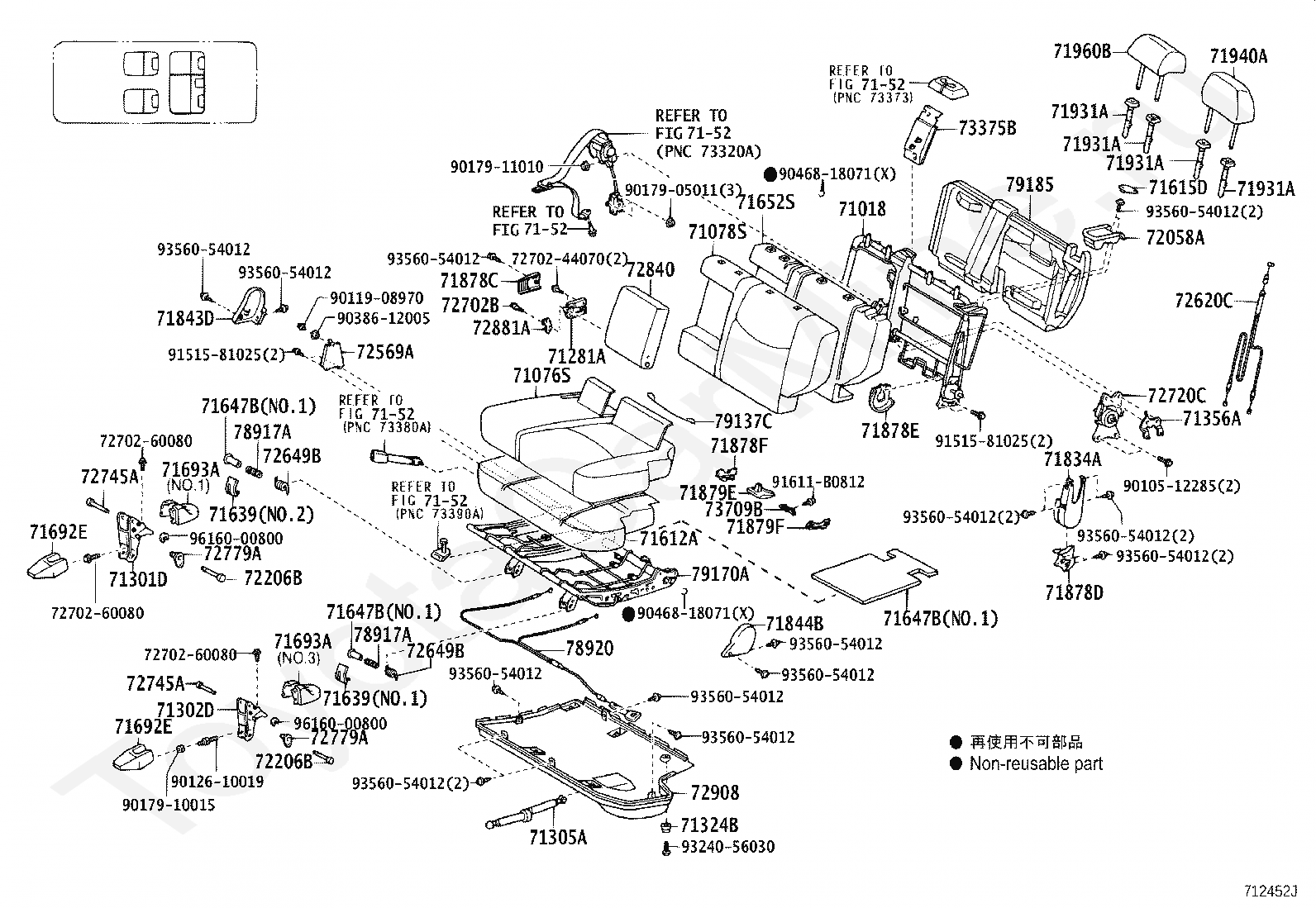

Код

Описание

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

71076S

COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71281A

HINGE, REAR SEAT CENTER ARMREST

71301D

HINGE SUB-ASSY, REAR SEAT, RH

71302D

HINGE SUB-ASSY, REAR SEAT, LH

71305A

HINGE SUB-ASSY, REAR SEAT BACK, CENTER

71324B

CUSHION, REAR SEAT

71356A

PLATE, REAR SEAT BACK HINGE, INNER LH

7152

переход к группе запчастей

71612A

PAD, REAR SEAT CUSHION, LH

71615D

COVER, REAR SEAT LOCK STRIKER

71639

COVER, REAR SEAT CUSHION HINGE, LH

71647B

PROTECTOR, REAR SEAT CUSHION EDGE

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71692E

COVER, REAR SEAT CUSHION HINGE, NO.2

71693A

COVER, REAR SEAT CUSHION HINGE, NO.3

71834A

COVER, REAR SEAT RECLINING, NO.1 LH

71843D

COVER, REAR SEAT RECLINING, NO.2 RH

71844B

COVER, RECLINING ADJUSTER, LH

71878C

COVER, REAR SEAT RECLINING, INNER RH

71878D

COVER, REAR SEAT RECLINING, INNER RH

71878E

COVER, REAR SEAT RECLINING, INNER RH

71878F

COVER, REAR SEAT RECLINING, INNER RH

71879E

COVER, REAR SEAT RECLINING, INNER LH

71879F

COVER, REAR SEAT RECLINING, INNER LH

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71960B

HEADREST ASSY, REAR SEAT, CENTER

72058A

LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH

72206B

PIN SUB-ASSY, SEAT TRACK OPEN LEVER, LH

72569A

PLATE, SEAT BACK STOPPER

72620C

CABLE ASSY, REAR NO.1 SEAT LOCK

72649B

SPRING, REAR SEAT CUSHION SUPPORT

7270244070

Крепеж

7270260080

Крепеж

72702B

WIRE SUB-ASSY, REAR SEAT RECLINING CONTROL

72720C

ADJUSTER ASSY, NO.1 SEAT RECLINING, LH

72745A

PIN, REAR SEAT RECLINING HINGE

72779A

GUIDE, REAR SEAT HINGE PAWL

72840

ARMREST ASSY, REAR NO.1 SEAT, LH

72881A

SUPPORT, REAR SEAT CENTER ARMREST, LH

72908

COVER SUB-ASSY, REAR SEAT TURN, LH

73375B

COVER, REAR SEAT SHOULDER BELT HOLE, LH

73709B

BRACKET SUB-ASSY, TETHER ANCHOR

78917A

CUSHION, FOLD SEAT LEG LOCK

78920

CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.2

79137C

WIRE, NO.1 SEAT CUSHION

79170A

SPRING ASSY, NO.1 SEAT CUSUION, LH

79185

PAD, NO.1 SEAT BACK, LH

9010512285

Крепеж

9011908970

Крепеж

9012610019

Крепеж

9017905011

Крепеж

9017910015

Крепеж

9017911010

Крепеж

9038612005

Крепеж

9046818071

Крепеж

9151581025

Крепеж

91611B0812

Крепеж

9324056030

Крепеж

9356054012

Крепеж

9616000800

Крепеж

Кресла TOYOTA LAND CRUISER PRADO, 2002/09 - 2004/08, 3 литра, турбо-дизель, GX SPECIFICATION, KDJ125, механика, МКПП, 5 скоростей

Товар добавлен в корзину!

Заполните форму
