Каталог
ЯпонияМодель
NOAH/VOXY/ESQUIREДвигатель
2 литра, 16 клапанов, DOHC, EFIКласс
ZS TYPEФрейм
ZRR85Трансмиссия
вариаторОпции
VOXY 8-местный HIGH EFFICIENCY TWIN CAM (VALVEMATIC) COMPLETED VEHICLE 706W
Код
Описание
61131
PILLAR, FRONT BODY, UPPER OUTER RH
61132
PILLAR, FRONT BODY, UPPER OUTER LH
61225A
RAIL, ROOF SIDE OUTER UPPER NO.1, RH
61226A
RAIL, ROOF SIDE OUTER UPPER NO.1, LH
61311B
PILLAR, CENTER BODY, OUTER RH
61312B
PILLAR, CENTER BODY, OUTER LH
61411
PANEL, ROCKER, OUTER RH
61412
PANEL, ROCKER, OUTER LH
61611
PANEL, QUARTER, RH
61612
PANEL, QUARTER, LH
61848A
RETAINER, QUARTER PANEL, LH

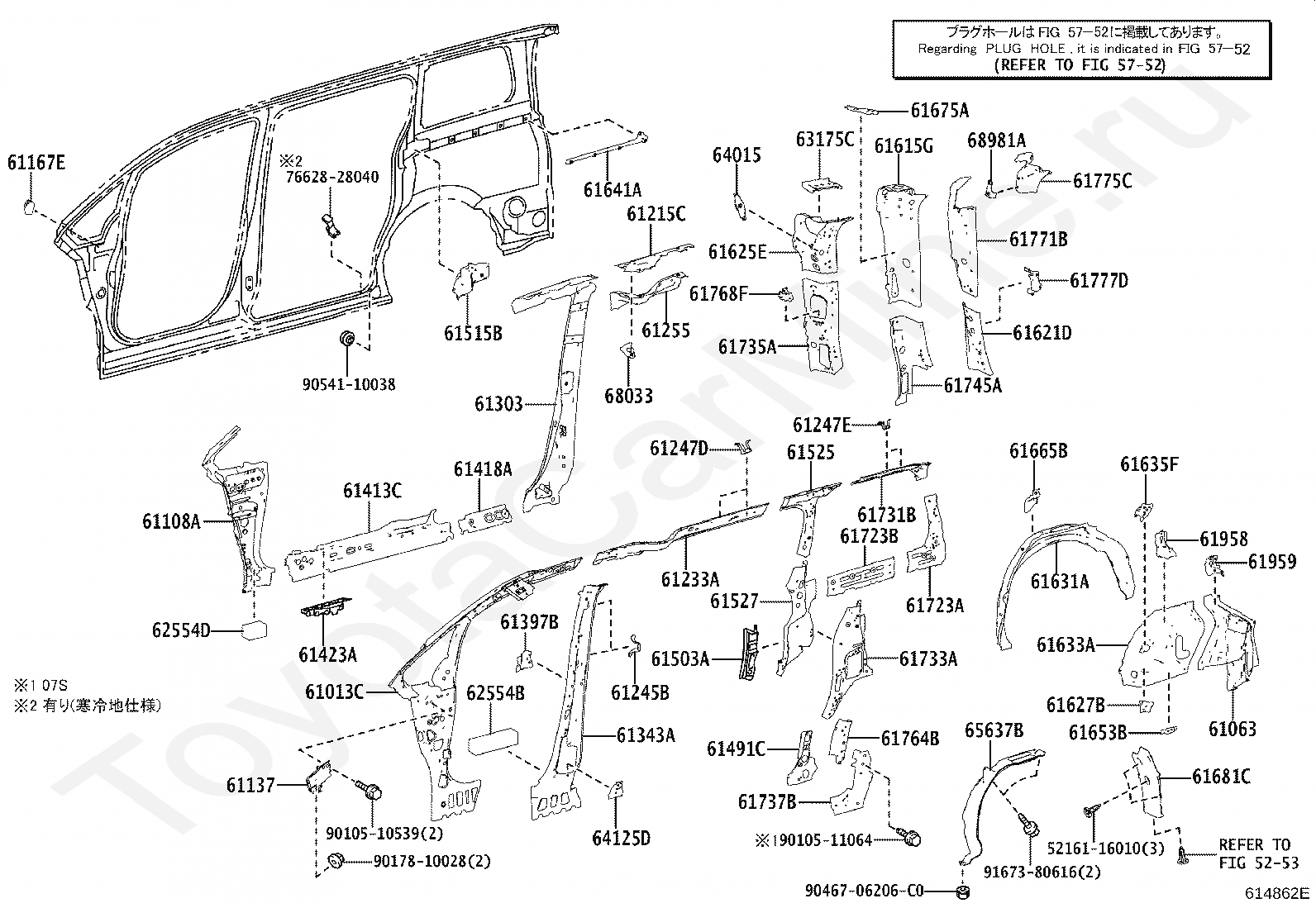

Код
Описание
5216116010
Крепеж
5253
переход к группе запчастей
5752
переход к группе запчастей
61013C
PANEL SUB-ASSY, SIDE, INNER RH
61063
BRACKET, SUB-ASSY, REAR SHOCK ABSORBER, RH
61108A
REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61137
REINFORCEMENT, FRONT PILLAR, OUTER RH
61167E
BRACKET, NO.6 PILLAR OUTER
61215C
RAIL, ROOF SIDE, OUTER REAR RH
61233A
RAIL, ROOF SIDE, INNER NO.2 RH
61245B
BRACKET, ASSIST GRIP, NO.3 RH
61247D
BRACKET, ASSIST GRIP, RH
61247E
BRACKET, ASSIST GRIP, NO.4 RH
61255
PLATE, ROOF SIDE RAIL, OUTER RH
61303
REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH
61343A
PILLAR, CENTER BODY, INNER RH
61397B
RETAINER, CENTER BODY PILLAR
61413C
REINFORCEMENT, ROCKER PANEL, NO.2 RH
61418A
REINFORCEMENT, ROCKER PANEL, RH
61423A
PANEL, FENDER, INNER LOWER RH
61491C
PLATE, NO.3 LOWER RAIL, INNER RH
61503A
REINFORCE SUB-ASSY, SLIDE DOOR LOCK STRIKER, RH
61515B
EXTENSION, QUARTER LOCK PILLAR, RH
61525
REINFORCEMENT, QUARTER LOCK PILLER, UPPER RH
61527
REINFORCEMENT, QUARTER LOCK PILLER, LOWER RH
61615G
REINFORCEMENT, REAR BODY REAR SIDE PANEL, RH
61621D
TROUGH, BACK DOOR OPENING, RH
61625E
EXTENSION, QUARTER PANEL, INNER REAR RH
61627B
EXTENSION, QUARTER PANEL, UPPER REAR RH
61631A
PANEL, QUARTER WHEEL HOUSE, OUTER RH
61633A
PANEL, QUARTER WHEEL HOUSE, INNER RH
61635F
REINFORCEMENT, QUARTER PANEL, UPR RH
61641A
RETAINER, QUARTER PANEL STEP, NO.1 RH
61653B
BRACKET, DECK SIDE TRIM
61665B
REINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, RH
61675A
REINFORCE, SEAT BELT ANCHOR, NO.2 UPPER RH
61681C
EXTENSION, REAR WHEEL OPENING, RH
61723A
REINFORCEMENT, QUARTER WINDOW OPENING, RH NO.1
61723B
REINFORCEMENT, QUARTER WINDOW OPENING, NO.2 RH
61731B
PANEL, ROOF SIDE, INNER RH
61733A
PANEL, ROOF SIDE, INNER FRONT RH
61735A
PANEL, ROOF SIDE, INNER REAR RH
61737B
PANEL, ROOF SIDE, INNER LOWER RH
61745A
REINFORCEMENT, BACK DOOR OPENING, LOWER RH
61764B
REINFORCEMENT, SEAT BELT ANCHOR, NO.2 RH
61768F
REINFORCE, BELT ANCHOR TO QUARTER, INNER LOWER RH
61771B
FRAME, BACK DOOR OPENING UPPER CORNER, RH
61775C
FRAME, BACK DOOR OPENING SIDE, RH
61777D
RETAINER, BACK DOOR SIDE STOPPER, RH
61958
BRACKET, REAR SEAT LEG, NO.1 RH
61959
BRACKET, REAR SEAT LEG, NO.2 RH
62554B
PAD, PILLAR, NO.4
62554D
PAD, FRONT PILLER
63175C
REINFORCEMENT, BACK DOOR HINGE FEMALE, RH
64015
PANEL SUB-ASSY, BACK CORNER, INNER RH
64125D
ANCHOR, PILLAR SEAT BELT, RH
65637B
LINER, REAR WHEEL HOUSE, RH
68033
BRACKET SUB-ASSY, SLIDE DOOR RAIL, RH
68981A
RETAINER, BACK DOOR STAY, RH
7662828040
Крепеж
9010510539
Крепеж
9010511064
Крепеж
9017810028
Крепеж
9046706206C0
Крепеж
9054110038
Крепеж
9167380616
Крепеж

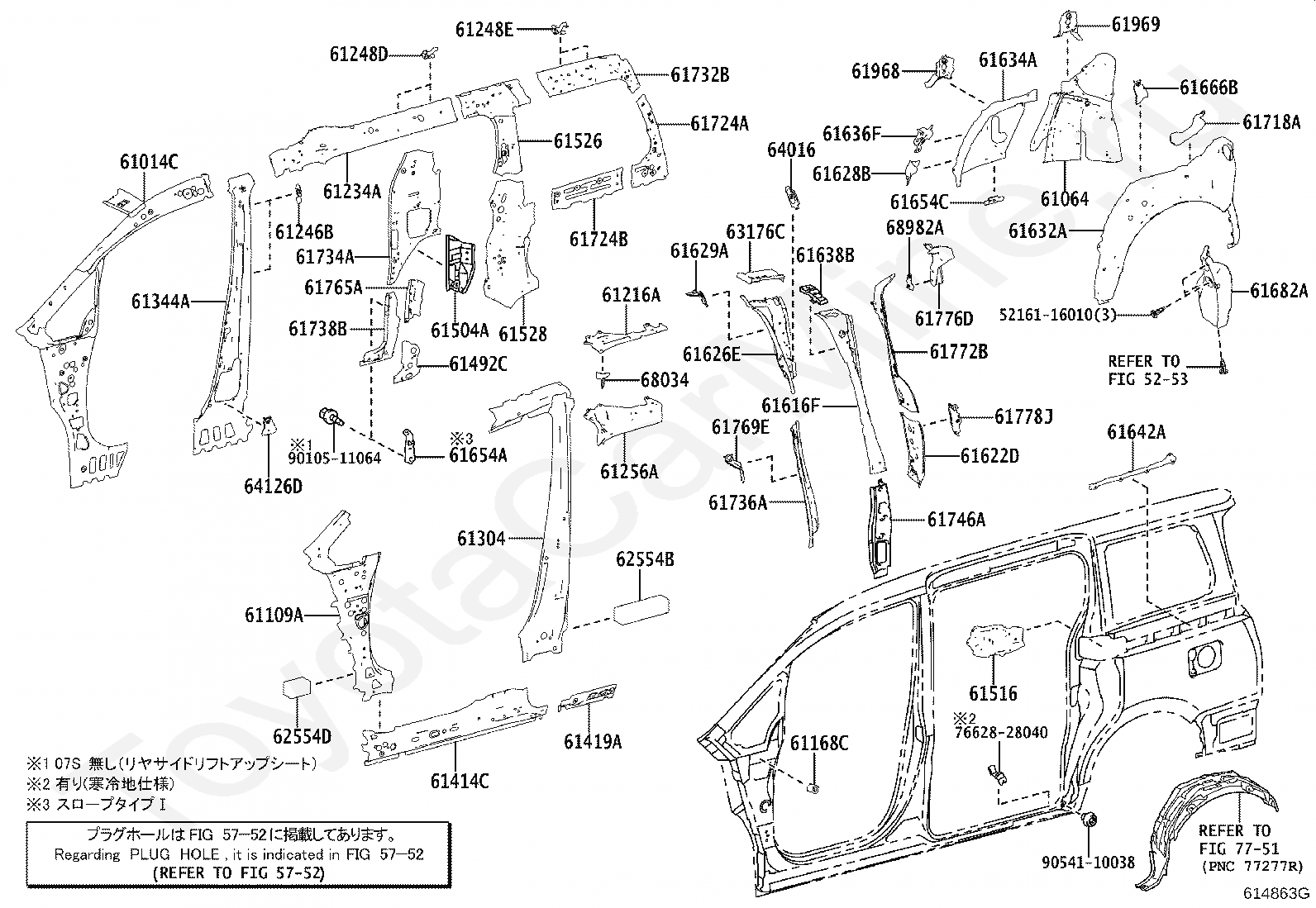

Код
Описание
5216116010
Крепеж
5253
переход к группе запчастей
5752
переход к группе запчастей
61014C
PANEL SUB-ASSY, SIDE, INNER LH
61064
BRACKET, SUB-ASSY, REAR SHOCK ABSORBER, LH
61109A
REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61168C
BRACKET, NO.6 PILLAR OUTER
61216A
RAIL, ROOF SIDE, OUTER REAR LH
61234A
RAIL, ROOF SIDE, INNER NO.2 LH
61246B
BRACKET, ASSIST GRIP, NO.3 LH
61248D
BRACKET, ASSIST GRIP, LH
61248E
BRACKET, ASSIST GRIP, NO.4 RH
61256A
PLATE, ROOF SIDE RAIL, OUTER LH
61304
REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH
61344A
PILLAR, CENTER BODY, INNER LH
61414C
REINFORCEMENT, ROCKER PANEL, NO.2 LH
61419A
REINFORCEMENT, ROCKER PANEL, LH
61492C
PLATE, NO.3 LOWER RAIL, INNER LH
61504A
REINFORCE SUB-ASSY, SLIDE DOOR LOCK STRIKER, LH
61516
EXTENSION, QUARTER LOCK PILLAR, LH
61526
REINFORCEMENT, QUARTER LOCK PILLER, UPPER LH
61528
REINFORCEMENT, QUARTER LOCK PILLER, LOWER LH
61616F
REINFORCEMENT, REAR BODY REAR SIDE PANEL, LH
61622D
TROUGH, BACK DOOR OPENING, LH
61626E
EXTENSION, QUARTER PANEL, INNER REAR LH
61628B
EXTENSION, QUARTER PANEL, UPPER REAR LH
61629A
REINFORCEMENT, QUARTER PANEL, LH
61632A
PANEL, QUARTER WHEEL HOUSE, OUTER LH
61634A
PANEL, QUARTER WHEEL HOUSE, INNER LH
61636F
REINFORCEMENT, QUARTER PANEL, UPR LH
61638B
REINFORCEMENT, REAR PILLAR, INNER UPPER LH
61642A
RETAINER, QUARTER PANEL STEP, NO.1 LH
61654A
BRACKET, DECK SIDE TRIM, NO.2
61654C
BRACKET, DECK SIDE TRIM, LH
61666B
REINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, LH
61682A
EXTENSION, REAR WHEEL OPENING, LH
61718A
REINFORCEMENT, QUARTER PANEL EXTENSION, LH
61724A
REINFORCEMENT, QUARTER WINDOW OPENING, LH NO.1
61724B
REINFORCEMENT, QUARTER WINDOW OPENING, NO.2 LH
61732B
PANEL, ROOF SIDE, INNER LH
61734A
PANEL, ROOF SIDE, INNER FRONT LH
61736A
PANEL, ROOF SIDE, INNER REAR LH
61738B
PANEL, ROOF SIDE, INNER LOWER LH
61746A
REINFORCEMENT, BACK DOOR OPENING, LOWER LH
61765A
REINFORCEMENT, SEAT BELT ANCHOR, NO.2 LH
61769E
REINFORCEMENT, BELT ANCHOR TO QUARTER, INNER LOWER LH
61772B
FRAME, BACK DOOR OPENING UPPER CORNER, LH
61776D
FRAME, BACK DOOR OPENING SIDE, LH
61778J
RETAINER, BACK DOOR SIDE STOPPER, LH
61968
BRACKET, REAR SEAT LEG, NO.1 LH
61969
BRACKET, REAR SEAT LEG, NO.2 LH
62554B
PAD, PILLAR, NO.4
62554D
PAD, FRONT PILLER
63176C
REINFORCEMENT, BACK DOOR HINGE FEMALE, LH
64016
PANEL SUB-ASSY, BACK CORNER, INNER LH
64126D
ANCHOR, PILLAR SEAT BELT, LH
68034
BRACKET SUB-ASSY, SLIDE DOOR RAIL, LH
68982A
RETAINER, BACK DOOR STAY, LH
7662828040
Крепеж
7751
переход к группе запчастей
9010511064
Крепеж
9054110038
Крепеж
