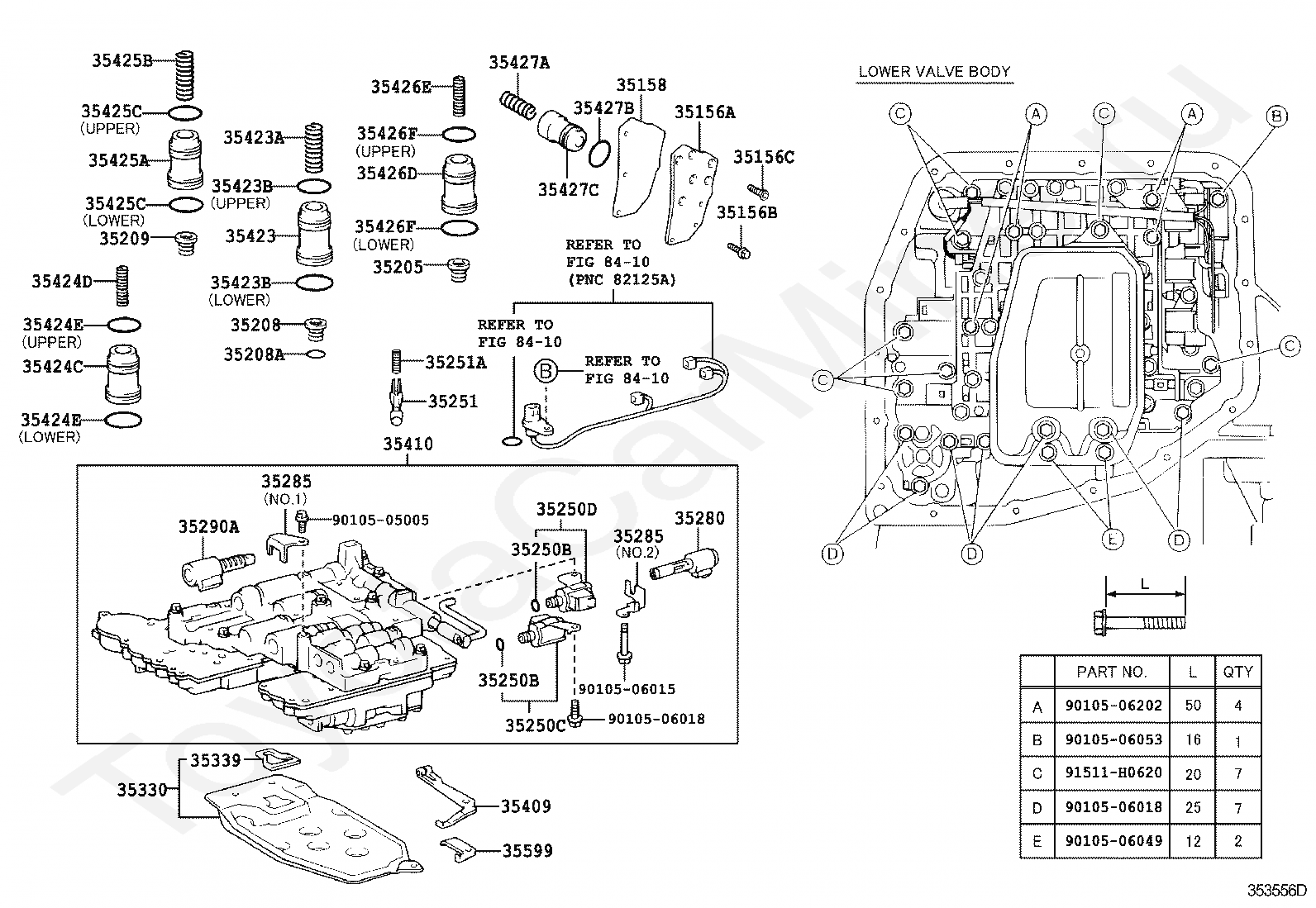

VALVE BODY & OIL STRAINER (ATM) TOYOTA NOAH/VOXY, 2001/11 - 2004/08, 2 литра, 16 клапанов DOHC, EFI, X TYPE, AZR65, АКПП, 4 ступени, на руле

Каталог

Япония

Модель

NOAH/VOXY

Двигатель

2 литра, 16 клапанов DOHC, EFI

Класс

X TYPE

Фрейм

AZR65

Трансмиссия

АКПП, 4 ступени, на руле

Опции

VOXY 8-местный

Код

Описание

35156A

PLATE, TRANSMISSION CASE, NO.2

35156B

BOLT(FOR TRANSMISSION CASE NO.2 PLATE)

35156C

SCREW(FOR TRANSMISSION CASE NO.2 PLATE)

35158

GASKET, TRANSMISSION CASE, NO.2 PLATE

35205

SPRING SUB-ASSY, C-3 ACCUMULATOR

35208

SPRING SUB-ASSY, B-2 ACCUMULATOR

35208A

RING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING)

35209

SPRING SUB-ASSY, C-2 ACCUMULATOR

35250B

RING, O NO.3(FOR TRANSMISSION SOLENOID)

35250C

SOLENOID ASSY, TRANSMISSION NO.1

35250D

SOLENOID ASSY, TRANSMISSION NO.2

35251

BODY, CHECK BALL

35251A

SPRING, COMPRESSION (FOR CHECK BALL BODY)

35280

SOLENOID ASSY, LOCK UP CONTROL

35285

PLATE, SOLENOID LOCK

35290A

SOLENOID ASSY, LINE PRESSURE CONTROL

35330

STRAINER ASSY, VALVE BODY OIL

35339

GASKET, OIL STRAINER

35409

SPRING SUB-ASSY, MANUAL DETENT

35410

BODY ASSY, TRANSMISSION VALVE

35423

PISTON, B-2 ACCUMULATOR

35423A

SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)

35423B

RING, O (FOR B-2 ACCUMULATOR PISTON)

35424C

PISTON, C-1 ACCUMULATOR

35424D

SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)

35424E

RING, O (FOR C-1 ACCUMULATOR PISTON)

35425A

PISTON, C-2 ACCUMULATOR

35425B

SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

35425C

RING, O (FOR C-2 ACCUMULATOR PISTON)

35426D

PISTON, C-3 ACCUMULATOR

35426E

SPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON)

35426F

RING, O (FOR C-3 ACCUMULATOR PISTON)

35427A

SPRING, COMPRESSION (FOR B-4 ACCUMULATOR PISTON)

35427B

RING, O (FOR B-4 ACCUMULATOR PISTON)

35427C

PISTON, B-4 ACCUMULATOR

35599

COVER, MANUAL DETENT SPRING

8410

переход к группе запчастей

9010505005

Крепеж

9010506015

Крепеж

9010506018

Крепеж

9010506049

Крепеж

9010506053

Крепеж

9010506202

Крепеж

91511H0620

Крепеж

Код

Описание

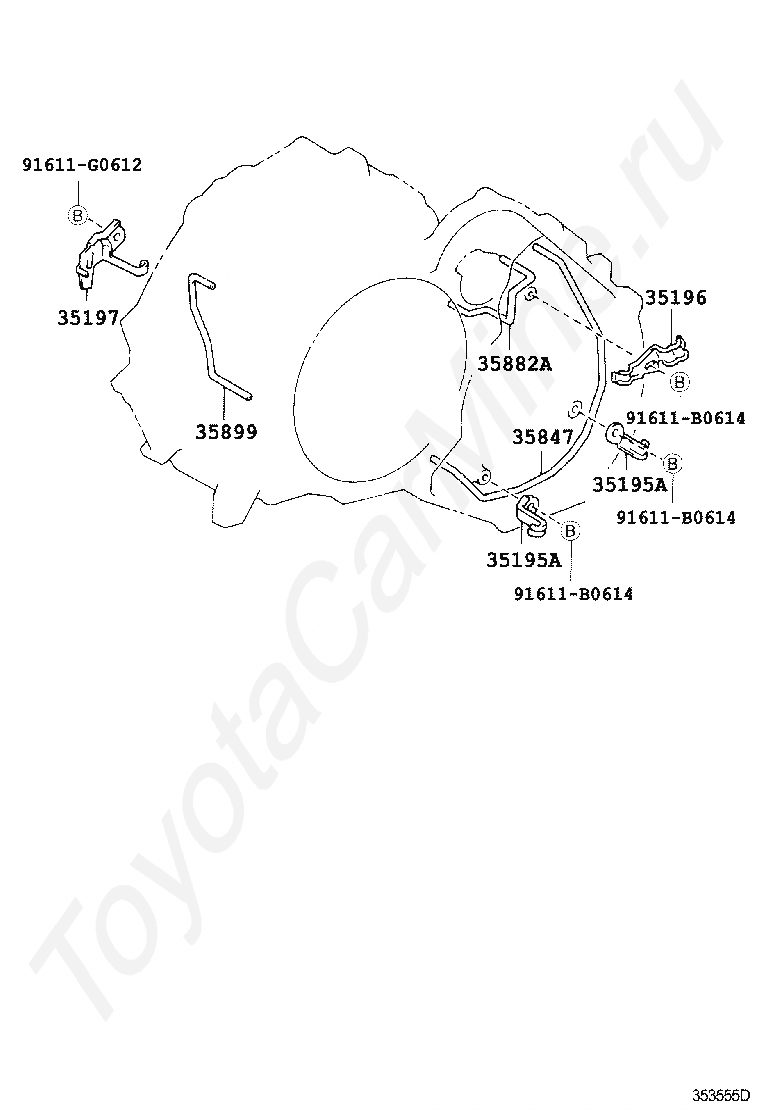

35195A

CLAMP, TRANSAXLE APPLY TUBE, NO.1

35196

CLAMP, TRANSAXLE APPLY TUBE, NO.2

35197

CLAMP, TRANSAXLE APPLY TUBE, NO.3

35847

TUBE, TRANSMISSION LUBE APPLY

35882A

TUBE, DIFFERENTIAL GEAR LUBE APPLY

35899

TUBE, GOVERNOR PRESSURE

91611B0614

Крепеж

91611G0612

Крепеж

VALVE BODY & OIL STRAINER (ATM) TOYOTA NOAH/VOXY, 2001/11 - 2004/08, 2 литра, 16 клапанов DOHC, EFI, X TYPE, AZR65, АКПП, 4 ступени, на руле
