Кресла TOYOTA NOAH/VOXY, 2004/08 - 2007/06, 2 литра, 16 клапанов DOHC, EFI, TRANS-X TYPE, AZR60, вариаторная АКПП, на руле

Каталог

Япония

Модель

NOAH/VOXY

Двигатель

2 литра, 16 клапанов DOHC, EFI

Класс

TRANS-X TYPE

Фрейм

AZR60

Трансмиссия

вариаторная АКПП, на руле

Опции

VOXY 5-местный

Код

Описание

71011S

FRAME SUB-ASSY, FRONT SEAT CUSHION, RH

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71130

LEG ASSY, FRONT SEAT, RH

71139J

COVER, FRONT SEAT LEG, RH(FOR RH SEAT)

71149B

COVER, FRONT SEAT LEG, LH (FOR RH SEAT)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

7152

переход к группе запчастей

71537A

PROTECTOR, FRONT SEAT CUSHION

71537C

PROTECTOR, FRONT SEAT CUSHION EDGE, RH

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71759B

HOOK, FRONT SEAT BACK

71811C

COVER, RECLINING ADJUSTER, RH

71812C

COVER, RECLINING ADJUSTER, LH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71875D

COVER, RECLINING ADJUSTER OUTSIDE, RH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72137J

COVER, FRONT SEAT TRACK, RH REAR OUTER

72137K

COVER, FRONT SEAT TRACK, RH REAR INNER

72143

BRACKET, FRONT SEAT TRACK, LOWER REAR RH(FOR RH SEAT)

72201A

HANDLE SUB-ASSY, SEAT TRACK RH

72265A

COVER, SEAT TRACK UPPER RAIL, RH

72457

KNOB, VERTICAL SEAT ADJUSTER

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

7270228080

Крепеж

72877

COVER, SEAT ARMREST, RH

72880A

ARMREST ASSY, FRONT SEAT, INNER RH

9011910409

Крепеж

9016740044

Крепеж

9020115015

Крепеж

9052001006

Крепеж

9151581025

Крепеж

9353055016

Крепеж

9415010801

Крепеж

9454201400

Крепеж

Код

Описание

71011S

FRAME SUB-ASSY, FRONT SEAT CUSHION, RH

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71130

LEG ASSY, FRONT SEAT, RH

71139J

COVER, FRONT SEAT LEG, RH(FOR RH SEAT)

71149B

COVER, FRONT SEAT LEG, LH (FOR RH SEAT)

71430S

BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

7152

переход к группе запчастей

71537A

PROTECTOR, FRONT SEAT CUSHION

71537C

PROTECTOR, FRONT SEAT CUSHION EDGE, RH

71759B

HOOK, FRONT SEAT BACK

71811C

COVER, RECLINING ADJUSTER, RH

71812C

COVER, RECLINING ADJUSTER, LH

71819B

LABEL, SIDE AIR BAG NAME

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71875D

COVER, RECLINING ADJUSTER OUTSIDE, RH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72137J

COVER, FRONT SEAT TRACK, RH REAR OUTER

72137K

COVER, FRONT SEAT TRACK, RH REAR INNER

72143

BRACKET, FRONT SEAT TRACK, LOWER REAR RH(FOR RH SEAT)

72201A

HANDLE SUB-ASSY, SEAT TRACK RH

72265A

COVER, SEAT TRACK UPPER RAIL, RH

72457

KNOB, VERTICAL SEAT ADJUSTER

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

7270228080

Крепеж

72877

COVER, SEAT ARMREST, RH

72880A

ARMREST ASSY, FRONT SEAT, INNER RH

9011910409

Крепеж

9016740044

Крепеж

9020115015

Крепеж

9052001006

Крепеж

9151581025

Крепеж

9353055016

Крепеж

9415010801

Крепеж

9454201400

Крепеж

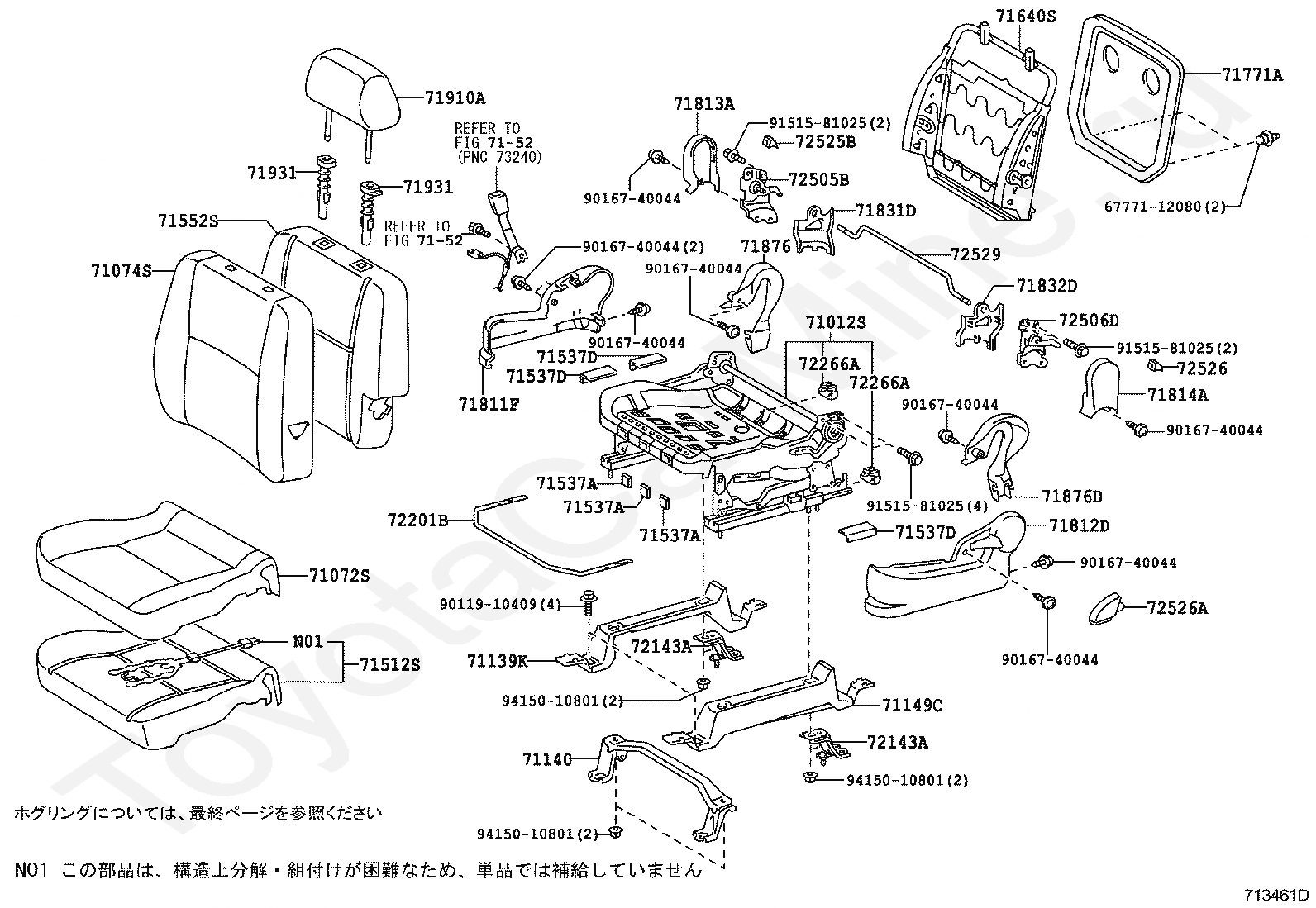

Код

Описание

6777112080

Крепеж

71012S

FRAME SUB-ASSY, FRONT SEAT CUSHION, LH

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71139K

COVER, FRONT SEAT LEG, LH(FOR LH SEAT)

71140

LEG ASSY, FRONT SEAT, LH

71149C

COVER, FRONT SEAT LEG, LH (FOR LH SEAT)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

7152

переход к группе запчастей

71537A

PROTECTOR, FRONT SEAT CUSHION

71537D

PROTECTOR, FRONT SEAT CUSHION EDGE, LH

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71771A

BOARD, FRONT SEAT BACK

71811F

COVER, RECLINING ADJUSTER, RH

71812D

SHIELD, FRONT SEAT CUSHION, LH

71813A

SHIELD, FRONT SEAT BACK, RH

71814A

SHIELD, FRONT SEAT BACK, LH

71831D

COVER, FRONT SEAT HINGE, RH

71832D

COVER, FRONT SEAT HINGE, LH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

71876D

COVER, RECLINING ADJUSTER OUTSIDE, LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72143A

BRACKET, FRONT SEAT TRACK, LOWER REAR(FOR LH SEAT)

72201B

HANDLE SUB-ASSY, SEAT TRACK LH

72266A

COVER, SEAT TRACK UPPER RAIL, LH

72505B

LOCK SUB-ASSY, FRONT SEAT BACK, RH

72506D

LOCK SUB-ASSY, FRONT SEAT BACK, LH

72525B

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

72529

ROD, FRONT SEAT BACK LOCK HANDLE

9011910409

Крепеж

9016740044

Крепеж

9151581025

Крепеж

9415010801

Крепеж

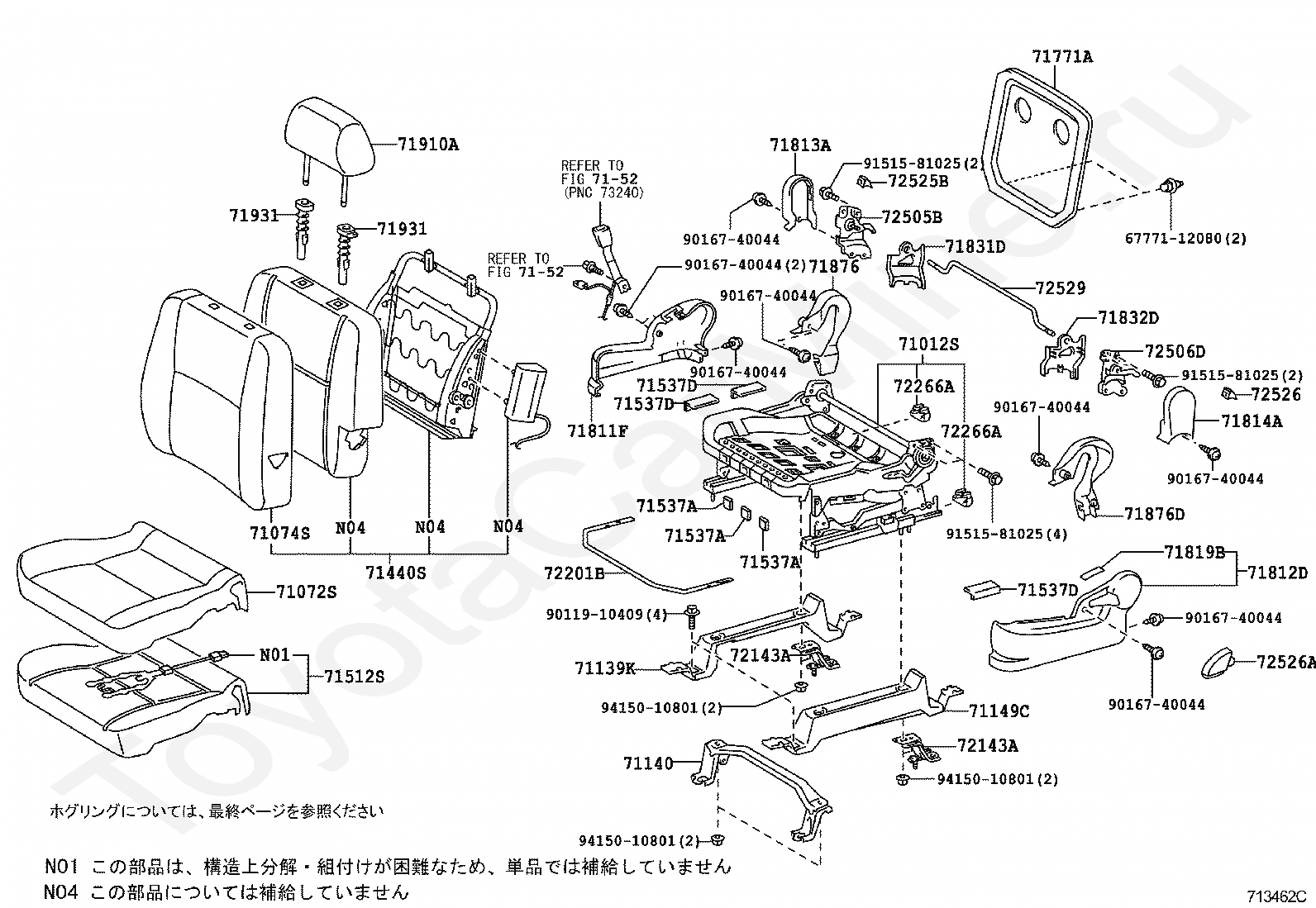

Код

Описание

6777112080

Крепеж

71012S

FRAME SUB-ASSY, FRONT SEAT CUSHION, LH

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71139K

COVER, FRONT SEAT LEG, LH(FOR LH SEAT)

71140

LEG ASSY, FRONT SEAT, LH

71149C

COVER, FRONT SEAT LEG, LH (FOR LH SEAT)

71440S

BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

7152

переход к группе запчастей

71537A

PROTECTOR, FRONT SEAT CUSHION

71537D

PROTECTOR, FRONT SEAT CUSHION EDGE, LH

71771A

BOARD, FRONT SEAT BACK

71811F

COVER, RECLINING ADJUSTER, RH

71812D

SHIELD, FRONT SEAT CUSHION, LH

71813A

SHIELD, FRONT SEAT BACK, RH

71814A

SHIELD, FRONT SEAT BACK, LH

71819B

LABEL, SIDE AIR BAG NAME

71831D

COVER, FRONT SEAT HINGE, RH

71832D

COVER, FRONT SEAT HINGE, LH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

71876D

COVER, RECLINING ADJUSTER OUTSIDE, LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

72143A

BRACKET, FRONT SEAT TRACK, LOWER REAR(FOR LH SEAT)

72201B

HANDLE SUB-ASSY, SEAT TRACK LH

72266A

COVER, SEAT TRACK UPPER RAIL, LH

72505B

LOCK SUB-ASSY, FRONT SEAT BACK, RH

72506D

LOCK SUB-ASSY, FRONT SEAT BACK, LH

72525B

HANDLE, RECLINING ADJUSTER RELEASE, RH

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

72529

ROD, FRONT SEAT BACK LOCK HANDLE

9011910409

Крепеж

9016740044

Крепеж

9151581025

Крепеж

9415010801

Крепеж

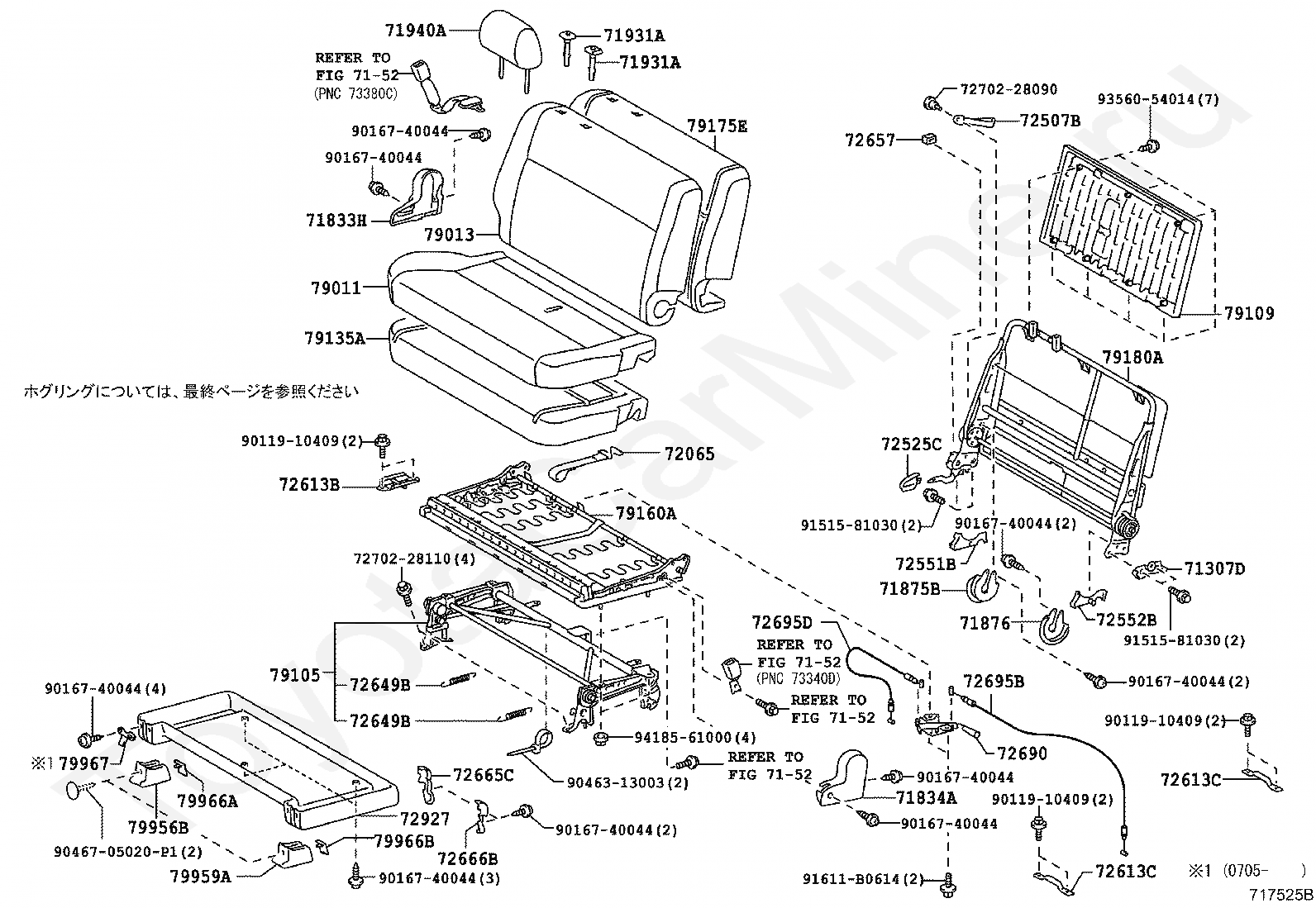

Код

Описание

71307D

BRACKET SUB-ASSY, REAR SEAT CUSHION SUPPORT, RH

7152

переход к группе запчастей

71833H

COVER, REAR SEAT RECLINING, NO.1 RH

71834A

COVER, REAR SEAT RECLINING, NO.1 LH

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72065

BELT SUB-ASSY, REAR SEAT HOOK, RH

72507B

HANDLE SUB-ASSY, RECLINING RELEASE, RH

72525C

HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH

72551B

COVER, RECLINING HINGE, RH

72552B

COVER, RECLINING HINGE, LH

72613B

STRIKER, REAR SEAT LOCK

72613C

STRIKER, REAR SEAT LOCK

72649B

SPRING, REAR SEAT CUSHION SUPPORT

72657

SILENCER, REAR SEAT BACK LOCK CONTROL ROD

72665C

COVER, REAR SEAT LOCK, RH

72666B

COVER, REAR SEAT LOCK, LH

72690

LEVER ASSY, SEAT CUSHION LOCK RELEASE

72695B

CABLE, REAR SEAT LOCK CONTROL, RH

72695D

CABLE, REAR NO.2 SEAT LOCK CONTROL, RH

7270228090

Крепеж

7270228110

Крепеж

72927

COVER, REAR SEAT CUSHION UNDER, RH

79011

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

79013

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79105

LEG SUB-ASSY, NO.1 SEAT, RH

79109

BOARD SUB-ASSY, NO.1 SEAT BACK

79135A

PAD, NO.1 SEAT CUSHION, RH

79160A

SPRING ASSY, NO.1 SEAT CUSHION, RH

79175E

PAD, NO.1 SEAT BACK, RH

79180A

SPRING ASSY, NO.1 SEAT BACK, RH

79956B

COVER, REAR SEAT LEG SIDE, RH

79959A

COVER, REAR SEAT LEG, RH

79966A

COVER, REAR SEAT LEG, RH(FOR RH SEAT)

79966B

COVER, REAR SEAT LEG, LH(FOR RH SEAT)

79967

COVER, REAR SEAT LEG SIDE, NO.4

9011910409

Крепеж

9016740044

Крепеж

9046313003

Крепеж

9046705020P1

Крепеж

9151581030

Крепеж

91611B0614

Крепеж

9356054014

Крепеж

9418561000

Крепеж

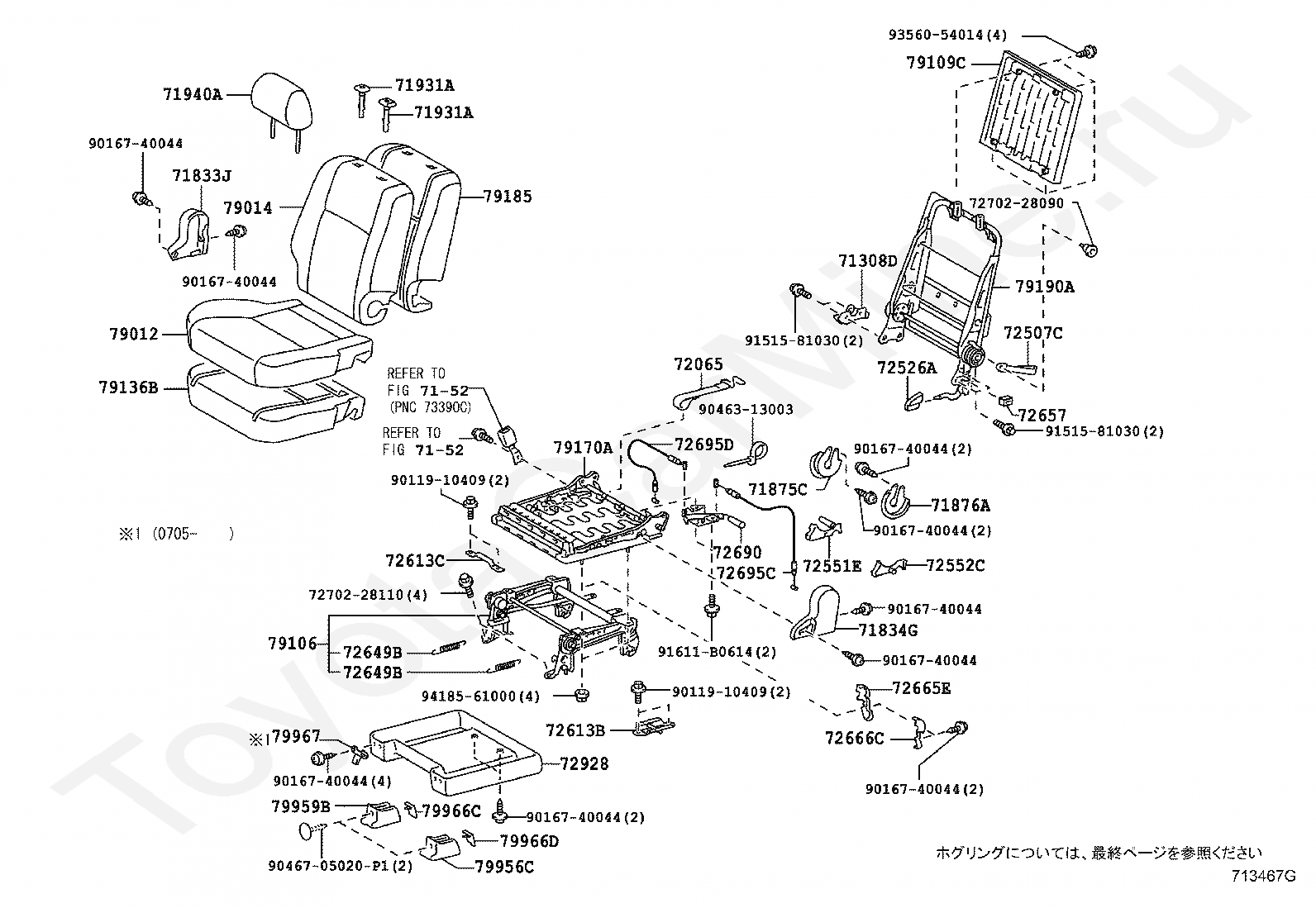

Код

Описание

71308D

BRACKET SUB-ASSY, REAR SEAT CUSHION SUPPORT, LH

71833J

COVER, REAR SEAT RECLINING, NO.1 RH

71834G

COVER, REAR SEAT RECLINING, NO.1 LH

71875C

COVER, RECLINING ADJUSTER INSIDE, RH

71876A

COVER, RECLINING ADJUSTER INSIDE, LH

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72065

BELT SUB-ASSY, REAR SEAT HOOK, RH

72507C

HANDLE SUB-ASSY, RECLINING RELEASE, LH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

72551E

COVER, RECLINING HINGE, RH

72552C

COVER, RECLINING HINGE, LH

72613B

STRIKER, REAR SEAT LOCK

72613C

STRIKER, REAR SEAT LOCK

72649B

SPRING, REAR SEAT CUSHION SUPPORT

72657

SILENCER, REAR SEAT BACK LOCK CONTROL ROD

72665E

COVER, REAR SEAT LOCK, NO.2 RH

72666C

COVER, REAR SEAT LOCK, NO.2 LH

72690

LEVER ASSY, SEAT CUSHION LOCK RELEASE

72695C

CABLE, REAR SEAT LOCK CONTROL, LH

72695D

CABLE, REAR NO.2 SEAT LOCK CONTROL, RH

7270228090

Крепеж

7270228110

Крепеж

72928

COVER, REAR SEAT CUSHION UNDER, LH

79012

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79014

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79106

LEG SUB ASSY, NO.1 SEAT, LH

79109C

BOARD SUB-ASSY, NO.1 SEAT BACK, LH

79136B

PAD, NO.1 SEAT CUSHION, LH

79170A

SPRING ASSY, NO.1 SEAT CUSUION, LH

79185

PAD, NO.1 SEAT BACK, LH

79190A

SPRING ASSY, NO.1 SEAT BACK, LH

79956C

COVER, REAR SEAT LEG SIDE, LH

79959B

COVER, REAR SEAT LEG, LH

79966C

COVER, REAR SEAT LEG, RH(FOR LH SEAT)

79966D

COVER, REAR SEAT LEG(FOR LH SEAT)

79967

COVER, REAR SEAT LEG SIDE, NO.4

9011910409

Крепеж

9016740044

Крепеж

9046313003

Крепеж

9046705020P1

Крепеж

9151581030

Крепеж

91611B0614

Крепеж

9356054014

Крепеж

9418561000

Крепеж

Код

Описание

9046816019

Крепеж

9046818008

Крепеж

Кресла TOYOTA NOAH/VOXY, 2004/08 - 2007/06, 2 литра, 16 клапанов DOHC, EFI, TRANS-X TYPE, AZR60, вариаторная АКПП, на руле
