REAR GATE SLOPE & POWER LIFT TOYOTA NEW MODLE, 2022/01 - 2025, 1,8 литра, 16 клапанов, DOHC, EFI, боковое стекло, ZWR92, вариатор

Каталог

Япония

Модель

NEW MODLE

Двигатель

1,8 литра, 16 клапанов, DOHC, EFI

Класс

боковое стекло

Фрейм

ZWR92

Трансмиссия

вариатор

Опции

VOXY 7-местный HIGH EFFICIENCY TWIN CAM COMPLETED VEHICLE 841W

Код

Описание

37541

RETAINER, SPRING

37541A

RETAINER, SPRING, NO.2

46443A

CAP, CABLE ADJUSTING

48373A

SPACER, REAR SPRING

48401B

BRACKET SUB-ASSY, SPRING, RH

48403C

BRACKET SUB-ASSY, SPRING, LH

48416E

BRACKET, SPRING, NO.4

51543B

BRACKET, DAMPER

65604C

LINK SUB-ASSY, TAIL GATE LOCK CONNECTING

65758D

COVER, TAIL GATE, INNER

65758E

CLIP, TAIL GATE COVER, NO.1

65758F

CLIP, TAIL GATE COVER, NO.2

65780B

LOCK ASSY, TAIL GATE, RH

65780C

LOCK ASSY, TAIL GATE, LH

66170C

LATCH ASSY, TAIL GATE, RH

66180C

LATCH ASSY, TAIL GATE, LH

66331

CUSHION, GATE

67869Q

CLIP

67882E

WEATHERSTRIP, TAIL GATE

69410E

PLATE ASSY, DOOR LOCK STRIKER

69410F

PLATE ASSY, LOCK STRIKER

72525L

HANDLE, RECLINING ADJUSTER RELEASE, RH

9010506255

Крепеж

9011908D31

Крепеж

9014880066

Крепеж

9017606045

Крепеж

9020108055

Крепеж

9050610040

Крепеж

9054110058

Крепеж

9155180820

Крепеж

91551G0620

Крепеж

9415120600

Крепеж

9415180600

Крепеж

C3341

SUPPORT, SLIDE FLOOR PANEL, NO.1

C3342

SUPPORT, SLIDE FLOOR PANEL, NO.2

C3379V1010

Крепеж

C3593A

SILENCER, REAR FLOOR, NO.3

C9001

GATE SUB-ASSY, TAIL

C9040

SLOPE ASSY, REAR GATE

C9127

COVER, TAIL GATE TOP RAIL

C9211

SPRING, TAIL GATE NO.1

C9212

SPRING, TAIL GATE NO.2

C9213

SPRING, TAIL GATE NO.3

C9214

SPRING, TAIL GATE NO.4

C9256

COVER, TAIL GATE LOCK

C9256D

COVER, TAIL GATE LOCK, NO.2

C9589

SPRING, PLATFORM LOCK HANDLE

C991640001

Крепеж

C992605005

Крепеж

Код

Описание

64008

BELT SET, WHEEL CHAIR

C6521

PLATE, WHEEL CHAIR LOCK HOLDER

C6521A

PLATE, WHEEL CHAIR LOCK HOLDER, NO.2

C6550B

BELT ASSY, WHEEL CHAIR SET, NO.1

C6550D

BELT ASSY, WHEEL CHAIR SET, NO.1

C6550E

BELT ASSY, WHEEL CHAIR SET, NO.2

C6550G

BELT ASSY, WHEEL CHAIR SET, NO.1

C6590A

HEADREST ASSY, WHEEL CHAIR

C991322003

Крепеж

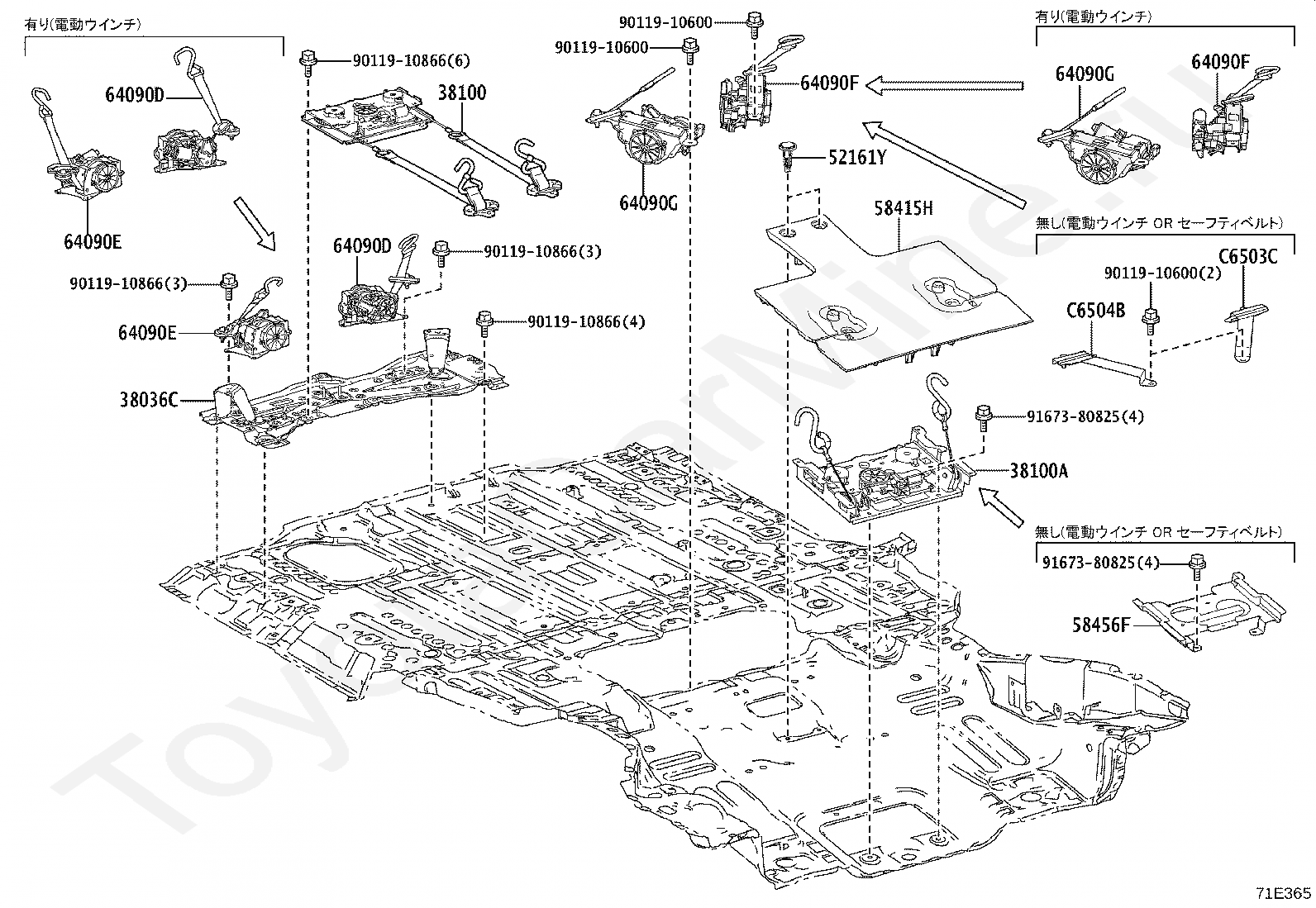

Код

Описание

38036C

BRACKET SUB-ASSY, WINCH ROLLER

38100

WINCH ASSY, W/BASE, NO.1

38100A

WINCH ASSY, W/BASE, NO.2

52161Y

PIECE, REAR FLOOR BOARD

58415H

BOARD, REAR FLOOR, NO.1

58456F

BRACKET, REAR FLOOR MAT SUPPORT

64090D

BELT ASSY, WHEEL CHAIR, NO.1 RH

64090E

BELT ASSY, WHEEL CHAIR, NO.1 LH

64090F

BELT ASSY, WHEEL CHAIR, NO.2 RH

64090G

BELT ASSY, WHEEL CHAIR, NO.2 LH

9011910600

Крепеж

9011910866

Крепеж

9167380825

Крепеж

C6503C

SUPPORT SUB-ASSY, WHEEL CHAIR WHEEL, REAR RH

C6504B

SUPPORT SUB-ASSY, WHEEL CHAIR WHEEL, REAR LH

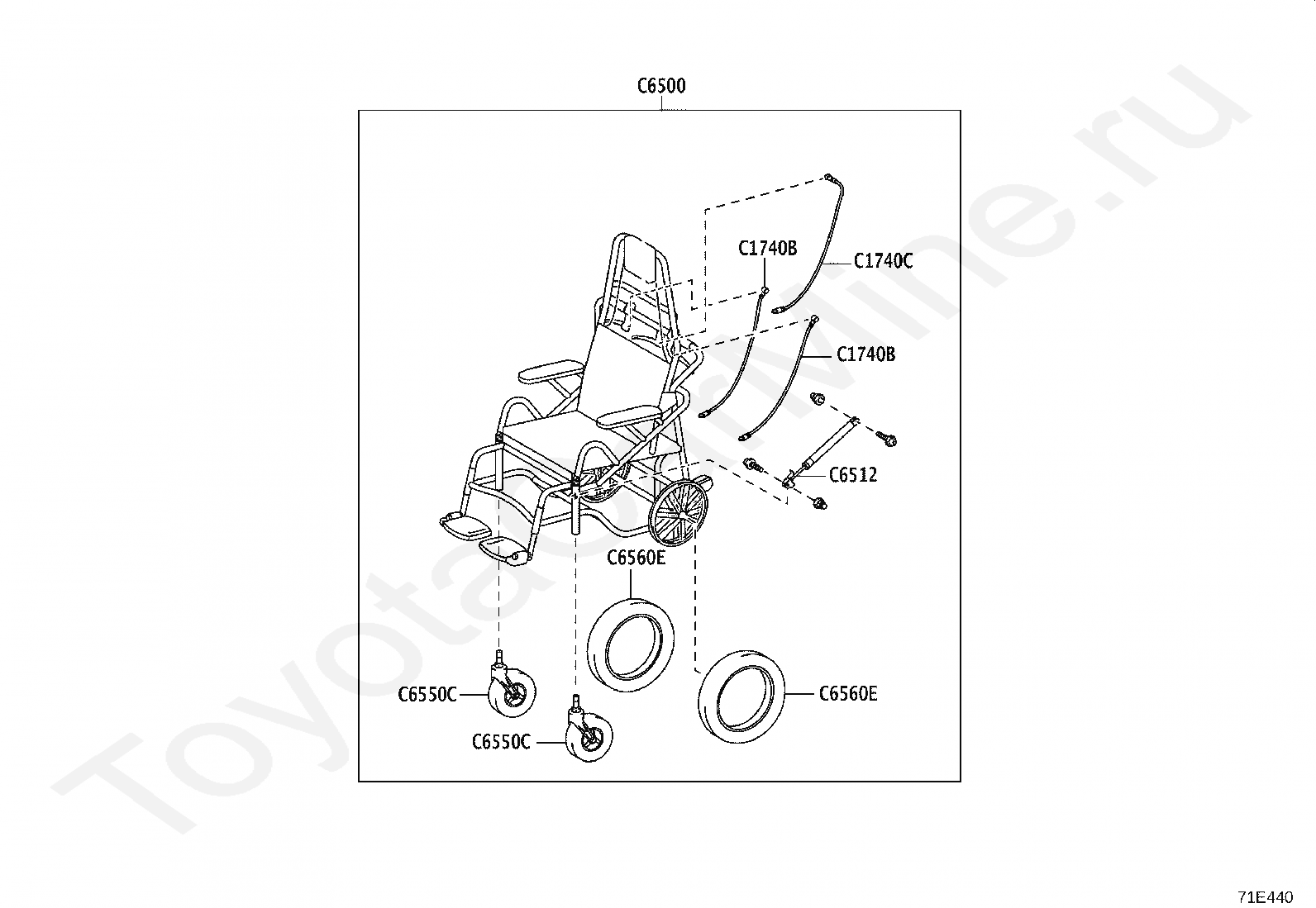

Код

Описание

C1740B

CABLE ASSY, BRAKE CONTROL, NO.1

C1740C

CABLE ASSY, BRAKE CONTROL, NO.2

C6500

WHEEL CHAIR ASSY

C6512

STAY, WHEEL CHAIR HOLDER,REAR

C6550C

WHEEL ASSY, WELCAB WHEEL CHAIR, FRONT

C6560E

WHEEL ASSY, WELCAB WHEEL CHAIR, REAR

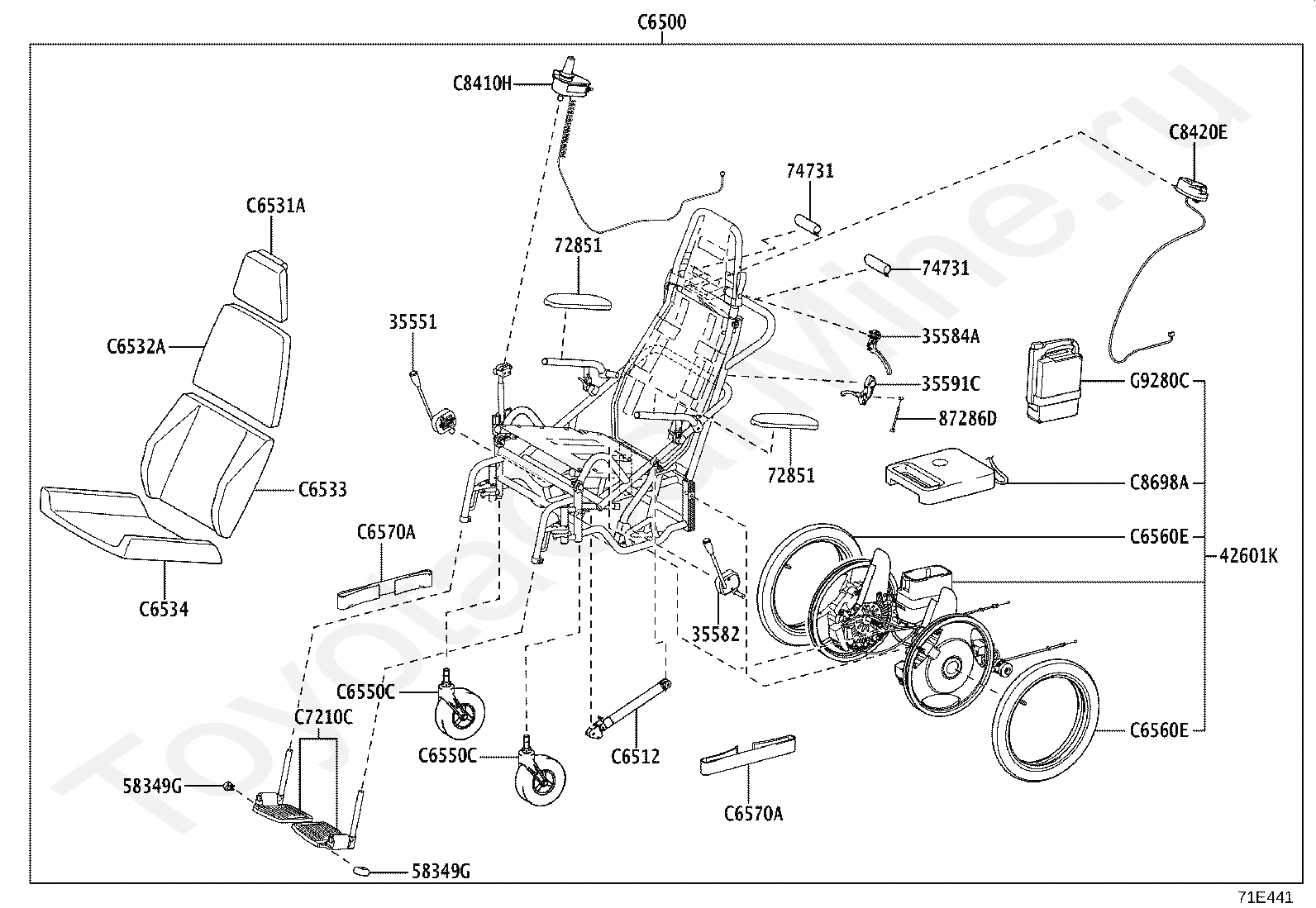

Код

Описание

35551

LEVER, PARKING LOCK, NO.1

35582

LEVER, PARKING LOCK, NO.2

35584A

LEVER, PARKING LOCK, NO.3

35591C

LEVER, TOGGLE

42601K

WHEEL SUB-ASSY, DISC

58349G

PROTECTOR, FOOTREST

72851

PAD, ARM SUPPORT

74731

PIPE, HAND GRIP, NO.1

87286D

CABLE, CONTROL

C6500

WHEEL CHAIR ASSY

C6512

STAY, WHEEL CHAIR HOLDER,REAR

C6531A

CUSHION, HEADREST

C6532A

CUSHION, SHOULDER

C6533

CUSHION, LUMBER

C6534

CUSHION, WHEEL CHAIR SEAT

C6550C

WHEEL ASSY, WELCAB WHEEL CHAIR, FRONT

C6560E

WHEEL ASSY, WELCAB WHEEL CHAIR, REAR

C6570A

BELT ASSY, WHEEL CHAIR SET, NO.3

C7210C

FOOTREST ASSY, WELCAB SEAT

C8410H

SWITCH ASSY, CONTROL, NO.1

C8420E

SWITCH ASSY, CONTROL, NO.2

C8698A

CHARGER, BATTERY

G9280C

BATTERY ASSY, WHEEL CHAIR

REAR GATE SLOPE & POWER LIFT TOYOTA NEW MODLE, 2022/01 - 2025, 1,8 литра, 16 клапанов, DOHC, EFI, боковое стекло, ZWR92, вариатор
