REAR SEAT & SEAT TRACK TOYOTA NEW MODLE, 2022/01 - 2025, 2000CC 16-VALVE DOHC, X TYPE, MZRA95, вариатор

Каталог

Япония

Модель

NEW MODLE

Двигатель

2000CC 16-VALVE DOHC

Класс

X TYPE

Фрейм

MZRA95

Трансмиссия

вариатор

Опции

NOAH 8-местный двигатель с прямым впрыском топлива COMPLETED VEHICLE 841W

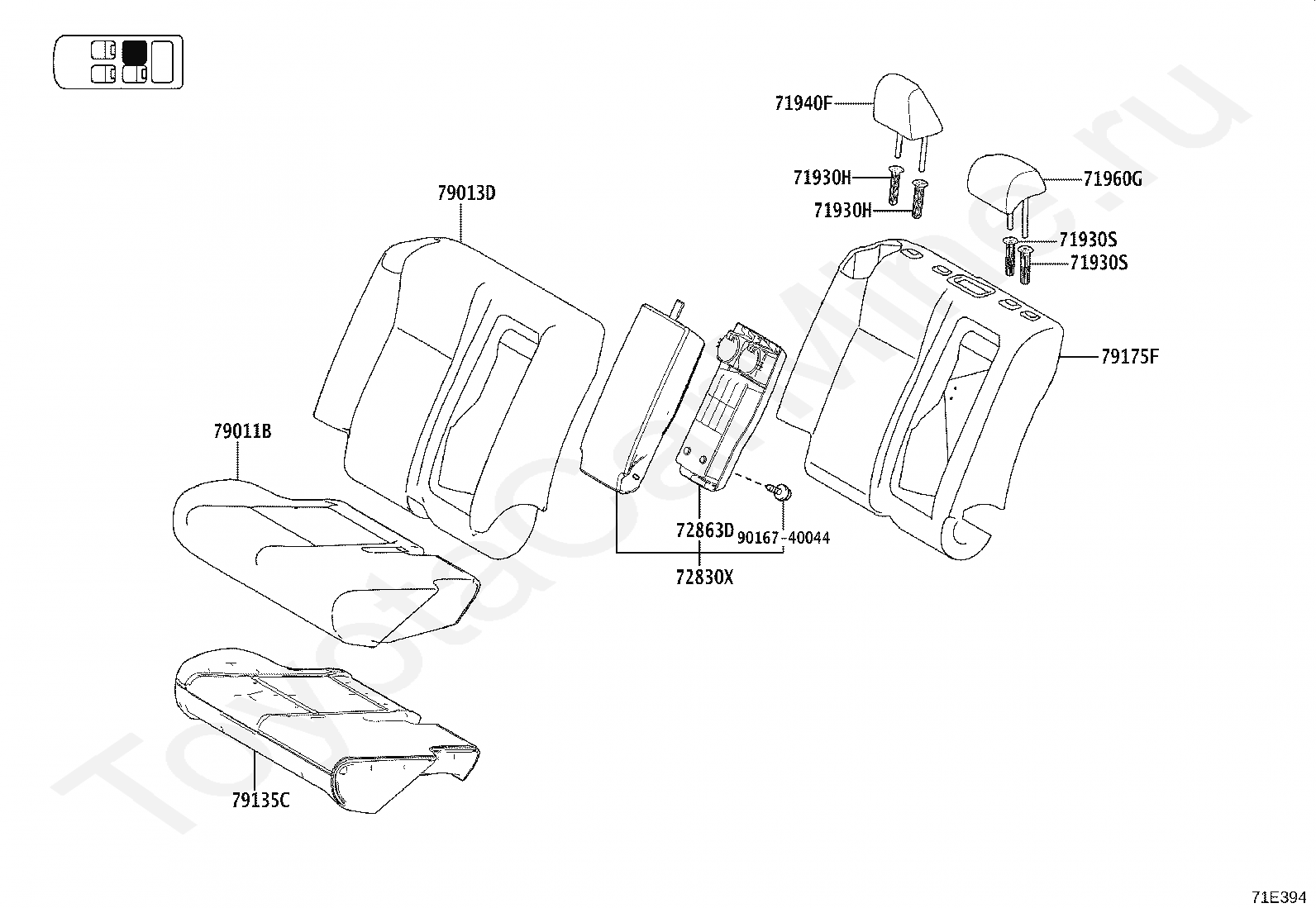

Код

Описание

71930H

SUPPORT ASSY, NO.1 SEAT HEADREST, RH

71930S

SUPPORT ASSY, REAR NO.1 SEAT HEADREST, CENTER

71940F

HEADREST ASSY, NO.1 SEAT, RH

71960G

HEADREST ASSY, REAR NO.1 SEAT, CENTER

72830X

ARMREST ASSY, REAR SEAT, CENTER

72863D

BOX, REAR SEAT CENTER ARMREST

79011B

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

79013D

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79135C

PAD, NO.1 SEAT CUSHION, RH

79175F

PAD, NO.1 SEAT BACK, RH

9016740044

Крепеж

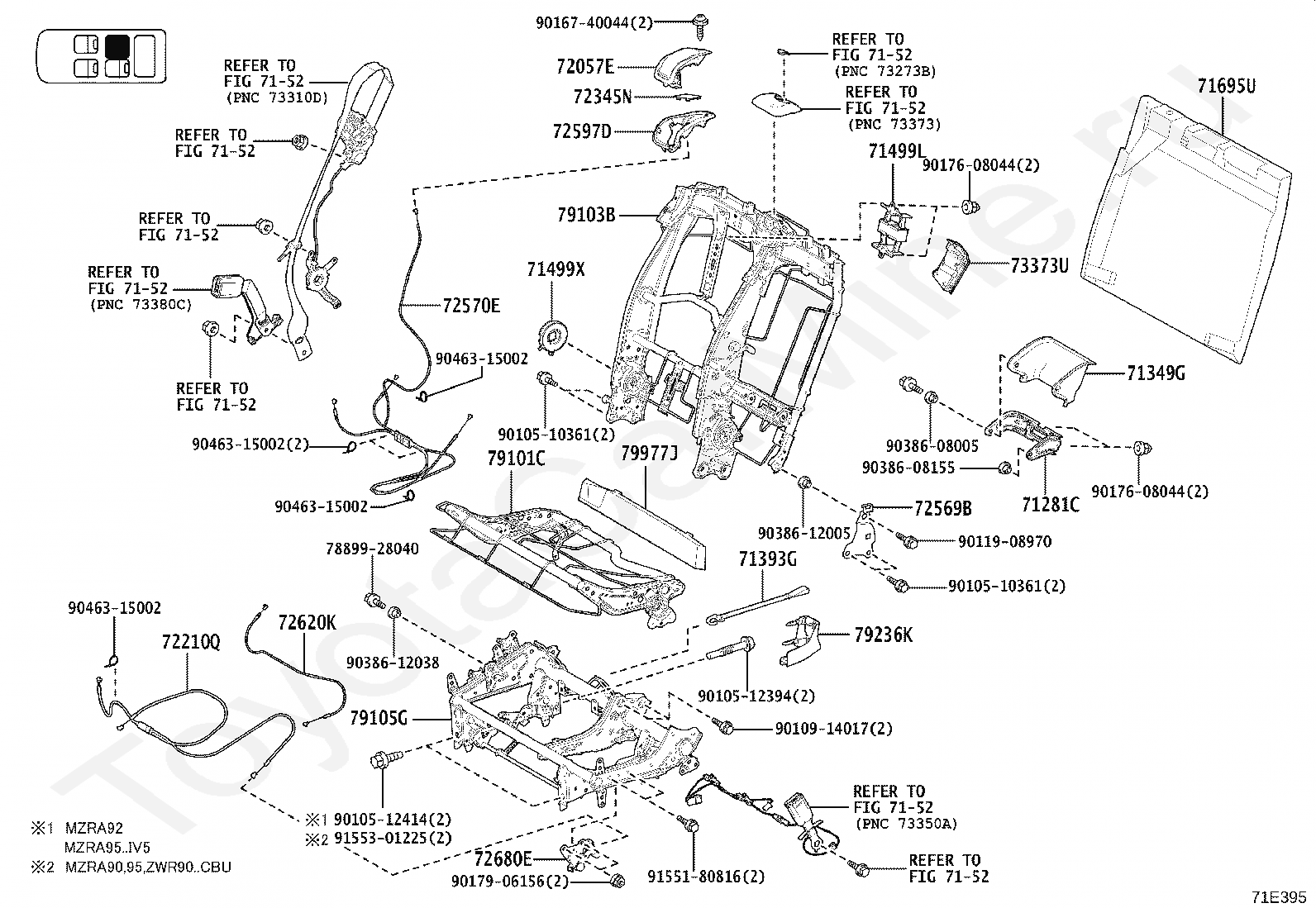

Код

Описание

71281C

HINGE, NO.1 SEAT CENTER ARMREST

71349G

COVER, REAR SEAT BACK HINGE

71393G

BAND, NO.1 SEAT CUSHION(FOR RH SEAT)

71499L

DAMPER, NO.1 SEAT BACK SPRING, RH

71499X

DAMPER, NO.1 SEAT BACK SPRING, RH NO.2

7152

переход к группе запчастей

71695U

PROTECTOR, NO.1 SEAT BACK STAY(FOR RH SEAT)

72057E

LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH NO.1

72210Q

CABLE ASSY, NO.1 SEAT SLIDE, RH

72345N

CAP, SEAT STAND FRAME, RH NO.1

72569B

PLATE, SEAT BACK STOPPER

72570E

CABLE ASSY, NO.1 SEAT RECLINING ADJUSTING, RH

72597D

BEZEL, RECLINING REMOTE CONTROL, RH

72620K

CABLE ASSY, NO.1 SEAT WALK-IN, RH

72680E

LOCK ASSY, REAR SEAT CUSHION, LH

73373U

COVER, NO.1 SEAT SHOULDER BELT, RH NO.1

7889928040

Крепеж

79101C

FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH

79103B

FRAME SUB-ASSY, NO.1 SEAT BACK, RH

79105G

LEG SUB-ASSY, NO.1 SEAT, RH

79236K

COVER, NO.1 SEAT LEG, NO.1

79977J

FELT, SEAT BACK

9010510361

Крепеж

9010512394

Крепеж

9010512414

Крепеж

9010914017

Крепеж

9011908970

Крепеж

9016740044

Крепеж

9017608044

Крепеж

9017906156

Крепеж

9038608005

Крепеж

9038608155

Крепеж

9038612005

Крепеж

9038612038

Крепеж

9046315002

Крепеж

9155180816

Крепеж

9155301225

Крепеж

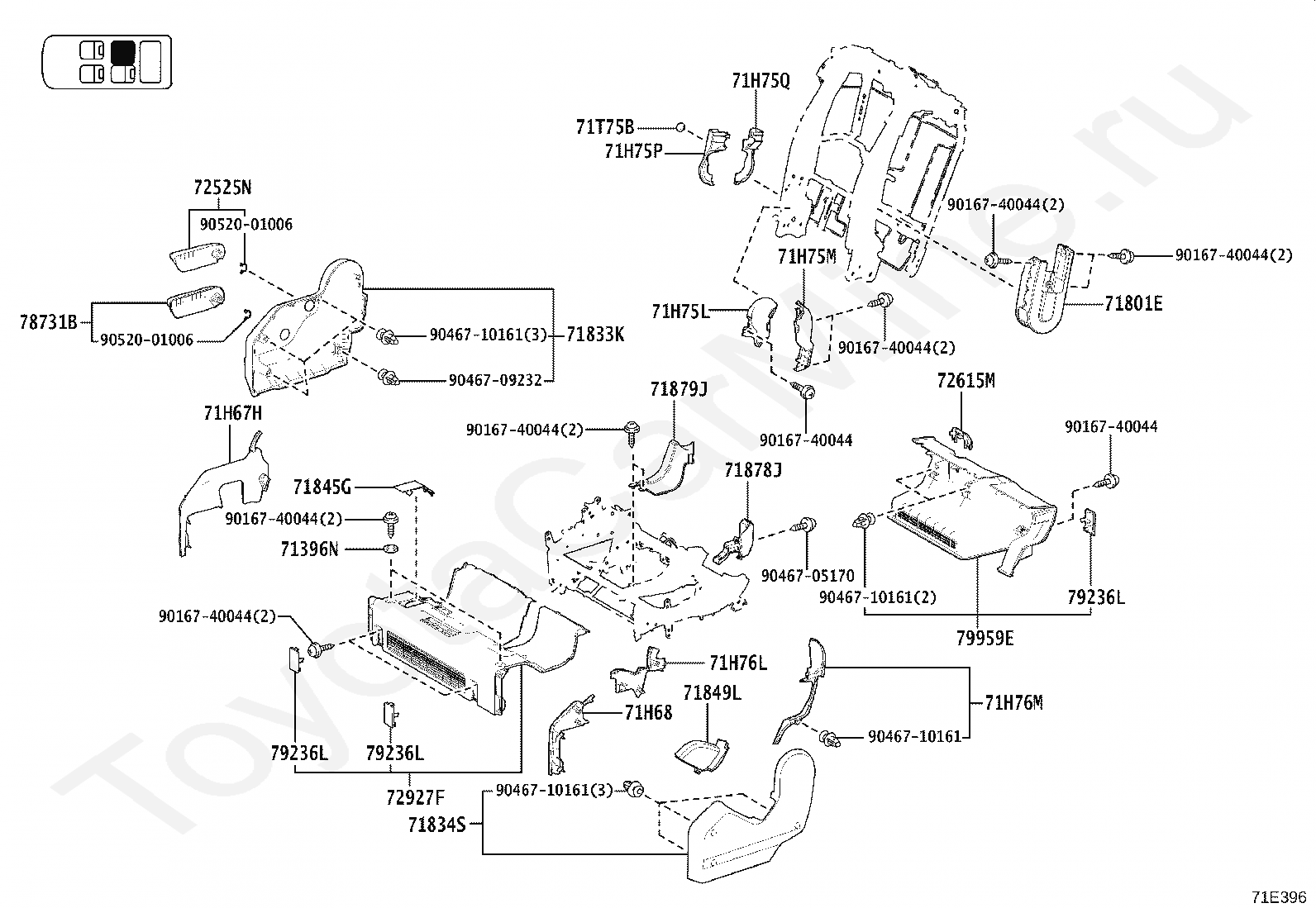

Код

Описание

71396N

CUSHION, NO.1 SEAT SUPPORT, REAR(FOR RH SEAT)

71801E

COVER SUB-ASSY, NO.1 SEAT RECLINING ADJUSTER, RH

71833K

COVER, NO.1 SEAT RECLINING, NO.1 RH OUTER

71834S

COVER, REAR SEAT RECLINING, NO.1 LH

71845G

CAP, REAR SEAT COVER, RH

71849L

CAP, NO.1 SEAT ADJUSTER COVER, LH

71878J

COVER, REAR NO.1 SEAT RECLINING, INNER RH

71879J

COVER, REAR NO.1 SEAT RECLINING, INNER LH

71H67H

SHIELD, REAR SEAT CUSHION, INNER NO.1 RH(FOR RH SEAT)

71H68

SHIELD, REAR SEAT CUSHION, INNER NO.1 LH

71H75L

COVER, RECLINING ADJUSTER INSIDE, RH NO.1(FOR RH SEAT)

71H75M

COVER, RECLINING ADJUSTER INSIDE, RH NO.2(FOR RH SEAT)

71H75P

COVER, RECLINING ADJUSTER INSIDE, RH NO.1(FOR RH SEAT BACK)

71H75Q

COVER, RECLINING ADJUSTER INSIDE, RH NO.2(FOR RH SEAT BACK)

71H76L

COVER, RECLINING ADJUSTER INSIDE, LH NO.1(FOR RH SEAT)

71H76M

COVER, RECLINING ADJUSTER INSIDE, LH NO.2(FOR RH SEAT)

71T75B

CLIP, RECLINING ADJUSTER INSIDE COVER, RH

72525N

HANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, RH

72615M

COVER, NO.1 SEAT BACK LOCK STRIKER(FOR RH SEAT)

72927F

COVER, REAR SEAT CUSHION UNDER, RH

78731B

LEVER, SUB SEAT CUSHION(FOR RH SEAT)

79236L

COVER, REAR SEAT LEG, RH

79959E

COVER, NO.1 SEAT LEG, RH

9016740044

Крепеж

9046705170

Крепеж

9046709232

Крепеж

9046710161

Крепеж

9052001006

Крепеж

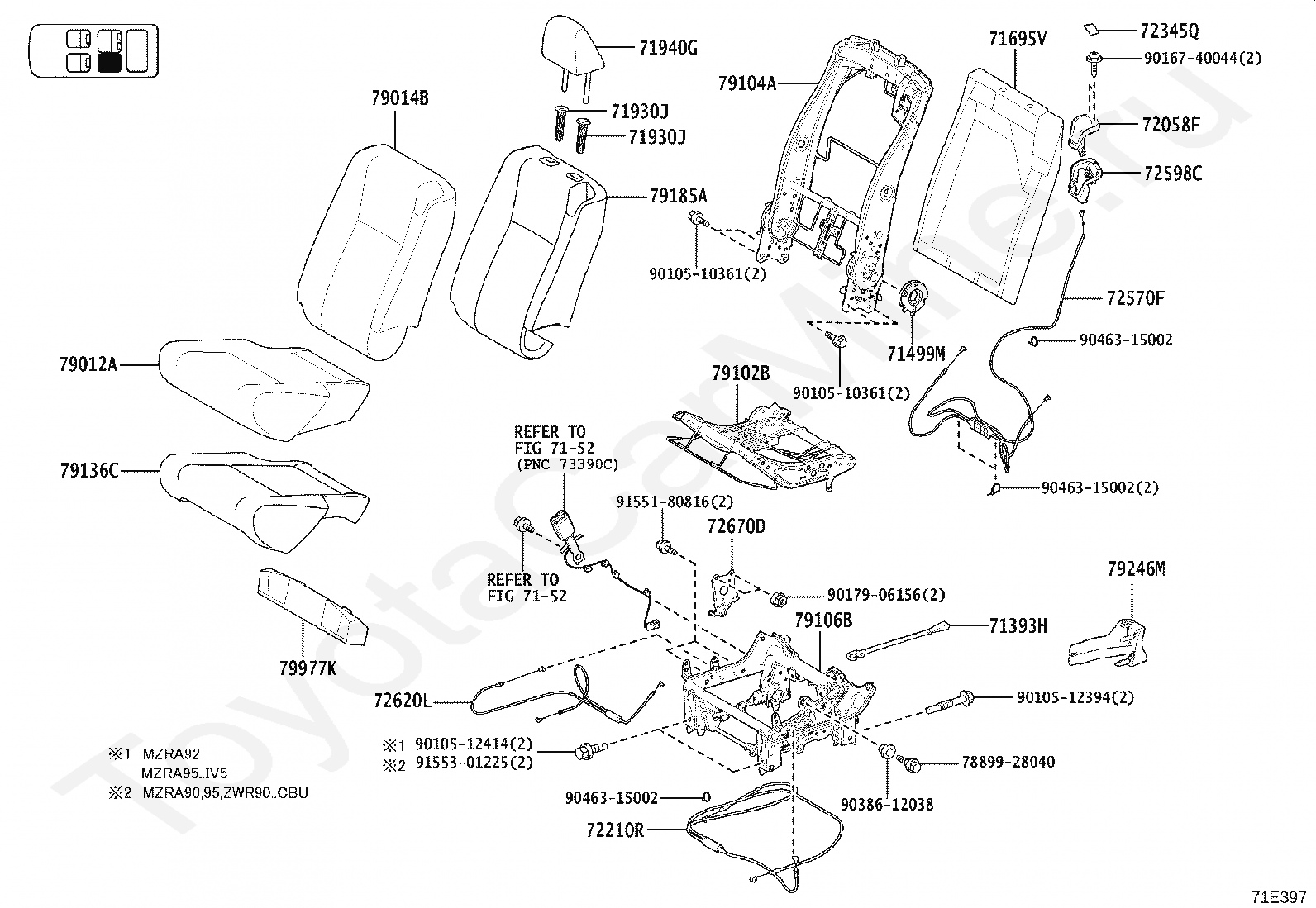

Код

Описание

71393H

BAND, NO.1 SEAT CUSHION(FOR LH SEAT)

71499M

DAMPER, NO.1 SEAT BACK SPRING, LH

7152

переход к группе запчастей

71695V

PROTECTOR, NO.1 SEAT BACK STAY(FOR LH SEAT)

71930J

SUPPORT ASSY, NO.1 SEAT HEADREST, LH

71940G

HEADREST ASSY, NO.1 SEAT, LH

72058F

LEVER SUB-ASSY, NO.1 SEAT LOCK CONTROL, LH

72210R

CABLE ASSY, NO.1 SEAT SLIDE, LH

72345Q

CAP, SEAT STAND FRAME, LH NO.1

72570F

CABLE ASSY, NO.1 SEAT RECLINING ADJUSTING, LH

72598C

BEZEL, RECLINING REMOTE CONTROL, LH

72620L

CABLE ASSY, NO.1 SEAT WALK-IN, LH

72670D

LOCK ASSY, REAR SEAT CUSHION, RH

7889928040

Крепеж

79012A

COVER SUB-ASSY, NO.1 SEAT CUSHION, LH

79014B

COVER SUB-ASSY, NO.1 SEAT BACK, LH

79102B

FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH

79104A

FRAME SUB-ASSY, NO.1 SEAT BACK, LH

79106B

LEG SUB-ASSY, NO.1 SEAT, LH

79136C

PAD, NO.1 SEAT CUSHION, LH

79185A

PAD, NO.1 SEAT BACK, LH

79246M

COVER, REAR SEAT LEG, LH

79977K

FELT, SEAT BACK, NO.2

9010510361

Крепеж

9010512394

Крепеж

9010512414

Крепеж

9016740044

Крепеж

9017906156

Крепеж

9038612038

Крепеж

9046315002

Крепеж

9155180816

Крепеж

9155301225

Крепеж

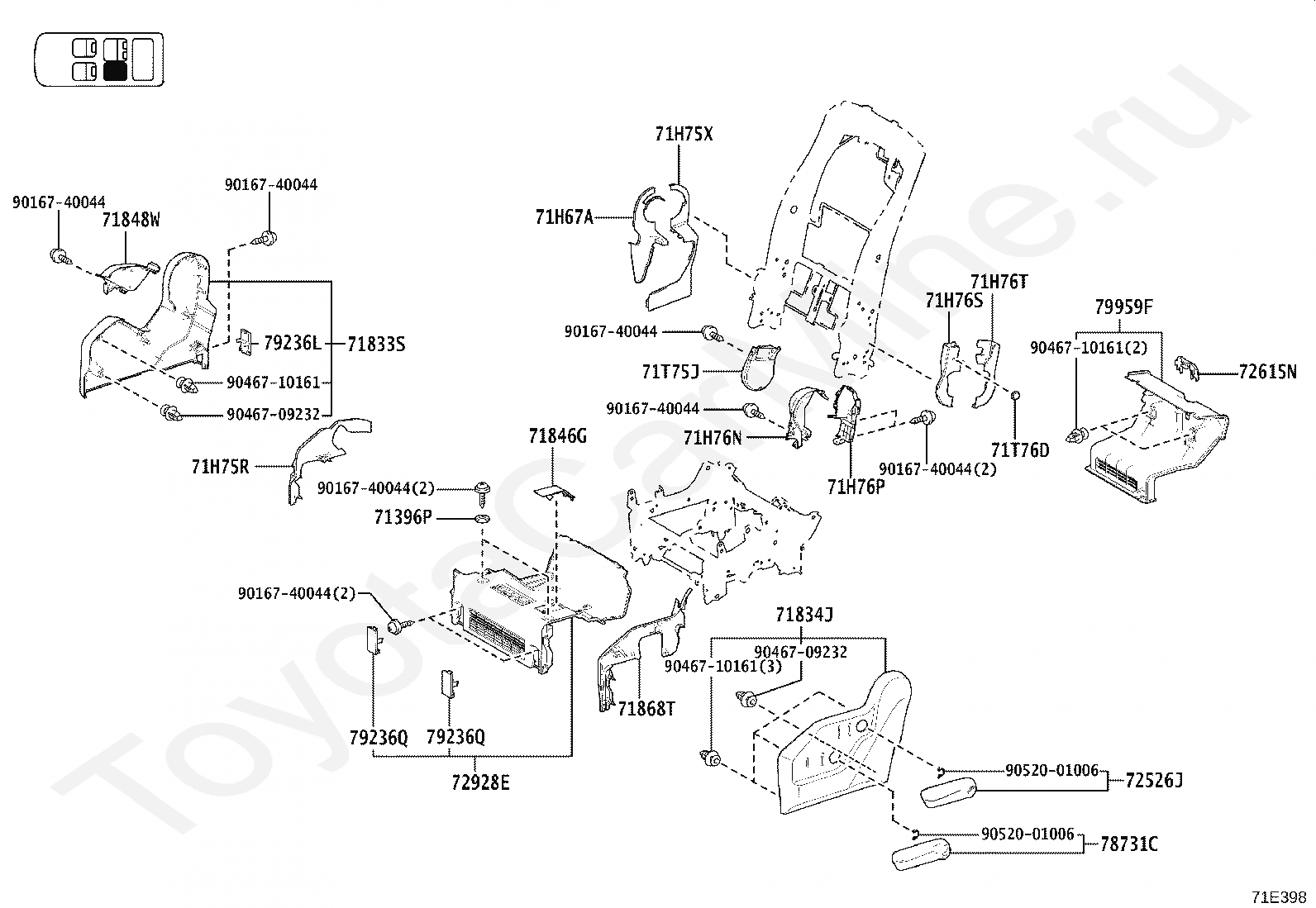

Код

Описание

71396P

CUSHION, NO.1 SEAT SUPPORT, REAR(FOR LH SEAT)

71833S

COVER, REAR SEAT RECLINING, NO.1 RH

71834J

COVER, NO.1 SEAT RECLINING, NO.1 LH OUTER

71846G

CAP, REAR SEAT COVER, LH

71848W

CAP, NO.1 SEAT ADJUSTER COVER, RH(FOR LH SEAT)

71868T

SHIELD, REAR SEAT CUSHION, INNER NO.1 LH

71H67A

SHIELD, NO.1 SEAT CUSHION, INNER NO.1 RH(FOR LH SEAT)

71H75R

COVER, RECLINING ADJUSTER INSIDE, RH NO.1(FOR LH SEAT)

71H75X

COVER, RECLINING ADJUSTER INSIDE, RH NO.2(FOR LH SEAT)

71H76N

COVER, RECLINING ADJUSTER INSIDE, LH NO.1(FOR LH SEAT)

71H76P

COVER, RECLINING ADJUSTER INSIDE, LH NO.2(FOR LH SEAT)

71H76S

COVER, RECLINING ADJUSTER INSIDE, LH NO.1(FOR LH SEAT BACK)

71H76T

COVER, RECLINING ADJUSTER INSIDE, LH NO.2(FOR LH SEAT BACK)

71T75J

COVER, RECLINING ADJUSTER INSIDE, RH NO.3(FOR LH SEAT)

71T76D

CLIP, RECLINING ADJUSTER INSIDE COVER, LH

72526J

HANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, LH

72615N

COVER, NO.1 SEAT BACK LOCK STRIKER(FOR LH SEAT)

72928E

COVER, REAR SEAT CUSHION UNDER, LH

78731C

LEVER, SUB SEAT CUSHION(FOR LH SEAT)

79236L

COVER, REAR SEAT LEG, RH

79236Q

COVER, NO.1 SEAT LEG, NO.2(FOR LH SEAT)

79959F

COVER, NO.1 SEAT LEG, LH

9016740044

Крепеж

9046709232

Крепеж

9046710161

Крепеж

9052001006

Крепеж

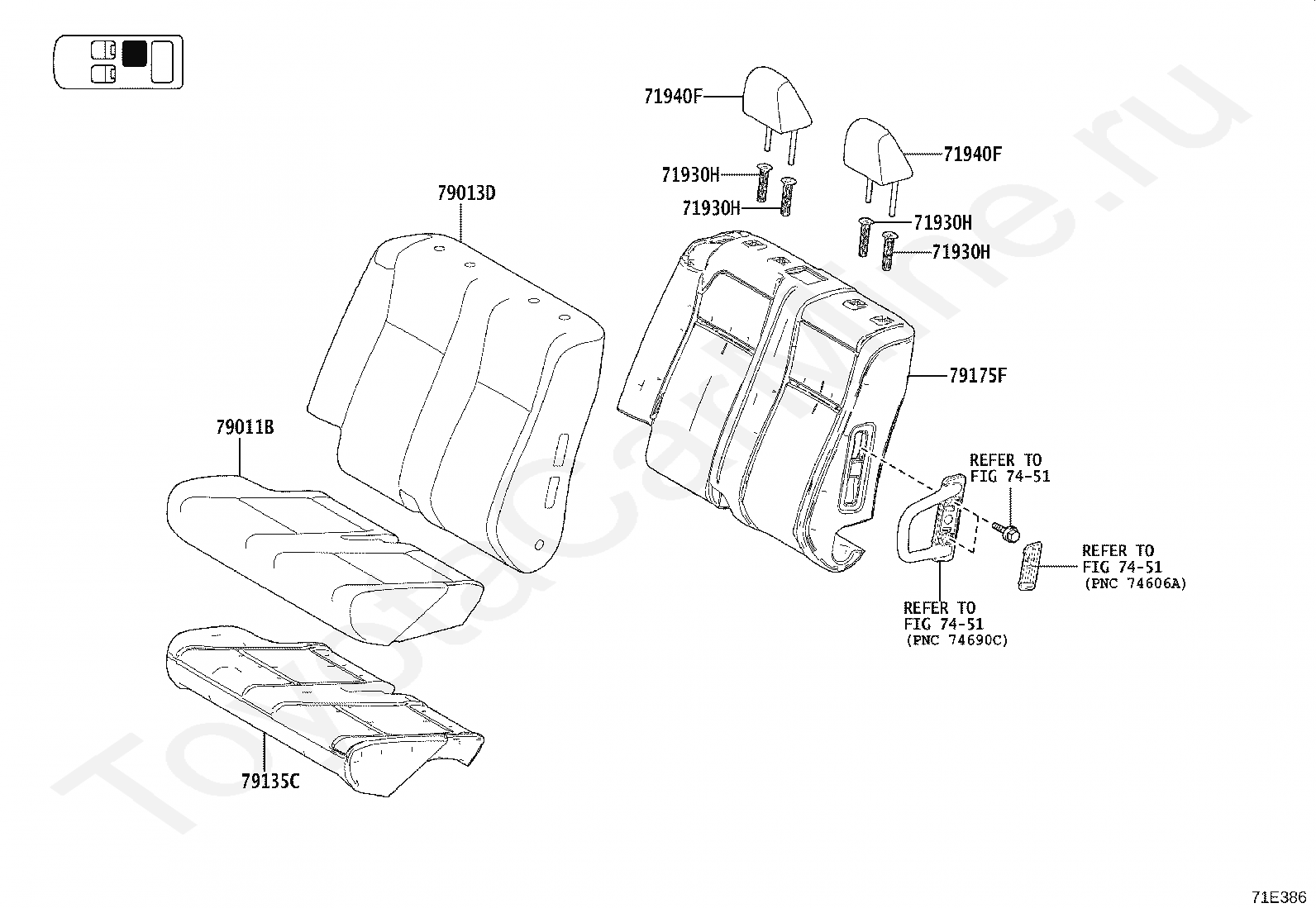

Код

Описание

71930H

SUPPORT ASSY, NO.1 SEAT HEADREST, RH

71940F

HEADREST ASSY, NO.1 SEAT, RH

7451

переход к группе запчастей

79011B

COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

79013D

COVER SUB-ASSY, NO.1 SEAT BACK, RH

79135C

PAD, NO.1 SEAT CUSHION, RH

79175F

PAD, NO.1 SEAT BACK, RH

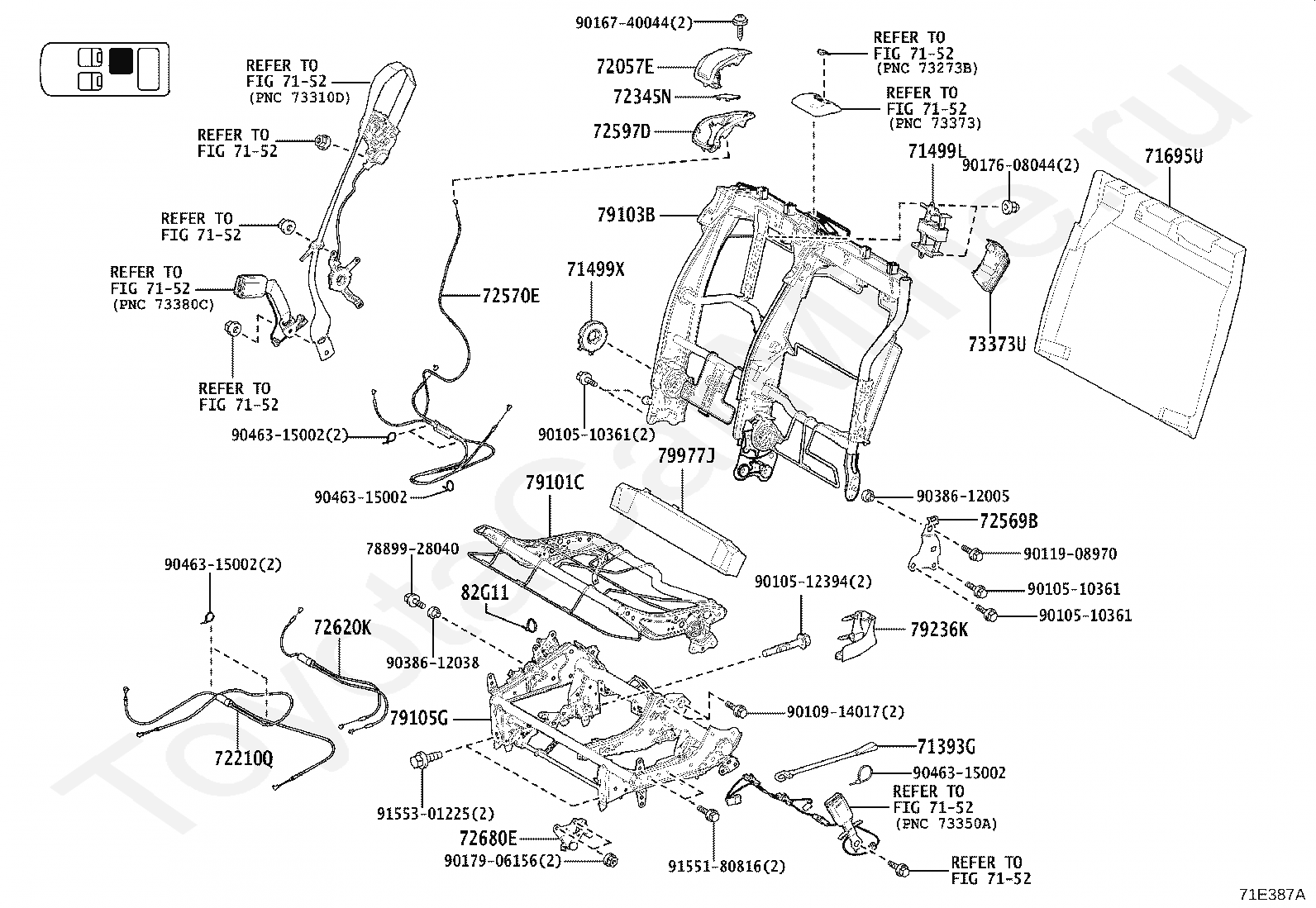

Код

Описание

71393G

BAND, NO.1 SEAT CUSHION(FOR RH SEAT)

71499L

DAMPER, NO.1 SEAT BACK SPRING, RH

71499X

DAMPER, NO.1 SEAT BACK SPRING, RH NO.2

7152

переход к группе запчастей

71695U

PROTECTOR, NO.1 SEAT BACK STAY(FOR RH SEAT)

72057E

LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH NO.1

72210Q

CABLE ASSY, NO.1 SEAT SLIDE, RH

72345N

CAP, SEAT STAND FRAME, RH NO.1

72569B

PLATE, SEAT BACK STOPPER

72570E

CABLE ASSY, NO.1 SEAT RECLINING ADJUSTING, RH

72597D

BEZEL, RECLINING REMOTE CONTROL, RH

72620K

CABLE ASSY, NO.1 SEAT WALK-IN, RH

72680E

LOCK ASSY, REAR SEAT CUSHION, LH

73373U

COVER, NO.1 SEAT SHOULDER BELT, RH NO.1

7889928040

Крепеж

79101C

FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH

79103B

FRAME SUB-ASSY, NO.1 SEAT BACK, RH

79105G

LEG SUB-ASSY, NO.1 SEAT, RH

79236K

COVER, NO.1 SEAT LEG, NO.1

79977J

FELT, SEAT BACK

82G11

CLAMP, WIRING HARNESS

9010510361

Крепеж

9010512394

Крепеж

9010914017

Крепеж

9011908970

Крепеж

9016740044

Крепеж

9017608044

Крепеж

9017906156

Крепеж

9038612005

Крепеж

9038612038

Крепеж

9046315002

Крепеж

9155180816

Крепеж

9155301225

Крепеж

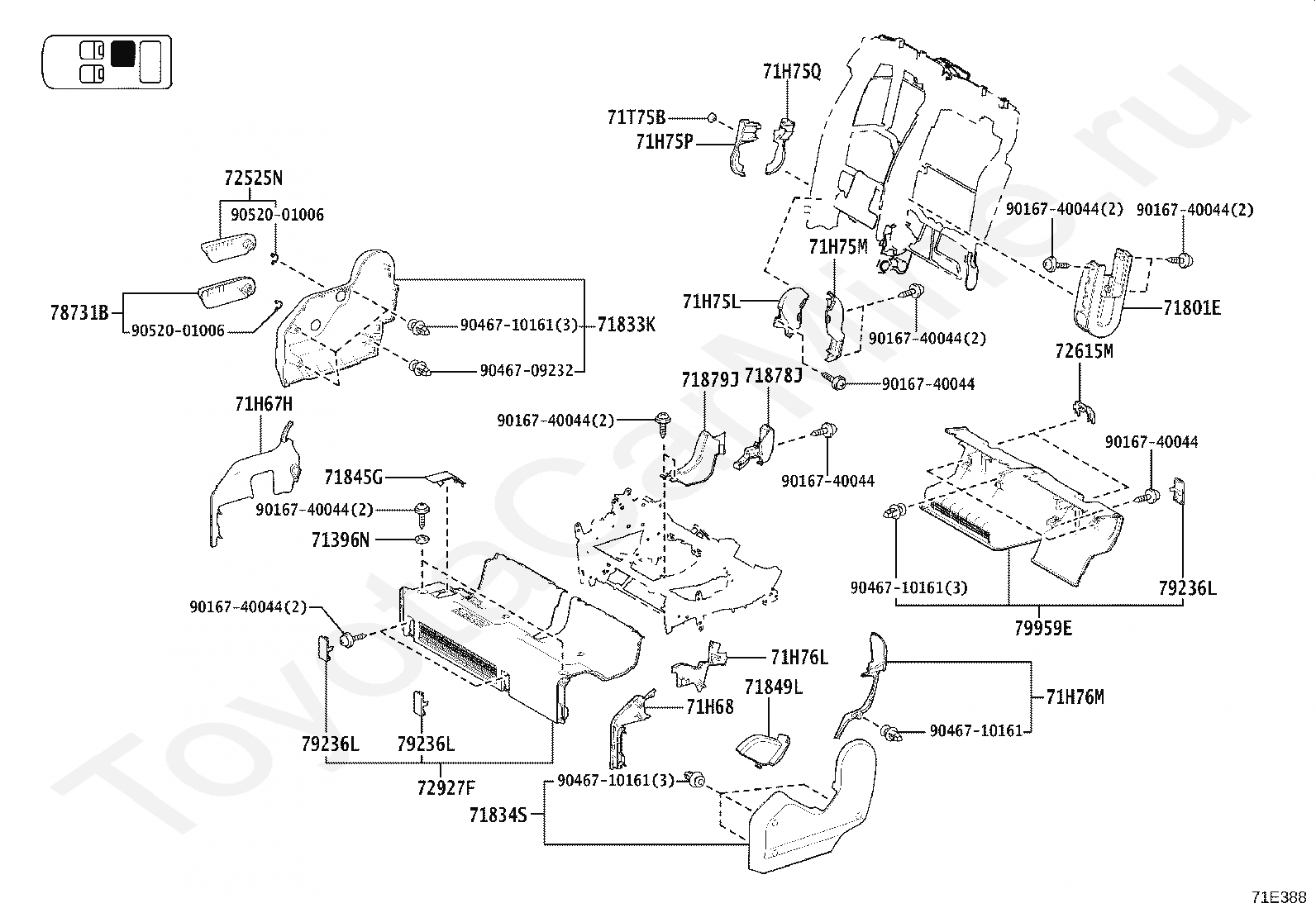

Код

Описание

71396N

CUSHION, NO.1 SEAT SUPPORT, REAR(FOR RH SEAT)

71801E

COVER SUB-ASSY, NO.1 SEAT RECLINING ADJUSTER, RH

71833K

COVER, NO.1 SEAT RECLINING, NO.1 RH OUTER

71834S

COVER, REAR SEAT RECLINING, NO.1 LH

71845G

CAP, REAR SEAT COVER, RH

71849L

CAP, NO.1 SEAT ADJUSTER COVER, LH

71878J

COVER, REAR NO.1 SEAT RECLINING, INNER RH

71879J

COVER, REAR NO.1 SEAT RECLINING, INNER LH

71H67H

SHIELD, REAR SEAT CUSHION, INNER NO.1 RH(FOR RH SEAT)

71H68

SHIELD, REAR SEAT CUSHION, INNER NO.1 LH

71H75L

COVER, RECLINING ADJUSTER INSIDE, RH NO.1(FOR RH SEAT)

71H75M

COVER, RECLINING ADJUSTER INSIDE, RH NO.2(FOR RH SEAT)

71H75P

COVER, RECLINING ADJUSTER INSIDE, RH NO.1(FOR RH SEAT BACK)

71H75Q

COVER, RECLINING ADJUSTER INSIDE, RH NO.2(FOR RH SEAT BACK)

71H76L

COVER, RECLINING ADJUSTER INSIDE, LH NO.1(FOR RH SEAT)

71H76M

COVER, RECLINING ADJUSTER INSIDE, LH NO.2(FOR RH SEAT)

71T75B

CLIP, RECLINING ADJUSTER INSIDE COVER, RH

72525N

HANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, RH

72615M

COVER, NO.1 SEAT BACK LOCK STRIKER(FOR RH SEAT)

72927F

COVER, REAR SEAT CUSHION UNDER, RH

78731B

LEVER, SUB SEAT CUSHION(FOR RH SEAT)

79236L

COVER, REAR SEAT LEG, RH

79959E

COVER, NO.1 SEAT LEG, RH

9016740044

Крепеж

9046709232

Крепеж

9046710161

Крепеж

9052001006

Крепеж

Код

Описание

71930K

SUPPORT ASSY, NO.2 SEAT HEADREST, RH

71930L

SUPPORT ASSY, NO.2 SEAT HEADREST, LH

71930R

SUPPORT ASSY, REAR NO.2 SEAT HEADREST, CENTER

71940H

HEADREST ASSY, NO.2 SEAT, RH

71940J

HEADREST ASSY, NO.2 SEAT, LH

71960F

HEADREST ASSY, REAR NO.2 SEAT, CENTER

79021D

COVER SUB-ASSY, NO.2 SEAT CUSHION, RH

79022B

COVER SUB-ASSY, NO.2 SEAT CUSHION, LH

79023D

COVER SUB-ASSY, NO.2 SEAT BACK, RH

79024D

COVER SUB-ASSY, NO.2 SEAT BACK, LH

79235F

PAD, NO.2 SEAT CUSHION, RH

79245A

PAD, NO.2 SEAT CUSHION, LH

79275F

PAD, NO.2 SEAT BACK, RH

79285C

PAD, NO.2 SEAT BACK, LH

Код

Описание

71208B

WIRE SUB-ASSY, NO.2 SEAT CUSHION, RH NO.1

71307J

BRACKET SUB-ASSY, REAR SEAT CUSHION SUPPORT, RH

71307K

BRACKET SUB-ASSY, REAR SEAT CUSHION, RH

71330D

HINGE ASSY, REAR NO.2 SEAT, RH

71383E

BRACKET, REAR SEAT CUSHION SET, REAR RH

71397G

STOPPER, REAR SEAT, RH

71398L

GUIDE, NO.2 SEAT CUSHION SUPPORT, RH

71462A

SPRING, REAR SEAT CUSHION, NO.2(FOR RH SEAT)

71485E

COVER, REAR SEAT HINGE

71485F

COVER, REAR SEAT HINGE, NO.1 RH

71485G

COVER, REAR SEAT HINGE, NO.2 RH

7152

переход к группе запчастей

71693F

COVER, REAR NO.2 SEAT CUSHION HINGE, LOWER RH NO.1

71694A

COVER, REAR NO.2 SEAT CUSHION HINGE, LOWER LH NO.1

71696N

PROTECTOR, REAR SEAT, NO.2

71778D

COVER, REAR SEAT SIDE HINGE MALE, RH

71843G

COVER, NO.2 SEAT RECLINING, NO.2 RH OUTER

71844N

COVER, REAR NO.2 SEAT RECLINING, NO.2 LH(FOR RH SEAT)

71845E

CAP, REAR NO.2 SEAT COVER, RH

71845F

CAP, REAR SEAT COVER

71H48

CAP, SEAT ADJUSTER COVER, RH NO.1

71H75G

COVER, RECLINING ADJUSTER INSIDE, RH(FOR REAR NO.2 RH SEAT)

71H75Y

CLIP, REAR SEAT RECLINING COVER

71H76G

COVER, RECLINING ADJUSTER INSIDE, LH(FOR REAR NO.2 RH SEAT)

72507H

HANDLE SUB-ASSY, RECLINING RELEASE, RH

72525P

HANDLE, NO.2 SEAT RECLINING ADJUSTER RELEASE, RH

76973F

COVER, REAR UNDER SIDE, RH

79030C

LEG ASSY, REAR NO.2 SEAT, RH

79236G

COVER, NO.2 SEAT LEG, RH

79260C

SPRING ASSY, NO.2 SEAT CUSHION, RH

79273B

COVER, NO.2 SEAT HINGE, NO.3

79378E

COVER, NO.3 SEAT CUSHION HINGE, RH

79957C

COVER, REAR SEAT REAR BRACKET, RH

79977Q

FELT, SEAT CUSHION, RH

8202

переход к группе запчастей

9010508457

Крепеж

9010906322

Крепеж

9010908330

Крепеж

9011906904

Крепеж

9016740044

Крепеж

9020107008

Крепеж

9046705170

Крепеж

9046707220

Крепеж

9155180612

Крепеж

9155180816

Крепеж

9415180600

Крепеж

9415180800

Крепеж

9418560600

Крепеж

Код

Описание

71209C

WIRE SUB-ASSY, NO.2 SEAT CUSHION, LH NO.2

71308J

BRACKET SUB-ASSY, REAR SEAT CUSHION SUPPORT, LH

71308L

BRACKET SUB-ASSY, REAR SEAT CUSHION, LH

71340C

HINGE ASSY, REAR NO.2 SEAT, LH

71384C

BRACKET, REAR SEAT CUSHION SET, REAR LH

71397H

STOPPER, REAR SEAT, LH

71398M

GUIDE, NO.2 SEAT CUSHION SUPPORT, LH

71462B

SPRING, REAR SEAT CUSHION, NO.2(FOR LH SEAT)

71486F

COVER, REAR SEAT HINGE, LH

71486G

COVER, REAR SEAT HINGE, NO.2 LH

71486H

COVER, REAR SEAT HINGE, NO.1 LH

7152

переход к группе запчастей

71693G

COVER, REAR NO.2 SEAT CUSHION HINGE, LOWER RH NO.2

71694B

COVER, REAR NO.2 SEAT CUSHION HINGE, LOWER LH NO.2

71696N

PROTECTOR, REAR SEAT, NO.2

71779F

COVER, REAR SEAT SIDE HINGE MALE, LH

71844G

COVER, NO.2 SEAT RECLINING, NO.2 LH OUTER

71844P

COVER, REAR NO.2 SEAT RECLINING, NO.2 LH(FOR LH SEAT)

71845F

CAP, REAR SEAT COVER

71846H

CAP, REAR NO.2 SEAT COVER, LH

71849Q

CAP, SEAT ADJUSTER COVER, LH NO.1

71H75H

COVER, RECLINING ADJUSTER INSIDE, RH(FOR REAR NO.2 LH SEAT)

71H75Y

CLIP, REAR SEAT RECLINING COVER

71H76H

COVER, RECLINING ADJUSTER INSIDE, LH(FOR REAR NO.2 LH SEAT)

72507G

HANDLE SUB-ASSY, RECLINING RELEASE, LH

72526K

HANDLE, NO.2 SEAT RECLINING ADJUSTER RELEASE, LH

76974F

COVER, REAR UNDER SIDE, LH

79040C

LEG ASSY, REAR NO.2 SEAT, LH

79246H

COVER, NO.2 SEAT LEG, LH

79270B

SPRING ASSY, NO.2 SEAT CUSHION, LH

79273C

COVER, NO.2 SEAT HINGE, NO.4

79378F

COVER, NO.2 SEAT CUSHION HINGE, LH

79958B

COVER, REAR SEAT REAR BRACKET, LH

79977R

FELT, SEAT CUSHION, LH

8202

переход к группе запчастей

9010508457

Крепеж

9010906322

Крепеж

9010908330

Крепеж

9011906904

Крепеж

9016740044

Крепеж

9020107008

Крепеж

9046705170

Крепеж

9046707220

Крепеж

9155180612

Крепеж

9155180816

Крепеж

9415180600

Крепеж

9415180800

Крепеж

9418560600

Крепеж

Код

Описание

71827A

MOULDING, REAR SEAT CUSHION, FRONT RH

71827C

MOULDING, REAR SEAT CUSHION, REAR LH

71837E

MOULDING, REAR SEAT CUSHION, FRONT LH

71837F

MOULDING, REAR SEAT CUSHION, REAR RH

71848U

CAP, NO.2 SEAT ADJUSTER COVER, RH

71849M

CAP, NO.2 SEAT ADJUSTER COVER, LH

72063A

ARM SUB-ASSY, REAR SEAT BACK LOCK, RH

72064A

ARM SUB-ASSY, REAR SEAT BACK LOCK, LH

72601G

STRIKER SUB-ASSY, REAR SEAT LOCK

7455

переход к группе запчастей

91672L1025

Крепеж

9167380616

Крепеж

9167381022

Крепеж

Код

Описание

7114930050

Крепеж

REAR SEAT & SEAT TRACK TOYOTA NEW MODLE, 2022/01 - 2025, 2000CC 16-VALVE DOHC, X TYPE, MZRA95, вариатор

Товар добавлен в корзину!

Заполните форму
