FRONT SEAT & SEAT TRACK TOYOTA NEW MODLE, 2022/01 - 2025, 2000CC 16-VALVE DOHC, X TYPE, MZRA95, вариатор

Каталог

Япония

Модель

NEW MODLE

Двигатель

2000CC 16-VALVE DOHC

Класс

X TYPE

Фрейм

MZRA95

Трансмиссия

вариатор

Опции

NOAH 7-местный двигатель с прямым впрыском топлива COMPLETED VEHICLE 841W

Код

Описание

71071

COVER SUB-ASSY, FRONT SEAT CUSHION, RH

71072

COVER SUB-ASSY, FRONT SEAT CUSHION, LH

71073A

COVER SUB-ASSY, FRONT SEAT BACK, RH

71074A

COVER SUB-ASSY, FRONT SEAT BACK, LH

71511A

PAD, FRONT SEAT CUSHION, RH

71512

PAD, FRONT SEAT CUSHION, LH

71551A

PAD, FRONT SEAT BACK, RH

71552A

PAD, FRONT SEAT BACK, LH

71910E

HEADREST ASSY, FRONT SEAT, RH

71910F

HEADREST ASSY, FRONT SEAT, LH

71930E

SUPPORT ASSY, FRONT SEAT HEADREST, RH

71930F

SUPPORT ASSY, FRONT SEAT HEADREST, LH

7270268020

Крепеж

72810K

ARMREST ASSY, FRONT SEAT, RH(FOR LH SEAT)

72820

ARMREST ASSY, FRONT SEAT, LH(FOR RH SEAT)

72848K

CAP, SEAT ARMREST, NO.1(FOR RH SEAT)

72848L

CAP, SEAT ARMREST, NO.1(FOR LH SEAT)

72991C

COVER, FRONT SEAT

87530D

HEATER ASSY, FRONT SEAT BACK, RH

87530E

HEATER ASSY, FRONT SEAT BACK, LH

87E10B

HEATER ASSY, FRONT SEAT CUSHION, RH

87E10C

HEATER ASSY, FRONT SEAT CUSHION, LH

9020115015

Крепеж

9454201400

Крепеж

Код

Описание

71013A

FRAME SUB-ASSY, FRONT SEAT BACK, RH

71051B

SPRING SUB-ASSY, FRONT SEAT CUSHION, RH

71053

SPRING SUB-ASSY, FRONT SEAT BACK, RH

71130B

LEG ASSY, FRONT SEAT, RH

71139V

COVER, FRONT SEAT LEG NO.1

71139X

COVER, FRONT SEAT LEG NO.2

71148X

COVER, FRONT SEAT LEG, OUTER RH

7152

переход к группе запчастей

71587K

PROTECTOR, FRONT SEAT BACK EDGE, RH

71759E

HOOK, FRONT SEAT BACK, RH

71759H

HOOK, FRONT SEAT BACK

71811T

SHIELD, FRONT SEAT CUSHION, RH

7181AA

HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH

71848N

CAP, FRONT SEAT ADJUSTER COVER, RH NO.1

71848P

CAP, FRONT SEAT ADJUSTER COVER, RH NO.2

71861K

SHIELD, FRONT SEAT CUSHION, INNER RH

71873W

SHIELD, FRONT SEAT CUSHION, LOWER RH, OUTER

71873X

SHIELD, FRONT SEAT CUSHION, LOWER RH, INNER

71A49

COVER, FRONT SEAT LEG, NO.1

71A49C

COVER, FRONT SEAT LEG, INNER NO.1(FOR RH SEAT)

71H75

COVER, RECLINING ADJUSTER INSIDE, RH OUTER(FOR RH SEAT)

71H75A

COVER, RECLINING ADJUSTER INSIDE, RH INNER(FOR RH SEAT)

72147A

BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH

72211F

HANDLE, SEAT TRACK ADJUSTING, RH

72310C

ADJUSTER ASSY, FRONT SEAT VERTICAL, RH

72494A

HANDLE, FRONT SEAT VERTICAL ADJUSTER, RH

72525M

HANDLE, RECLINING ADJUSTER RELEASE, RH

72551K

COVER, RECLINING HINGE, RH

73910B

AIR BAG ASSY, FRONT SEAT, RH

8202

переход к группе запчастей

9011910601

Крепеж

9017908241

Крепеж

9046709245

Крепеж

9167381025

Крепеж

9356054012

Крепеж

9418560600

Крепеж

Код

Описание

71014

FRAME SUB-ASSY, FRONT SEAT BACK, LH

71051C

SPRING SUB-ASSY, FRONT SEAT CUSHION, LH

71053A

SPRING SUB-ASSY, FRONT SEAT BACK, LH

71139V

COVER, FRONT SEAT LEG NO.1

71139X

COVER, FRONT SEAT LEG NO.2

71140A

LEG ASSY, FRONT SEAT, LH

71148Y

COVER, FRONT SEAT LEG, OUTER LH

71355A

CLIP

7152

переход к группе запчастей

71587L

PROTECTOR, FRONT SEAT BACK EDGE, LH

71759F

HOOK, FRONT SEAT BACK, LH

71784A

CAP, FRONT SEAT BACK BOARD

71812T

SHIELD, FRONT SEAT CUSHION, LH

7181BA

HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH

71848R

CAP, FRONT SEAT ADJUSTER COVER, LH NO.1

71862K

SHIELD, FRONT SEAT CUSHION, INNER LH

71A49

COVER, FRONT SEAT LEG, NO.1

71A49D

COVER, FRONT SEAT LEG, INNER NO.1(FOR LH SEAT)

71H76B

COVER, RECLINING ADJUSTER INSIDE, LH INNER(FOR LH SEAT)

71H76C

COVER, RECLINING ADJUSTER INSIDE, LH OUTER(FOR LH SEAT)

72148A

BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH

72211G

HANDLE, SEAT TRACK ADJUSTING, LH

72320B

ADJUSTER ASSY, FRONT SEAT VERTICAL, LH

72526H

HANDLE, RECLINING ADJUSTER RELEASE, LH

72551L

COVER, RECLINING HINGE, LH

72588

BRACKET, FRONT SEAT BACK BOARD

73920B

AIR BAG ASSY, FRONT SEAT, LH

78060D

TABLE ASSY, FRONT SEAT BACK, LH

8202

переход к группе запчастей

82F66

HOLDER, CONNECTOR

9011910601

Крепеж

9017908241

Крепеж

9046709245

Крепеж

9167180620

Крепеж

9167381025

Крепеж

9356054012

Крепеж

9418560600

Крепеж

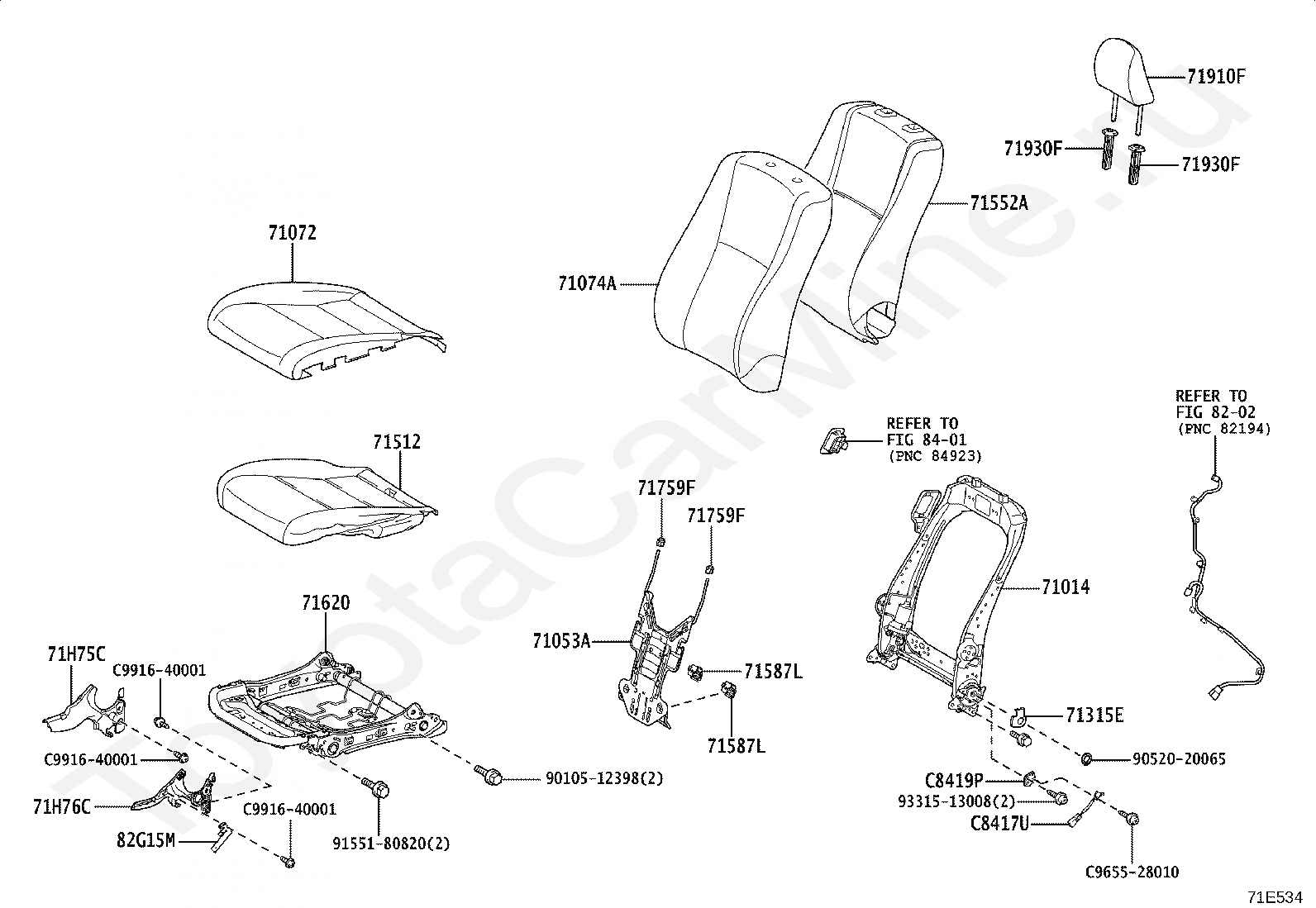

Код

Описание

71014

FRAME SUB-ASSY, FRONT SEAT BACK, LH

71053A

SPRING SUB-ASSY, FRONT SEAT BACK, LH

71072

COVER SUB-ASSY, FRONT SEAT CUSHION, LH

71074A

COVER SUB-ASSY, FRONT SEAT BACK, LH

71315E

PLATE, FRONT SEAT HINGE

71512

PAD, FRONT SEAT CUSHION, LH

71552A

PAD, FRONT SEAT BACK, LH

71587L

PROTECTOR, FRONT SEAT BACK EDGE, LH

71620

SPRING ASSY, FRONT SEAT CUSHION, LH

71759F

HOOK, FRONT SEAT BACK, LH

71910F

HEADREST ASSY, FRONT SEAT, LH

71930F

SUPPORT ASSY, FRONT SEAT HEADREST, LH

71H75C

COVER, RECLINING ADJUSTER INSIDE, RH(FOR LH SEAT)

71H76C

COVER, RECLINING ADJUSTER INSIDE, LH OUTER(FOR LH SEAT)

8202

переход к группе запчастей

82G15M

BRACKET, WIRING HARNESS CLAMP, NO.1

8401

переход к группе запчастей

9010512398

Крепеж

9052020065

Крепеж

9155180820

Крепеж

9331513008

Крепеж

C8417U

SWITCH, LIMIT, NO.7

C8419P

BRACKET, LIMIT SWITCH, NO.3

C965528010

Крепеж

C991640001

Крепеж

Код

Описание

37601C

SHAFT SUB-ASSY, DRIVE, NO.1

58331Q

SHEET, FRONT STEP, NO.1

58331R

SHEET, FRONT STEP, NO.2

69350W

LOCK ASSY, POWER LIFT

71347E

BRACKET, FRONT SEAT LINK

71389G

PLATE, FRONT SEAT STOPPER

72610C

STRIKER ASSY, FRONT SEAT BACK LOCK

82702N

BRACKET SUB-ASSY, WIRING HARNESS

827111E040

Крепеж

827111E360

Крепеж

8271152090

Крепеж

8271176010

Крепеж

82G15P

BRACKET, WIRING HARNESS CLAMP, NO.3

82G15Q

BRACKET, WIRING HARNESS CLAMP, NO.4

82G15R

BRACKET, WIRING HARNESS CLAMP, NO.5

85J99C

BRACKET, RELAY NO.2

9010510436

Крепеж

9010908067

Крепеж

9011906122

Крепеж

9017908040

Крепеж

9054106047

Крепеж

9155180612

Крепеж

9155180812

Крепеж

9155180818

Крепеж

9321913005

Крепеж

9415080630

Крепеж

C316528030

Крепеж

C7013A

LIFT KIT, PASSENGER SEAT

C7025B

BRACKET SUB-ASSY, SEAT HOLDER

C7027F

LOCK SUB-ASSY, WELCAB SEAT TURN

C7130A

PANEL ASSY, TURN TABLE

C7210G

FOOTREST ASSY, WELCAB SEAT

C7405J

ARM SUB-ASSY, WELCAB SEAT LINK

C7405K

ARM SUB-ASSY, WELCAB SEAT LINK, NO.2

C7405L

ARM SUB-ASSY, WELCAB SEAT LINK, NO.3

C7405M

ARM SUB-ASSY, WELCAB SEAT LINK, NO.4

C7451C

ARM, WELCAB SEAT LINK, NO.1

C8284D

WIRE, POWER LIFT MAIN

C8298C

BRACKET, WELCAB SEAT HARNESS CLAMP, NO.4

C8299G

BRACKET, WELCAB SEAT HARNESS CONNECTOR, NO.1

C8299H

BRACKET, WELCAB SEAT HARNESS CONNECTOR, NO.2

C8340C

COMPUTER ASSY, WELCAB DEVICE CONTROL

C8417S

SWITCH, LIMIT, NO.5

C8417T

SWITCH, LIMIT, NO.6

C8419R

BRACKET, LIMIT SWITCH, NO.5

C8459B

SPRING, LIMIT SWITCH

C9603B

GEAR SUB-ASSY, POWER LIFT

C9610Q

MOTOR ASSY, POWER LIFT

C9654S

COLLAR, POWER LIFT CYLINDER

C9654T

COLLAR, POWER LIFT CYLINDER

C9654U

COLLAR, POWER LIFT CYLINDER

C965528010

Крепеж

C992008004

Крепеж

G2499B

RESISTOR, ELECTRONIC CIRCUIT

Код

Описание

62786N

CASE, SIDE WINDOW LOCK

71163

BRACKET, FRONT SEAT BACK SUPPORT, RH

71164A

BRACKET, FRONT SEAT BACK SUPPORT, LH

72205E

HOUSING SUB-ASSY, POWER SEAT, NO.1

72589D

CABLE, RECLINING REMOTE CONTROL

73131E

BRACKET, SEAT BELT

79105C

LEG SUB-ASSY, FRONT SEAT

79106D

LEG SUB-ASSY, SEAT, LH

827111E360

Крепеж

9010906322

Крепеж

9010908067

Крепеж

9016850040

Крепеж

9017912071

Крепеж

9020114016

Крепеж

9020612035

Крепеж

9054106047

Крепеж

9155180612

Крепеж

9155180812

Крепеж

9155180818

Крепеж

9155281030

Крепеж

9418801201

Крепеж

C3165D1220

Крепеж

C7013A

LIFT KIT, PASSENGER SEAT

C7103E

PANEL SUB-ASSY, WELCAB SEAT LEG, NO.1

C7104C

PLATE SUB-ASSY, SEAT TURN

C7105B

PANEL SUB-ASSY, SLIDE TABLE

C7159N

CUSHION, WELCAB SEAT LEG STOPPER, NO.7

C7161B

PANEL, SLIDE TABLE

C7230K

TRACK ASSY, WELCAB SEAT

C7230L

TRACK ASSY, WELCAB SEAT, NO.1

C7409H

BRACKET SUB-ASSY, WELCAB SEAT ROD SUPPORT, NO.1

C7409J

BRACKET SUB-ASSY, WELCAB SEAT ROD SUPPORT, NO.2

C7481E

ROD, WELCAB SEAT

C7483E

GEAR, WELCAB SEAT LEG, NO.1

C7495E

BRACKET, WELCAB SEAT MOTOR, NO.1

C8298B

BRACKET, WELCAB SEAT HARNESS CLAMP, NO.3

C8417R

SWITCH, LIMIT, NO.4

C8419Q

BRACKET, LIMIT SWITCH, NO.4

C8449B

DOG, LIMIT SWITCH

C9610N

MOTOR ASSY, LIFT UP SEAT SLIDE

C9610P

MOTOR ASSY, LIFT UP SEAT TURN

C9652E

CAP, POWER LIFT CYLINDER

C9654R

COLLAR, POWER LIFT CYLINDER

C965528010

Крепеж

C9658D

PLATE, POWER LIFT CYLINDER ROD, NO.1

C991440001

Крепеж

C991605003

Крепеж

C991708008

Крепеж

Код

Описание

51079K

PANEL SUB-ASSY, FRONT STEP

58659E

SHEET, STEP SILENCER

67771R

RETAINER, FRONT SEAT LEG COVER

71148A

COVER, FR SEAT LEG, OUTER

71260F

BRACKET ASSY, SEAT, OUTER LH

71280B

BRACKET ASSY, SEAT, INNER LH

7152

переход к группе запчастей

71537Z

PROTECTOR, FRONT SEAT CUSHION

71812T

SHIELD, FRONT SEAT CUSHION, LH

71846K

CAP, FRONT SEAT COVER, LH

71862K

SHIELD, FRONT SEAT CUSHION, INNER LH

71A49D

COVER, FRONT SEAT LEG, INNER NO.1(FOR LH SEAT)

72945D

COVER, FRONT SEAT TURN

72973N

COVER, FRONT SEAT TURN TABLE, RH

72974A

COVER, FRONT SEAT TURN TABLE, LH

7455

переход к группе запчастей

78988E

COVER, FRONT SEAT FOOTREST, NO.1

78988F

COVER, FRONT SEAT FOOTREST, NO.2

8401

переход к группе запчастей

9020108082

Крепеж

9046400620

Крепеж

9046705172

Крепеж

9046709232

Крепеж

9046710167

Крепеж

9056008041

Крепеж

9155180820

Крепеж

9326056012

Крепеж

9356053008

Крепеж

9356054008

Крепеж

C2261B

STOPPER, FRONT STEP

C6625J

BRACKET, SIDE CURTAIN, OUTER

C6625K

BRACKET, SIDE CURTAIN, INNER

C7959

COVER, FRONT SEAT TURN FOOTREST

C7959A

CLIP, FRONT SEAT TURN FOOTRESAT COVER

Код

Описание

9011908D31

Крепеж

9046709232

Крепеж

9046710167

Крепеж

C7099B

GUARD SUB-ASSY, FRONT SEAT TURN

C9055T

COVER SUB-ASSY, POWER LIFT, NO.2

C9055U

COVER SUB-ASSY, POWER LIFT, NO.1

Код

Описание

7114930050

Крепеж
