VALVE BODY & OIL STRAINER (ATM) TOYOTA MARK 2, 1981/10 - 1984/07, 2 литра, EFI, турбо, седан, GRANDE TYPE,GRANDE FOUR TYPE, MX61, автомат, АКПП, 4 ступени

Каталог

Япония

Модель

MARK 2

Двигатель

2 литра, EFI, турбо

Кузов

седан

Класс

GRANDE TYPE,GRANDE FOUR TYPE

Фрейм

MX61

Трансмиссия

автомат АКПП, 4 ступени

Опции

WITH TURBO (HARGER)

Код

Описание

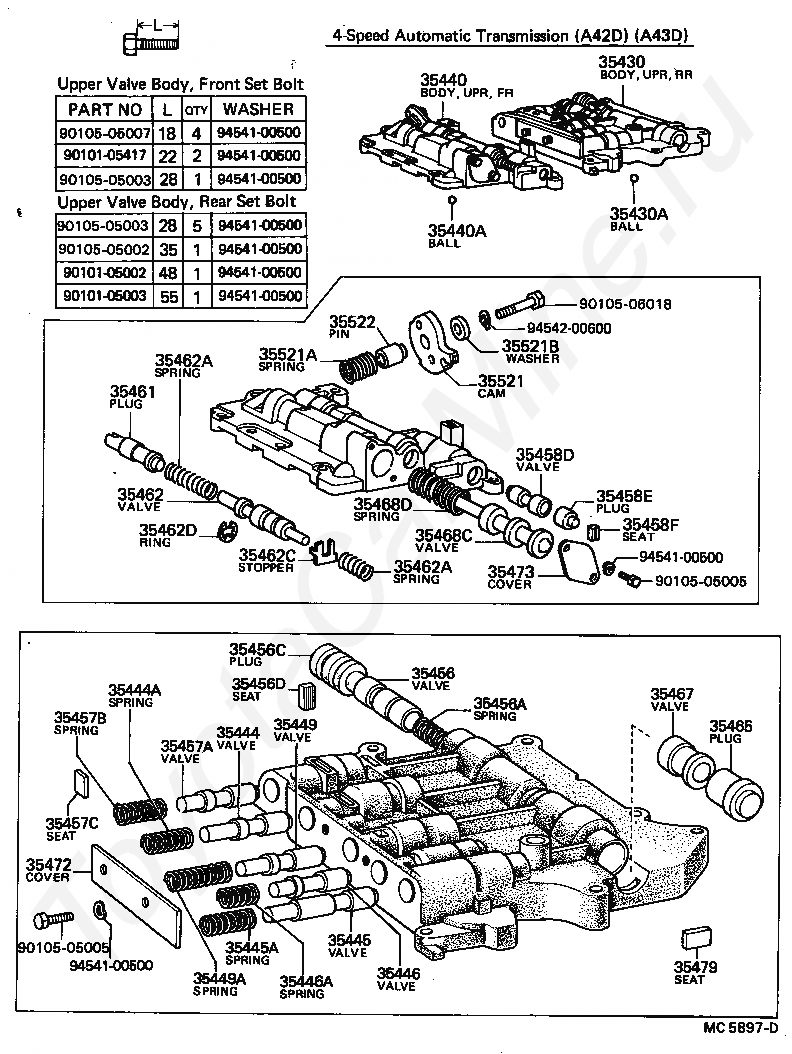

35430

BODY ASSY, REAR UPPER VALVE

35430A

BALL (FOR REAR UPPER VALVE BODY)

35440

BODY ASSY, FRONT UPPER VALVE

35440A

BALL (FOR FRONT UPPER VALVE BODY)

35444

VALVE, INTERMEDIATE MODULATOR

35444A

SPRING, COMPRESSION (FOR INTERMEDIATE MODULATOR VALVE)

35445

VALVE, LOW MODULATOR

35445A

SPRING, COMPRESSION (FOR LOW MODULATOR VALVE)

35446

VALVE, GOVERNOR MODULATOR

35446A

SPRING, COMPRESSION (FOR GOVERNOR MODULATOR VALVE)

35449

VALVE, SEQUENCE

35449A

SPRING, COMPRESSION (FOR SEQUENCE VALVE)

35456

VALVE, 2-3 SHIFT

35456A

SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE)

35456C

PLUG (FOR 2-3 SHIFT VALVE)

35456D

SEAT (FOR 2-3 SHIFT VALVE)

35457A

VALVE, DETENT REGULATOR

35457B

SPRING, COMPRESSION (FOR DETENT REGULATOR VALVE)

35457C

SEAT (FOR DETENT REGULATOR VALVE)

35458D

VALVE, CUT BACK

35458E

PLUG (FOR CUT BACK VALVE)

35458F

SEAT (FOR CUT BACK VALVE)

35461

PLUG, DOWN SHIFT

35462

VALVE, THROTTLE

35462A

SPRING, COMPRESSION (FOR THROTTLE VALVE)

35462C

STOPPER, VALVE VIBRATING

35462D

RING, E (FOR THROTTLE VALVE)

35465

PLUG, INTERMEDIATE SHIFT VALVE

35467

VALVE, INTERMEDIATE SHIFT

35468C

VALVE, SECONDARY REGULATOR

35468D

SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE)

35472

COVER, VALVE BODY, NO.2

35473

COVER, TRANSMISSION VALVE BODY

35479

SEAT, INTERMEDIATE SHIFT VALVE

35521

CAM, THROTTLE VALVE

35521A

SPRING (FOR THROTTLE VALVE CAM RETURN)

35521B

WASHER (FOR THROTTLE VALVE CAM SET)

35522

PIN, THROTTLE VALVE CAM

9010105002

Крепеж

9010105003

Крепеж

9010105417

Крепеж

9010505002

Крепеж

9010505003

Крепеж

9010505005

Крепеж

9010505007

Крепеж

9010506018

Крепеж

9454100500

Крепеж

9454200600

Крепеж

Код

Описание

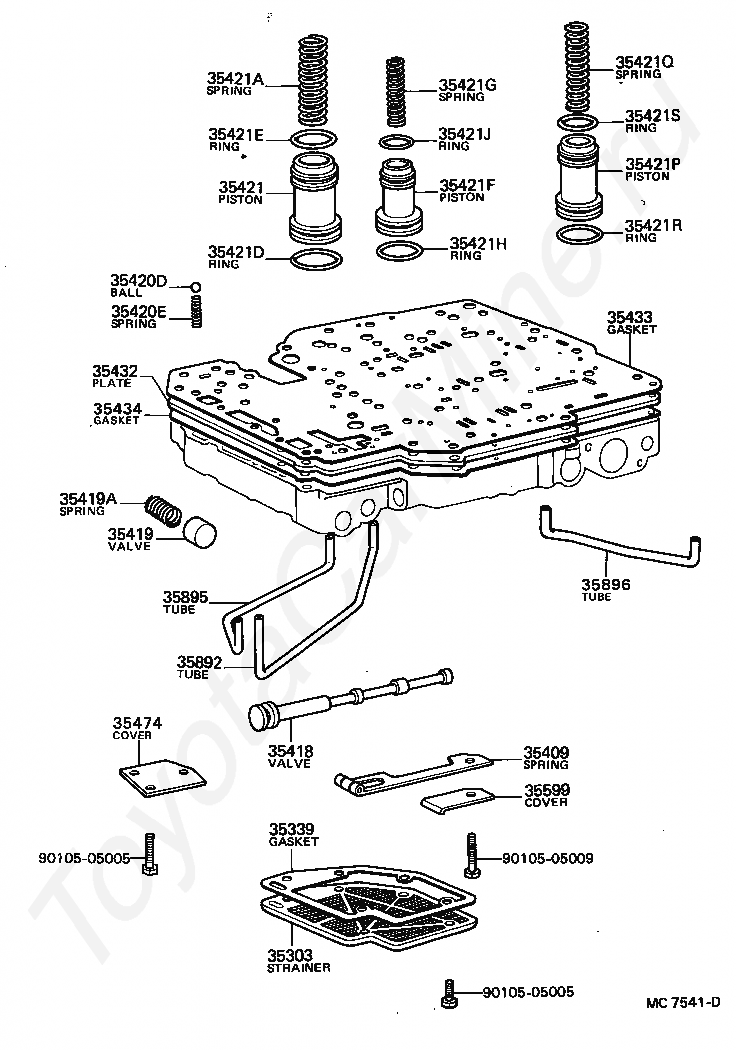

35303

STRAINER SUB-ASSY, OIL

35339

GASKET, OIL STRAINER

35409

SPRING SUB-ASSY, MANUAL DETENT

35418

VALVE, MANUAL

35419

VALVE, CHECK, NO.1

35419A

SPRING, COMPRESSION (FOR CHECK VALVE)

35420D

BALL (FOR LOWER VALVE BODY)

35420E

SPRING (FOR LOWER VALVE BODY)

35421

PISTON, ACCUMULATOR, NO.1

35421A

SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.1)

35421D

RING (FOR ACCUMULATOR PISTON NO.1)

35421E

RING (FOR ACCUMULATOR PISTON NO.1)

35421F

PISTON, ACCUMULATOR, NO.2

35421G

SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2)

35421H

RING (FOR ACCUMULATOR PISTON NO.2)

35421J

RING (FOR ACCUMULATOR PISTON NO.2)

35421P

PISTON, ACCUMULATOR, NO.3

35421Q

SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.3)

35421R

RING (FOR ACCUMULATOR PISTON NO.3)

35421S

RING (FOR ACCUMULATOR PISTON NO.3)

35432

PLATE, VALVE BODY, NO.1

35433

GASKET, VALVE BODY, NO.1

35434

GASKET, VALVE BODY, NO.2

35474

COVER, VALVE BODY, NO.4

35599

COVER, MANUAL DETENT SPRING

35892

TUBE, OVERDRIVE BRAKE

35895

TUBE, FRONT CLUTCH APPLY

35896

TUBE, OVERDRIVE SWITCH APPLY

9010505005

Крепеж

9010505009

Крепеж

Код

Описание

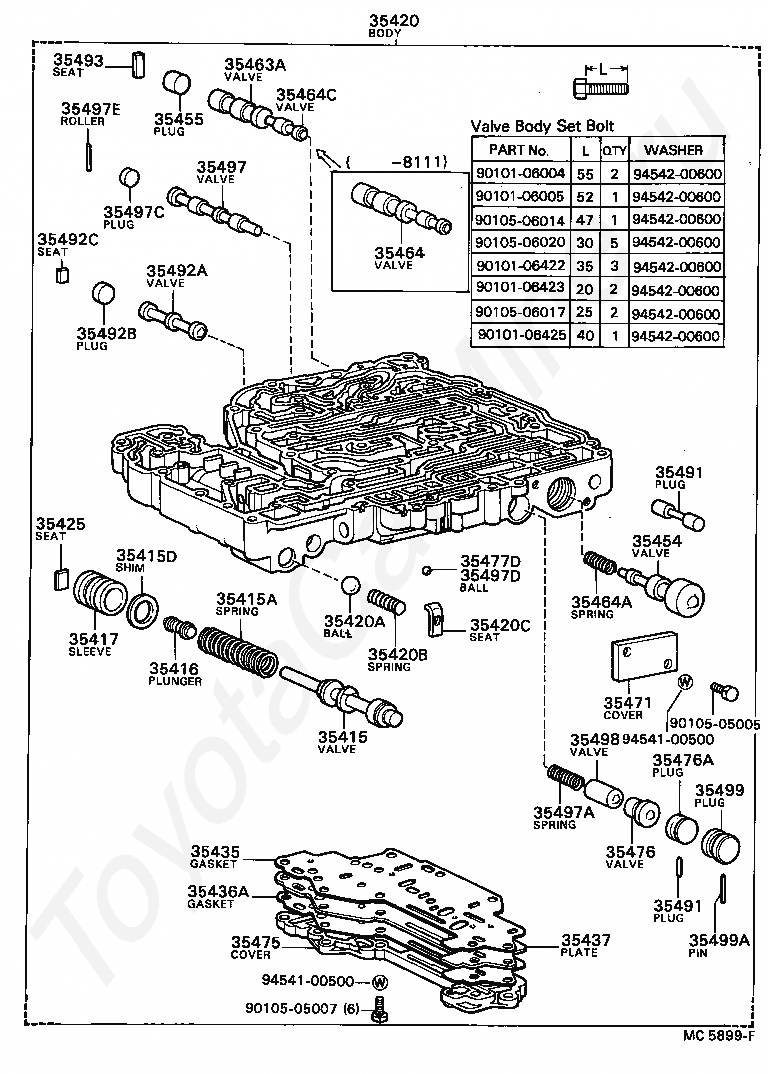

35415

VALVE, PRESSURE REGULATOR

35415A

SPRING, COMPRESSION (FOR PRESSURE REGULATOR VALVE)

35415D

SHIM (FOR PRESSURE REGULATOR VALVE)

35416

PLUNGER, PRIMARY REGULATOR VALVE, NO.1

35417

SLEEVE, PRESSURE REGULATOR VALVE

35420

BODY ASSY, LOWER VALVE

35420A

BALL (FOR PRESSURE RELIEF)

35420B

SPRING (FOR PRESSURE RELIEF)

35420C

SEAT (FOR PRESSURE RELIEF)

35425

SEAT, PRESSURE REGULATOR VALVE SLEEVE

35435

GASKET, VALVE BODY PLATE, NO.3

35436A

GASKET, VALVE BODY PLATE, NO.4

35437

PLATE, 3-4 SHIFT VALVE SEPARATOR

35454

VALVE, LOW COAST SHIFT

35455

PLUG, 1-2 SHIFT VALVE LOW

35463A

VALVE, 1-2 SHIFT, LOWER

35464

VALVE, 1-2 SHIFT

35464A

SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE)

35464C

VALVE, 1-2 SHIFT, UPPER

35471

COVER, VALVE BODY, NO.1

35475

COVER, VALVE BODY, NO.5

35476

VALVE, 3RD COAST SHIFT

35476A

PLUG, STRAIGHT (FOR 3RD COAST SHIFT)

35477D

BALL, CHECK (FOR OVERDRIVE CLUTCH EXHAUST VALVE)

35491

PLUG, REVERSE BRAKE

35492A

VALVE, MANUAL DOWN TIMING

35492B

PLUG (FOR MANUAL DOWN TIMING VALVE)

35492C

SEAT, VALVE (FOR MANUAL DOWN TIMING VALVE)

35493

SEAT, SHIFT VALVE SPRING

35497

VALVE, 3-4 SHIFT

35497A

SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE)

35497C

PLUG (FOR 3-4 SHIFT VALVE)

35497D

BALL, CHECK (FOR 3-4 SHIFT VALVE)

35497E

ROLLER, NEEDLE (FOR 3-4 SHIFT VALVE)

35498

VALVE, 3-4 COAST SHIFT

35499

PLUG, 3-4 SHIFT VALVE

35499A

PIN, STRAIGHT (FOR 3-4 SHIFT VALVE)

9010106004

Крепеж

9010106005

Крепеж

9010106422

Крепеж

9010106423

Крепеж

9010106425

Крепеж

9010505005

Крепеж

9010505007

Крепеж

9010506014

Крепеж

9010506017

Крепеж

9010506020

Крепеж

9454100500

Крепеж

9454200600

Крепеж

VALVE BODY & OIL STRAINER (ATM) TOYOTA MARK 2, 1981/10 - 1984/07, 2 литра, EFI, турбо, седан, GRANDE TYPE,GRANDE FOUR TYPE, MX61, автомат, АКПП, 4 ступени
