Каталог
ЯпонияМодель
MARK 2Двигатель
2 литра, 24 клапана DOHC, EFI, нагнетательКузов
HARD TOP SERIESКласс
GRANDE G TYPE,GRANDE G FOUR TYPEФрейм
GX81Трансмиссия
автомат АКПП, 4 ступениОпции
SPACE CASUAL SPECIFICATION

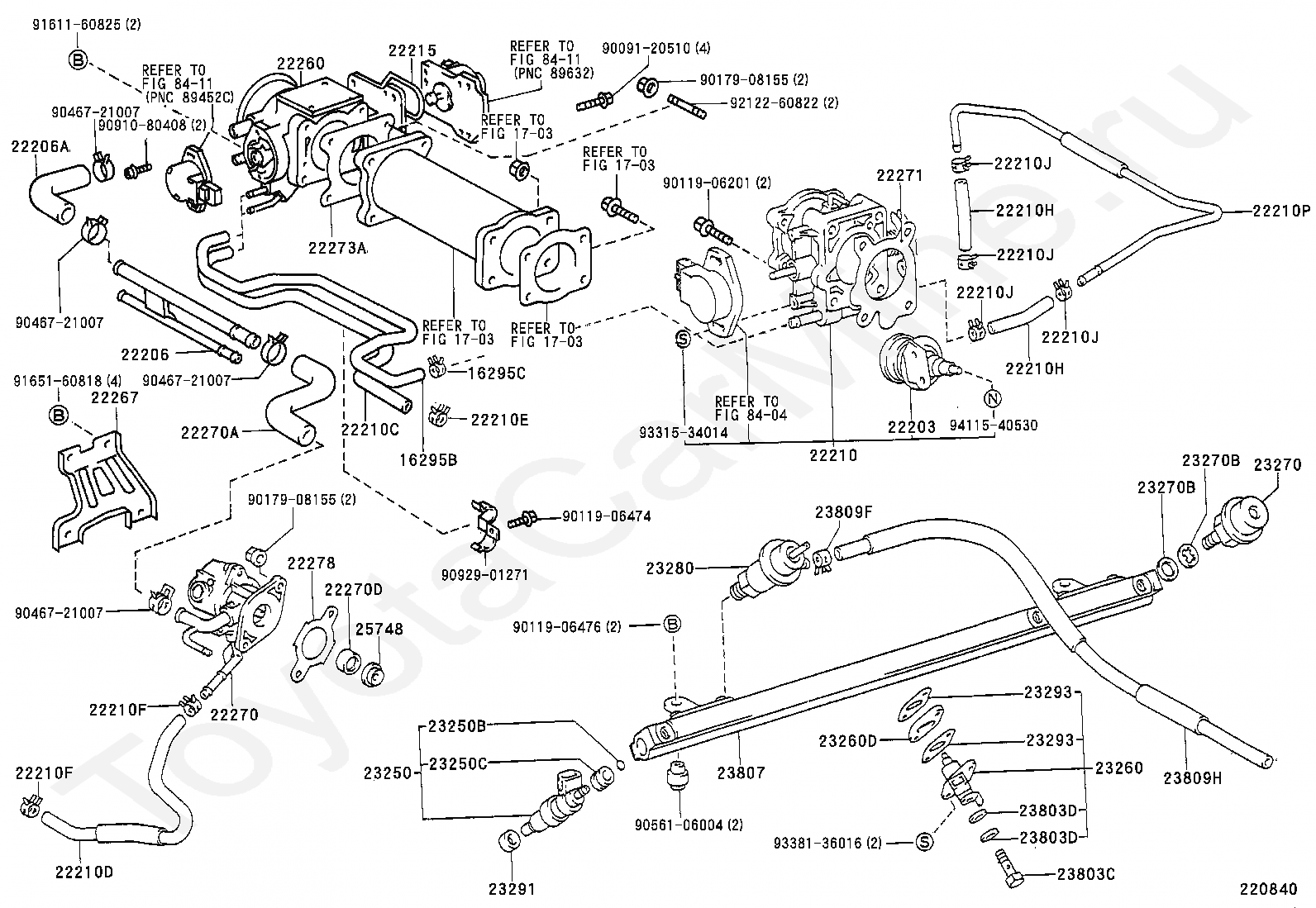

Код
Описание
22203
DASH POT SUB-ASSY(FOR THROTTLE BODY)
22210
BODY ASSY, THROTTLE
22210C
HOSE, WATER BY-PASS, NO.1
22210D
HOSE, WATER BY-PASS, NO.2
22210E
CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
22210F
CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)
22210H
HOSE, WATER BY-PASS, NO.3
22210J
CLIP(FOR WATER BY-PASS HOSE NO.3)
22210P
PIPE, WATER BY-PASS
22270
VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22270A
HOSE, AIR, NO.1(FOR IDLE SPEED CONTROL VALVE)
22270D
WASHER, SEAL(FOR IDLE SPEED CONTROL VALVE)
22271
GASKET, THROTTLE BODY
22278
GASKET, IDLE SPEED CONTROL VALVE
23250
INJECTOR ASSY, FUEL
23250B
RING, O(FOR FUEL INJECTOR)
23250C
GROMMET(FOR FUEL INJECTOR)
23260
INJECTOR ASSY, COLD START FUEL
23260D
INSULATOR, COLD START FUEL INJECTOR
23270
DAMPER ASSY, FUEL PRESSURE PULSATION
23270B
GASKET(FOR PULSATION DAMPER HOSE)
23280
REGULATOR ASSY, FUEL PRESSURE
23291
INSULATOR, INJECTOR VIBRATION
23293
GASKET, COLD START INJECTOR
23803C
GASKET(NOZZLE LEKAGE PIPE NO.3)
23803D
BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
23807
PIPE SUB-ASSY, FUEL DELIVERY
23809F
CLIP(FOR FUEL PIPE SUPPORT)
23809H
HOSE, FUEL PIPE SUPPORT TO REGULATOR
2384170020
Крепеж
25748
VALVE, CHECK(FOR IDLE SPEED CONTROL)
8404
переход к группе запчастей
9011906201
Крепеж
9017906199
Крепеж
9017908155
Крепеж
9046721007
Крепеж
9056106004
Крепеж
9092901028
Крепеж
9092901122
Крепеж
9092901137
Крепеж
9161140612
Крепеж
9165108054
Крепеж
9165160614
Крепеж
9165160630
Крепеж
9331534014
Крепеж
9338136016
Крепеж
9411540530
Крепеж

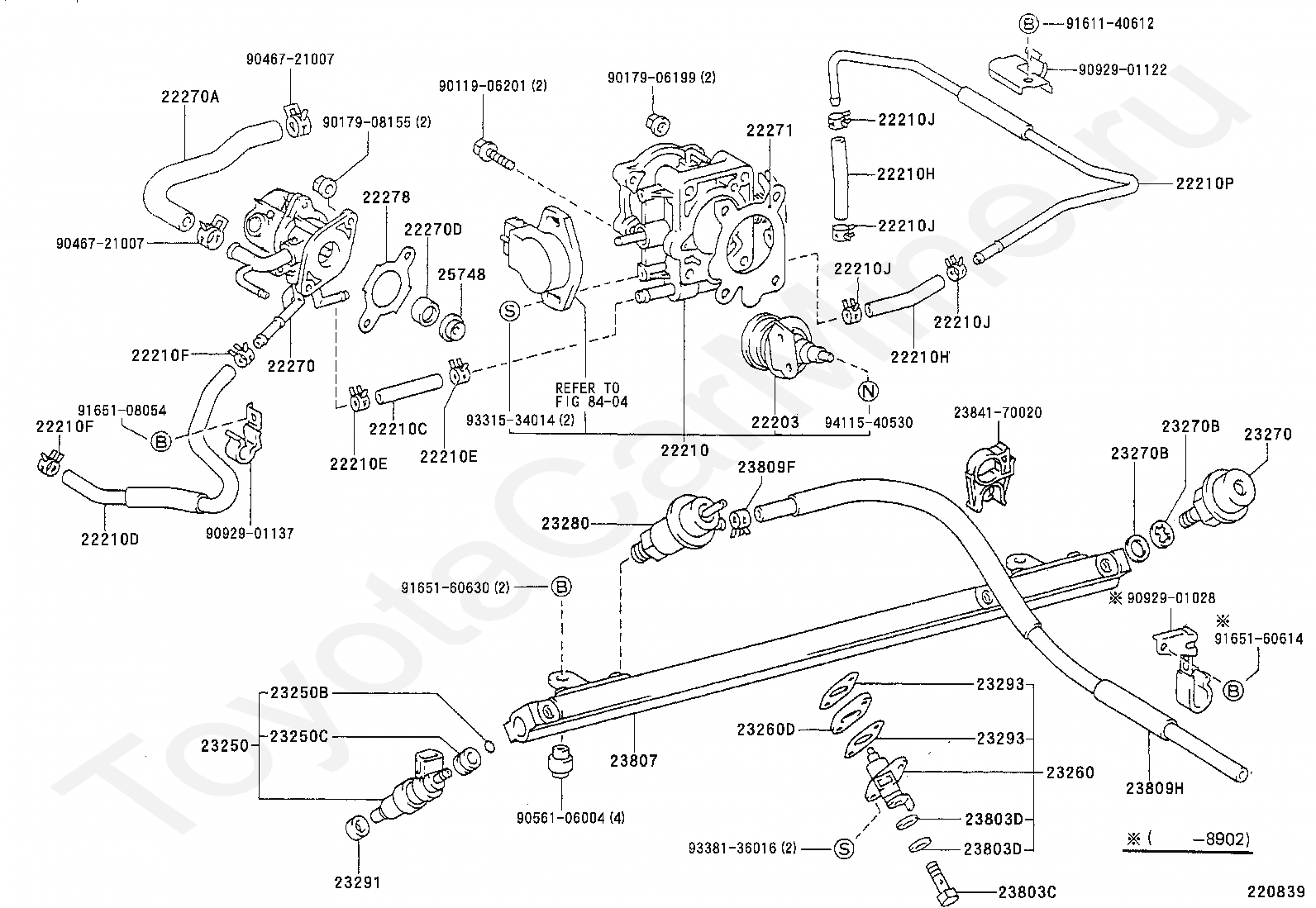

Код
Описание
16295B
HOSE, WATER BY-PASS, NO.7
16295C
CLIP(FOR WATER BY-PASS HOSE NO.7)
1703
переход к группе запчастей
22203
DASH POT SUB-ASSY(FOR THROTTLE BODY)
22206
PIPE SUB-ASSY, IDLE SPEED CONTROL
22206A
HOSE, AIR, NO.7
22210
BODY ASSY, THROTTLE
22210C
HOSE, WATER BY-PASS, NO.1
22210D
HOSE, WATER BY-PASS, NO.2
22210E
CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
22210F
CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)
22210H
HOSE, WATER BY-PASS, NO.3
22210J
CLIP(FOR WATER BY-PASS HOSE NO.3)
22210P
PIPE, WATER BY-PASS
22215
GASKET, THROTTLE BODY COVER
22260
BODY ASSY, THROTTLE, NO.2
22267
BRACKET, THROTTLE BODY
22270
VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22270A
HOSE, AIR, NO.1(FOR IDLE SPEED CONTROL VALVE)
22270D
WASHER, SEAL(FOR IDLE SPEED CONTROL VALVE)
22271
GASKET, THROTTLE BODY
22273A
GASKET, THROTTLE BODY, NO.2
22278
GASKET, IDLE SPEED CONTROL VALVE
23250
INJECTOR ASSY, FUEL
23250B
RING, O(FOR FUEL INJECTOR)
23250C
GROMMET(FOR FUEL INJECTOR)
23260
INJECTOR ASSY, COLD START FUEL
23260D
INSULATOR, COLD START FUEL INJECTOR
23270
DAMPER ASSY, FUEL PRESSURE PULSATION
23270B
GASKET(FOR PULSATION DAMPER HOSE)
23280
REGULATOR ASSY, FUEL PRESSURE
23291
INSULATOR, INJECTOR VIBRATION
23293
GASKET, COLD START INJECTOR
23803C
GASKET(NOZZLE LEKAGE PIPE NO.3)
23803D
BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
23807
PIPE SUB-ASSY, FUEL DELIVERY
23809F
CLIP(FOR FUEL PIPE SUPPORT)
23809H
HOSE, FUEL PIPE SUPPORT TO REGULATOR
25748
VALVE, CHECK(FOR IDLE SPEED CONTROL)
8404
переход к группе запчастей
8411
переход к группе запчастей
9009120510
Крепеж
9011906201
Крепеж
9011906474
Крепеж
9011906476
Крепеж
9017908155
Крепеж
9046721007
Крепеж
9056106004
Крепеж
9091080408
Крепеж
9092901271
Крепеж
9161160825
Крепеж
9165160818
Крепеж
9212260822
Крепеж
9331534014
Крепеж
9338136016
Крепеж
9411540530
Крепеж

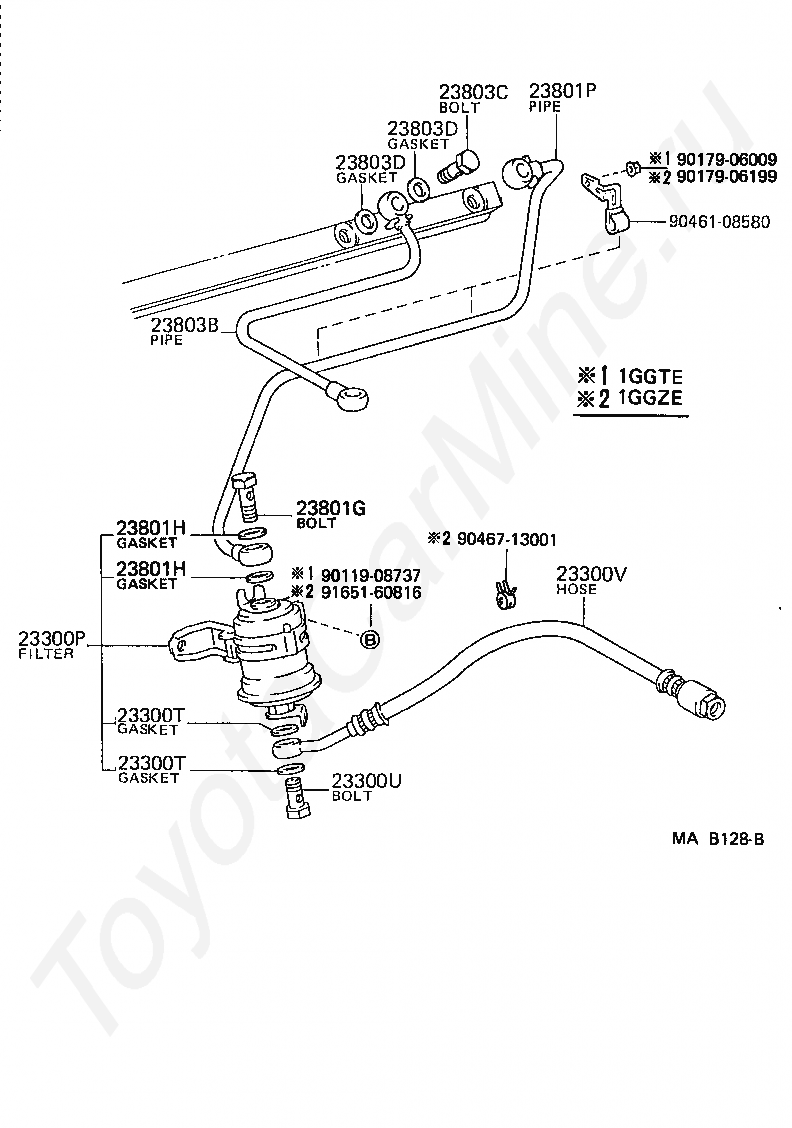

Код
Описание
23300P
FILTER, FUEL(FOR EFI)
23300T
GASKET(FOR FUEL FILTER)
23300U
BOLT, UNION(FOR FUEL FILTER)
23300V
HOSE, FUEL(FOR FUEL INLET)
23801G
BOLT, UNION(FOR FUEL PIPE)
23801H
GASKET(FOR FUEL PIPE)
23801P
PIPE SUB-ASSY, FUEL, NO.1
23803B
PIPE SUB-ASSY, FUEL, NO.3
23803C
GASKET(NOZZLE LEKAGE PIPE NO.3)
23803D
BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
9011908737
Крепеж
9017906009
Крепеж
9017906199
Крепеж
9046108580
Крепеж
9046713001
Крепеж
9165160816
Крепеж
Код
Описание
23091
TUBE SUB-ASSY, FUEL PUMP
23206A
BRACKET, FUEL PUMP
23206B
GASKET, FUEL PUMP BRACKET
23217A
FILTER, FUEL PUMP
23220P
PUMP ASSY, FUEL
23229
CLIP(FOR FUEL PUMP FILTER)
23233
HOSE, FUEL PUMP
23233B
CLIP(FOR FUEL PUMP HOSE)
23249
RUBBER, CUSHION(FOR FUEL PUMP)
9015950219
Крепеж
9411540400
Крепеж
9411540500
Крепеж
9451100400
Крепеж
9451100500
Крепеж
