Боковая панель кузова TOYOTA LAND CRUISER, 2021/07 - 2025, 3500CC 24-VALVE DOHC, VX TYPE, VJA300

Каталог

Япония

Модель

LAND CRUISER

Двигатель

3500CC 24-VALVE DOHC

Класс

VX TYPE

Фрейм

VJA300

Опции

7-местный WITH TURBO (HARGER) 810W

Код

Описание

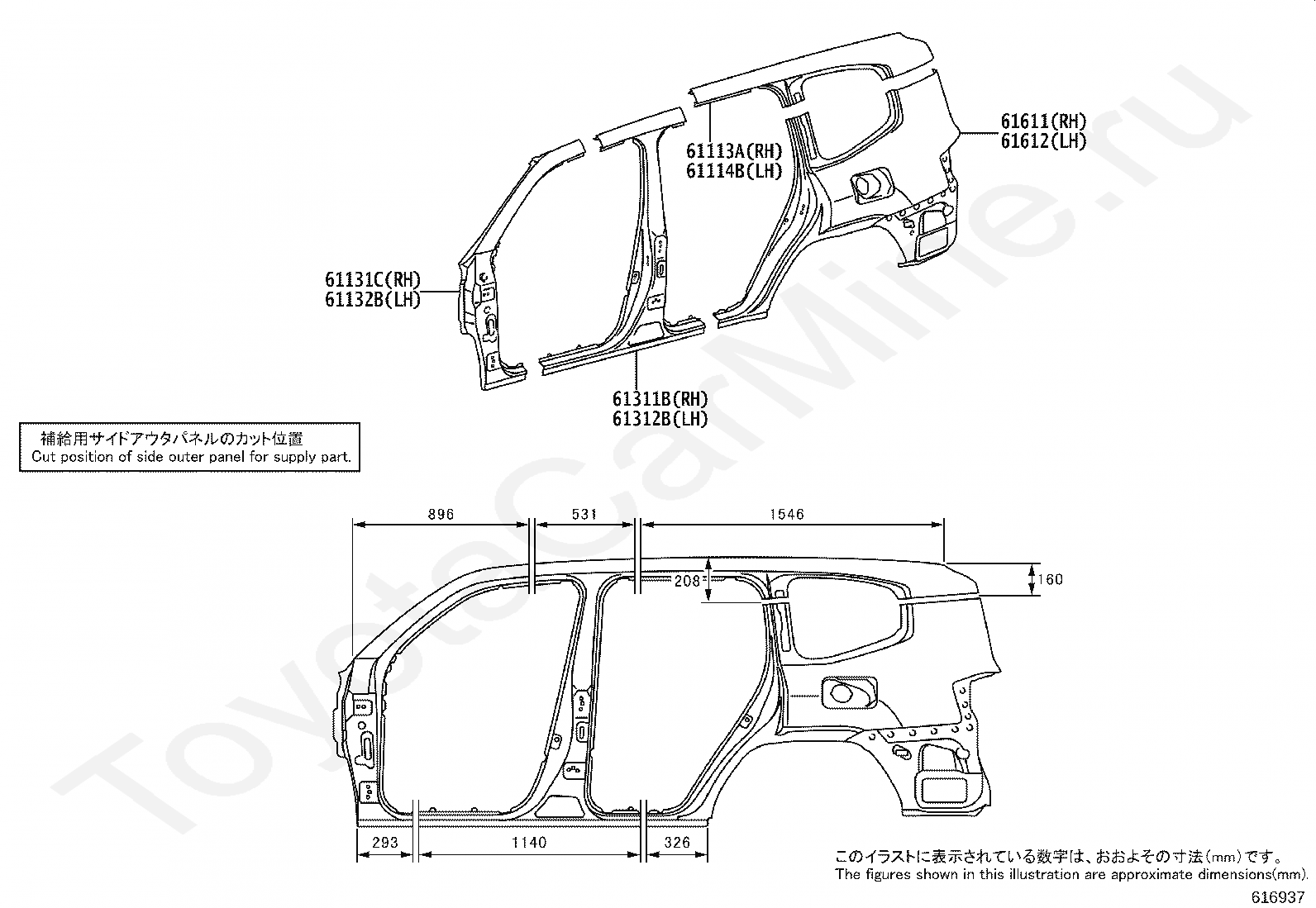

61113A

PANEL, SIDE, OUTER NO.2 RH

61114B

PANEL, SIDE, OUTER NO.2 LH

61131C

PILLAR, FRONT BODY, OUTER RH

61132B

PILLAR, FRONT BODY, OUTER LH

61311B

PILLAR, CENTER BODY, OUTER RH

61312B

PILLAR, CENTER BODY, OUTER LH

61611

PANEL, QUARTER, RH

61612

PANEL, QUARTER, LH

Код

Описание

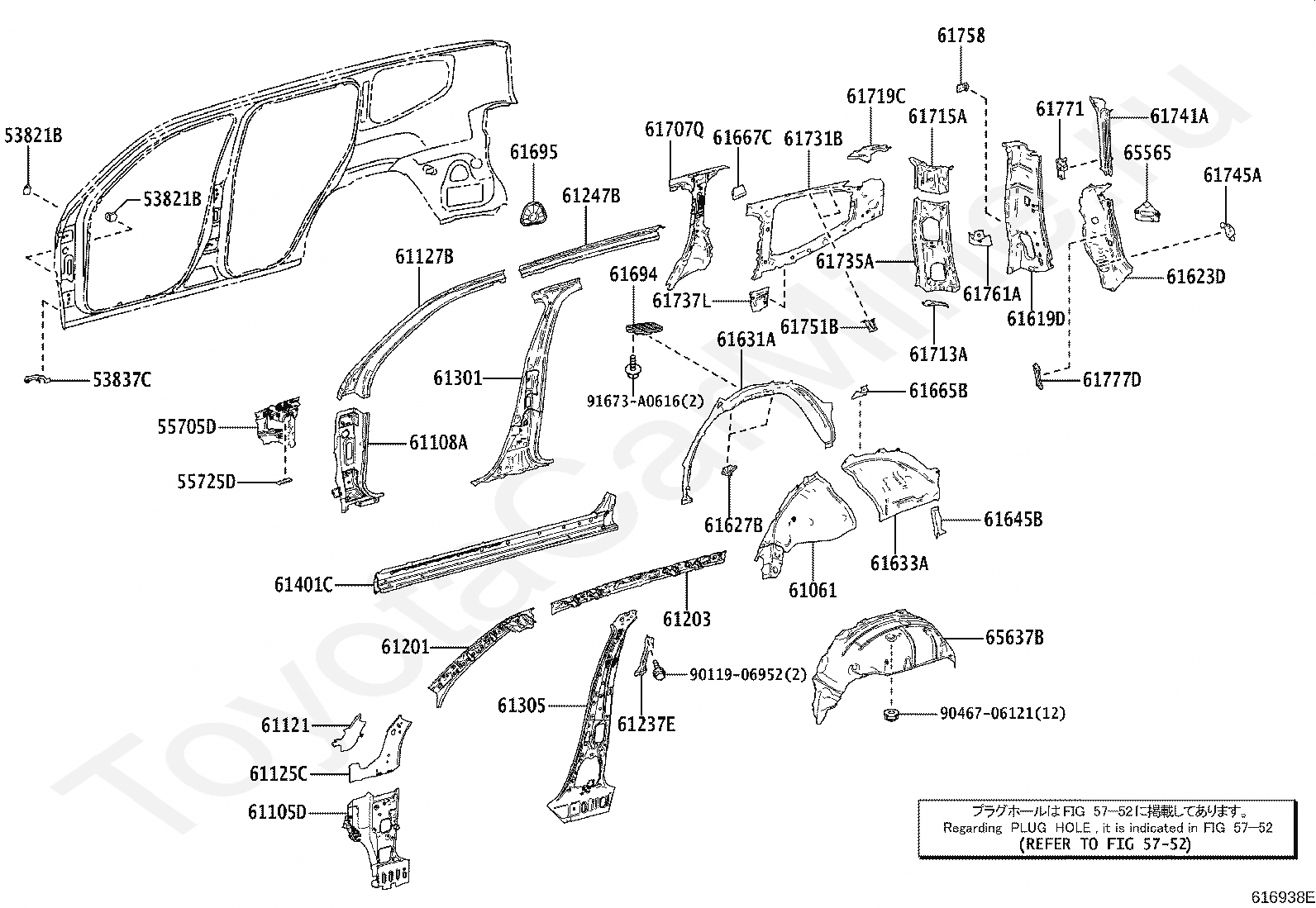

53821B

BRACKET, FRONT FENDER, REAR RH

53837C

BRACKET, FRONT SIDE PANEL, NO.2 RH

55705D

PANEL SUB-ASSY, COWL TOP SIDE, RH,

55725D

REINFORCEMENT, HOOD HINGE MOUNTING, RH

5752

переход к группе запчастей

61061

REINFORCEMENT SUB-ASSY, WHEEL HOUSE, RH

61105D

PANEL SUB-ASSY, SIDE, NO.3 RH

61108A

REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

61121

PANEL, COWL SIDE, OUTER RH

61125C

REINFORCEMENT, COWL SIDE PANEL, RH

61127B

REINFORCEMENT, COWL SIDE PANEL, NO.2 RH

61201

RAIL SUB-ASSY, ROOF SIDE, RH

61203

RAIL SUB-ASSY, ROOF SIDE, INNER RH

61237E

BRACKET, ASSIST GRIP, NO.1

61247B

REINFORCEMENT, ROOF SIDE RAIL, INNER RH

61301

PILLAR SUB-ASSY, CENTER BODY, RH

61305

REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH

61401C

PANEL SUB-ASSY, ROCKER, OUTER RH

61619D

REINFORCEMENT, QUARTER PANEL, RH

61623D

EXTENSION, QUARTER PANEL, FRONT RH

61627B

EXTENSION, QUARTER PANEL, UPPER REAR RH

61631A

PANEL, QUARTER WHEEL HOUSE, OUTER RH

61633A

PANEL, QUARTER WHEEL HOUSE, INNER RH

61645B

GUSSET, QUARTER WHEEL HOUSE, REAR RH

61665B

REINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, RH

61667C

SEAL, QAURTER PANEL, NO.1

61694

COVER, QUARTER INNER, NO.1

61695

COVER, QUARTER INNER, NO.2

61707Q

PLATE SUB-ASSY, QUARTER WINDOW LOCK GUSSET, RH

61713A

EXTENSION, ROOF SIDE, OUTER RH

61715A

EXTENSION, ROOF SIDE, INNER UPPER RH

61719C

BRACKET, ROOF SIDE RAIL, RH

61731B

PANEL, ROOF SIDE, INNER RH

61735A

PANEL, ROOF SIDE, INNER REAR RH

61737L

REINFORCEMENT, ROOF SIDE, INNER RH

61741A

REINFORCEMENT, BACK DOOR OPENING, UPPER RH

61745A

REINFORCEMENT, BACK DOOR OPENING, LOWER RH

61751B

RETAINER, QUARTER TRIM, UPPER

61758

RETAINER, BACK DOOR STOPPER, LOWER

61761A

REINFORCE, SEAT BELT ANCHOR, NO.1 UPPER RH

61771

PATCH, BACK DOOR OPENING, UPPER RH

61777D

RETAINER, BACK DOOR SIDE STOPPER, RH

65565

PATCH, SIDE PANEL REAR END, RH

65637B

LINER, REAR WHEEL HOUSE, RH

9011906952

Крепеж

9046706121

Крепеж

91673A0616

Крепеж

Код

Описание

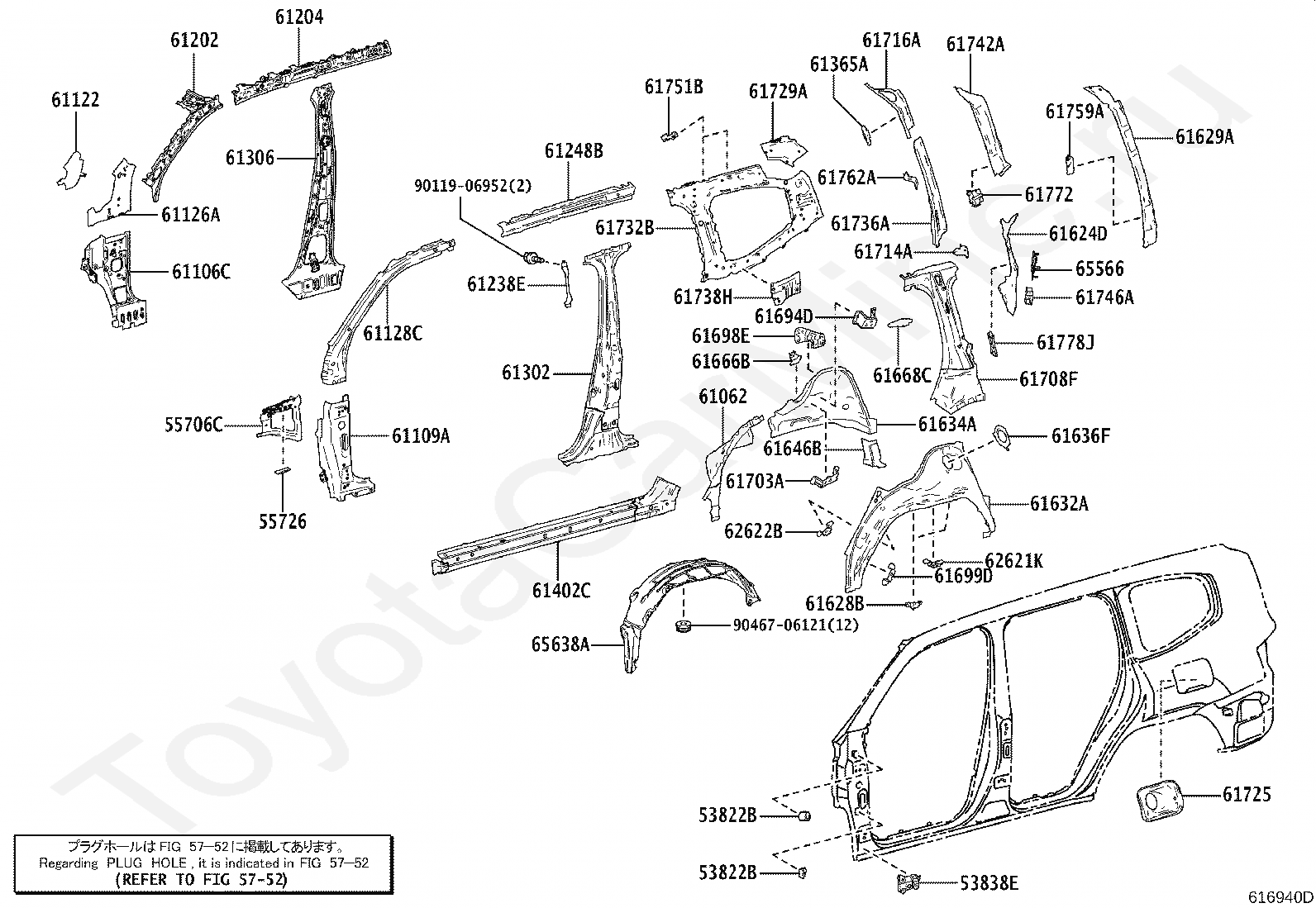

53822B

BRACKET, FRONT FENDER, REAR LH

53838E

BRACKET, FRONT SIDE PANEL, NO.2 LH

55706C

PANEL SUB-ASSY, COWL TOP SIDE, LH

55726

REINFORCEMENT, HOOD HINGE MOUNTING, LH

5752

переход к группе запчастей

61062

REINFORCEMENT SUB-ASSY, WHEEL HOUSE, LH

61106C

PANEL SUB-ASSY, SIDE, NO.3 LH

61109A

REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

61122

PANEL, COWL SIDE, OUTER LH

61126A

REINFORCEMENT, COWL SIDE PANEL, LH

61128C

REINFORCEMENT, COWL SIDE PANEL, NO.2 LH

61202

RAIL SUB-ASSY, ROOF SIDE, LH

61204

RAIL SUB-ASSY, ROOF SIDE, INNER LH

61238E

BRACKET, ASSIST GRIP, NO.2

61248B

REINFORCEMENT, ROOF SIDE RAIL, INNER LH

61302

PILLAR SUB-ASSY, CENTER BODY, LH

61306

REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH

61365A

REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, NO.3

61402C

PANEL SUB-ASSY, ROCKER, OUTER LH

61624D

EXTENSION, QUARTER PANEL, FRONT LH

61628B

EXTENSION, QUARTER PANEL, UPPER REAR LH

61629A

REINFORCEMENT, QUARTER PANEL, LH

61632A

PANEL, QUARTER WHEEL HOUSE, OUTER LH

61634A

PANEL, QUARTER WHEEL HOUSE, INNER LH

61636F

REINFORCEMENT, QUARTER PANEL, UPR LH

61646B

GUSSET, QUARTER WHEEL HOUSE, REAR LH

61666B

REINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, LH

61668C

SEAL, QUARTER PANEL, NO.2

61694D

BRACKET, REAR WHEEL OPENING, NO.2

61698E

BRACKET, REAR WHEEL OPENING, NO.6

61699D

BRACKET, REAR WHEEL

61703A

BRACKET,FUEL TANK FILLTER PIPE PROTECTOR

61708F

PLATE SUB-ASSY, QUARTER WINDOW LOCK GUSSET, LH

61714A

EXTENSION, ROOF SIDE, OUTER LH

61716A

EXTENSION, ROOF SIDE, INNER UPPER LH

61725

BOX, FUEL INLET

61729A

BRACKET, ROOF SIDE RAIL, LH

61732B

PANEL, ROOF SIDE, INNER LH

61736A

PANEL, ROOF SIDE, INNER REAR LH

61738H

REINFORCEMENT, ROOF SIDE, INNER LH

61742A

REINFORCEMENT, BACK DOOR OPENING, UPPER LH

61746A

REINFORCEMENT, BACK DOOR OPENING, LOWER LH

61751B

RETAINER, QUARTER TRIM, UPPER

61759A

BRACKET, ROOF SIDE REINFORCEMENT

61762A

REINFORCE, SEAT BELT ANCHOR, NO.1 UPPER LH

61772

PATCH, BACK DOOR OPENING, UPPER LH

61778J

RETAINER, BACK DOOR SIDE STOPPER, LH

62621K

PAD, QUARTER WHEEL HOUSE, INNER

62622B

PAD, QUARTER WHEEL HOUSE, INNER FRONT LH

65566

PATCH, SIDE PANEL REAR END, LH

65638A

LINER, REAR WHEEL HOUSE, LH

9011906952

Крепеж

9046706121

Крепеж
